StarTech.com 1m CAT6 LSZH Ethernet Cable, 10GbE 100W PoE RJ45, Black
£5.45 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item

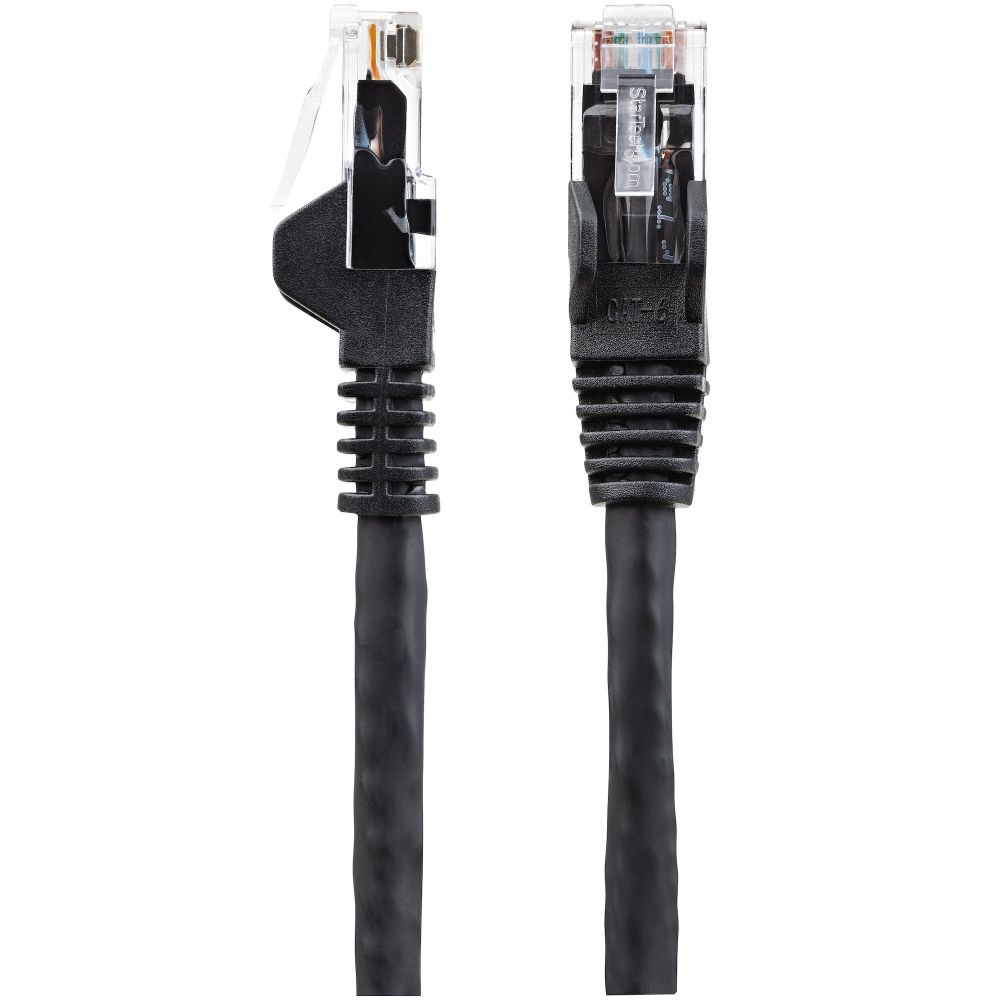

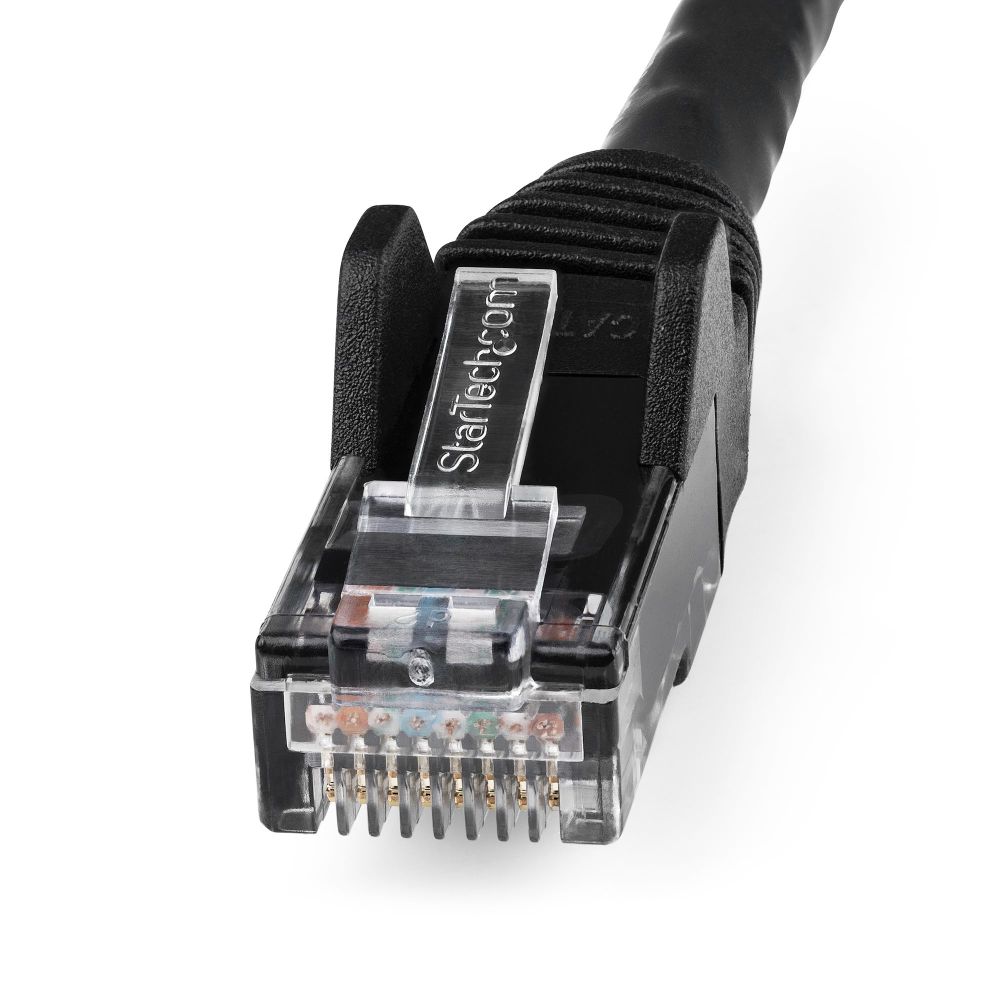

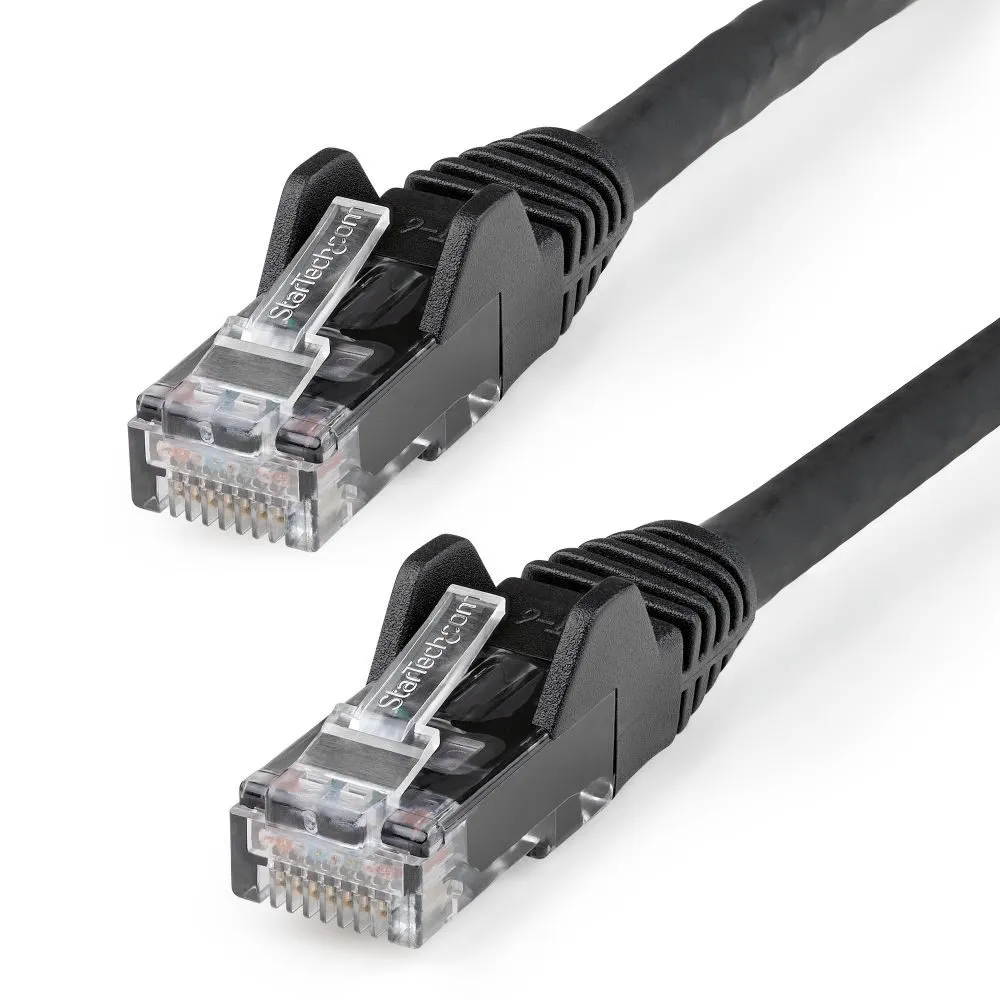

- 1m Black LSZH Cat6 snagless cable with RJ45 male connectors and gold-plated contacts
- 10 Gigabit Ethernet 650MHz performance with U/UTP shielding for minimal crosstalk
- 100W PoE support (IEEE 802.3bt Type 4) for high-power devices
- 100% bare copper 24AWG conductors with strain relief and 40mm bend radius
- CE and RoHS compliant, operating temperature 0–80°C, 45g weight
- What to check: confirm 10GbE reach up to 55m meets your installation distance
Payment Methods:
You may also like
StarTech.com 1m CAT6 | LSZH 10GbE Patch Cable
The StarTech.com 1m CAT6 Ethernet Cable – LSZH (Low Smoke Zero Halogen) – 10 Gigabit 250Mhz 100W PoE RJ45 10GbE UTP Network Patch Cord Snagless with Strain Relief – Black, CAT 6,… is built for UK IT professionals. It supports 10GBase-T speeds and 100W PoE. The LSZH jacket reduces toxic fumes during a fire. This cable suits modern offices, server rooms, and home labs needing reliable, high-speed connectivity.
Slim Technical Specifications
| Metric | Spec. |
|---|---|
| Cable Standard | Cat6 U/UTP |
| Length | 1 metre |
| Data Rate | 10 Gbit/s |
| Frequency | 650 MHz |
| PoE Support | 100W (IEEE 802.3bt Type 4) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
Reliable 10 Gigabit Performance
This cable supports error-free Multi-Gigabit connections up to 10Gbps. It uses 100% bare copper conductors, not CCA. This ensures stable signal integrity over the full 1 metre length. The 650MHz bandwidth handles high data throughput without packet loss.
Certified Safety and LSZH Benefits
The jacket is Low Smoke Zero Halogen (LSZH). In a fire, it produces minimal toxic fumes and white smoke. This improves visibility for safer evacuation. The cable is PVC-free. It is suitable for installations where fire safety regulations are strict.
Certified Performance and Build Quality
StarTech.com tests each cable using a Fluke DSX2-8000 CableAnalyzer. It is ETL verified to ANSI/TIA-568.2-D Category 6 standards. The snagless boot protects the RJ45 clip during installation. Gold-plated connectors ensure a solid, corrosion-free connection.
100W Power over Ethernet (PoE)
This cable supports 100W continuous power throughput. It complies with IEEE 802.3bt Type 4. You can power high-draw devices like PTZ cameras, laptops, and digital signage. The spline separator aids heat dissipation during prolonged PoE use.
Durable and Flexible Construction
The 24AWG copper wire is stranded for flexibility. A bend radius of 100mm allows tight routing. The molded strain relief prevents damage at the connector entry. The outer diameter is 6mm, fitting standard cable management systems.
Box contents
- 1 x StarTech.com 1m CAT6 Ethernet Cable (Black)
Key points to check
- Confirm your switch or router supports 10GbE (10 Gigabit Ethernet) to utilise the full speed.
- Verify your PoE source supports IEEE 802.3bt (Type 4) for 100W power delivery.
- Check that the cable length suits your rack or desk layout without excessive slack.
- Ensure compliance with local UK fire safety codes for LSZH cabling in commercial buildings.
Common questions
Is this cable suitable for UK office environments?
Does this cable support 10Gbps speeds?
Can I use this for high-power PoE devices?
Are the connectors gold-plated?
Is this cable shielded?
The short version
This cable is ideal for UK IT professionals upgrading to 10GbE or deploying high-power PoE devices. It offers certified performance and enhanced fire safety with the LSZH jacket. Covered by the applicable manufacturer warranty.
| Product colour | Black |
|---|---|
| Snagless cable boot | Yes |
| Conductor material | Copper |
| Frequency | 650 MHz |
| AWG wire size | 24 |
| Plug and Play | Yes |
| Cable standard | Cat6 |
| Cable shielding | U/UTP (UTP) |
| Connector 1 | RJ-45 |
| Connector 2 | RJ-45 |
| Connector contacts plating | Gold |
| Data transfer rate | 10000 Mbit/s |
| Jacket material | Low smoke zero halogen (LSZH) |
| Cable length | 1 m |
| Cable shape | Round |
| Connector 2 gender | Male |
| Connector 1 gender | Male |
| Harmonized System HS code | 84733080 |
| Storage temperature T-T | 0 – 80 °C |
| Operating temperature T-T | 0 – 80 °C |
| Operating relative humidity H-H | 0 – 95% |
| Doesnt contain | Halogen |
| Compliance certificates | CE, RoHS |
| Outer diameter | 6 mm |
| Weight | 45 g |
| Quantity per pack | 1 pc(s) |
| Package width | 200 mm |
| Package depth | 220 mm |
| Package height | 15 mm |
| Products per master outer case | 120 pc(s) |
| Master outer case width | 380 mm |
| Master outer case length | 430 mm |
| Master outer case height | 290 mm |
| Pallet gross width | 29 cm |
| Pallet gross length | 29 cm |
| Pallet gross height | 39 cm |
| Distributor SKUs | V267764, CA95908, 94396, 6371243, 214089, NS94396 |
