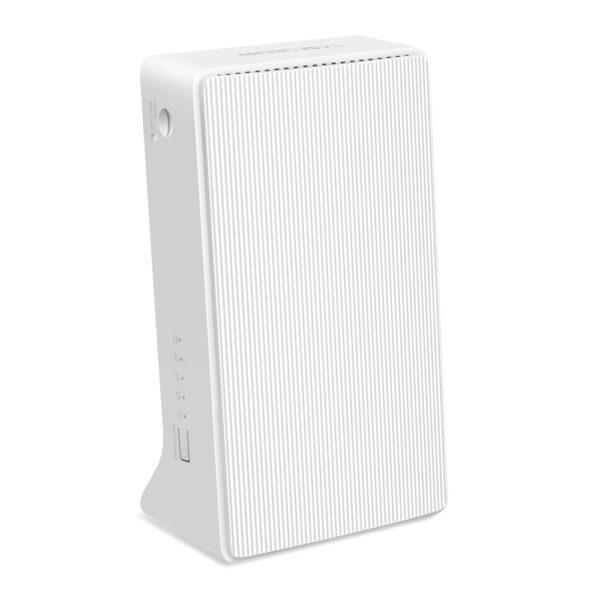

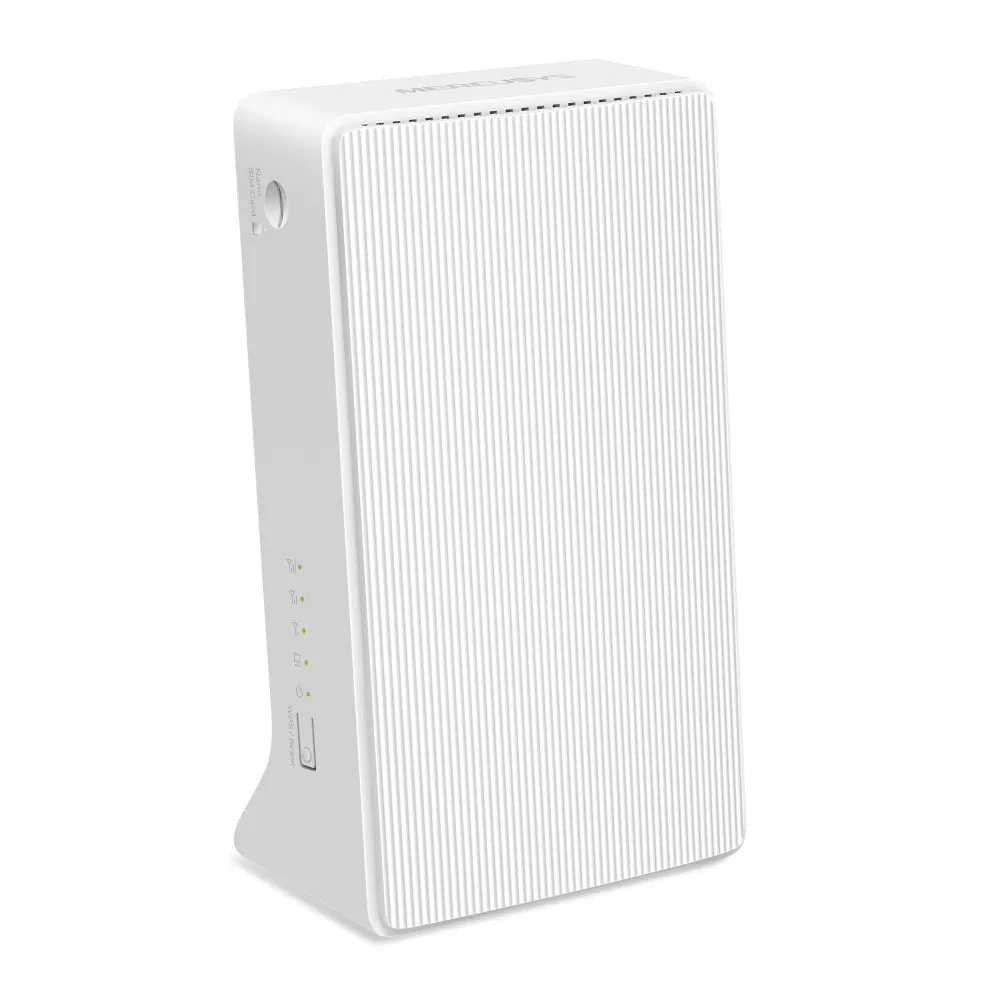

Mercusys 4G+ Cat6 AC1200 Router
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 4G+ Cat6 AC1200 dual-band wireless router
- Nano SIM card slot for 4G LTE connectivity
- Supports FDD-LTE and TDD-LTE for global compatibility
- Up to 300 Mbps download and 50 Mbps upload speeds
- 2 Gigabit Ethernet ports for wired connections
- MERCUSYS app for easy setup and management
- Supports up to 64 simultaneous Wi-Fi connections
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
Mercusys MB230-4G | Cat6 4G+ Router with Dual-Band Wi-Fi
The Mercusys 4G+ Cat6 AC1200 Wireless Dual Band Gigabit Router delivers reliable, high-speed internet for UK homes and remote setups where fixed broadband is unavailable. With Cat6 4G+ speeds up to 300 Mbps and dual-band Wi-Fi, it’s ideal for streaming, gaming, and connecting multiple devices without a fixed-line connection.
Quick Specs
| Metric | Spec. |
|---|---|
| 4G+ Category | Cat6 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| Max Wi-Fi Speed | 1200 Mbps |
| SIM Type | Nano SIM |
| LAN Ports | 2 x Gigabit Ethernet |
| Max Connected Devices | 64 |
Ultra-Fast 4G+ Cat6 Connectivity
Built on Cat6 4G+ technology, this router uses Carrier Aggregation to combine multiple LTE bands for speeds up to 300 Mbps download and 50 Mbps upload. Whether you’re in a rural area or need a backup connection, it delivers stable, high-bandwidth internet without relying on fixed-line infrastructure.
Dual-Band Wi-Fi for Seamless Streaming
Supporting both 2.4 GHz and 5 GHz bands, the MB230-4G provides up to 1200 Mbps total Wi-Fi throughput. The 5 GHz band is perfect for 4K streaming and online gaming, while the 2.4 GHz band ensures broader coverage for everyday devices. Internal high-gain antennas boost signal strength and range.
Flexible WAN/LAN Connectivity
Unlike many 4G routers, this model features a fully functional WAN/LAN port, allowing it to work with cable, fibre, or DSL modems as a primary router. You can also connect wired devices directly via the two Gigabit Ethernet ports, making it a versatile hub for both wireless and wired networks.
Simple Setup with MERCUSYS App
Installation takes minutes—just insert a nano SIM card, power on, and use the MERCUSYS app (Android/iOS) to configure settings, monitor usage, and manage connected devices. The app provides an intuitive interface for both beginners and advanced users.
Box Contents
- Mercusys MB230-4G 4G+ Router
- Power adapter (12V/1A)
- Quick installation guide
- Warranty information
Check before you buy
- Confirm your UK SIM card is nano-sized and activated for mobile data.
- Verify your provider supports the listed 4G bands (700/800/900/1800/2100/2300/2600 MHz).
- Ensure your location has adequate 4G coverage for optimal speeds.
- Check that your devices support 2.4 GHz or 5 GHz Wi-Fi bands.
Frequently Asked Questions
Q: Does this router support voice calls or SMS?
A: No, it provides data connectivity only via Wi-Fi or Ethernet, not voice or SMS services.
Q: Can I use this as a backup to my existing broadband?
A: Yes, it can be configured as a failover or secondary connection to your main router.
Q: Is a SIM card included?
A: No, you must supply your own activated nano SIM card from a compatible provider.
Q: Does it support VPN or port forwarding?
A: Yes, it includes VPN pass-through, port forwarding, and DMZ options for advanced networking.
Q: What’s the maximum number of devices I can connect?
A: Up to 64 simultaneous Wi-Fi and wired connections are supported.
The Consultant’s verdict & warranty
The Mercusys MB230-4G is a robust solution for anyone needing fast, flexible internet without a fixed-line connection. Its Cat6 4G+ speeds, dual-band Wi-Fi, and versatile WAN/LAN support make it equally suited to rural homes, temporary offices, or as a reliable backup. Covered by the standard Manufacturer Warranty.
| Mobile network generation | 4G |
|---|---|
| 4G bands supported | 700,800,850,900,1800,2100,2300,2600 MHz |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| SIM card type | NanoSIM |
| 3G bands supported | 850,900,2100 MHz |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN | Yes |
| Receiver sensitivity | 11g 6Mbps: -95dBm, 11g 54Mbps: -77dBm, 11n HT20 MCS7: -74dBm, 11n HT40 MCS7: -71dBm, 11a 6Mbps: -92dBm, 11a 54Mbps: -75dBm, 11ac VHT20 MCS8: -70dBm, 11ac VHT40 MCS9: -65dBm, 11ac VHT80 MCS9: -61dBm |
| Port forwarding | Yes |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port triggering | Yes |
| Dynamic DNS DDNS | Yes |
| VoIP protocols | IPv4, IPv6 |
| DHCP server | Yes |
| Universal Plug and Play UPnP | Yes |
| WPS push button | Yes |
| Reset button | Yes |
| Wi-Fi Multimedia WMM/WME | Yes |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | Yes |
| 3G/4G USB modem compatibility | Yes |
| Dual SIM support | No |
| WAN connection type | RJ-45 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN data transfer rate max | 1200 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz, 5 GHz) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| USB port | No |
| Ethernet LAN RJ-45 ports | 2 |
| DC-in jack | Yes |
| System event log | Yes |
| Security algorithms | 64-bit WEP, WPA-PSK, WPA2-PSK, WPA3-SAE |
| Port-based Network Access Control PNAC | Yes |
| Firewall | Yes |
| DMZ support | Yes |
| Product type | Desktop/pole router |
| Product colour | White |
| Indication light | Yes |
| Antenna design | Internal |
| Firmware upgradeable | Yes |
| Power source type | DC |
| Output voltage | 12 V |
| Output current | 1 A |
| Storage temperature T-T | -40 – 60 °C |
| Storage relative humidity H-H | 5 – 90% |
| Operating temperature T-T | 0 – 40 °C |
| Operating relative humidity H-H | 10 – 90% |
| Width | 95 mm |
| Height | 166 mm |
| Depth | 61 mm |
| Package type | Box |
| AC adapter included | Yes |
| Quick installation guide | Yes |
| Number of products included | 1 pc(s) |
