TP-Link Omada Gigabit VPN Router
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Up to 1 Gbps Ethernet speeds with 10/100/1000Base-T(X) cabling
- Supports up to 150,000 concurrent connections for high-traffic networks
- 20 VPN tunnels with IPsec/PPTP/L2TP for secure remote access
- 5 Gigabit Ethernet ports plus 1 USB WAN for mobile broadband backup
- Compact 1U rack-mountable design with 128MB flash and 256MB DRAM
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
TP-Link ER605 | Professional Gigabit VPN Router
The TP-Link ER605 is a high-performance Gigabit VPN router designed for businesses that need secure, reliable connectivity with advanced network management. Built on TP-Link’s Omada Software Defined Networking (SDN) platform, it offers centralized cloud-based control alongside standalone local management options.
Quick Specs
| Metric | Spec |
|---|---|
| WAN Ports | 3 Gigabit (2 interchangeable) |
| VPN Tunnels | 20 IPSec, 10 PPTP, 10 L2TP, 10 OpenVPN |
| Firewall | Yes (DoS protection, URL/IP/MAC filtering) |
| Management | Omada App, Web UI, SDN Controller |
| Memory | 256 MB DRAM, 128 MB Flash |
Advanced VPN Security for Business Networks
The ER605 supports up to 20 IPSec VPN tunnels with multiple encryption standards including AES-256 and 3DES, ensuring enterprise-grade data protection. One-click auto IPSec VPN setup dramatically simplifies configuration for secure site-to-site connections. Performance is enhanced by 4-5 times compared to previous versions, making it suitable for bandwidth-intensive applications.
Multi-WAN Flexibility and Load Balancing

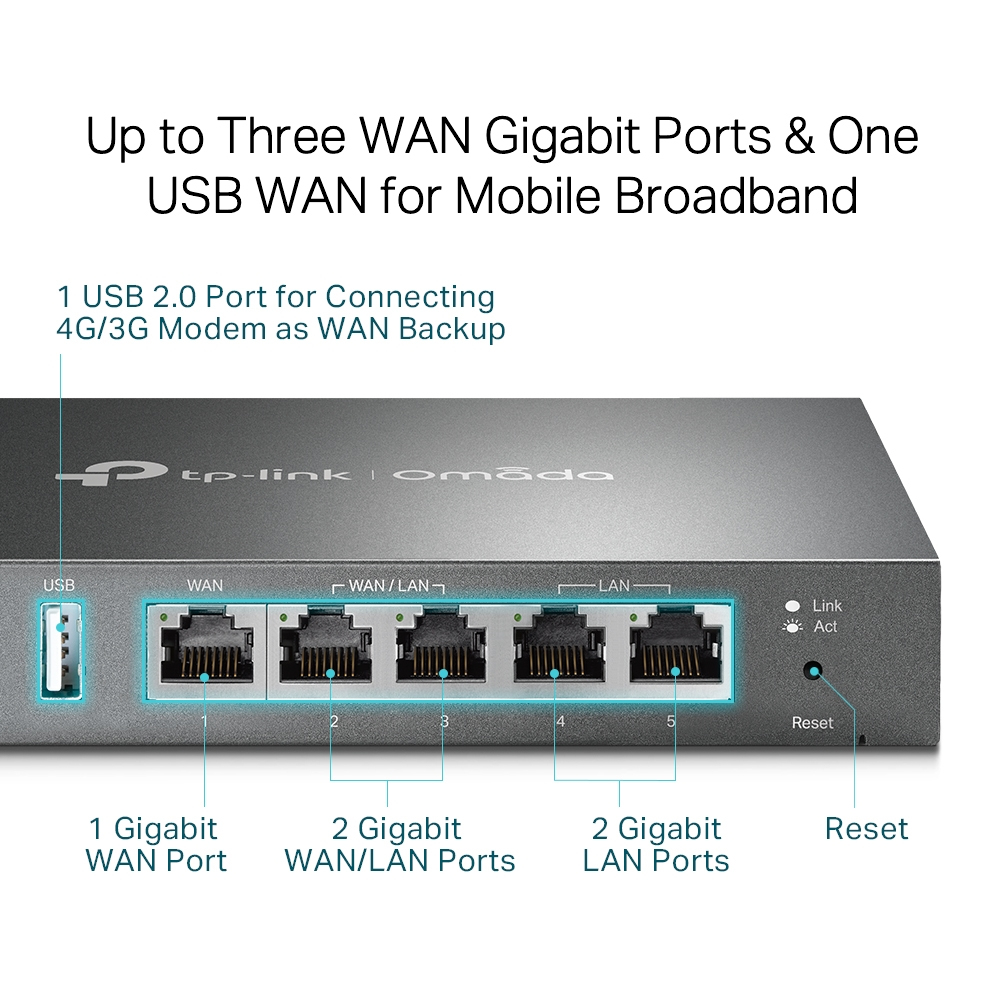

With three Gigabit WAN ports (two of which are freely interchangeable), this router accommodates diverse internet access requirements. The built-in load balancing distributes traffic across multiple connections based on bandwidth availability, maximizing network utilization. A USB port provides 4G/3G mobile broadband backup when primary connections fail.
Comprehensive Network Protection
Enterprise-level security features include advanced firewall policies, VLAN support for network segmentation, and DoS attack prevention against flooding and ping-of-death attacks. IP-MAC binding defends against ARP spoofing, while URL filtering and access control lists allow administrators to manage user internet access rights effectively.

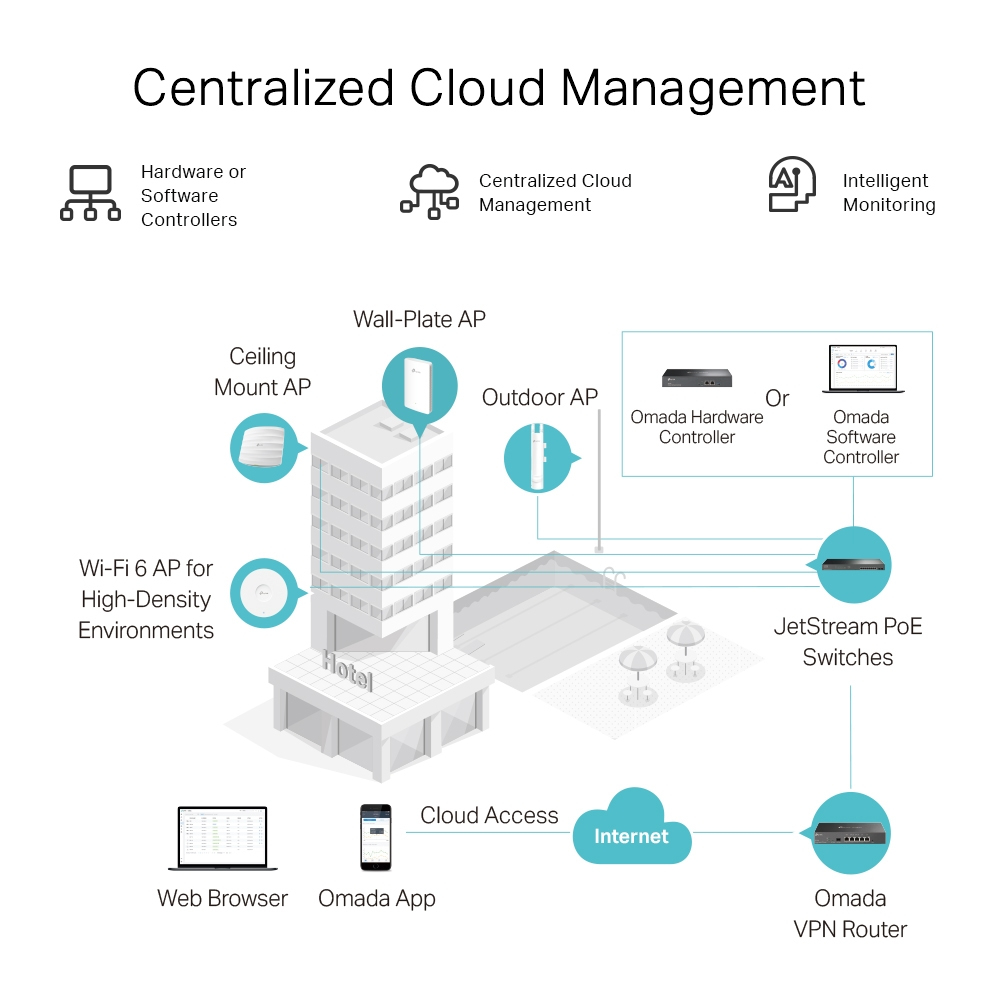

Cloud-Managed Networking with Omada SDN
As part of TP-Link’s Omada ecosystem, the ER605 enables centralized management through the Omada SDN Controller. This cloud-based solution allows network administrators to monitor and configure multiple devices from anywhere via the Omada app or web interface, streamlining operations for distributed business environments.
Box Contents
- TP-Link ER605 Gigabit VPN Router
- Quick Installation Guide
- Quick Start Guide
- User Manual
- Power Adapter (AC)
Check before you buy
- Confirm three Gigabit WAN ports meet your ISP connection requirements
- Verify VPN protocols needed (IPSec, PPTP, L2TP, OpenVPN) are supported
- Check if Omada SDN Controller compatibility is required for your network
- Confirm rack-mounting option (1U) fits your equipment rack
Frequently Asked Questions
Q: How many VPN clients can connect simultaneously?
A: The router supports 10 PPTP clients, 10 L2TP clients, and 10 OpenVPN clients concurrently.
Q: Does this support mobile broadband backup?
A: Yes, connect a 4G/3G USB modem to the USB port for WAN backup connectivity.
Q: Can I manage this router remotely?
A: Yes, through the Omada app, web interface, or Omada SDN Controller for cloud-based management.
Q: What security protocols are available?
A: Supports IPSec with AES-128/192/256, 3DES, DES encryption and MD5/SHA-1 authentication.
Q: Is rack mounting possible?
A: Yes, the ER605 is designed for 1U rack mounting with included brackets.
The Consultant’s verdict & warranty
The TP-Link ER605 delivers enterprise-grade VPN security and network management in a compact, rack-mountable form factor. Its combination of advanced VPN capabilities, multi-WAN flexibility, and cloud-based Omada integration makes it ideal for small to medium businesses requiring secure, scalable networking solutions. Covered by the standard Manufacturer Warranty.
| Weight | 0.65 kg |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| VLAN support | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Concurrent connections | 150000 |
| Traffic control | Yes |
| Ethernet WAN | Yes |
| DSL WAN | No |
| SIM card slot | No |
| 3G/4G USB modem compatibility | No |
| Universal Plug and Play UPnP | Yes |
| Web-based management | Yes |
| Reset button | Yes |
| USB ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 5 |
| Routing protocols | RIP-1, RIP-2 |
| Management protocols | Telnet |
| Supported network protocols | TCP/IP, DHCP, ICMP, NAT, PPPoE, SNTP, HTTP, DNS, IPsec, PPTP, L2TP |
| DMZ support | Yes |
| DHCP server | Yes |
| DHCP client | Yes |
| Supported protocols | IPsec/PPTP/L2TP |
| Policy-based routing | Yes |
| DoS attack prevention | Yes |
| Network address translation NAT | Yes |
| URL filtering | Yes |
| Firewall | Yes |
| Authentication method | SHA-1, MD5 |
| Security algorithms | 3DES, 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SHA-1 |
| VPN tunnels quantity | 20 |
| System event log | Yes |
| NAT functionality | • One-to-One NAT • Multi-Net NAT • Virtual Server • Port Triggering • NAT-DMZ • FTP/H.323/SIP/IPSec/PPTP ALG, UPnP |
| VPN support | • 20 IPsec VPN Tunnels • LAN-to-LAN, Client-to-LAN • Main, Aggressive Negotiation Mode • DES, 3DES, AES128, AES192, AES256 Encryption Algorithm • IKEv1/v2 • MD5, SHA1 Authentication Algorithm • NAT Traversal (NAT-T) • Dead Peer Detection (DPD) • Perfect Forward Secrecy (PFS) • PPTP VPN Server • 10 PPTP VPN Clients • 16 Tunnels • PPTP with MPPE Encryption • L2TP VPN Server • 10 L2TP VPN Clients • 16 Tunnels • L2TP over IPSec • OpenVPN Server • 10 OpenVPN Clients • 16 OpenVPN Tunnels |
| ARP attack prevention | Yes |
| Compliance certificates | RoHS |
| Internal memory type | DRAM |
| Flash memory | 128 MB |
| Internal memory | 256 MB |
| Windows operating systems supported | Windows 10, Windows 2000, Windows 7, Windows 8, Windows 8.1, Windows 98SE, Windows NT, Windows Vista, Windows XP |
| Mac operating systems supported | MacOS |
| Linux operating systems supported | Yes |
| Certification | CE, FCC, RoHS |
| Rack mounting | Yes |
| LED indicators | Activity, LAN, System, USB, WAN |
| Product colour | Black |
| Rack capacity | 1U |
| Power source type | AC |
| AC input voltage | 120 – 240 V |
| AC input frequency | 50 – 60 Hz |
| Power consumption typical | 7.94 W |
| Operating temperature T-T | 0 – 40 °C |
| Storage temperature T-T | -40 – 70 °C |
| Operating relative humidity H-H | 10 – 90% |
| Storage relative humidity H-H | 5 – 90% |
| Width | 158 mm |
| Depth | 101 mm |
| Height | 25 mm |
| Quick installation guide | Yes |
| Package width | 190 mm |
| Package depth | 254 mm |
| Package height | 60 mm |
| Quick start guide | Yes |
| Package weight | 650 g |
| Manual | Yes |
| Cables included | AC |
