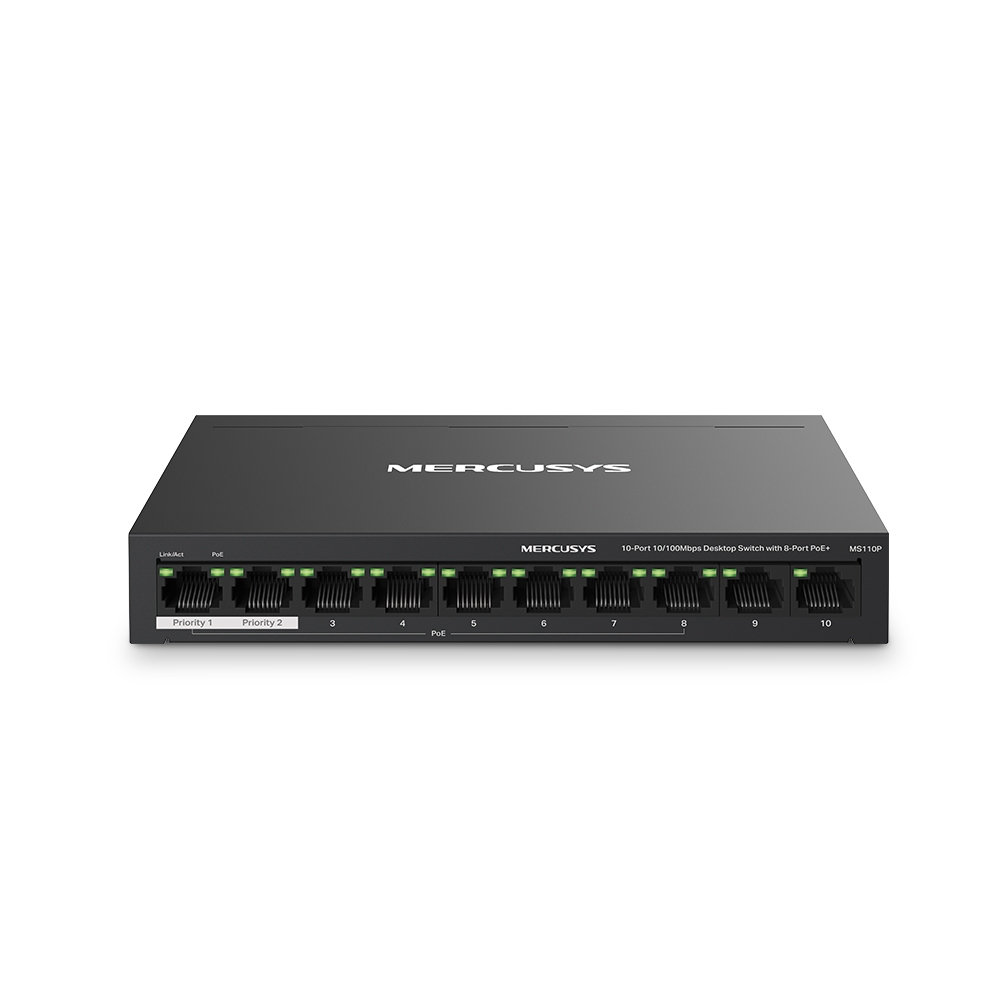

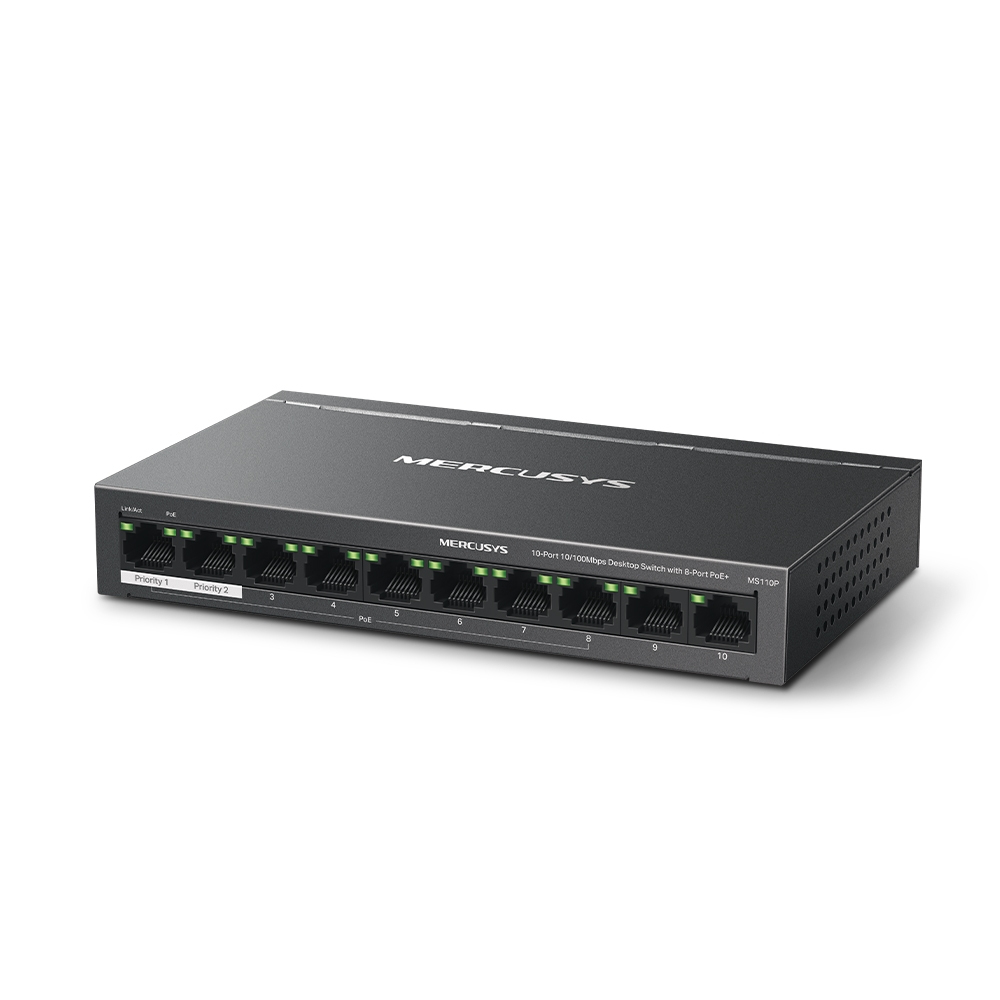

Mercusys MS110P 10-Port Fast Ethernet Switch with 8 PoE+ Ports, 65W Budget, Wall Mountable, Black
£31.44 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item

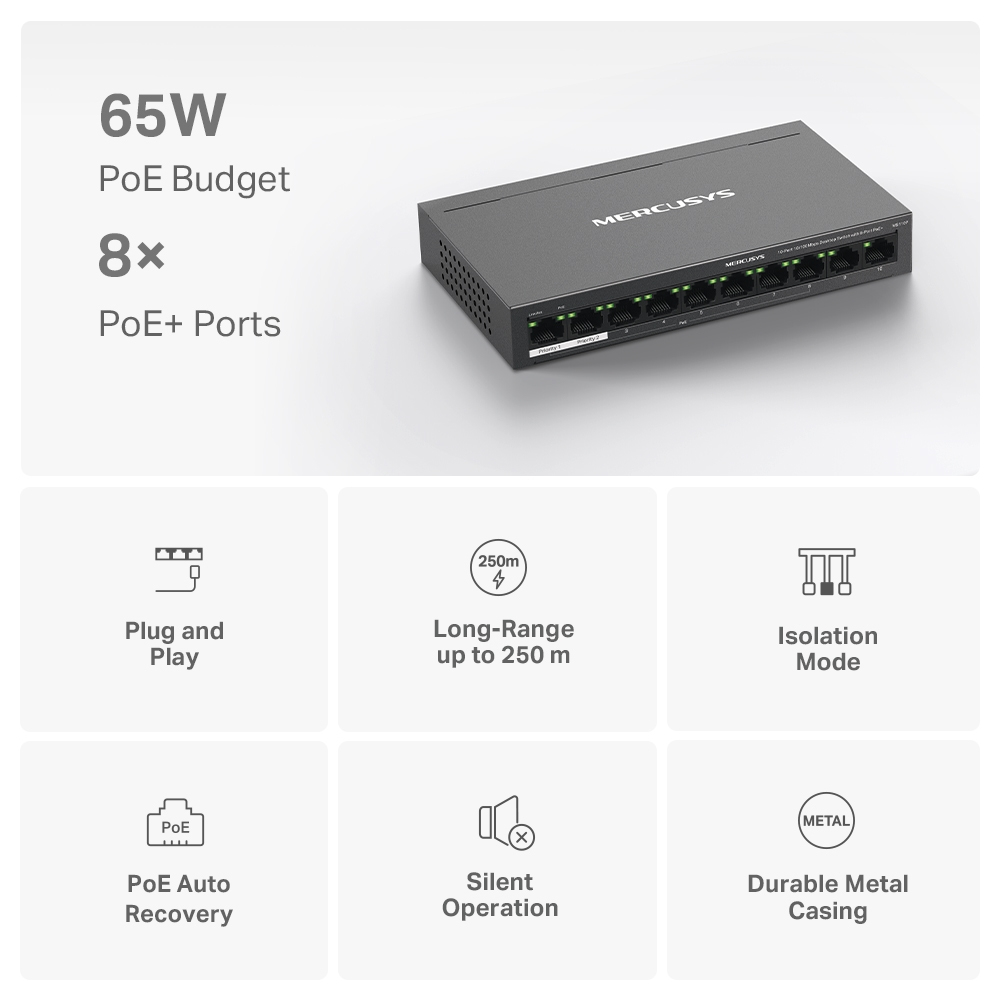

- Managed 10-Port Fast Ethernet switch with 8 PoE+ ports
- 65W PoE power budget across 8 ports, compliant with 802.3af/at standards
- Extend Mode for PoE transmission up to 250m
- Traffic separation and port prioritisation for enhanced network control
- PoE Auto Recovery feature to automatically reboot unresponsive devices

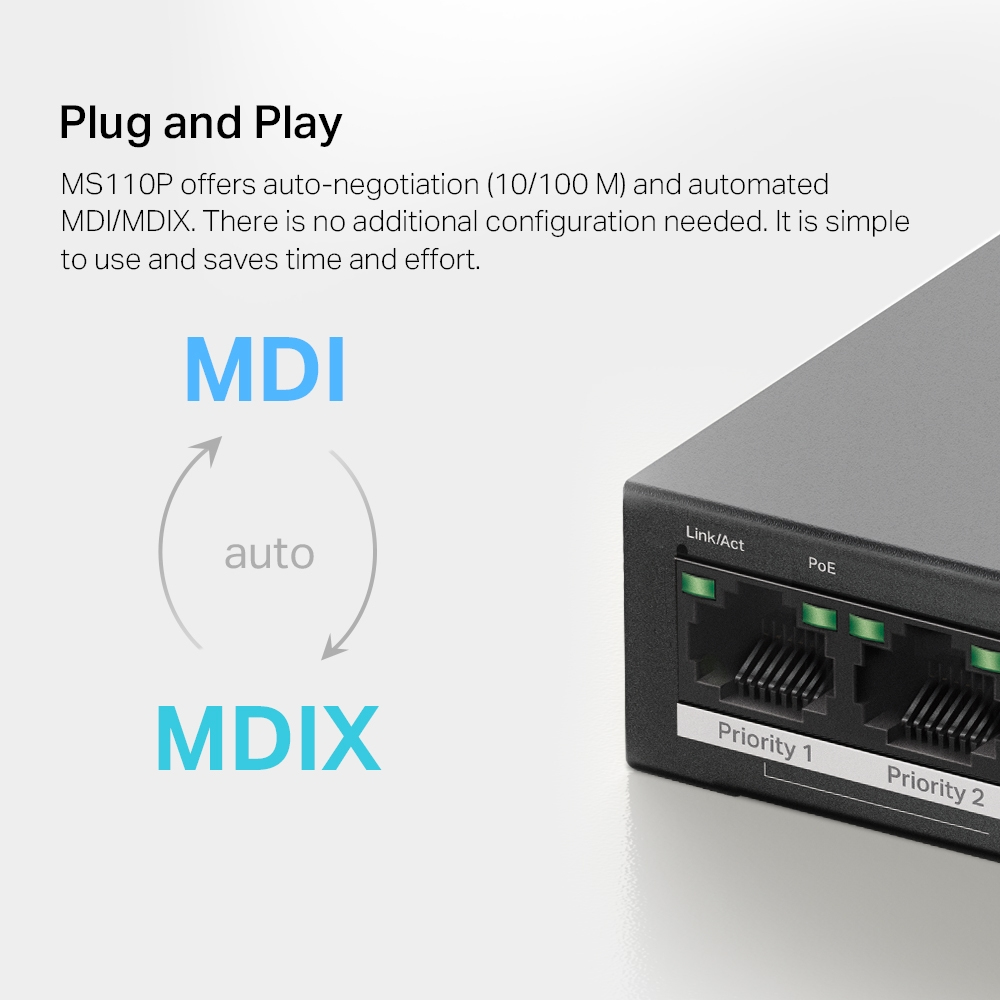

- Plug and Play operation with auto-negotiation and MDI/MDIX
- Durable metal casing for efficient heat dissipation and stability
Payment Methods:
You may also like
TP-Link TL-SG1005P 5-Port PoE Switch
In stock
Mercusys MS110P – Streamlined Network Deployment
The Mercusys MS110P 10-Port Fast Ethernet Switch with 8 PoE+ Ports, 65W Budget, Wall Mountable, Black is ideal for small businesses and home offices. It simplifies network expansion, powering devices like IP cameras and access points directly. This switch offers a straightforward solution for expanding your network with integrated power.
Core Network Metrics
| Metric | Spec. |
|---|---|
| Ethernet Ports Quantity | 10 |
| PoE+ Ports | 8 |
| Total PoE Budget | 65 W |
| Ethernet LAN Data Rates | 10, 100 Mbit/s |
| MAC Address Table | 2000 entries |
| Wall Mountable | Yes |
Effortless Device Powering

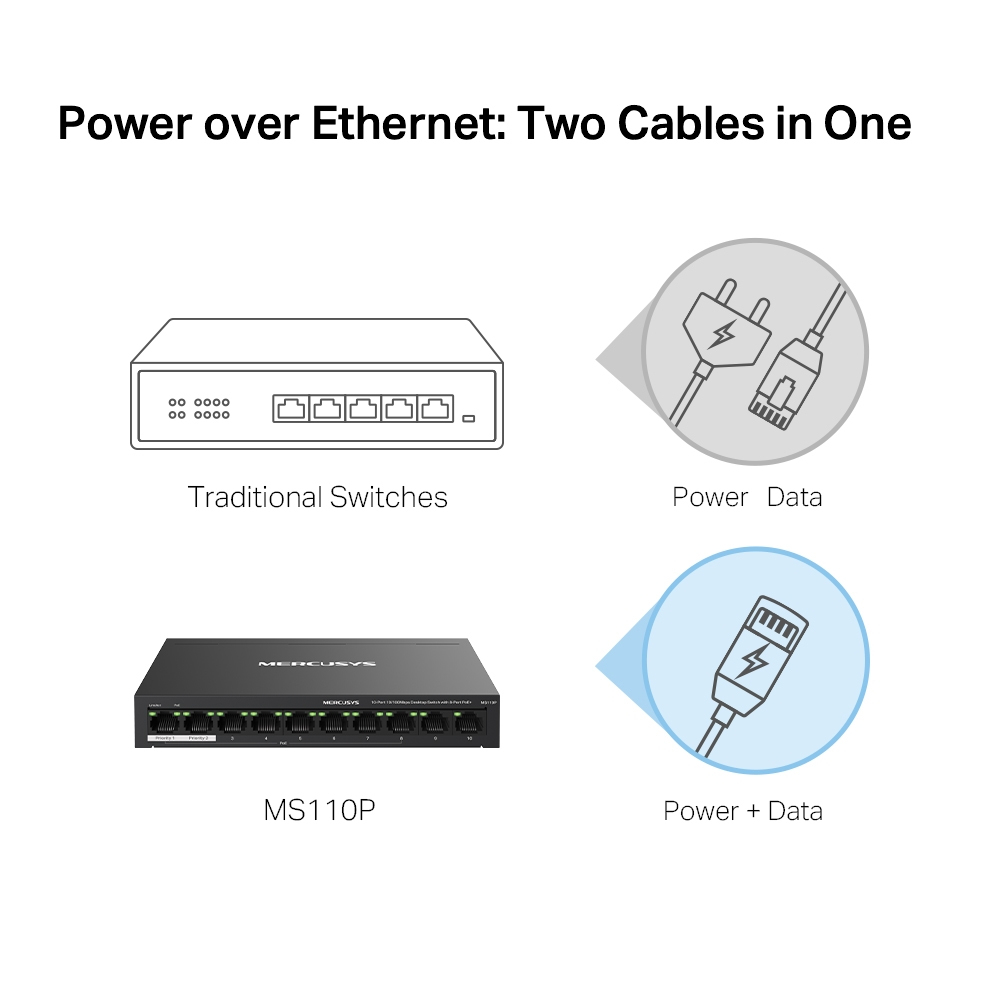

We designed this switch to simplify your installations. Eight PoE+ ports deliver power and data over a single Ethernet cable. This eliminates the need for separate power adapters for compatible devices.

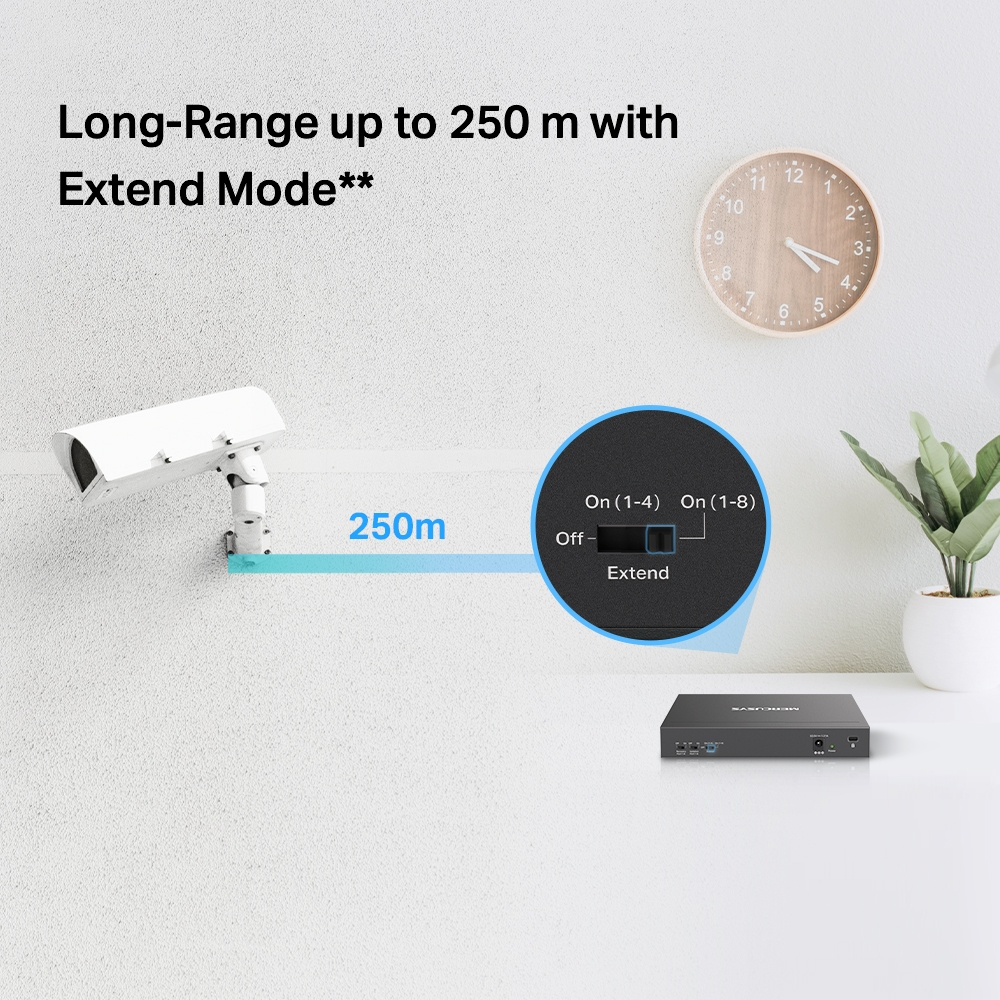

Extended Reach for IP Surveillance
Deploying IP cameras over large areas is now much easier. The Extend Mode boosts PoE transmission distance up to 250 metres. This feature removes common distance limitations for surveillance setups.

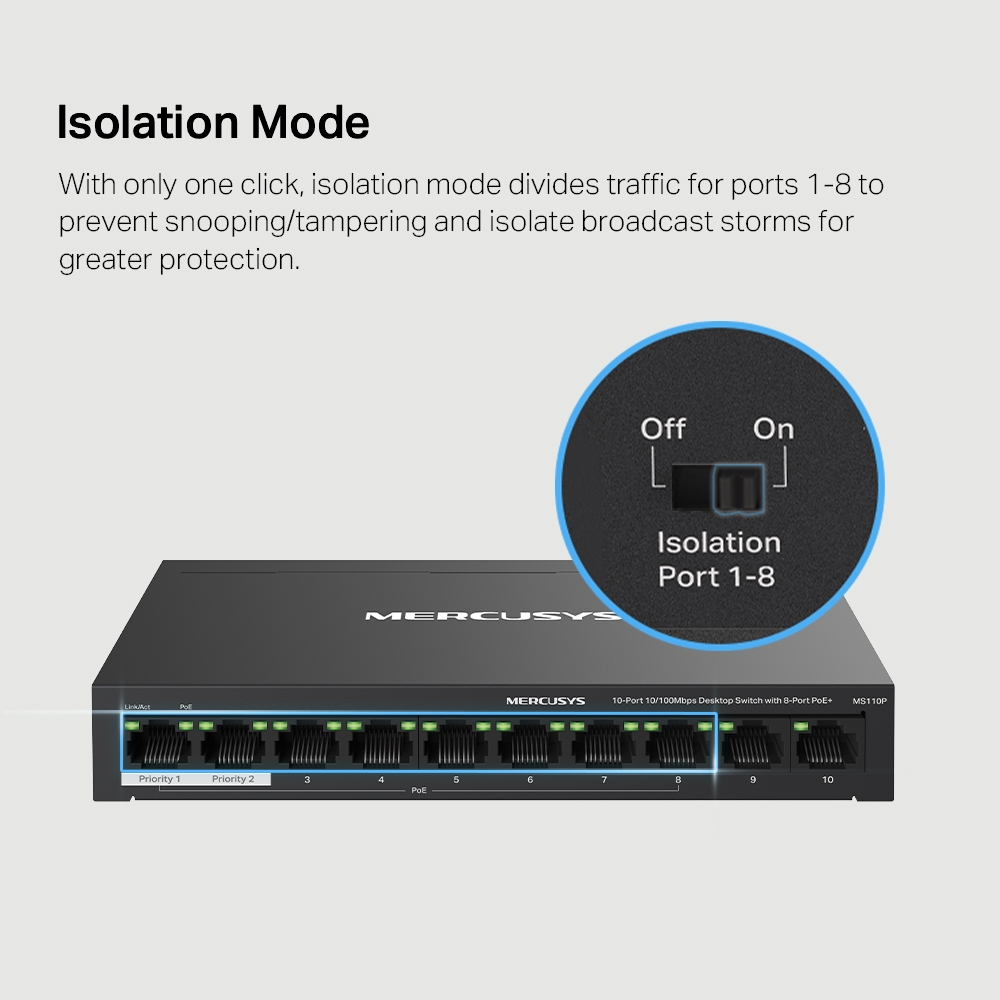

Enhanced Network Security
Isolation Mode is a key security feature. It separates traffic for ports 1-8 with a single click. This prevents snooping and isolates broadcast storms, enhancing your network’s integrity.

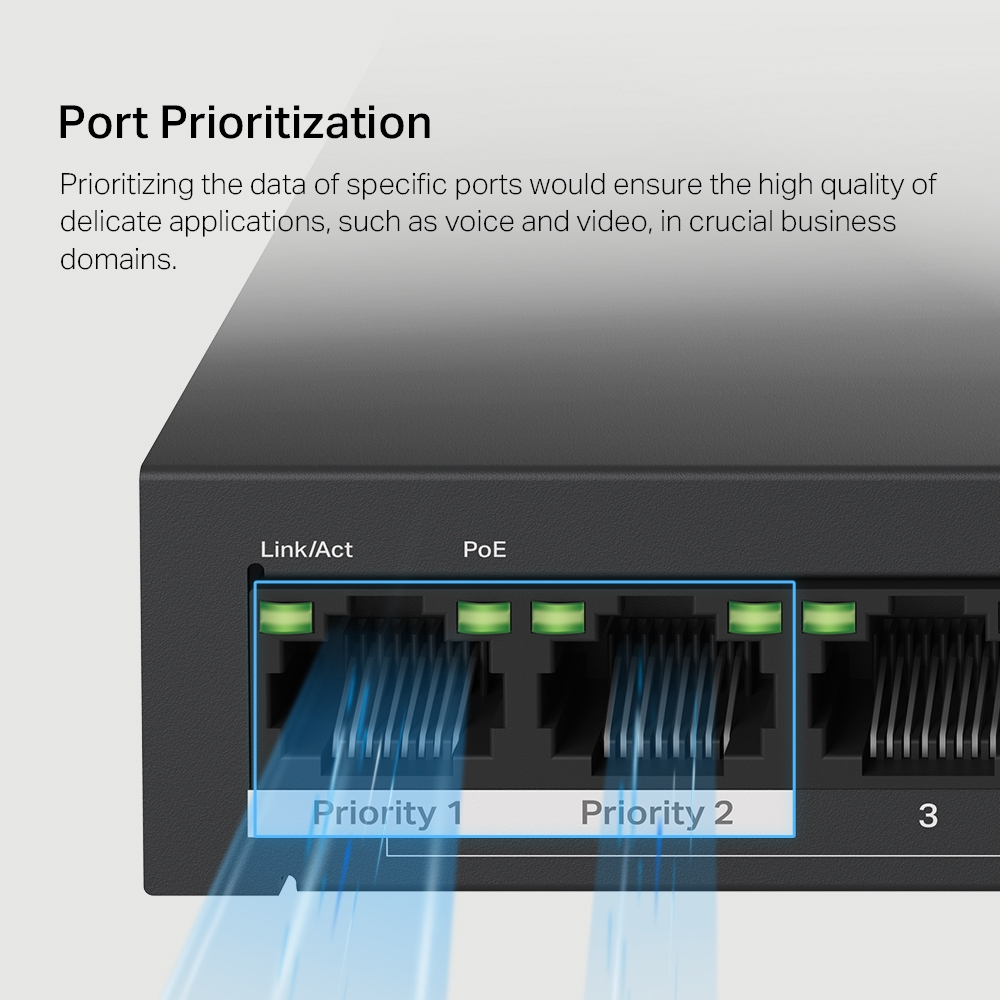

Prioritised Data Flow
Certain applications, like voice and video, demand consistent quality. Our port prioritisation function ensures these delicate applications receive the necessary bandwidth. This maintains high performance in crucial business areas.
Intelligent Power Management
The MS110P includes PoE Auto Recovery. This feature continuously monitors connected PoE devices. If a device stops transmitting data, the switch automatically reboots it, ensuring continuous operation.
What you receive
- Mercusys MS110P 10-Port Fast Ethernet Switch
- AC power cable
Worth checking first
- Confirm your devices are 802.3af/at compliant for PoE+ functionality.
- Verify your total power requirements do not exceed the 65W budget.
- Ensure the 10/100 Mbps Fast Ethernet speed meets your network needs.
Frequently Asked Questions
Q: Can I mount this switch on a wall?
A: Yes, the Mercusys MS110P is designed to be wall mountable.
Q: What is the total power budget for PoE+ devices?
A: The total Power over Ethernet budget for the 8 PoE+ ports is 65 watts.
Q: Does this switch require complex setup?
A: No, it features plug-and-play functionality with auto-negotiation and auto MDI/MDIX.
Q: What is Extend Mode for?
A: Extend Mode increases the PoE transmission distance to 250 metres for long-range deployment.
Q: How does Isolation Mode improve security?
A: It separates traffic for ports 1-8, preventing snooping and isolating broadcast storms.
The bottom line
The Mercusys MS110P is built for those needing a reliable and straightforward network switch. It simplifies powering devices and offers useful features for small-scale deployments. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| Switch type | Managed |
| Web-based management | Yes |
| Ports & interfaces | |
| Basic switching RJ-45 Ethernet ports quantity | 10 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Network | |
| Networking standards | IEEE 802.3af, IEEE 802.3at, IEEE 802.3x |
| Full duplex | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Auto MDI/MDI-X | Yes |
| 10G support | No |
| Auto-negotiation | Yes |
| Policy-based routing | Yes |
| Data transmission | |
| MAC address table | 2000 entries |
| Design | |
| Wall mountable | Yes |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Power | |
| Power consumption (max) | 77.52 W |
| Power supply included | Yes |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 2.96 W |
| Input current | 1.31 A |
| DC input voltage | 53.5 V |
| Power source | AC |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 65 W |
| Power over Ethernet plus (PoE+) ports quantity | 2 |
| Power over Ethernet (PoE) ports quantity | 8 |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 263.568 BTU/h |

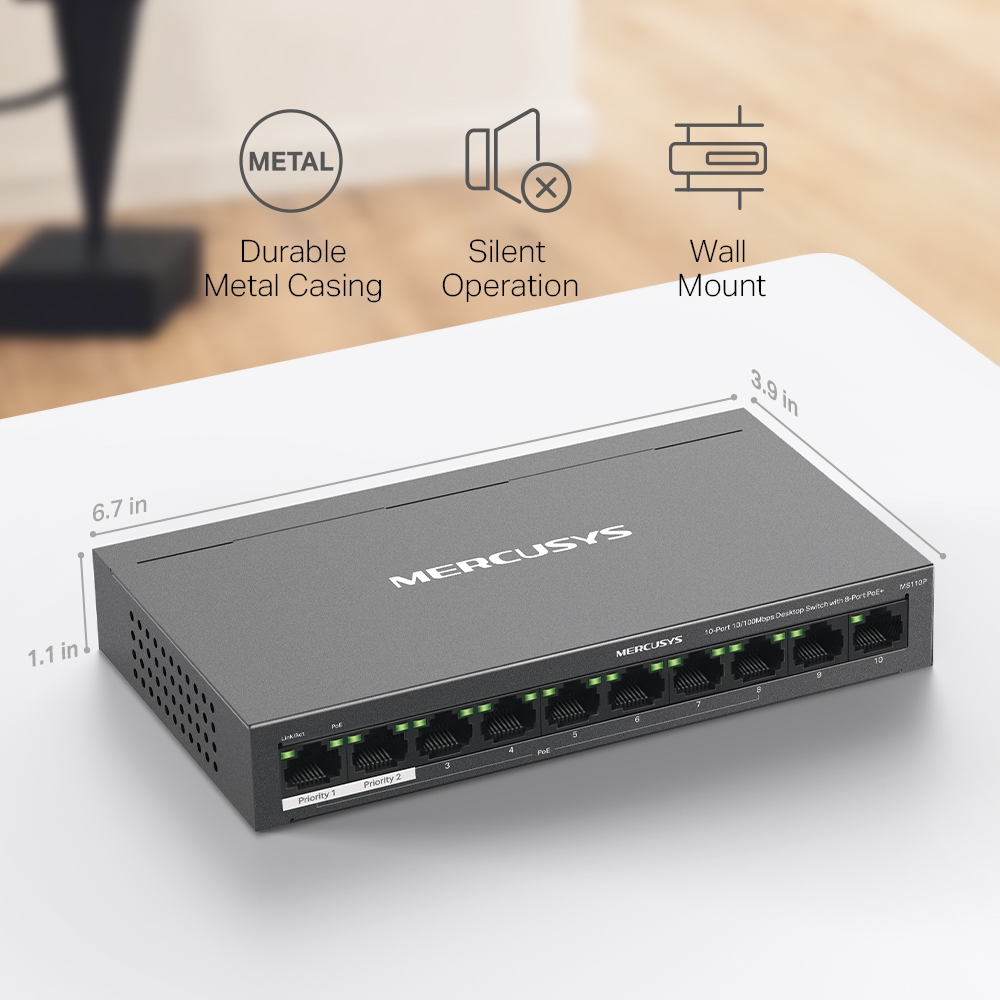

| Weight & dimensions | |
| Width | 171 mm |
| Depth | 98 mm |
| Height | 27 mm |
| Packaging content | |
| Quick start guide | No |
| Cables included | AC |
| Performance | |
| Stackable | No |
| Auto-negotiation | Yes |
| Technical details | |
| Product colour | Black |
| Stackable | No |
| Rack mounting | No |
| Packaging data | |
| Quick start guide | No |
| Cables included | AC |
| Other features | |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Identifiers | |
| Additional EANs | 6957939003654 |
