ASUS PRIME A620M-K AMD AM5 mATX Motherboard
£84.94 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- AMD A620 chipset supporting AMD Ryzen 7000 Series processors on Socket AM5
- DDR5 memory support with 2 slots, dual-channel architecture, and speeds up to 6400 MHz
- PCIe 4.0 M.2 slot plus four SATA III connectors for flexible HDD and SSD storage
- Micro ATX form factor with one PCIe x1 slot and comprehensive cooling controls

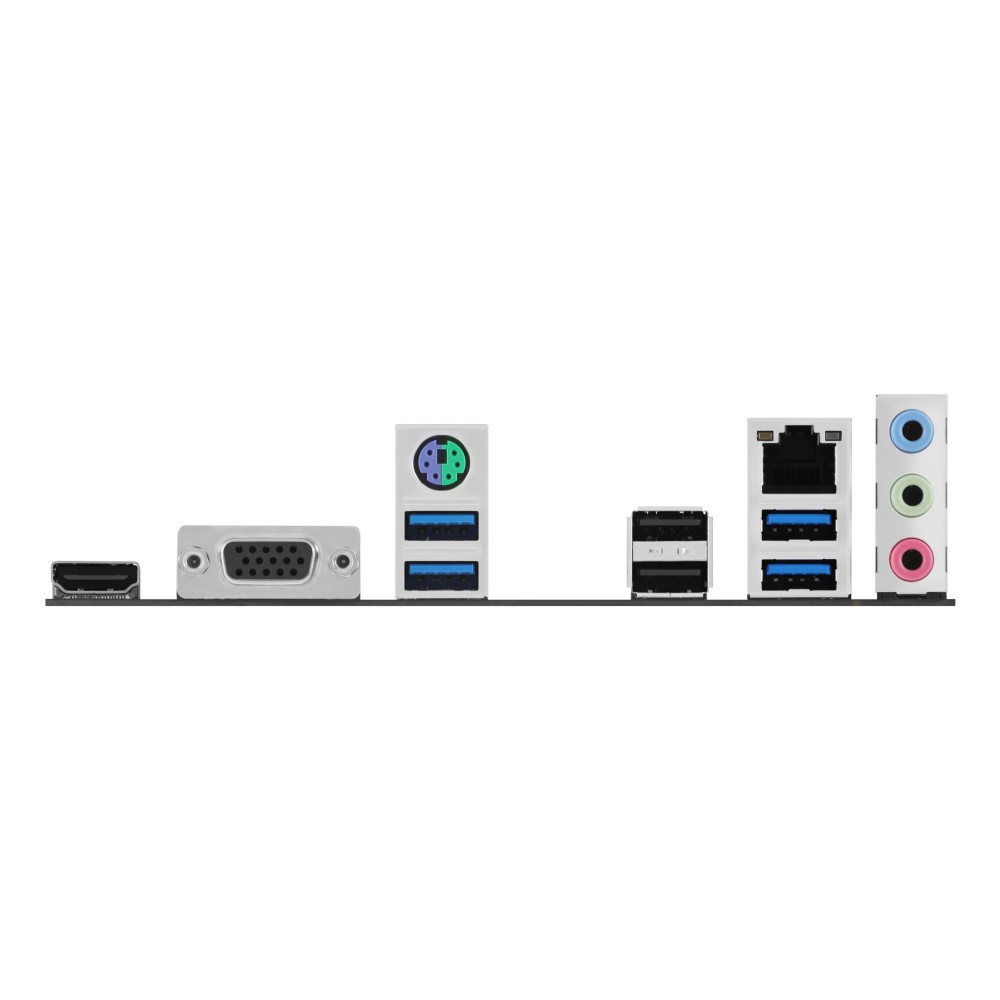

- Connectivity includes HDMI, VGA, four USB 3.2 Gen 1 Type-A, and two USB 2.0 ports
- What to check: Wi-Fi availability and specific BIOS version before purchase
Payment Methods:
You may also like
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock

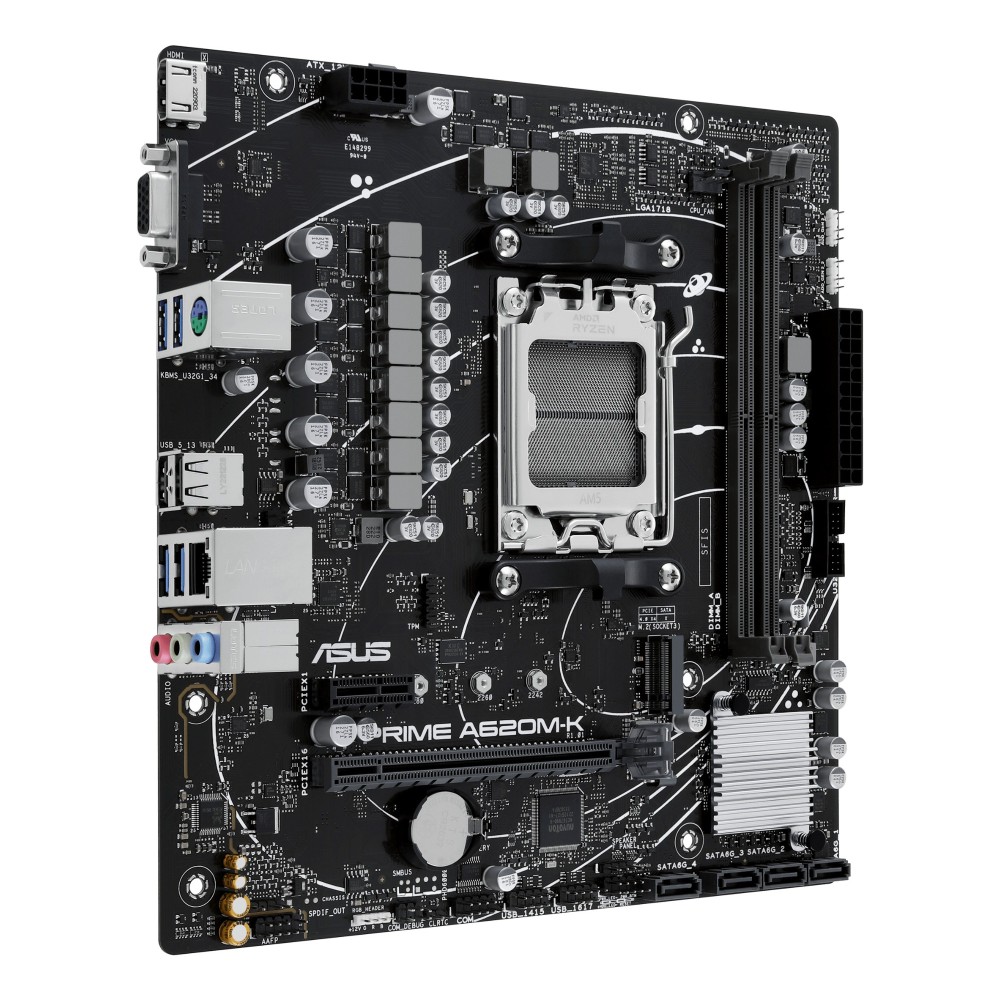

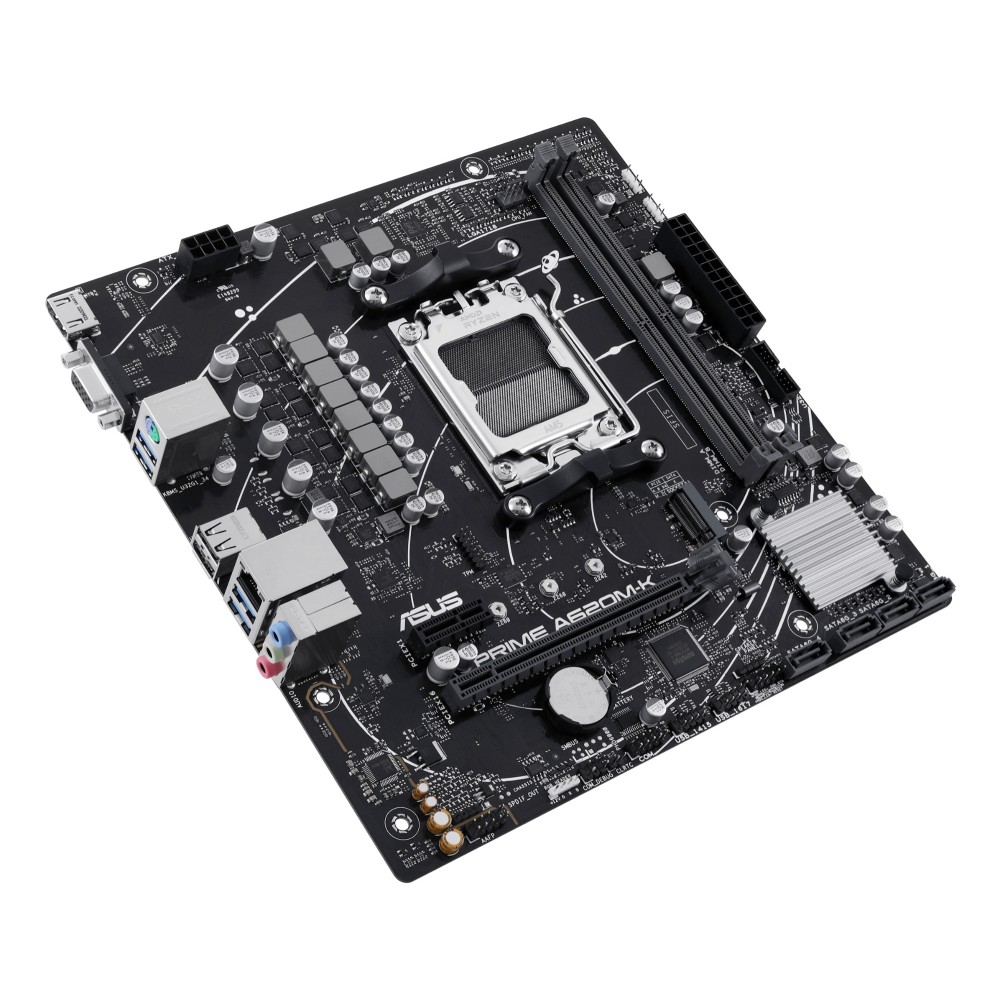

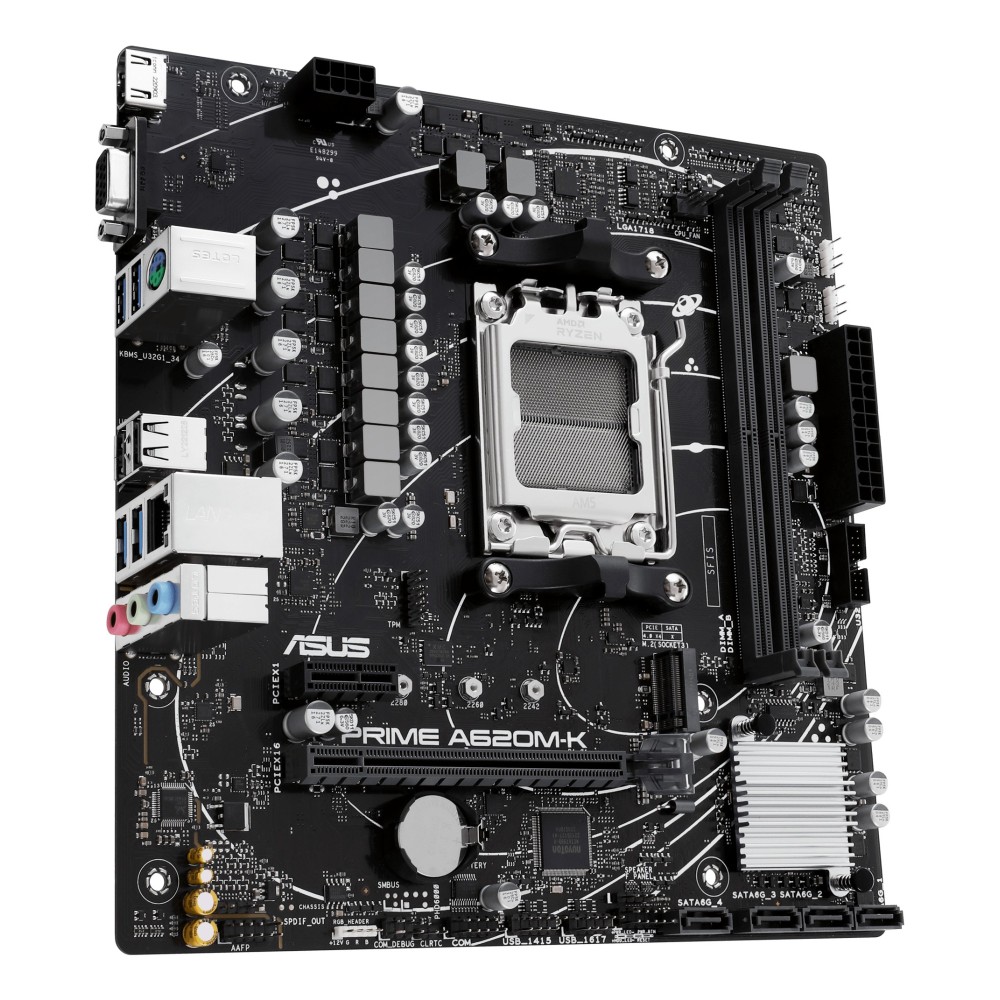

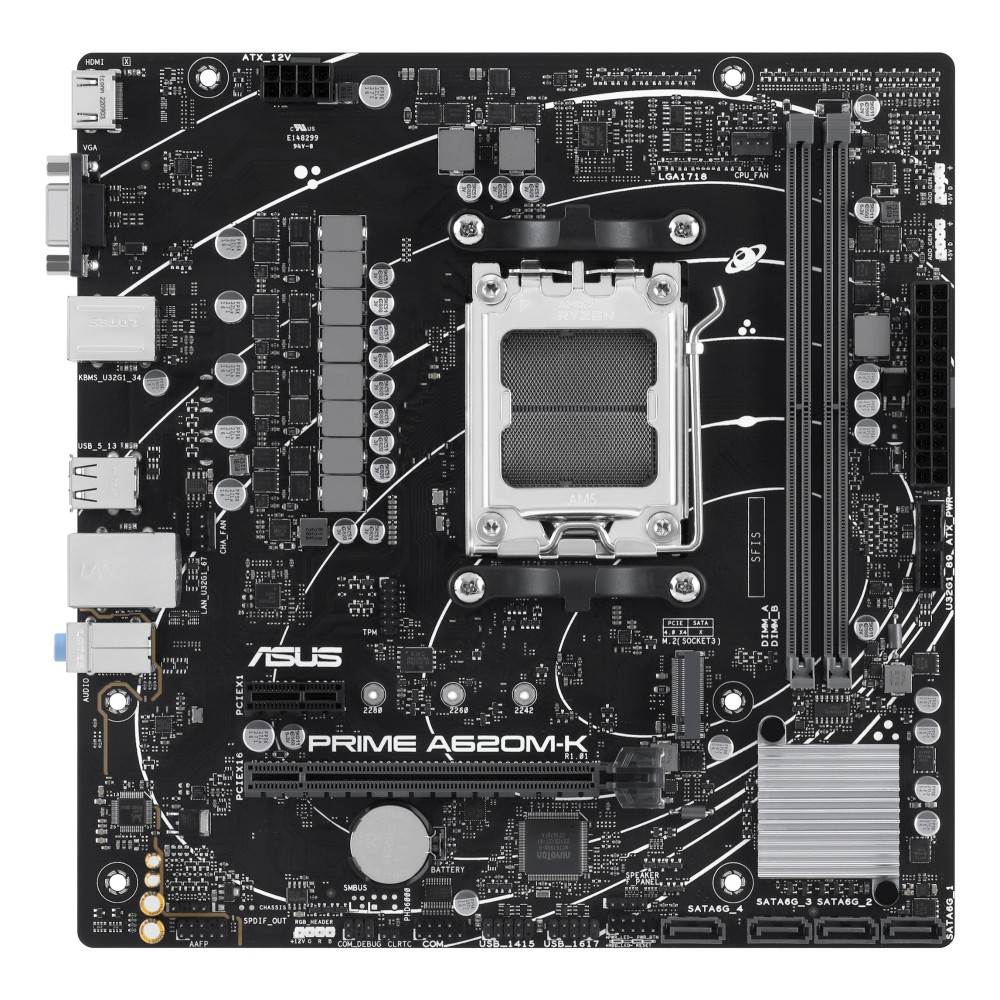

ASUS PRIME A620M-K | AMD A620 Micro-ATX Foundation
The ASUS PRIME A620M-K AMD A620 Socket AM5 micro ATX motherboard is engineered for UK builders assembling a reliable PC with AMD Ryzen 7000-series processors. It delivers essential performance features, including DDR5 memory support and PCIe 4.0 connectivity, wrapped in a compact micro-ATX form factor. This board focuses on stability and intelligent controls for everyday productivity and light creative work.
Technical Specifications at a Glance
| Metric | Spec. |
|---|---|
| Chipset | AMD A620 |
| Processor Socket | Socket AM5 (AMD Ryzen 7000 Series) |
| Memory Type | DDR5-SDRAM (2 slots, up to 6400 MHz) |
| Expansion Slots | 1x PCIe 4.0 M.2, 1x PCI Express x1 Gen 3.x |
| Video Outputs | 1x HDMI, 1x VGA D-Sub |
| USB Ports | 4x USB 3.2 Gen 1, 2x USB 2.0 |
DDR5 Memory and Storage Performance
This motherboard supports dual-channel DDR5 memory with speeds up to 6400 MHz. You can install up to 96GB of RAM for smooth multitasking. For storage, it offers one PCIe 4.0 M.2 slot and four SATA III connectors. This setup enables quick boot times and fast application loads with an SSD, while supporting multiple HDDs for bulk storage.
Comprehensive Cooling and Power Control
The PRIME A620M-K features hybrid fan headers and ASUS Fan Xpert software. You can configure fan curves for optimal airflow or use the Extreme Quiet mode for silent operation. A robust power design with Digi+ VRM provides stable voltage to your CPU. This helps ensure reliable performance during long work sessions or light gaming.
Flexible Connectivity and Audio
Despite its micro-ATX size, this board offers versatile connectivity. It includes four USB 3.2 Gen 1 Type-A ports and two USB 2.0 ports for peripherals. For display, you get HDMI and VGA outputs. The 7.1-channel audio system uses premium components and shielding to deliver clear sound for calls and media. However, note that this model does not include built-in Wi-Fi; you will need a separate adapter for wireless networking.
DIY-Friendly Features and Reliability
ASUS integrates several tools to simplify building and troubleshooting. The UEFI BIOS provides an EZ Mode for beginners and an Advanced Mode for tweakers. Q-LED Core indicates hardware status during startup. SafeSlot Core reinforces the PCIe slot for heavier graphics cards. Overvoltage protection and a stainless-steel back I/O panel add durability. The board has undergone over 8,000 hours of validation for reliability.

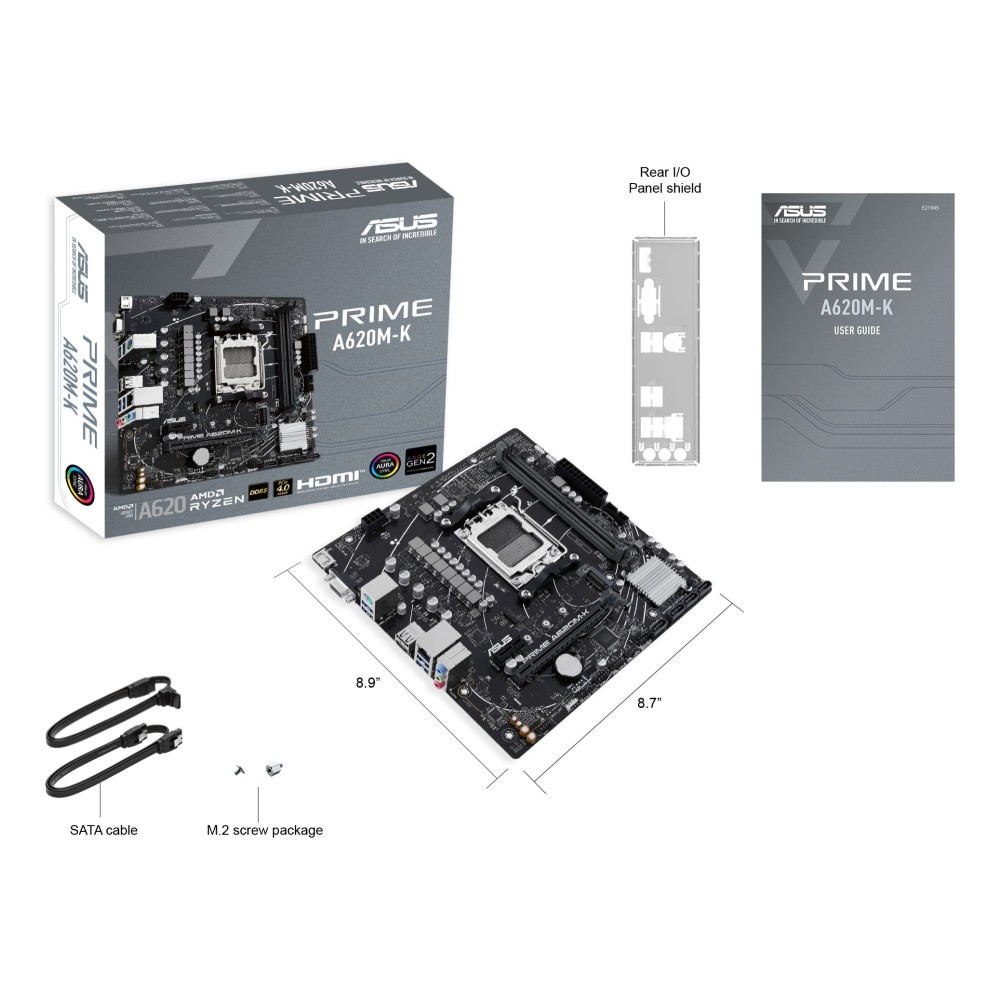

Box contents
- ASUS PRIME A620M-K motherboard
- 2 x SATA 6Gb/s cables

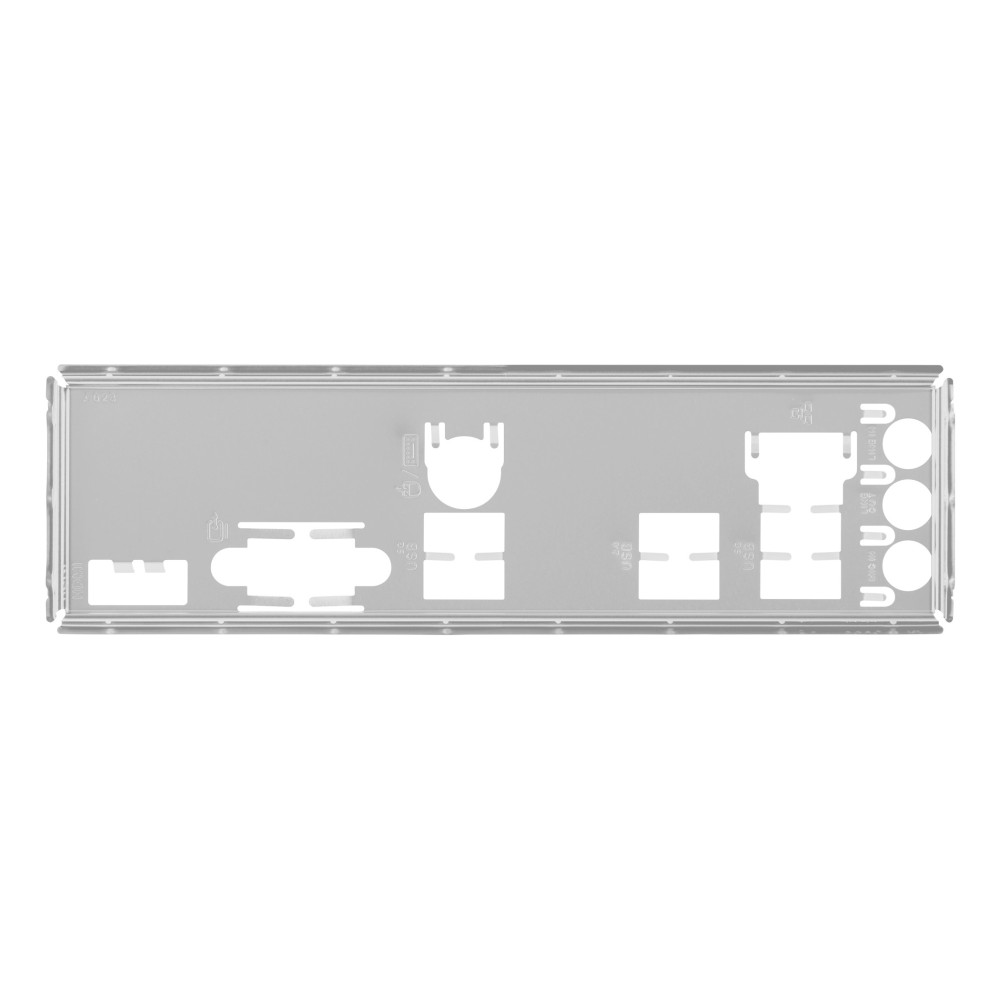

- 1 x I/O Shield
- 1 x M.2 SSD screw package
- 1 x Support DVD
- 1 x User manual
Check before you buy
- Confirm your PC case supports micro-ATX (226 mm x 221 mm) form factor.
- Verify you have a compatible AMD Ryzen 7000-series processor for Socket AM5.
- Ensure your power supply has a 24-pin ATX and 8-pin EPS connector.
- Confirm your operating system is Windows 10 x64 or Windows 11 for full support.
Frequently Asked Questions
Q: Does the ASUS PRIME A620M-K support Wi-Fi?
A: No, this motherboard does not have built-in Wi-Fi. You will need a separate Wi-Fi adapter.
Q: What is the maximum memory capacity?
A: The board supports up to 96GB of DDR5 memory across two slots.
Q: Can I use a PCIe 4.0 SSD?
A: Yes, the M.2 slot supports PCIe 4.0 drives for fast storage speeds.
Q: Does it include RGB lighting headers?
A: Yes, it features Addressable Gen 2 headers for compatible RGB devices.
Q: Is the motherboard compatible with Windows 11?
A: Yes, it supports Windows 10 x64 and Windows 11.
The Consultant’s verdict & warranty
This motherboard is ideal for UK users building a cost-effective AMD Ryzen 7000-series PC for office work, home use, or entry-level gaming. It provides a solid foundation with DDR5 and PCIe 4.0 support in a compact size. However, it is not suited for high-end overclocking or builds requiring built-in Wi-Fi. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Supported processor sockets | Socket AM5 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 2 |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400 MHz |
| Maximum internal memory | 96 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 2.0 ports quantity | 2 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Features | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A620 |
| Supported processor sockets | Socket AM5 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 920 g |
| Software | |
| Windows operating systems supported | Windows 10 x64, Windows 11 |
| Weight & dimensions | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 920 g |
| Width | 226 mm |
| Depth | 221 mm |
| Other features | |
| Package width | 260 mm |
| Package depth | 270 mm |
| Package height | 51.5 mm |
| Package weight | 920 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1F40-M0EAY0, 8459022, 477328, STD10215117, CL90MB1F40-M0EAY0 |
