ASUS PRIME H610M-K micro ATX motherboard
£69.18 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Micro ATX motherboard with Intel H610 chipset for 12th Gen Intel Core processors
- Supports up to 64GB DDR4 memory across 2 DIMM slots
- Features 1 M.2 slot and 4 SATA III ports for versatile storage options
- Equipped with PCIe 4.0 x16 slot and HDMI 2.1 for high-performance graphics
- Includes 7.1 channel audio, Gigabit Ethernet, and USB 3.2 Gen 1 connectivity
Payment Methods:
You may also like
ASUS PRIME H610M-K D4 | Micro ATX Motherboard for Intel 12th Gen
The ASUS PRIME H610M-K D4 Intel H610 LGA 1700 micro ATX motherboard delivers a reliable foundation for building a capable PC with 12th Generation Intel processors. Engineered for DIY builders and everyday users, it combines essential performance features with ASUS’s trusted reliability.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Memory Support | DDR4 up to 64 GB |
| Expansion Slots | 1 PCIe 4.0 x16, 1 PCIe 3.0 x16 |
| Storage | 1 M.2, 4 SATA III |
| USB Ports | 4 x USB 2.0, 2 x USB 3.2 Gen 1 |
| Network | Gigabit Ethernet |
| Form Factor | Micro ATX |
Built for 12th Gen Intel Processors
This motherboard supports Intel’s 12th Generation Core processors, providing the necessary infrastructure for smooth performance in both office and home computing. The LGA 1700 socket ensures compatibility with current Intel CPUs, while the micro ATX form factor offers a balance between expandability and space efficiency for compact builds.
Smart Power Delivery and Cooling
The DIGI+ VRM delivers precise digital power control, automatically adjusting voltage and frequency to maintain stability under load. Comprehensive cooling options include multiple fan headers with PWM/DC auto-detection and thermal sensor integration, allowing for effective heat management during intensive tasks.
Storage and Connectivity Options

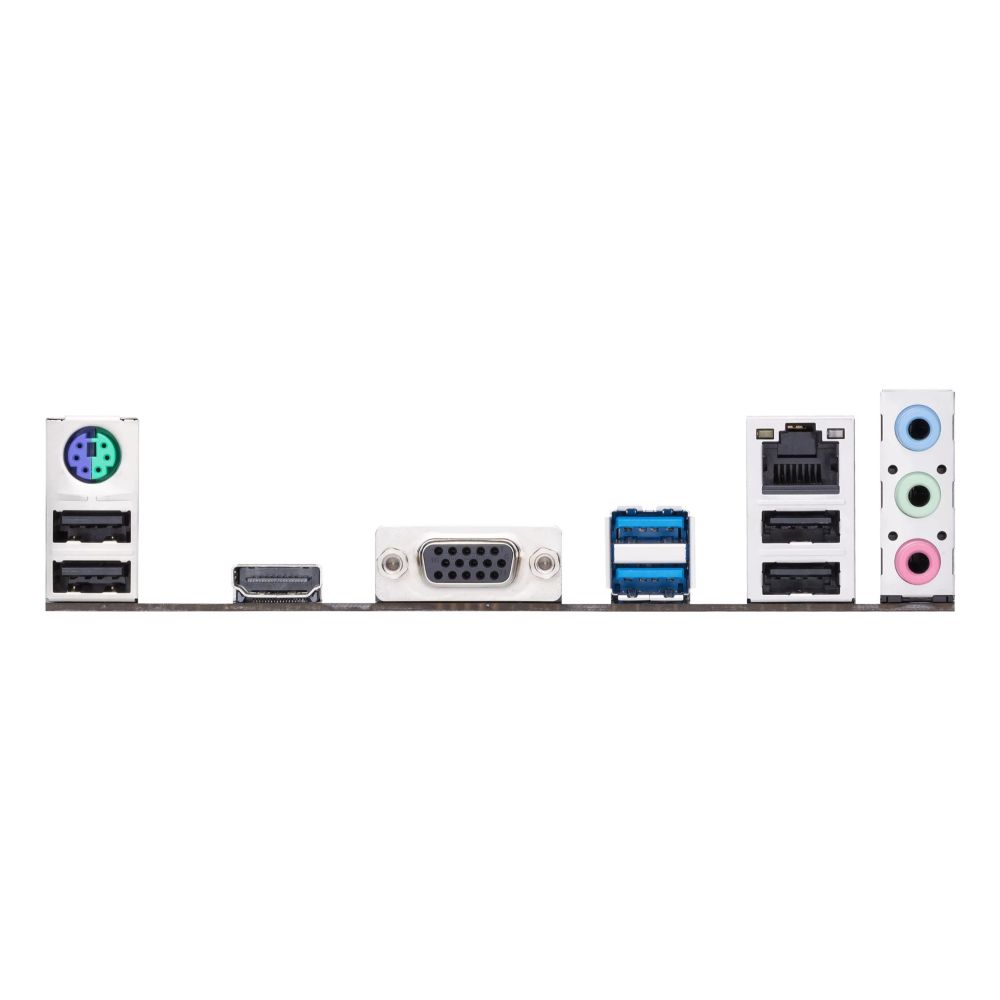

With one M.2 slot supporting PCIe 3.0 speeds up to 32 Gbps, you can install high-performance NVMe SSDs for rapid boot and load times. Four SATA III ports provide ample connectivity for additional storage drives. Rear I/O includes HDMI 2.1, VGA, USB 3.2 Gen 1, and Gigabit Ethernet for versatile connectivity options.
Easy BIOS and Software Control
ASUS UEFI BIOS offers both EZ mode for quick setup and Advanced mode for detailed tuning. Fan Xpert software provides intuitive fan curve adjustments, while Armoury Crate centralises control of ASUS components. The Q-LED Core display helps diagnose potential issues during POST.

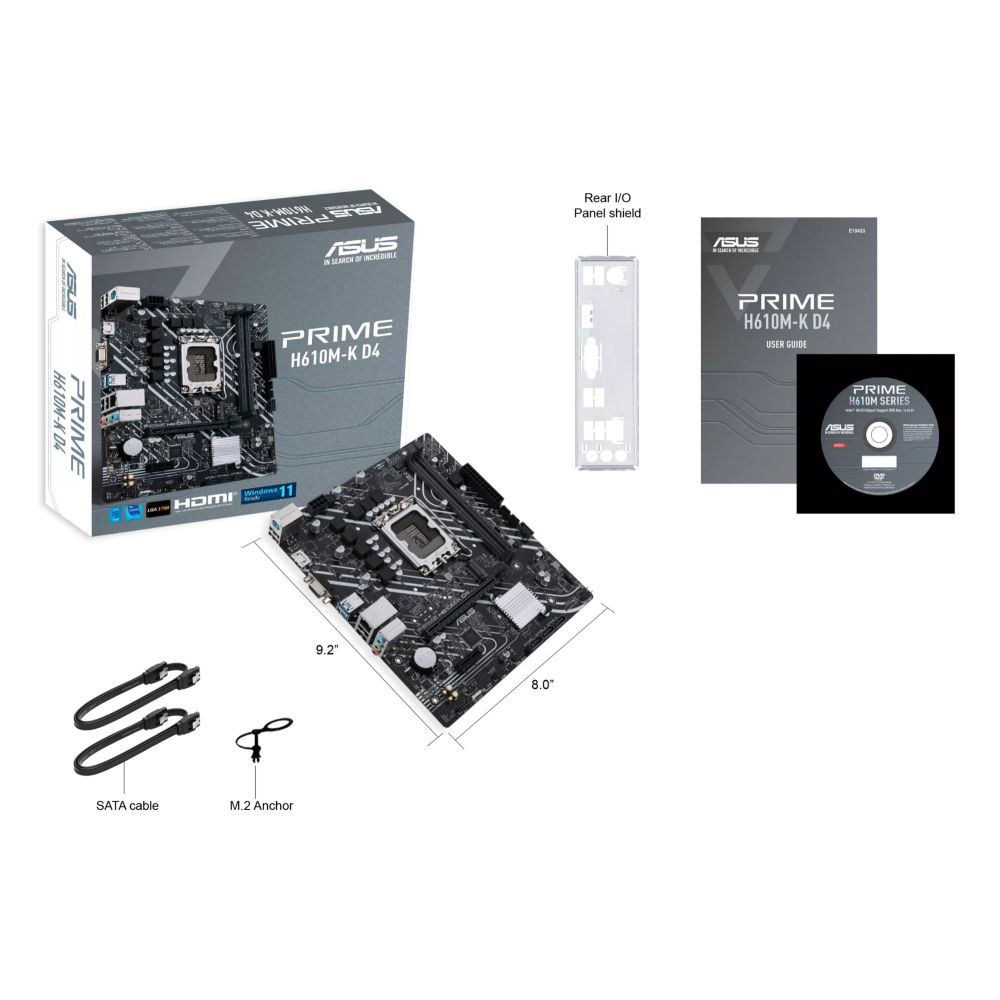

What Is in the Box
- ASUS PRIME H610M-K D4 motherboard

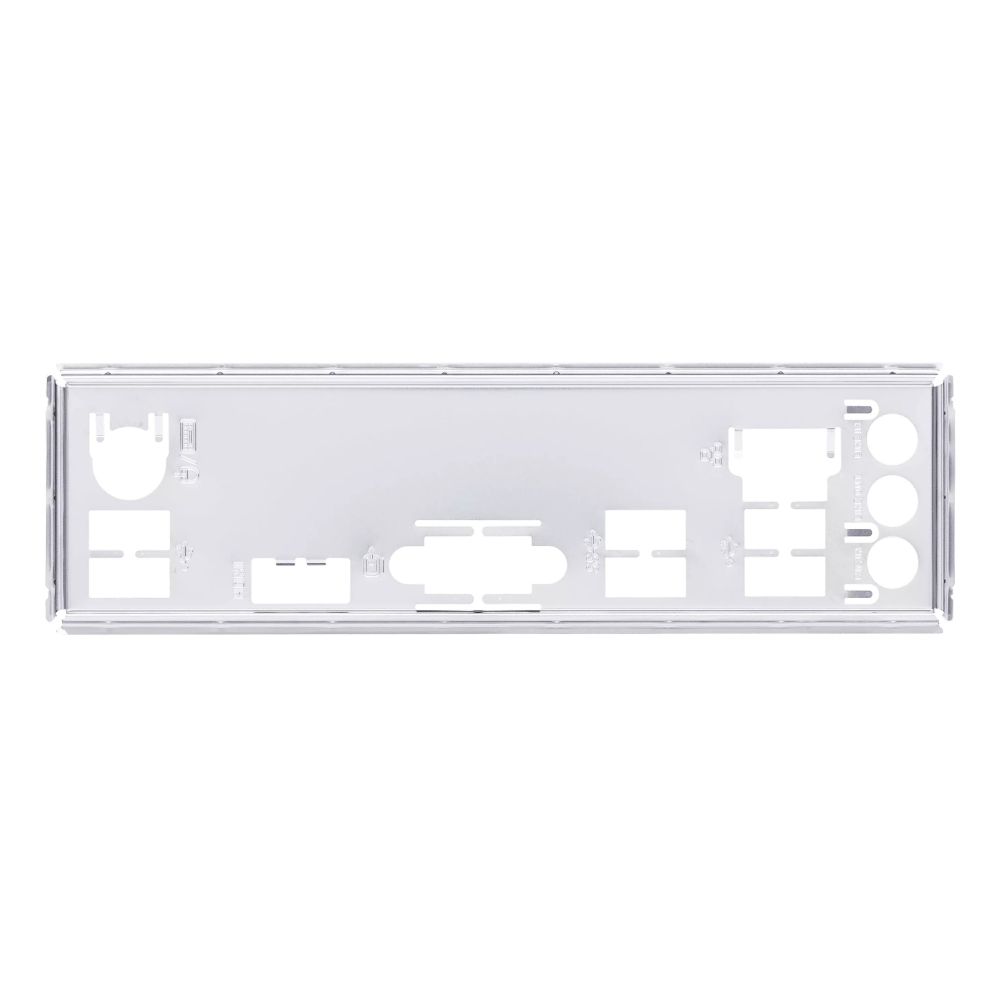

- I/O shield
- User manual
- SATA cables (quantity not specified)
Before you order
- Confirm your Intel 12th Gen processor is compatible with this motherboard
- Verify your case supports micro ATX form factor dimensions
- Check if your power supply has the necessary 8-pin EPS and 24-pin ATX connectors
- Ensure you have DDR4 memory modules for installation
Buyer FAQs
Does this motherboard support Wi-Fi?
What type of memory does this motherboard support?
Can I use this motherboard for gaming?
How many M.2 drives can I install?
Does it support RAID configurations?
The short version
The ASUS PRIME H610M-K D4 offers a solid foundation for building a reliable Intel 12th Gen system, particularly suitable for office work, home computing, and light creative tasks. Its combination of essential features, proven ASUS reliability, and micro ATX form factor makes it an excellent choice for space-conscious builds. Covered by the applicable manufacturer warranty.
| 12V power connector | Yes |
|---|---|
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| RAID levels | 1, 5, 10 |
| Number of displays supported | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Number of M.2 M slots | 1 |
| PCI Express x16 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System HS code | 84733020 |
| Width | 234 mm |
| Depth | 203 mm |
| Drivers included | Yes |
| Cables included | SATA |
| Height | 51 mm |
| Weight | 842 g |
| Distributor SKUs | MBD-90MB1A10-M0EAY0, 7296268, 121284, PRIME H610M-K D4, STD10111304, STD10209017, CL90MB1A10-M0EAY0 |
