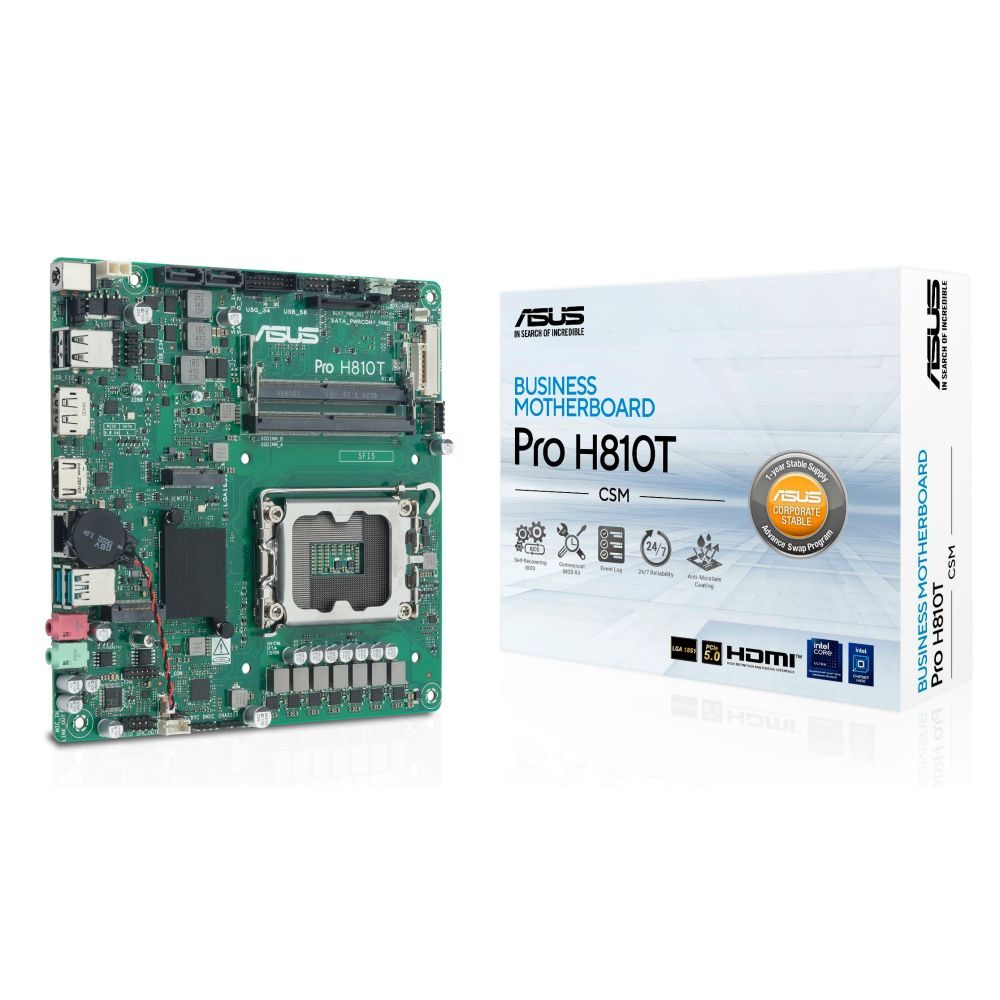

ASUS Pro H810T-CSM H810 LGA1851 Thin Mini ITX Motherboard

ASUS Pro H810T-CSM | Thin Mini ITX Business Motherboard

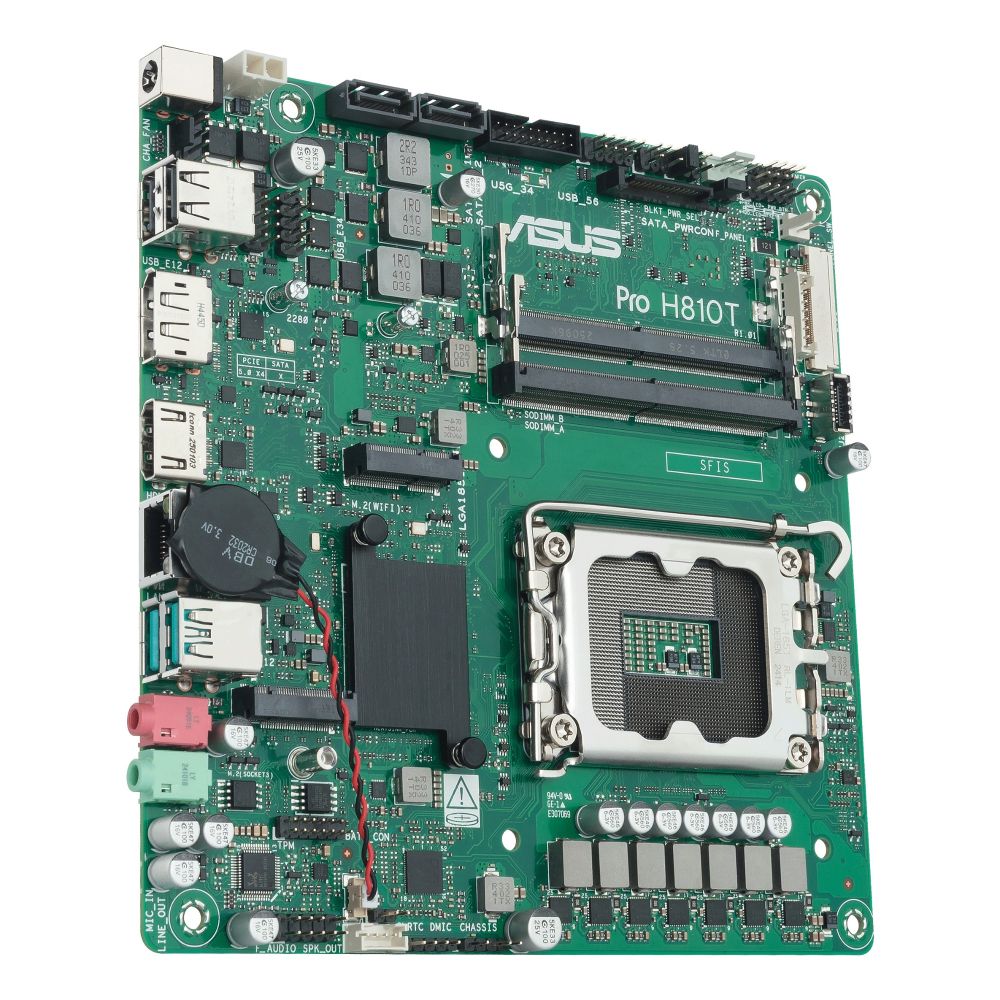

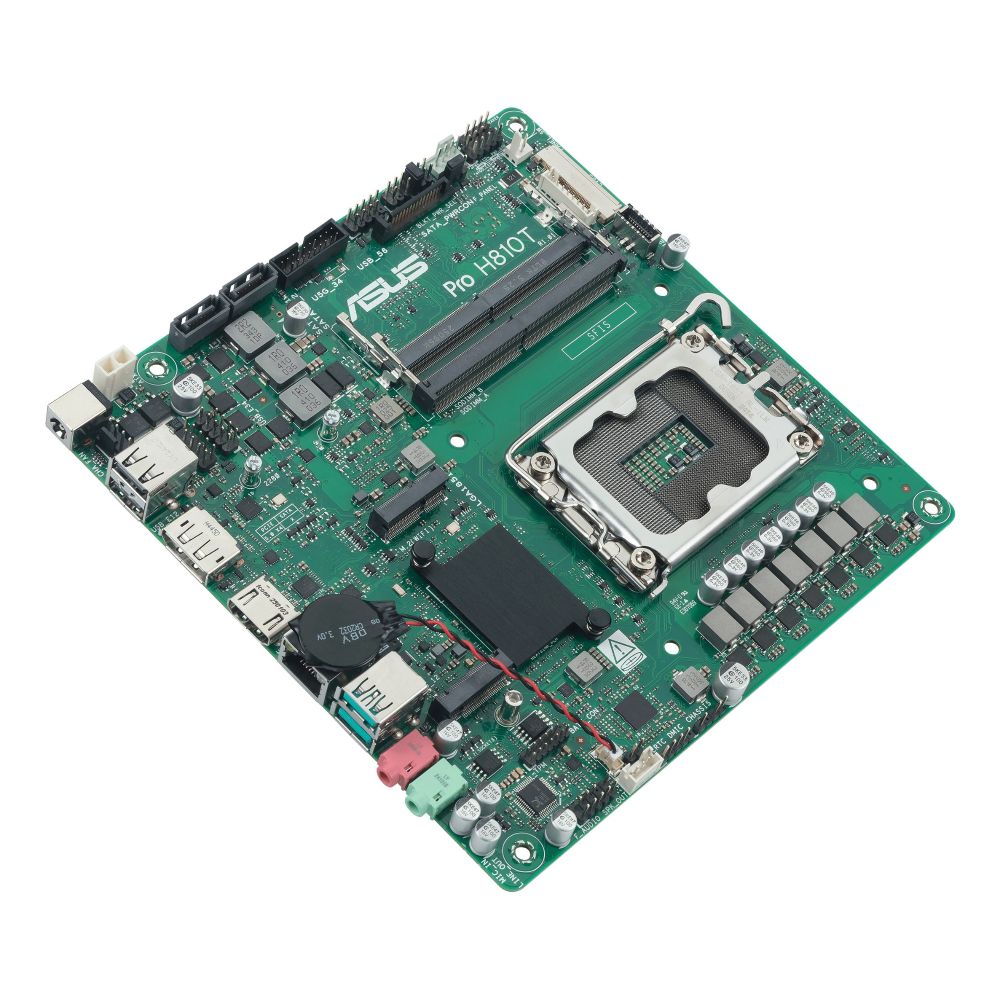

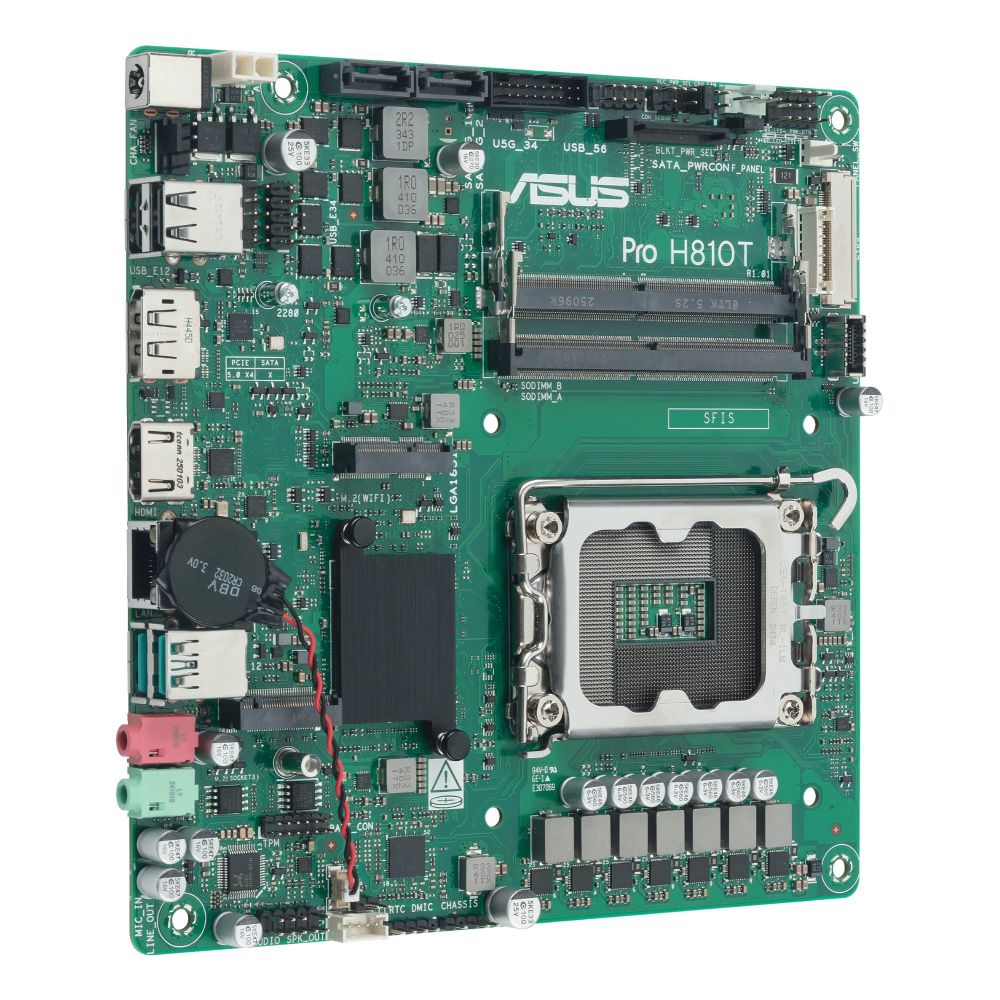

The ASUS Pro H810T-CSM Intel H810 LGA 1851 (Socket V1) Thin Mini ITX is a specialist business motherboard. It targets compact commercial PC builds and digital signage installations. This board supports Intel Core Ultra (Series 2) processors. It offers a defensible USP: a space-saving form factor with essential business connectivity. Because it uses the Intel H810 chipset, it delivers reliable performance for office tasks. Also, it supports up to 128GB of DDR5 memory for multitasking.

ASUS Pro H810T-CSM Intel H810 LGA 1851 (Socket V1) Thin Mini ITX

This section confirms the exact product model for your records. It is a Pro series board designed for stability. The form factor is Thin Mini ITX. This ensures compatibility with specific low-profile chassis. You can use it for kiosk builds or small form factor workstations.

Key Specifications at a Glance

Compact Form Factor for Business Builds

The Thin Mini ITX design saves valuable desk space. It is ideal for kiosks, point-of-sale systems, and digital signage. The board measures 170 x 170 x 49 mm. This small size fits in specialised low-profile cases. However, you must verify case compatibility before purchase. Standard Mini ITX cases will not fit this board.

Dual-Channel DDR5 Memory Support

This motherboard features two SO-DIMM slots. It supports dual-channel DDR5 memory. You can install up to 128GB of RAM. The maximum supported speed is 6400 MHz. This provides ample bandwidth for business applications. Also, the board uses unbuffered memory. ECC memory is not supported, which is typical for this class.

Flexible Storage and Connectivity

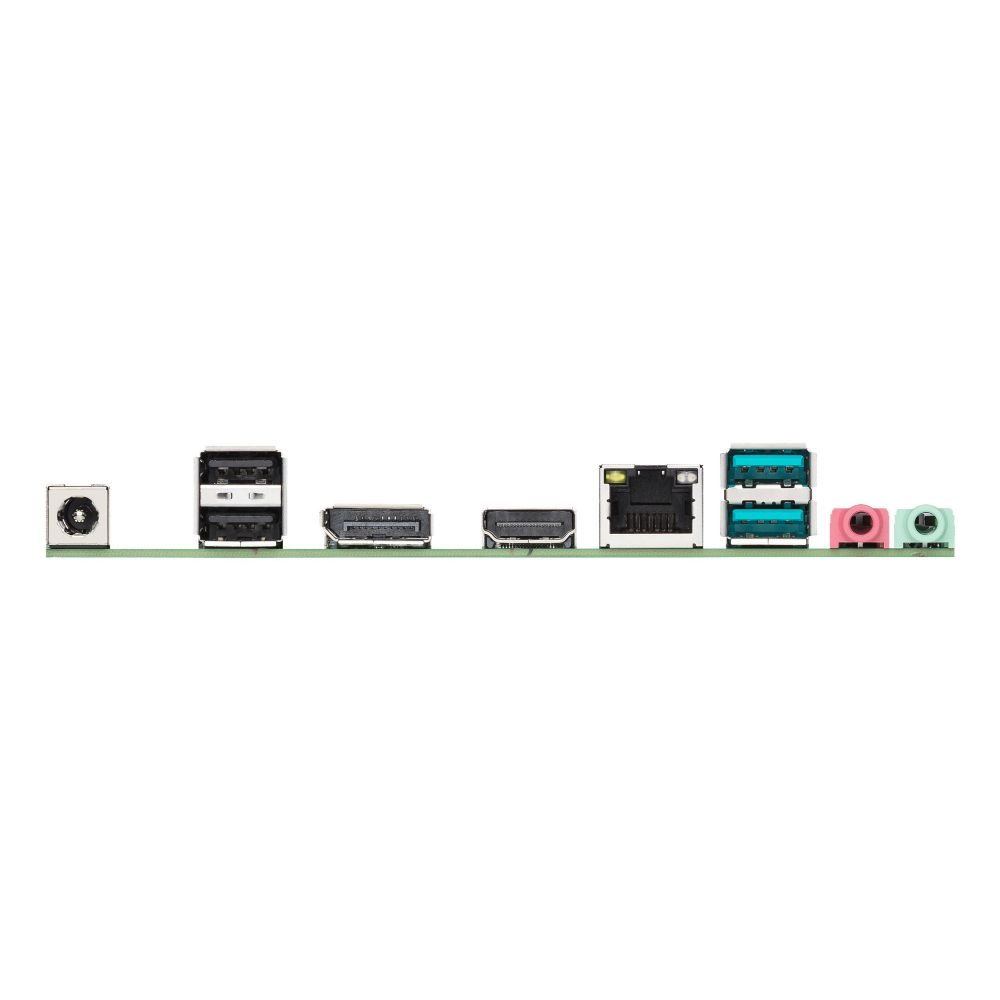

You get one M.2 slot and two SATA III ports. This supports up to three storage drives. You can use both HDDs and SSDs. For peripherals, there are two USB 2.0 connectors and one USB 3.2 Gen 1 header on board. The rear I/O offers two USB 3.2 Gen 2 Type-A ports. This ensures fast data transfer for external devices.

Professional Audio and Video Outputs

The board supports 7.1-channel audio output. It includes a front panel audio connector. For video, it has one HDMI port and one DisplayPort. This allows dual-monitor setups for productivity. However, Wi-Fi is not listed here. You may need to add a separate Wi-Fi card or use the Gigabit Ethernet port.

Package contents

• ASUS Pro H810T-CSM motherboard
• SATA cables (quantity not specified)
• I/O shield (quantity not specified)
• Support DVD or documentation (quantity not specified)
• M.2 mounting screws (quantity not specified)

Things to check first

• Confirm the case is a Thin Mini ITX compatible chassis.
• Verify you have the correct LGA 1851 processor for this board.
• Check that your memory is SO-DIMM DDR5, not DIMM DDR5.
• Confirm the warranty region is valid for the UK.

Frequently Asked Questions

Our recommendation

This motherboard is best for system integrators building compact business PCs. It suits digital signage, kiosks, and small office workstations. The Thin Mini ITX form factor is its key advantage. It is not for gaming or high-end overclocking. It is a stable, professional platform. Covered by the applicable manufacturer warranty.
