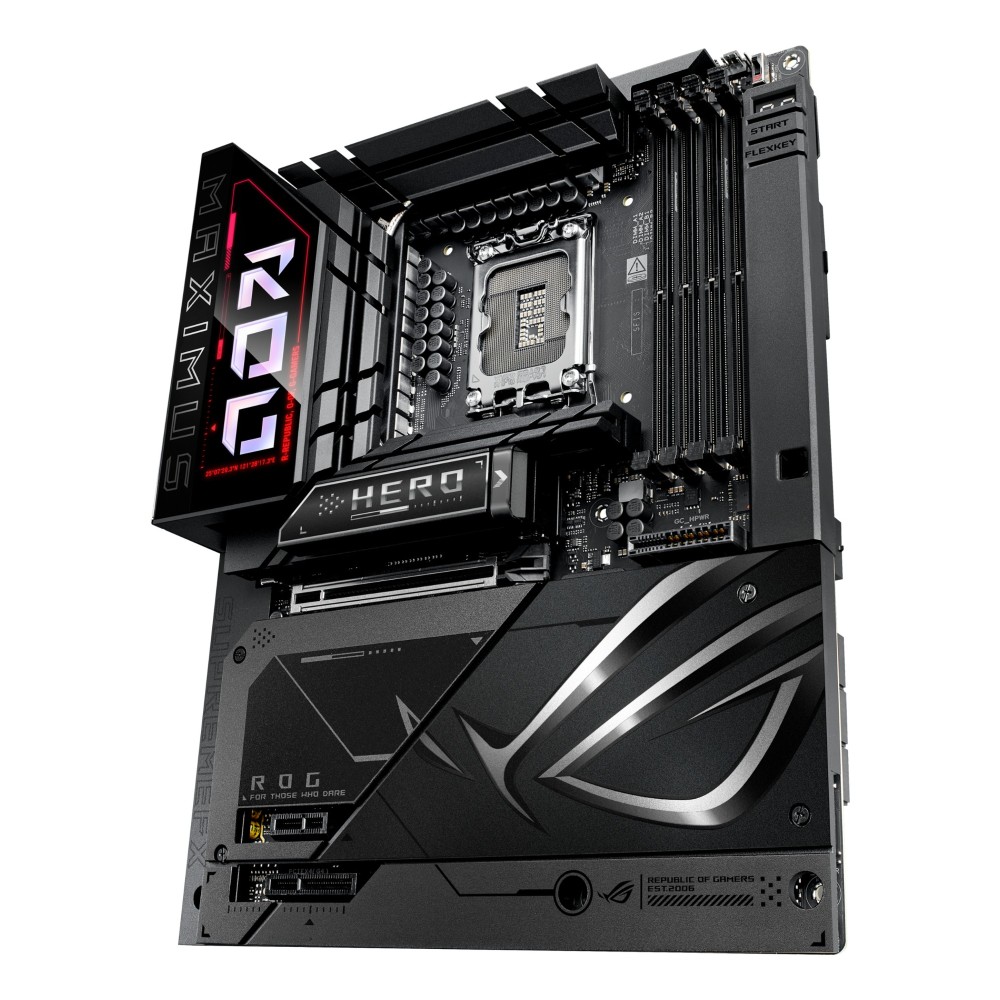

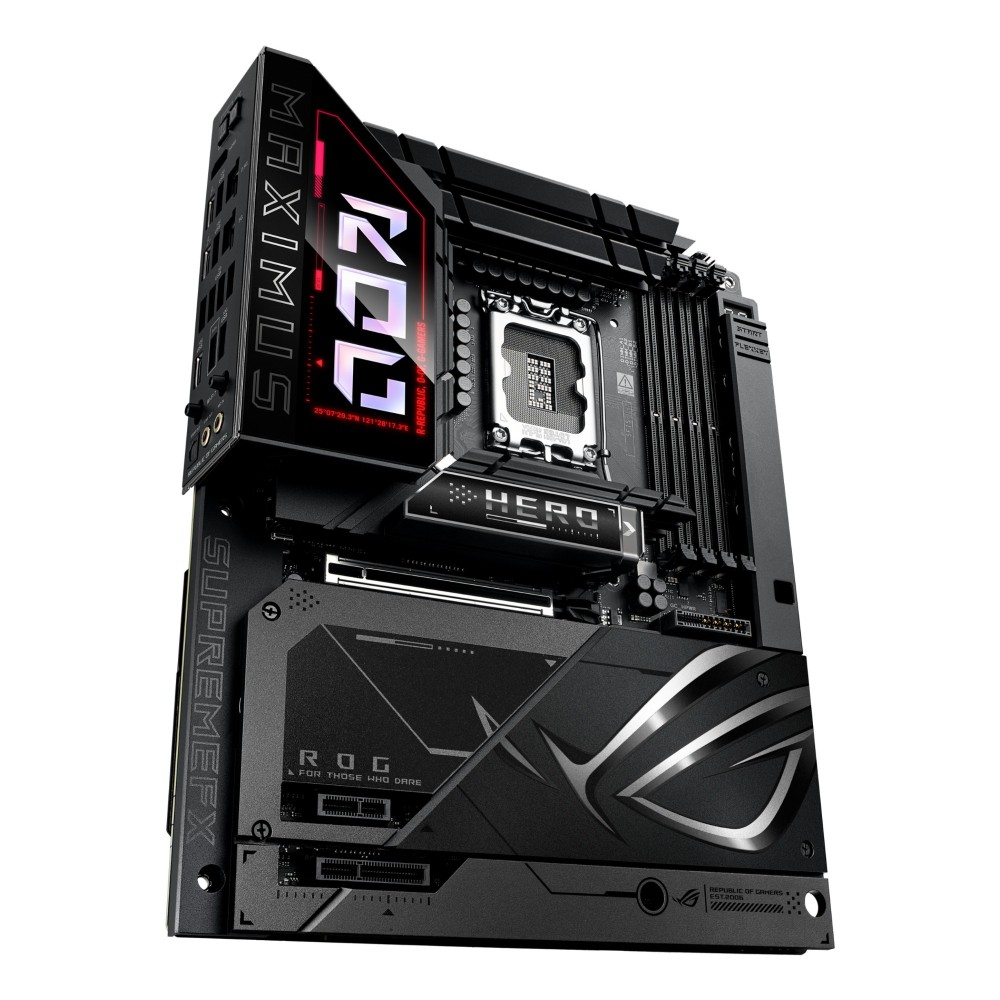

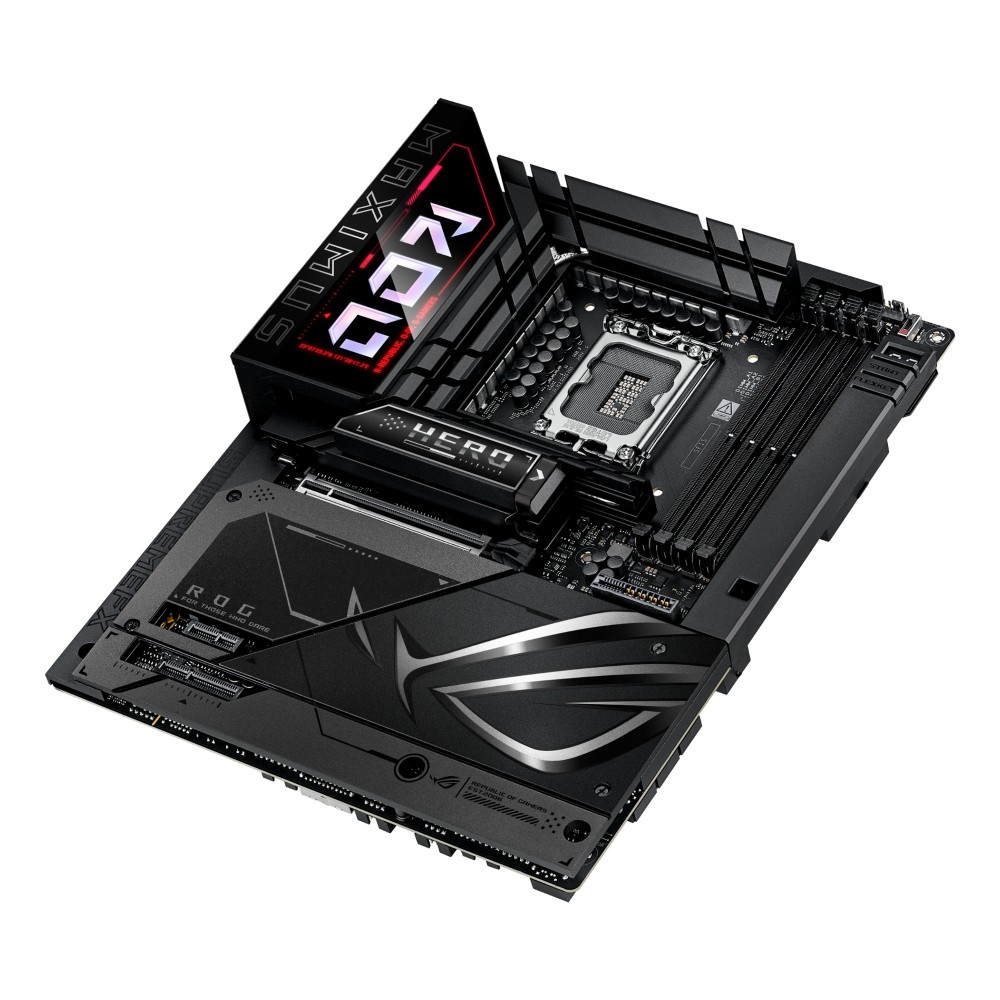

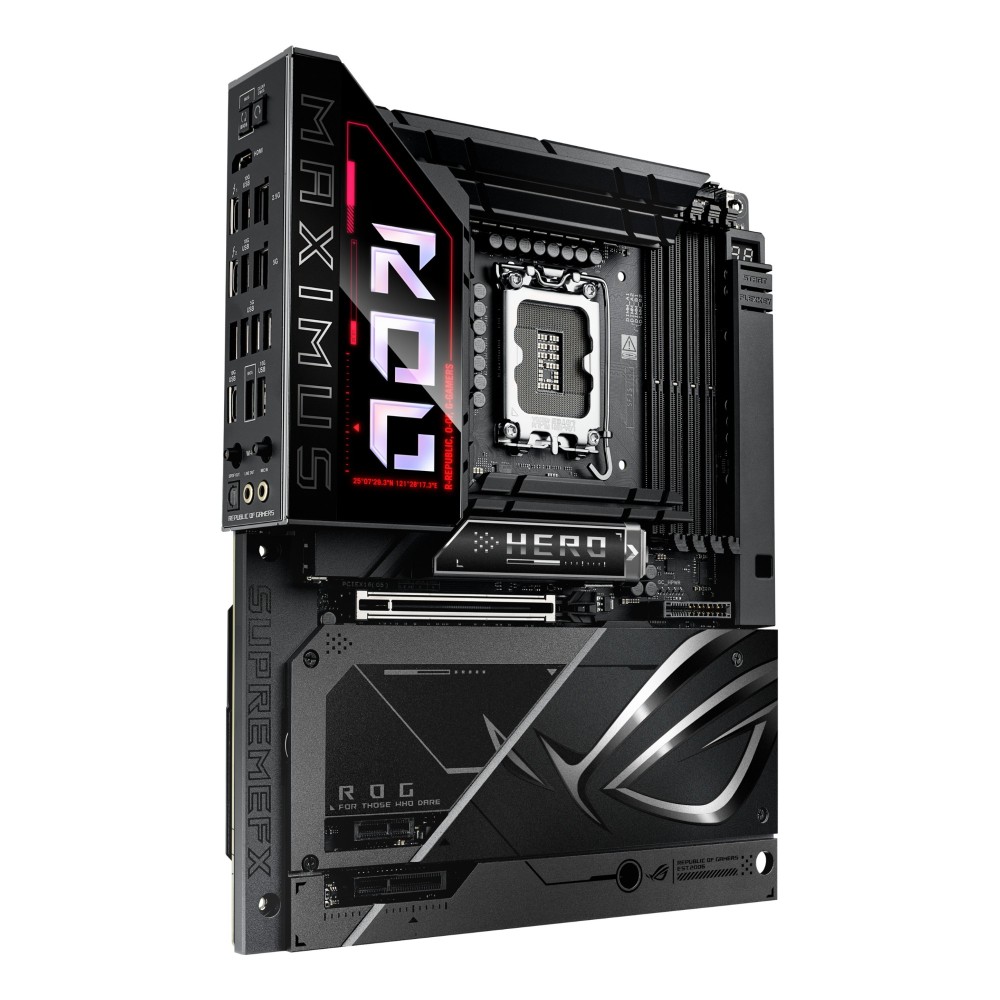

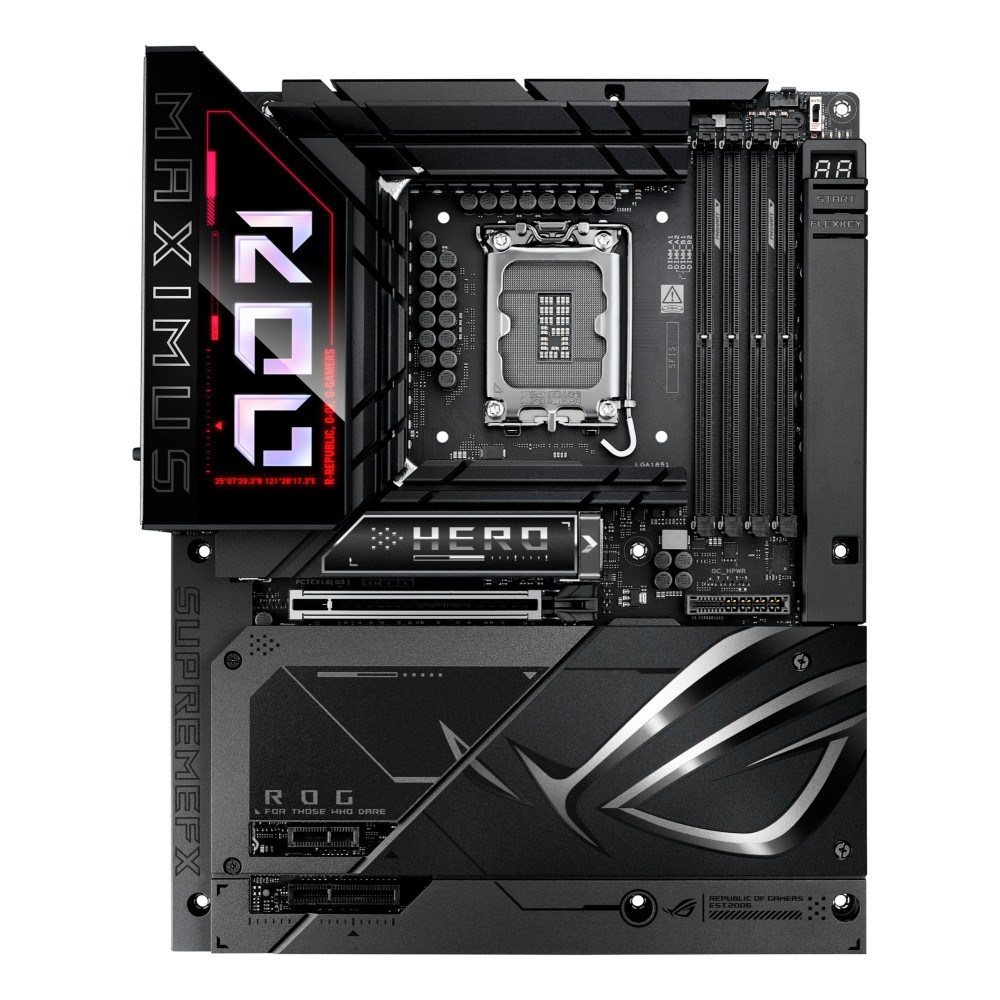

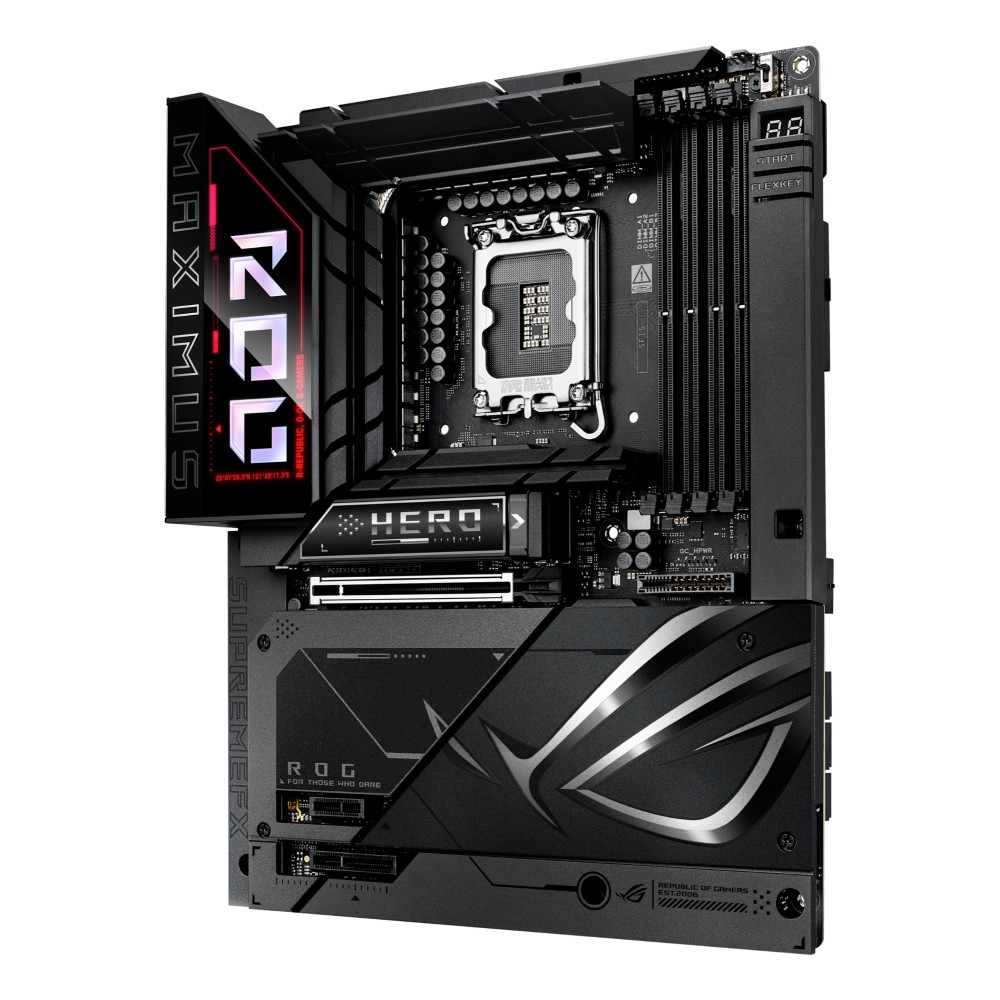

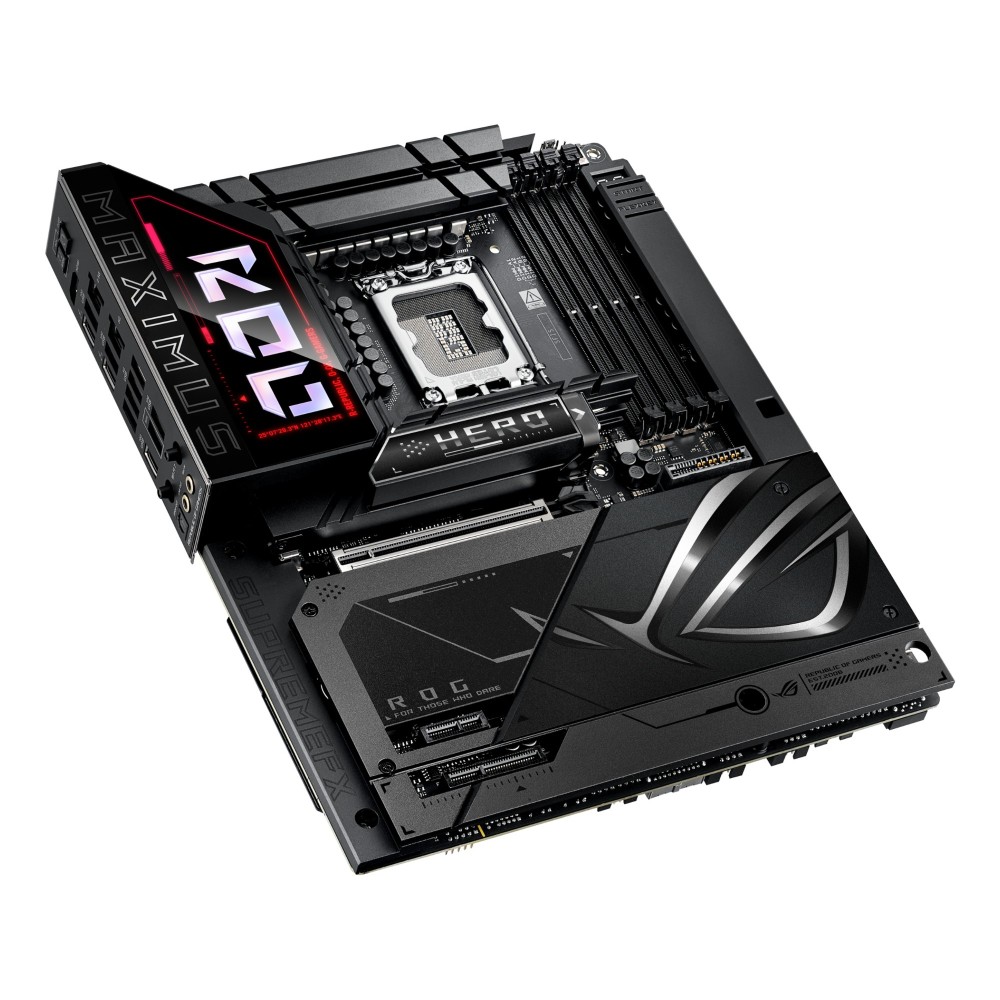

ASUS ROG MAXIMUS Z890 HERO BTF LGA1851 ATX Z890
£691.01 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel Z890 chipset supporting LGA 1851 Intel Core Ultra (Series 2) processors
- Six M.2 slots including three PCIe 5.0 with ROG M.2 PowerBoost and four SATA III connectors
- ATX form factor with hidden-connector design and graphics card high-power slot for clean cable management
- Dual-channel DDR5 memory with four DIMM slots supporting up to 256 GB
- Wi-Fi 7, Bluetooth 5.4, and dual 2.5Gb/5Gb Ethernet with Thunderbolt 4 ports
- PCIe 5.0 x16 SafeSlot with Q-Release Slim and seven-channel Realtek ALC4082 audio
Payment Methods:
You may also like
ASUS ROG MAXIMUS Z890 HERO BTF | ATX Z890 Hidden-Connector Motherboard
The ASUS ROG MAXIMUS Z890 HERO BTF Intel Z890 LGA 1851 (Socket V1) ATX targets UK builders creating a premium, AI-ready workstation or gaming system. This board features a hidden-connector design for superior cable management. It supports Intel Core Ultra (Series 2) processors and delivers robust power delivery for demanding workloads.
Slim Specs Table
| Metric | Spec. |
|---|---|
| Chipset | Intel Z890 |
| Socket | LGA 1851 |
| Memory | 4x DDR5 (Max 256GB) |
| M.2 Slots | 6 (3x PCIe 5.0, 3x PCIe 4.0) |
| Networking | Wi-Fi 7, 2.5Gb/5Gb LAN |
| Form Factor | ATX (305 x 244 mm) |

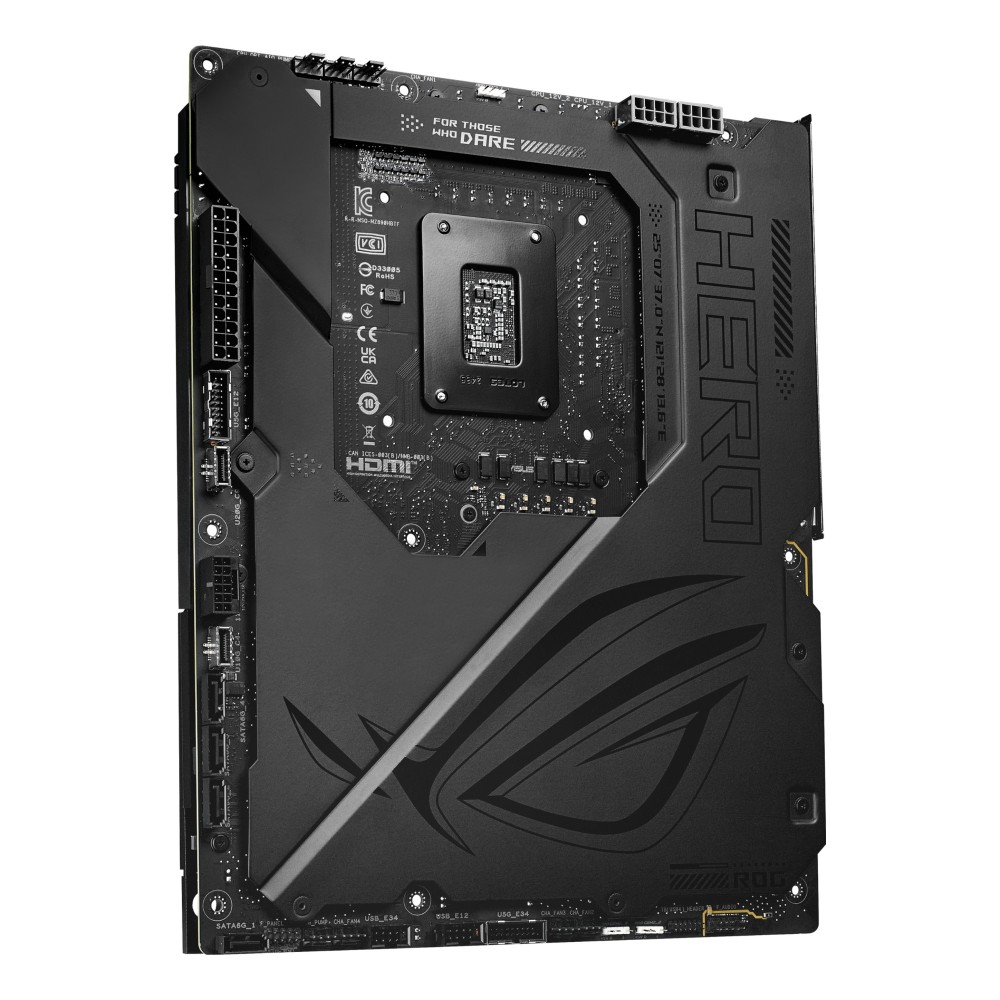

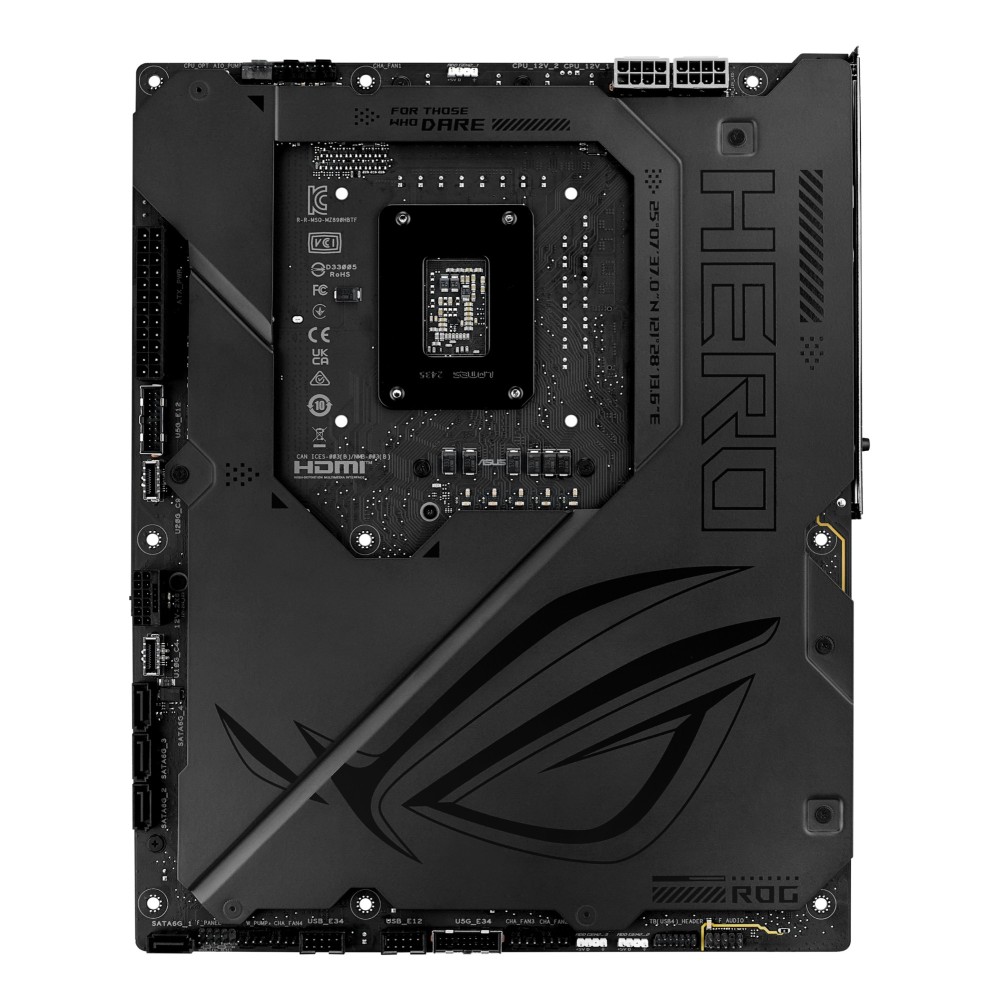

Hidden-Connector Design for Clean Builds
The ASUS ROG MAXIMUS Z890 HERO BTF uses a hidden-connector layout. This routes most cables behind the motherboard tray. It reduces clutter in the main chamber. Consequently, airflow improves and the build looks professional. The rear I/O area also benefits from this design.
PCIe 5.0 and Storage Flexibility
This motherboard provides three PCIe 5.0 M.2 slots. It also includes three PCIe 4.0 M.2 slots. You can install high-speed NVMe drives for rapid data access. The board supports RAID 0, 1, 5, and 10 configurations. This offers redundancy or performance scaling for your storage arrays.
Advanced AI and Overclocking Features
The board is “Advanced AI PC-ready”. It supports Intel NPU Boost for AI workloads. ASUS AI Overclocking and AI Cooling II optimise performance automatically. AI Networking II prioritises gaming traffic. These tools help maximise your system’s potential without manual tweaking.
Robust Power and Cooling Control
It features 22+1+2+2 power stages. This ensures stable power for high-end CPUs. The board includes two CPU fan connectors and four chassis fan headers. You can connect multiple cooling solutions. DIMM Flex and AEMP III help optimise DDR5 performance and stability.
Comprehensive Connectivity and Audio
The board has two Thunderbolt 4 ports. It includes a USB 20Gbps Type-C front-panel connector. Rear ports include USB 3.2 Gen 2 Type-A and Type-C. Audio is handled by the Realtek ALC4082 chip. This delivers 7.1-channel output for immersive sound.
Wi-Fi 7 and Dual LAN Support
Onboard networking includes Wi-Fi 7 (802.11be) with a Q-Antenna. It also offers dual Ethernet ports: 2.5Gb and 5Gb. This provides flexible, high-speed connections. Bluetooth 5.4 is included for peripherals. These features suit modern, high-bandwidth needs.
Box contents
- ASUS ROG MAXIMUS Z890 HERO BTF motherboard
- Antenna included
- SATA cables included
- Drivers included
Check before you buy
- Confirm your case fits an ATX form factor (305 x 244 mm).
- Verify your PSU has the required 24-pin ATX and 12V connectors.
- Confirm UK plug and warranty region for your specific distributor.
- Check Wi-Fi band support for your local network regulations.
Frequently Asked Questions
Q: Does this motherboard support Intel Core Ultra processors?
A: Yes, it supports Intel Core Ultra (Series 2) processors via the LGA 1851 socket.
Q: How many M.2 slots are available?
A: There are six M.2 slots: three PCIe 5.0 and three PCIe 4.0.
Q: Is Wi-Fi 7 included on this board?
A: Yes, it features onboard Wi-Fi 7 (802.11be) with a Q-Antenna.
Q: What is the maximum memory capacity?
A: The board supports up to 256GB of DDR5 memory across four DIMM slots.
Q: Are Thunderbolt ports available?
A: Yes, it includes two Thunderbolt 4 ports.
Q: Does it have a hidden-connector design?
A: Yes, the board uses a hidden-connector layout for cleaner cable management.
The Consultant’s verdict & warranty
This motherboard is ideal for UK builders building a high-end AI PC or premium gaming system. It suits users who value clean aesthetics, robust power, and latest connectivity like Wi-Fi 7 and PCIe 5.0. If you need a foundation for Intel Core Ultra (Series 2) with minimal cable clutter, this is a strong choice. Covered by the standard Manufacturer Warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 6 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 10 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| WiFi-AP antenna jack | 1 |
| Thunderbolt ports quantity | 2 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet, 5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel Z890 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC4082 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 6 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| PCI Express x4 (Gen 4.x) slots | 1 |
| 1st M.2 largest key size | 22110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 5.0 |
| 4th M.2 largest key size | 2280 |
| 4th M.2 highest PCI Express generation | 5.0 |
| 5th M.2 largest key size | 2280 |
| 5th M.2 highest PCI Express generation | 4.0 |
| 6th M.2 largest key size | 2280 |
| 6th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.62 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Drivers included | Yes |
| Weight & dimensions | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.62 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Antenna included | Yes |
| Other features | |
| Package width | 370 mm |
| Package depth | 312 mm |
| Package height | 108 mm |
| Package weight | 4.62 kg |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1KG0-M0EAY0, 11545868, 128756, 547074, STD10225164, CL90MB1KG0-M0EAY0 |
| Additional EANs | 0197105847606 |
