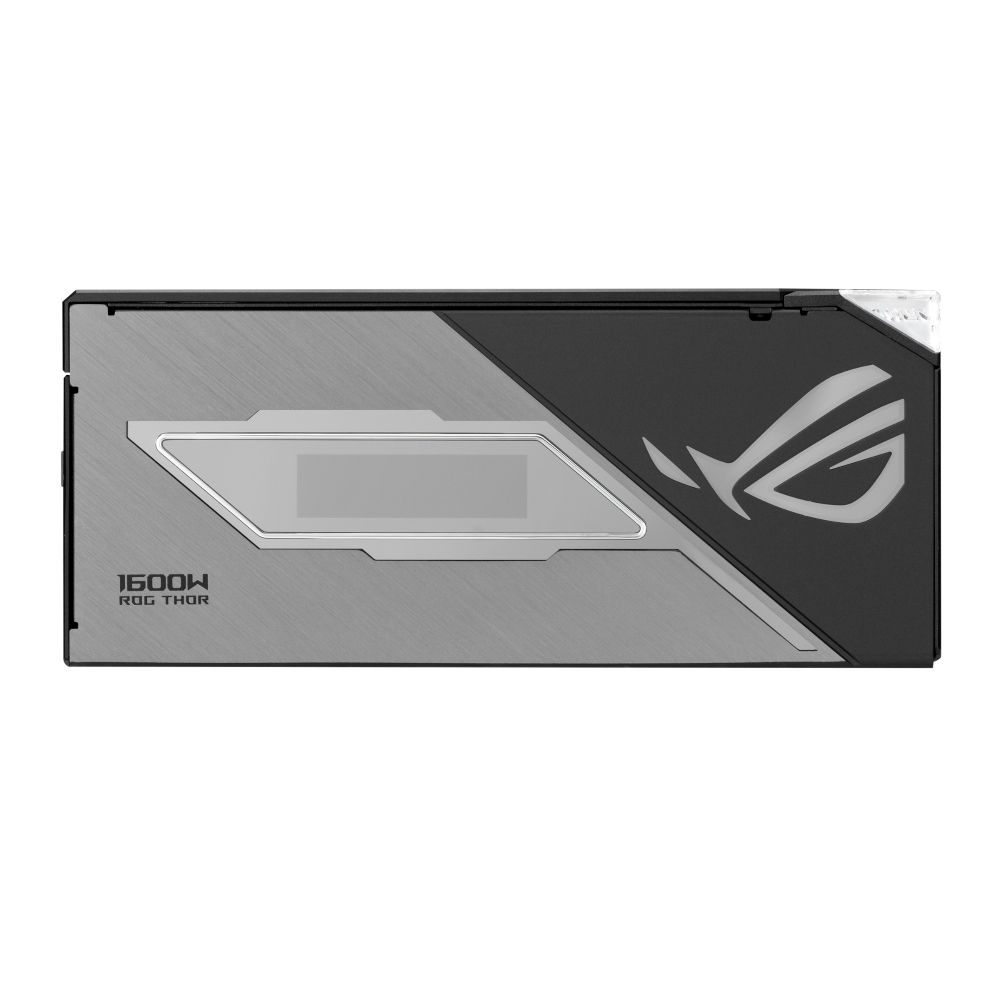

ASUS ROG THOR-1600T3 1600W ATX Grey Modular PSU
£833.68 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 1600 W total power with 80 PLUS Titanium efficiency
- ATX 3.1 compliance with “GPU-First” voltage sensing and intelligent stabilizer
- OLED display with magnetic attachment for real-time monitoring
- Fully-modular cabling with 2×16-pin, 4×6+2-pin PCIe and 10×SATA connectors
- Active cooling with silent mode, DBB bearing and 120,000 h MTBF
- Comprehensive protection (OCP, OPP, OVP, OTP, SCP, UVP)
Payment Methods:
You may also like
ASUS ROG THOR 1600W Titanium III | ATX 3.1 GaN PSU with OLED
The ASUS ROG -THOR-1600T3-GAMING power supply unit 1600 W 20+4 pin ATX ATX Grey is engineered for high-end UK gaming builds and workstation setups. It delivers 1600W of stable power with 80 PLUS Titanium efficiency. This unit targets enthusiasts running multi-GPU configurations or overclocked CPUs.
It features next-gen GaN MOSFETs for improved efficiency. A patented GPU-First voltage stabilizer enhances stability. The built-in OLED display shows real-time power draw. Active cooling includes a silent mode for quieter operation.
Key Specifications
| Metric | Spec. |
|---|---|
| Total Power | 1600 W |
| Efficiency Certification | 80 PLUS Titanium |
| ATX Standard | ATX 3.1 |
| Cabling Type | Fully-Modular |
| Main Connectors | 20+4 pin ATX |
| PCIe 16-pin Connectors | 2 |
Next-Gen Efficiency and Stability
The ROG Thor uses next-gen GaN MOSFETs. This technology improves overall power efficiency and reduces heat output. The unit meets the latest ATX 3.1 standards for transient loads.
It also features a patented GPU-First voltage stabilizer. This intelligent circuit monitors voltage directly at the graphics card. It helps ensure stable performance during heavy gaming or rendering tasks. However, extreme overclocking results can vary based on your specific hardware.
Intelligent Cooling and Silent Operation

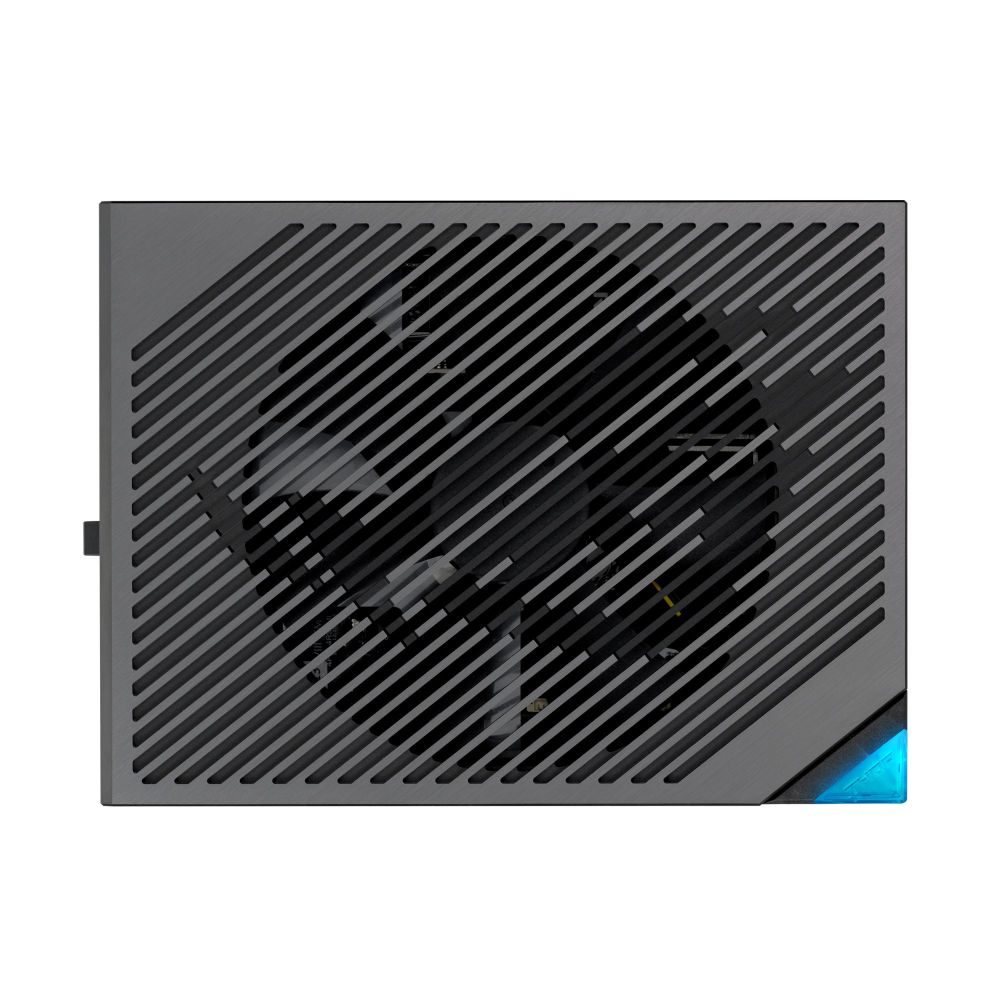

Active cooling is provided by a single fan with DBB bearing technology. This design aims for a long lifespan and quiet operation. The unit includes a Silent Mode for low-noise environments.

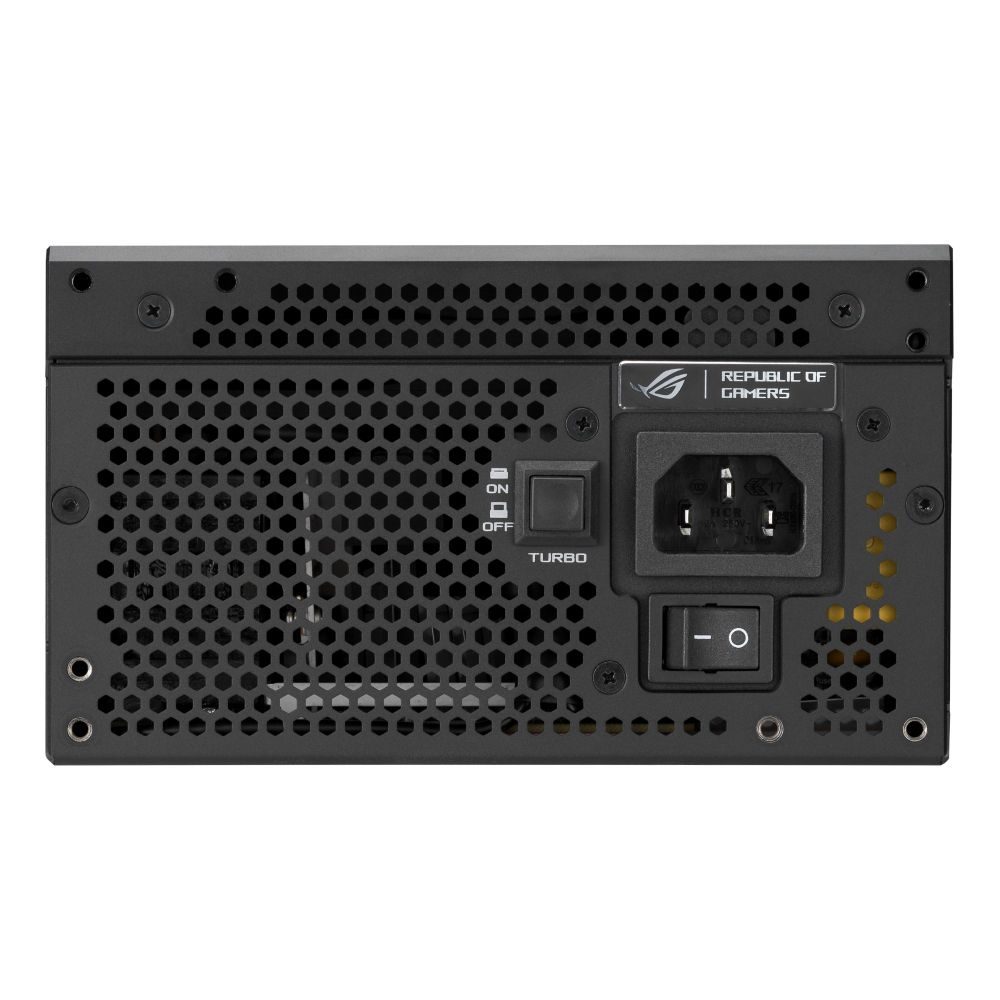

Turbo Mode is available for maximum cooling during demanding workloads. You can switch modes based on your current activity. For example, use Silent Mode for browsing and Turbo Mode for intensive gaming sessions.

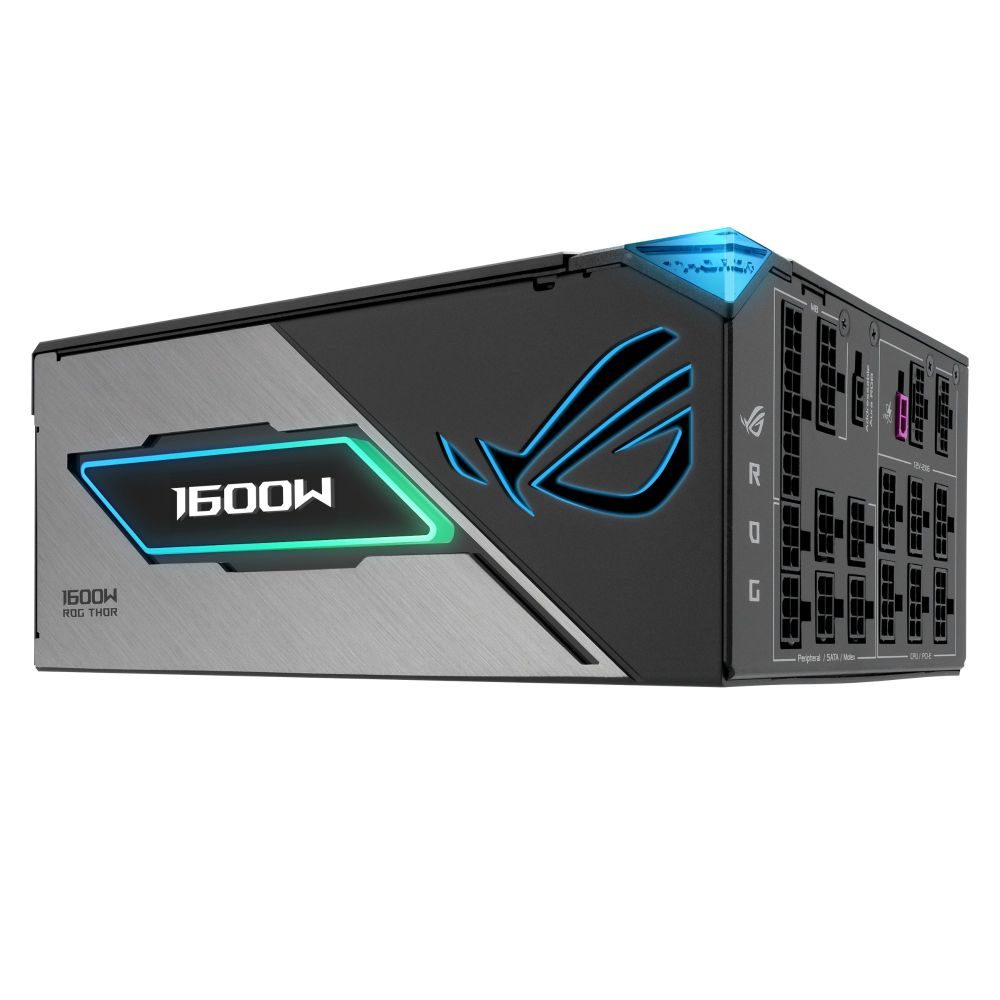

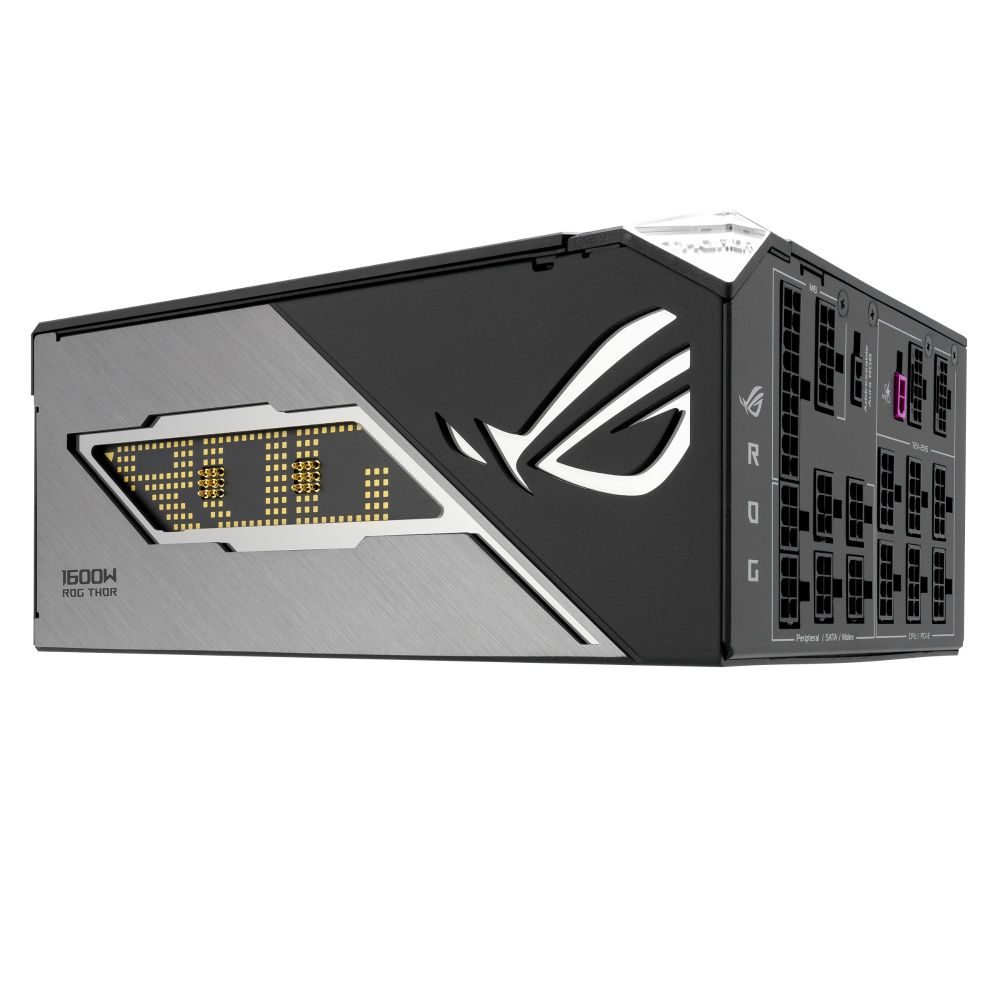

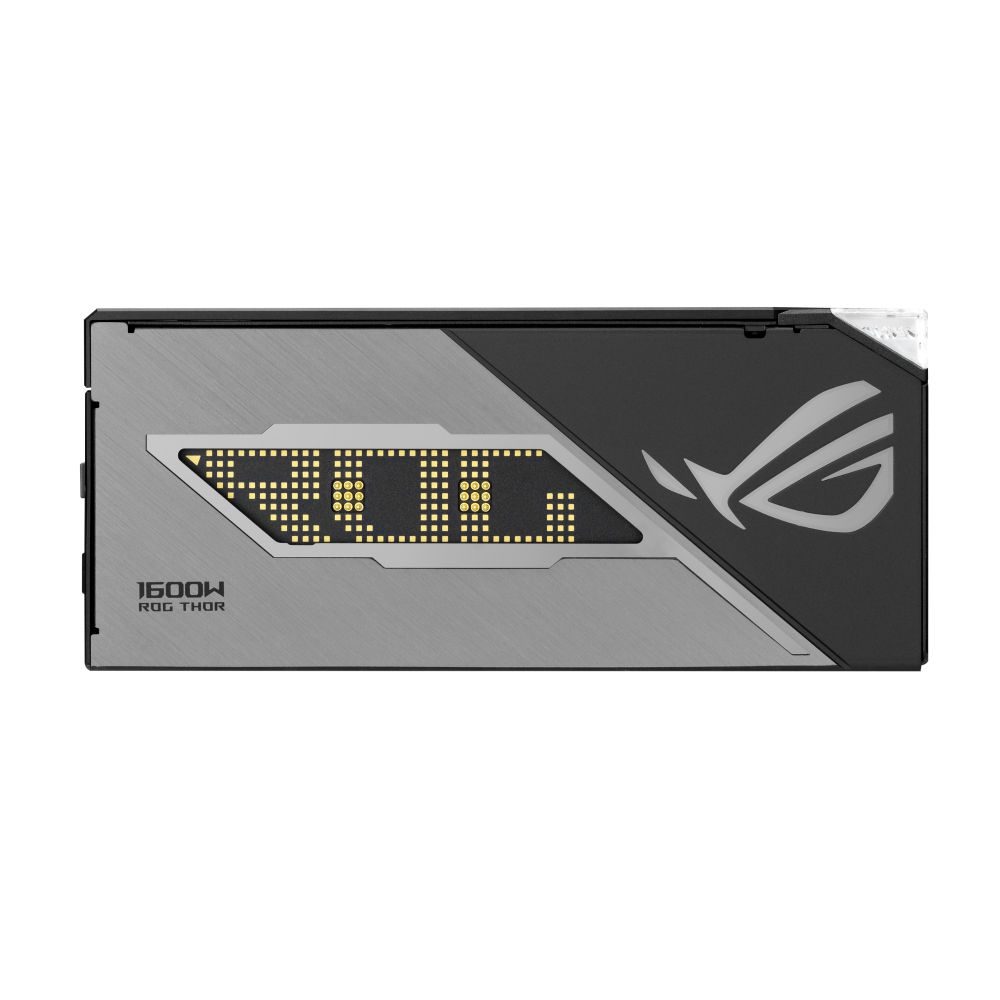

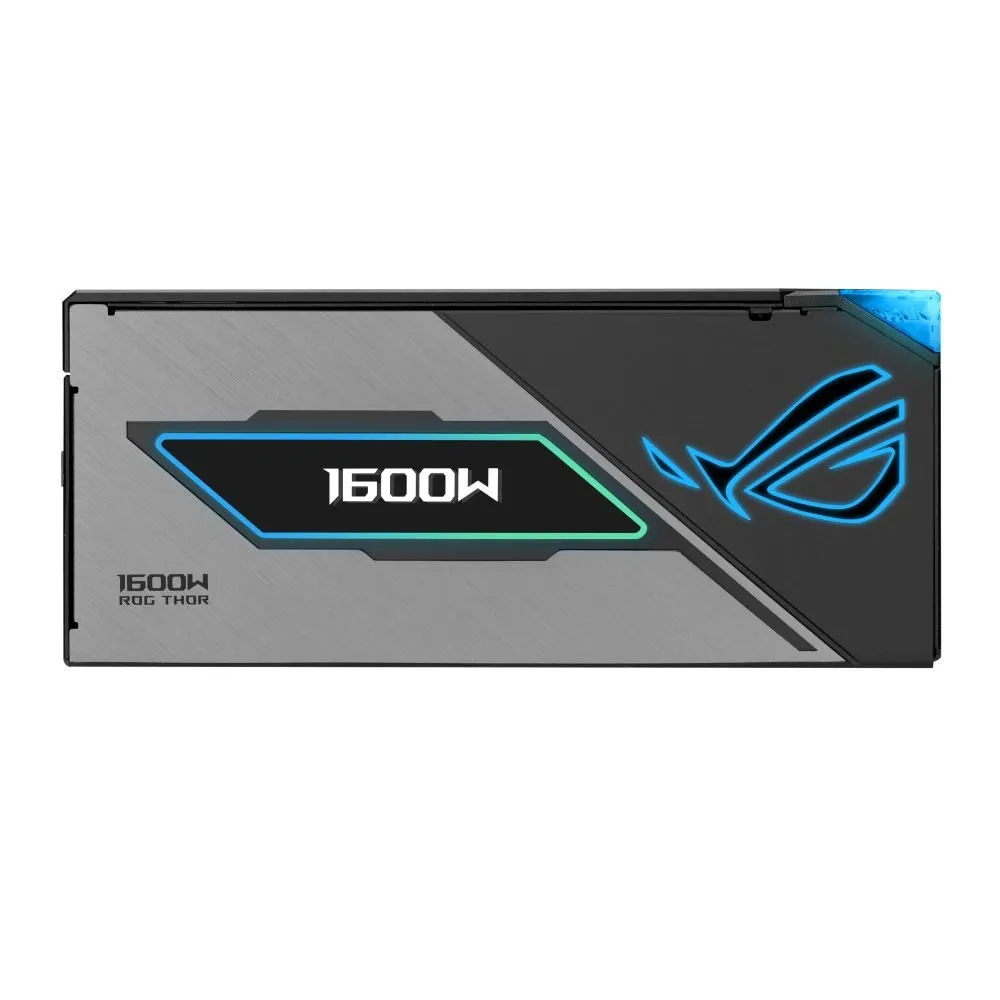

Real-Time Monitoring with OLED Display
The built-in OLED display provides real-time power consumption data. It is now magnetically attached for easy repositioning. You can swap the display to either side of the unit.
This flexibility accommodates different PSU mounting orientations in your case. For example, fan-up or fan-down installations are both supported. Verify your case clearance allows for the 86 mm unit height and 200 mm width.

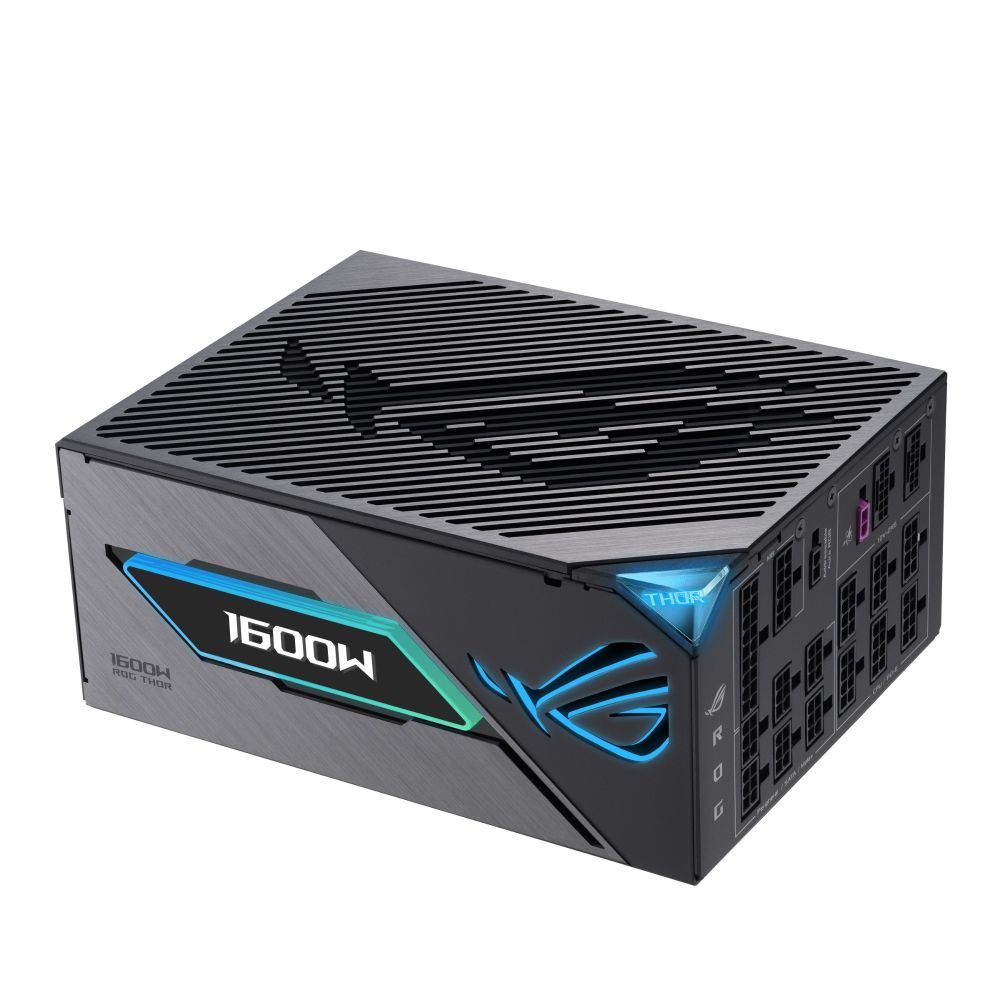

Fully-Modular Cabling and Connectivity
This PSU features a fully-modular design. You connect only the cables your system requires. This improves airflow and reduces clutter inside the chassis.
The unit includes multiple PCIe connectors for modern graphics cards. It features two 16-pin PCIe connectors for high-end GPUs. SATA and Molex cables are also included for storage and peripherals. Cable ties are provided for clean routing.
Box contents
- ROG Thor 1600W Titanium III Power Supply Unit
- Motherboard power cable (20+4 pin ATX, 61 cm)
- CPU power cable (4+4 pin, 100 cm)
- PCIe power cables (6+2 pin and 16-pin, 75 cm)
- SATA power cables (120 mm and 400 mm)
- Peripheral Molex power cables (150 mm and 400 mm)
- Cable ties
- User documentation
Key points to check
- Confirm your case has space for a 200 mm wide ATX PSU and full cable clearance.
- Verify your motherboard has a 20+4 pin ATX connector and required CPU/PCIe slots.
- Check that your graphics card needs are met by the included 16-pin and 6+2 pin connectors.
- Confirm you have a UK power cable or adapter, as the input voltage is 100-240 V.
Common questions
What is the exact warranty period for this PSU in the UK?
Does this unit include a UK plug power cable?
Is the OLED display removable or replaceable?
Can this PSU handle sudden power spikes from modern GPUs?
Are the cables compatible with UK case layouts?
Our take
This ASUS ROG unit suits enthusiasts building high-power systems with multiple GPUs or extreme overclocking. It offers top-tier efficiency, stable voltage sensing, and flexible cooling options. The magnetic OLED display adds useful real-time monitoring.
Covered by the applicable manufacturer warranty.
| Number of fans | 1 fan(s) |
|---|---|
| Cooling type | Active |
| On/off switch | Yes |
| Silent mode | Yes |
| Purpose | PC |
| ATX version | 3.1 |
| Mean time between failures MTBF | 120000 h |
| Bearing technology | DBB |
| Product colour | Grey |
| Illumination | Yes |
| Built-in display | Yes |
| Display type | OLED |
| Total power | 1600 W |
| AC input voltage | 100 – 240 V |
| Power Factor Correction PFC type | Active |
| Combined power +3.3V | 125 W |
| Combined power -12V | 3.6 W |
| Combined power +5V | 125 W |
| Combined power +5Vsb | 15 W |
| Max output current +3.3V | 30 A |
| Max output current -12V | 0.3 A |
| Max output current +5V | 25 A |
| Max output current +5Vsb | 3 A |
| Power protection features | Over current, Over power, Over voltage, Overheating, Short circuit, Under voltage |
| Motherboard power cable length | 61 cm |
| SATA power cable length | 120,400 mm |
| Peripheral Molex power cable length | 150,400 mm |
| PCI Express power cable length | 75 cm |
| CPU power cable length | 100 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral Molex power connectors 4-pin | 9 |
| PCI Express power connectors 6+2 pin | 4 |
| CPU power connector 4+4 pin | Yes |
| Cabling type | Fully-Modular |
| PCI Express power connectors 16-pin | 2 |
| Cables included | CPU, PCIe, Peripheral (Molex), SATA |
| Cable ties included | Yes |
| Width | 200 mm |
| Depth | 150 mm |
| Height | 86 mm |
| Weight | 2.8 kg |
| Package depth | 251 mm |
| Package width | 390 mm |
| Package height | 159 mm |
| Package type | Box |
| Package weight | 6.3 kg |
| Distributor SKUs | 607727, STD10230312, CL90YE00V1-B0NA00 |
