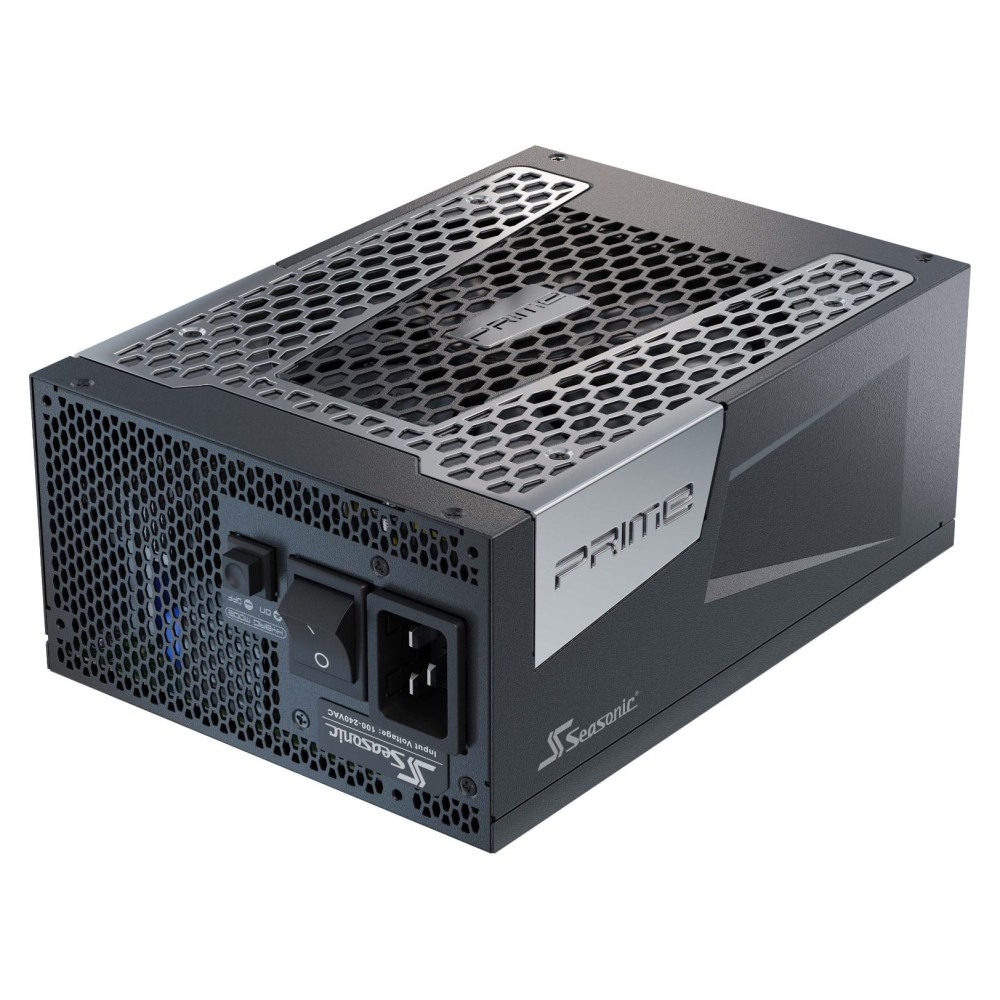

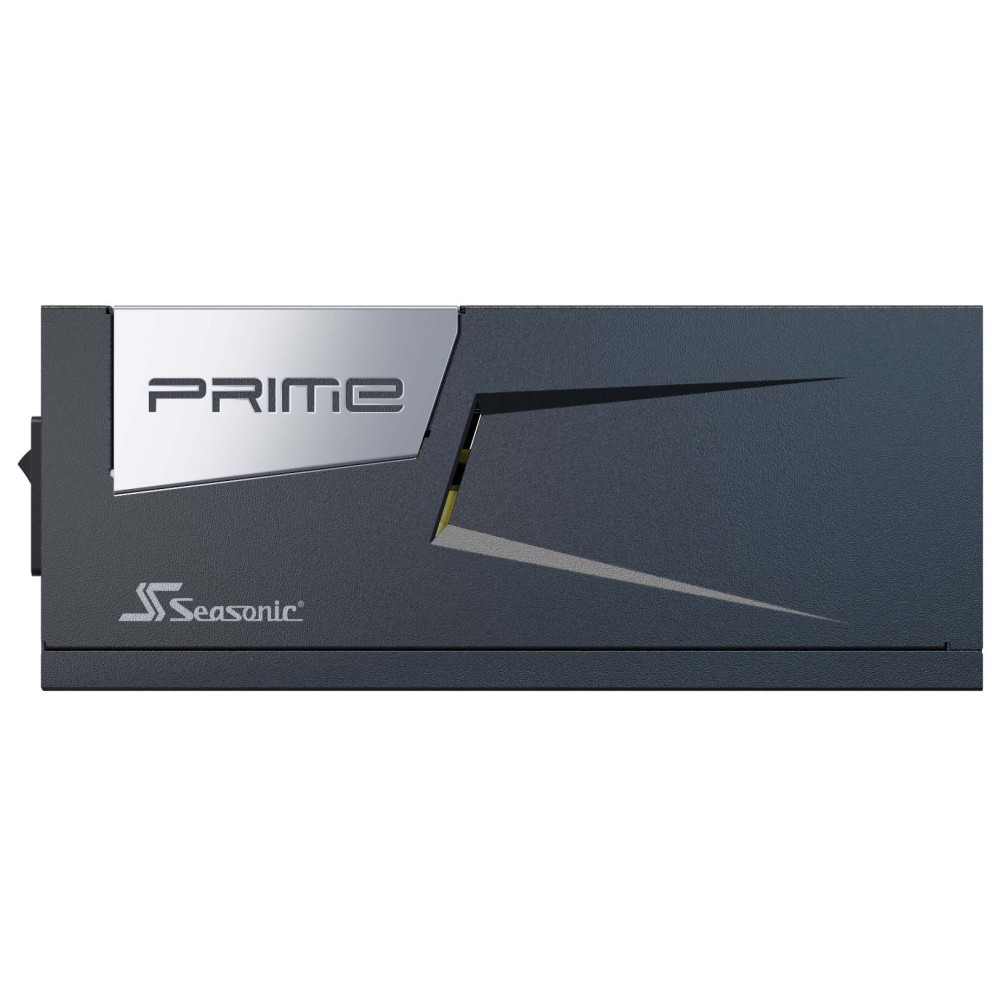

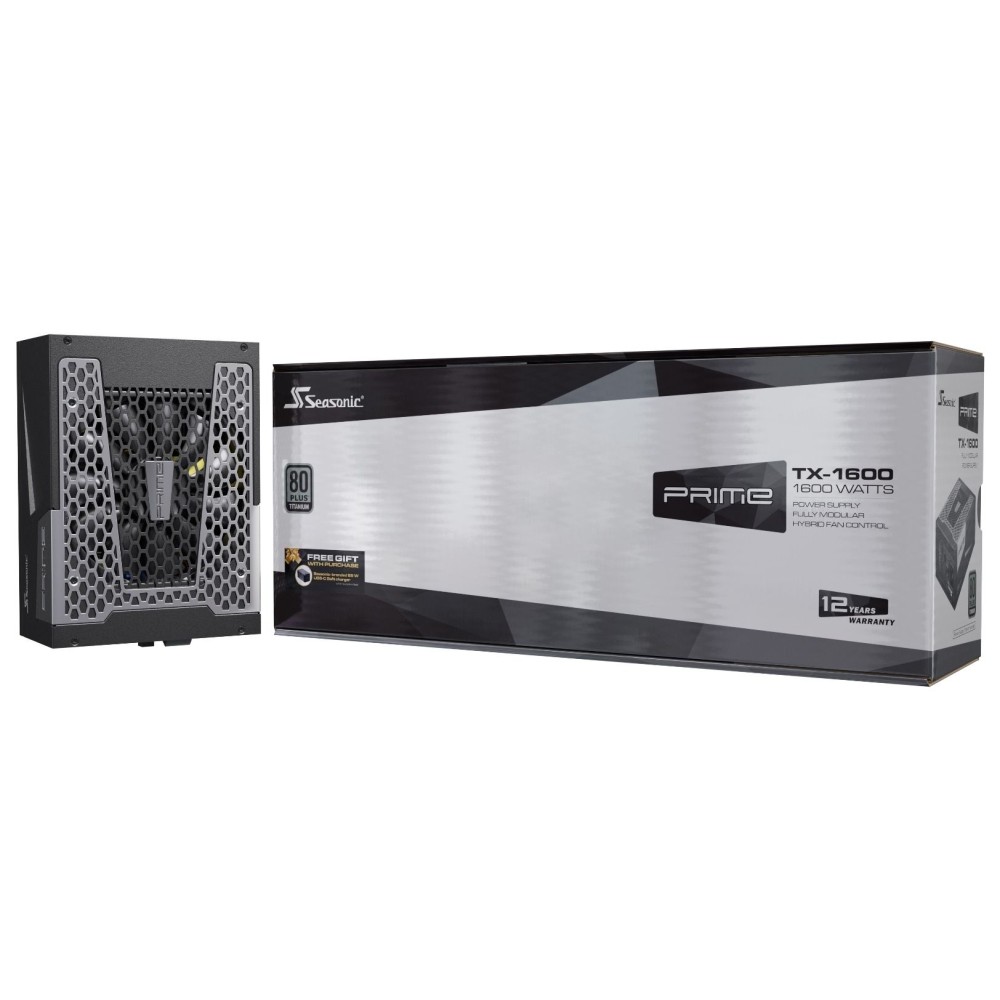

Seasonic Prime TX-1600 1600W 80 PLUS Titanium PSU
£439.42 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 1600 W total power output
- 80 PLUS Titanium certified for high efficiency
- ATX form factor for PC purpose
- Fully-modular cabling for easy management
- 13.5 cm Fluid Dynamic Bearing (FDB) fan with Hybrid Fan Control
- Micro Tolerance Load Regulation for stable output voltage
- Cable-free connection design for improved power quality
Payment Methods:
You may also like

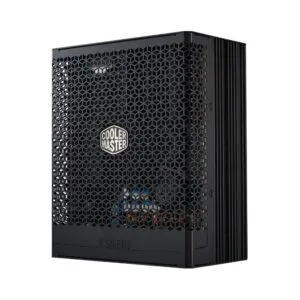

Cooler Master X Silent Edge 1100W PSU
In stock
Seasonic Prime TX-1600 – Powering Ultimate Builds
The Seasonic Prime -TX-1600 power supply unit 1600 W 20+4 pin ATX ATX Black offers exceptional power delivery for the most demanding PC systems. We recommend this unit for high-performance users and enthusiasts. It provides stable, efficient power to ensure your components run flawlessly.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Total Power | 1600 W |
| 80 PLUS Rating | Titanium |
| Cooling Type | Active |
| Fan Diameter | 13.5 cm |
| PSU Form Factor | ATX |
| Cabling Type | Fully-Modular |
Unwavering Power Stability
This power supply features Micro Tolerance Load Regulation. This design keeps output voltage within a very tight range. It achieves under 0.5% load regulation. Your high-performance system receives consistently stable power.
Whisper-Quiet Operation

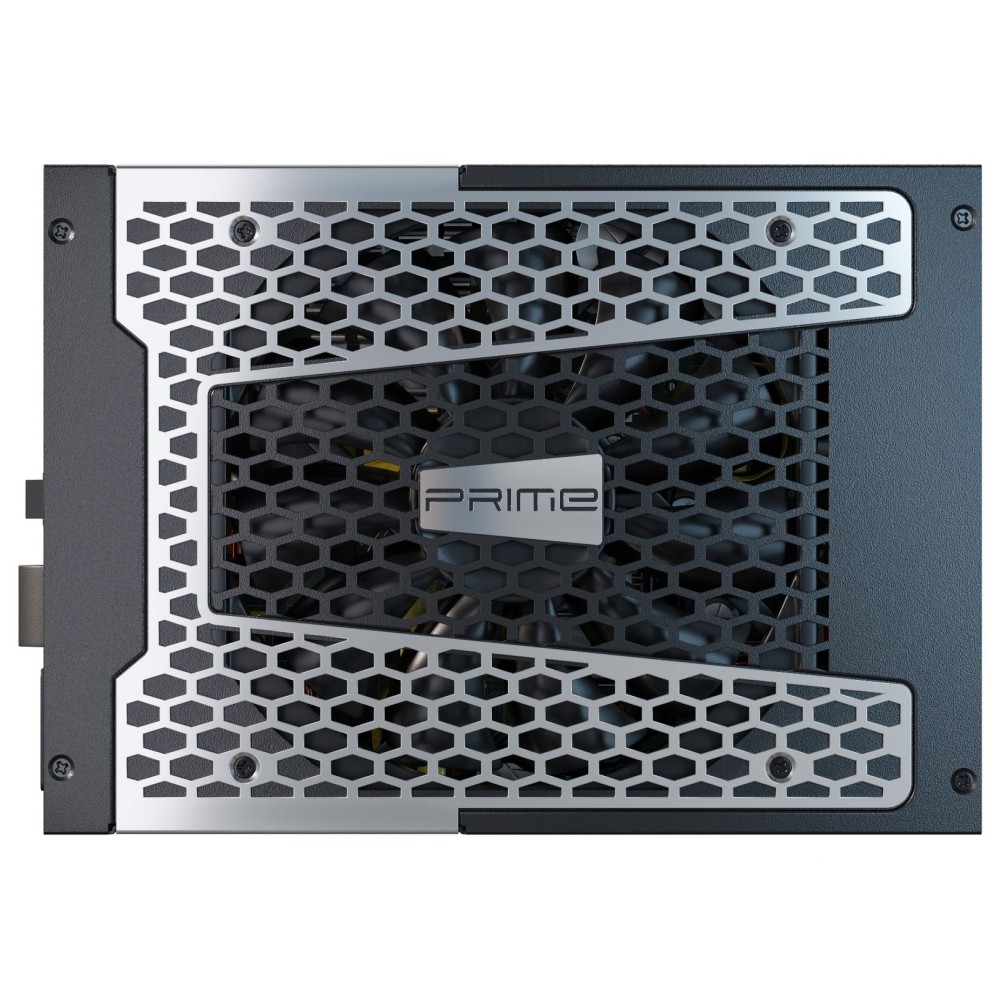

We know system noise is important. The Premium Hybrid Fan Control manages the 13.5 cm FDB fan. It optimises cooling while keeping noise levels minimal. This ensures a quiet computing experience.
Advanced Fan Engineering
The Fluid Dynamic Bearing (FDB) fan is highly reliable. FDB technology uses oil to reduce friction and vibration. This results in less operating noise and heat. It also significantly extends the fan’s lifespan.

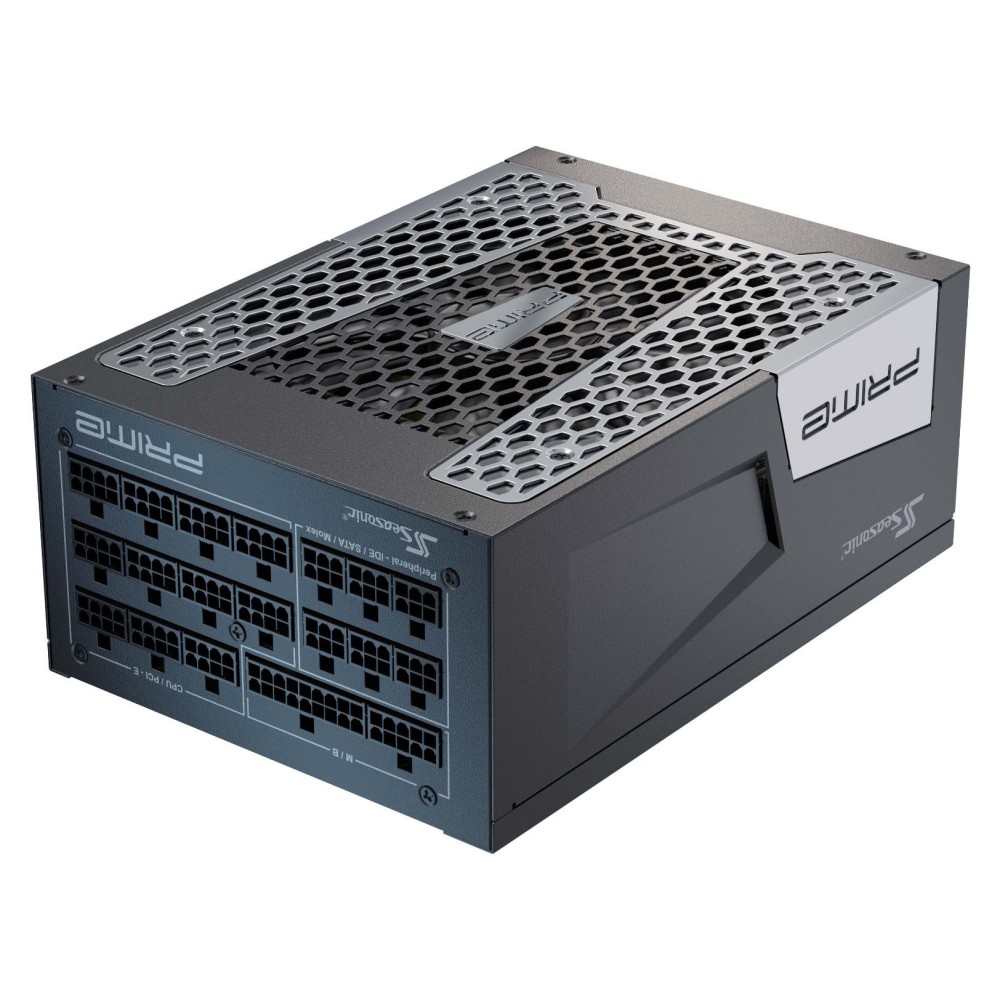

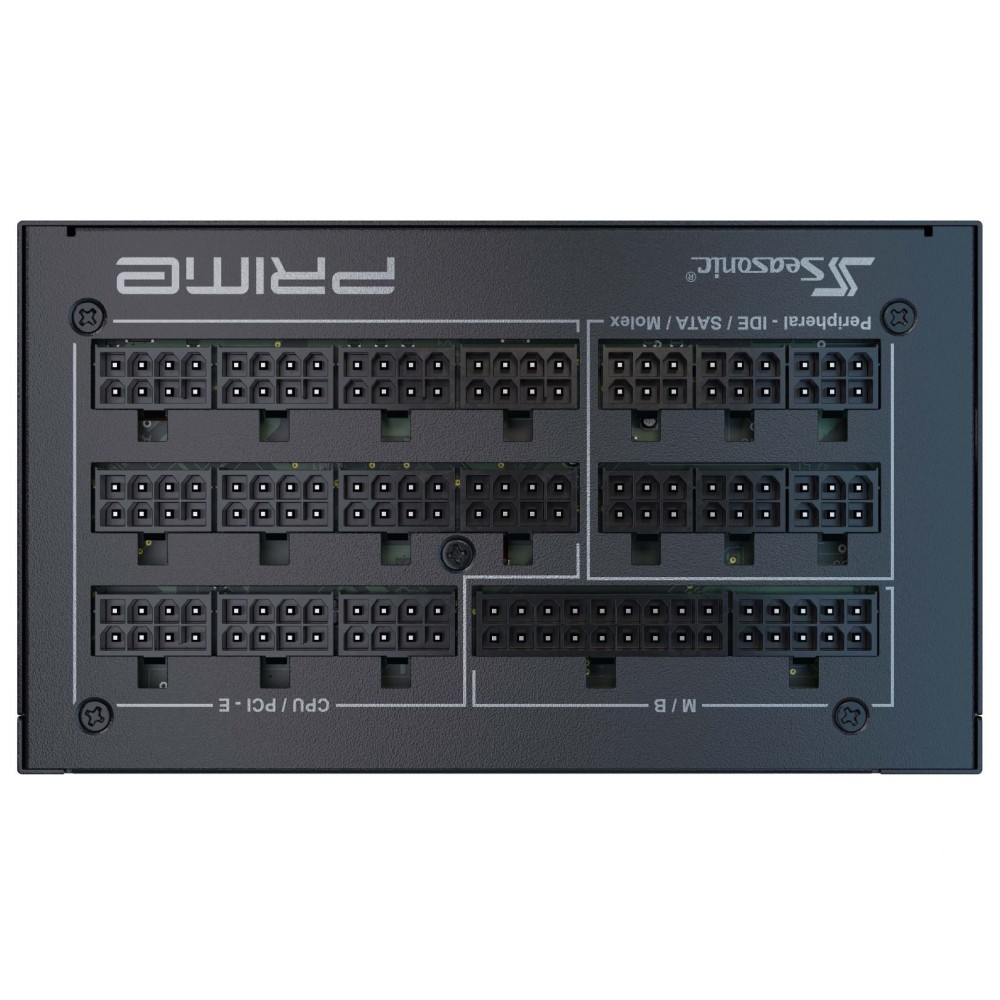

Simplified Cable Management
The fully-modular cabling design offers flexibility. You only connect the cables your system needs. This reduces clutter and improves airflow within your case. Installation and upgrades become much simpler.
Robust Internal Connections
Seasonic’s cable-free connection design enhances reliability. A copper plate links the back panel and PCB. This reduces production errors. It also improves overall output power quality.

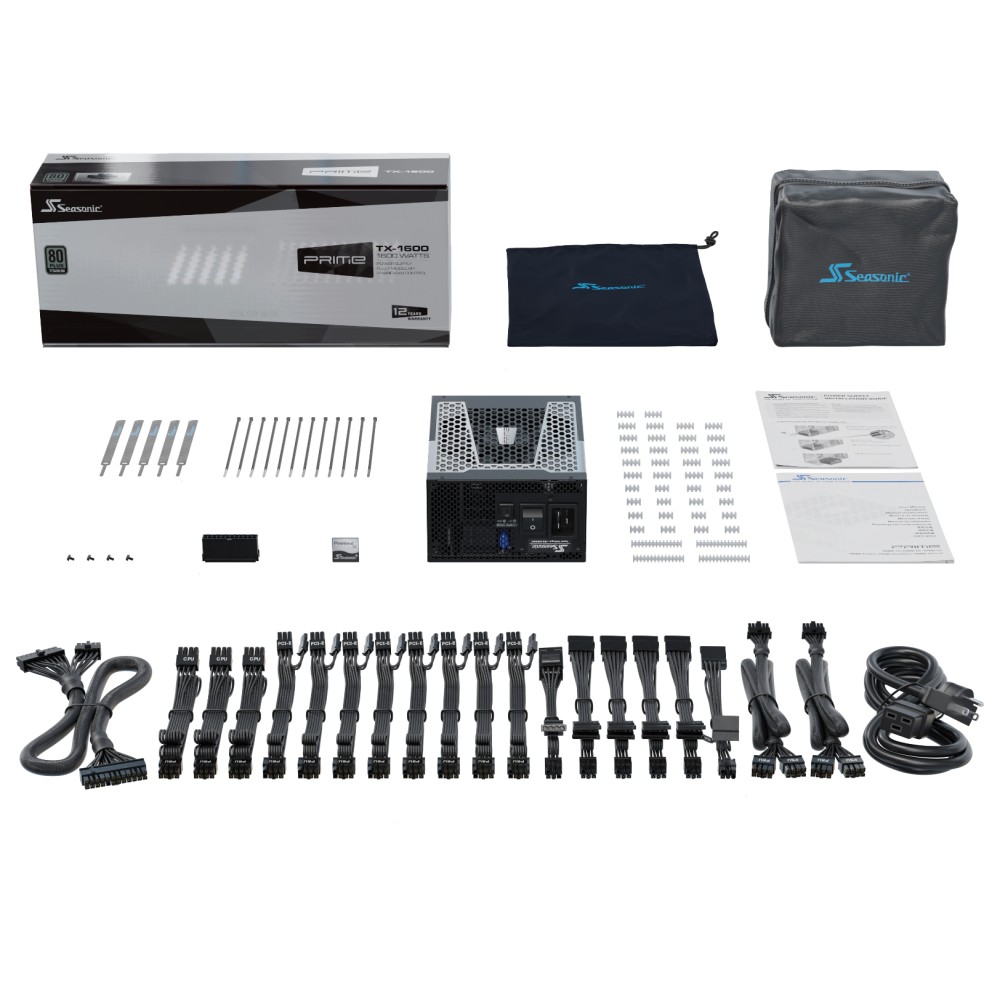

Cables and Accessories Included
- AC power cable
- PCIe cables
- Peripheral (Molex) cables
- Peripheral (Molex) to SATA 3.3 adapter cables
- SATA cables
- Cable ties
Before You Order
- Confirm your PC case has space for the 210 mm depth.
- Confirm your components require 1600 W of power.
- Confirm your motherboard uses the standard 20+4 pin ATX connector.
- Confirm your system benefits from fully-modular cabling.
Frequently Asked Questions
Q: What does 80 PLUS Titanium mean?
A: It signifies extremely high power efficiency, up to 94% at 50% load, reducing wasted energy and heat.
Q: Is this power supply suitable for multiple graphics cards?
A: Yes, with 1600 W of power and multiple PCIe connectors, it supports demanding multi-GPU setups.
Q: Does the fan always run?
A: No, the Hybrid Fan Control allows for silent, fanless operation under lower loads, with the fan engaging as needed.
Q: What is the benefit of Fluid Dynamic Bearing (FDB)?
A: FDB fans offer quieter operation, increased lifespan, and improved reliability compared to traditional fan bearings.
Q: Can I use this PSU in any ATX case?
A: It is an ATX form factor PSU, but its 210 mm depth means you should check your case for clearance.
The Bottom Line
The Seasonic Prime -TX-1600 power supply unit 1600 W 20+4 pin ATX ATX Black is for users demanding uncompromising power. It delivers top-tier efficiency and stability. This unit supports the most powerful PC builds. Warranty cover varies by product, so please contact us to confirm.
| Cooling | |
|---|---|
| Fan diameter | 13.5 cm |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Performance | |
| On/off switch | Yes |
| Power supply unit (PSU) form factor | ATX |
| 80 PLUS certification | 80 PLUS Titanium |
| Purpose | PC |
| Mean time between failures (MTBF) | 150000 h |
| Bearing technology | FDB |
| Compatible products | cTUVus, TUV, CB, CCC, BSMI, EAC, CE, Energy Star, RoHS, WEEE, ErP Lot 6, REACH |
| Design | |
| 80 PLUS certification | 80 PLUS Titanium |
| Product colour | Black |
| Fan diameter | 13.5 cm |
| On/off switch | Yes |
| Number of fans | 1 fan(s) |
| Cooling type | Active |
| Power | |
| Total power | 1600 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Input current | 15 - 10 A |
| Combined power (+3.3V) | 125 W |
| Combined power (+12V) | 1600 W |
| Combined power (+5V) | 125 W |
| Combined power (-12V) | 6 W |
| Combined power (+5Vsb) | 15 W |
| Max output current (+3.3V) | 25 A |
| Max output current (+12V) | 133.3 A |
| Max output current (+5V) | 25 A |
| Max output current (-12V) | 0.5 A |
| Max output current (+5Vsb) | 3 A |
| Power protection features | Over current, Over voltage, Short circuit |
| Ports & interfaces | |
| Motherboard power cable length | 61 cm |
| Motherboard power connector | 20+4 pin ATX |
| Number of SATA power connectors | 10 |
| Peripheral (Molex) power connectors (4-pin) | 3 |
| PCI Express connector | Yes |
| Cabling type | Fully-Modular |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Packaging content | |
| Cables included | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Cable tie(s) included | Yes |
| Weight & dimensions | |
| Width | 150 mm |
| Depth | 210 mm |
| Height | 86 mm |
| Packaging data | |
| Cables included | AC, PCIe, Peripheral (Molex), Peripheral (Molex) to SATA 3.3, SATA |
| Package type | Box |
| Certificates | |
| 80 PLUS certification | 80 PLUS Titanium |
| Identifiers | |
| Distributor SKUs | CA-08Y-SS, 000000000000291935, 000000000000314569, PRIME TX-1600-ATX30, 557844, PSSEA-PRIMETX16, OSPRIME-TX-1600-ATX30 |
| Additional EANs | 4711173876397 |
