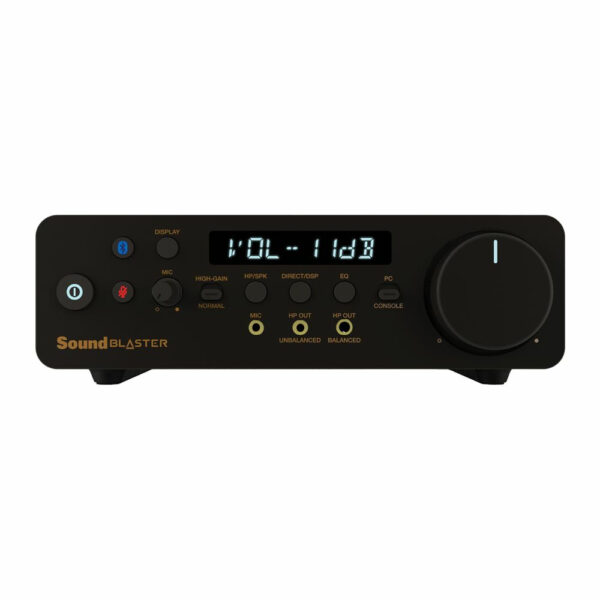

Creative Sound Blaster X5 USB DAC/Amp

Creative Labs Sound Blaster X5 USB – Dual DAC desktop audio for discerning ears

We designed the Creative Labs Sound Blaster X5 USB for audiophiles and pro-audio users who demand high-resolution playback from a compact desktop unit. This external USB sound card delivers 32-bit / 384 kHz PCM playback with a 130 dB dynamic range. It suits listeners using studio-grade headphones, high-end IEMs, or complex setups that need flexible connectivity and pure, detailed sound.

Core numbers

Balanced headphone amplification for left and right independence

Our custom Xamp discrete headphone bi-amplifier drives each earcup separately through three stages of amplification. This fully balanced arrangement reduces in-circuit noise and minimises crosstalk. You hear accurate stereo imaging and a cleaner soundstage, which matters when you are mixing, monitoring, or simply enjoying detailed recordings.

Dual Cirrus Logic DACs for lossless playback

The Sound Blaster X5 features two Cirrus Logic CS43198 DACs that support high-resolution PCM and DSD256 decoding. Because each channel is processed independently, you get exceptionally low THD of around 0.00018%. In practice, this means lossless playback with minimal colouration and fine micro-detail retrieval across the frequency range.

Flexible connectivity for PC, Mac, and consoles

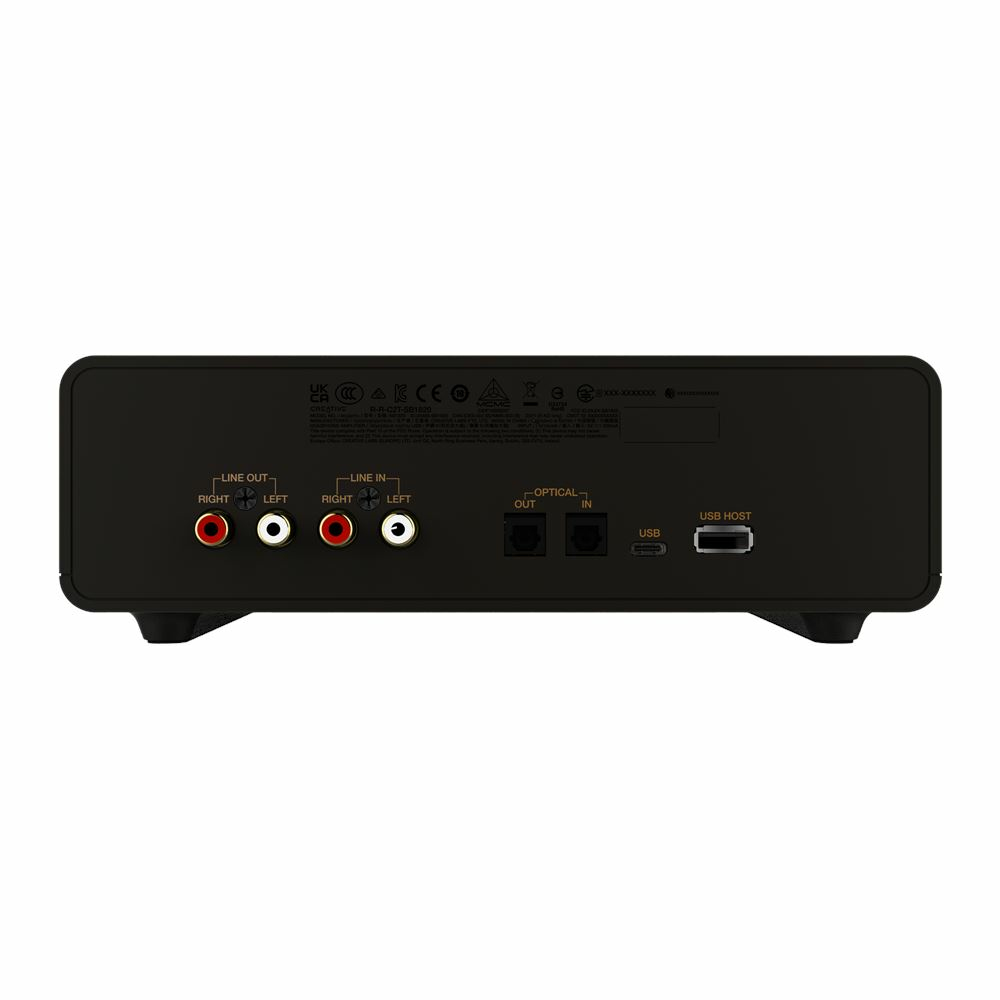

You can connect to Windows 10 or 11, and macOS from Catalina through Sonoma, using a single USB-C cable for both audio and power. The rear USB-A host port accepts external USB microphones, headsets, or wireless transmitters such as the Creative BT-W4, while TOSLINK optical and RCA outputs integrate easily with AV receivers, set-top boxes, and Blu-ray players.

Low-latency ASIO playback and recording

ASIO 2.2 support over USB and S/PDIF gives you ultra-low latency for production work and live monitoring. You can access multiple audio inputs and outputs without drift or jitter, which helps when tracking instruments, editing, or working in DAWs that benefit from direct device access.

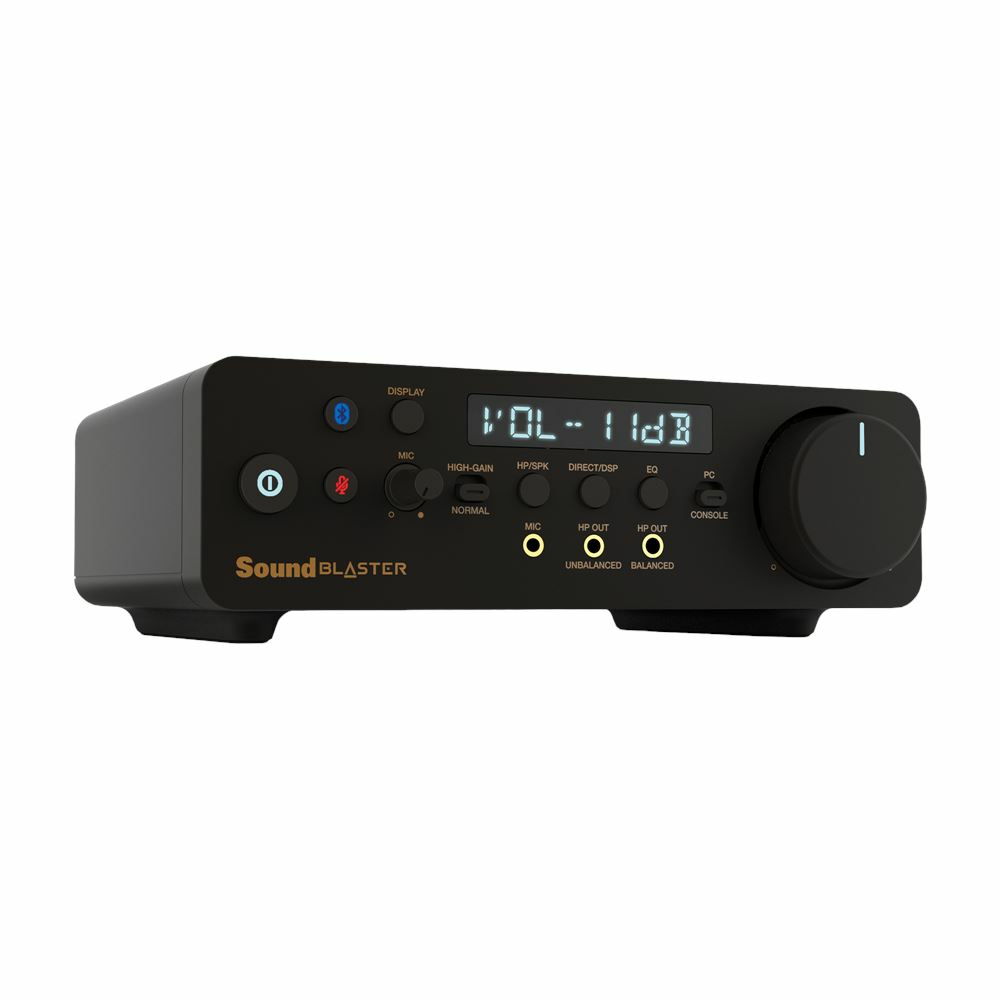

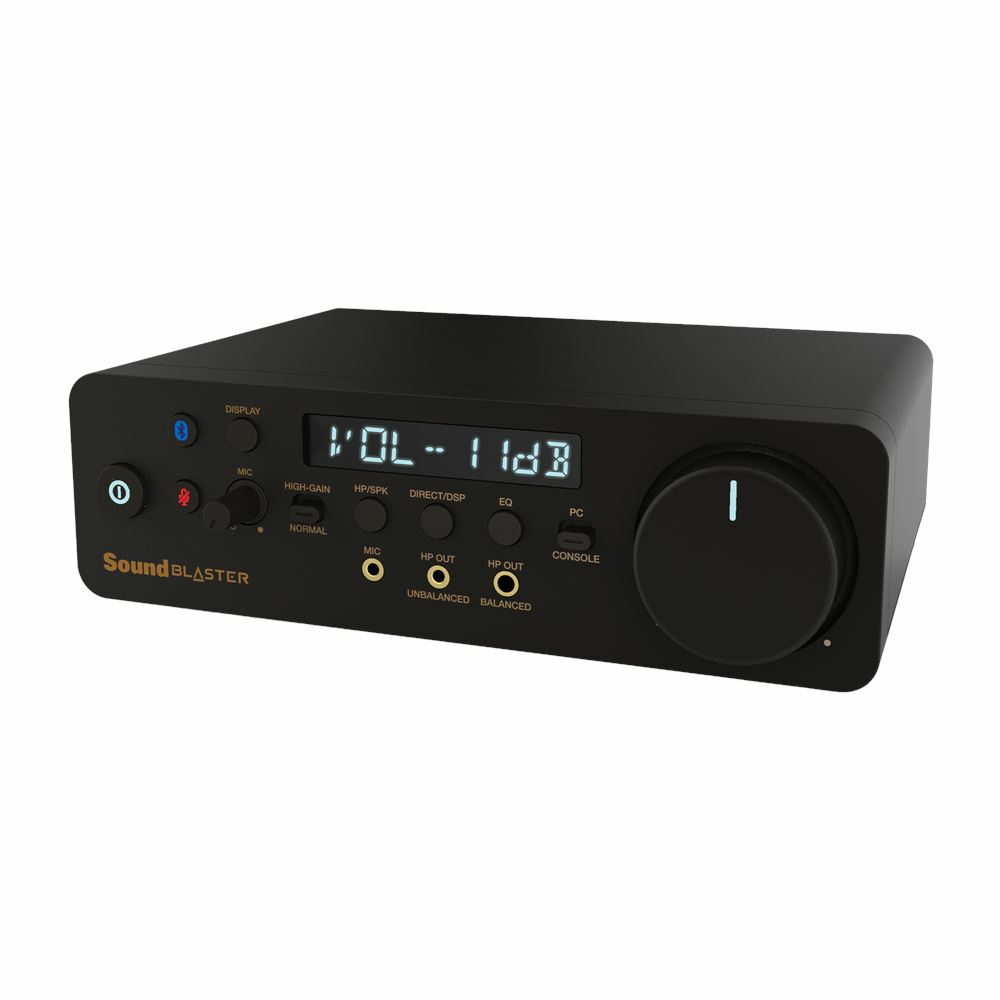

Intuitive controls and DSP customisation

Front-mounted buttons, gain knobs, and a clear output selector keep essential controls within reach. Our Creative app provides a 10-band EQ, pre-tuned acoustic profiles, and the option to disable DSP for pure, uncoloured audio. You can tailor the setup to your headphones, room, or source material.

Frequently Asked Questions

Q: Does the Creative Labs Sound Blaster X5 USB drive 600 Ω headphones?

A: Yes, it drives headphones from 16 to 600 Ω, including demanding open-back and planar-magnetic models.

Q: Can I use it with my Mac?

A: Yes, it is compatible with macOS from Catalina through Sonoma via USB-C.

Q: Does it support balanced headphones?

A: Yes, there is a gold-plated 4.4 mm balanced output alongside the standard 3.5 mm unbalanced port.

Q: Can I stream wirelessly?

A: Yes, the built-in Bluetooth receiver and USB-A host port support wireless transmitters for high-quality audio streaming.

Q: Is optical output included?

A: Yes, a TOSLINK optical port is available for connection to external DACs, receivers, or sound systems.

Before you order

• Confirm your computer has a free USB-C port for audio and power.
• Check that your headphones use 3.5 mm or 4.4 mm connectors.
• Verify your macOS version is Catalina or newer if you plan to use a Mac.
• Ensure your AV receiver or sound system has RCA or TOSLINK inputs if you plan to connect it.

Our verdict

The Creative Labs Sound Blaster X5 USB suits listeners and creators who want high-resolution playback, flexible connectivity, and strong headphone drive in a compact unit. It is a strong fit for studio-grade headphones, balanced setups, and multi-source desktop systems. Warranty cover varies by product, so please contact us to confirm.
