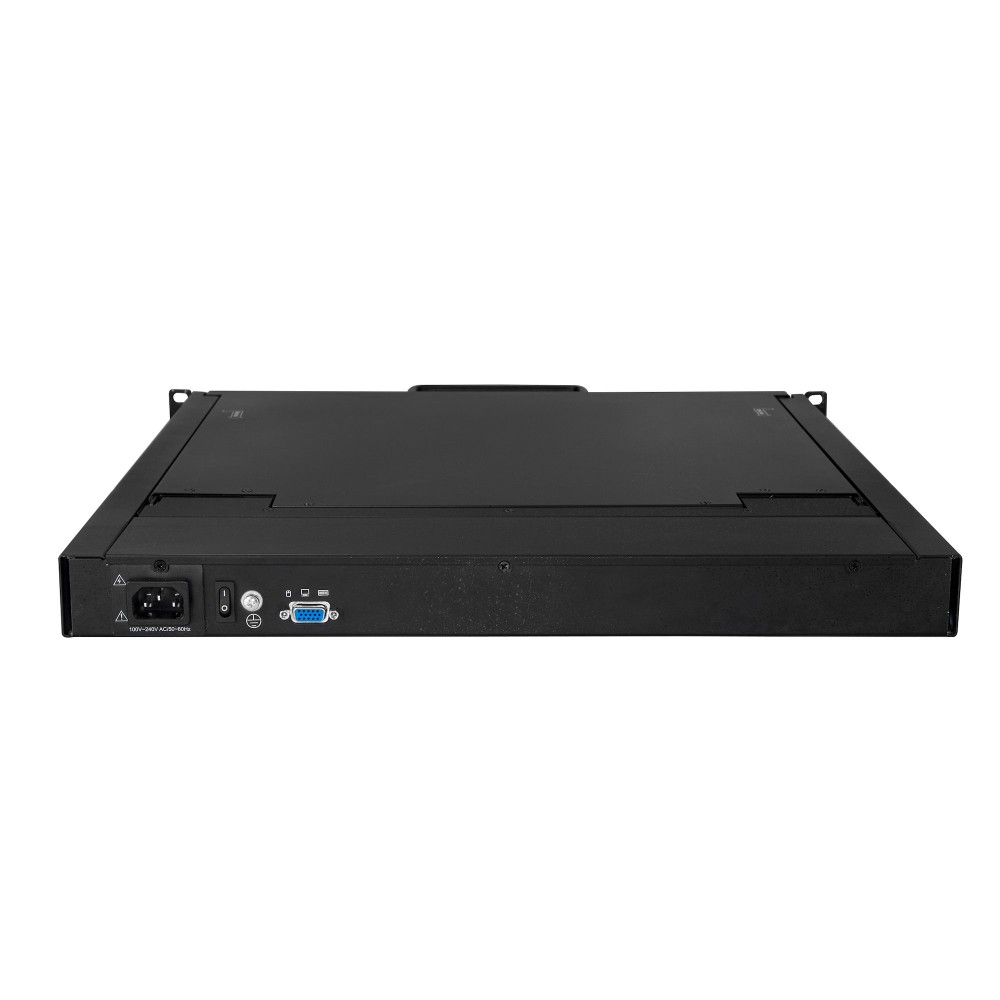

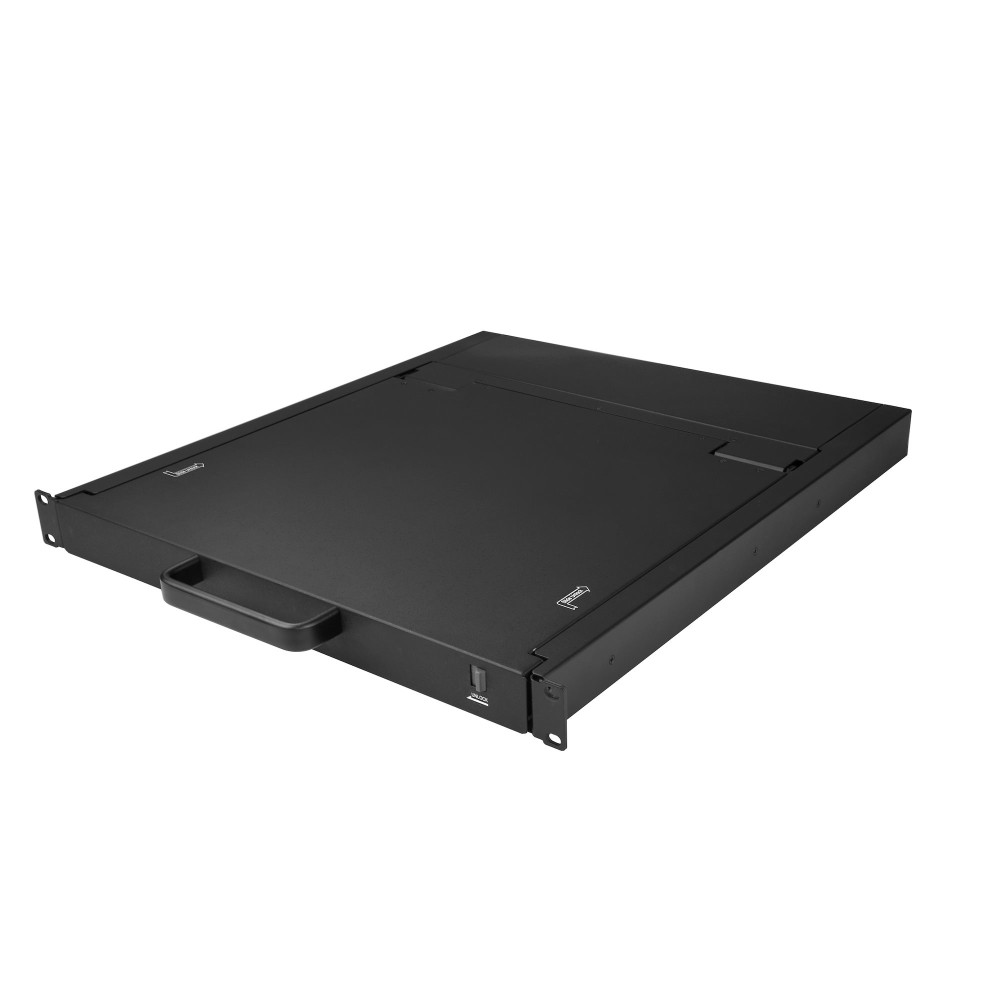

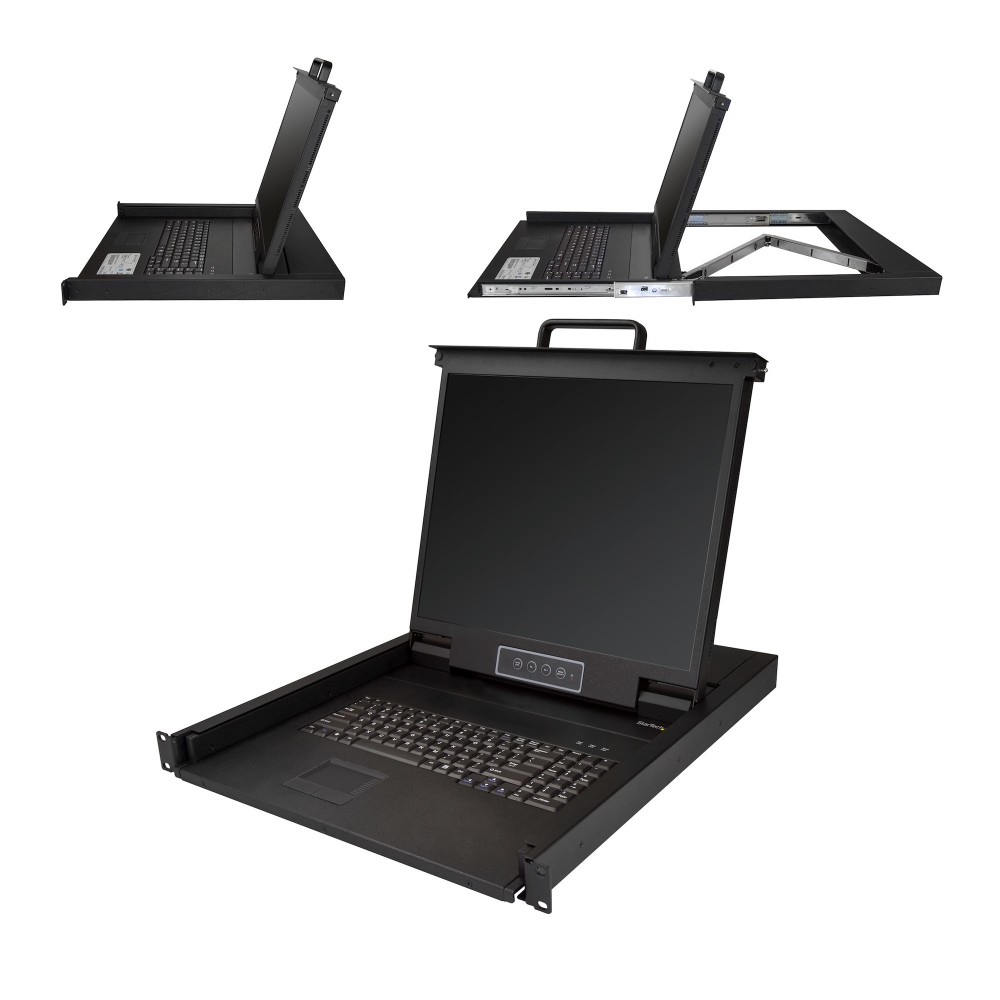

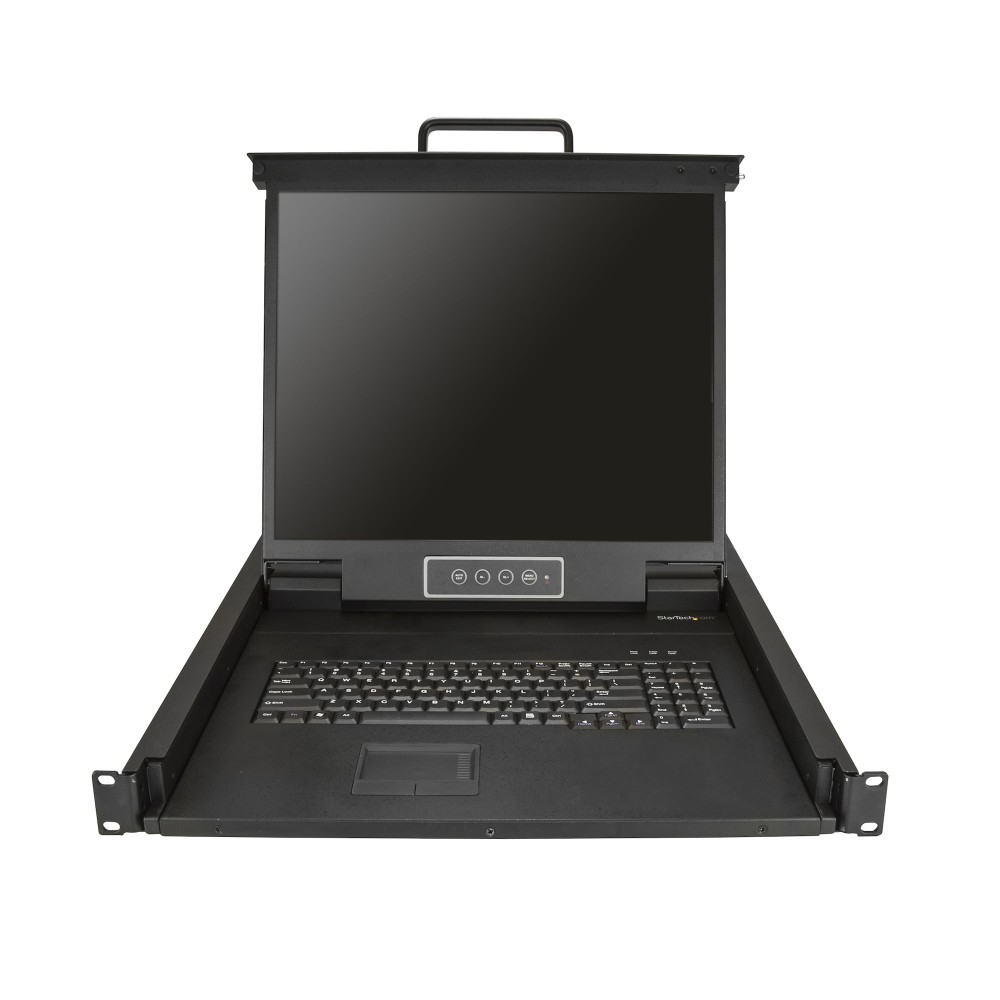

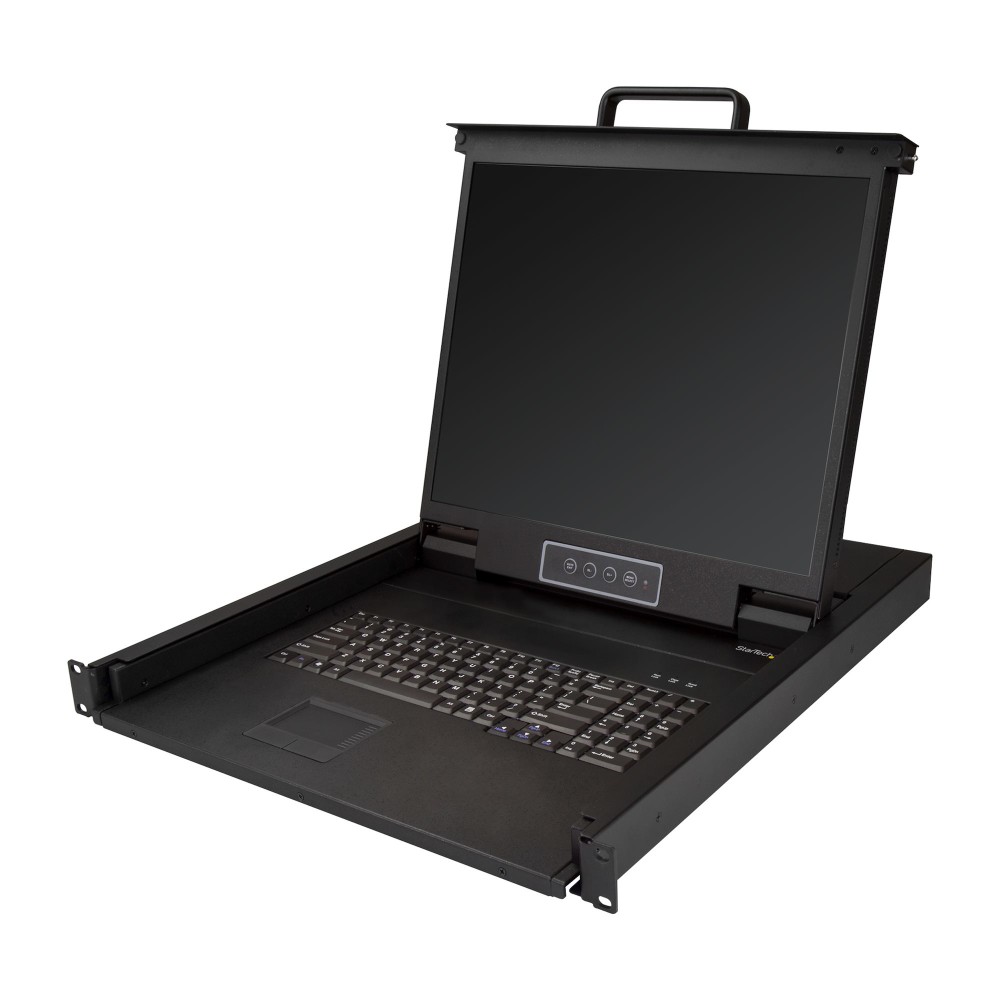

StarTech.com Rackmount KVM Console 1U with 19″ LCD 1280×1024 VGA 16.78M Colours Black
£959.40 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 19-inch LCD with 1280×1024 resolution and 16.78 million colours
- Integrated keyboard (QWERTY) and touchpad
- 1U rackmount design for space efficiency
- Single-port KVM module for direct server connection
- VGA video port type with hot key support
- Includes AC and KVM cables, mounting brackets, and screws
- Backed by a 2-year StarTech.com warranty
Payment Methods:
You may also like
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio, 3840×2400, Black
In stock
StarTech.com 2-Port DisplayPort 1.2 KVM Switch, 4K 60Hz, USB 3.0 Hub, Black
In stock
StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables
In stock
StarTech.com 8 Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com – Efficient Rack Control
We offer the StarTech.com Rackmount KVM Console 1U with 19″ LCD 1280×1024 VGA 16.78M Colours Black for IT professionals. This unit provides centralised control for your server or KVM switch environments. It helps streamline your rack management.
Core Console Metrics
| Metric | Spec. |
|---|---|
| Display Size | 19″ |
| Resolution | 1280 x 1024 |
| Colours | 16.78 Million |
| Rack Space | 1U |
| Contrast Ratio | 1000:1 |
| MTBF | 50,000 hours |
Maximise Your Server Room Efficiency
This KVM console integrates a keyboard, monitor, and mouse into a single unit. It saves valuable rack space. You can control a single server directly. Alternatively, connect it to a KVM switch for multiple servers. This consolidates your control point.
Clear Visuals and Intuitive Control
The integrated 19-inch LCD supports a 1280×1024 resolution. This ensures clear viewing of your server interfaces. We also include a built-in touchpad for precise navigation. An On-Screen Display (OSD) further simplifies configuration.
StarTech.com Rackmount KVM Console 1U with 19″ LCD 1280×1024 VGA 16.78M Colours Black: Streamlined Setup
Installation is straightforward with this 1U rack-mountable design. It integrates seamlessly into existing server infrastructures. We include all necessary mounting hardware. KVM and AC cables are also provided for immediate use.
Versatile Power Compatibility
We supply multiple power plug types with this unit. This includes ANZ, EU, JP, NA, and UK plugs. This flexibility ensures compatibility across various regions. It simplifies deployment in diverse environments.

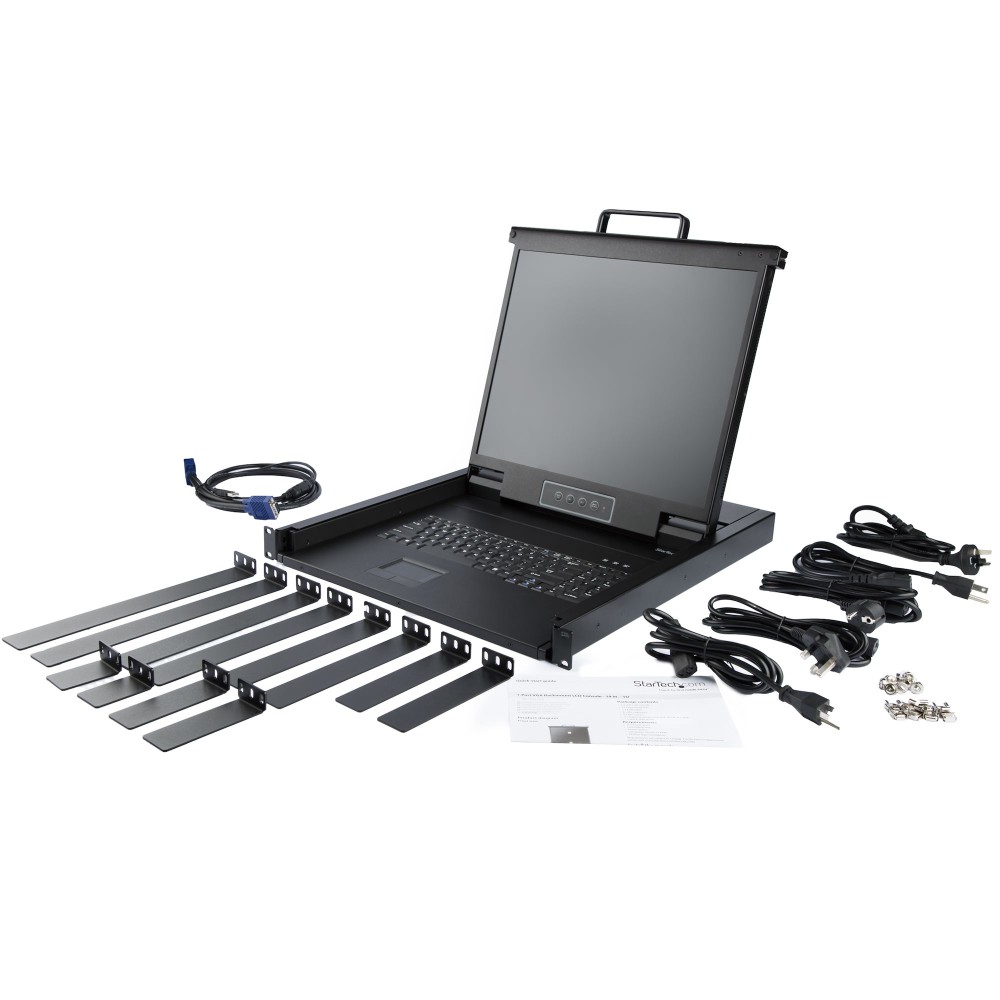

What you receive
- Rackmount KVM Console
- AC power cable
- KVM cable
- Mounting brackets
- Screws
- Quick installation guide
Before you order
- Confirm your rack has a minimum mounting depth of 50 cm.
- Confirm your rack has a maximum mounting depth of 78 cm.
- Confirm your existing servers or KVM switches use VGA video output.
Frequently Asked Questions
Q: Can I connect this directly to multiple servers?
A: This unit connects directly to one server. For multiple servers, use a separate KVM switch.
Q: What is the power consumption of this unit?
A: The typical power consumption is 17 W.
Q: Does this KVM console support audio?
A: No, this model does not include audio support.
Q: Are all mounting accessories included?
A: Yes, mounting brackets and screws are included for installation.
Our verdict
This rackmount KVM console is ideal for small to medium server room environments. It offers essential control in a compact 1U form factor. We find it a practical solution for efficient server management. StarTech.com provides a 2-year warranty and free lifetime technical support.
| Display | |
|---|---|
| Display number of colours | 16.78 million colours |
| Display type | LCD |
| Display diagonal | 48.3 cm (19") |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 176° |
| Pixel pitch | 0.264 x 0.264 mm |
| On Screen Display (OSD) | Yes |
| Display resolution | 1280 x 1024 pixels |
| Display brightness | 250 cd/m² |
| Contrast ratio (typical) | 1000:1 |
| Aspect ratio | 4:3 |
| Technical details | |
| Key lock | No |
| Daisy chain | Yes |
| LED indicators | Yes |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80% |
| Mean time between failures (MTBF) | 50000 h |
| Material | Steel |
| Product colour | Black |
| Cables included | AC, KVM |
| IP control | No |
| Audio support | No |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Hot keys | Yes |
| Built-in touchpad | Yes |
| Power | |
| Power consumption (typical) | 17 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | CE, FCC |
| Weight & dimensions | |
| Mounting depth (min) | 50 cm |
| Mounting depth (max) | 78 cm |
| Weight | 12.2 kg |
| Width | 483 mm |
| Height | 430 mm |
| Depth | 533 mm |
| Packaging data | |
| Package width | 781 mm |
| Package depth | 619 mm |
| Package height | 190 mm |
| Package weight | 16 kg |
| Packaging content | |
| Screws included | Yes |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Cables included | AC, KVM |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Logistics data | |
| Master (outer) case width | 781 mm |
| Master (outer) case length | 619 mm |
| Master (outer) case height | 190 mm |
| Products per master (outer) case | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | V238693, V934365, 4754385, 10203743, 283492, CLRKCONS1901 |
