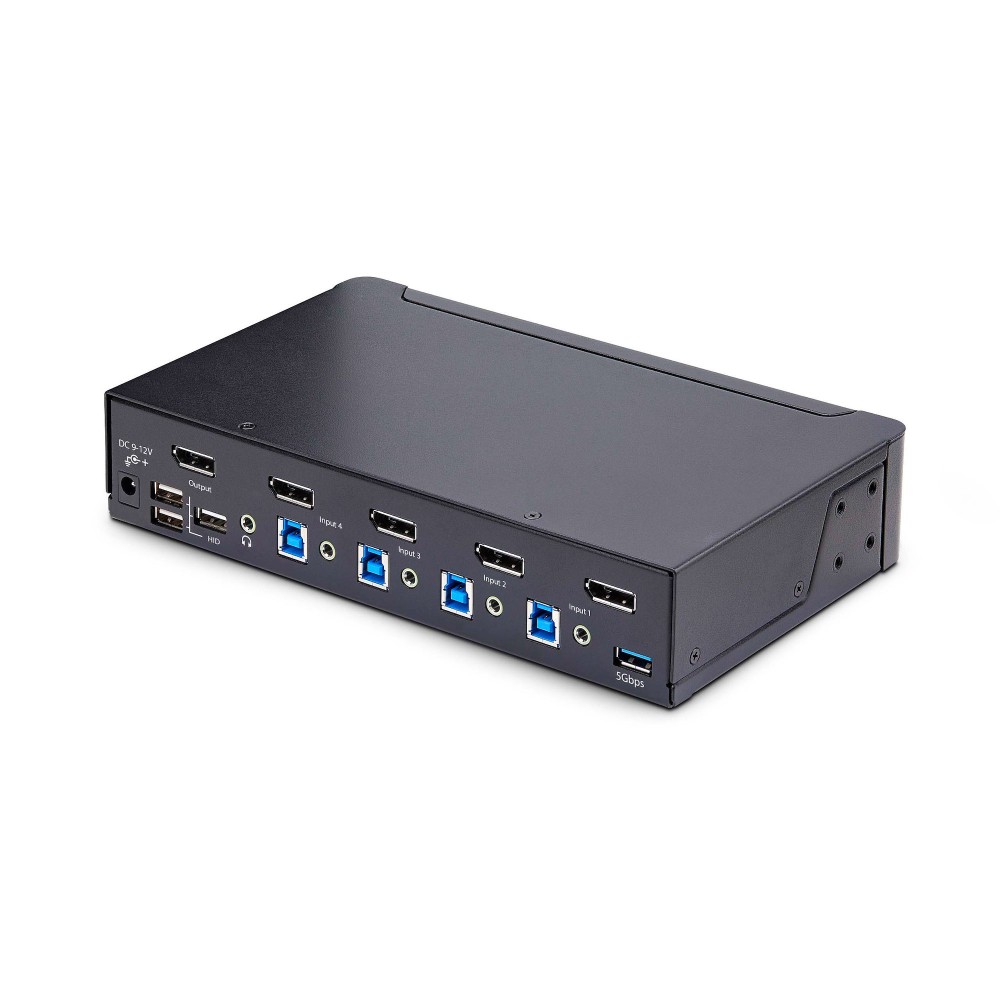

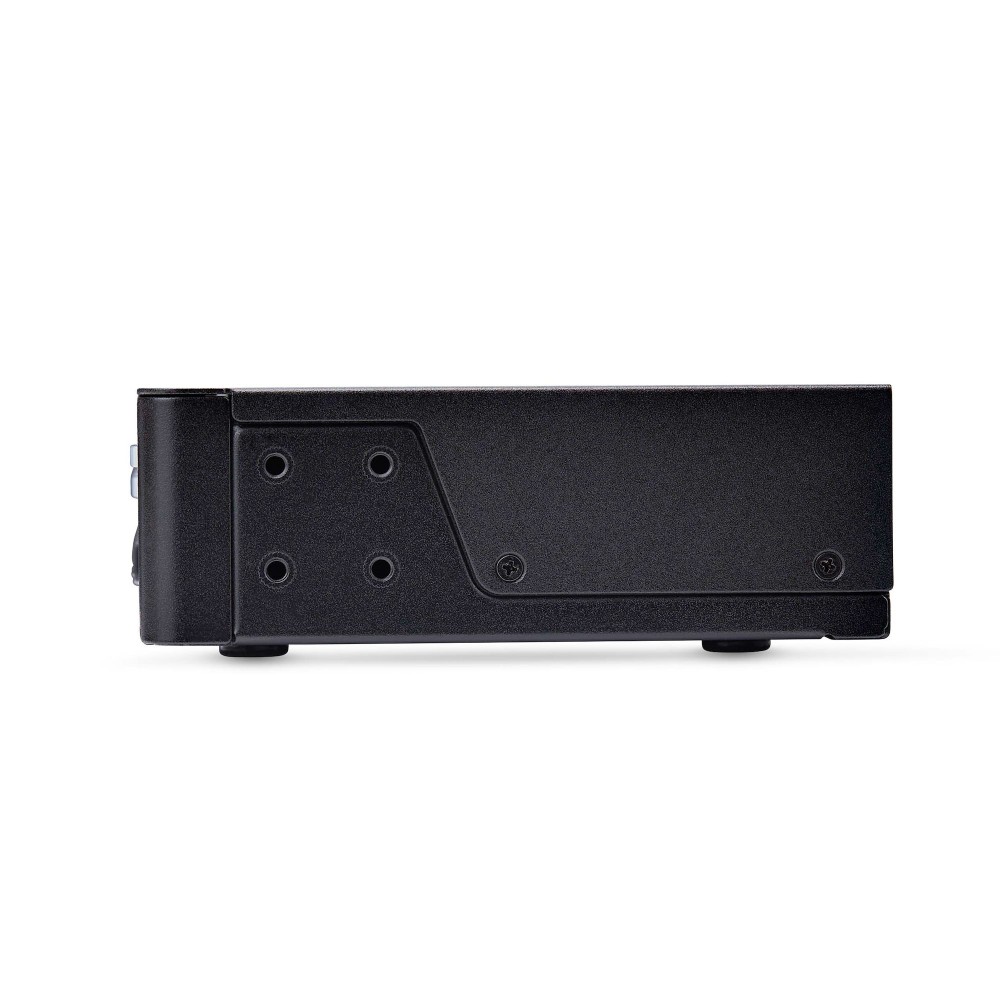

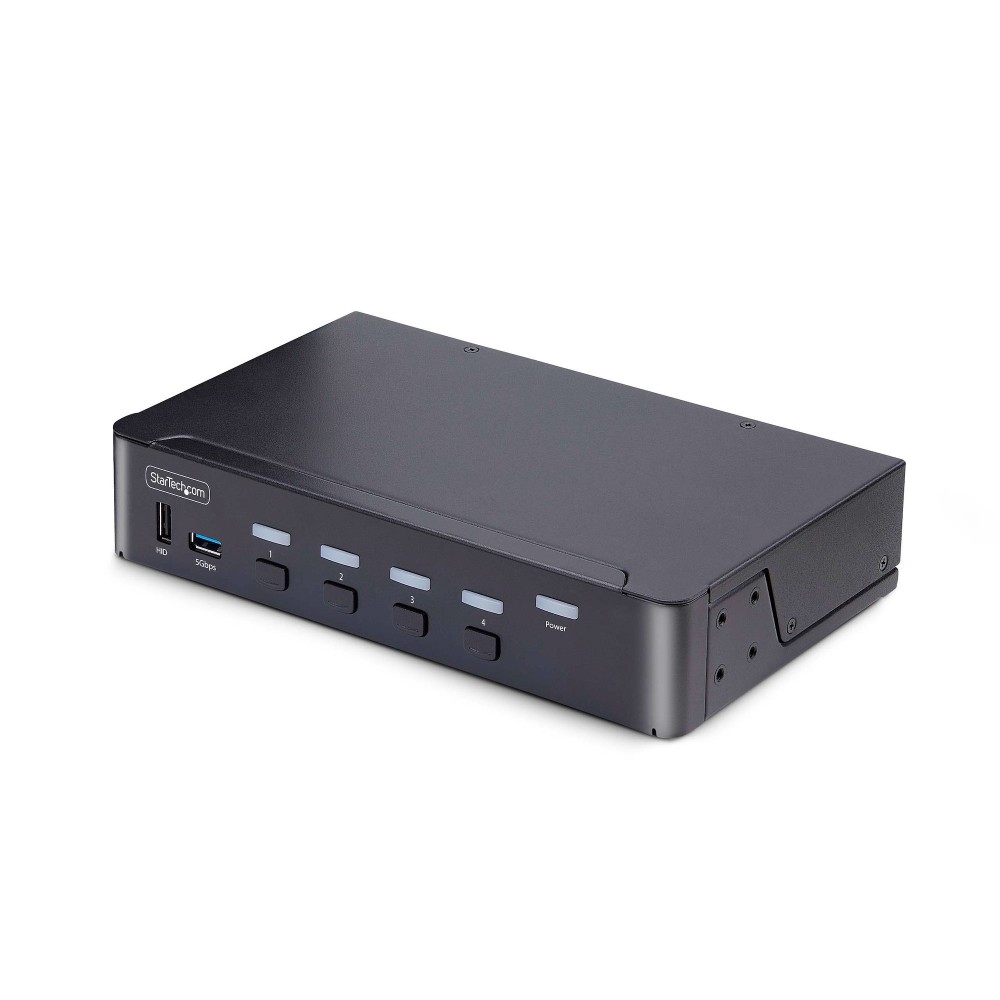

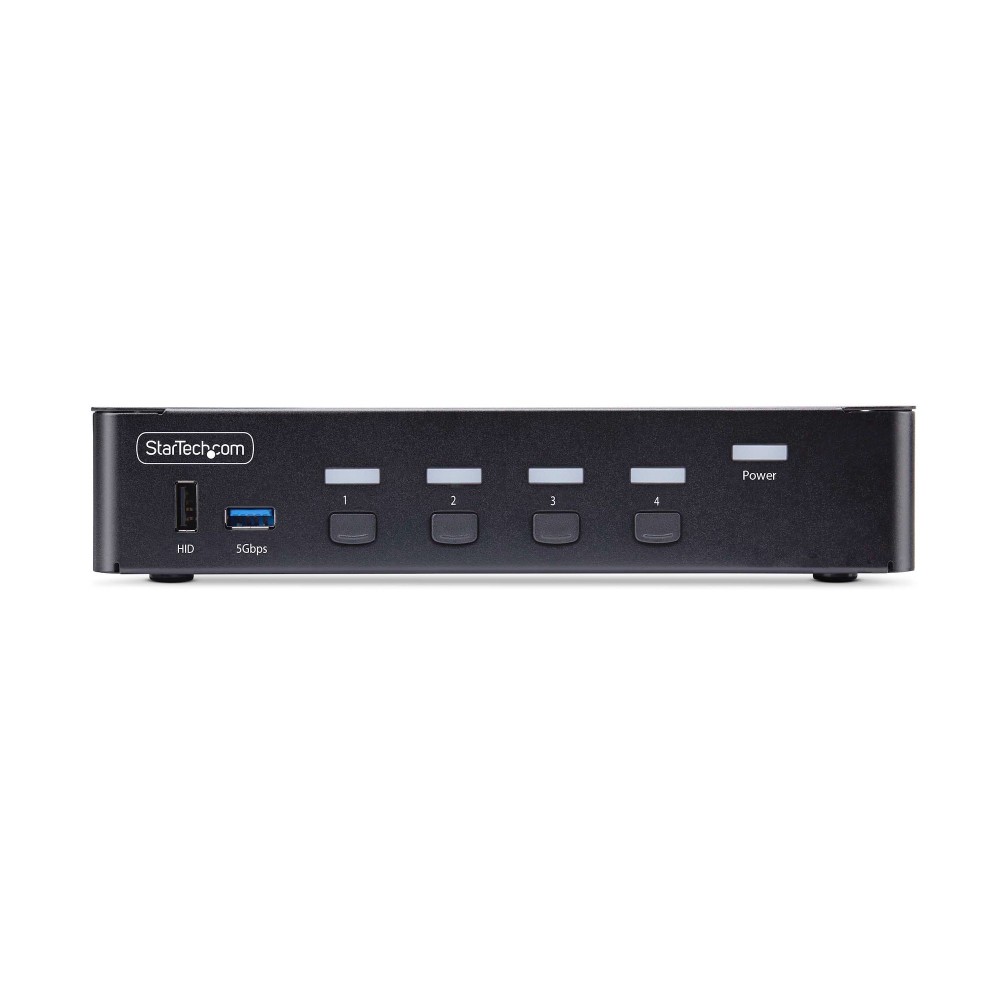

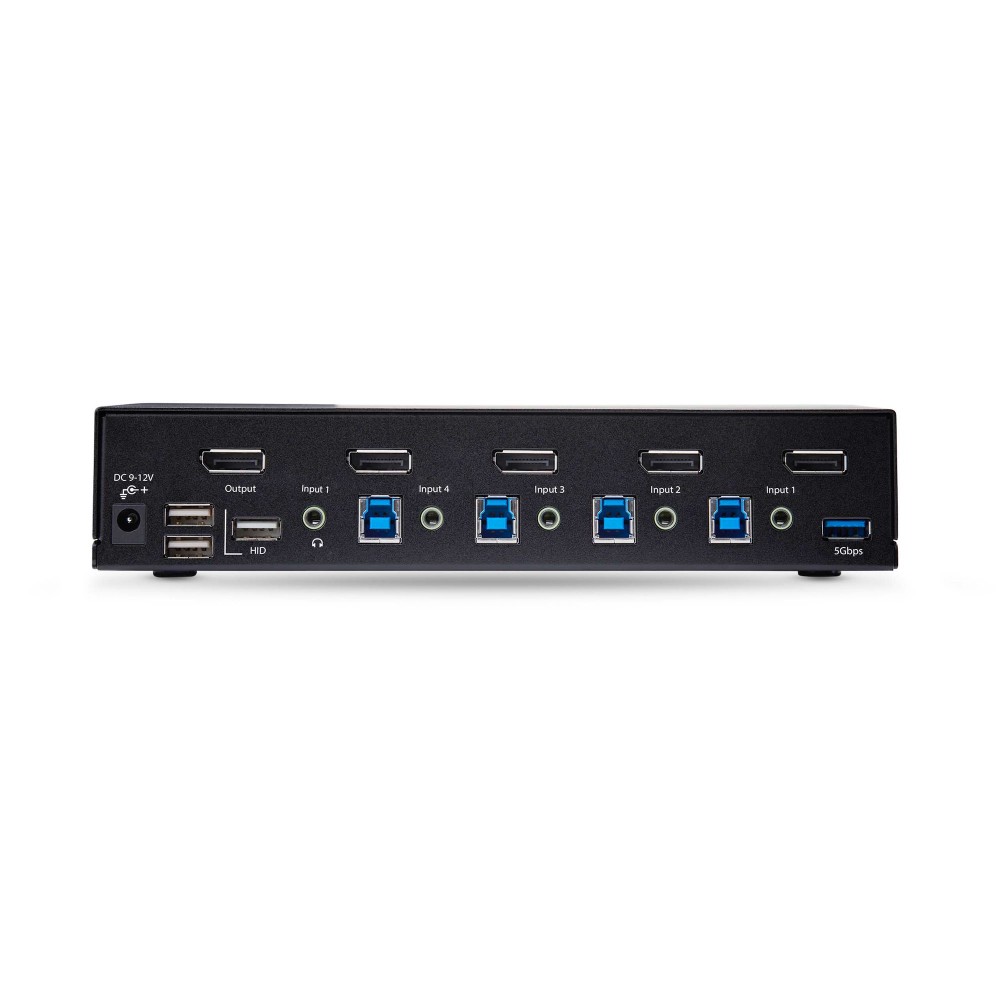

StarTech.com 4-Port DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, USB 3.0, Black
£474.65
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Controls 4 computers with DisplayPort 1.4 video and USB peripherals
- Supports 8K Ultra HD resolution at 60Hz or 4K at 144Hz, with HDR
- Features 2x USB 3.2 Gen 1 Type-A and 4x USB 2.0 Type-A hub ports
- Switching via push-button or hotkeys, with LED indicators
- Universal compatibility across Windows, macOS, ChromeOS, and Linux
- Durable steel housing with EMI protection, TAA compliant
- Compact design (130mm W x 220mm D x 44mm H)
You may also like
StarTech.com 2 Port HDMI KVM Switch 4K 60Hz with Audio and Integrated 4ft Cables Black
In stock
StarTech.com 2 Port USB-C KVM Switch, 4K 60Hz HDMI, Bus Powered, for MacBook iPad Pro ThinkPad
In stock
StarTech.com 2-Port Dual DisplayPort KVM Switch 4K 60Hz, 1.5m Integrated Cables, USB Powered, Black
In stock
Belkin F1DN008KBDUK KVM Remote Control with Integrated Keyboard, Wired USB, English, Numeric Keypad, Black
In stock
StarTech.com SV231DPDDUA2 2-Port Dual DisplayPort KVM Switch, 4K 60Hz, USB Hub, Audio Support, Black
In stock
StarTech.com 2-Port USB HDMI Cable KVM Switch with Audio and Remote Switch 1920×1200 USB Powered Black
In stock
StarTech.com KVM Switch – Seamless Workspace Control
The StarTech.com 4-Port DisplayPort 1.4 KVM Switch, 8K 60Hz / 4K 144Hz, USB 3.0, Black is designed for professionals managing multiple computers. We offer this KVM switch to streamline your workflow. It allows you to control four DisplayPort-enabled systems using a single monitor, keyboard, and mouse. This setup reduces desktop clutter and enhances productivity.
Essential Specifications
| Metric | Spec. |
|---|---|
| Maximum Resolution | 8K (7680×4320) |
| DisplayPort Version | 1.4 |
| USB Hub Ports | 2x USB 3.0, 4x USB 2.0 |
| Computers Controlled | 4 |
| Housing Material | Steel |
Crystal-Clear Visuals with High Refresh Rates
Experience exceptional visual fidelity with support for 8K 60Hz resolution. This KVM switch also handles 4K at a smooth 144Hz or 120Hz. We understand the need for detailed and fluid imagery. This makes it ideal for graphic design, video editing, and demanding gaming applications. High Dynamic Range (HDR) support further enhances contrast and colour.
Efficient Multi-System Management
Switching between your four connected computers is straightforward. You can use either the integrated push-button or customisable hotkeys. Hotkey switching allows for independent control of audio and video streams. This means you can listen to audio from one PC while working on another. LED indicators provide clear status updates.
Robust Connectivity and Universal Compatibility
This KVM switch features multiple USB ports. It includes two USB 3.0 ports for fast data transfer and four USB 2.0 ports for peripherals. It is universally compatible with all major operating systems. This includes Windows, macOS, ChromeOS, and Linux. The durable metal housing offers protection against EMI.
Before You Order
- Confirm your systems have DisplayPort 1.4 outputs for optimal performance.
- Check your monitor supports 8K 60Hz or 4K 144Hz for full resolution benefits.
- Ensure you have the necessary DisplayPort and USB cables for your setup.
- Verify space availability for the 220 mm depth and 130 mm width unit.
Frequently Asked Questions
Q: Can I use this KVM with a single monitor setup?
A: Yes, this KVM is designed for controlling four computers with one DisplayPort monitor.
Q: Does it support audio switching?
A: Yes, it features 3.5mm audio ports for headphones and allows independent audio switching.
Q: Is this KVM TAA compliant?
A: Yes, this StarTech.com KVM switch is TAA compliant.
Q: What are the dimensions of the unit?
A: The unit measures 130 mm in width, 220 mm in depth, and 44 mm in height.
Q: Are power adapters included?

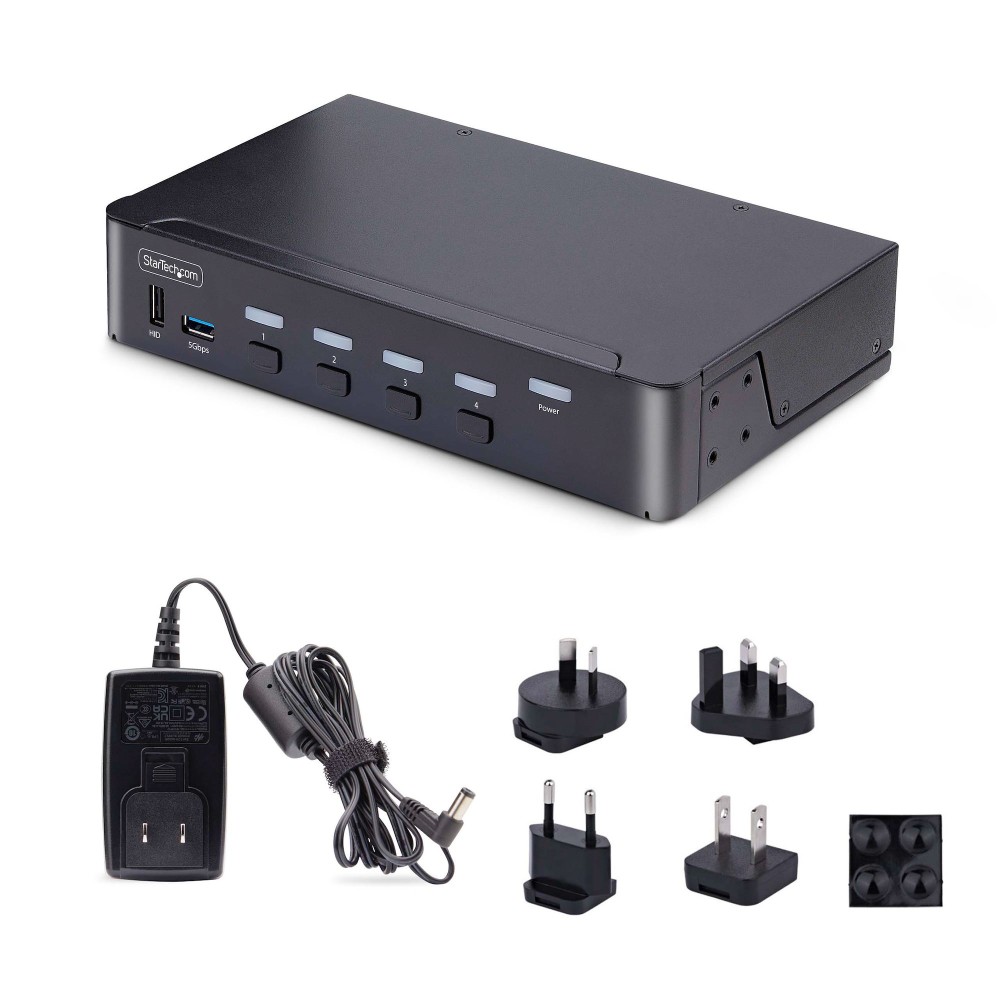

A: Yes, a power adapter is included, compatible with UK, EU, JP, and US outlets.
The Bottom Line
This DisplayPort KVM switch is an excellent solution for professionals. It suits those needing to manage multiple high-resolution systems efficiently. Its robust design and versatile features ensure a smooth user experience.
| Ports & interfaces | |
|---|---|
| Console ports | 3.5mm headphone, DisplayPort, USB A |
| DisplayPorts quantity | 4 |
| DisplayPort version | 1.4 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 4 |
| DC-in jack | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 2.0 Type-A hub ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Console DisplayPorts ports quantity | 1 |
| HDCP | Yes |
| Performance | |
| Daisy chain | No |
| Chipset | GL-3523 |
| HDCP | Yes |
| Data transfer rate (max) | 5000 Gbit/s |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Scan interval | 3,8,15,30 s |
| High Dynamic Range (HDR) supported | Yes |
| HDCP version | 1.4/2.2 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Scan interval | 3,8,15,30 s |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Design | |
| Mean time between failures (MTBF) | 130000 h |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | EU, JP, UK, US |
| Output voltage | 12 V |
| Power source | DC |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 8K Ultra HD |
| Maximum resolution | 7680 x 4320 pixels |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | CE, RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1 kg |
| Package width | 297 mm |
| Package depth | 245 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |
| Packaging data | |
| Package width | 297 mm |
| Package depth | 245 mm |
| Package height | 87 mm |
| Package weight | 1.6 kg |
| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 514 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 300 mm |
| Products per master (outer) case | 6 pc(s) |
