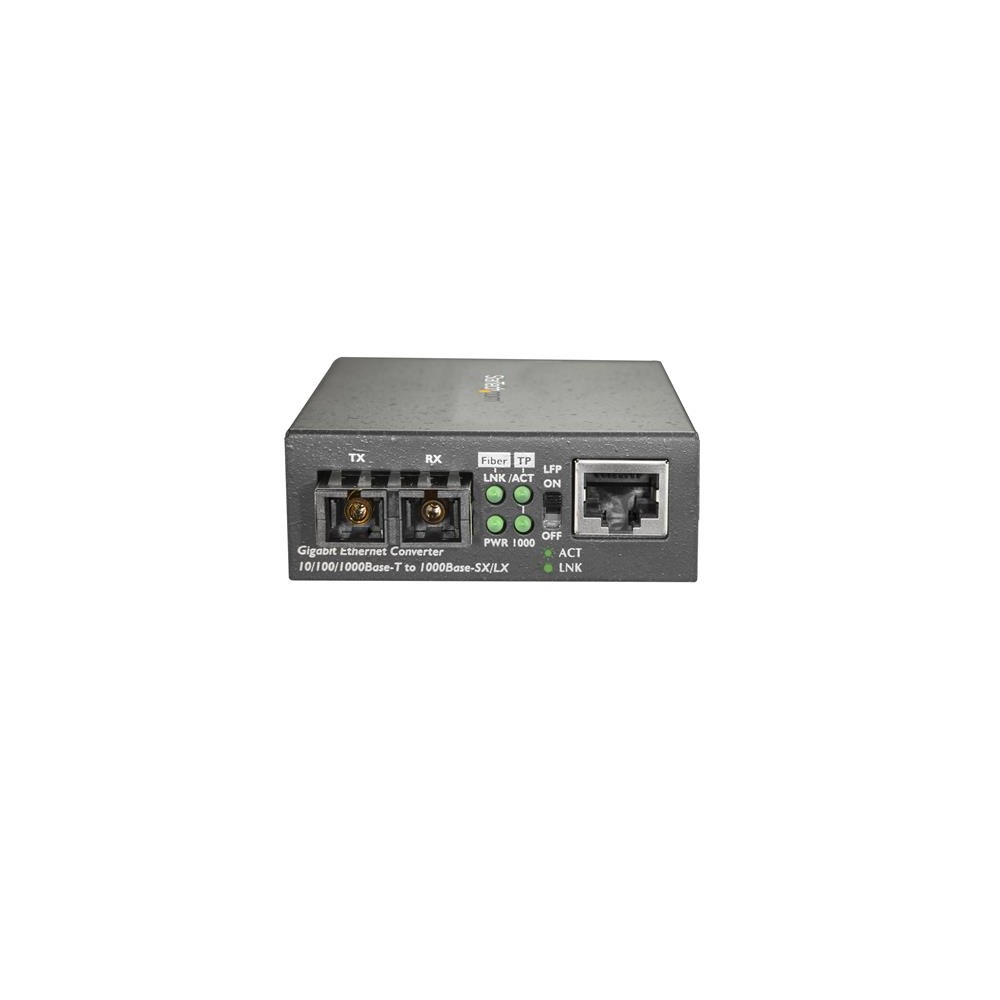

StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black
Original price was: £80.39.£75.72Current price is: £75.72.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Gigabit Ethernet to SC fibre conversion
- Multi-mode fibre support up to 550m range
- Supports 10/100/1000 Mbps Ethernet data rates
- Jumbo frames up to 9000 bytes and flow control
- Steel housing with LED indicators for activity, link, and power
- Compact design: 97mm width, 70mm depth, 26mm height
- Includes external power adapter and quick installation guide
You may also like
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Single-Mode, 1310nm, 10km
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
StarTech.com Gigabit Ethernet to Fibre Media Converter MM/SM Open SFP Slot TAA Black
In stock
StarTech.com Gigabit Ethernet – Multi-Mode Fibre Extension
The StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black is ideal for extending network connectivity. We offer this robust solution for offices and campuses needing reliable long-distance data transfer. It effectively bridges copper-based Gigabit Ethernet to multi-mode fibre optic networks. This ensures your remote sub-networks integrate smoothly.
Core Connectivity Details
| Metric | Spec. |
|---|---|
| Max Transfer Distance | 550 m |
| Wavelength | 850 nm |
| Data Rate | 1000 Mbit/s |
| Fibre Connector | SC |
| Ethernet Ports | 1 x RJ45 |
| Power Consumption | 5 W |
Extending Your Gigabit Network
This media converter allows you to extend your Gigabit Ethernet network significantly. You can achieve up to 550 metres over multi-mode SC fibre. This is particularly useful for connecting buildings within a campus. It provides a stable and high-speed link for demanding network tasks.
Seamless Integration and Performance
We find this converter integrates effortlessly into existing infrastructures. It supports 10/100/1000 BASE-T auto-negotiation on its RJ45 port. This flexibility ensures compatibility with various Ethernet speeds. The device also supports Jumbo Frames up to 9000 bytes. This optimises large data transfers, reducing CPU usage.

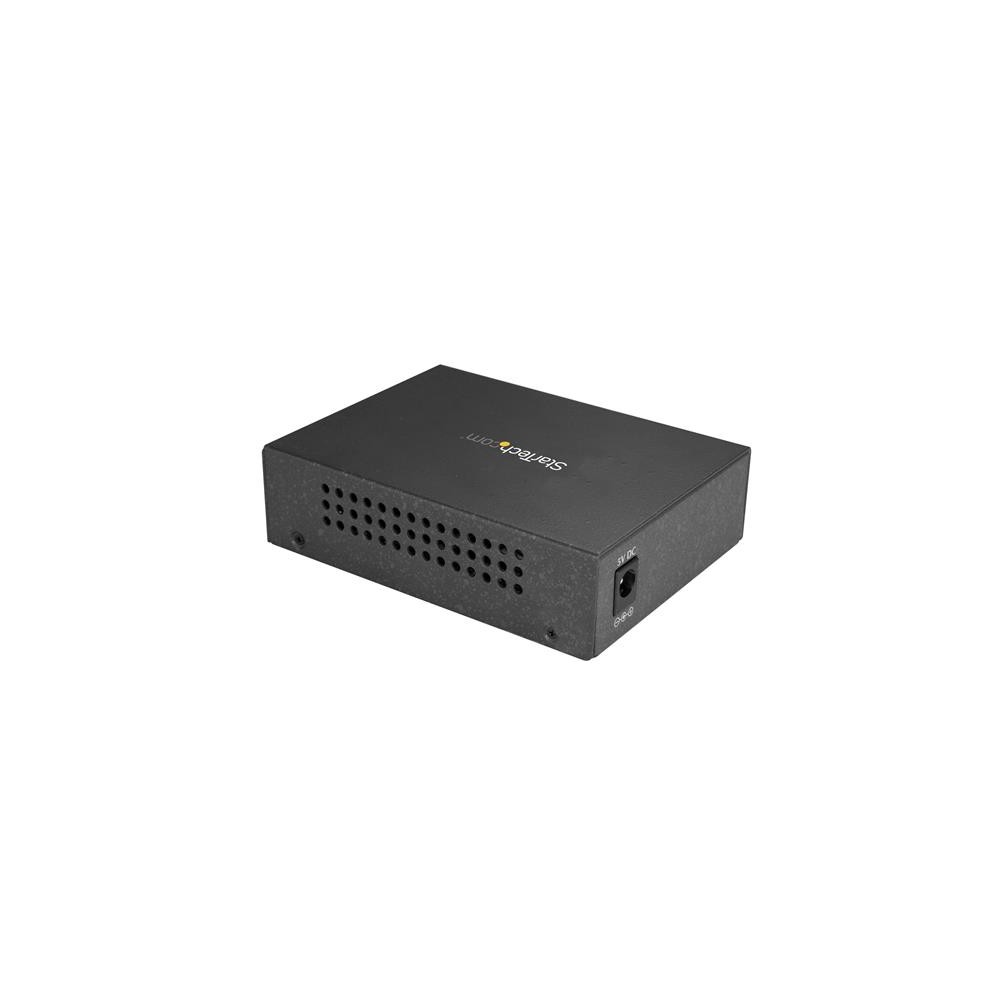

Robust and Reliable Design
Constructed with a steel housing, this unit is built for durability. It operates reliably in temperatures from 0 to 50 °C. LED indicators for activity, link, and power provide instant status updates. This ensures easy monitoring of your network connection.

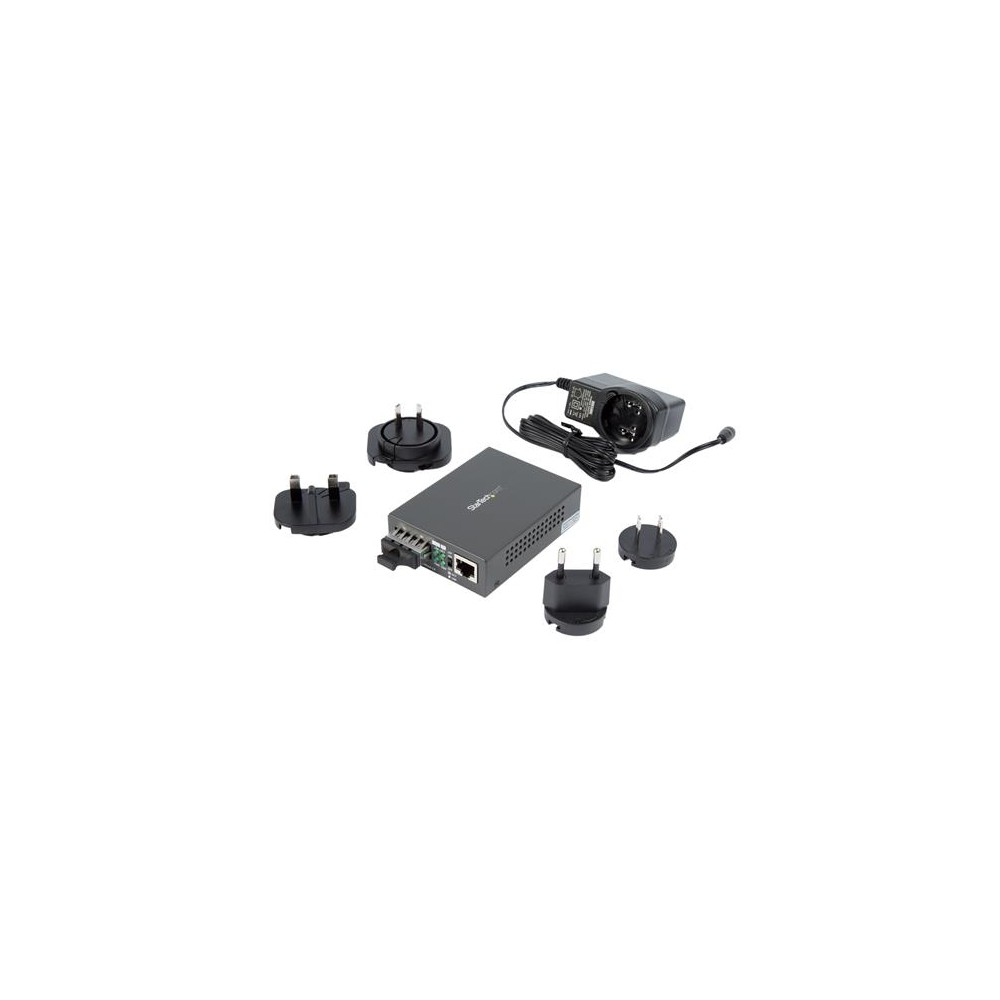

What you receive
- Gigabit Ethernet to SC Fibre Media Converter
- Universal Power Adapter
- Quick Installation Guide
Before you order
- Confirm your existing network uses multi-mode SC fibre.
- Check the required extension distance is within 550 metres.
- Ensure a standard power outlet is available for the external adapter.
Frequently Asked Questions
Q: What type of fibre cable is compatible with this converter?
A: This converter is designed for multi-mode SC fibre optic cables.
Q: Can this converter connect two separate buildings?
A: Yes, it is ideal for extending a Gigabit Ethernet connection between two buildings up to 550 metres apart.
Q: Does it support different Ethernet speeds?
A: Yes, the RJ45 port supports 10 Mbps, 100 Mbps, and 1000 Mbps (Gigabit Ethernet).
Q: Is an external power adapter included?
A: Yes, an external power adapter is included with the unit.
Our verdict
This StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black is an excellent choice for expanding Gigabit Ethernet networks. It suits businesses needing to bridge distances with multi-mode fibre. Its robust build and easy integration make it a reliable solution.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Jumbo frames | 9000 |
| Converter input interface | 100Base-TX, 1000Base-T |
| Networking standards | IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fibre optic connector | SC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fibre mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
| Jumbo frames support | Yes |
| Store-and-forward | Yes |
| Flow control support | Yes |
| Features | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fibre ports quantity | 1 |
| Fibre optic connector | SC |
| Power | |

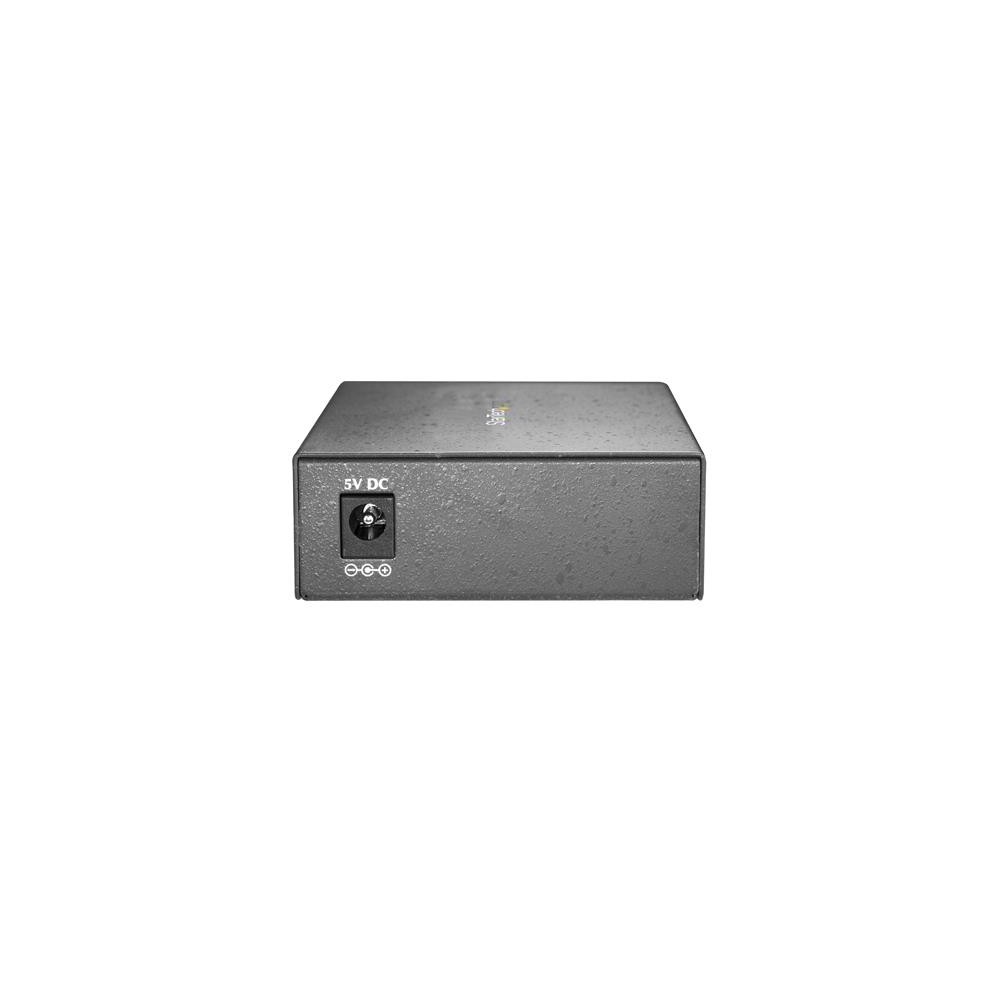

| Power plug type | Type N |
| Input voltage | 100 - 240 V |
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Power consumption (typical) | 5 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 97 mm |
| Depth | 70 mm |
| Weight | 200 g |
| Height | 26 mm |
| Package depth | 284 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 564 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging content | |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Packaging data | |
| Package depth | 284 mm |
| Package width | 138 mm |
| Package height | 66 mm |
| Package weight | 564 g |
| Technical details | |
| Housing material | Steel |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fibre mode structure | Multi-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC, REACH |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 595 mm |
| Master (outer) case length | 375 mm |
| Master (outer) case height | 320 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
