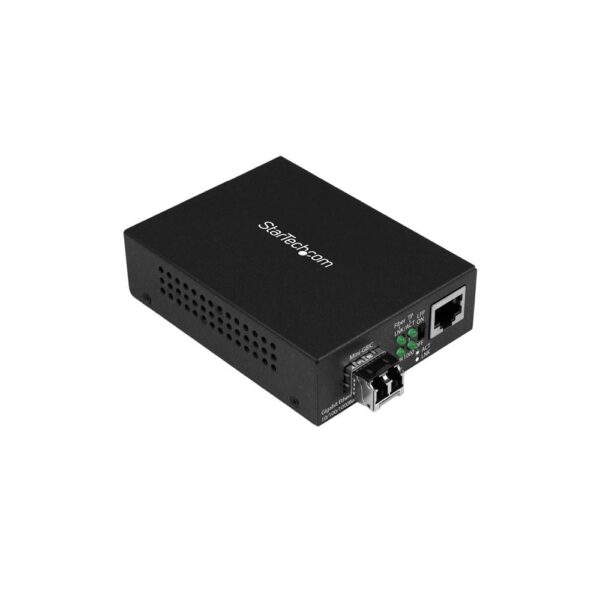

StarTech.com Multi-Mode LC Fiber Media Converter 10/100/1000 Networks 550m Black
£76.82 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Gigabit Ethernet to LC fiber conversion
- Multi-mode fiber support up to 550m transfer distance
- 10/100/1000Base-T input and 1000Base-LX/SX output interfaces
- Durable steel housing with compact, standalone design
- Jumbo frames support and Auto MDI/MDI-X
- Plug-and-play setup with wall-mounting option
- TAA compliant with CE, FCC, RoHS, REACH certifications
Payment Methods:
You may also like
StarTech.com HPE J8177C Compatible SFP Module – 1000BASE-T 1GbE Copper RJ45 100m
In stock
StarTech.com Multi-Mode Converter – Extend Your Network Range
The StarTech.com Multi-Mode LC Fiber Media Converter 10/100/1000 Networks 550m Black is designed for IT professionals and network administrators. It provides a reliable solution for extending Gigabit Ethernet connections over fibre optic cable. This converter helps bridge copper and fibre networks efficiently. We find it particularly useful for connecting remote devices or extending network segments up to 550 metres.
Essential Specifications
| Metric | Spec. |
|---|---|
| Max. Transfer Distance | 550 m |
| Data Transfer Rate | 1000 Mbit/s |
| Wavelength | 850 nm |
| Fiber Optic Connector | LC |
| Housing Material | Steel |
| MTBF (Mean Time Between Failures) | 50000 h |
Seamless Gigabit Network Integration
This media converter supports 10/100/1000Base-T Ethernet networks. It offers auto-negotiation, allowing it to bridge different speed networks. This ensures your legacy equipment can connect to a Gigabit fibre network without issues. The result is versatile connectivity across your infrastructure.
Reliable Long-Distance Connectivity
We appreciate the 550-metre maximum transfer distance this converter provides. It uses an 850nm wavelength for multi-mode fibre connections. This makes it ideal for campus environments or large office buildings. The durable steel housing ensures long-lasting performance in various settings.
Flexible and Future-Proof Design

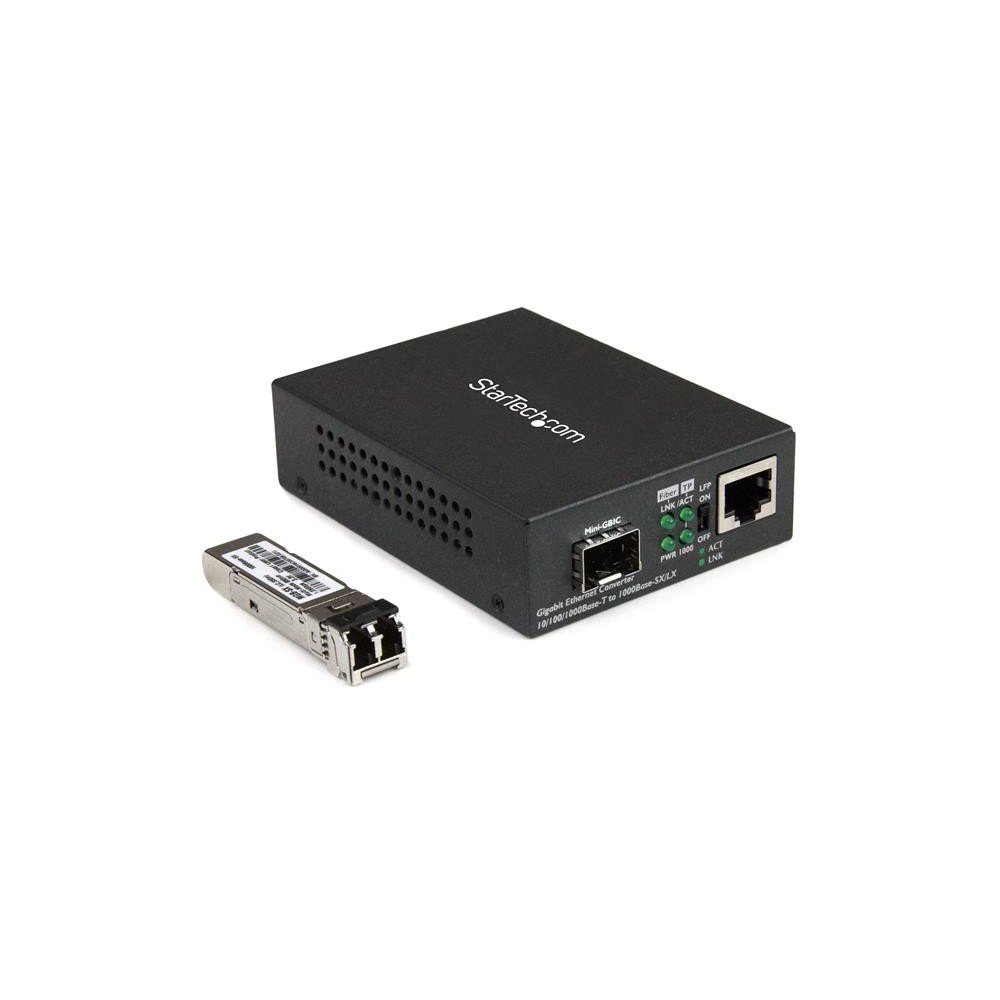

The removable multi-mode transceiver offers significant flexibility. You can easily change the transceiver if your networking needs evolve. This design choice helps future-proof your investment. It allows for adaptation without needing a complete system overhaul.
Space-Saving Installation
Its compact, standalone design simplifies deployment. The plug-and-play setup means quick and easy installation. You also have the option to wall-mount the unit. This saves valuable space in server rooms or network cabinets.
Before You Order
- Confirm your existing network infrastructure is compatible with Gigabit Ethernet fibre.
- Confirm you require multi-mode fibre connectivity for your application.
- Confirm the LC fibre optic connector type matches your existing cables.
- Confirm a maximum transfer distance of 550 metres meets your requirements.
Frequently Asked Questions
Q: What types of networks can this converter integrate?
A: It integrates 10/100/1000Base-T Ethernet networks with Gigabit fibre.
Q: Is the fibre optic transceiver interchangeable?
A: Yes, the multi-mode transceiver is removable for future flexibility.
Q: Can I mount this converter on a wall?
A: Yes, it offers a wall-mounting option for flexible installation.
Q: What is the maximum distance it can extend a network?
A: It can extend a network up to 550 metres over multi-mode fibre.
Q: Does this device require specific software to operate?
A: No, it features a simple plug-and-play setup without complex software.
Our Recommendation
The StarTech.com Multi-Mode LC Fiber Media Converter 10/100/1000 Networks 550m Black is an excellent choice for extending network reach. It suits businesses and organisations requiring robust connectivity over medium distances. Its flexibility and ease of installation are clear advantages. Warranty cover varies by product, so please contact us to confirm.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Data transfer rate | 1000 Mbit/s |
| Converter input interface | 1000Base-T, 100Base-TX, 10Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | LC |
| Performance | |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Mean time between failures (MTBF) | 50000 h |
| Jumbo frames support | Yes |
| Features | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |

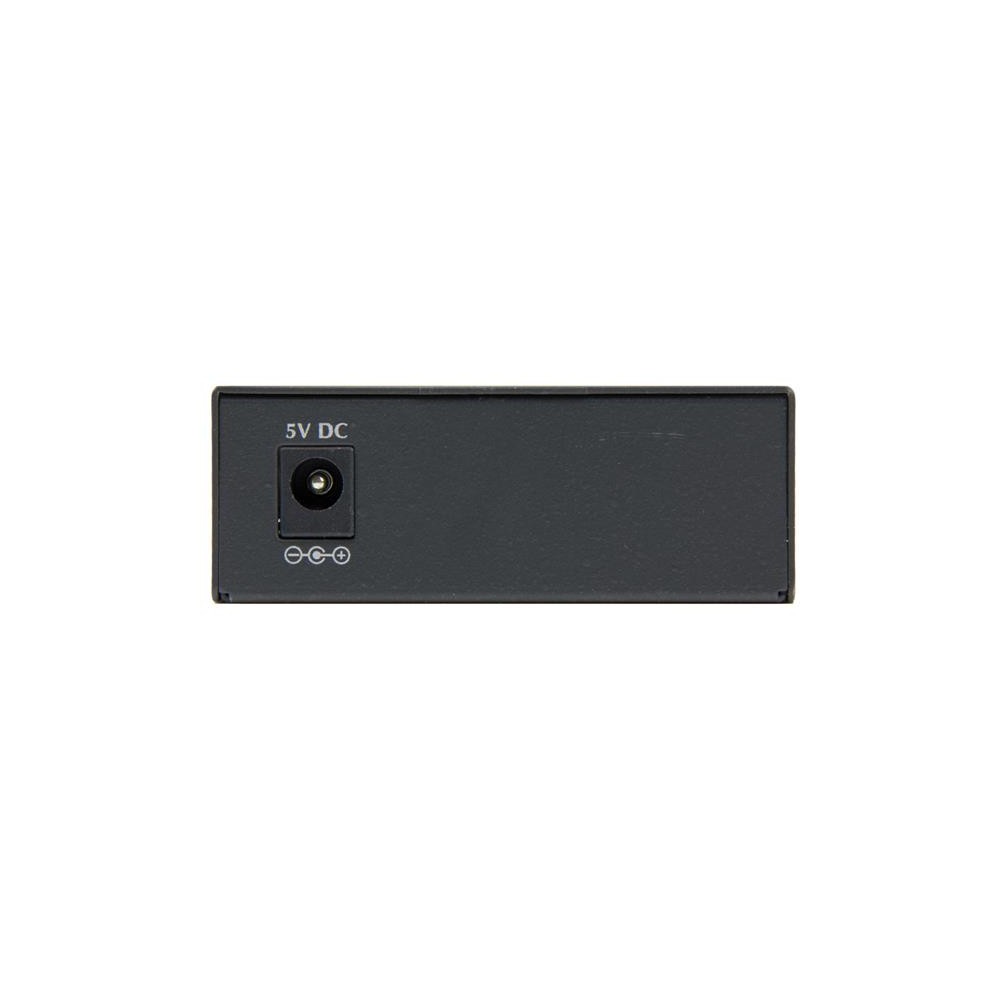

| DC-in jack | Yes |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Input current | 1 A |
| Output voltage | 5 V |
| Output current | 2 A |

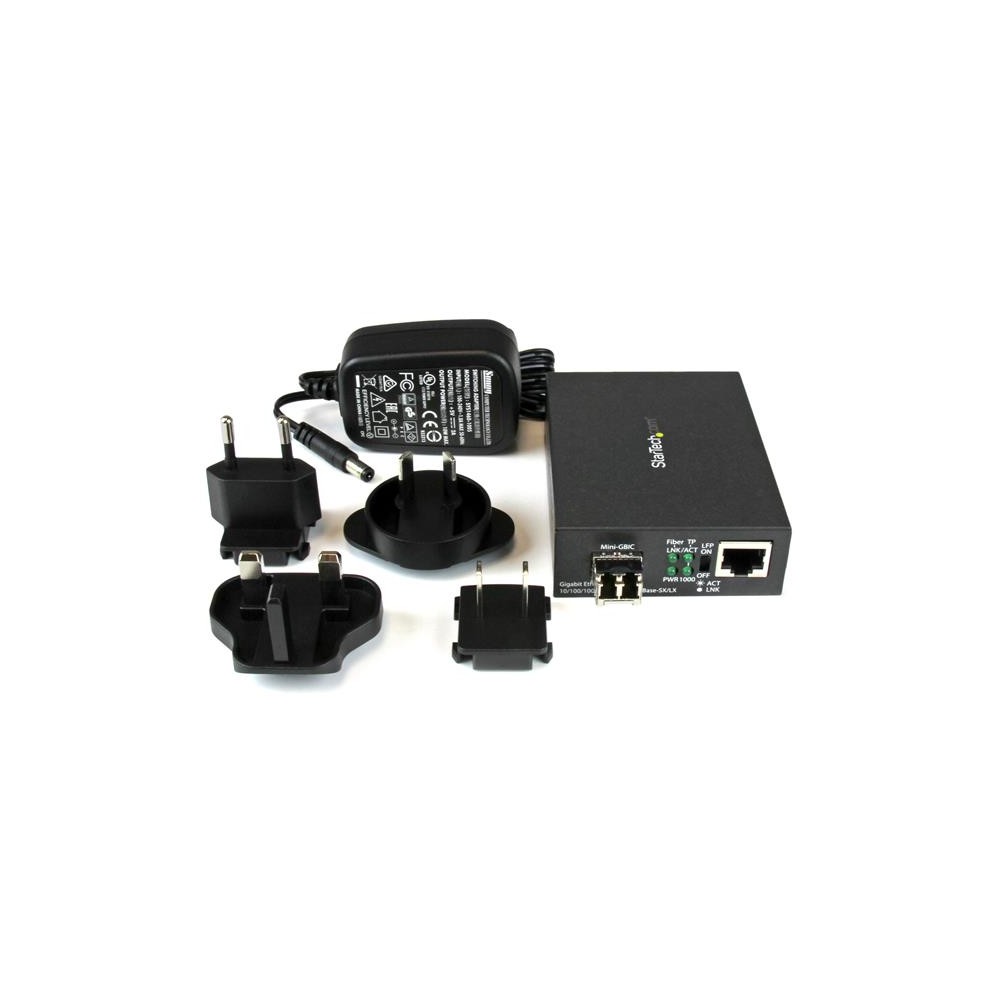

| External power adapter | Yes |
| Weight & dimensions | |
| Width | 70 mm |
| Depth | 94 mm |
| Weight | 201 g |
| Height | 26 mm |
| Package depth | 138 mm |
| Package width | 286 mm |
| Package height | 69 mm |
| Package weight | 556 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package depth | 138 mm |
| Package width | 286 mm |
| Package height | 69 mm |
| Package weight | 556 g |
| Technical details | |
| Housing material | Steel |
| Wavelength | 850 nm |
| Maximum transfer distance | 550 m |
| Fiber mode structure | Multi-mode |
| Internal | No |
| Data transfer rate | 1000 Mbit/s |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Activity, Link, Power |
| Design | |
| Housing material | Steel |
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Certification | CE, FCC, REACH, TAA |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 50000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC, REACH, TAA |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 588 mm |
| Master (outer) case length | 369 mm |
| Master (outer) case height | 313 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | V209418, V933522, 94605, 4462056, 10055580, 293493, CLMCM1110MMLC |
| Additional EANs | 5704174217923 |
