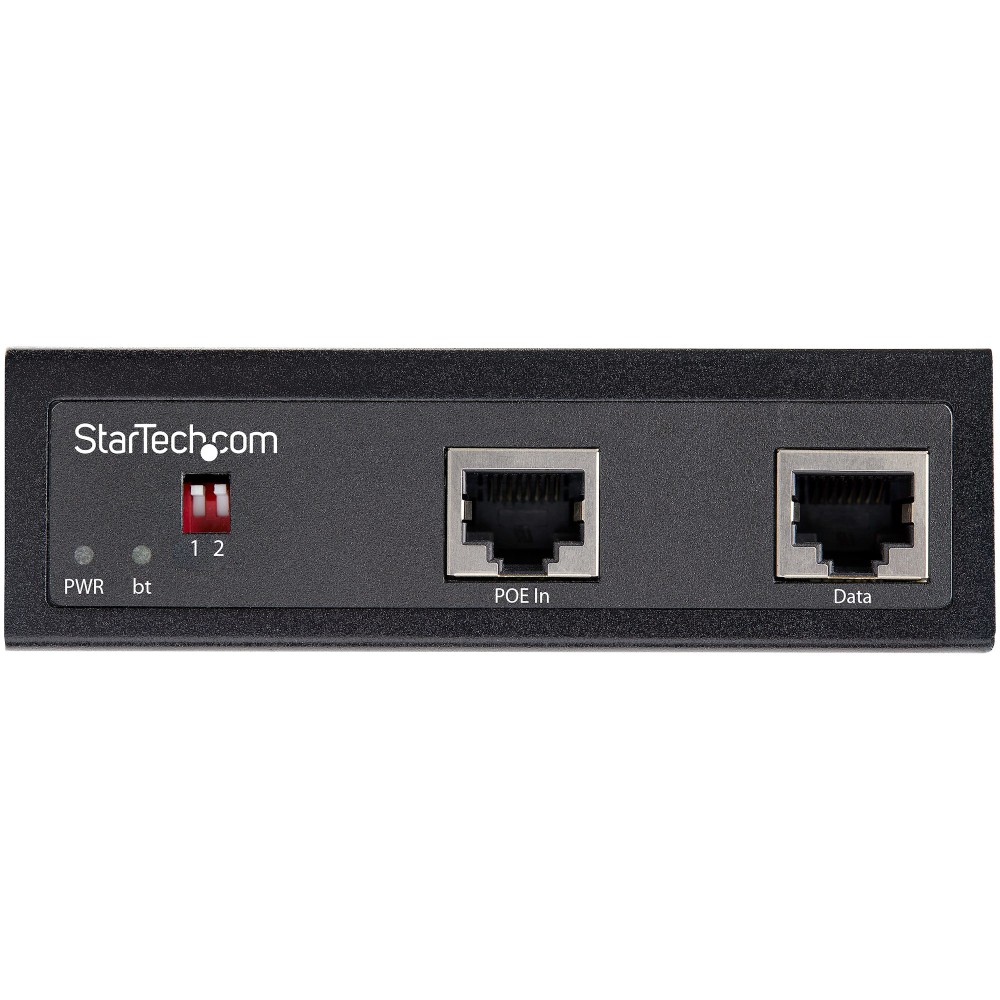

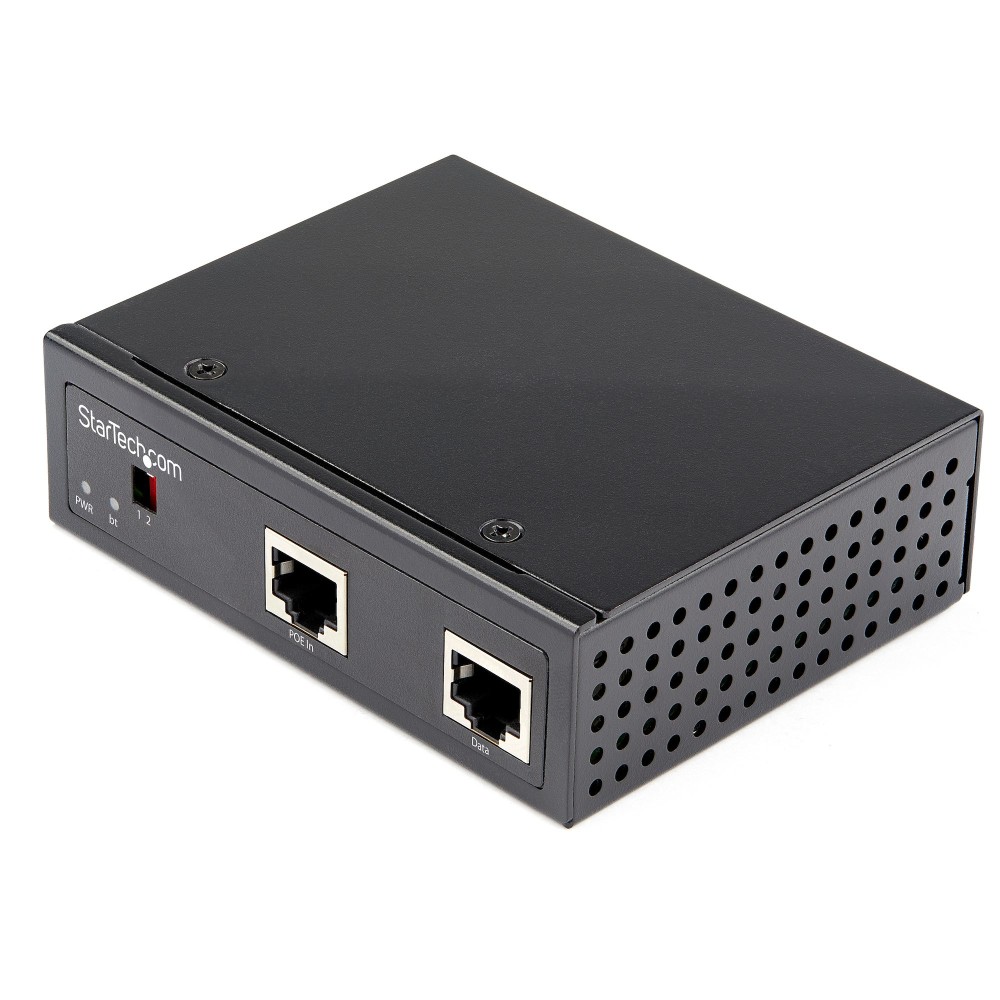

StarTech.com Industrial Gigabit PoE Splitter – 90W PoE+++, 12-48V DC, -40C to +75C, Black
£135.83 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item

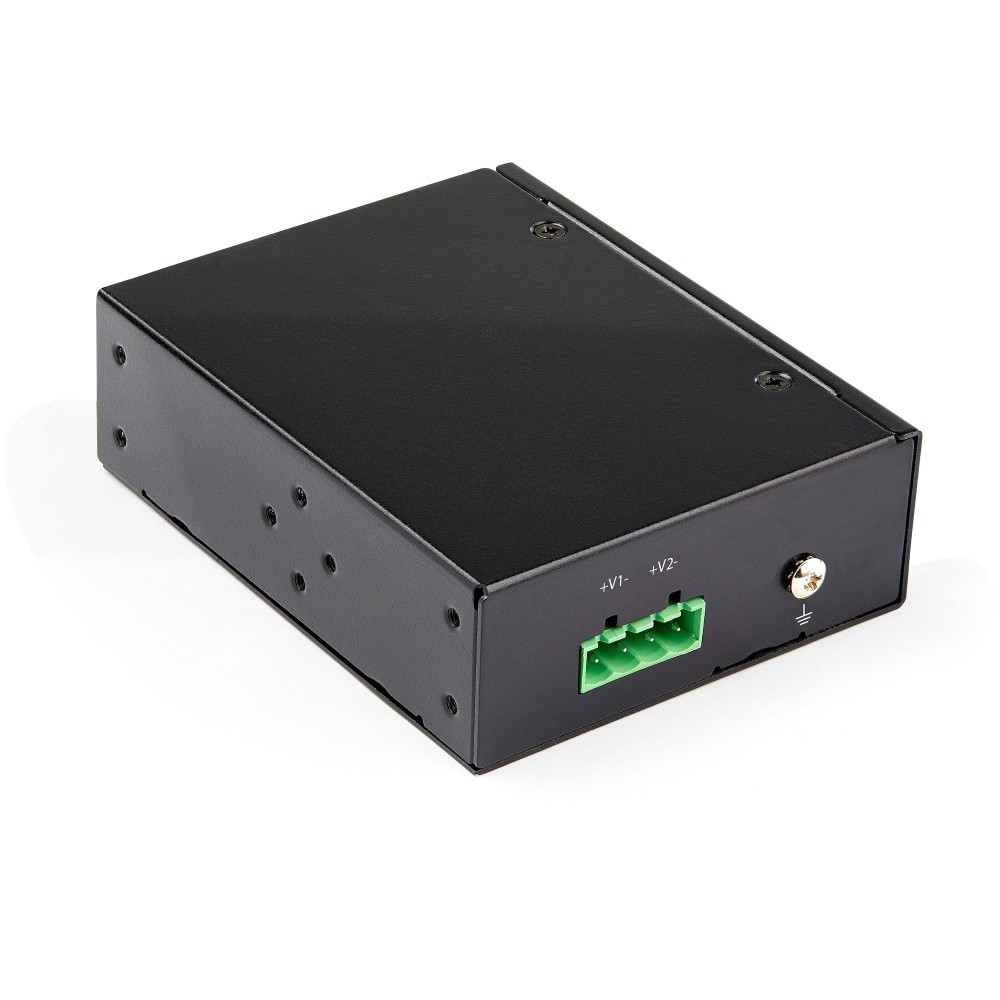

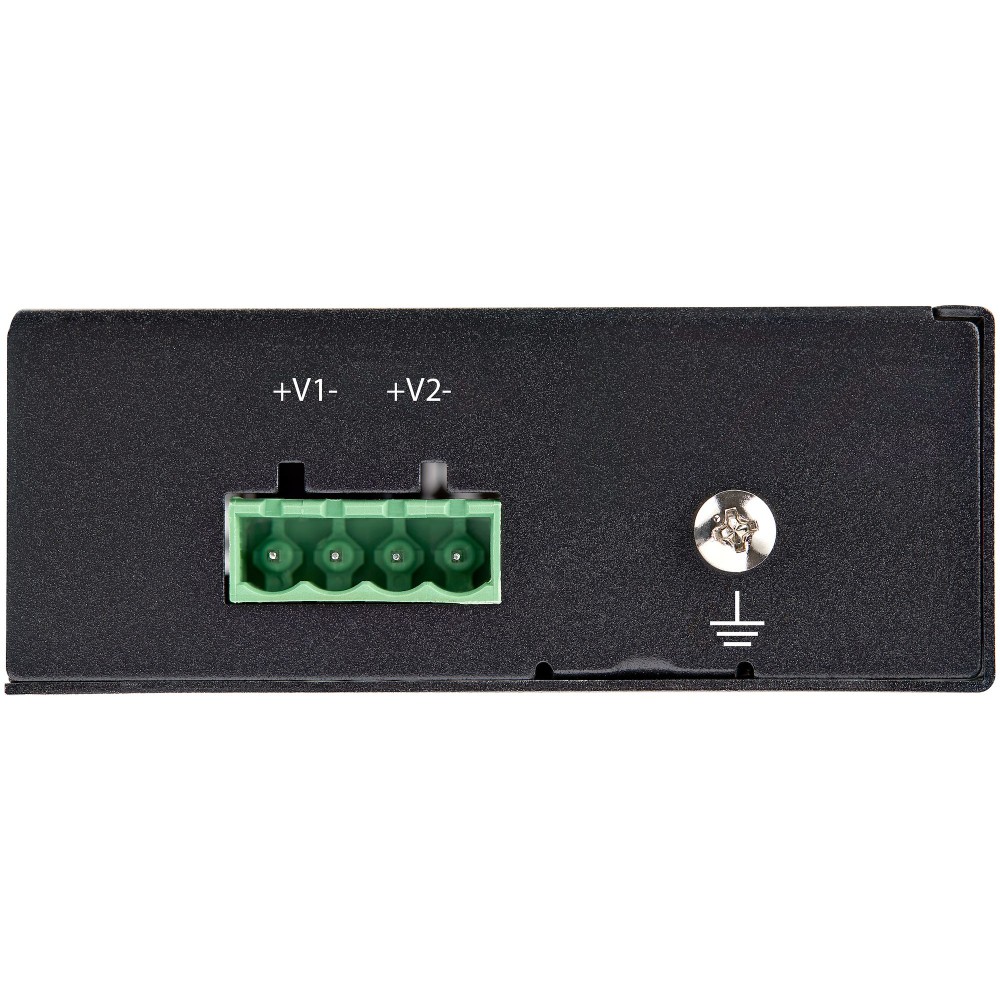

- 90W PoE+++ splitter for separate data (RJ45) and 12-48V DC power (terminal block)
- Gigabit Ethernet (10/100/1000 Mbit/s) with full duplex and Auto MDI/MDI-X
- Supports IEEE 802.3af/at/bt PoE standards for versatile compatibility
- Rugged IP-30 aluminium housing for industrial use (-40 to 75 °C operating temperature)
- Surge protection, LED indicators, and 100m maximum operating distance
- Compact design (81.5 x 104 x 32 mm, 150g) with wall or DIN rail mounting options
- CE, FCC, UL certified and RoHS compliant for safety and environmental standards
Payment Methods:
You may also like
StarTech.com Industrial PoE Splitter – Resilient Power for Harsh Environments
The StarTech.com Industrial Gigabit PoE Splitter – 90W PoE+++, 12-48V DC, -40C to +75C, Black is designed for professionals needing reliable power and data in challenging industrial settings. We understand the need for robust solutions. This splitter enables you to power non-PoE devices using your existing network infrastructure. It’s ideal where traditional power outlets are unavailable.
Core Technical Data
| Metric | Spec. |
|---|---|
| PoE Budget | 90 W |
| Operating Temperature Range | -40 to 75 °C |
| DC Output Voltage Range | 12-48V DC |
| Ethernet Data Rates | 10/100/1000 Mbit/s |
| Surge Protection | Yes |
Adaptable Power for Legacy Devices
This PoE splitter provides a flexible solution for older equipment. It converts Power over Ethernet into separate data and DC power outputs. This allows you to integrate non-PoE devices into your modern network. For example, you can power security access systems or environmental sensors. It simplifies deployment by utilising existing network cabling for both power and data.
Built for Demanding Locations
We know industrial environments can be tough. This unit features an IP-30 rated aluminium housing. It withstands extreme temperatures, from -40°C to +75°C. This robust design ensures consistent operation. It also offers excellent resistance to vibration and shock.
Flexible Installation Options
Deployment is straightforward with this splitter. It supports both wall and DIN rail mounting. All necessary hardware is included. The output voltage can be configured using DIP switches. This provides versatility for various device power requirements.
Before You Order
- Confirm your device requires 12-48V DC power at up to 1.5A.
- Confirm your PoE source delivers up to 90W (PoE+++).
- Confirm your network infrastructure supports Gigabit Ethernet speeds.
Frequently Asked Questions
Q: What types of PoE standards does this splitter support?
A: It supports IEEE 802.3af (PoE), IEEE 802.3at (PoE+), and IEEE 802.3bt (PoE+++) inputs.
Q: Can this splitter be used outdoors?
A: It has an IP-30 rating and a wide operating temperature range, making it suitable for many harsh environments, but not direct weather exposure.
Q: How do I configure the output voltage?
A: The output voltage is adjustable via DIP switches on the unit.
Q: What is the maximum distance for the Ethernet connection?
A: The maximum operating distance is 100 metres.
Our Verdict
This splitter is an excellent choice for expanding network capabilities in industrial settings. It reliably powers non-PoE devices over long distances. Its rugged design ensures durability and consistent performance. Warranty cover varies by product, so please contact us to confirm.
| Network | |
|---|---|
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Cabling technology | 10/100/1000Base-T(X) |
| Supported network protocols | CSMA/CD |
| Features | |
| Surge protection | Yes |
| Maximum operating distance | 100 m |
| Product colour | Black |
| LED indicators | Yes |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u |
| Certification | CE, FCC, UL |
| Ports & interfaces | |
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| Power | |
| Output current | 1.5 A |
| Total Power over Ethernet (PoE) budget | 90 W |
| Certificates | |
| Certification | CE, FCC, UL |
| Compliance certificates | RoHS |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
| Weight | 150 g |
| Width | 81.5 mm |
| Depth | 104 mm |
| Height | 32 mm |
| Package weight | 392 g |
| Package depth | 214 mm |
| Package width | 168 mm |
| Package length | 21.1 cm |
| Package height | 66 mm |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package weight | 392 g |
| Package depth | 214 mm |
| Package width | 168 mm |
| Package length | 21.1 cm |
| Package height | 66 mm |
| Technical details | |
| Package width | 168 mm |
| Package length | 21.1 cm |
| Package height | 66 mm |
| Power over Ethernet (PoE) | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Harmonized System (HS) code | 85044095 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Logistics data | |
| Master (outer) case width | 360 mm |
| Master (outer) case length | 368 mm |
| Master (outer) case height | 248 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85044095 |
| Identifiers | |
| Distributor SKUs | V268711, V935113, 6226354, CLPOESLT1G48V |
