StarTech.com Industrial PoE+ Fiber to Ethernet Media Converter 60W SFP to RJ45 -40 to 75°C IP30
£213.58 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 60W PoE+ output for powering remote devices
- Supports both single-mode and multi-mode fiber with open SFP slot
- Rugged IP30 aluminium housing, DIN rail mountable
- Wide operating temperature range of -40 to 75 °C
- Gigabit Ethernet with full duplex and 16000 jumbo frame support
- Dual power input options for flexible installation
Payment Methods:
You may also like
StarTech.com HPE J8177C Compatible SFP Module – 1000BASE-T 1GbE Copper RJ45 100m
In stock
StarTech.com Industrial PoE+ Converter – Robust Connectivity
The StarTech.com Industrial PoE+ Fiber to Ethernet Media Converter 60W SFP to RJ45 -40 to 75°C IP30 provides resilient network extension. This unit is ideal for industrial settings, harsh environments, and remote locations. It delivers both data and power over fibre optic links. This allows us to connect and power devices where traditional copper Ethernet cannot reach.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Max Data Transfer Rate | 1000 Mbit/s |
| PoE+ Budget | 60 W |
| Operating Temperature | -40 to 75 °C |
| IP Rating | IP30 |
| MTBF | 500,000 hours |
Built for Demanding Environments
We understand that industrial applications require robust hardware. This converter features an IP30 rating, protecting against solid objects. Its aluminium housing also ensures durability. The wide operating temperature range, from -40 to 75 °C, guarantees reliable performance in extreme conditions. This makes it suitable for factories, warehouses, and outdoor deployments.
Flexible Power and Data Delivery
This device acts as both a media converter and a PoE+ injector. It converts a fibre link into a copper RJ45 Ethernet connection. It simultaneously supplies up to 60 watts of power. We can support power-hungry PoE devices such as PTZ cameras, LED lighting, and wireless access points. This simplifies installation by removing the need for separate power sources.
Open SFP for Customisation
The open SFP slot offers excellent flexibility. It allows us to choose the most appropriate SFP transceiver for your specific needs. You can select an SFP module that matches your fibre type, whether single-mode or multi-mode. This also accommodates varying transmission distances. This approach helps leverage existing fibre infrastructure.
Versatile Mounting Options
Installation flexibility is key in industrial settings. This converter includes DIN rail mounting hardware. This allows for secure and organised integration into control cabinets. Its compact dimensions (81.5mm W x 104mm D x 32mm H) save valuable space.

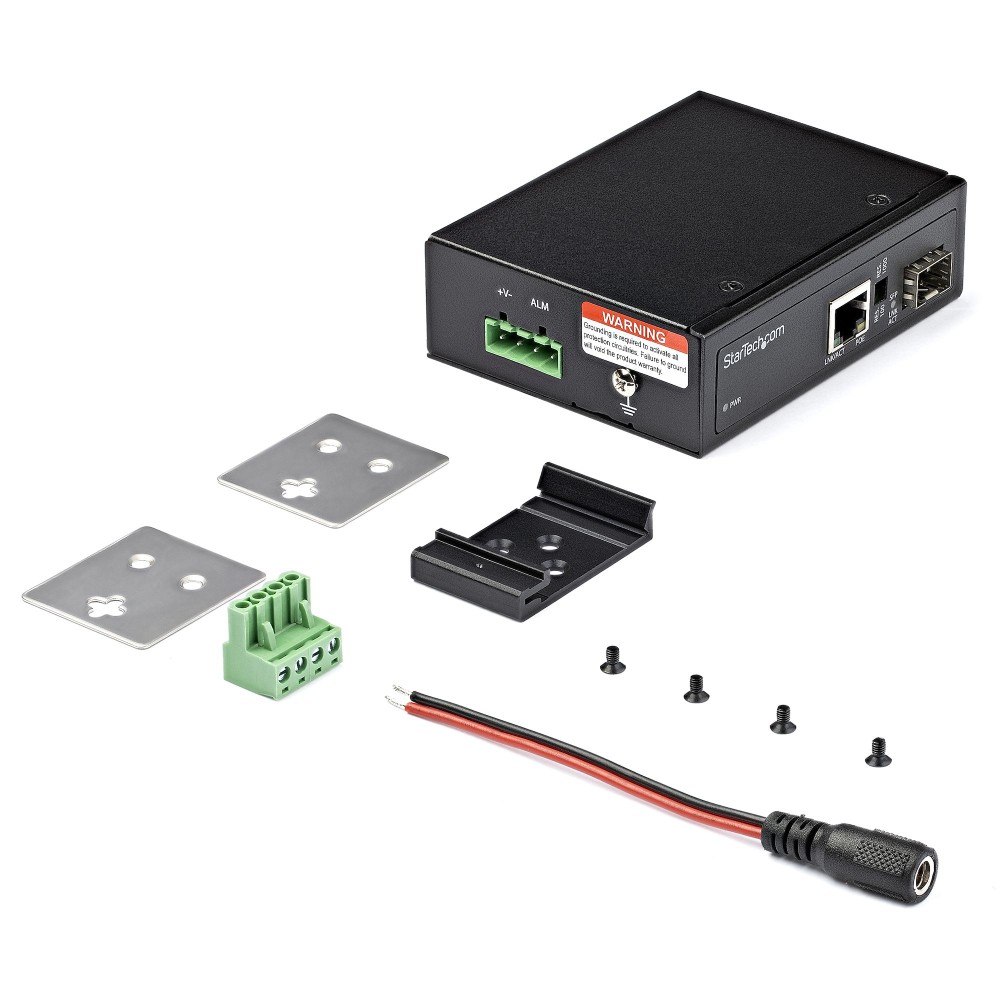

What’s Included
- Industrial PoE+ Media Converter
- Quick-start guide
- DIN rail mounting kit
Before You Order
- Confirm your SFP module is MSA compliant for optimal compatibility.
- Confirm your PoE+ devices require up to 60W of power.
- Confirm your installation environment is within the -40 to 75°C operating range.
Frequently Asked Questions
Q: What types of fibre does this converter support?
A: It supports both single-mode and multi-mode fibre, depending on the SFP module used.
Q: Can this power a pan-and-tilt camera?
A: Yes, with a 60W PoE+ budget, it can power most pan-and-tilt cameras.
Q: Is an SFP module included with the converter?
A: No, the SFP slot is open, allowing you to choose your preferred module separately.
Q: What is the maximum distance it can transmit data over fibre?
A: The maximum distance depends on the SFP module you select for your fibre type.
Our Verdict
This StarTech.com Industrial PoE+ Fiber to Ethernet Media Converter 60W SFP to RJ45 -40 to 75°C IP30 is an excellent choice for extending networks in harsh environments. It reliably powers and connects remote devices over fibre. The 2-year StarTech.com warranty ensures peace of mind.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Jumbo frames | 16000 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Duplex system | Full |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber optic connector | SFP |
| Performance | |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 500000 h |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | SFP |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 60 W |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
| Width | 81.5 mm |
| Depth | 104 mm |
| Weight | 153 g |
| Height | 32 mm |
| Package volume | 395 cm³ |
| Package depth | 213 mm |
| Package width | 167 mm |
| Package height | 67 mm |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package volume | 395 cm³ |
| Package depth | 213 mm |
| Package width | 167 mm |
| Package height | 67 mm |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Maximum transfer distance | 100 m |
| Fiber mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 500000 h |
| Colour | |
| Product colour | Black |
| Logistics data | |
| Master (outer) case width | 368 mm |
| Master (outer) case length | 372 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 10 pc(s) |
| Harmonized System (HS) code | 85176990 |
| Other features | |
| Full duplex | Yes |
| Identifiers | |
| Distributor SKUs | V268718, V935109, 96119, 7796964, CLIMC1GSFP60W |
