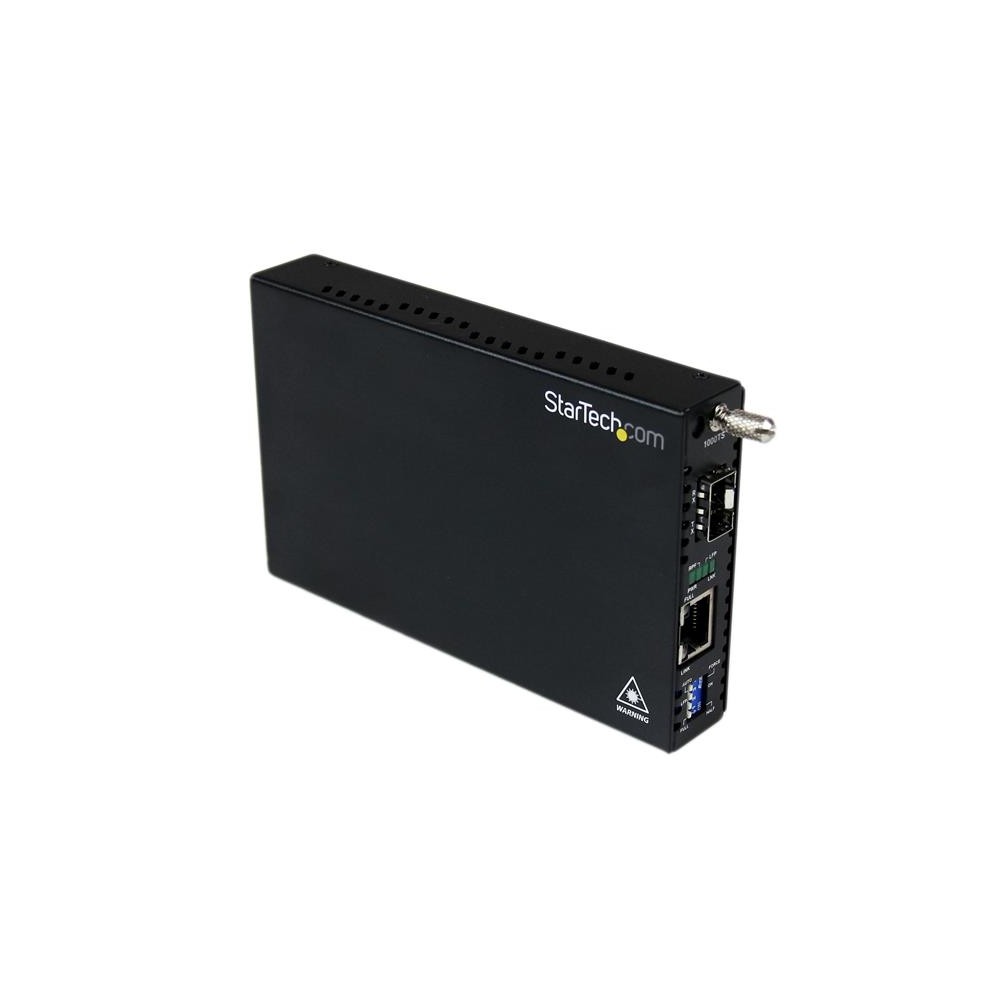

StarTech.com Gigabit Ethernet Fibre Media Converter Open SFP Slot 1000Base-T/LX/SX Black
£163.93
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item

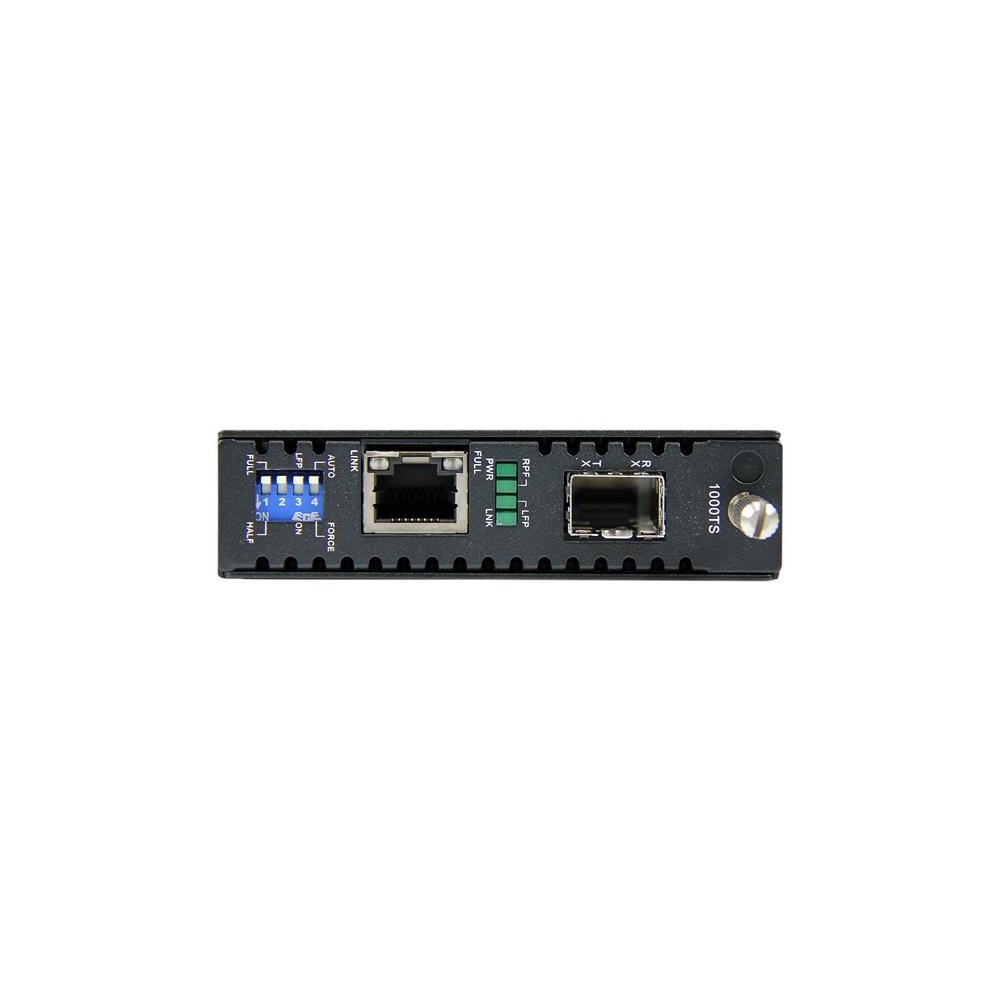

- Gigabit Ethernet connectivity with 1000Base-T input and 1000Base-LX/SX output
- Open SFP slot for flexible fibre optic connections (single/multi-mode)
- Full and Half-duplex support with Auto MDI/MDI-X
- Durable steel housing with LED indicators, black finish
- Standalone operation or 2U rackmount chassis installation
- Wide operating temperature range of 0 – 60 °C
- MTBF of 65,000 hours, backed by FCC and RoHS certifications
You may also like
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Single-Mode, 1310nm, 10km
In stock
TP-Link Omada 10G SFP Media Converter
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Multi-Mode, 850nm, 550m, Black
In stock
StarTech.com Gigabit Ethernet to Fibre Media Converter MM/SM Open SFP Slot TAA Black
In stock
StarTech.com HPE J9150D Compatible SFP+ Module 10GbE Multi-Mode LC Transceiver 300m 850nm Silver
In stock
StarTech.com ET91000SFP2 – Bridging Gigabit Networks with Fibre Flexibility
The StarTech.com Gigabit Ethernet Fibre Media Converter Open SFP Slot 1000Base-T/LX/SX Black is ideal for IT professionals and network administrators. It seamlessly extends Gigabit Ethernet connections over fibre, offering versatile connectivity options. This converter provides reliable, long-distance network links for various environments.
Essential Specifications
| Metric | Spec. |
|---|---|
| Data Transfer Rate | 1250 Mbit/s |
| Ethernet Ports | 1 x RJ-45 |
| Fibre Ports | 1 x SFP |
| Housing Material | Steel |
| MTBF | 65,000 hours |
Flexible SFP Integration
This media converter features an open SFP slot. This design allows you to select the precise MSA-compliant Gigabit SFP module you need. You can tailor your fibre connection for single-mode or multi-mode operation. This also lets you match specific distance requirements.
Robust and Reliable Design
Constructed with a durable, all-steel chassis, this converter is built to last. Its robust housing ensures stable performance in diverse operating conditions. We find this enhances long-term network reliability.
Effortless Network Extension
Enjoy simple plug-and-play installation with this device. It supports full-duplex operation, ensuring efficient data flow. Jumbo Frame support further optimises network performance. This makes extending your network straightforward and effective.
Adaptable Deployment Options
This Gigabit media converter offers versatile deployment. It operates effectively as a standalone unit. Alternatively, you can install it into a 2U rackmount chassis. This flexibility suits various network configurations and scalability needs.
Before You Order
- Confirm your chosen SFP module is MSA-compliant for Gigabit speeds.
- Confirm your existing network infrastructure requires a 1000Base-T to fibre conversion.
- Confirm your power supply meets the 100-240V input range.
Frequently Asked Questions
Q: What is the main benefit of an open SFP slot?
A: An open SFP slot allows you to choose the exact SFP module needed for your specific fibre connection type and distance.
Q: Can this converter be rack-mounted?
A: Yes, it can be used as a standalone unit or installed into a compatible 2U rackmount chassis.
Q: Does this device support Power over Ethernet (PoE)?
A: No, this media converter does not support Power over Ethernet (PoE).
Q: What is the typical power consumption?
A: The typical power consumption for this converter is 8 W.
The Bottom Line
The StarTech.com Gigabit Ethernet Fibre Media Converter Open SFP Slot 1000Base-T/LX/SX Black is an excellent choice for extending your Gigabit Ethernet network over fibre. Its versatility, robust build, and straightforward setup make it a valuable asset for demanding network environments.
| Network | |
|---|---|
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3z |
| Ethernet LAN data rates | 1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX, 1000Base-SX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 1250 Mbit/s |
| Fibre optic connector | SFP |
| Performance | |
| Mean time between failures (MTBF) | 65000 h |
| Features | |
| Housing material | Steel |
| LED indicators | Yes |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fibre ports quantity | 1 |
| Fibre optic connector | SFP |
| Power | |
| Power over Ethernet (PoE) | No |

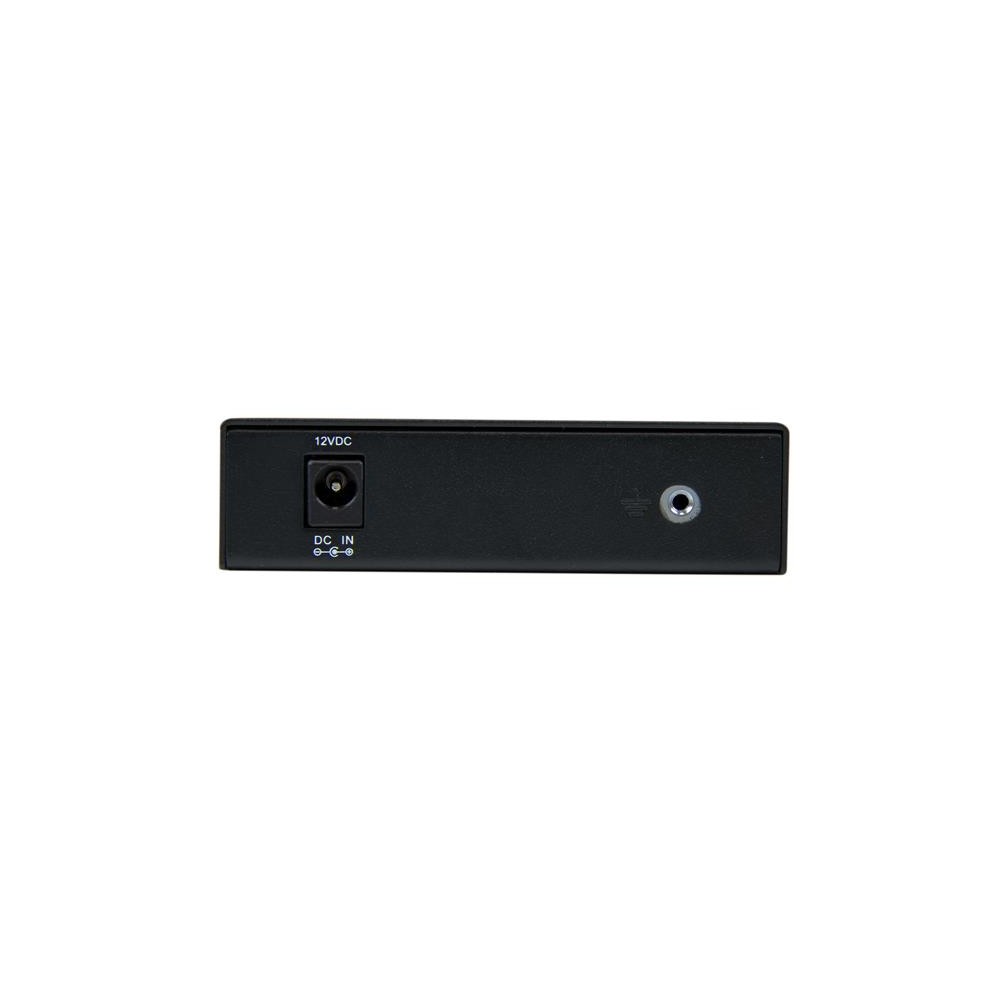

| Input voltage | 100 - 240 V |
| Input current | 0.36 A |
| Output voltage | 12 V |
| Output current | 1 A |
| Power consumption (typical) | 8 W |
| External power adapter | Yes |
| Weight & dimensions | |
| Width | 95 mm |
| Depth | 160 mm |
| Weight | 400 g |
| Height | 20 mm |
| Package depth | 208 mm |
| Package width | 137 mm |
| Package height | 92 mm |
| Package weight | 786 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging content | |
| Manual | Yes |
| Packaging data | |
| Package depth | 208 mm |
| Package width | 137 mm |
| Package height | 92 mm |
| Package weight | 786 g |
| Technical details | |
| Housing material | Steel |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Indication | |
| LED indicators | Yes |
| Design | |
| Housing material | Steel |
| LED indicators | Yes |
| Product colour | Black |
| Certification | FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Additional EANs | 5054533529434 |
