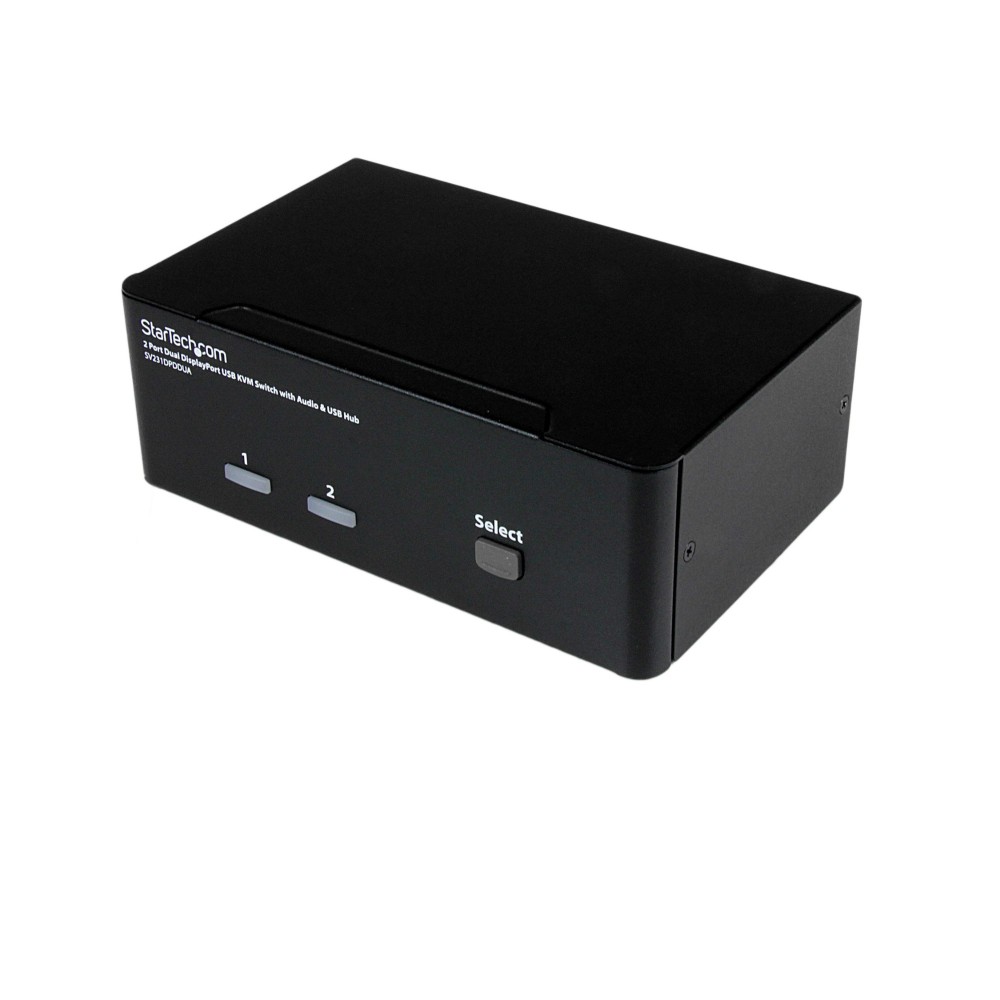

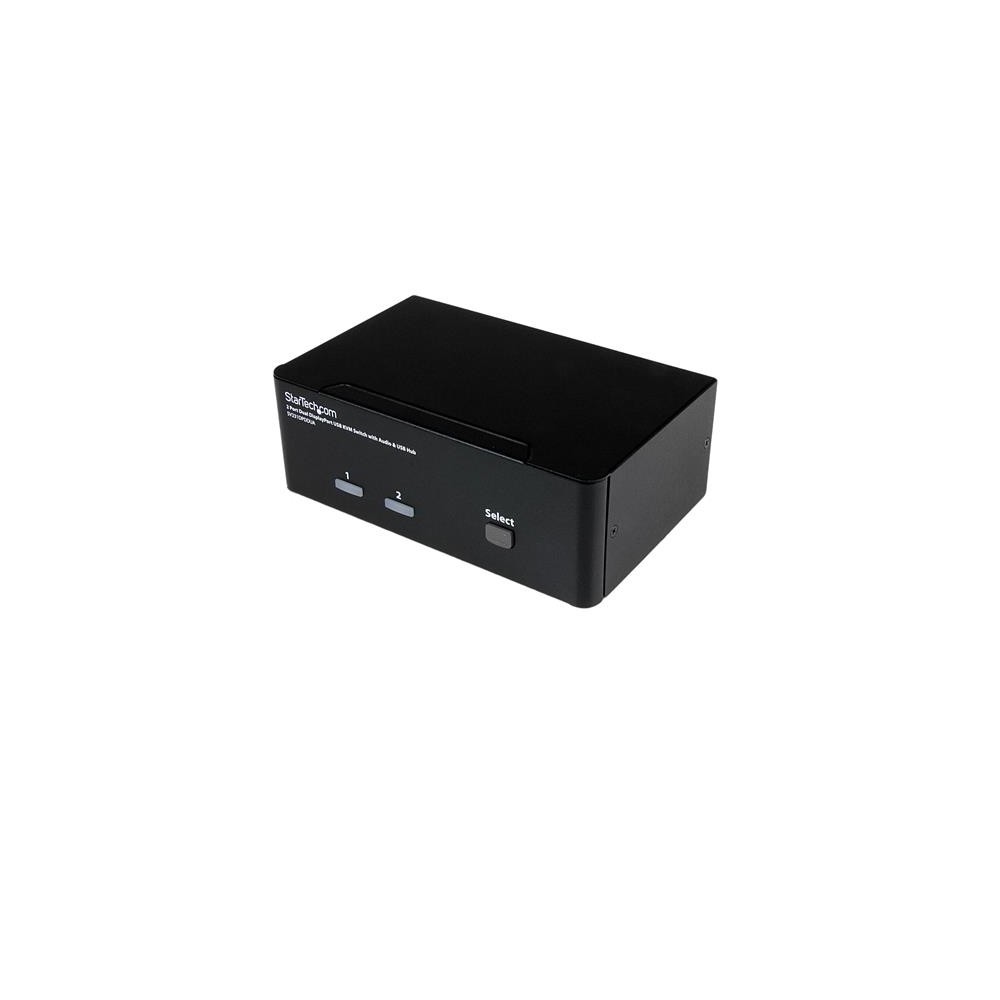

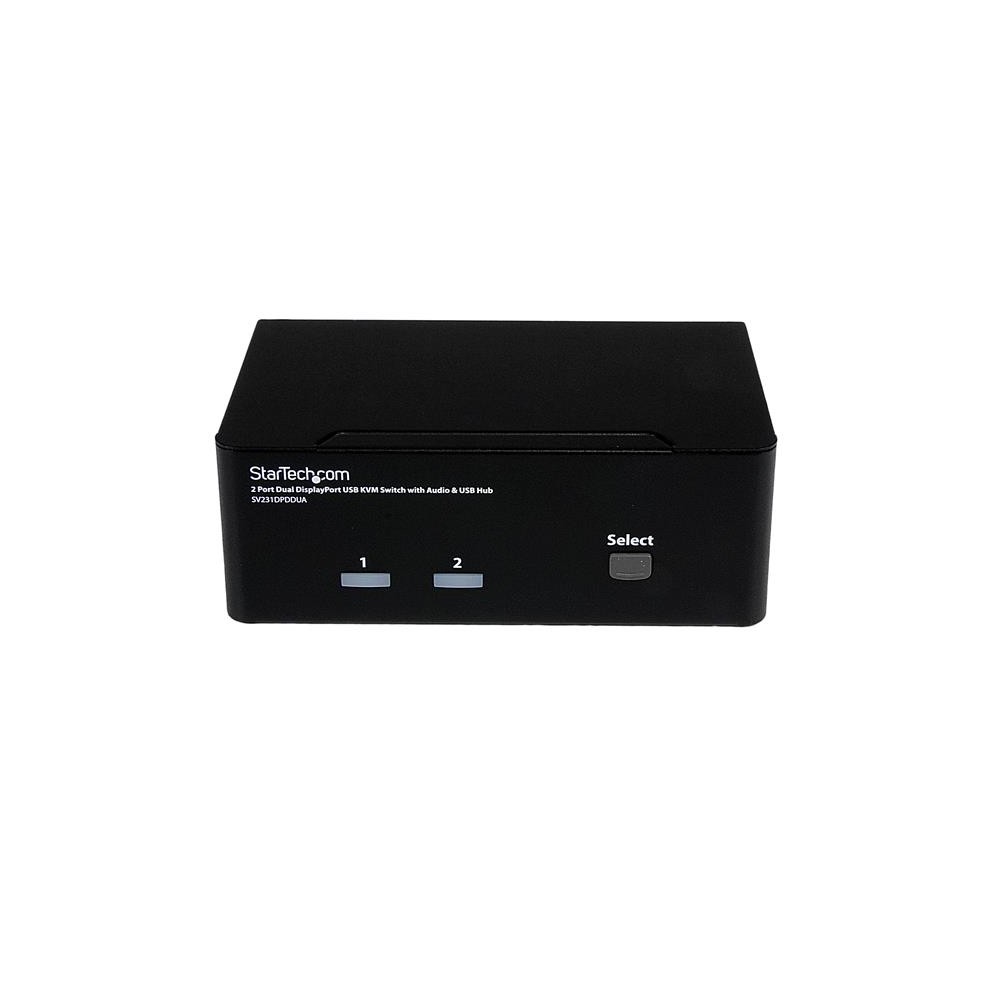

StarTech.com SV231DPDDUA 2 Port Dual DisplayPort KVM Switch with Audio & USB 2.0 Hub, 4K 3840×2400, TAA, Black
£386.63 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Dual DisplayPort KVM switch for 2 computers
- Supports 4K Ultra HD resolution up to 3840 x 2400 pixels
- Integrated USB 2.0 hub with two console USB-A ports
- Audio support with 7.1 channels and 3.5mm headphone/microphone ports
- Features hot-plug support, push button, and hot-key switching
- Steel housing for durability, TAA compliant
- Includes external power adapter with universal plug types (AU, EU, UK, US)
Payment Methods:
You may also like
StarTech.com RKCONS1908K 8 Port Rackmount KVM Console with 19″ 1280×1024 LCD Monitor – Black
In stock
Belkin F1DN104KVM-UN-4 KVM Switch 4-Port, 4K Ultra HD, HDMI/DisplayPort, Black
In stock
Belkin F1DN204KVM-UN-4 Secure KVM Switch, 4-Port, 4K Ultra HD 60Hz, HDMI/DisplayPort, Rack Mount, Black
In stock
StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables
In stock
StarTech.com SV231DPDDUA – Master Dual DisplayPort Control
We present the StarTech.com SV231DPDDUA 2 Port Dual DisplayPort KVM Switch with Audio & USB 2.0 Hub, 4K 3840×2400, TAA, Black. This KVM switch is ideal for professionals managing two high-resolution DisplayPort computers from a single workstation. It streamlines your setup, reducing desktop clutter and improving workflow efficiency. Our solution supports stunning 4K visuals and integrated audio.
Key Technical Details
| Metric | Spec. |
|---|---|
| Max Resolution | 3840 x 2400 pixels |
| Video Port Type | DisplayPort |
| USB Hub | Yes |
| Audio Support | Yes |
| Computers Controlled | 2 |
| Product Colour | Black |

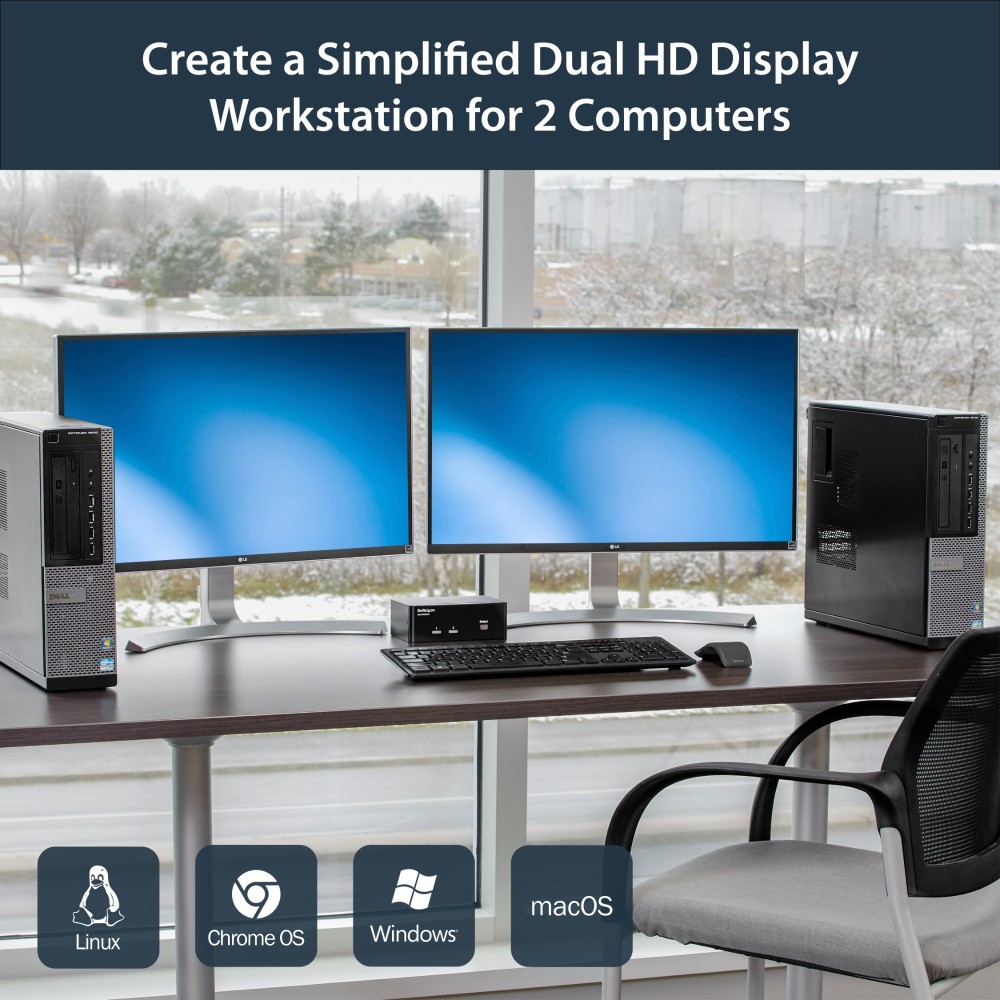

Seamless Dual DisplayPort Switching
This KVM switch allows you to control two dual-head DisplayPort systems effortlessly. You can switch between computers using a push button or hotkeys. This feature is perfect for multitasking across different systems. It ensures a smooth transition without interrupting your visual workflow.
Immersive 4K Visuals and Audio
Experience crystal-clear visuals with support for resolutions up to 3840×2400. This is crucial for detailed work such as medical imaging or graphic design. The switch also includes 7.1 channel audio support. This provides a complete multimedia experience from your connected systems.
Integrated USB 2.0 Hub
Connect your essential USB peripherals directly to the KVM switch. The integrated USB 2.0 hub allows for shared access to keyboards, mice, and other devices. This eliminates the need for separate USB hubs. It keeps your workspace tidy and efficient.
TAA Compliant for Government Use
The SV231DPDDUA is TAA compliant. This makes it suitable for government procurement and sensitive environments. We understand the importance of secure and compliant hardware. This switch meets those rigorous standards.

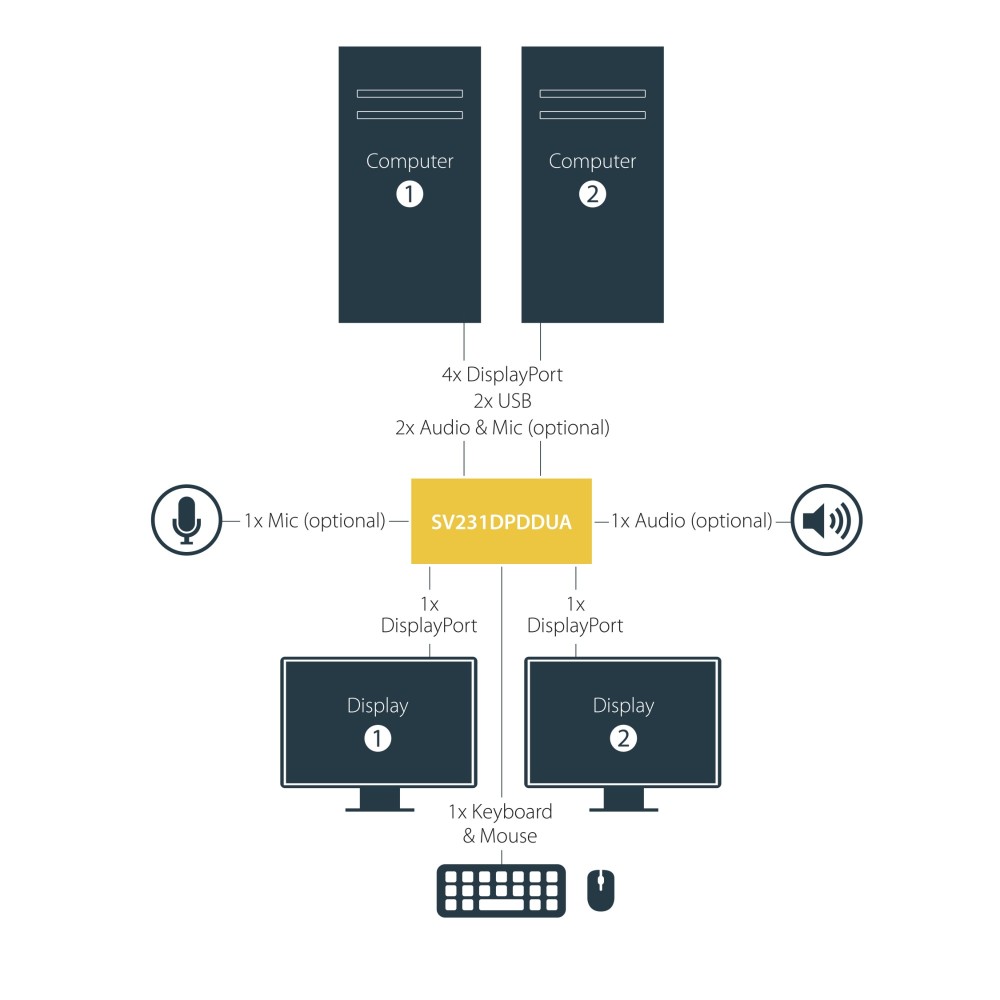

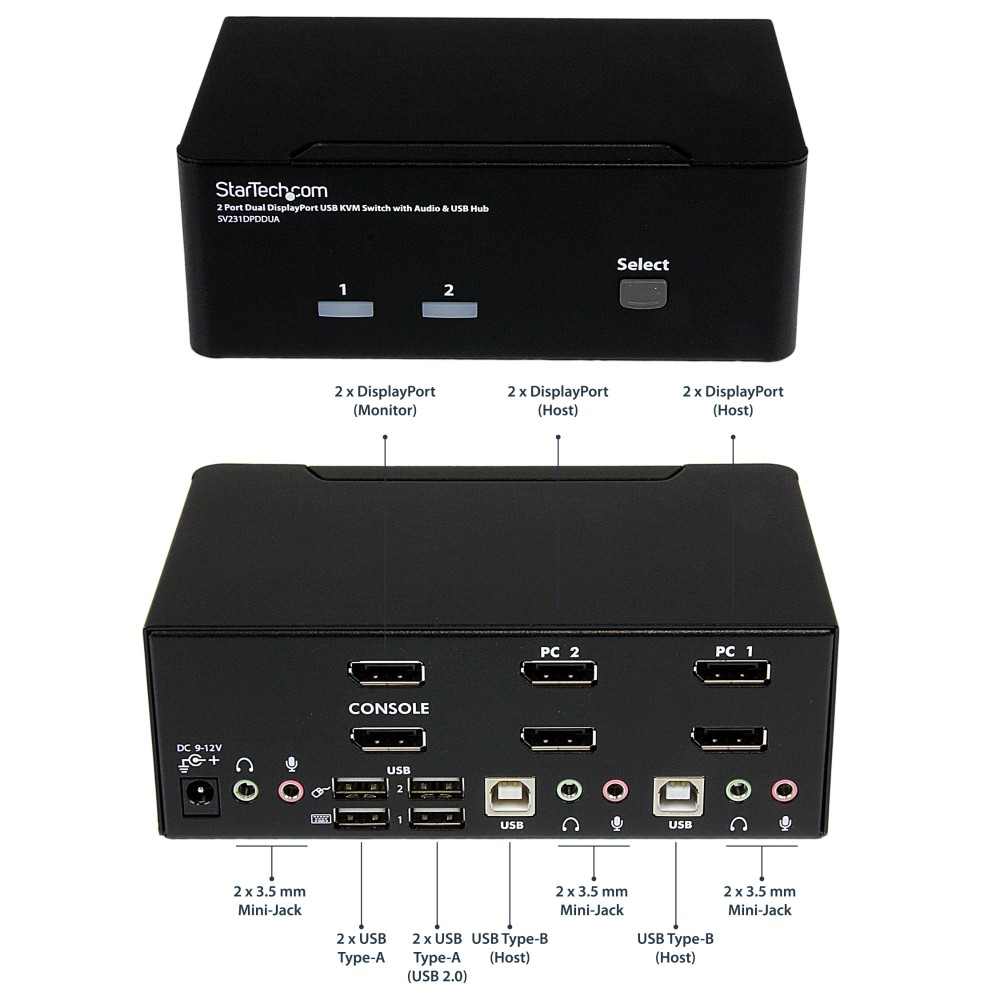

Console Connectivity Options
The console offers comprehensive connectivity. It includes 3.5mm headphone and microphone ports. You also have DisplayPort and USB-A connections for your keyboard and mouse. This ensures all your essential peripherals are easily accessible.

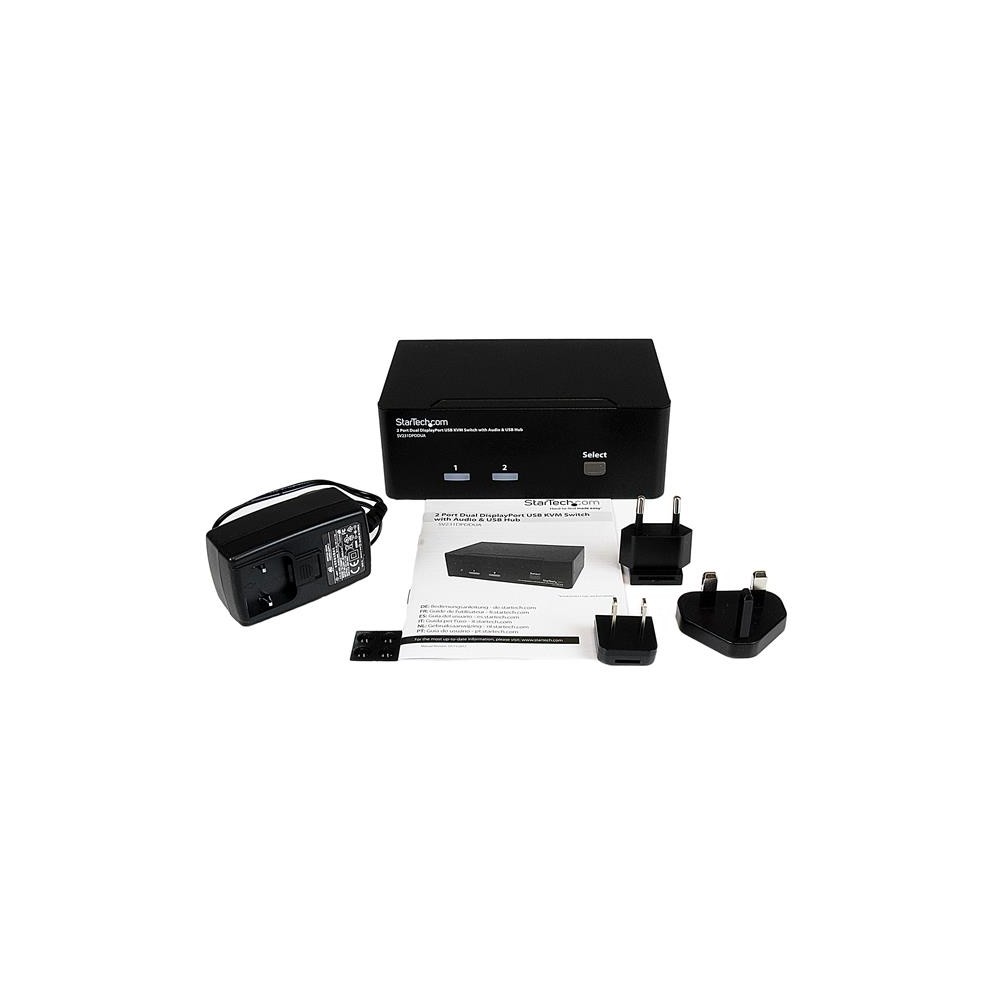

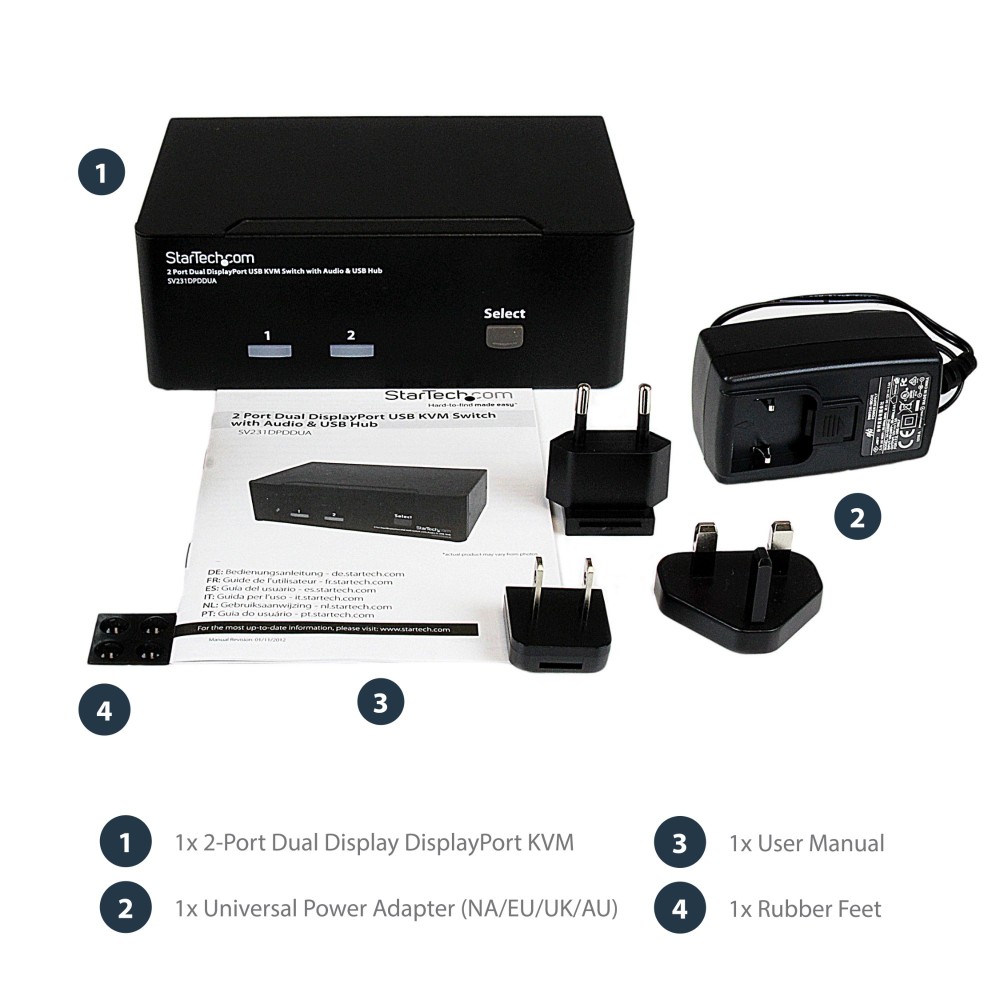

What You Receive
- StarTech.com SV231DPDDUA KVM Switch
- Power Adapter
- User Manual
Before You Order
- Confirm your computers have dual DisplayPort outputs or compatible video sources.
- Confirm your peripherals use USB-A connections.
- Confirm your audio setup is compatible with 3.5mm jacks.
- Confirm your display supports resolutions up to 3840×2400.
Frequently Asked Questions
Q: Can I use this KVM with systems that only have one DisplayPort output?
A: Yes, it can be used with a single DisplayPort output plus an accessory adapter for a second video source.
Q: Does this KVM support 4K resolution at standard refresh rates?
A: It supports 2560×1600 at 60 Hz with DisplayPort HD audio, and 3840×2400 at reduced refresh rates.
Q: Are hotkeys available for switching between computers?
A: Yes, both push button and hotkey switching options are supported.
Q: Does this KVM switch require an external power adapter?
A: Yes, an external power adapter is included with the unit.
Q: Can I connect external speakers to this KVM switch?
A: Yes, it features audio connections for headphones and microphones.
Our Expert Recommendation
This KVM switch is an excellent choice for users needing to manage two DisplayPort systems with high-resolution demands. Its robust feature set, including 4K support and an integrated USB hub, makes it highly versatile. StarTech.com provides a 3-year warranty with this product.

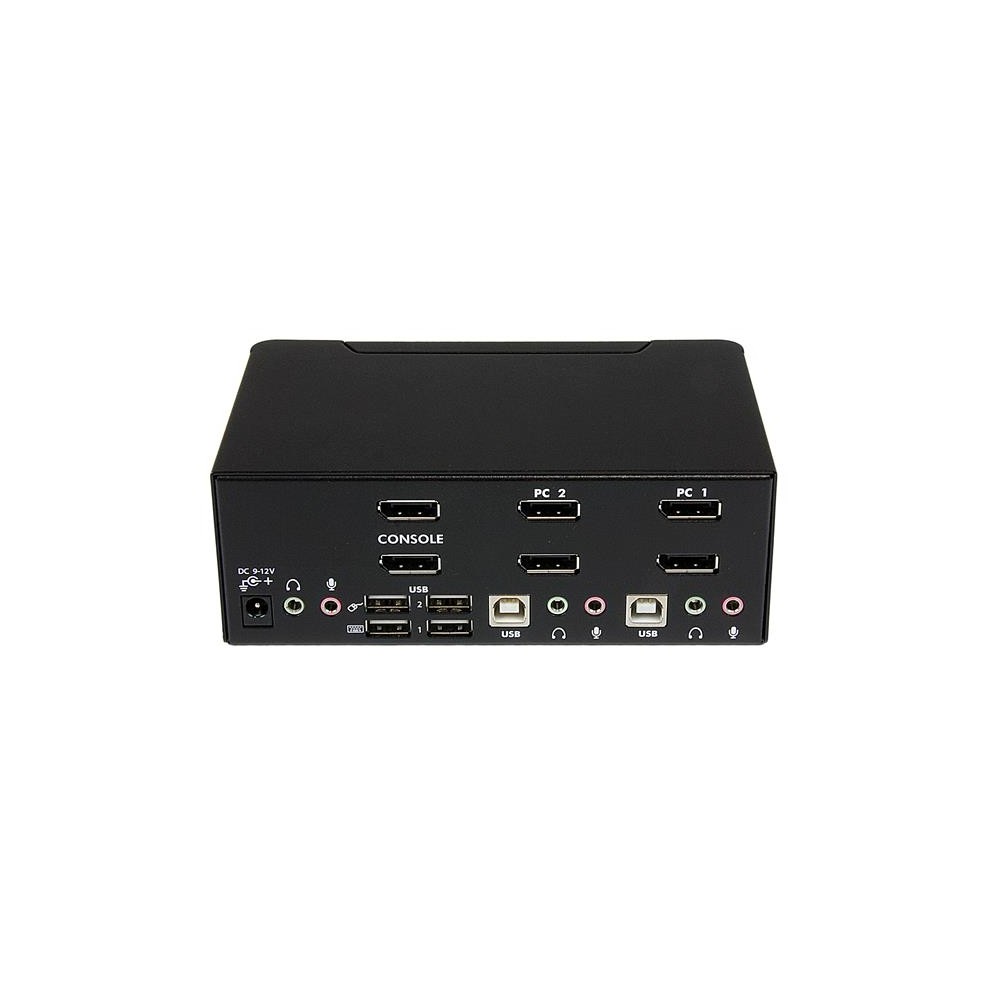

| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type | USB Type-A |
| Number of microphone inputs | 3 |
| DisplayPorts quantity | 6 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 3 |
| DC-in jack | Yes |
| USB hub | Yes |
| Network | |
| Ethernet LAN | No |
| Performance | |
| DDC2B support | Yes |
| Daisy chain | No |
| HD type | 4K Ultra HD |
| Hot-Plug support | Yes |
| Maximum resolution | 3840 x 2400 pixels |
| Number of users | 1 user(s) |
| Audio channels | 7.1 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Hot-Plug support | Yes |
| Push button | Yes |
| On Screen Display (OSD) | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Audio support | Yes |
| USB hub | Yes |
| Compliance certificates | RoHS |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, REACH, TAA |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 0.8 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 110 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2400 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | 20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |

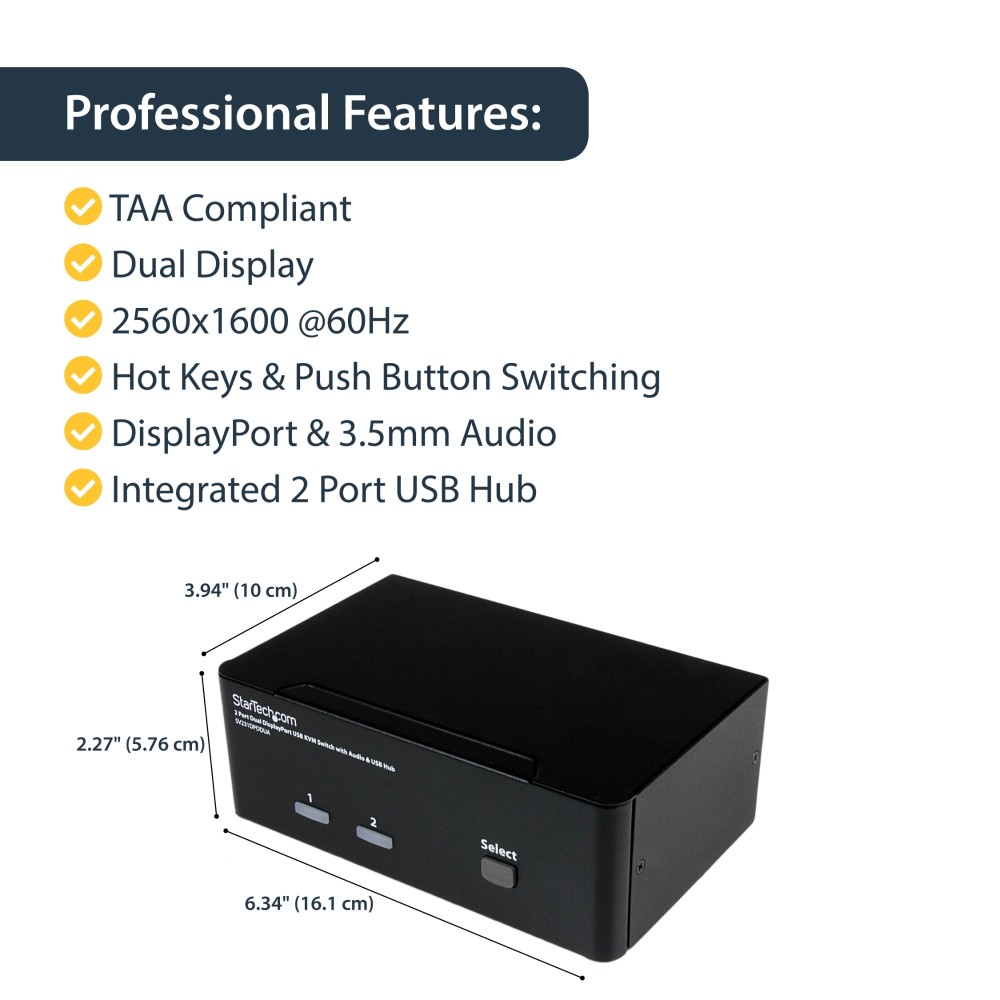

| Weight & dimensions | |
| Width | 161 mm |
| Depth | 100 mm |
| Height | 57.5 mm |
| Weight | 734 g |
| Package width | 252 mm |
| Package depth | 188 mm |
| Package height | 100 mm |
| Package weight | 1.19 kg |
| Packaging data | |
| Package width | 252 mm |
| Package depth | 188 mm |
| Package height | 100 mm |
| Package weight | 1.19 kg |
| Packaging content | |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, REACH, TAA |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 403 mm |
| Master (outer) case length | 322 mm |
| Master (outer) case height | 285 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Identifiers | |
| Distributor SKUs | V209269, V931089, 94731, 4462066, 10011597, 212607, CLSV231DPDDUA |
| Additional EANs | 5024123729001 |
