TP-Link Omada ER703WP-4G Outdoor Gateway/Controller, 4G LTE, Wi-Fi 6, 300/50 Mbit/s, Wall Mounting, White
£256.01 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 4G LTE mobile network with 300/50 Mbit/s downlink/uplink speeds
- Wi-Fi 6 support on 2.4/5 GHz frequency bands
- Outdoor IP55 weatherproof enclosure, wall mounting
- PoE or DC power supply options (solar panel compatible)
- Centralised management via Omada app or web
- 512 MB DDR4 internal memory and 256 MB flash memory
- Dual external 4 dBi antennas
Payment Methods:
You may also like
TP-Link Omada ER703WP-4G – Integrated Outdoor Connectivity
We present the TP-Link Omada ER703WP-4G Outdoor Gateway/Controller, 4G LTE, Wi-Fi 6, 300/50 Mbit/s, Wall Mounting, White. This device is ideal for businesses needing robust, reliable outdoor internet access. It combines essential networking functions into one weatherproof unit. This ensures seamless connectivity in challenging environments.
Essential Performance Metrics
| Metric | Spec. |
|---|---|
| Downlink/Uplink Speed | 300/50 Mbit/s |
| Wi-Fi Standard | Wi-Fi 6 |
| Ethernet LAN Data Rates | 10, 100, 1000 Mbit/s |
| Operating Temperature | -30 to 60 °C |
| Internal Memory | 512 MB DDR4 |
Resilient Outdoor Operation
This gateway is built for harsh external conditions. Its IP55-rated enclosure protects it from dust and water. This ensures continuous operation across various weather patterns. So, you maintain network stability outdoors.
Flexible Powering Options
Powering this device is straightforward. You can use Power over Ethernet (PoE) for simplified cabling. Alternatively, a DC input supports solar panel integration. This versatility allows deployment where mains power is scarce.
Seamless 4G and Wi-Fi 6 Integration
Experience fast, reliable wireless connectivity. The built-in 4G LTE modem provides primary internet access. Wi-Fi 6 technology delivers high-speed local wireless. This ensures both wide-area and local network performance.
Centralised Network Management
Manage your network efficiently with Omada. The Omada app and web interface offer remote control. This reduces the need for on-site visits. You can oversee multiple sites from a single pane of glass.
Simplified Deployment and Installation

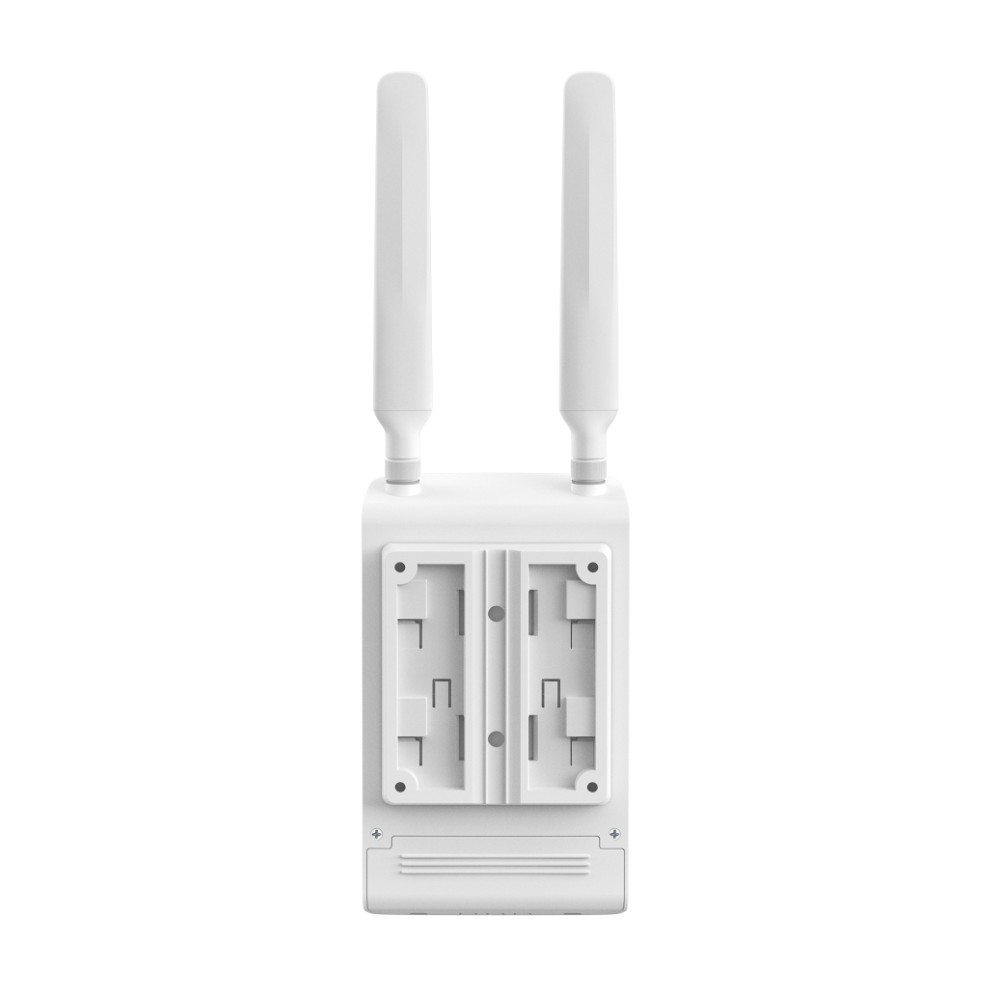

Mounting this unit is quick and easy. It supports wall mounting with included kits. Its compact design allows flexible placement. Just insert a Nano SIM or connect an Ethernet WAN.
Before You Order
- Confirm your mobile network supports Nano SIM cards.
- Confirm your installation location is suitable for wall mounting.
- Confirm your power source is either PoE or compatible DC.
Frequently Asked Questions
Q: Does this gateway support both 2.4 GHz and 5 GHz Wi-Fi bands?
A: Yes, it operates on both 2.4 GHz and 5 GHz frequency bands for flexible connectivity.
Q: Can I manage this device remotely?
A: Absolutely, it supports web-based management and the Omada app for remote configuration.
Q: What type of SIM card does it use?
A: It uses a NanoSIM card for 4G LTE connectivity.
Q: Is it suitable for extreme temperatures?
A: Yes, it operates reliably from -30 to 60 °C.
Q: Does it offer any VPN capabilities?
A: Yes, it supports up to 50 SSL VPN and 50 PPTP/L2TP VPN tunnels.
Our Assessment
The TP-Link Omada ER703WP-4G is an excellent choice for outdoor network needs. Its robust design and integrated features offer great value. It suits remote sites, construction areas, or large outdoor venues. Warranty cover varies by product, so please contact us to confirm.
| Design | |
|---|---|
| LED indicators | Status |
| Certification | CE, FCC, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Features | |
| Antenna type | External |
| Short Message Service (SMS) | Yes |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Performance | |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Control display unit | No |
| Certification | CE, FCC, RoHS |
| Mounting type | Wall mounting |
| Product colour | White |
| Data transmission | |
| Forwarding rate | 1453489 Mpps |
| Protocols | |
| DHCP server | Yes |
| Network | |
| Networking standards | IEEE 802.3at, IEEE 802.3bt |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Frequency band | 2.4/5 GHz |
| Wi-Fi | Yes |
| GSM bands supported | 850,900,1800,2100 MHz |
| Forwarding rate | 1453489 Mpps |
| All services ready time | 3.8 s |
| Mobile network generation | 4G |
| SSL VPN tunnels (max) | 50 |
| SSL VPN throughput | 0.0866 Gbit/s |
| PPTP/L2TP VPN tunnels (max) | 50 |
| Data network | LTE |
| Downlink/uplink speed | 300/50 Mbit/s |
| Security | |
| Security algorithms | SSID, WPA2, WPA3 |
| MAC address filtering | Yes |
| Ports & interfaces | |
| SIM card type | NanoSIM |
| SIM card slot | Yes |
| DC-in jack | Yes |
| Management features | |
| Web-based management | Yes |
| Power | |
| Power over Ethernet (PoE) | Yes |
| Power consumption (max) | 16.6 W |
| Weight & dimensions | |
| Width | 174 mm |
| Height | 38.7 mm |
| Depth | 100.4 mm |
| Operational conditions | |
| Operating temperature (T-T) | -30 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Storage relative humidity (H-H) | 5 - 90% |
| Technical details | |
| Antenna type | External |
| Wi-Fi | Yes |
| Short Message Service (SMS) | Yes |
| Antenna gain level (max) | 4 dBi |
| Indication | |
| LED indicators | Status |
| Memory | |
| Internal memory type | DDR4 |
| Internal memory | 512 MB |
| Flash memory | 256 MB |
| Display | |
| Control display unit | No |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Antenna | |
| Antenna type | External |
| Antenna gain level (max) | 4 dBi |
| Antennas quantity | 2 |
| Identifiers | |
| Distributor SKUs | 10454250, 90552, 11488233, EF005086, 18353, ER703WP4OUTDOOR, NS90552 |
| Additional EANs | 8885020626858 |
