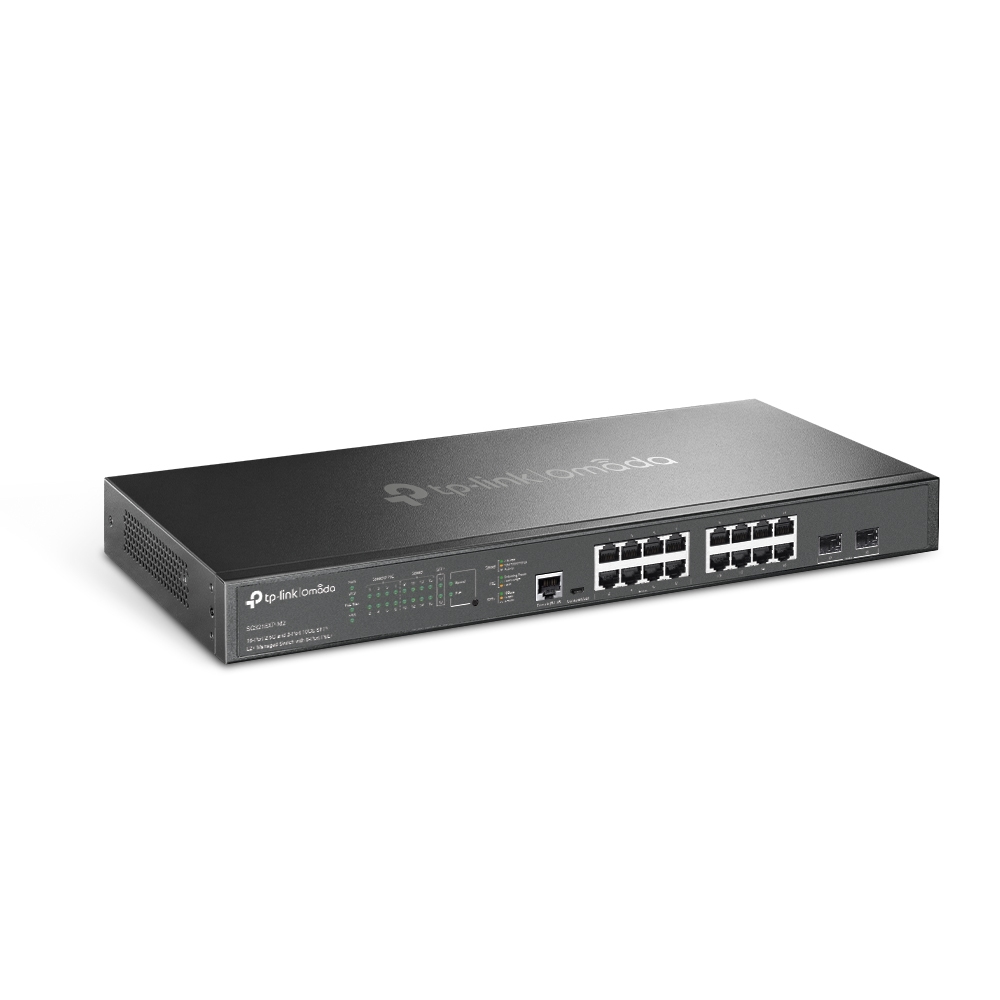

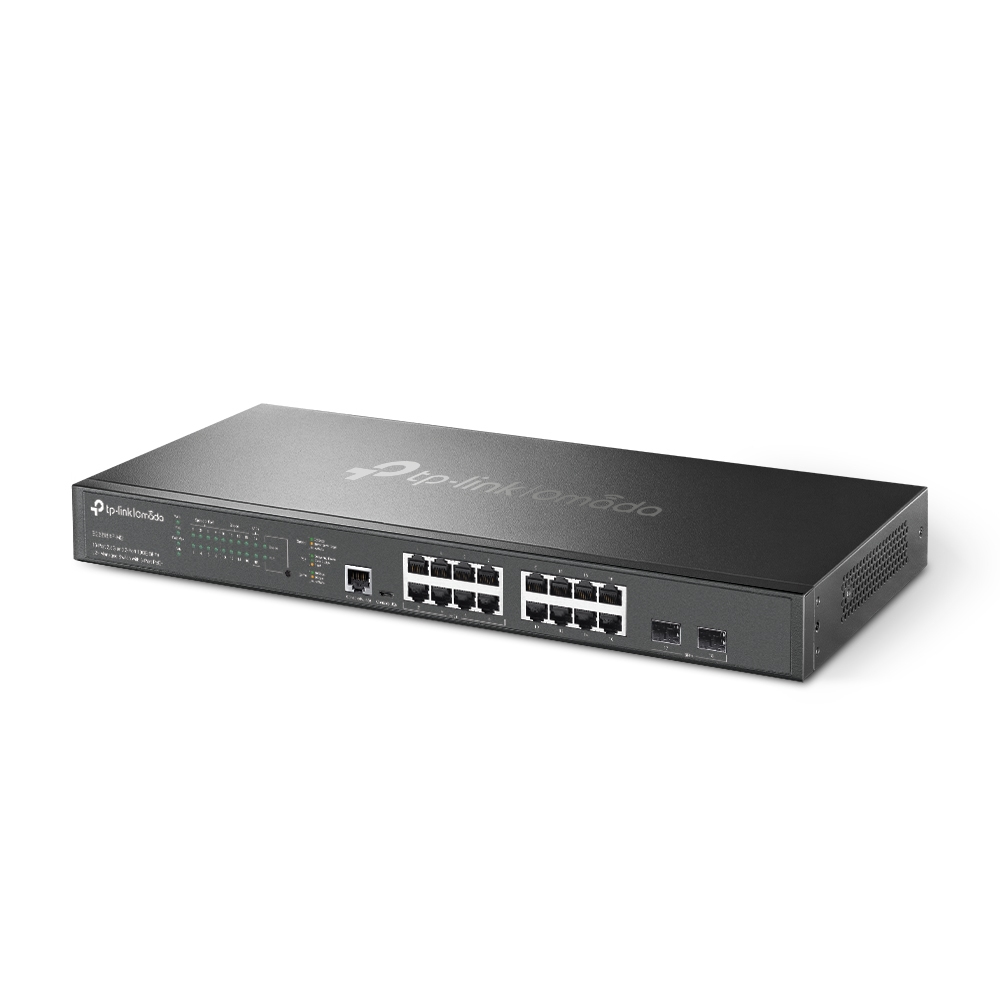

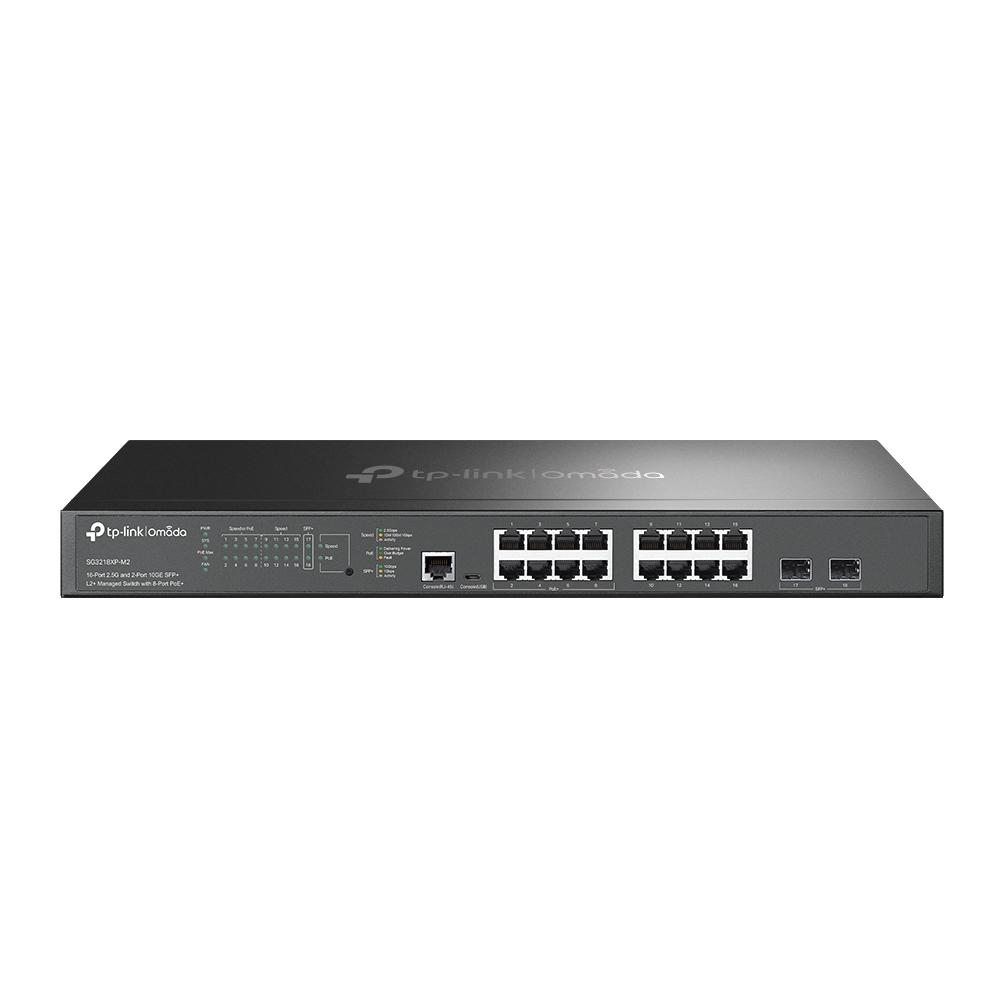

TP-Link Omada SG3218XP-M2 16-Port 2.5G PoE+ L2+ Managed Switch with 2x 10GE SFP+ Slots, 240W Budget
£401.71 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 16 2.5G PoE+ ports with 240W total power budget
- 2 10GE SFP+ slots for high-bandwidth uplinks
- L2+ managed switch with advanced QoS and security features
- Cloud-managed via Omada SDN for centralised control
- Supports IPv6 and various VLAN features
- Rack-mountable 1U form factor with 2 fans
- 120 Gbit/s switching capacity and 12 MB packet buffer memory
Payment Methods:
You may also like
TP-Link TL-SG1005P 5-Port PoE Switch
In stock
TP-Link Omada SG3218XP-M2 – High-Performance Network Backbone
We present the TP-Link Omada SG3218XP-M2 16-Port 2.5G PoE+ L2+ Managed Switch with 2x 10GE SFP+ Slots, 240W Budget. This managed switch offers significant bandwidth for modern network demands. It is ideal for organisations expanding their WiFi 6/6E/7 deployments or upgrading their core network infrastructure. This switch provides robust, high-speed connectivity.
Core Network Metrics
| Metric | Spec. |
|---|---|
| Basic RJ-45 Ethernet Ports | 16x 2.5G |
| SFP+ Slots | 2x 10GE |
| Total PoE Budget | 240 W |
| Switching Capacity | 120 Gbit/s |
| MAC Address Table Size | 16,000 entries |
| Packet Buffer Memory | 12 MB |
Powering Next-Gen Wireless with PoE+
This switch features eight PoE+ ports, delivering up to 30W per port. This ample power budget supports the latest WiFi 6, 6E, and WiFi 7 access points. You can easily deploy high-performance wireless infrastructure. A single Ethernet cable transmits both data and power.
Lightning-Fast 10 Gigabit Uplink
The TP-Link Omada SG3218XP-M2 16-Port 2.5G PoE+ L2+ Managed Switch with 2x 10GE SFP+ Slots, 240W Budget includes two 10 Gigabit SFP+ slots. These provide essential high-bandwidth uplinks. They ensure low latency and non-blocking performance for server connections or inter-switch links. This setup handles heavy data traffic efficiently.
Centralised Cloud Management
Omada SDN integration allows for unified management of your entire network. Access points, switches, and gateways are all controlled from a single interface. This cloud-based approach simplifies network configuration and scaling. It is perfect for diverse environments like education or retail.
Advanced L2+ and L3 Features
We appreciate the comprehensive suite of L2+ and L3 features. These include robust VLAN support, link aggregation, and static routing. Security features like IP-MAC-Port binding protect against network threats. Quality of Service (QoS) prioritises critical traffic.
What you receive
- TP-Link Omada SG3218XP-M2 Switch
- AC Power Cable
- Quick Start Guide
Worth checking first
- Confirm your existing network infrastructure supports 2.5G Ethernet.
- Ensure your rack space accommodates a 1U device.
- Verify your power requirements match the 240W PoE budget.
- Consider if your management strategy benefits from cloud-based SDN.
Frequently Asked Questions
Q: Can I manage this switch remotely?
A: Yes, it supports centralised cloud management via the Omada SDN platform.
Q: Does this switch support IPv6?
A: Yes, it offers extensive IPv6 support for future-proof networking.
Q: What is the total PoE budget?
A: The total Power over Ethernet budget is 240 Watts.
Q: Are all ports PoE+ capable?
A: No, eight of the sixteen 2.5G ports are PoE+ capable.
Q: What are the SFP+ slots for?
A: They provide 10 Gigabit high-speed uplink connections to other devices or servers.
Our verdict
This managed switch is an excellent choice for businesses needing a high-performance network. Its 2.5G PoE+ ports and 10G uplinks support demanding applications and next-generation wireless. The Omada SDN integration simplifies network management. Warranty cover varies by product, so please contact us to confirm.
| Management features | |
|---|---|
| ARP inspection | Yes |
| Switch type | Managed |
| Web-based management | Yes |
| System event log | Yes |
| Quality of Service (QoS) support | Yes |
| Multicast support | Yes |
| MIB support | MIB II (RFC1213), Interface MIB (RFC2233), Ethernet Interface MIB (RFC1643), Bridge MIB (RFC1493), P/Q-Bridge MIB (RFC2674), RMON MIB (RFC2819), RMON2 MIB (RFC2021), Radius Accounting Client MIB (RFC2620), Radius Authentication Client MIB (RFC2618), Remote Ping, Traceroute MIB (RFC2925), Support TP-Link private MIB |
| Switch layer | L2+ |
| Configuring Location Settings (CLI) | Yes |
| Cloud-managed | Yes |
| Ports & interfaces | |
| SFP+ module slots quantity | 2 |
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | 2.5G Ethernet (100/1000/2500) |
| Console port | RJ-45/Micro-USB |
| Power connector | AC-in jack |
| Network | |
| Networking standards | IEEE 802.1D, IEEE 802.1s, IEEE 802.1w |
| Head-of-line (HOL) blocking | Yes |
| VLAN support | Yes |
| Spanning tree protocol | Yes |
| Rate limiting | Yes |
| Port mirroring | Yes |
| Link aggregation | Yes |
| IP routing | Yes |
| Flow control support | Yes |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Broadcast storm control | Yes |
| 10G support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| IGMP snooping | Yes |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Data transmission | |
| Jumbo frames | 9000 |
| Number of static routes | 48 |
| Number of IP interfaces | 32 |
| Packet buffer memory | 12 MB |
| MAC address table | 16000 entries |
| Switching capacity | 120 Gbit/s |
| Jumbo frames support | Yes |
| Static route | Yes |
| Forwarding rate | 89.28 Mpps |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Security | |
| Loop protection | Yes |
| IP-MAC-Port binding | Yes |
| BPDU filtering/protection | Yes |
| Authentication | MAC-based authentication, Port-based authentication |
| Static port security | Yes |
| SSH/SSL support | Yes |
| Security algorithms | HTTPS, SSH, SSH-2, SSL/TLS |
| MAC address filtering | Yes |
| IGMP snooping | Yes |
| Access Control List (ACL) | Yes |
| Queue scheduling algorithms | SP, WRR+SP, Weighted Round Robin (WRR) |
| Password protection | Yes |
| Authentication type | AAA, TACACS+ |
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Multicast features | |
| Multicast support | Yes |
| Multicast Listener Discovery (MLD) snooping | Yes |
| Protocols | |
| Management protocols | SNMP v1/v2c/v3, SNTP |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Design | |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Yes |
| Rack mounting | Yes |
| Number of fans | 2 fan(s) |
| Certification | CE, FCC, RoHS |
| Power | |
| Power consumption (max) | 299.4 W |
| Power supply included | Yes |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power source | AC |
| Power connector | AC-in jack |
| Power over Ethernet (PoE) | |
| Power over Ethernet (PoE) power per port | 30 W |
| Power over Ethernet plus (PoE+) ports quantity | 8 |
| Total Power over Ethernet (PoE) budget | 240 W |
| Power over Ethernet (PoE) | Yes |
| Operational conditions | |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Heat dissipation | 1021.64 BTU/h |
| Virtual LAN features | |
| VLAN support | Yes |
| Virtual LAN features | MAC address-based VLAN, Port-based VLAN, Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Weight & dimensions | |
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
| Quick start guide | Yes |
| Cables included | AC |
| Packaging data | |
| Package type | Box |
| Quick start guide | Yes |
| Cables included | AC |
| Sustainability | |
| Sustainability compliance | Yes |
| Performance | |
| Packet buffer memory | 12 MB |
| Technical details | |
| Form factor | 1U |
| Product colour | Black |
| Rack mounting | Yes |
| Sustainability compliance | Yes |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Memory | |
| Packet buffer memory | 12 MB |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Compliance certificates | Federal Communications Commission (FCC), RoHS |
| Indication | |
| LED indicators | Yes |
| Mobile network | |
| GARP VLAN Registration Protocol (GVRP) | Yes |
| Other features | |
| Ethernet LAN data rates | 100,1000,2500 Mbit/s |
| Identifiers | |
| Distributor SKUs | 88590, 9763807, EF005233, 18101, 3860447, CLSG3218XP-M2 |
| Additional EANs | 4897098689752 |
