ASUS TUF GAMING A520M-PLUS WIFI mATX AMD A520 Socket AM4
£78.50 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD A520 chipset supporting AMD Ryzen 3000 and 5000 Series processors
- Four DIMM slots for up to 128 GB DDR4 memory with speeds up to 4800 MHz
- One M.2 slot and four SATA III connectors for HDD and SSD storage
- Micro ATX form factor with PCIe 3.0 x16 and dual PCIe x1 slots
- Integrated Wi-Fi 5 and Bluetooth 5.0 with Gigabit Ethernet LAN
- Comprehensive cooling with VRM heatsink and two chassis fan connectors
Payment Methods:
You may also like
ASUS TUF GAMING A520M-PLUS WIFI | AMD A520 Micro-ATX Board

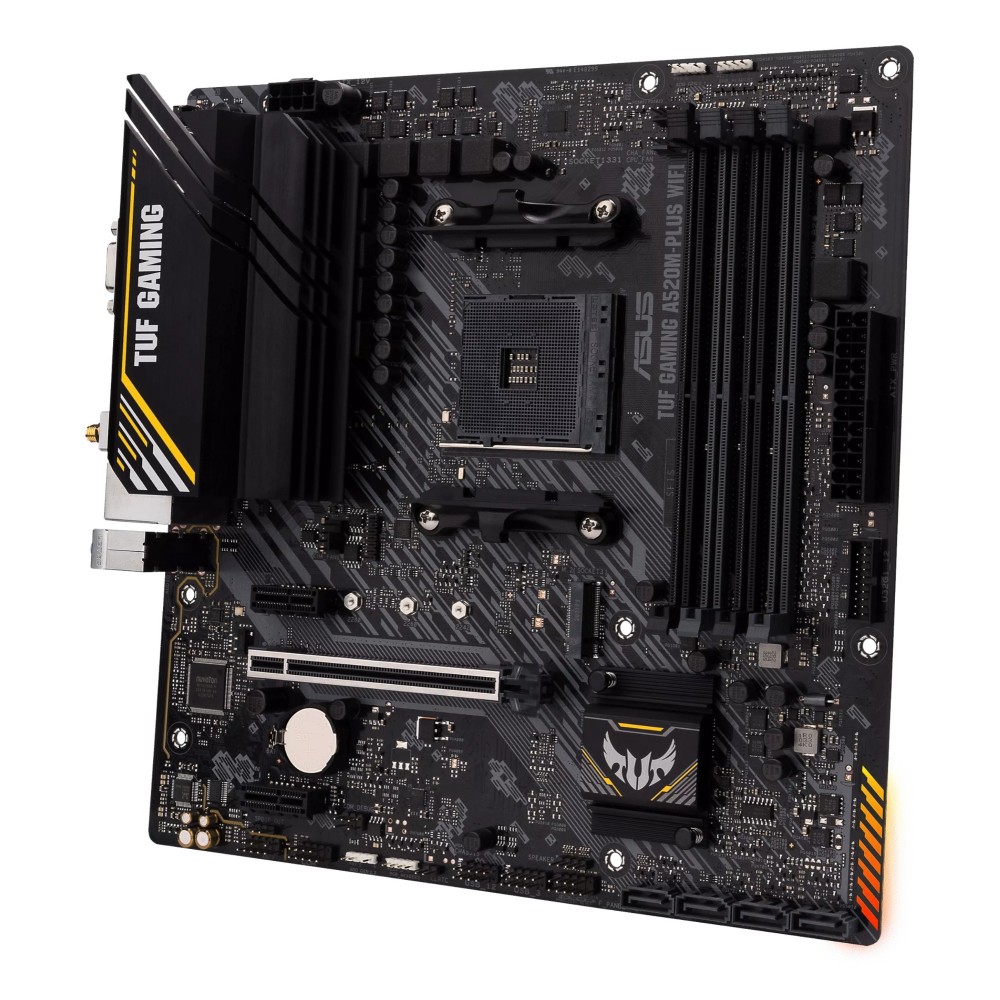

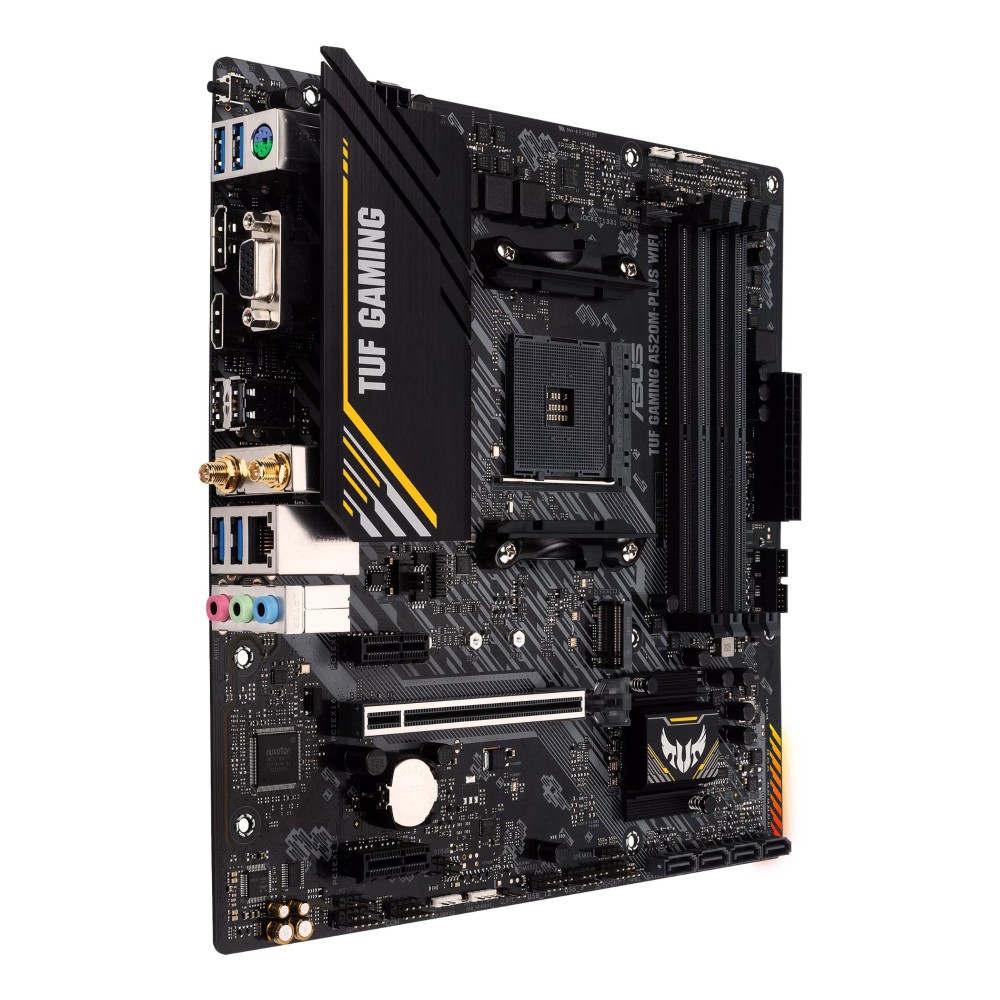

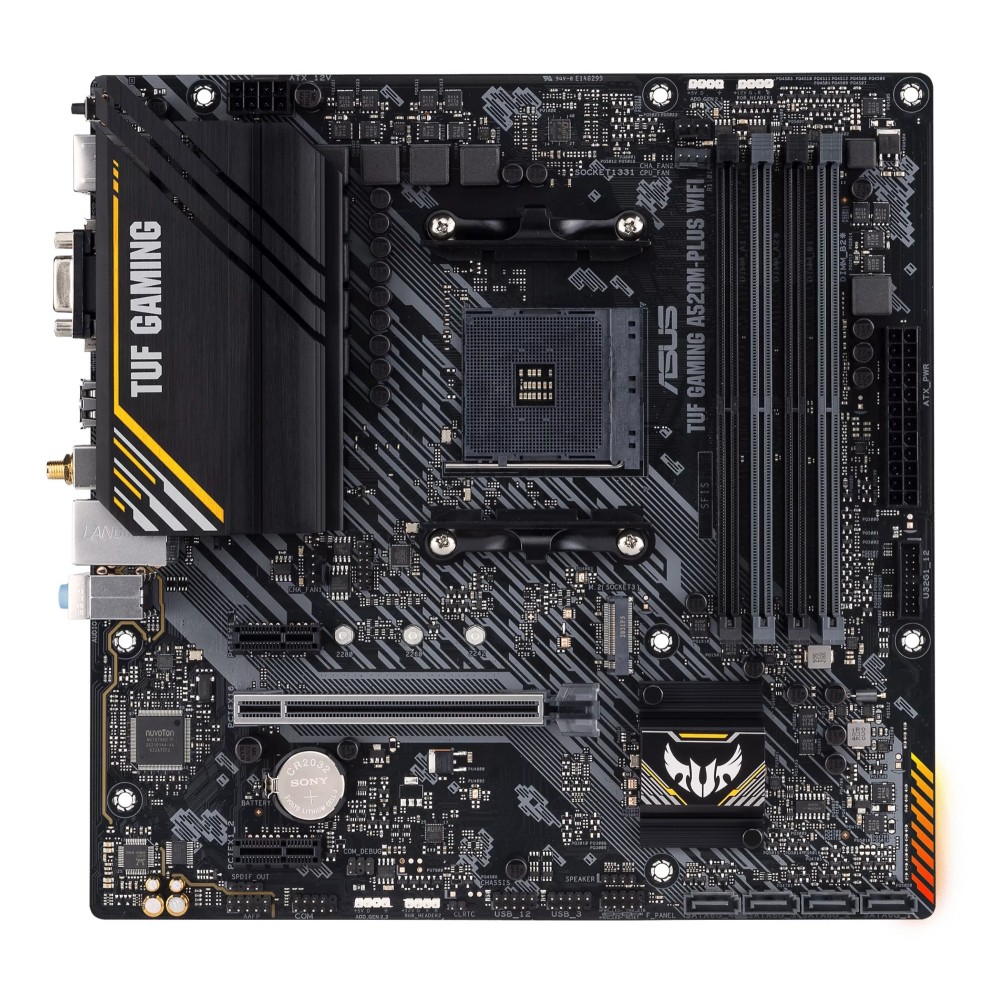

The ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX motherboard is engineered for UK builders seeking durability and stability. It combines essential AMD platform features with game-ready reliability for Ryzen 3000 and 5000 Series processors. This board suits gamers creating a compact yet powerful micro-ATX rig.
ASUS TUF GAMING A520M-PLUS WIFI AMD A520 Socket AM4 micro ATX
This foundation delivers rock-solid performance using military-grade components. It supports up to 128GB of DDR4 memory across four DIMM slots. You also get comprehensive cooling controls and a robust power delivery system.
Product Specifications
| Metric | Spec. |
|---|---|
| Socket | AMD Socket AM4 |
| Chipset | AMD A520 |
| Memory | 4 x DDR4 (Max 128GB) |
| Form Factor | Micro-ATX |
| Video Output | HDMI 2.1, DisplayPort 1.2 |
| Wi-Fi | 802.11ac (Wi-Fi 5) |
Military-grade power and cooling
Engineered components ensure system longevity under load. The board uses TUF chokes and capacitors rated for higher temperature tolerance. A large VRM heatsink dissipates heat effectively. So, your CPU receives clean, stable power during intensive gaming sessions.
High-speed connectivity and storage
This board supports one M.2 slot running at PCIe 3.0 x4 speeds. This enables data transfer rates up to 32Gbps for rapid boot times. It also includes four SATA III ports for traditional drives. However, you cannot run the M.2 and SATA5 port simultaneously, so plan your storage array accordingly.
Comprehensive fan controls
TUF Gaming A520M-Plus WIFI features full fan control via UEFI BIOS or Fan Xpert 2+. You can configure curves for the two chassis fan connectors. This optimises airflow for your specific cooling setup. In practice, this maintains low temperatures without excessive noise.
DIY-friendly build features
ASUS SafeSlot Core+ reinforces the PCIe x16 slot with a stainless-steel brace. This protects heavyweight graphics cards from damage during installation. The board also includes a stainless-steel back I/O panel for corrosion resistance. Additionally, BIOS FlashBack allows updates without a CPU or memory installed.
Immersive audio and networking
The integrated audio chip delivers 7.1-channel surround sound. It uses Realtek ALC887/897 codecs for clear in-game cues. For connectivity, you get Gigabit Ethernet and 802.11ac Wi-Fi. Bluetooth 5.0 support allows easy pairing of peripherals.

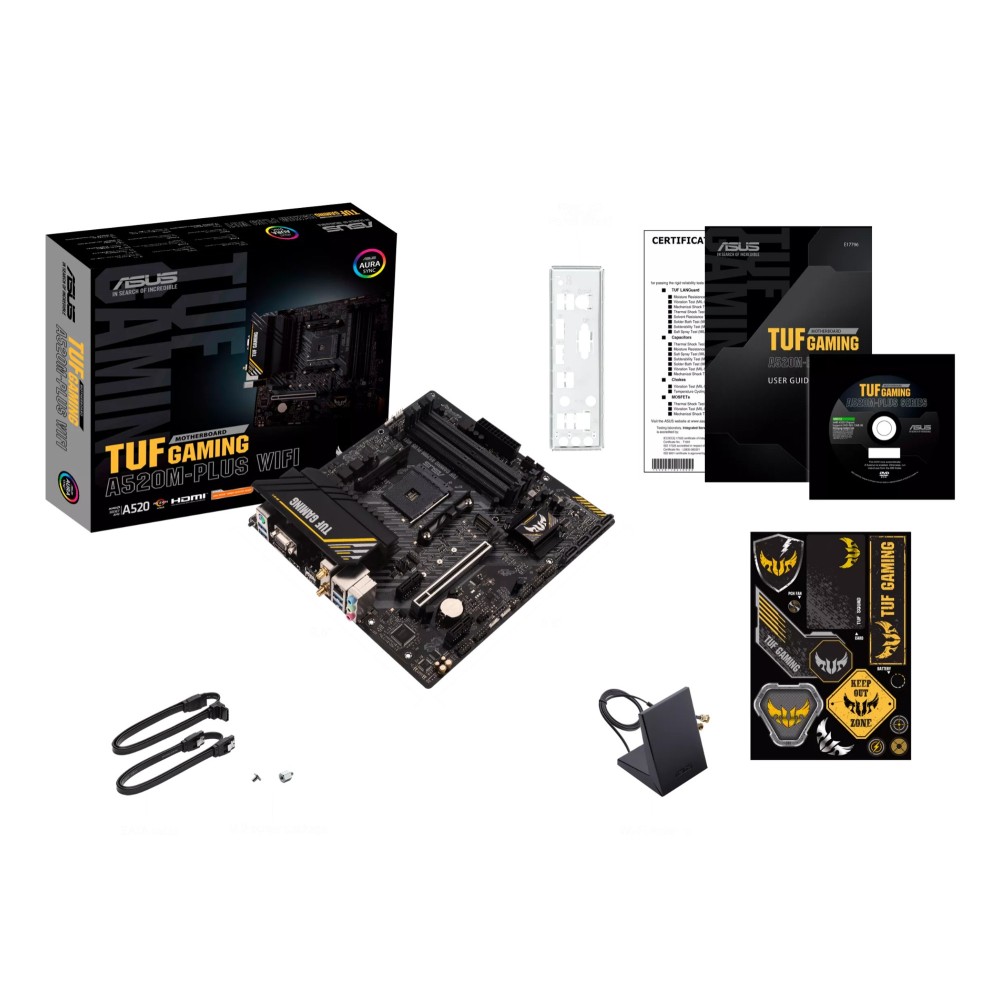

Box contents
- ASUS TUF GAMING A520M-PLUS WIFI Motherboard
- 2 x SATA 6Gb/s cables
- 1 x I/O Shield
- 2 x SATA 6Gb/s cables
- 1 x M.2 Screw Package
- 1 x TUF Gaming sticker
- 1 x Wi-Fi antenna
- 1 x Support DVD
- 1 x User manual
Key points to check
- Confirm your case supports Micro-ATX form factor (244mm x 244mm).
- Verify your AMD Ryzen CPU is from the 3000 or 5000 Series.
- Confirm your memory kit is DDR4 and matches supported speeds.
- Ensure your power supply has a 24-pin ATX and 8-pin EPS connector.
Common questions
Does this motherboard support overclocking?
Is the Wi-Fi module upgradeable?
How many fans can I connect?
Does it support PCIe 4.0?
Is there a front USB-C header?
The bottom line
This board is ideal for UK gamers building a budget-friendly Micro-ATX system with reliable Wi-Fi. It suits those prioritising stability and durability over extreme overclocking. The military-grade components and reinforced slots offer long-term value. Covered by the applicable manufacturer warranty.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Parallel processing technology support | Not supported |
| HDMI version | 2.1 |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 3000 Series, AMD Ryzen 5000 Series |
| Supported processor sockets | Socket AM4 |
| Processor socket | Socket AM4 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,3000,3200,3333,3466,3600,3733,3866,4000,4133,4266,4400,4466,4600,4800 MHz |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | ECC |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 3.0, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 5 |
| Graphics | |
| Parallel processing technology support | Not supported |
| Maximum resolution | 3840 x 2160 pixels |

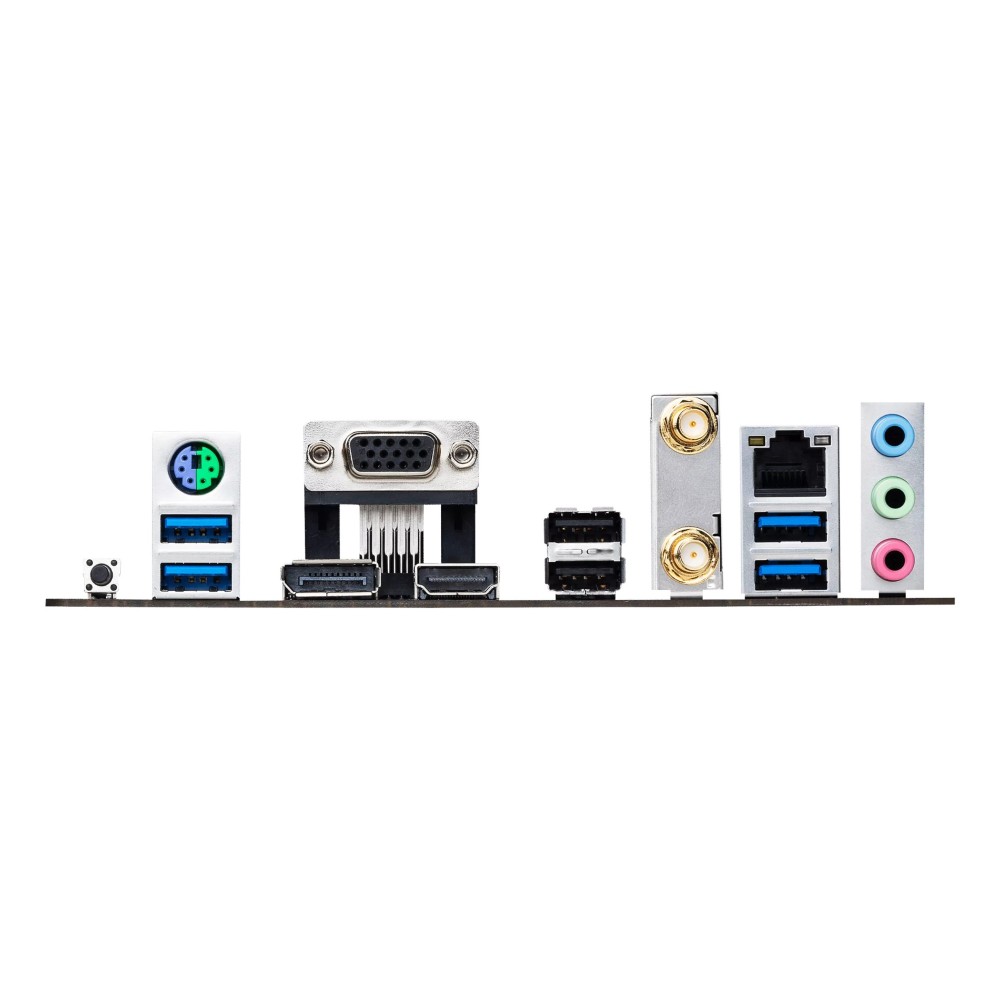

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| VGA (D-Sub) ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 3 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Wake-on-LAN ready | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| WLAN controller model | Realtek RTL8821CE |
| Features | |
| Windows operating systems supported | Windows 10 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD A520 |
| Supported processor sockets | Socket AM4 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Audio chip | Realtek ALC887 / Realtek ALC897 |
| Harmonized System (HS) code | 84733020 |
| Expansion slots | |
| Number of M.2 (M) slots | 1 |
| PCI Express x1 (Gen 3.x) slots | 2 |
| PCI Express x16 (Gen 3.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| Video | |
| Maximum resolution | 3840 x 2160 pixels |
| Software | |
| Windows operating systems supported | Windows 10 x64 |
| Drivers included | Yes |
| Logistics data | |
| Harmonized System (HS) code | 84733020 |
| Weight & dimensions | |
| Height | 67 mm |
| Weight | 900 g |
| Width | 244 mm |
| Depth | 244 mm |
| Packaging content | |
| Drivers included | Yes |
| Cables included | SATA |
| Other features | |
| Height | 67 mm |
| Weight | 900 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB17F0-M0EAY0, 6612927, 120867, TUF GAMING A520M-PLUS WIFI, 10393495, 346816, STD10228919, CL90MB17F0-M0EAY0, 10236886000 |
