ASUS TUF GAMING B760M-PLUS WIFI II
£170.30 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B760 micro ATX motherboard with DDR5 memory support
- Supports Intel Core i3/i5/i7/i9/Celeron/Pentium processors (LGA 1700)
- Triple M.2 slots with PCIe 4.0/5.0 support for high-speed storage
- Integrated Wi-Fi 6E and 2.5Gb Ethernet for fast networking
- 7.1 channel audio with AI noise cancellation for immersive gaming
Payment Methods:
You may also like

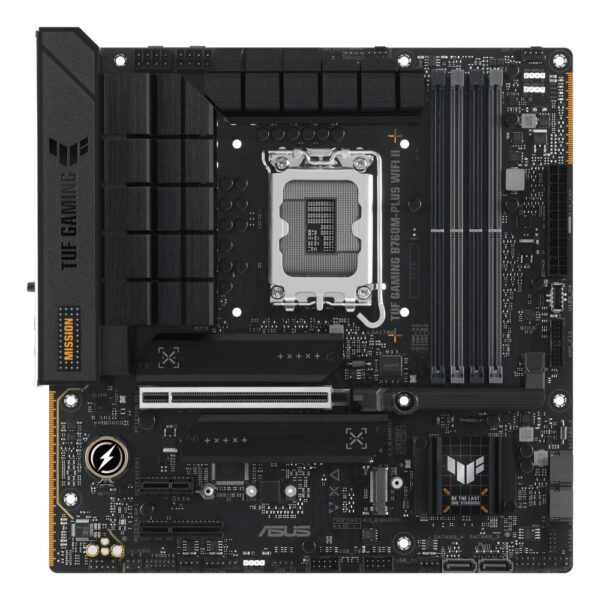

ASUS TUF GAMING B760M-PLUS WIFI II | Intel B760 Micro ATX Motherboard
The ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX motherboard delivers rock-solid performance for Intel’s latest processors, combining military-grade durability with game-ready features for marathon gaming sessions.
Key Specifications
| Metric | Spec |
|---|---|
| Form Factor | micro ATX |
| Socket | LGA 1700 |
| Memory Support | DDR5 (up to 7800 MHz) |
| PCIe Slots | 1x PCIe 5.0 x16, 1x PCIe 3.0 x1 |
| Storage | 3x M.2 (PCIe 4.0), 4x SATA III |
| Network | 2.5Gb Ethernet, Wi-Fi 6E, Bluetooth 5.3 |
Military-Grade Durability
Built with certified TUF components, this motherboard features 12+1+1 power stages rated for 50A each, TUF chokes, and 5K black metallic capacitors. These military-grade parts deliver rock-solid power delivery and 2.5x longer lifespan than standard components, ensuring stability even under extreme gaming loads.
Enhanced DDR5 Performance
ASUS Enhanced Memory Profile II (AEMP II) unlocks DDR5 potential by automatically training memory modules for optimal performance. Whether you’re using entry-level or high-speed kits, AEMP II maintains system stability while delivering clock speeds up to 7800 MHz across dual channels.
Comprehensive Cooling Solution
The six-layer PCB design rapidly dissipates heat around voltage regulators, while an enlarged VRM heatsink covers critical components. Two M.2 slots feature dedicated heatsinks to maintain optimal SSD temperatures, ensuring consistent performance during intensive workloads.
Advanced Connectivity
Three PCIe 4.0 M.2 slots support up to three 2280 devices with data-transfer speeds up to 64 Gbps. The motherboard includes two Thunderbolt headers, USB 3.2 Gen 2 Type-C ports, and Intel 2.5Gb Ethernet for ultra-fast networking. Wi-Fi 6E and Bluetooth 5.3 provide wireless flexibility.
In the Box
- ASUS TUF GAMING B760M-PLUS WIFI II motherboard
- SATA cables (quantity not specified)
- User guide
- Warranty documentation
Things to check first
- Confirm your Intel processor is compatible with LGA 1700 socket
- Verify your case supports micro ATX form factor (244mm x 244mm)
- Check that your power supply has the required 8+8 pin connectors
- Ensure your DDR5 memory modules are supported at desired speeds
Frequently Asked Questions
What processors work with this motherboard?
How many M.2 drives can I install?
Does this support PCIe 5.0 graphics cards?
What’s the maximum RAM capacity?
Is Wi-Fi included?
Our take
The ASUS TUF GAMING B760M-PLUS WIFI II Intel B760 LGA 1700 micro ATX motherboard is ideal for gamers and PC builders seeking military-grade durability with modern connectivity. Its combination of enhanced DDR5 support, comprehensive cooling, and rock-solid power delivery makes it a reliable foundation for Intel gaming systems. Covered by the applicable manufacturer warranty.
| Thunderbolt headers | 1 |
|---|---|
| USB 3.2 Gen 2 3.1 Gen 2 connectors | 1 |
| 12V power connector | Yes |
| USB 2.0 connectors | 3 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 3 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4800,5000,5200,5400,5600,5800,6000,6200,6400,6600,6800,7000,7800 MHz |
| Maximum internal memory | 192 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 7800 MHz |
| ECC сompatibility | Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 1 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-C ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Line-in | Yes |
| Wi-Fi standards | Wi-Fi 6E (802.11ax) |
| Bluetooth version | 5.3 |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Product colour | Black |
| Number of M.2 M slots | 3 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 1 |
| PCI Express x4 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Width | 244 mm |
| Depth | 244 mm |
| Cables included | SATA |
| User guide | Yes |
| Package width | 275 mm |
| Package depth | 275 mm |
| Package height | 67.5 mm |
| Package weight | 1.65 kg |
| Weight | 982 g |
| Distributor SKUs | MBD-90MB1HE0-M0EAY0, 9824522, W128853358, TUF GAMING B760M-PLUS WIFI II, 509715, STD10217334, CL90MB1HE0-M0EAY0 |
