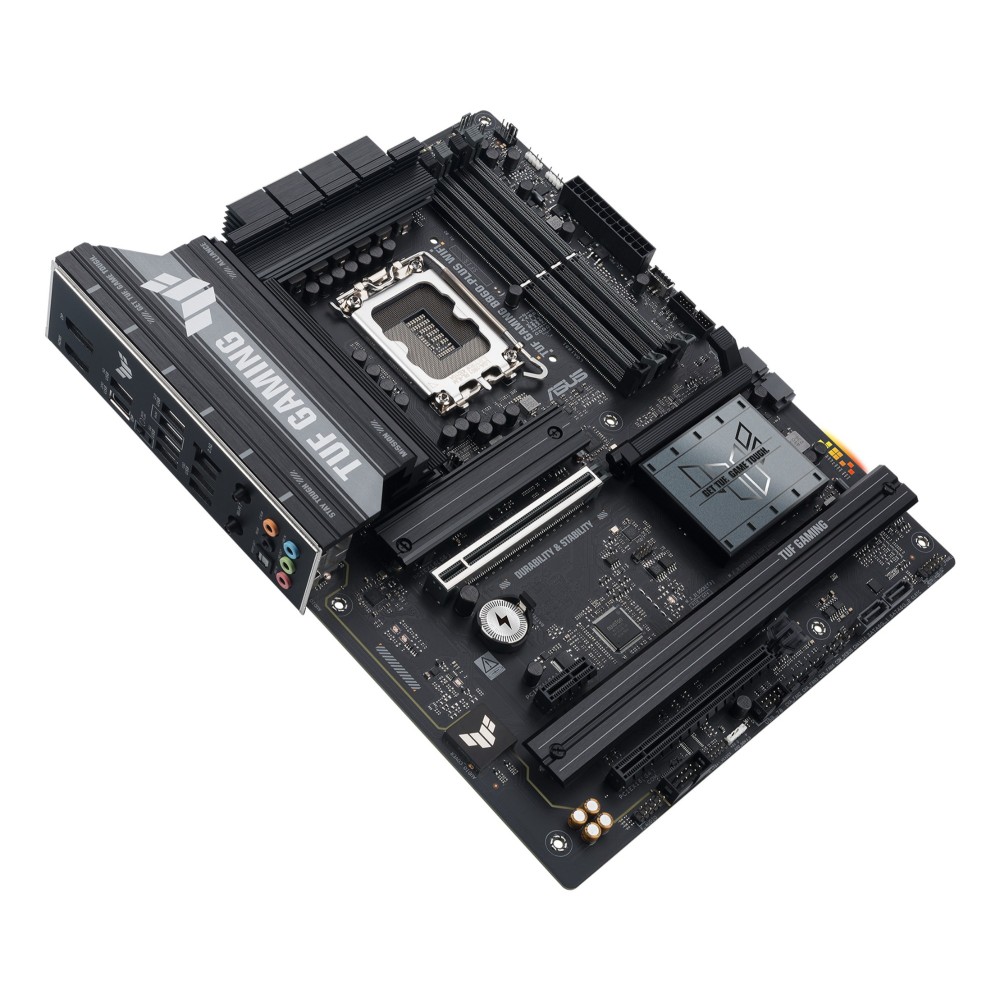

ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 ATX
£212.07 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel B860 chipset for LGA 1851 processors (Intel Core Ultra Series 2 compatible)
- ATX form factor motherboard with Wi-Fi 7 and Bluetooth 5.4
- Supports DDR5-SDRAM up to 256 GB across four DIMM slots
- Triple M.2 slots (one PCIe Gen 5.0, two PCIe Gen 4.0) and four SATA III connectors
- Comprehensive connectivity with 7.1 channel audio, 2.5 Gigabit Ethernet, HDMI, DisplayPort, and various USB ports
- Designed for durability and stable performance with military-grade components
- RAID support for levels 0, 1, 5, 10 for flexible storage configurations
Payment Methods:
You may also like
ASUS TUF GAMING B860-PLUS WIFI – Robust Computing Platform
We present the ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX motherboard, perfectly suited for builders seeking a dependable foundation for their next-generation PC. This ATX motherboard integrates the latest Intel B860 chipset. It offers a stable and feature-rich platform for gaming and demanding applications. We designed it for the new Intel Core Ultra (Series 2) processors.
Core System Overview
| Metric | Spec. |
|---|---|
| Processor Socket | LGA 1851 |
| Motherboard Form Factor | ATX |
| Memory Slots | 4 DIMM |
| Memory Type | DDR5-SDRAM |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Ethernet | 2.5 Gigabit |
Next-Gen Processing Power
This motherboard supports Intel Core Ultra (Series 2) processors. It uses the LGA 1851 socket. This pairing delivers the performance needed for modern computing. It is ideal for advanced AI PC applications. You get robust power delivery for intense tasks.
High-Speed Storage Solutions
We have included three M.2 M slots. These support fast NVMe SSDs. One slot offers PCIe 5.0 speeds. The other two provide PCIe 4.0. You can also connect up to four SATA III drives. This gives flexible storage options. RAID levels 0, 1, 5, and 10 are supported for data protection.
Advanced Connectivity Options
Experience ultra-fast networking with Wi-Fi 7 (802.11be) and 2.5 Gigabit Ethernet. Bluetooth 5.4 is also integrated. This ensures seamless peripheral connections. Multiple USB ports are available for your devices. These include USB 3.2 Gen 2×2 Type-C.
Immersive Audio Experience
The motherboard features 7.1 channel audio output. This provides rich, clear sound. It enhances your gaming and multimedia experiences. An S/PDIF out connector is also present. This allows for high-quality digital audio.
Comprehensive Cooling Support
We have included four chassis fan connectors. A dedicated CPU fan connector is also present. This ensures efficient cooling for your components. Maintaining optimal temperatures is crucial. This helps with system stability and longevity.

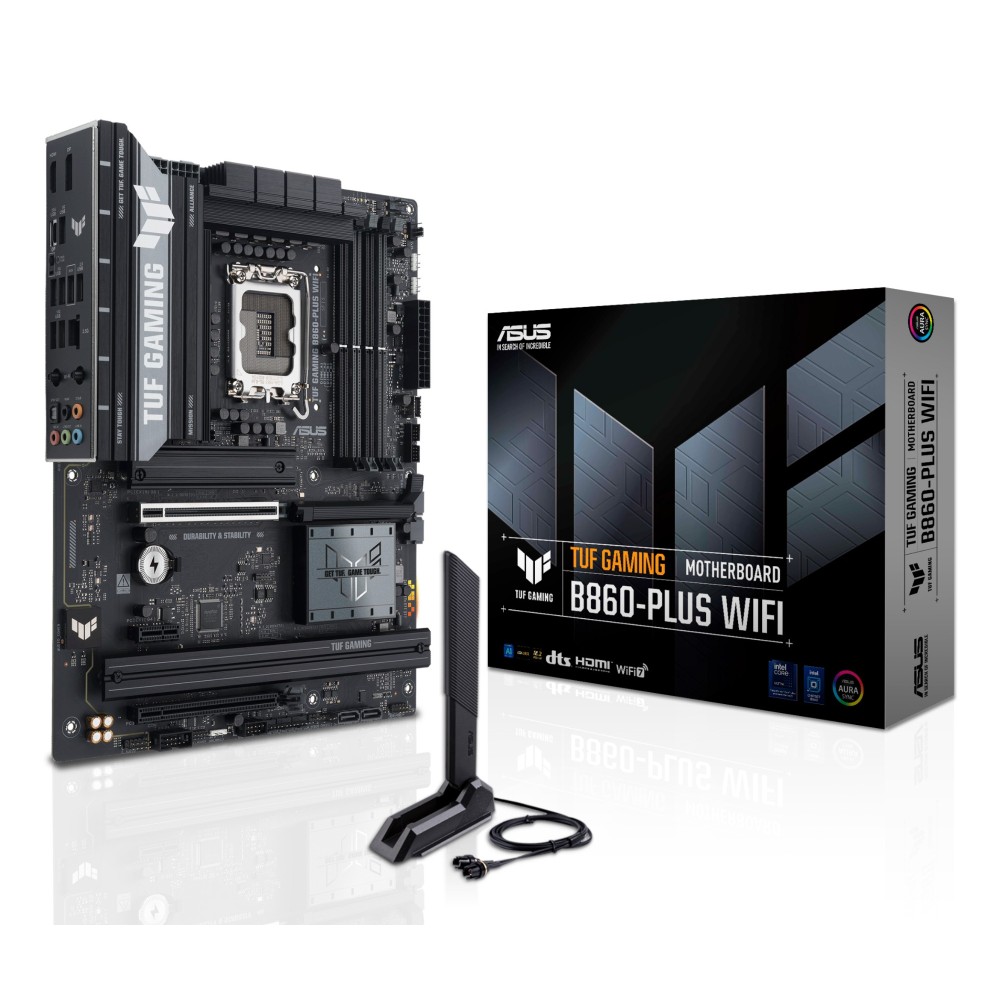

In the Box
- SATA cables
- Screws for M.2 drives
- Wi-Fi antenna
Before You Order
- Confirm your chosen CPU uses the LGA 1851 socket.
- Confirm your RAM is DDR5-SDRAM.
- Confirm your PC case supports the ATX motherboard form factor.
- Confirm your power supply has a 24-pin ATX power connector.
Frequently Asked Questions
Q: What operating systems does this motherboard support?
A: This motherboard fully supports Windows 11.
Q: Does this motherboard support ECC memory?
A: No, it supports non-ECC unbuffered memory.
Q: Can I connect multiple graphics cards?
A: Parallel processing technology is not supported with this model.
Q: What is the highest Wi-Fi standard supported?
A: It supports the latest Wi-Fi 7 (802.11be) standard.
Q: How many chassis fans can I connect directly?
A: You can connect up to four chassis fans.
Our Recommendation
The ASUS TUF GAMING B860-PLUS WIFI Intel B860 LGA 1851 (Socket V1) ATX is an excellent choice. It suits users building a new system for gaming or productivity. It provides a stable and modern platform. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Thunderbolt headers | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Supported processor sockets | LGA 1851 |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

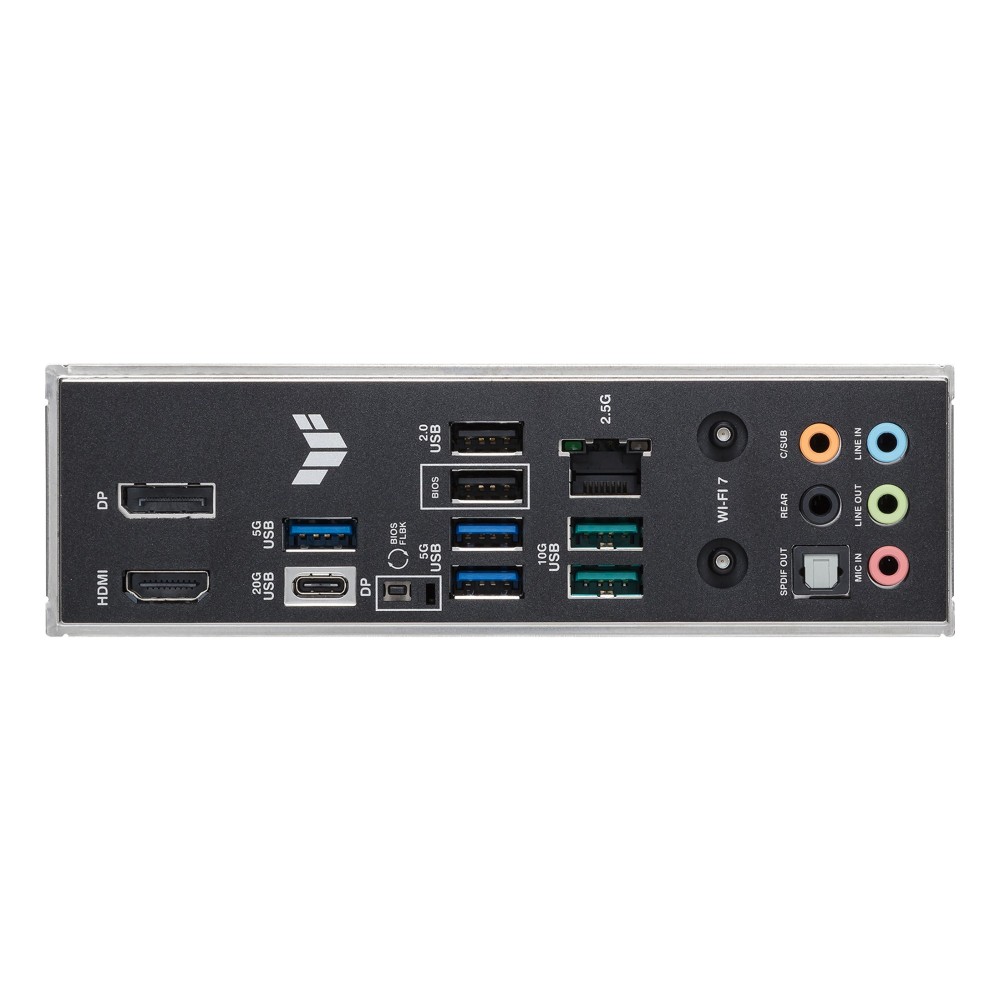

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 2 |
| WiFi-AP antenna jack | 1 |
| S/PDIF out port | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Supported processor sockets | LGA 1851 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x1 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 2280 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 2280 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Packaging data | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.1 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.1 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Package width | 353 mm |
| Package depth | 273 mm |
| Package height | 68 mm |
| Package weight | 2.1 kg |
| PCI Express x1 (Gen 4.x) slots | 1 |
| Identifiers | |
| Distributor SKUs | MBD-90MB1JL0-M0EAY0, 11508279, 126202, TUF GAMING B860-PLUS WIFI, 90MB1JL0M0EAY0, 10452367, 543481, STD10219419, CL90MB1JL0-M0EAY0 |
| Additional EANs | 0197105815148 |
