StarTech.com Portable USB Crash Cart Adapter for Servers, VGA/Mini DisplayPort KVM Console, Black
£561.23 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Portable USB KVM console for servers and PCs
- Supports VGA and Mini DisplayPort video input
- Maximum resolution of 1920 x 1200 pixels
- Powered via server-side USB connection, no external power needed
- File transfer, video capture, and screenshot capabilities
- Compact, pocket-sized design for easy portability
- Wide operating system compatibility including Windows, macOS, and Linux
Payment Methods:
You may also like
Acer Vero B278UG 27″ QHD 120Hz IPS Monitor with 5MP Webcam & KVM Switch, Black
In stock
StarTech.com SV211DPUA4K 2 Port DisplayPort KVM Switch, 4K 60Hz, USB, Audio, Black
In stock
StarTech.com 2-Port DisplayPort 1.2 KVM Switch, 4K 60Hz, USB 3.0 Hub, Black
In stock
StarTech.com 8 Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com RKCONS1908K 8 Port Rackmount KVM Console with 19″ 1280×1024 LCD Monitor – Black
In stock
Belkin F1DN104KVM-UN-4 KVM Switch 4-Port, 4K Ultra HD, HDMI/DisplayPort, Black
In stock
StarTech.com Crash Cart Adapter – Your Portable Server Console
The StarTech.com Portable USB Crash Cart Adapter for Servers, VGA/Mini DisplayPort KVM Console, Black transforms your laptop into a portable console for managing headless systems. This essential tool is perfect for IT professionals and technicians needing instant, BIOS-level control over rack servers, PCs, ATMs, and kiosks. We designed it for efficient troubleshooting and system maintenance on the go.
Key Technical Details
| Metric | Spec. |
|---|---|
| Maximum Resolution | 1920 x 1200 pixels |
| Console USB Ports | 1 (Mini-USB B) |
| Video Port Type | VGA, Mini DisplayPort (1.2) |
| Controlled Computers | 1 |
| Power Source | USB |
Rapid System Access

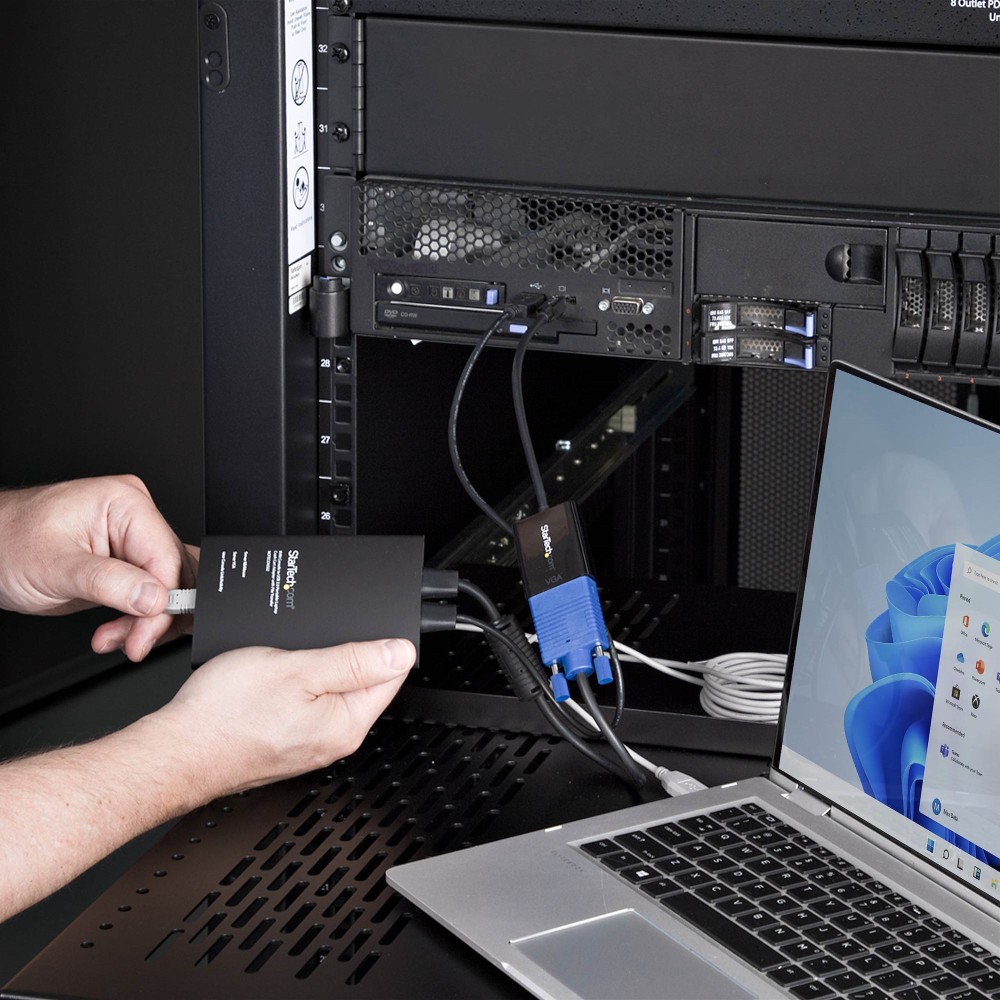

Gain immediate control over your systems. Simply connect this adapter to your laptop via USB. Then, link the integrated USB and VGA cables to your server. We also include a Mini DisplayPort adapter for compatible computers. There is no server-side software needed, ensuring quick deployment.
Streamlined Troubleshooting
Our flexible software interface enhances your diagnostic capabilities. Transfer files directly from your laptop to the server. Capture video or screenshots for records and instructional needs. You can scale the display window to full screen or smaller, without scroll bars. This helps you troubleshoot problems more efficiently.
Power-Efficient Operation
This KVM adapter draws power from the server-side USB connection. This eliminates the need for an external AC outlet. You can connect to any PC with a VGA or mDP output and a USB port. It works even when no power outlet is available.
Built for Portability
This pocket-sized adapter has a compact design. It fits easily into your laptop bag. No additional accessories are required for connection. This removes the need to carry bulky, traditional crash carts for system service.

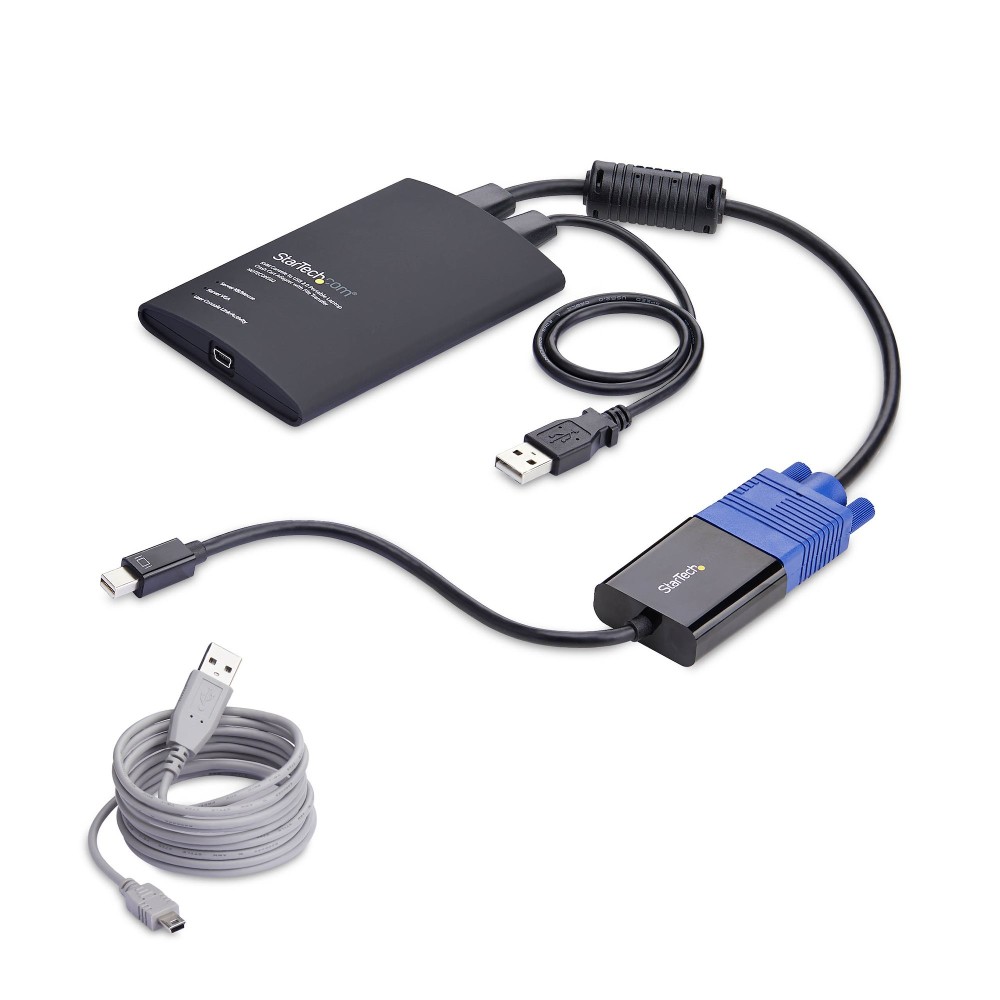

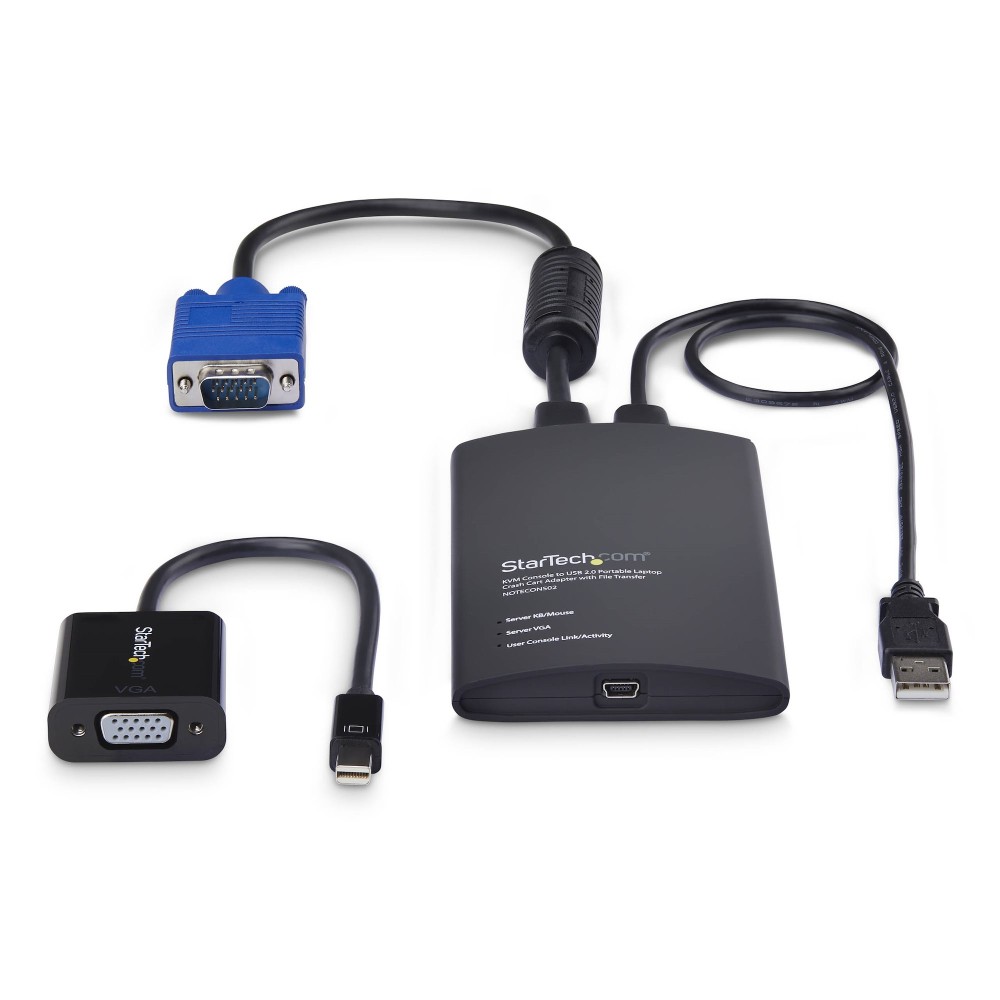

What’s Included
- Mini-USB cable
- Mini DisplayPort to VGA adapter
- Quick installation guide
Before You Purchase
- Confirm your server or PC has a VGA or Mini DisplayPort video output.
- Confirm your server or PC has an available USB port for power and control.
- Confirm your operating system is supported (Windows, Linux, or Mac).
Frequently Asked Questions
Q: Does this adapter require external power?
A: No, it is self-powered via the server-side USB connection.
Q: Can I use this with Mini DisplayPort?
A: Yes, a Mini DisplayPort to VGA adapter is included for mDP-enabled systems.
Q: Is server-side software installation necessary?
A: No, this adapter requires no software installation on the server.
Q: What is the maximum display resolution supported?
A: It supports a maximum resolution of 1920 x 1200 pixels.
Q: Can I transfer files with this adapter?
A: Yes, the software interface allows for file transfers from your laptop to the server.
The Bottom Line
This StarTech.com Portable USB Crash Cart Adapter for Servers, VGA/Mini DisplayPort KVM Console, Black is ideal for mobile IT professionals. It provides a convenient and powerful solution for managing and troubleshooting headless server systems. It combines portability with essential diagnostic features. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 1 |
| USB connector type | Mini-USB B |
| DisplayPort version | 1.2 |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Audio connections | No |
| Performance | |
| Daisy chain | No |
| Maximum resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Number of displays supported | 1 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | No |
| IP control | No |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Design | |
| Product colour | Black |
| Rack mounting | No |
| LED indicators | Yes |
| Hot keys | No |
| Housing material | Plastic |
| Display | |
| Built-in display | No |
| Power | |
| Power source | USB |
| System requirements | |
| Server operating systems supported | Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows Vista x64, Windows XP, Windows XP Home, Windows XP Home x64, Windows XP Professional, Windows XP Professional x64 |
| Linux operating systems supported | Yes |
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura, Mac OS X 14.0 Sonoma, Mac OS X 15.0 Sequoia |
| Video | |
| Maximum resolution | 1920 x 1200 pixels |
| Sustainability | |
| Compliance certificates | Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Packaging data | |
| Package width | 165 mm |
| Package depth | 301 mm |
| Package height | 55 mm |
| Package weight | 358 g |
| Packaging content | |
| Cables included | Mini-USB |
| Quick installation guide | Yes |
| Adapters included | Mini DisplayPort - VGA |
| Weight & dimensions | |
| Package width | 165 mm |
| Package depth | 301 mm |
| Package height | 55 mm |
| Package weight | 358 g |
| Other features | |
| IP control | No |
| Hot keys | No |
| Logistics data | |
| Master (outer) case width | 532 mm |
| Master (outer) case length | 321 mm |
| Master (outer) case height | 530 mm |
| Products per master (outer) case | 30 pc(s) |
| Identifiers | |
| Distributor SKUs | V427639, CP13170, 11845541, CONS02VGAMDP, 593295 |
