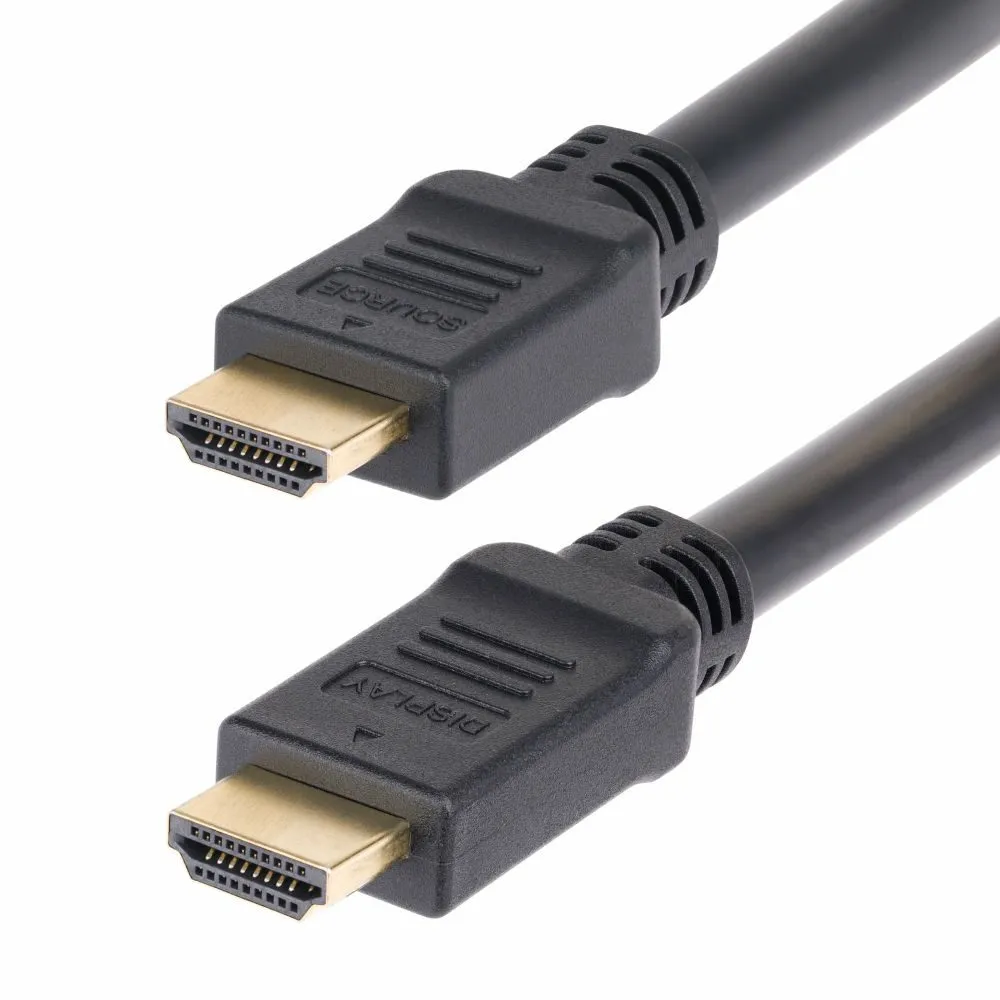

StarTech.com 10m Active HDMI 2.0 Cable, CMP Plenum Rated, 4K 60Hz, HDR10/HDCP 2.2/ARC

StarTech.com 10m Active HDMI 2.0 Cable | CMP Plenum Rated Professional Grade

The StarTech.com 10m (32.8ft) Active HDMI 2.0 Cable, CMP, Plenum Rated, High Speed HDMI Cable, 4K 60Hz, HDR10/HDCP 2.2/ARC, CMP In Wall HDMI Cord is designed for professional AV installations. It reliably connects high-bandwidth devices through office plenum spaces. This active cable transmits 4K 60Hz video and high-quality audio over long distances. It is ideal for in-wall routing in commercial buildings.

Key Technical Metrics

Long-Distance 4K Signal Integrity

This active HDMI 2.0 cord uses an integrated chipset to boost the signal. It does not require external power. The 24/28AWG bare copper wire and gold-plated connectors ensure low resistance. This design maintains optimal conductivity. Consequently, you get reliable 4K transmission beyond standard passive cable lengths.

Plenum-Rated for UK Building Compliance

The cable features a CMP-rated jacket with low-smoke characteristics. It is suitable for installation in plenum spaces, such as dropped ceilings and wall cavities. The jacket withstands over 1,000 bending cycles. This durability protects the cable during routing through tight, multi-bend spaces. It meets specific safety standards for commercial cabling infrastructure.

Full HDMI 2.0 Feature Set

This cable supports the complete HDMI 2.0 specification. It handles 18Gbps bandwidth for 4K 60Hz video. It also supports HDR10 for vibrant picture quality and 10-bit colour depth. Audio Return Channel (ARC) is included for 7.1 and 32-channel audio. Furthermore, HDCP 2.2 ensures secure content playback. Variable Refresh Rate (VRR) synchronises the display to reduce screen tearing.

Unidirectional Installation

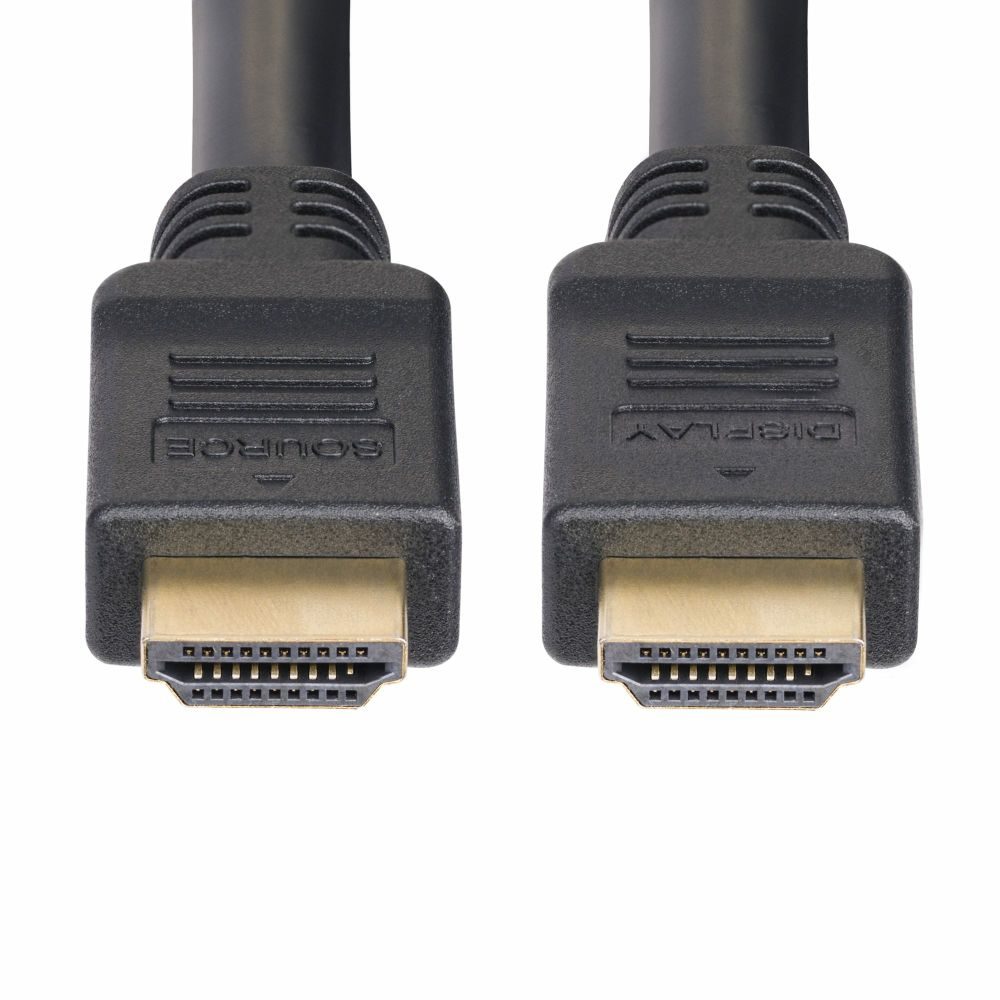

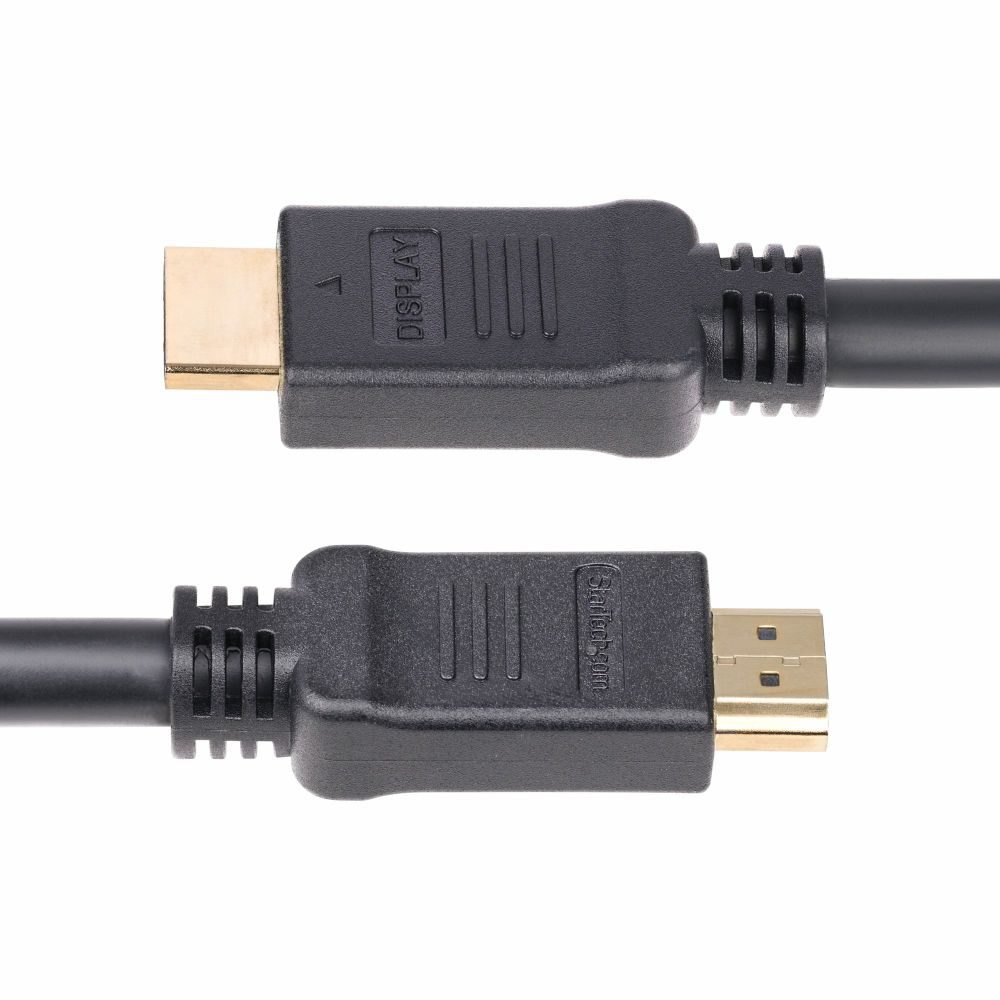

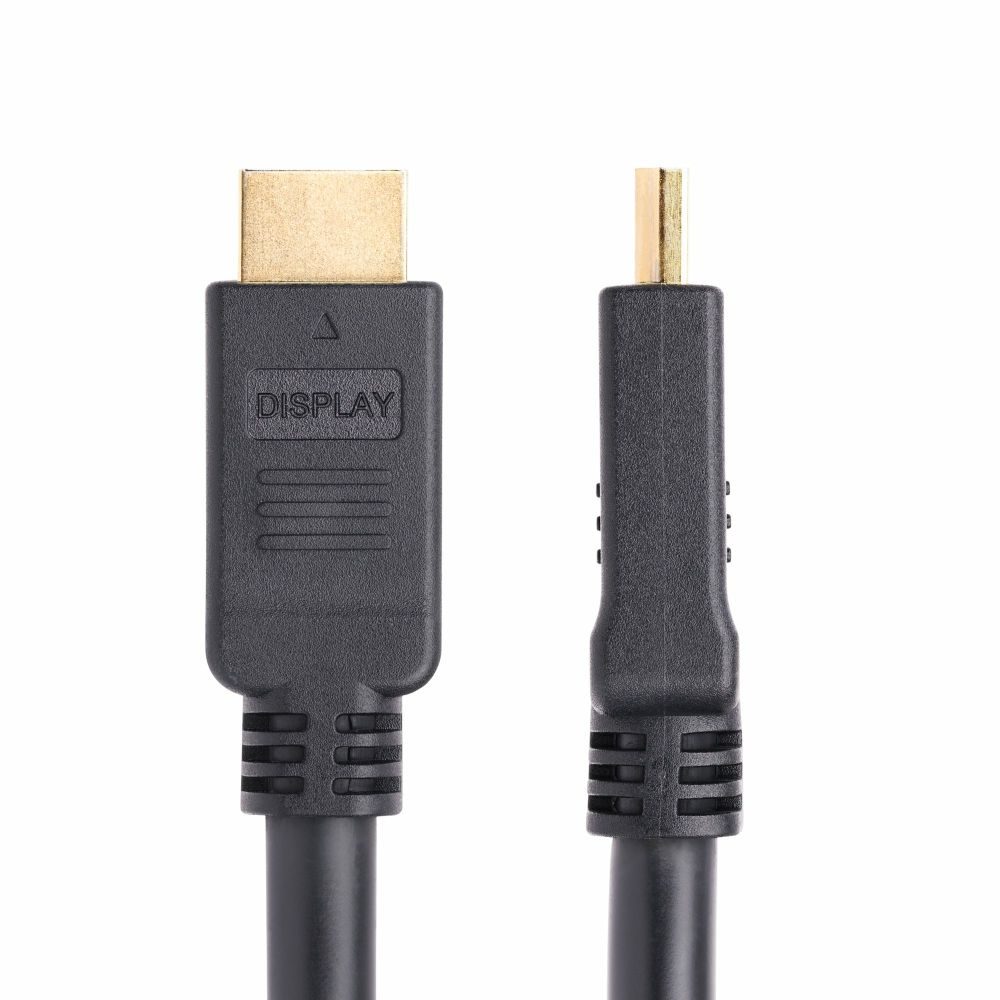

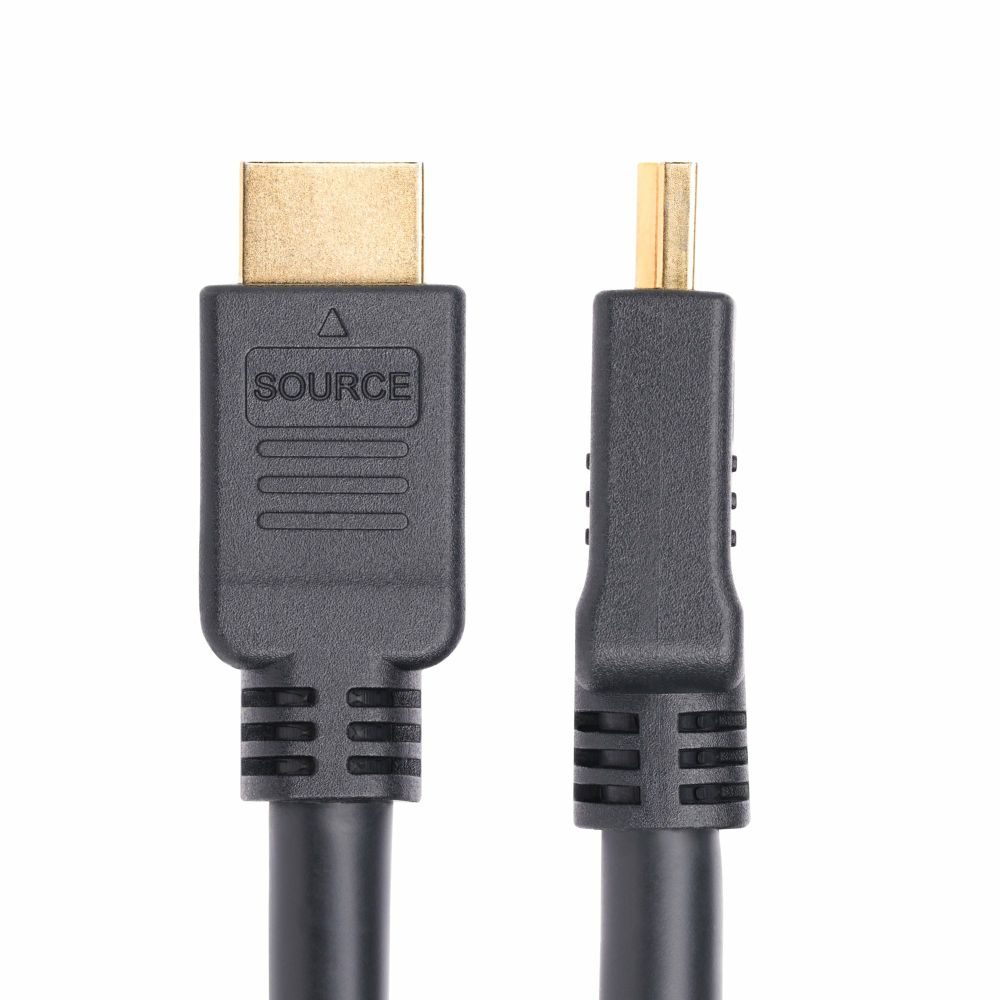

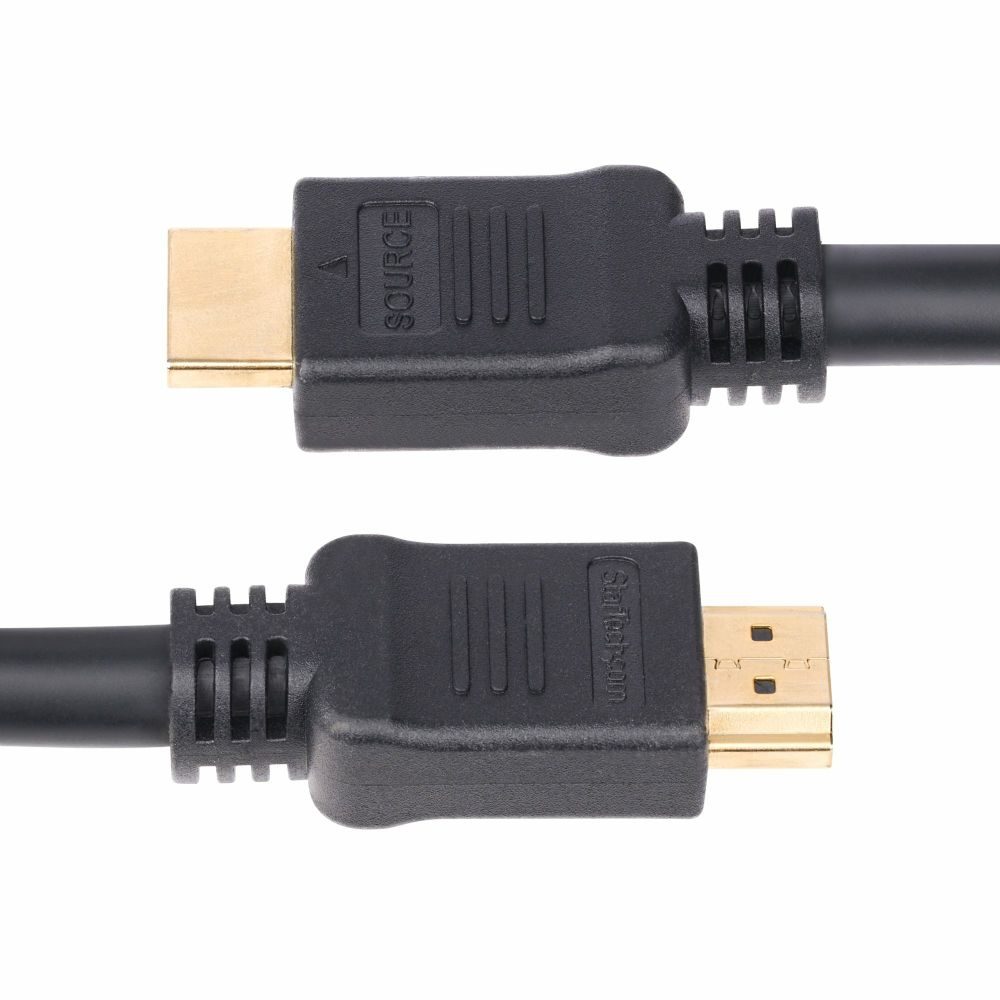

This is a unidirectional cable. It must be installed in a specific direction. Check the embossed markings on the HDMI connectors. One end is marked “SOURCE” and the other “DISPLAY”. Connect the “SOURCE” end to your video output. Connect the “DISPLAY” end to your monitor or projector. Incorrect orientation will result in no signal.

Box contents

• 1 x StarTech.com 10m Active HDMI 2.0 Cable (Black)

Key points to check

• Confirm your installation requires a 10m cable length to avoid signal degradation or excess cabling.
• Verify your source and display support HDMI 2.0 and HDCP 2.2 for full 4K compatibility.
• Ensure your local building regulations permit CMP-rated cabling for in-wall or plenum installation.
• Check that your AV equipment has standard HDMI Type A ports, as this cable uses straight male connectors.

Common questions

Summary & warranty

This cable is a solid choice for UK professionals installing AV systems in commercial environments with plenum spaces. It is best for integrators needing reliable 4K signal transmission over 10 metres without external power. The CMP rating and active chipset provide a dependable solution for in-wall and ceiling routing. Covered by the applicable manufacturer warranty.
