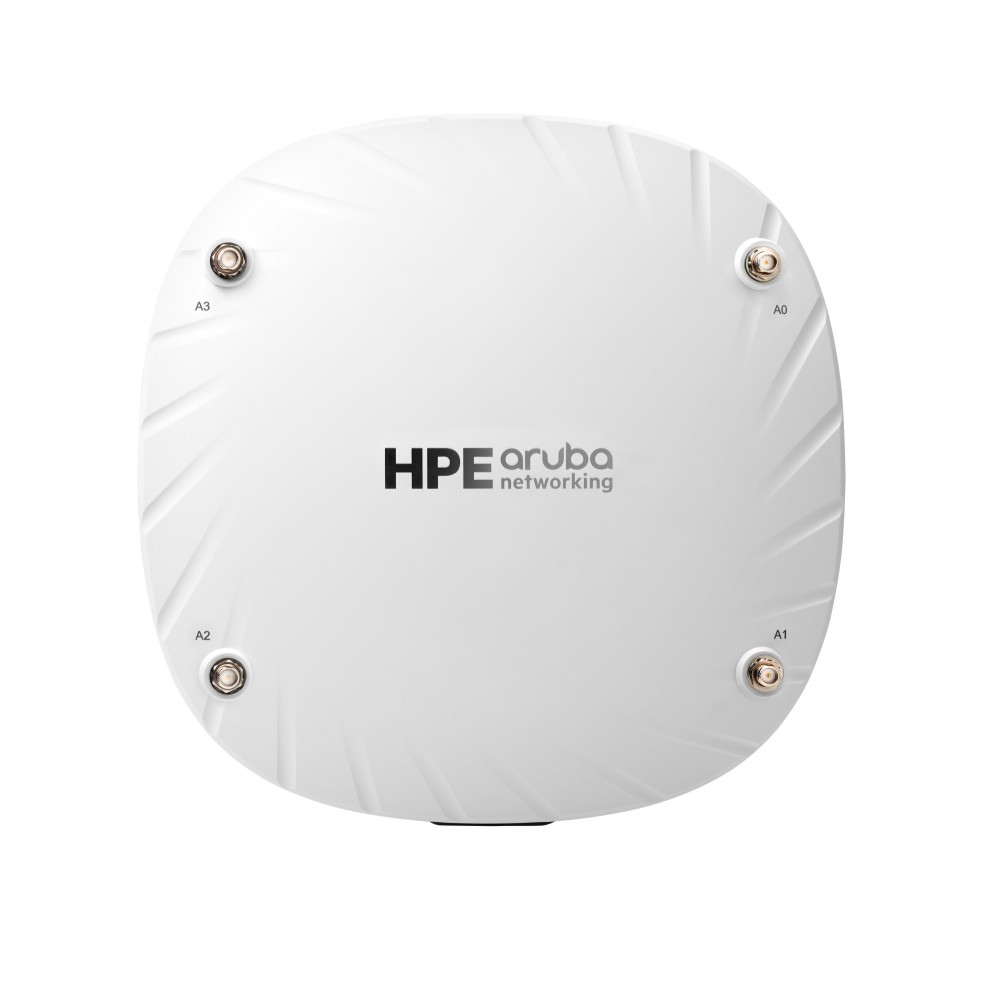

HPE Aruba AP-514 (RW) 802.11ax Dual Radio External Antennas AP
£1,047.70 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Wi-Fi 6 (802.11ax) dual-radio access point with external antennas
- Combined data rates up to 5375 Mbit/s across 2.4 GHz and 5 GHz bands
- Multi-Gigabit Ethernet ports (up to 2.5 Gbps) for high-speed wired connectivity
- Integrated IoT radio with Bluetooth 5 and Zigbee support
- Advanced security with WPA3, Enhanced Open, and dynamic segmentation
- Flexible management options including on-premises and cloud-based solutions
- Designed for indoor, ceiling placement with Power over Ethernet (PoE) support
Payment Methods:
You may also like
HPE Aruba Networking AP-514 – Advanced Wi-Fi 6 for Campus Environments
We offer the HPE Aruba Networking AP-514 (RW) Dual Radio 4×4/2×2 802.11ax External Antennas Unified Campus AP for organisations needing robust Wi-Fi 6 connectivity. This access point is ideal for medium-density campus settings like offices, training centres, and hospitals. It delivers a reliable, high-performance network experience, supporting modern demands with multi-gigabit wired connections and advanced IoT integration.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Max Data Rate (Combined) | 5375 Mbit/s |
| 2.4 GHz Max Data Rate | 575 Mbit/s |
| 5 GHz Max Data Rate | 4800 Mbit/s |
| Ethernet LAN Data Rates | 1, 2.5, 5 Gbit/s |
| Power over Ethernet (PoE) | Yes |
Enhanced Wi-Fi 6 Capabilities
This access point uses 802.11ax (Wi-Fi 6) technology. It includes OFDMA for better multi-user efficiency. Target Wake Time (TWT) also extends battery life for connected IoT devices.
Secure and Flexible Networking
Security is paramount with WPA3 and Enhanced Open protocols. We also see dynamic segmentation and policy enforcement firewalls (PEF). This enforces consistent policies across both wired and wireless networks.
Seamless IoT Integration
The AP-514 comes with built-in Bluetooth 5 and Zigbee support. This allows for direct integration with various IoT devices. Fast wired connections are available through 2.5 Gbps and 1 Gbps Ethernet ports.
Optimised Client Connectivity
Client and RF optimisation features ensure devices connect to the most suitable access point. This helps reduce coverage gaps and maintains a strong signal. The HPE Aruba Networking AP-514 (RW) Dual Radio 4×4/2×2 802.11ax External Antennas Unified Campus AP ensures stable connections.
Before You Order
- Confirm your required antenna type is external.
- Ensure your network infrastructure supports 2.5 Gbps Ethernet for optimal performance.
- Check that your mounting location is suitable for ceiling placement.
Frequently Asked Questions
Q: What operating systems are compatible with this access point?
A: It supports HPE Aruba Networking Wireless Operating System and Instant OS 8.4.0.0 (or later for full features).
Q: Does this model support Power over Ethernet?
A: Yes, it is designed for Power over Ethernet (PoE) deployments.
Q: Can this access point be managed remotely?
A: Yes, it supports on-premises, public cloud, and virtual private cloud management options.
Q: What are the primary data rates for the Ethernet ports?
A: The Ethernet LAN ports support 1000, 2500, and 5000 Mbit/s.
Our Recommendation
This access point suits organisations needing a high-performance, secure, and future-proof Wi-Fi 6 solution. Its robust feature set supports demanding campus environments. Warranty cover varies by product, so please contact us to confirm.
| Data transmission | |
|---|---|
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 5375 Mbit/s |
| Performance | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Certification | UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Maximum data transfer rate | 5375 Mbit/s |
| MIMO | Yes |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Wireless LAN features | |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Network | |
| Spread spectrum method | DSSS, OFDM |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Ports & interfaces | |
| I/O ports | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| DC-in jack | Yes |
| Security | |
| Cable lock slot | Yes |
| Security algorithms | WMM, WPA, WPA2 |
| Features | |
| 2.4 GHz | Yes |
| 5 GHz | Yes |
| Auto MDI/MDI-X | Yes |
| Spread spectrum method | DSSS, OFDM |
| Frequency band | 20/40 (2.4 GHz), 20/40/80/160 (5 GHz), and maximum peak data rate 2.69 Gbps |
| Networking standards | IEEE 802.11ax, IEEE 802.11mc |
| Modulation | 16-QAM, 64-QAM, 256-QAM, 1024-QAM, BPSK, CCK, QPSK |
| Ethernet LAN data rates | 1000,2500,5000 Mbit/s |
| Maximum data transfer rate | 5375 Mbit/s |
| MIMO | Yes |
| Maximum data transfer rate (2.4 GHz) | 575 Mbit/s |
| Maximum data transfer rate (5 GHz) | 4800 Mbit/s |
| MACsec support | No |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Management features | |
| Access point management | On-premises; Public Cloud; Virtual Private Cloud (VPC); as a Service |
| Power | |
| Power consumption (typical) | 16 W |
| Power over Ethernet (PoE) | Yes |
| Design | |
| Placement | Ceiling |
| Product colour | White |
| Certification | UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
| Recommended usage | Indoor |
| Antenna | |
| Number of connectors | 4 |
| Antenna type | External |
| Antenna connector type | RP-SMA |
| Technical details | |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Certificates | |
| Certification | UL2043 plenum rating Bluetooth SIG Wi‑Fi Alliance: Wi‑Fi CERTIFIED a, b, g, n, ac, ax WPA, WPA2 and WPA3, Enterprise with CNSA option, Personal (SAE), Enhanced Open (OWE) WMM, WMM-PS, Wi-Fi Agile Multiband Wi-Fi CERTIFIED Location |
| Compliance certificates | Federal Communications Commission (FCC), ISED, CE, Electromagnetic Compatibility (EMC), Low Voltage Directive (LVD) |
| Weight & dimensions | |
| Width | 200 mm |
| Depth | 200 mm |
| Weight | 810 g |
| Height | 46 mm |
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 72 mm |
| Package weight | 1.01 kg |
| Packaging data | |
| Package width | 230 mm |
| Package depth | 220 mm |
| Package height | 72 mm |
| Package weight | 1.01 kg |
| Other features | |
| I/O ports | E0: HPE Smart Rate port (RJ-45, maximum negotiated speed 2.5 Gbps) E1: 10/100/1000BASE-T Ethernet network interface (RJ-45) USB 2.0 host interface (Type A connector) Serial console interface (proprietary, micro-B USB physical jack) Kensington security slot |
| Operational conditions | |
| Operating relative humidity (H-H) | 5 - 93% |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 93% |
| System requirements | |
| Compatible operating systems | HPE Aruba Networking Wireless Operating System and HPE Aruba Networking Instant OS 8.4.0.0 (with some restrictions). For unrestricted operation, use 8.6.0.0 or later. |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | 2M2JGK0, 4983944, STD10078385, 1337241, CLQ9H57A |
