TP-Link Omada AX3000 Wall Plate Wi-Fi 6 AP

TP-Link Omada AX3000 – Discreet WiFi 6 Wall Plate for Business

The TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point delivers dual-band wireless coverage directly from a standard wall socket. We recommend it for offices, hotels, and hospitality venues that need reliable, high-density WiFi without bulky ceiling-mounted hardware. Because it mounts flush to a junction box, it blends into any room while providing enterprise-grade connectivity. With combined speeds of up to 2976 Mbps, it handles demanding networks with ease.

Core numbers at a glance

Dual-Band WiFi 6 Speeds That Handle More Devices

This access point operates across both the 2.4 GHz and 5 GHz bands at the same time. The 5 GHz band reaches 2402 Mbps, while the 2.4 GHz band delivers 574 Mbps. WiFi 6 technology reduces lag and interference even in busy environments. In practice, that means faster, more stable connections for laptops, phones, and tablets across your network.

Wall-Plate Design with Four Gigabit Ports

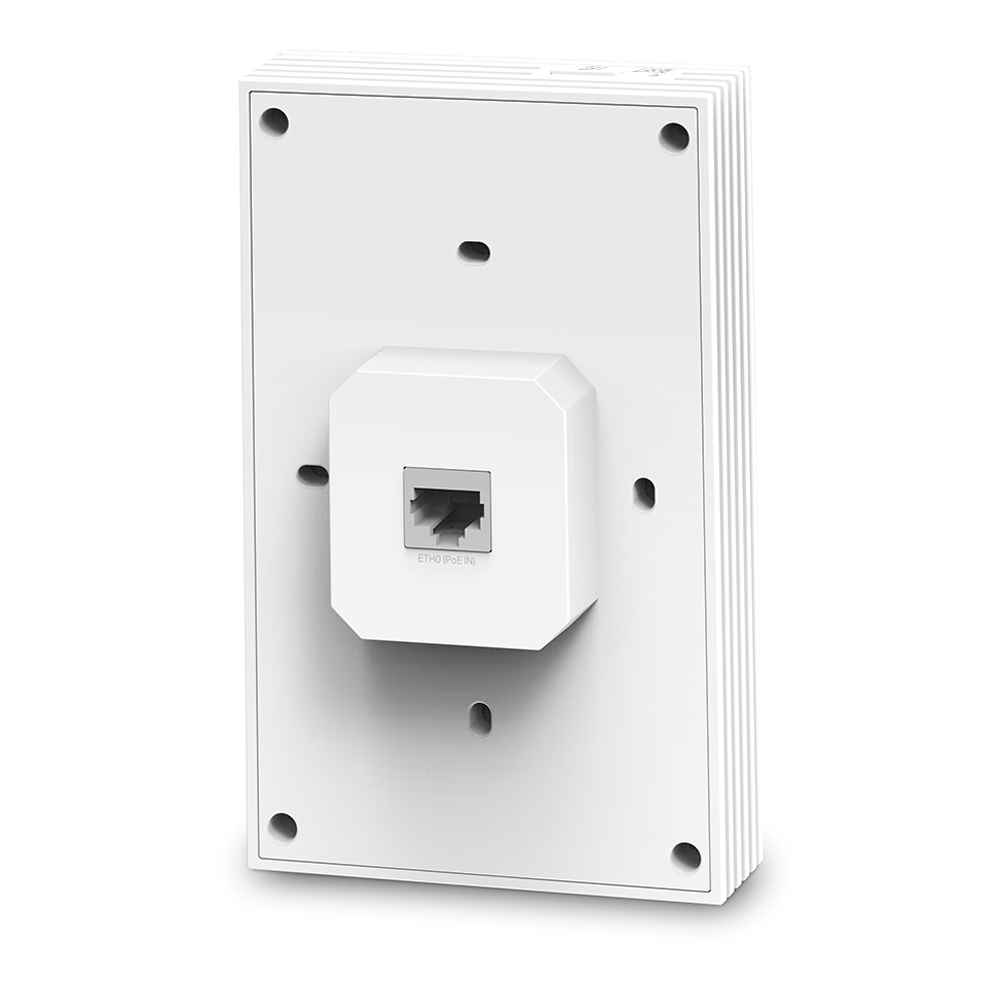

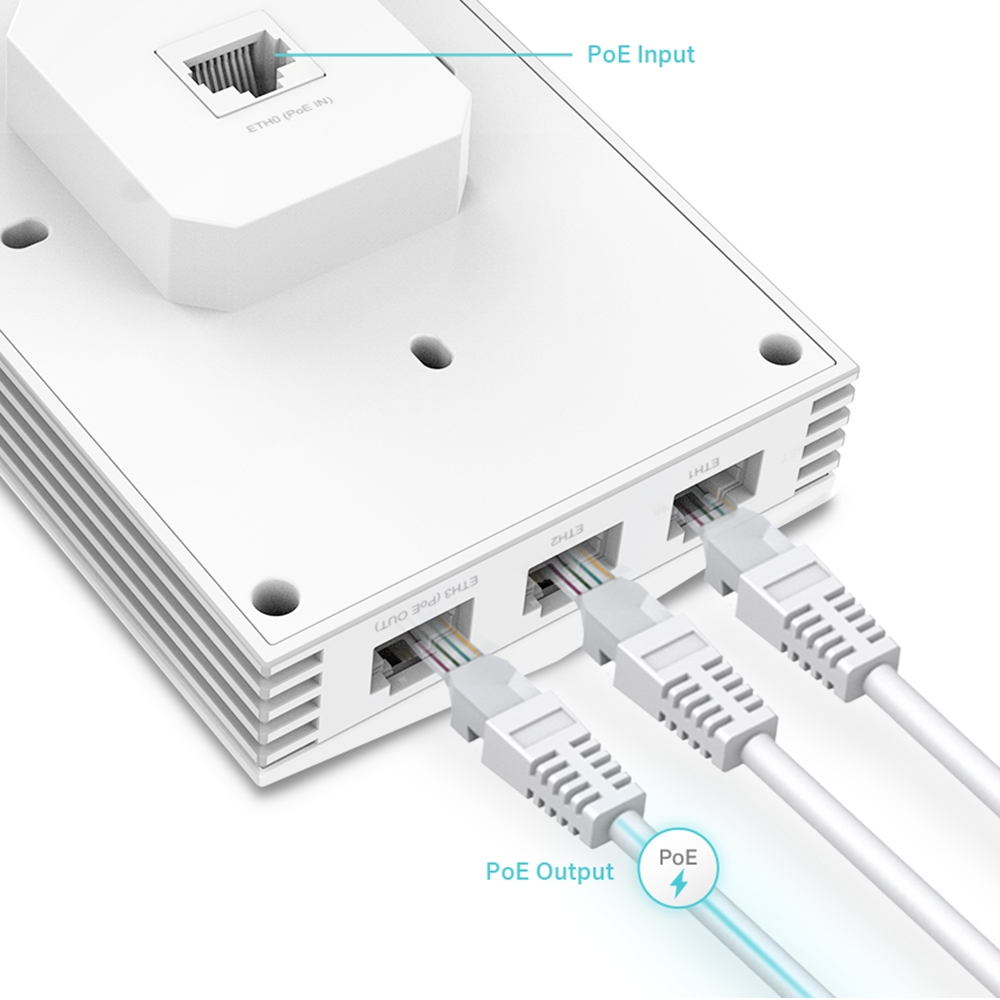

Unlike ceiling-mounted units, this access point installs directly onto a standard 86 mm junction box. It features three downlink Gigabit ports and one uplink, so you can connect wired devices like VoIP phones right from the wall. One downlink port also provides PoE pass-through. This eliminates the need for a separate power cable to nearby equipment.

Enterprise-Grade Security and Guest Access

The TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point supports WPA3 encryption alongside WPA2 and WPA-Enterprise. You can create up to 16 separate SSIDs, including dedicated guest networks. A captive portal supports SMS login, Facebook WiFi, and voucher-based access. RADIUS authentication and MAC address filtering add further layers of control.

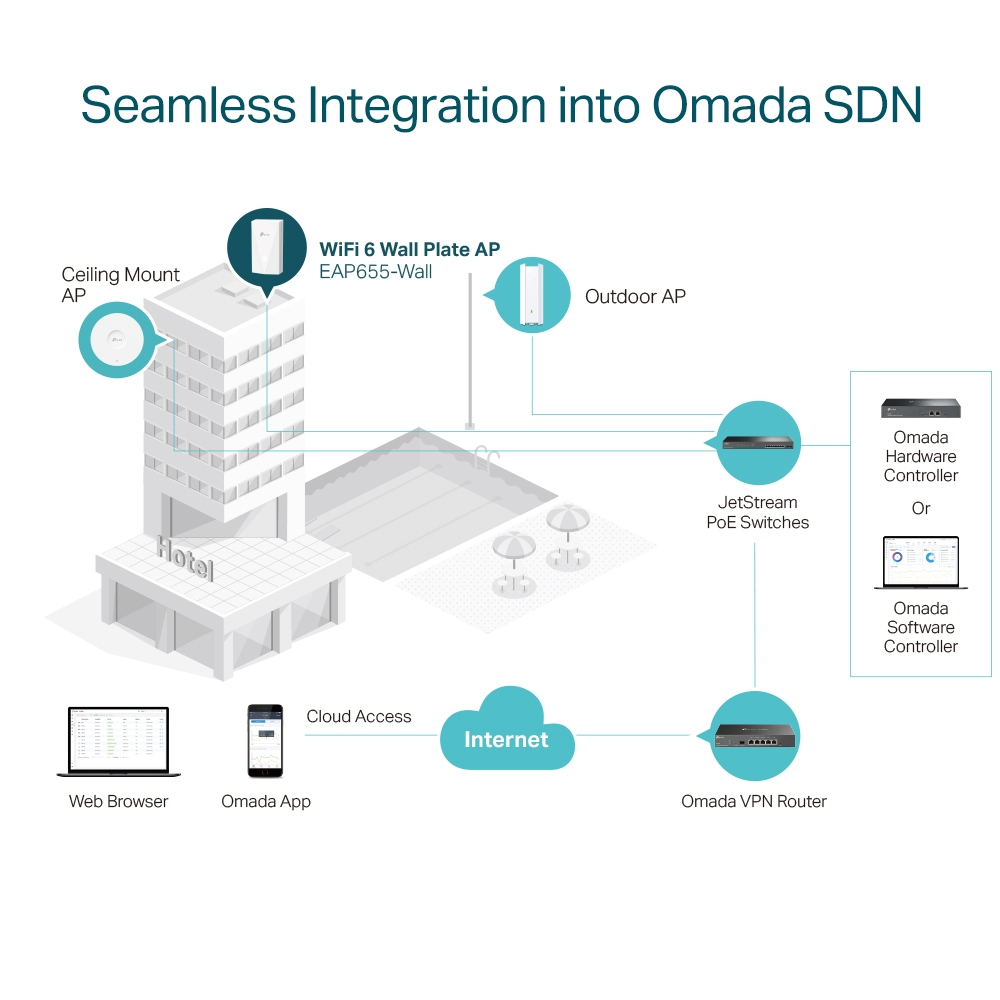

Centralised Management Through Omada SDN

We deploy and manage this access point through the Omada cloud platform or locally via the Omada app. It integrates seamlessly with other Omada switches and routers in your network. Automatic channel selection and power adjustment reduce WiFi interference across multiple access points. Seamless roaming also lets users move between APs without dropping their connection.

Compatibility checks before you order

• Confirm your wall has a compatible 86 mm or standard EU/US junction box for mounting.
• Verify you have a PoE-capable switch or injector (802.3af/at) to power the unit.
• Check that your cabling supports Gigabit speeds to take full advantage of the Ethernet ports.
• Ensure your network uses an Omada SDN-compatible controller if you want centralised cloud management.

Frequently Asked Questions

Q: Does this access point support WiFi 6?

A: Yes. It uses the 802.11ax standard on both the 2.4 GHz and 5 GHz bands for higher efficiency and capacity.

Q: How many devices can connect at once?

A: It supports up to 100 simultaneous wireless users, making it suitable for busy hospitality and office environments.

Q: Can I power it without a separate power adapter?

A: Yes. It supports 802.3af and 802.3at Power over Ethernet, so a single cable provides both power and data.

Q: How many SSIDs can I create?

A: You can configure up to 16 SSIDs. This allows you to separate guest access from internal network traffic easily.

Q: Is this access point suitable for ceiling installation?

A: No. It is designed specifically for wall-plate mounting on standard junction boxes.

Q: Can I manage it remotely from my phone?

A: Yes. The Omada mobile app lets you configure, monitor, and manage the access point from anywhere.

The TP-Link Omada AX3000 Wall Plate WiFi 6 Access Point — Our Verdict

This access point is a strong fit for hotels, offices, classrooms, and any space where discreet wall-mounted WiFi matters most. It combines WiFi 6 speeds, four Gigabit ports, and PoE flexibility in a compact form factor. For multi-AP deployments, Omada SDN provides the centralised management and roaming support your network needs. Warranty cover varies by product, so please contact us to confirm.
