Asrock B850M Pro-A mATX AM5 Motherboard

Asrock B850M Pro-A | Micro-ATX AM5 Motherboard

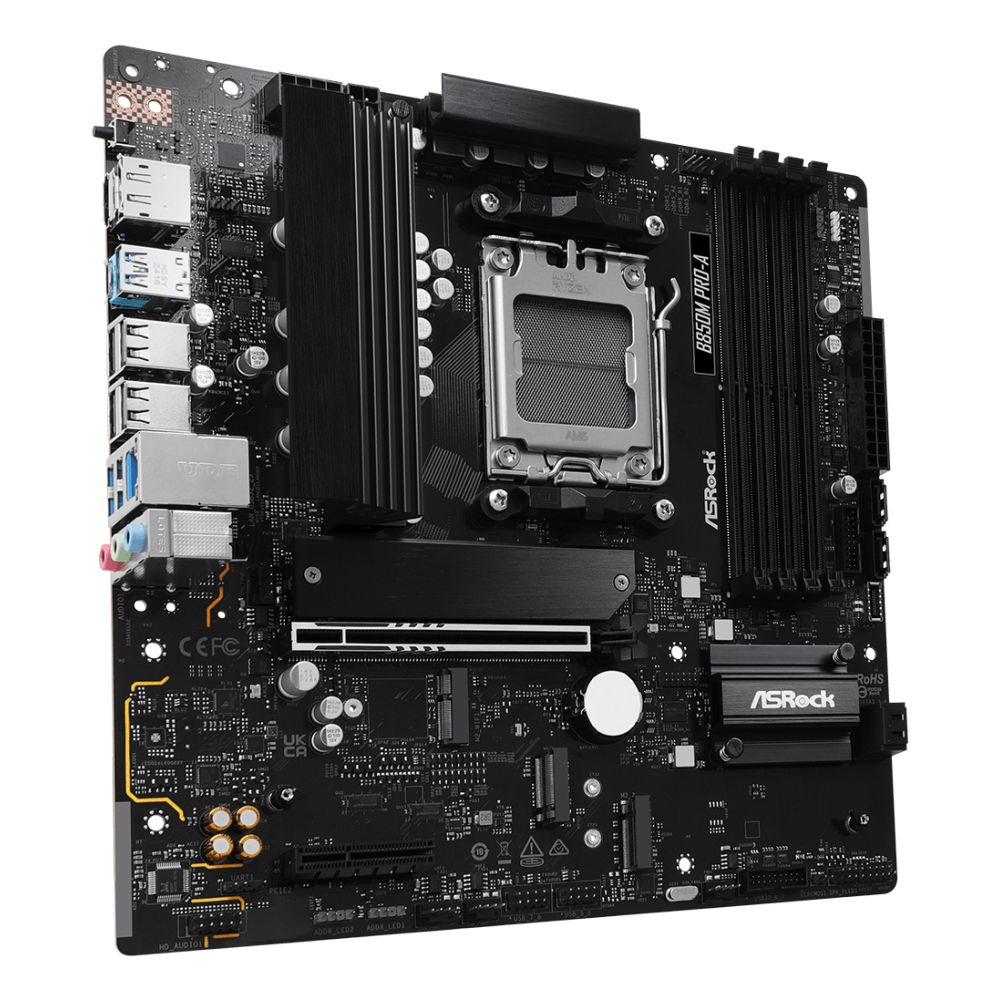

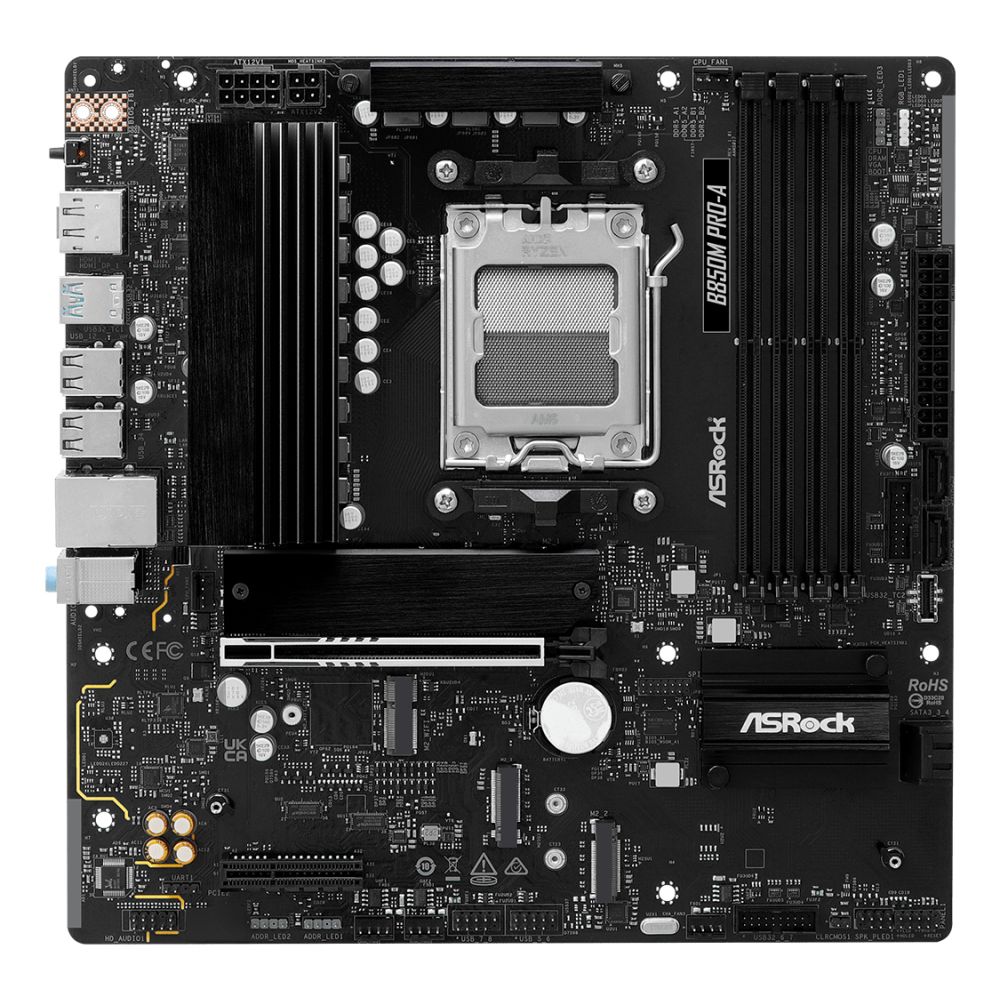

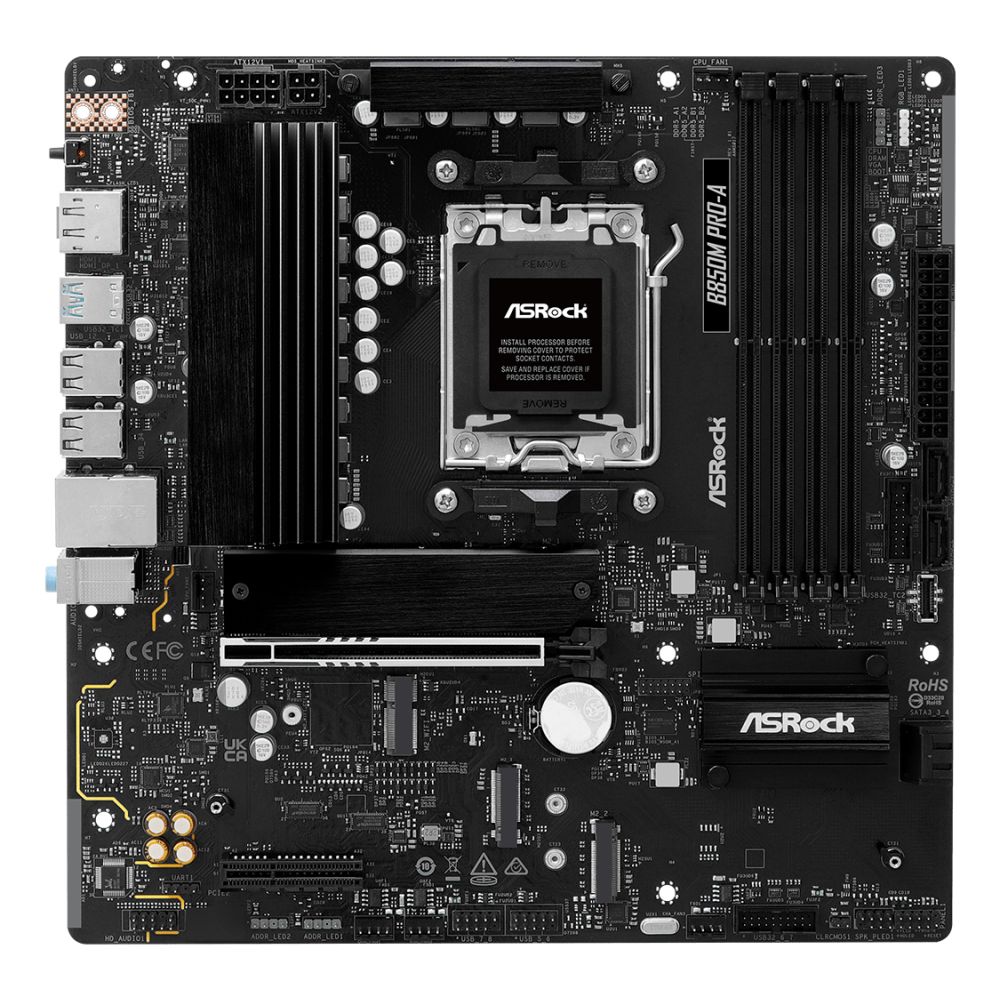

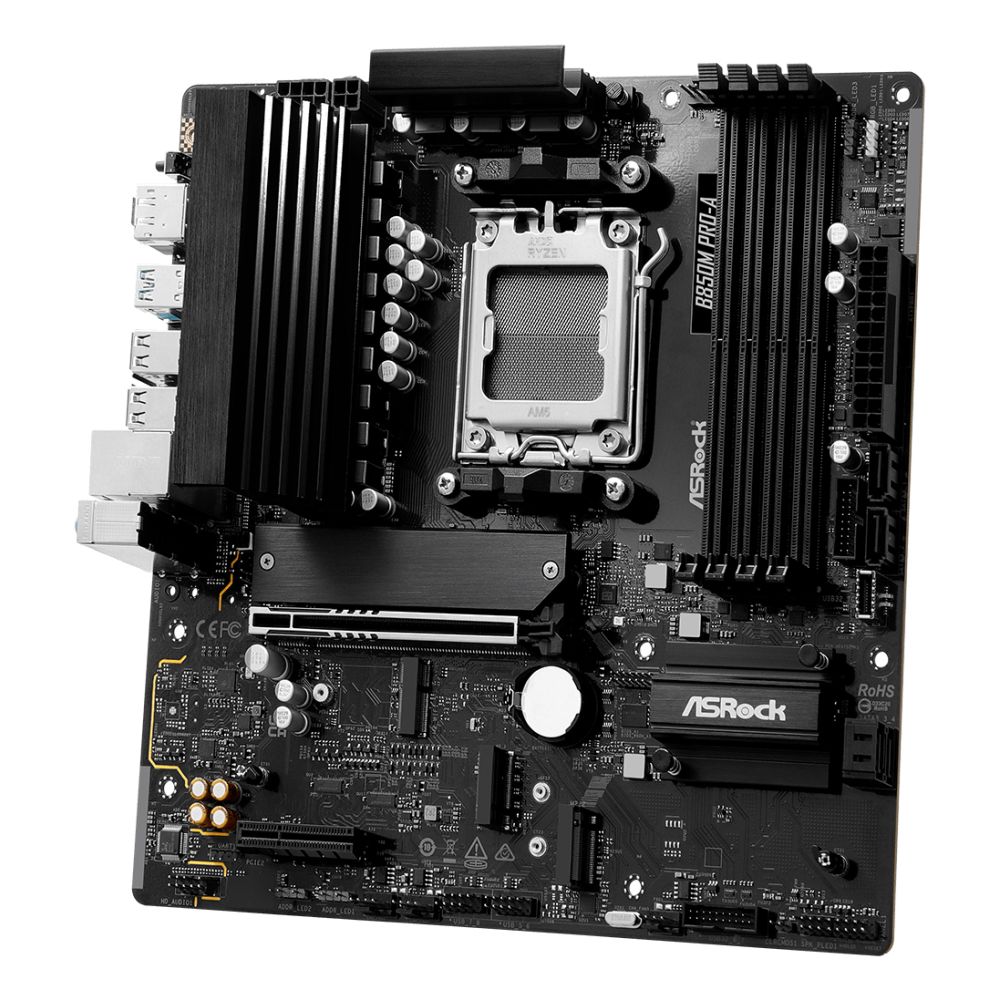

The Asrock B850M Pro-A AMD B850 Socket AM5 micro ATX motherboard is built for users upgrading to AMD Ryzen 7000, 8000, or 9000 series processors. It targets system builders who need a stable foundation with modern connectivity. This board offers a practical balance of performance and essential features for daily computing and gaming. Its micro-ATX form factor fits compact cases while retaining key expansion options.

Core Platform and Memory Support

This motherboard uses the AMD B850 chipset with a Socket AM5. It supports dual-channel DDR5 memory across four DIMM slots. You can install up to 256 GB of unbuffered RAM, with both ECC and non-ECC compatibility. The board supports AMD EXPO and Intel XMP profiles for easy memory overclocking. The 6-layer PCB design helps ensure stable signal integrity for high-speed memory modules.

High-Speed Storage and Expansion

You get three M.2 slots for fast storage. The primary M.2 slot supports PCIe Gen5 for cutting-edge SSD speeds. The other two M.2 slots use PCIe Gen4, providing excellent performance for games and applications. Additionally, four SATA III ports allow for traditional HDDs or SSDs. RAID 0, 1, and 10 configurations are supported for data redundancy or performance striping.

Robust Power and Cooling Design

The board features an 8+2+1 power phase design with Dr. MOS components. This delivers smooth and stable power to the CPU, which is crucial for reliability under load. Hi-density power connectors are used to handle higher currents safely. For cooling, there are three chassis fan connectors and two CPU fan headers. The included aluminum heatsink helps manage M.2 SSD temperatures effectively.

Connectivity and Networking

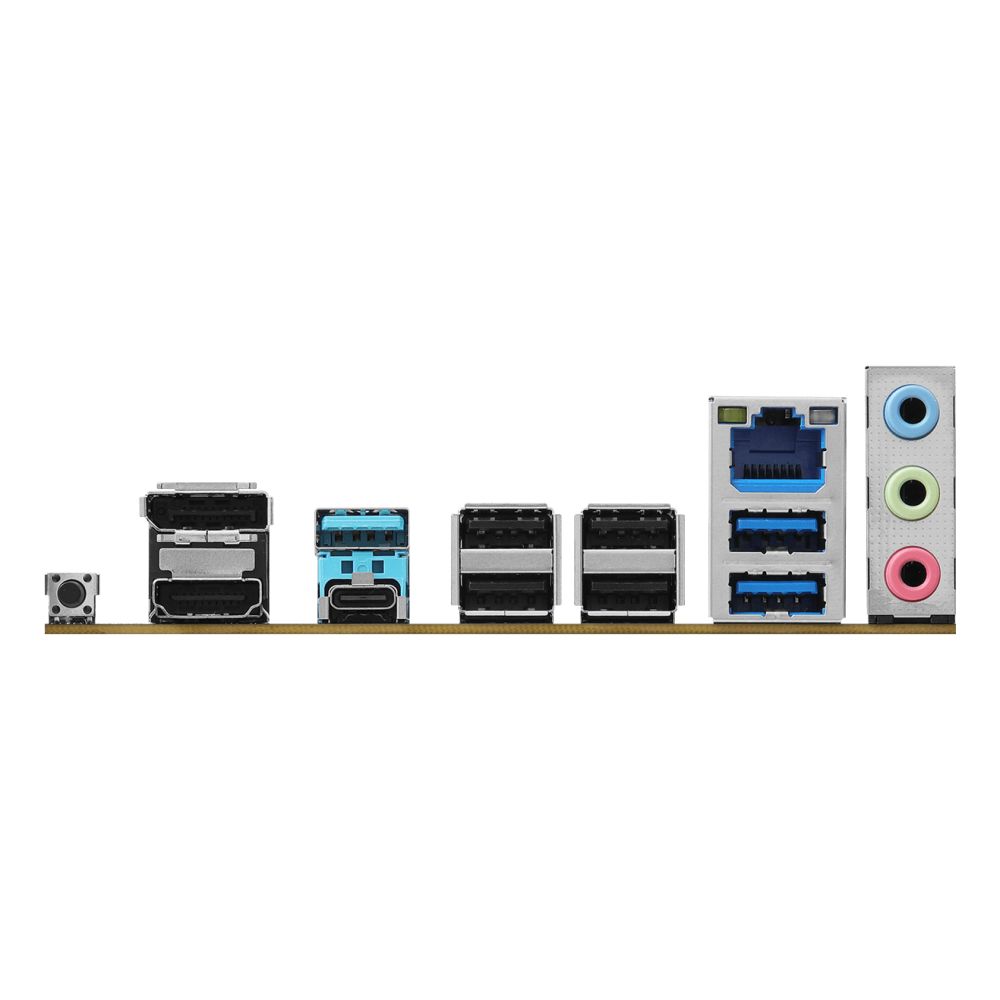

The Asrock B850M Pro-A includes a Dragon 2.5 Gigabit Ethernet LAN controller for fast wired networking. Note that Wi-Fi is not specified, so you should confirm wireless needs separately. The rear I/O provides USB 3.2 Gen 2 Type-C and Type-A ports, plus USB 2.0 ports. A single HDMI 2.1 port and DisplayPort 1.4 offer 4K display output at 60Hz. The onboard Realtek ALC897 audio chip provides 7.1-channel sound.

DIY-Friendly Features and Aesthetics

This board includes several user-friendly features. BIOS Flashback allows updating the BIOS without a CPU, RAM, or GPU installed. The reinforced steel PCIe 5.0 x16 slot supports heavy graphics cards securely. Polychrome RGB headers let you connect and synchronise LED lighting with compatible components. Dual graphics outputs (HDMI and DisplayPort) provide flexibility for multi-monitor setups.

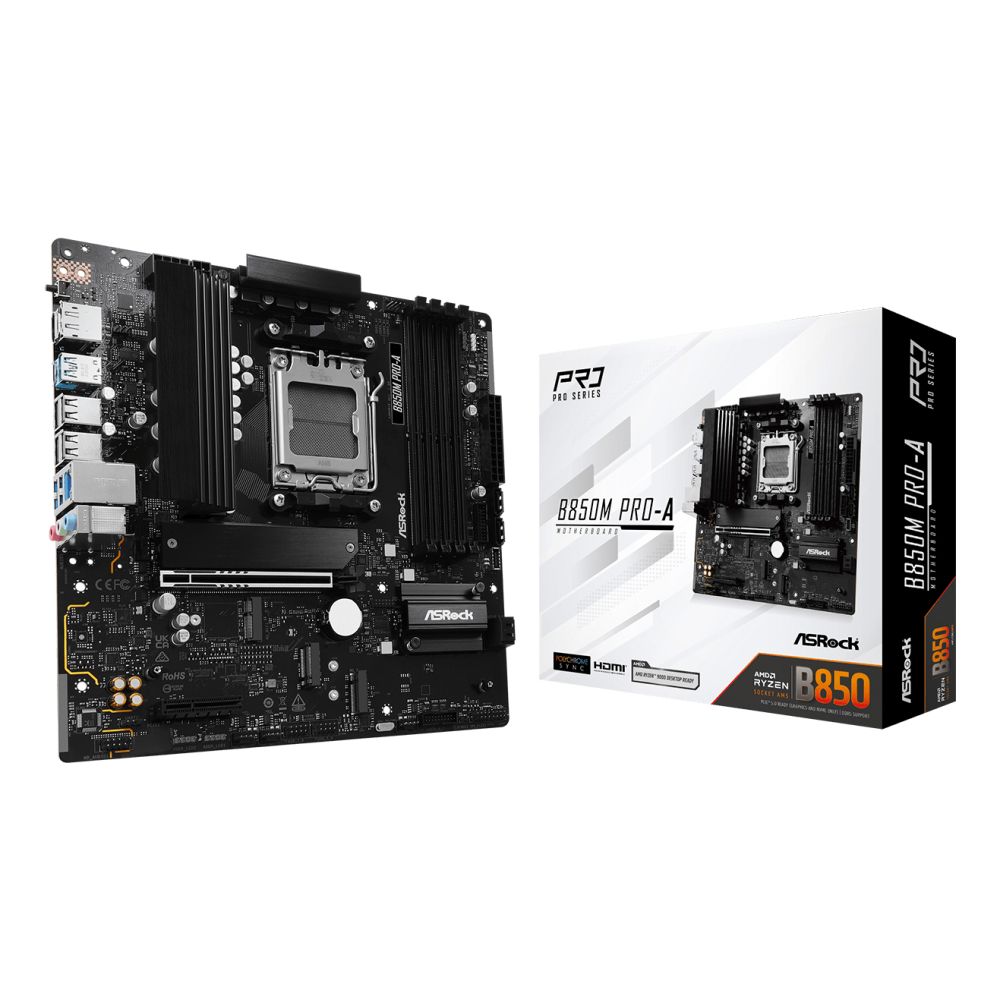

Box contents

• Asrock B850M Pro-A motherboard
• SATA data cables
• Screw pack for M.2 slots
• I/O shield (pre-installed on the board)
• Quick installation guide

Check before you buy

• Confirm your case supports micro-ATX (244 x 244 mm) and has sufficient clearance for the M.2 heatsink.
• Verify your power supply has the required 24-pin ATX and 8-pin EPS connectors.
• Ensure your CPU cooler fits the Socket AM5 mounting and does not obstruct tall RAM modules.
• Check if you need built-in Wi-Fi, as this model is Ethernet-only.

Frequently Asked Questions

Q: Does this motherboard support PCIe 5.0 graphics cards?

A: Yes, it has one reinforced PCIe 5.0 x16 slot for next-generation graphics cards.

Q: Can I use ECC memory with this board?

A: Yes, it supports both ECC and non-ECC unbuffered DDR5 memory modules.

Q: How many fans can I connect?

A: There are two CPU fan headers and three chassis fan connectors for cooling.

Q: Is Wi-Fi included on this motherboard?

A: No, Wi-Fi is not specified. Please confirm your wireless requirements separately.

Q: Does it support AMD Ryzen 9000 series processors?

A: Yes, it is compatible with AMD Ryzen 7000, 8000, and 9000 series CPUs.

The Consultant’s verdict and warranty

This motherboard is ideal for UK builders assembling a compact, reliable PC with AMD’s latest Ryzen processors. It offers strong core features like PCIe 5.0, DDR5 support, and robust power delivery without unnecessary extras. If you need built-in Wi-Fi or advanced overclocking, you may need to consider higher-tier models. Covered by the standard Manufacturer Warranty.
