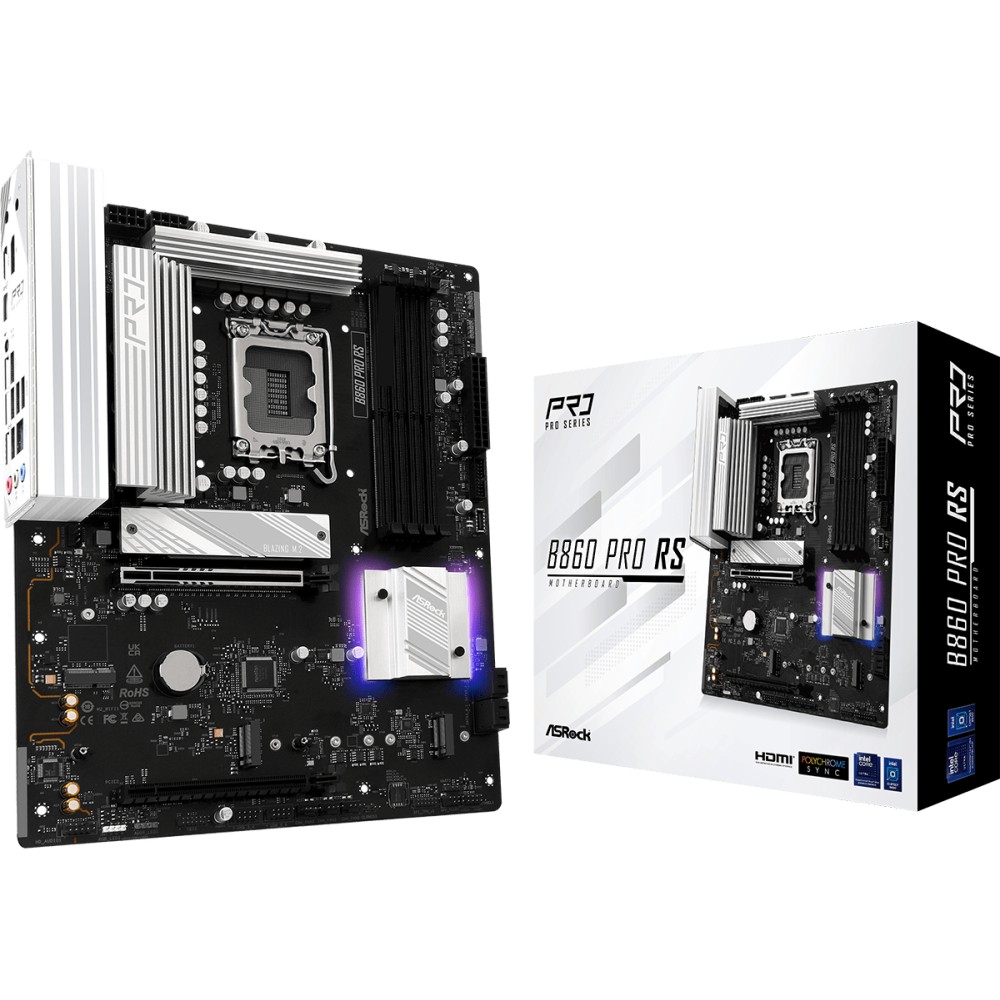

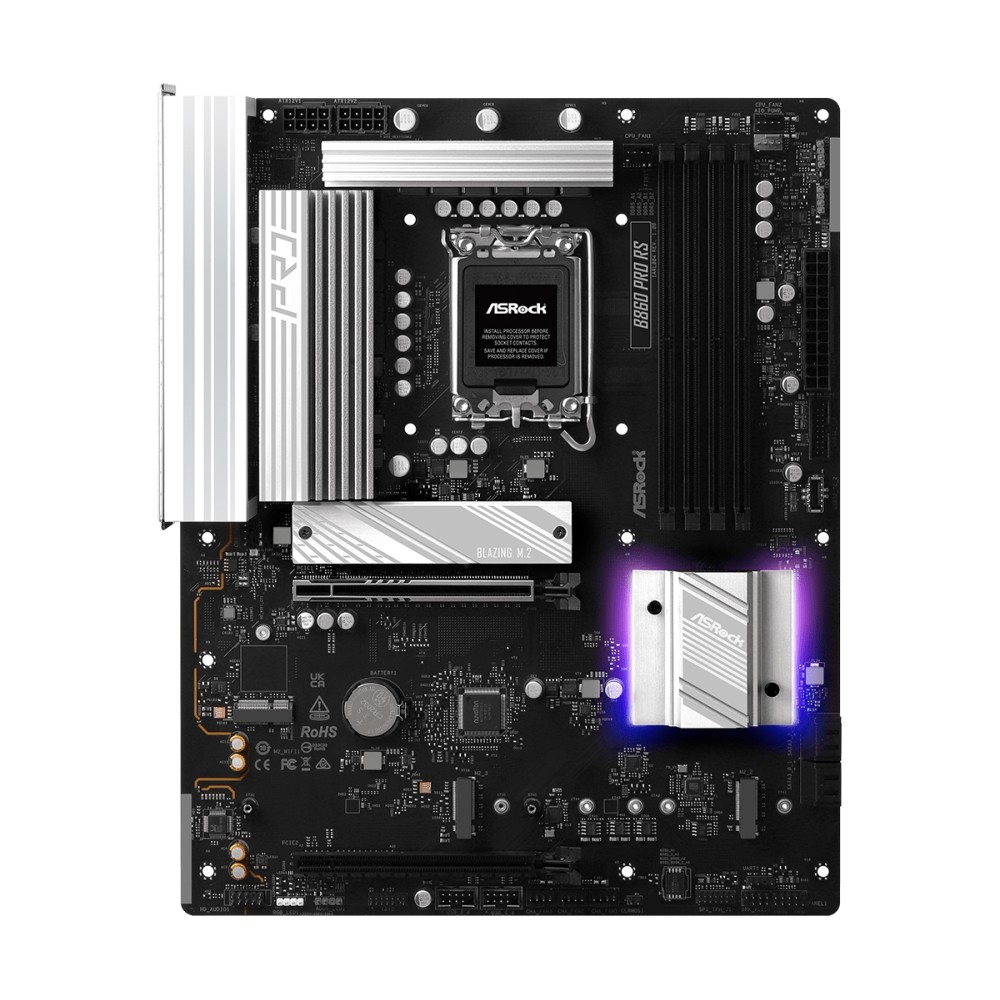

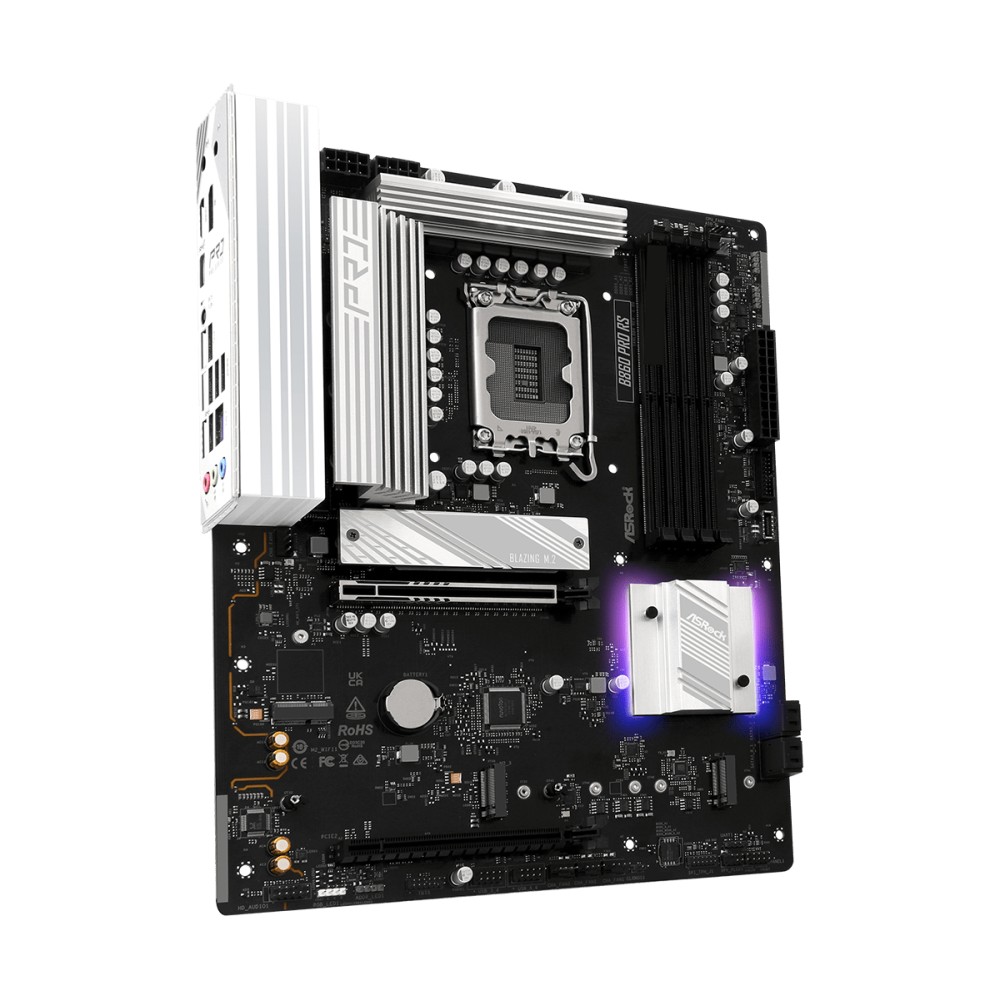

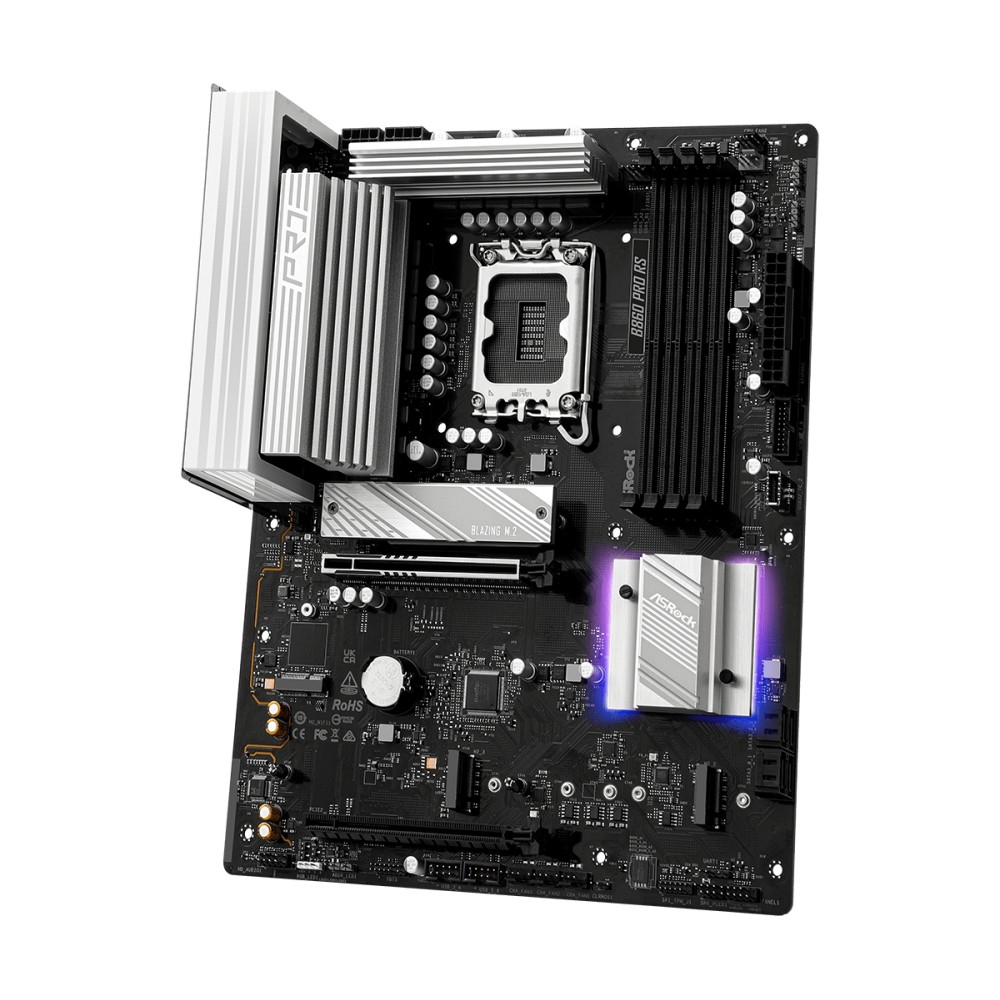

ASRock B860 Pro RS ATX Motherboard, LGA 1851, Intel B860, DDR5
Original price was: £152.39.£143.99Current price is: £143.99.
In stock
In stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Intel B860 chipset with LGA 1851 socket supporting Intel Core Ultra Series 2 processors
- ATX form factor measuring 305 mm by 244 mm
- Four DIMM slots supporting up to 256 GB of dual-channel DDR5-SDRAM memory up to 8666 MHz
- Three M.2 slots and four SATA III connectors supporting up to seven storage drives with RAID 0, 1, 5, 10
- Dragon RTL8125BG controller providing 2.5 Gigabit Ethernet LAN connectivity
- Realtek ALC897 audio chip supporting 7.1 channels
- PCIe Gen 5.x and Gen 4.x slots with reinforced steel slot construction
You may also like
Asrock B550M Phantom Gaming 4 Motherboard
In stock

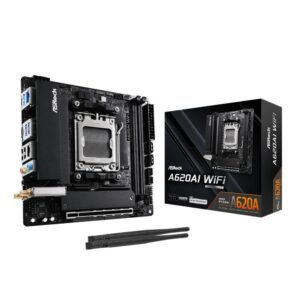

Asrock A620AI WiFi Mini ITX Motherboard
In stock
Asrock B550M Pro4 micro ATX motherboard
In stock

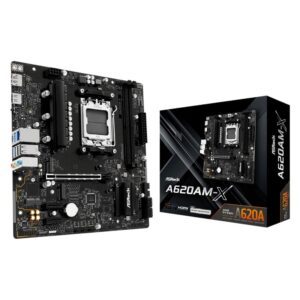

ASRock A620AM-X AMD AM5 Motherboard with DDR5, M.2, and 2.5GbE LAN
In stock

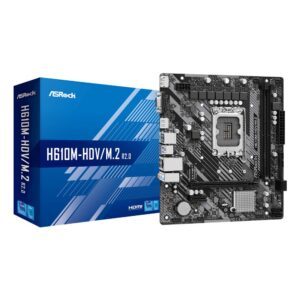

Asrock H610M-HDV/M.2 R2.0 motherboard
In stock

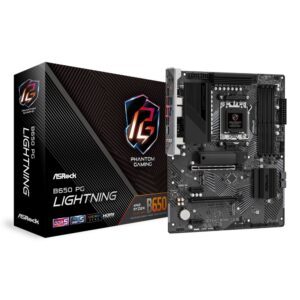

Asrock B650 PG Lightning AMD B650 ATX
In stock
ASRock B550M-HDV Micro-ATX AMD Motherboard
In stock

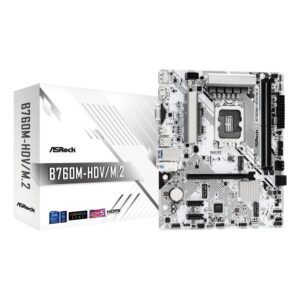

Asrock B760M-HDV/M.2 Intel Micro ATX Motherboard
In stock

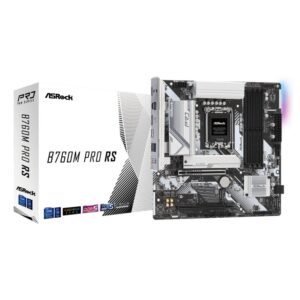

Asrock B760M Pro RS Intel B760
In stock
Asrock H810M-H Intel H810 micro ATX motherboard
In stock

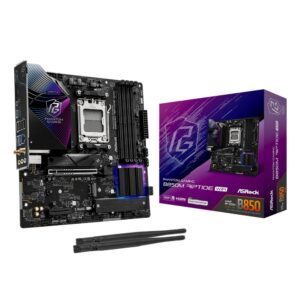

Asrock Phantom Gaming B850M Riptide WiFi
In stock

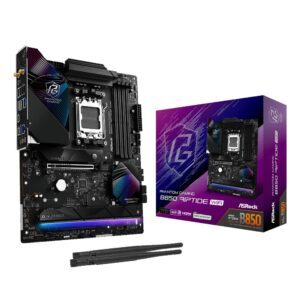

Asrock B850 Riptide WiFi ATX Motherboard
In stock

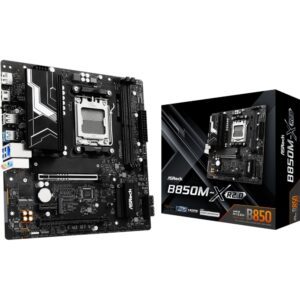

Asrock B850M-X R2.0 AMD B850 micro ATX motherboard
In stock
Asrock B550M-ITX/ac Mini ITX Motherboard
In stock

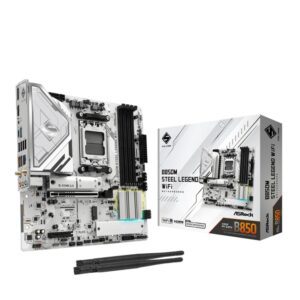

Asrock B850M Steel Legend WiFi AM5 micro ATX
In stock

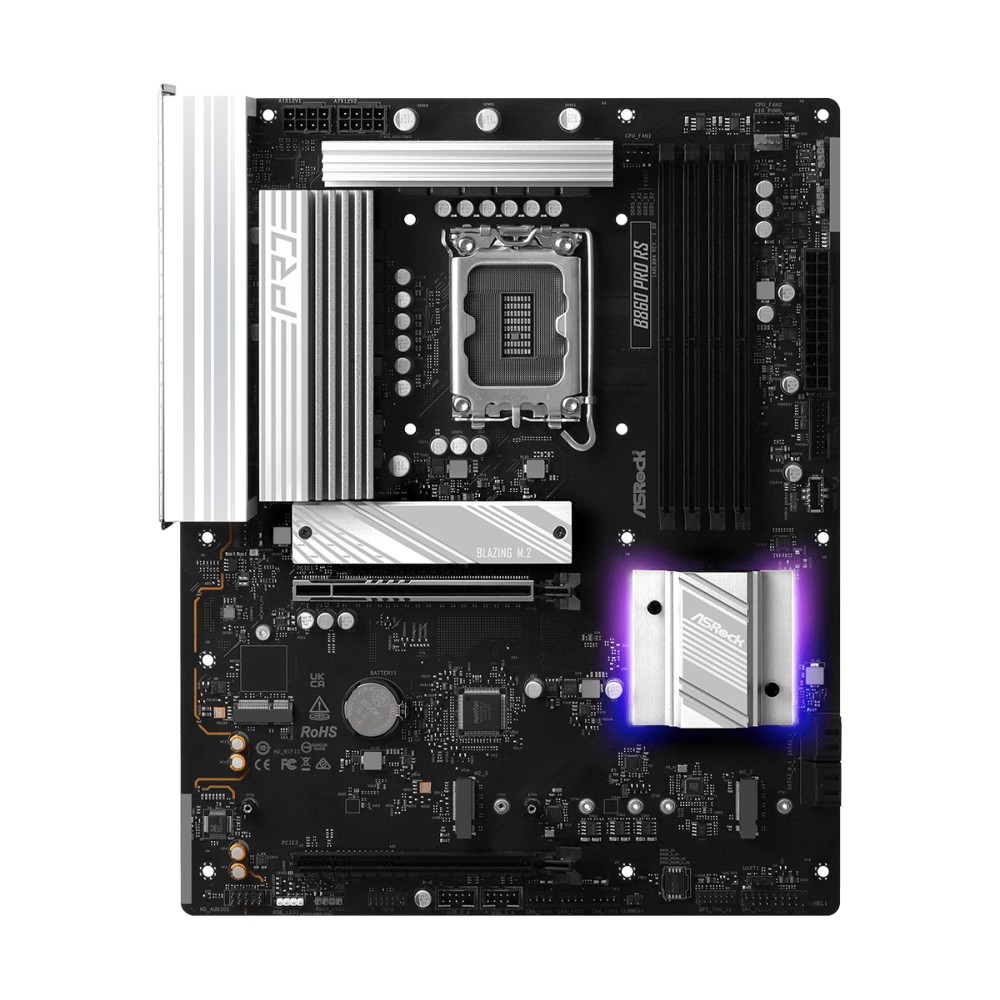

ASRock B860 Pro RS – Built for Intel Core Ultra
When you build a modern system, our ASRock B860 Pro RS ATX Motherboard, LGA 1851, Intel B860, DDR5 delivers robust stability for creators and daily users alike. We designed this platform to handle Intel Core Ultra processors with refined power delivery and advanced thermal management. Because it supports high-speed memory and fast storage standards, your workstation remains responsive under heavy loads.
Core numbers
| Metric | Spec. |
|---|---|
| Form Factor | ATX |
| Socket | LGA 1851 |
| Chipset | Intel B860 |
| Memory Type | DDR5 |
| Ethernet | 2.5 Gigabit |
Advanced Power and Thermal Stability
We integrated a 10+1+1 power phase design alongside Dr.MOS technology to ensure smooth current delivery. Because high-density power connectors withstand elevated currents, your system stays protected during demanding tasks. Also, the six-layer PCB lowers temperatures and keeps signal traces clean for memory overclocking.
Next-Generation Storage and Connectivity
You can install ultra-fast solid-state drives using the PCIe Gen5 Blazing M.2 slot. This connection offers double the bandwidth of previous generations for rapid file transfers. Furthermore, the integrated Dragon 2.5 Gb/s LAN delivers uninterrupted networking for large backups and online applications.
Customisable Lighting and Clear Display Outputs
We included both onboard RGB headers and addressable headers so you can easily sync your cooling fans and chassis lighting. For video output without a dedicated graphics card, the rear panel provides both HDMI and DisplayPort options. SignalRGB support also unifies your lighting control across compatible devices.
What you receive
- ASRock B860 Pro RS Motherboard
- SATA data cables
Before you order
- Confirm your processor belongs to the Intel Core Ultra series.
- Check that your chassis supports the ATX form factor.
- Confirm your memory modules are DDR5 compatible.
Frequently Asked Questions
Q: What CPU socket does this board use?
A: It uses the LGA 1851 socket.
Q: How many M.2 slots are available?
A: You get three M.2 M slots for storage drives.
Q: Does this motherboard support Wi-Fi out of the box?
A: No, wireless networking is not included.
Q: What is the maximum supported memory?
A: It supports up to 256 GB of DDR5 memory.
The final verdict
If you want a dependable foundation for an Intel Core Ultra build, this ATX board offers solid features and robust connectivity.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8666 MHz |
| Storage controllers | |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |

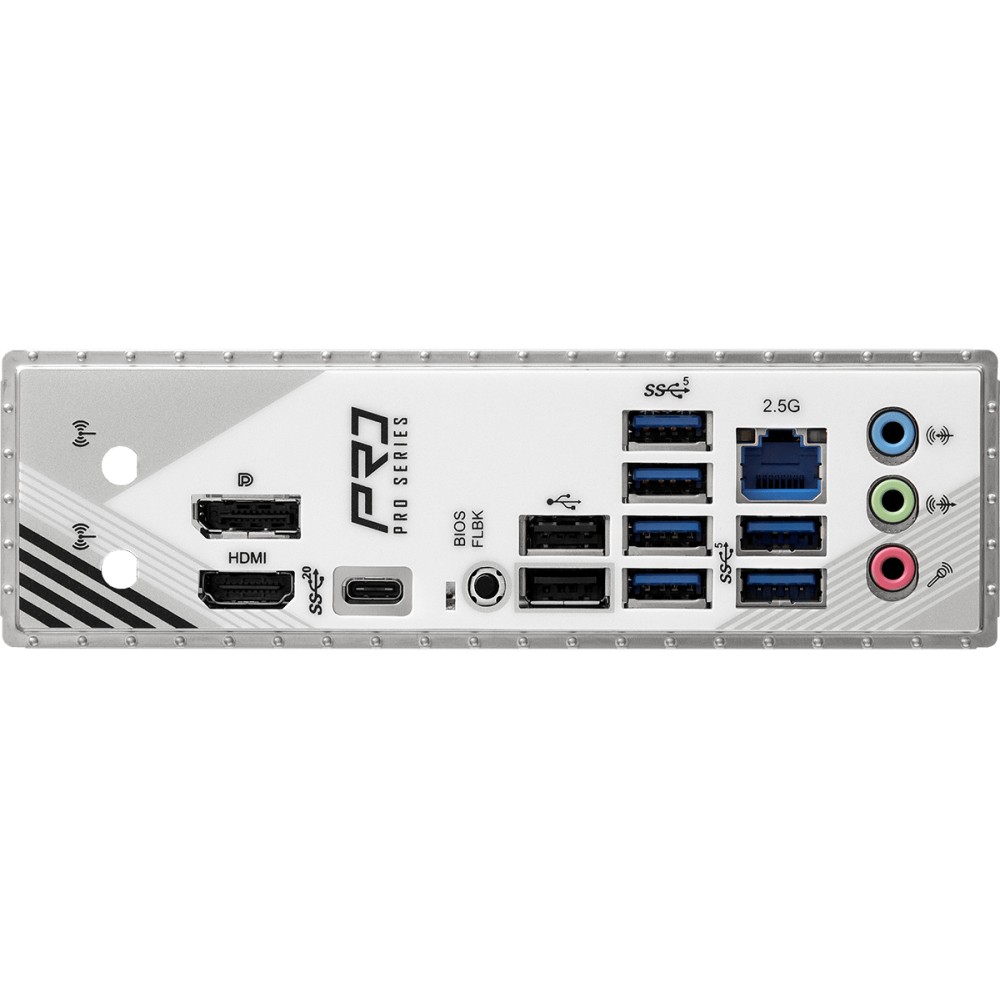

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 6 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 2 |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| LAN controller | Dragon RTL8125BG |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Top Wi-Fi standard | Not available |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | EFI AMI |
| BIOS memory size | 256 Mbit |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Weight & dimensions | |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Cables included | SATA |
| Identifiers | |
| Distributor SKUs | B860PRORS, 90-MXBRM-A0UAYZ, B860 PRO RS, 548794, CLB860PRORS |
