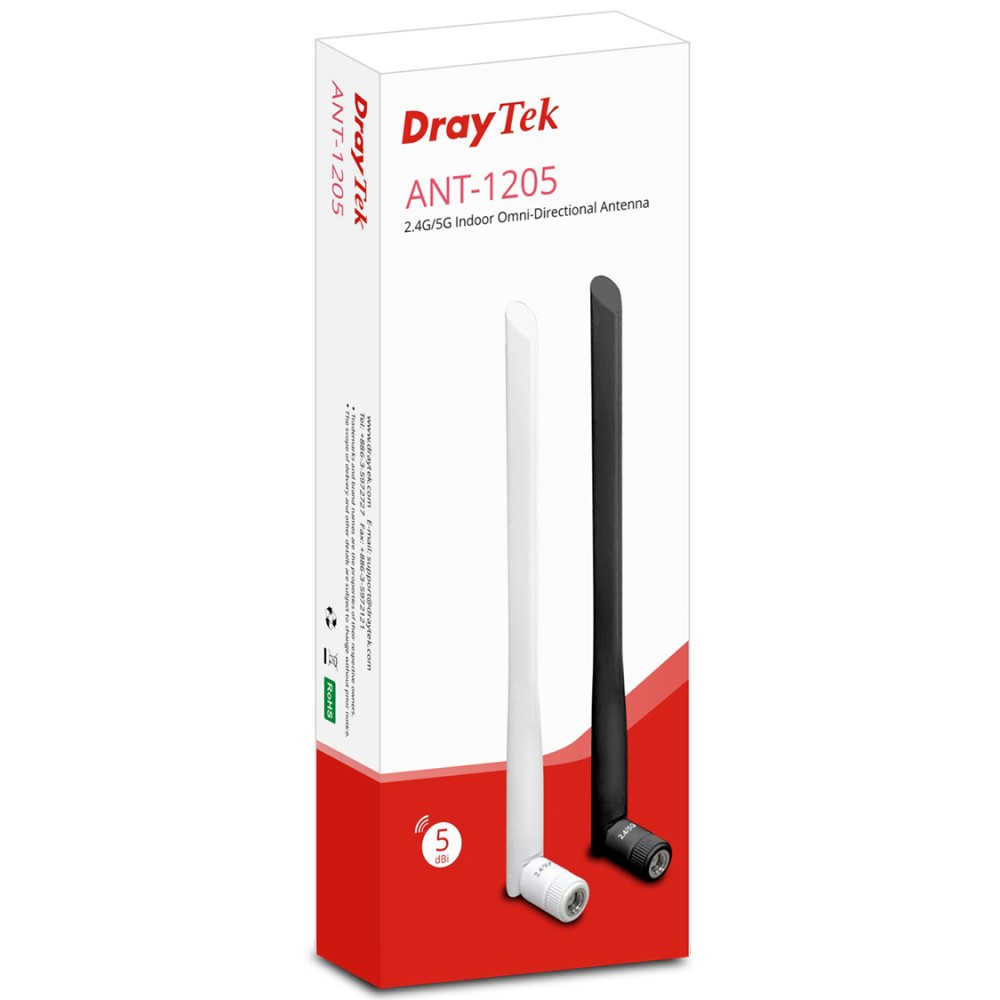

Draytek ANT-1205 Omni RP-SMA 5 dBi Antenna
£16.20 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 5 dBi maximum antenna gain for enhanced signal strength
- Dual-band 2.4 GHz and 5 GHz frequency support
- Compatible with IEEE 802.11a/b/g/n/ac/ax networking standards
- Omni-directional antenna with 360° horizontal beam width
- RP-SMA connector type
- Set of 2 black antennas with 198 mm height
- Suitable for all DrayTek routers and access points
Payment Methods:
You may also like
Hama Basic Indoor TV Antenna for DAB/DAB+/UKW DVB-T/T2, Coaxial, 1.45m Cable, Black
In stock
Draytek ANT-1205 | Omni-Directional Dual-Band Network Antenna
The Draytek ANT-1205 network antenna Omni-directional antenna RP-SMA 5 dBi is designed to enhance wireless performance for UK networks. This antenna kit is for users of DrayTek Vigor routers who need better signal distribution. It offers a dual-band solution for both 2.4 GHz and 5 GHz frequencies. Because it is omni-directional, it radiates signal equally in all directions. This makes it ideal for general coverage in homes or offices.
Slim Technical Overview
Here are the key specifications for the Draytek ANT-1205.
| Metric | Spec. |
|---|---|
| Antenna Type | Omni-directional |
| Connector | RP-SMA |
| Frequency Band | 2.4 – 5 GHz |
| Max Gain | 5 dBi |
| Pack Size | 2 pc(s) |
| Colour | Black |
Dual-Band Frequency Support
This antenna operates across both 2.4 GHz and 5 GHz bands. It supports IEEE 802.11a/b/g/n/ac/ax standards. The 2.4 GHz band offers a wider reach. The 5 GHz band provides faster data rates with less interference. Because it covers both, it is versatile for modern Wi-Fi demands.
Omni-Directional Coverage Pattern
The antenna features a 360° horizontal beam width. This provides consistent signal spread around the unit. It is suitable for central router placement in a room. However, it does not focus energy in one specific direction. So, it is ideal for general coverage rather than long-range point-to-point links.
Gain and Signal Efficiency
The maximum gain level is 5 dBi. Specific gains are 2 dBi at 2.4 GHz and 4.5 dBi at 5 GHz. Higher gain helps improve signal strength at longer ranges. It can also boost connection stability in borderline areas. This makes it a solid upgrade over standard low-gain stock antennas.
Physical Build and Durability
The antennas stand 198 mm tall with a 1.3 cm diameter. They are finished in black to match most networking hardware. The construction supports a power handling of 1 W. This ensures reliable operation under standard router transmission loads. Linear polarization is used for signal transmission.
Box Contents
What is in the box
- 2 x DrayTek ANT-1205 Omni-Directional Antennas
- (Note: No cables or adapters are included in the pack)
Compatibility and Fit
Check before you buy
- Confirm your router has RP-SMA female connectors (the socket on the router must have a pin in the centre).
- Verify your DrayTek router supports dual-band 2.4 GHz and 5 GHz Wi-Fi.
- Ensure your router firmware is up to date for optimal antenna performance.
- Check that the physical size (198 mm height) fits your installation space.
Questions and answers
Is the Draytek ANT-1205 compatible with all DrayTek routers?
What is the main benefit of an omni-directional antenna?
Does this antenna improve 5 GHz performance?
Are these antennas directional?
What connector type do these antennas use?
The bottom line
This antenna kit is recommended for DrayTek users experiencing weak Wi-Fi coverage in multi-room environments. It suits those needing balanced dual-band performance without complex directional aiming. The omni-directional design simplifies installation for general coverage. Covered by the applicable manufacturer warranty.
| Performance | |
|---|---|
| Antenna gain level (max) | 5 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 - 5 GHz |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 30° |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Antenna gain (5 GHz) | 4.5 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Features | |
| Antenna gain level (max) | 5 dBi |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency band | 2.4 - 5 GHz |
| Antenna type | Omni-directional antenna |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 30° |
| Power handling | 1 W |
| Polarization | Linear polarization |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Product colour | Black |
| Antenna gain (5 GHz) | 4.5 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna connector type | RP-SMA |
| Technical details | |
| Antenna gain level (max) | 5 dBi |
| Frequency band | 2.4 - 5 GHz |
| Antenna type | Omni-directional antenna |
| Vertical beam width (5 GHz) | 25° |
| Vertical beam width (2.4 GHz) | 30° |
| Power handling | 1 W |
| Polarization | Linear polarization |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Antenna gain (5 GHz) | 4.5 dBi |
| Antenna gain (2.4 GHz) | 2 dBi |
| Antenna connector type | RP-SMA |
| Network | |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Height | 198 mm |
| Diameter | 1.3 cm |
| Packaging content | |
| Quantity per pack | 2 pc(s) |
| Logistics data | |
| Quantity per pack | 2 pc(s) |
| Identifiers | |
| Distributor SKUs | 253089, 000000000000253089, 68036, 1988562, NS68036 |
