TP-Link CPE710 Directional Antenna 23 dBi PoE/LAN
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- 750 MHz processor with 128 MB internal memory
- 23 dBi directional antenna with 7° vertical and 9° horizontal beam width
- 5 GHz frequency band supporting IEEE 802.11a/ac/n standards
- IP65 rated plastic housing for outdoor use
- Power over Ethernet (PoE) with 24 V input
- Pharos Control centralised management software included
- Operating temperature range -40 to 70 °C
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like

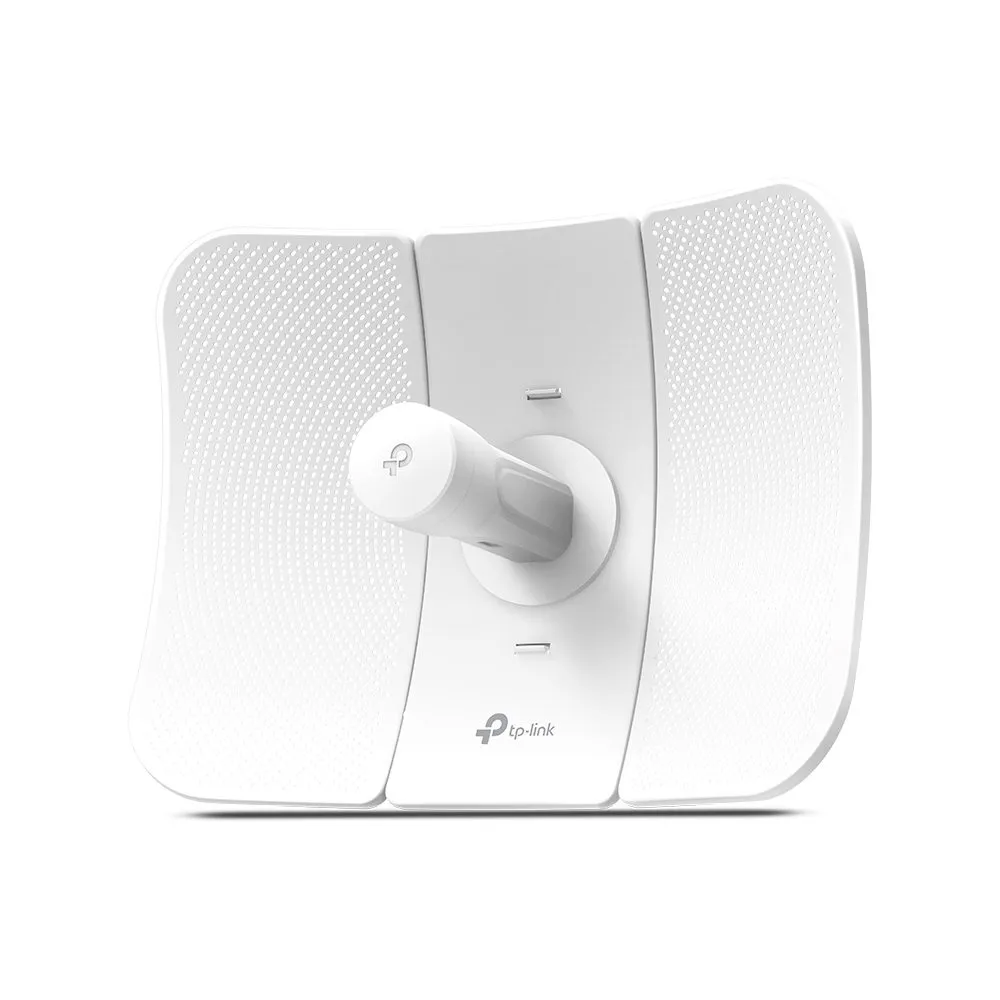

TP-Link CPE710 | 23 dBi Outdoor Directional Antenna
The TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi delivers professional-grade wireless performance for long-range outdoor networking. With its 23 dBi high-gain directional Cassegrain antenna and 867 Mbps throughput, this 5 GHz CPE is engineered for stable point-to-point links and wireless backhaul applications where precision and reliability are essential.
Slim Specs Table
| Metric | Spec |
|---|---|
| Frequency Band | 5.15 – 5.85 GHz |
| Antenna Gain | 23 dBi |
| Beam Width (H/V) | 9° / 7° |
| Max Speed | 867 Mbps |
| Ingress Protection | IP65 |
Long-Range Performance with Precision Beam Control
The 23 dBi directional antenna focuses wireless energy into a narrow 9° horizontal and 7° vertical beam, dramatically reducing interference from surrounding signals. This tight beamwidth improves link stability and reduces latency, making the CPE710 ideal for bridging buildings or connecting remote sites where other antennas struggle with signal scatter.
Blazing 867 Mbps Speed for Modern Networks
Supporting 802.11ac with 256 QAM modulation and 80 MHz channel bandwidth, the CPE710 achieves speeds up to 867 Mbps—three times faster than 802.11n. This high throughput ensures smooth data transfer for video surveillance, VoIP, and cloud applications across extended distances without bottlenecks.
Weatherproof Design for Year-Round Outdoor Use
Built with IP65-rated housing and operating in temperatures from -40 °C to 70 °C, the CPE710 withstands harsh UK weather conditions. The robust plastic enclosure and sealed construction protect internal components from dust, rain, and temperature extremes, ensuring continuous outdoor operation.
Pharos Control Centralised Management
The included Pharos Control software enables centralised management of multiple CPE devices from a single PC. Functions include device discovery, firmware upgrades, status monitoring, and network maintenance. An intuitive web-based interface (PharOS) provides professionals with detailed configuration options for large-scale deployments.
Box contents
- TP-Link CPE710 directional antenna
- Power over Ethernet (PoE) injector
- Mounting kit
- AC power cable
- Quick installation guide
Check before you buy
- Confirm the 5 GHz frequency band is permitted and clear in your deployment area
- Verify your existing networking equipment supports 802.11a/n/ac standards
- Ensure you have a 24 V PoE injector or compatible switch
- Check mounting location has clear line-of-sight for directional antenna alignment
Frequently Asked Questions
Q: What is the maximum wireless range of the CPE710?
A: Range depends on environmental conditions and line-of-sight, but the 23 dBi gain supports several kilometres in clear conditions.
Q: Does the CPE710 require a separate power adapter?
A: No, it uses Power over Ethernet (PoE) with the included 24 V injector.
Q: Can I manage multiple CPE710 devices together?
A: Yes, using the Pharos Control centralised management software.
Q: Is the CPE710 suitable for indoor use?
A: It is designed for outdoor deployment due to its directional antenna and weatherproof housing.
Q: What mounting options are included?
A: A mounting kit is provided for pole or wall installation.
The Consultant’s verdict & warranty
The TP-Link CPE710 network antenna Directional antenna PoE/LAN 23 dBi is a specialist outdoor CPE for professionals needing precise, long-range wireless links. Its high-gain directional antenna, robust weatherproof design, and centralised management make it ideal for point-to-point connections, wireless backhaul, and remote site networking. Covered by the standard Manufacturer Warranty.
| Weight | 1.7 kg |
|---|---|
| Built-in processor | Yes |
| Processor frequency | 750 MHz |
| Internal memory | 128 MB |
| Flash memory | 16 MB |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Housing material | Plastic |
| International Protection IP code | IP65 |
| LED indicators | Power |
| Power source type | PoE |
| Input voltage | 24 V |
| Certification | CE, FCC, RoHS, IC |
| Operating temperature T-T | -40 – 70 °C |
| Storage temperature T-T | -40 – 70 °C |
| Storage relative humidity H-H | 5 – 95% |
| Operating relative humidity H-H | 10 – 90% |
| Width | 366 mm |
| Depth | 280 mm |
| Height | 207 mm |
| Antenna gain level max | 23 dBi |
| Frequency band | 5.15 – 5.85 GHz |
| Antenna type | Directional antenna |
| Vertical beam width | 7° |
| Horizontal beam width | 9° |
| Gain | 23 dBi |
| Antenna connector type | PoE/LAN |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11n |
| Product colour | White |
| Package type | Box |
| Cables included | AC |
| Export Control Classification Number ECCN | EAR99 |
| Harmonized System HS code | 85176990 |
