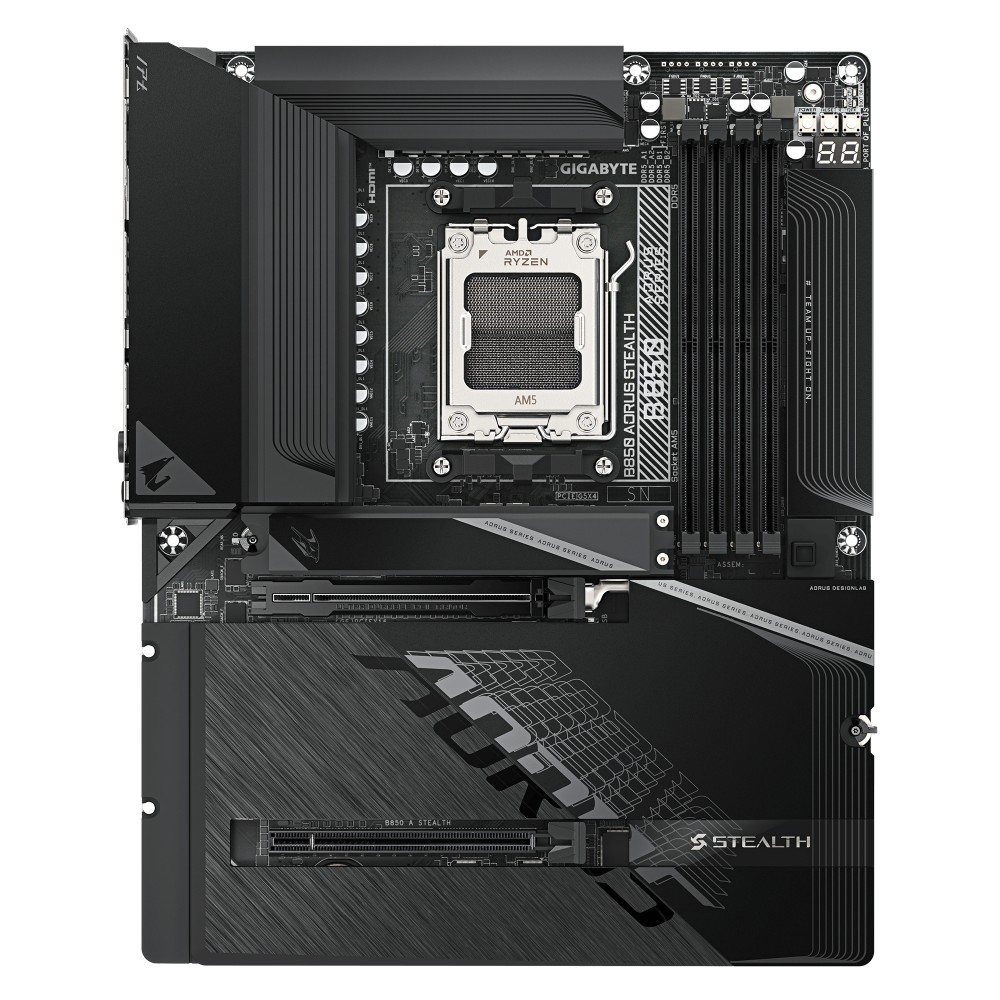

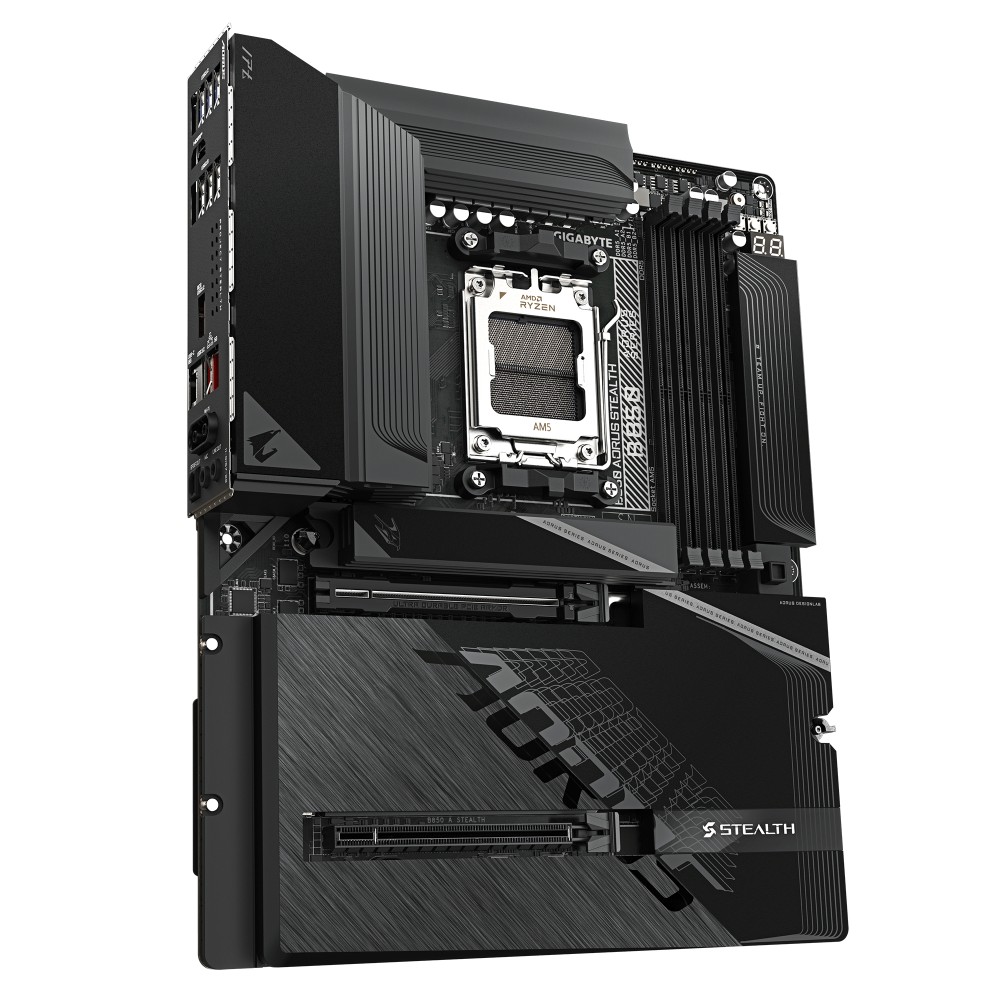

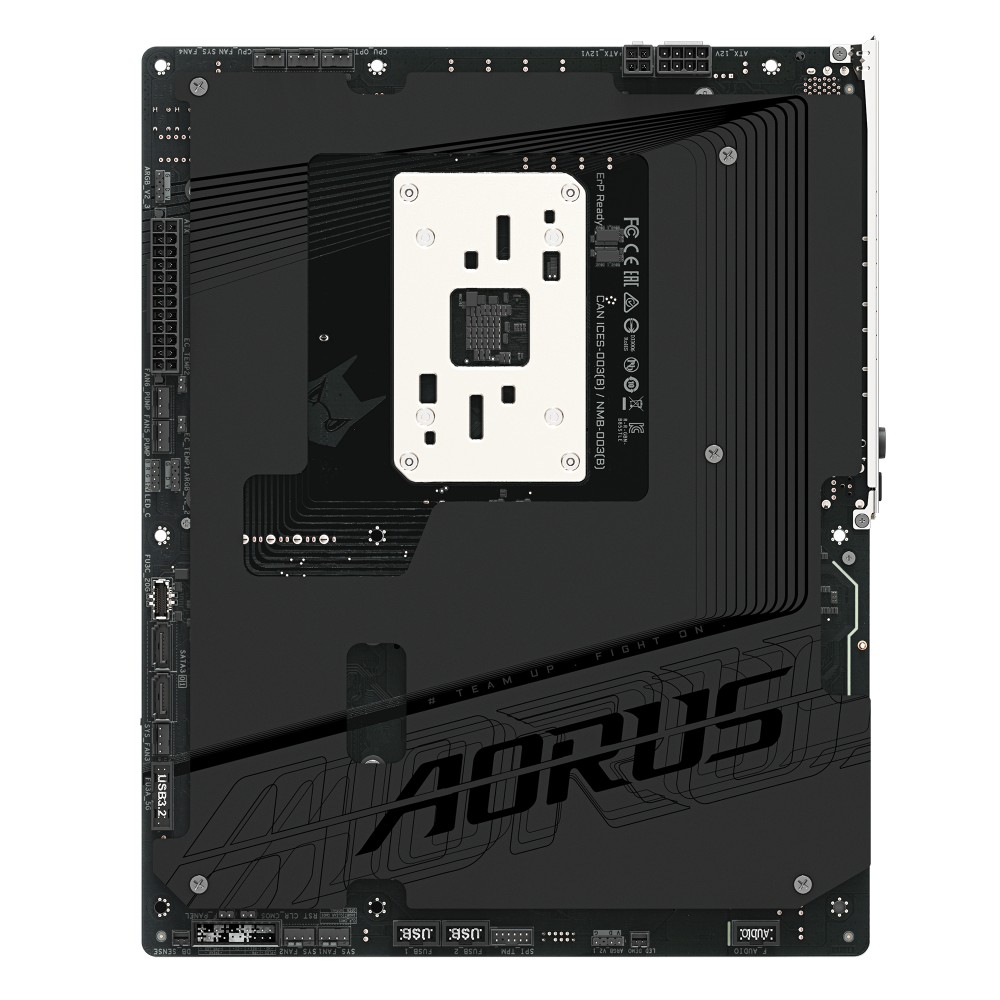

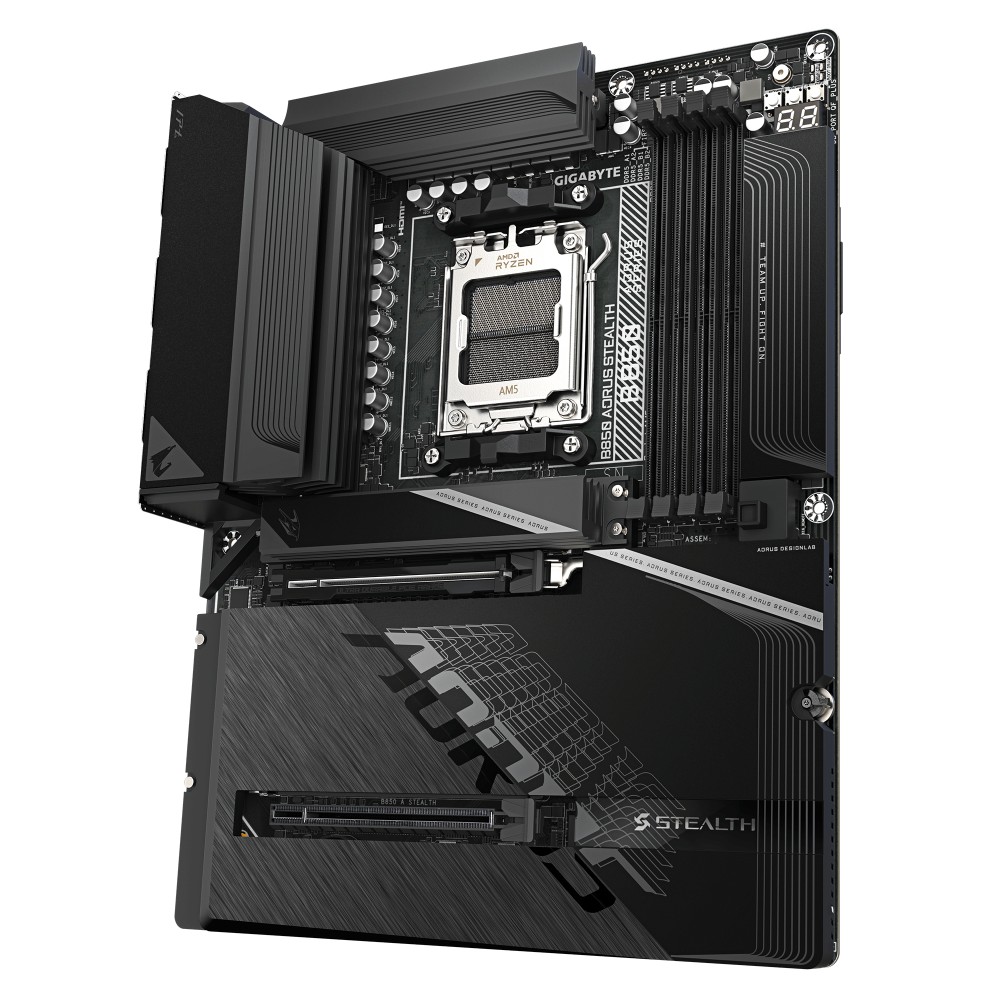

GIGABYTE B850 AORUS STEALTH Motherboard – AM5, B850, DDR5, Wi-Fi 7
£281.25 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD B850 chipset with Socket AM5 for Ryzen 7000/8000/9000 Series CPUs
- DDR5 memory support up to 8200 MHz (OC) and 256 GB max capacity
- Four M.2 slots (two PCIe 5.0, two PCIe 4.0) and two SATA III connectors with RAID support
- Integrated Wi-Fi 7 and 5 Gigabit Ethernet for high-speed networking
- Rich connectivity with multiple USB 2.0, USB 3.2 Gen 1, USB 3.2 Gen 2, and USB 3.2 Gen 2×2 ports
- 7.1 channel Realtek ALC1220-VB audio and HDMI 2.1 output
- ATX form factor with passive cooling and 3-year warranty
Payment Methods:
You may also like
GIGABYTE AORUS STEALTH – Next-Gen Performance Foundation
The GIGABYTE B850 AORUS STEALTH Motherboard – AMD Ryzen 9000 Series CPUs, 14+2+2 Phases Digital VRM, up to 8200MHz DDR5 (OC), 2xPCIe 5.0 + 2xPCIe 4.0 M.2, WIFI 7, 5 GbE LAN, USB 3.2… offers a robust platform for high-performance builds. This board is ideal for serious gamers and content creators. It provides cutting-edge connectivity and power delivery for the latest AMD Ryzen processors.
Core Hardware Details
| Metric | Spec. |
|---|---|
| Socket | AM5 |
| Memory Type | DDR5 (up to 8200MHz OC) |
| M.2 Slots | 4 (2x PCIe 5.0, 2x PCIe 4.0) |
| LAN | 5 Gigabit Ethernet |
| Wireless | Wi-Fi 7, Bluetooth 5.4 |
| Form Factor | ATX |
Optimised Power Delivery
We have equipped this motherboard with a 14+2+2 phases digital VRM. This robust power design ensures stable and efficient power to your CPU. It is crucial for demanding tasks and overclocking. You will experience consistent performance under heavy loads.
Ultra-Fast Storage Options
The GIGABYTE B850 AORUS STEALTH features four M.2 slots. Two slots support PCIe 5.0 for the fastest SSDs. The other two offer PCIe 4.0 speeds. This diverse storage capability provides excellent flexibility. You can build a system with incredible read and write speeds.
Advanced Network Connectivity
Stay connected with integrated Wi-Fi 7 and 5 Gigabit Ethernet. Wi-Fi 7 offers the latest wireless standard for minimal latency. The 5 GbE LAN port provides exceptionally fast wired connections. Both options ensure smooth online gaming and rapid data transfers.
Enhanced Memory Support
This motherboard supports DDR5 memory at speeds up to 8200MHz (OC). Four DIMM slots allow for a maximum of 256 GB RAM. This high-speed memory support boosts overall system responsiveness. It is perfect for multitasking and memory-intensive applications.
Comprehensive Cooling Control
Manage your system’s thermals effectively. Six chassis fan connectors are available. Three water pump connectors provide liquid cooling support. Two temperature sensor headers and one noise detection header complete the suite. This keeps your system cool and quiet.

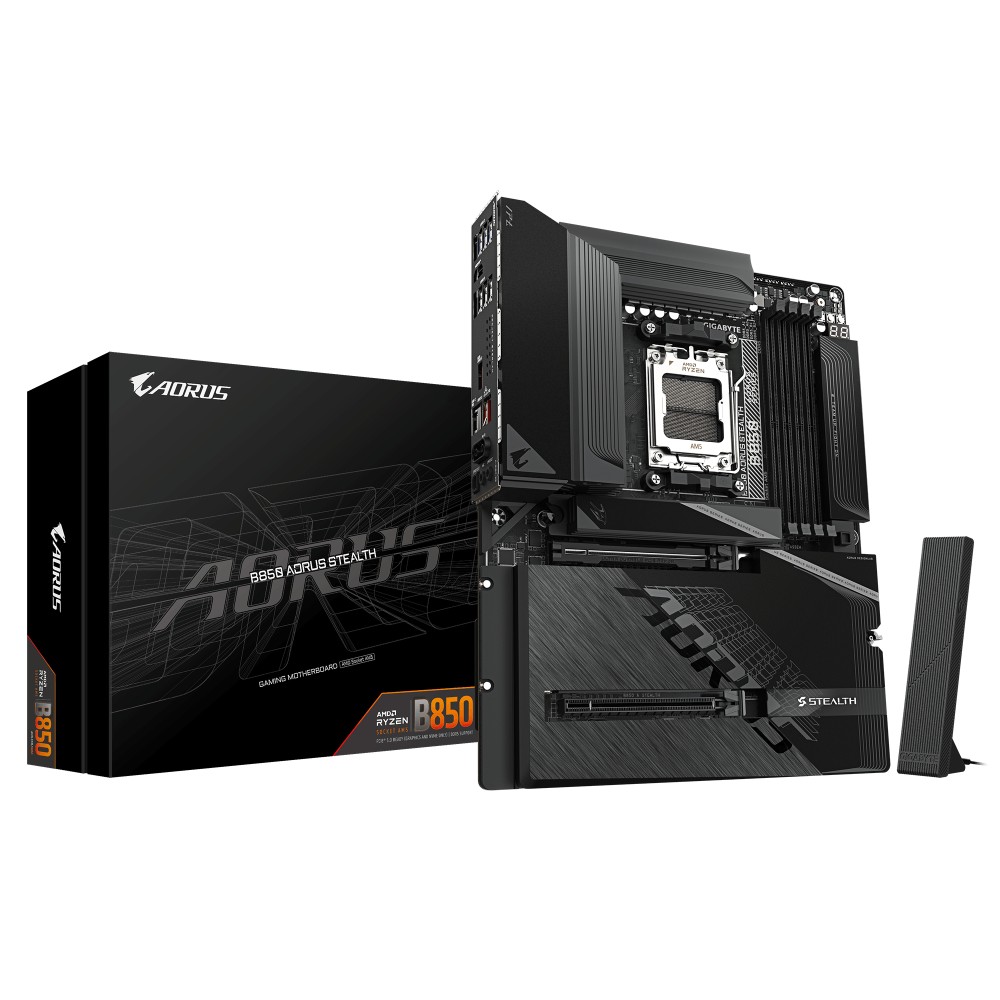

What you receive
- GIGABYTE B850 AORUS STEALTH Motherboard
- Antenna
- Screws
- Norton® Internet Security (OEM version)
- Batteries
Before you order
- Confirm your chosen CPU uses the AM5 socket.
- Confirm your memory is DDR5.
- Confirm your PC case supports an ATX motherboard.
- Confirm your power supply includes an 8-pin EPS connector.
Frequently Asked Questions
Q: Which AMD Ryzen series CPUs are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 7000, 8000, and 9000 Series CPUs.
Q: What is the maximum supported memory speed?
A: It supports DDR5 memory speeds up to 8200MHz when overclocked.
Q: Does this motherboard have Wi-Fi?
A: Yes, it features the latest Wi-Fi 7 (802.11be) standard.
Q: How many M.2 slots are available?
A: There are four M.2 slots, with two supporting PCIe 5.0.
Q: What type of LAN port does it have?
A: It includes a fast 5 Gigabit Ethernet LAN port.
The final word
The GIGABYTE B850 AORUS STEALTH Motherboard is an excellent choice for a high-end AMD build. Its robust power delivery, next-gen storage, and advanced networking make it future-ready. This board suits users demanding top-tier performance and reliability. It comes with a 3-year warranty for peace of mind.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 4 |
| Front panel connector | Yes |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 2 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 3 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Cooling type | Passive |
| Motherboard form factor | ATX |
| Component for | PC |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| RAID levels | 0, 1, 5, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 8200,8000,7950,7900,7800,7600,7400,7200,7000,6800,6600,6400,6200,6000,5800,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 2 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 4.0, PCI Express 5.0, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| HDCP version | 2.3 |

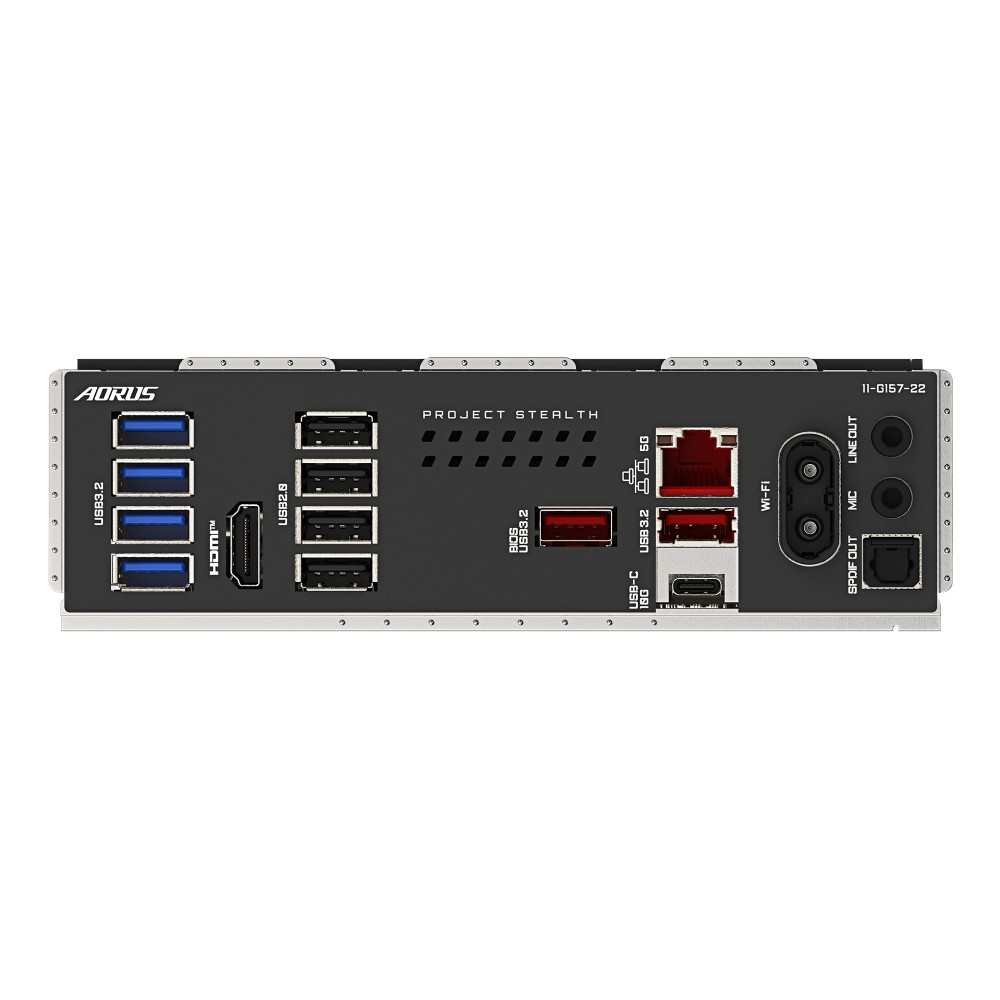

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 1 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Digital audio optical out | 1 |
| Line-in | Yes |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Ethernet interface type | 5 Gigabit Ethernet, 2.5 Gigabit Ethernet, Gigabit Ethernet, Fast Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | Realtek RTL8922AE |
| Features | |
| Power source type | ATX |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD B850 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 4 |
| PCI Express x16 (Gen 4.x) slots | 1 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 512 Mbit |
| ACPI version | 5.0 |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Power | |
| Power source type | ATX |
| Video | |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.09 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.09 kg |
| Weight | 3.61 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 340 mm |
| Package depth | 310 mm |
| Package height | 92 mm |
| Package weight | 4.09 kg |
| Weight | 3.61 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-B850AOS, 128335, B850 A STEALTH |
| Additional EANs | 0889523055953 |
