GIGABYTE H610M S2H V3 DDR4 Motherboard
More Ways to Pay
-
Buy now, pay later with Klarna
-
Pay in 3 interest-free payments with PayPal
About This Item
- Intel H610 Express chipset
- LGA 1700 socket for Intel Core 14th CPUs
- 4+1+1 Hybrid Digital VRM
- 2 DIMM slots supporting up to 64GB DDR4
- 1x PCIe 3.0 M.2 slot
- 4 SATA III connectors
- micro ATX form factor
1-3 Days
Delivery on orders over £100
£5.80
Free
Payment Methods:
You may also like
GIGABYTE H610M S2H V3 | Intel Micro ATX Motherboard

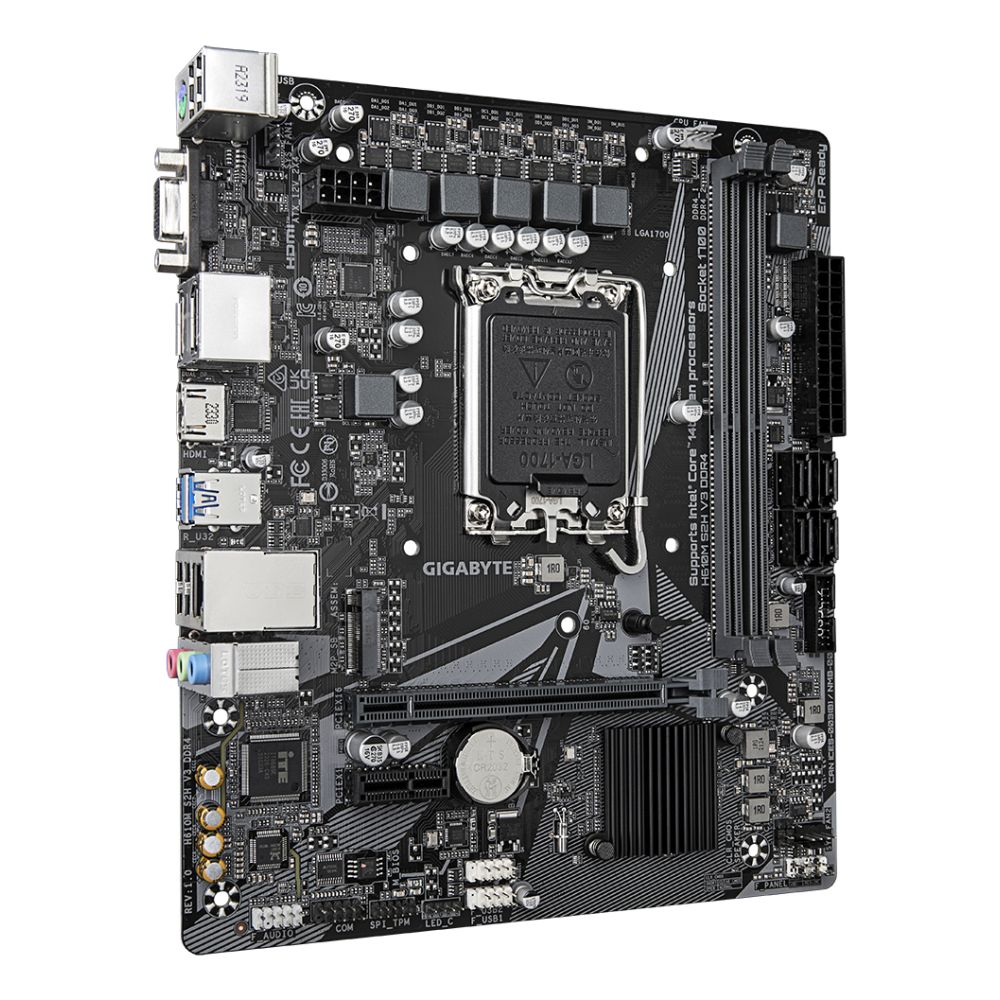

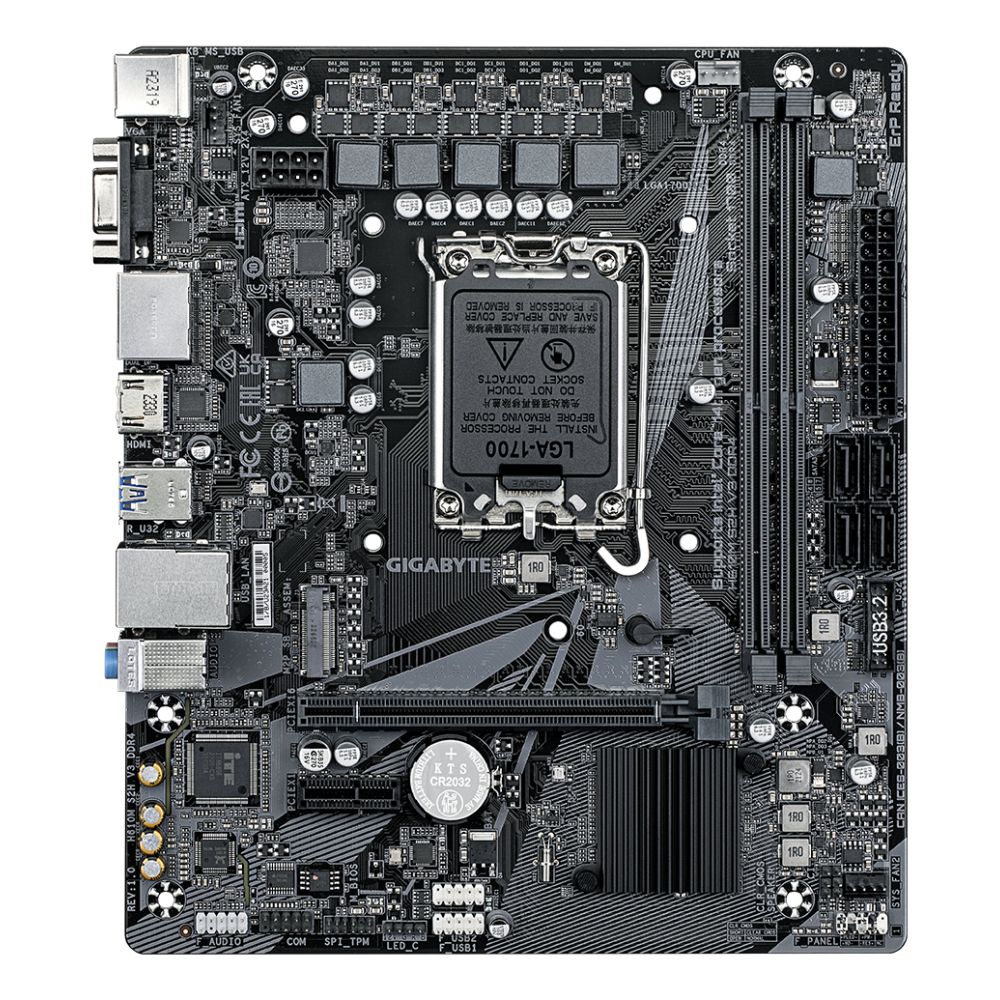

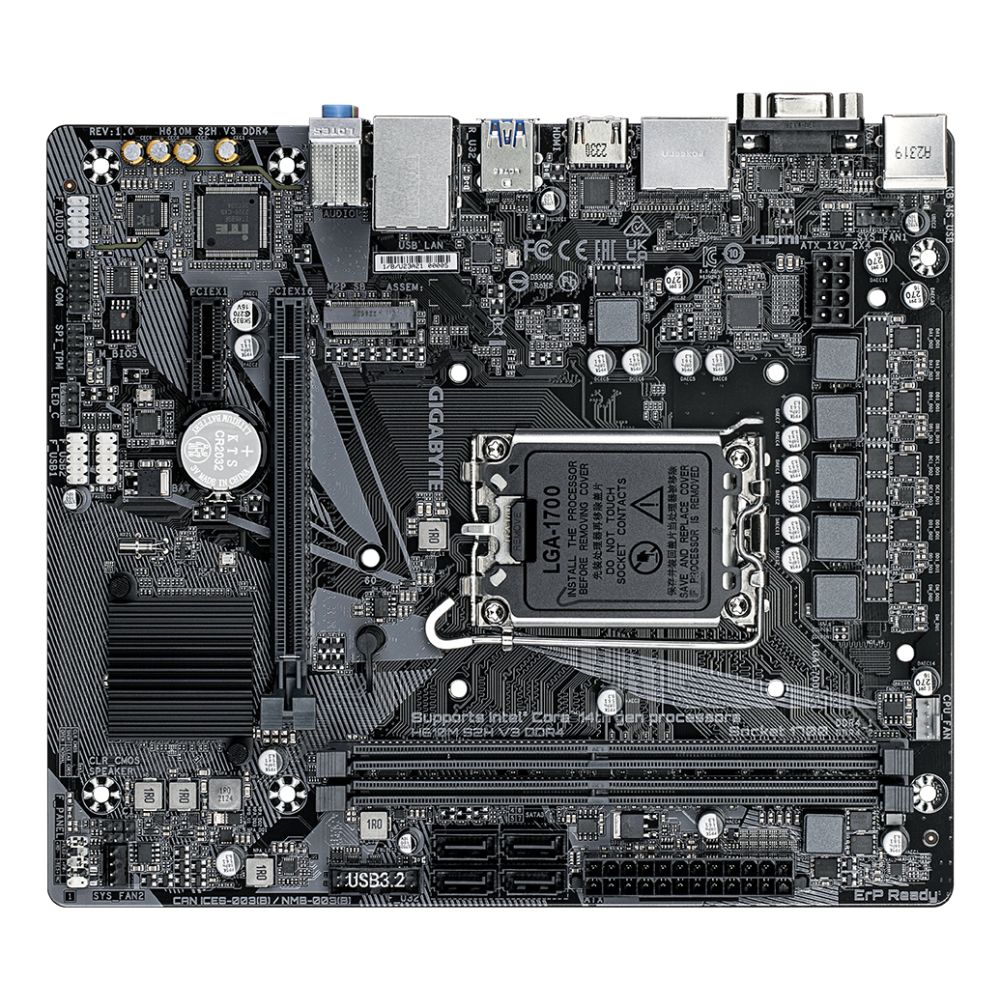

The GIGABYTE H610M S2H V3 DDR4 Motherboard supports Intel Core 14th CPUs, featuring a 4+1+1 Hybrid Digital VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, GbE LAN, and USB 3.2 Gen 1 connectivity. This micro ATX motherboard delivers reliable performance for everyday computing, home office setups, and light content creation.
Key Specifications
| Metric | Spec |
|---|---|
| Processor Support | Intel Core 14th Gen (LGA 1700) |
| Memory Support | DDR4, up to 64GB @ 3200MHz |
| Form Factor | Micro ATX |
| Storage | 1x M.2 NVMe, 4x SATA III |
| Network | Gigabit Ethernet |
| Expansion | 1x PCIe 3.0 x16, 1x PCIe 3.0 x1 |
Performance That Scales With Your Needs
The 4+1+1 Hybrid Digital VRM delivers stable power delivery to Intel’s latest processors, ensuring consistent performance during everyday tasks and light multitasking. Whether you’re running office applications, browsing, or streaming media, this motherboard maintains system stability without unnecessary complexity.
Future-Ready Memory and Storage
With support for up to 64GB of DDR4 memory at 3200MHz, this board handles modern applications with ease. The dual-channel architecture optimises memory bandwidth for better system responsiveness. One high-speed M.2 slot supports NVMe SSDs for rapid boot times and quick application loading, while four SATA III ports accommodate additional storage devices for your growing media library.
Connectivity For Modern Workflows

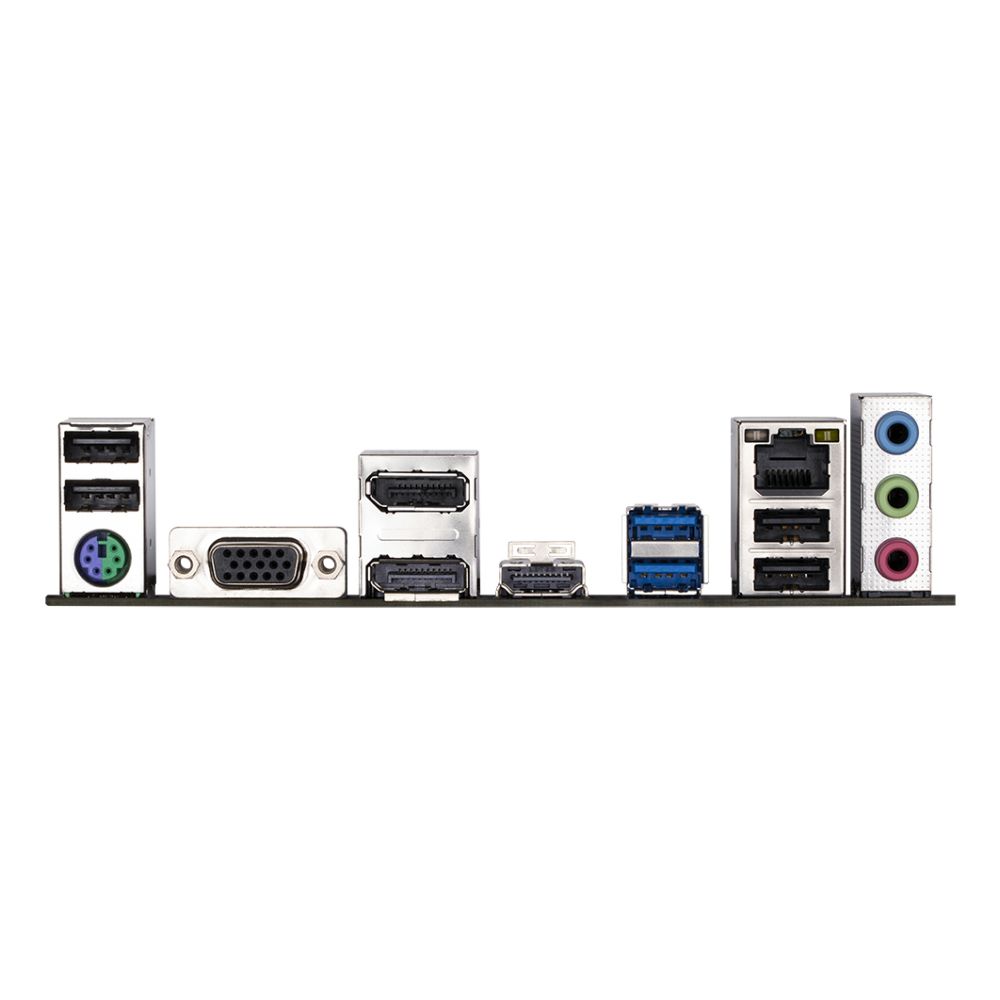

The H610M S2H V3 provides comprehensive I/O options including HDMI 2.1 with 4K support, DisplayPort 1.2, USB 3.2 Gen 1 ports, and USB 2.0 connectivity. The Gigabit Ethernet ensures reliable wired internet access, while the 7.1 channel HD audio delivers clear sound for conference calls and entertainment.
Smart System Monitoring
Built-in PC health monitoring tracks fan speeds, temperatures, and voltages, helping you maintain optimal system conditions. The motherboard supports both air and water cooling solutions, giving you flexibility in thermal management. UEFI AMI BIOS with Clear CMOS jumper simplifies system setup and troubleshooting.
Box Contents
- GIGABYTE H610M S2H V3 Motherboard
- I/O Shield
- SATA Cables (quantity not specified)
- User Manual
- Driver Software (bundled software: Norton Internet Security OEM version, LAN bandwidth management software)
Check before you buy
- Confirm your Intel Core 14th Gen CPU is compatible with LGA 1700 socket
- Verify your case supports micro ATX form factor (9.6″ x 9.6″)
- Check if you need Wi-Fi connectivity (this model has no wireless)
- Ensure your power supply has the required 24-pin ATX and 8-pin EPS connectors
Frequently Asked Questions
Q: Does this motherboard support DDR5 memory?
A: No, this model supports DDR4 memory only, up to 64GB at 3200MHz.
Q: Can I use this with Intel 12th or 13th Gen processors?
A: Yes, it supports Intel Core processors from 12th to 14th generation on LGA 1700 socket.
Q: How many graphics cards can I install?
A: One full-size graphics card via the PCIe 3.0 x16 slot is supported.
Q: What type of M.2 SSDs are compatible?
A: One M.2 NVMe SSD up to 2280 key size, PCIe 3.0 generation.
Q: Does it come with built-in Wi-Fi?
A: No, this motherboard does not include Wi-Fi; it has Gigabit Ethernet only.
The Consultant’s Verdict & Warranty
The GIGABYTE H610M S2H V3 offers excellent value for users building systems with Intel’s latest processors who don’t require cutting-edge features like Wi-Fi 6 or PCIe 5.0. Its solid power delivery, memory support, and storage options make it ideal for home office setups, family computers, and budget-conscious builds. Covered by the standard Manufacturer Warranty.
| Weight | 0.8 kg |
|---|---|
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| Chassis intrusion connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Number of CPU fan connectors | 1 |
| Number of EPS power connectors 8-pin | 1 |
| Number of RGB LED pin headers | 1 |
| Serial port headers | 1 |
| Total number of SATA connectors | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 3200 MHz |
| ECC сompatibility | ECC & Non-ECC |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| Number of storage drives supported | 5 |
| Parallel processing technology support | Not supported |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 2 |
| Line-in | Yes |
| Ethernet LAN | Yes |
| Wi-Fi | No |
| Ethernet interface type | Gigabit Ethernet |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel H610 Express |
| Supported processor sockets | LGA 1700 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Motherboard form factor | micro ATX |
| Component for | PC |
| Product colour | Black |
| Number of M.2 M slots | 1 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| 1st M.2 largest key size | 2280 |
| 1st M.2 highest PCI Express generation | 3.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 128 Mbit |
| ACPI version | 5.0 |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2304 pixels |
| HDCP | Yes |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Country of origin | China |
| Width | 223 mm |
| Depth | 193 mm |
| Bundled software | Norton Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Height | 35 mm |
| Package width | 265 mm |
| Package depth | 235 mm |
| Package height | 52 mm |
| Package weight | 774 g |
