GIGABYTE B650M D3HP Motherboard – Ryzen 9000, DDR5, PCIe 4.0 M.2, 2.5GbE LAN

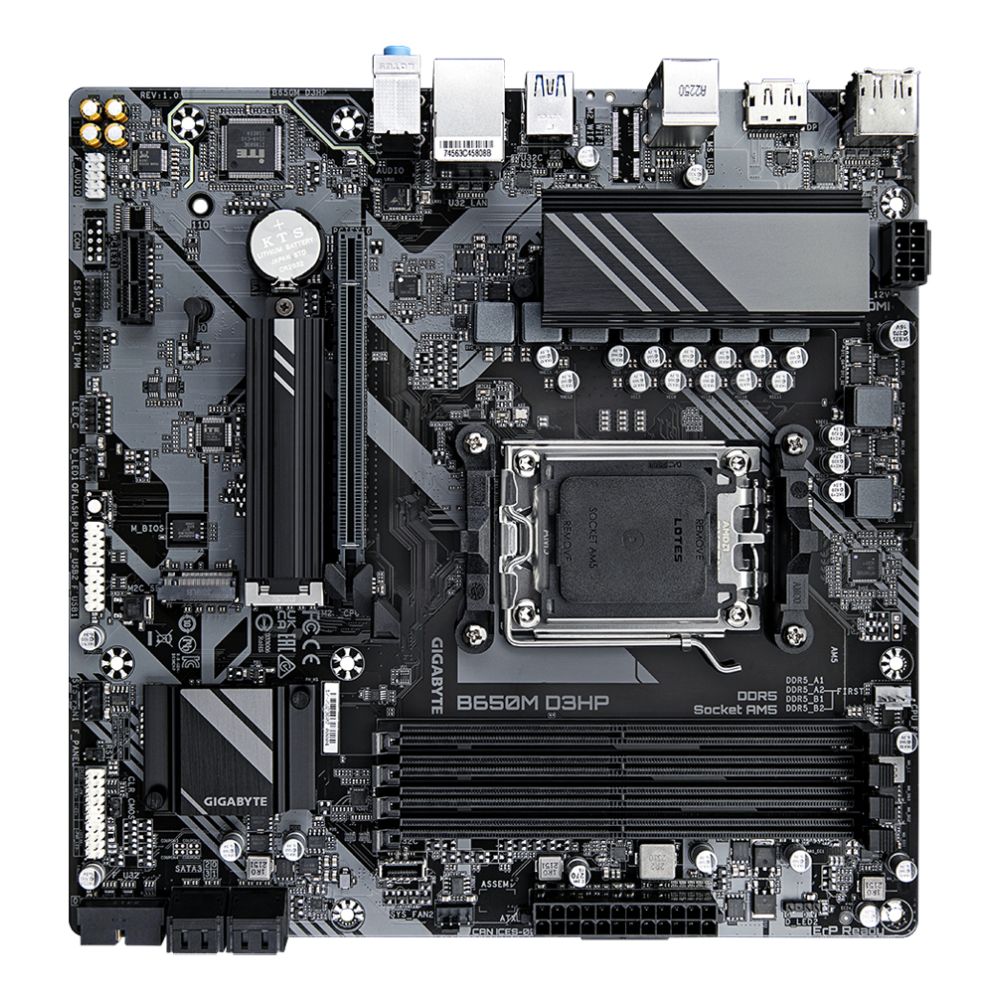

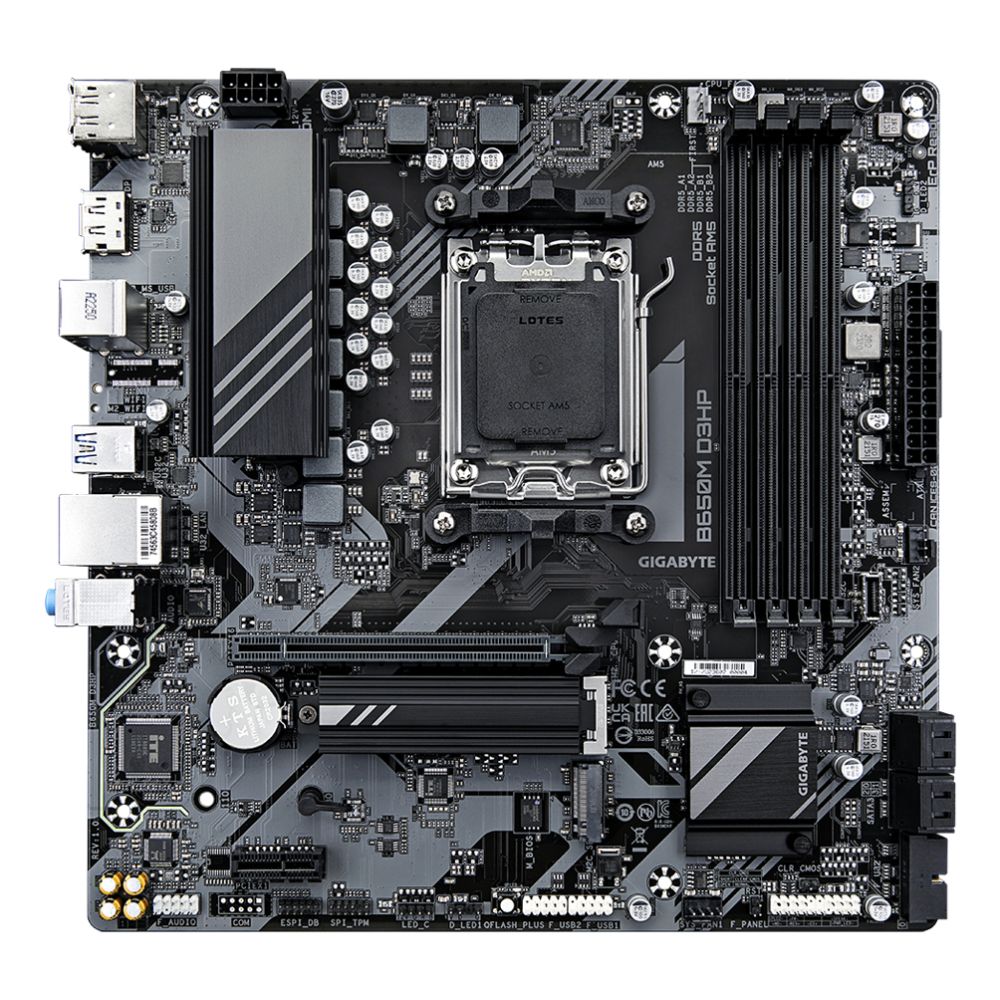

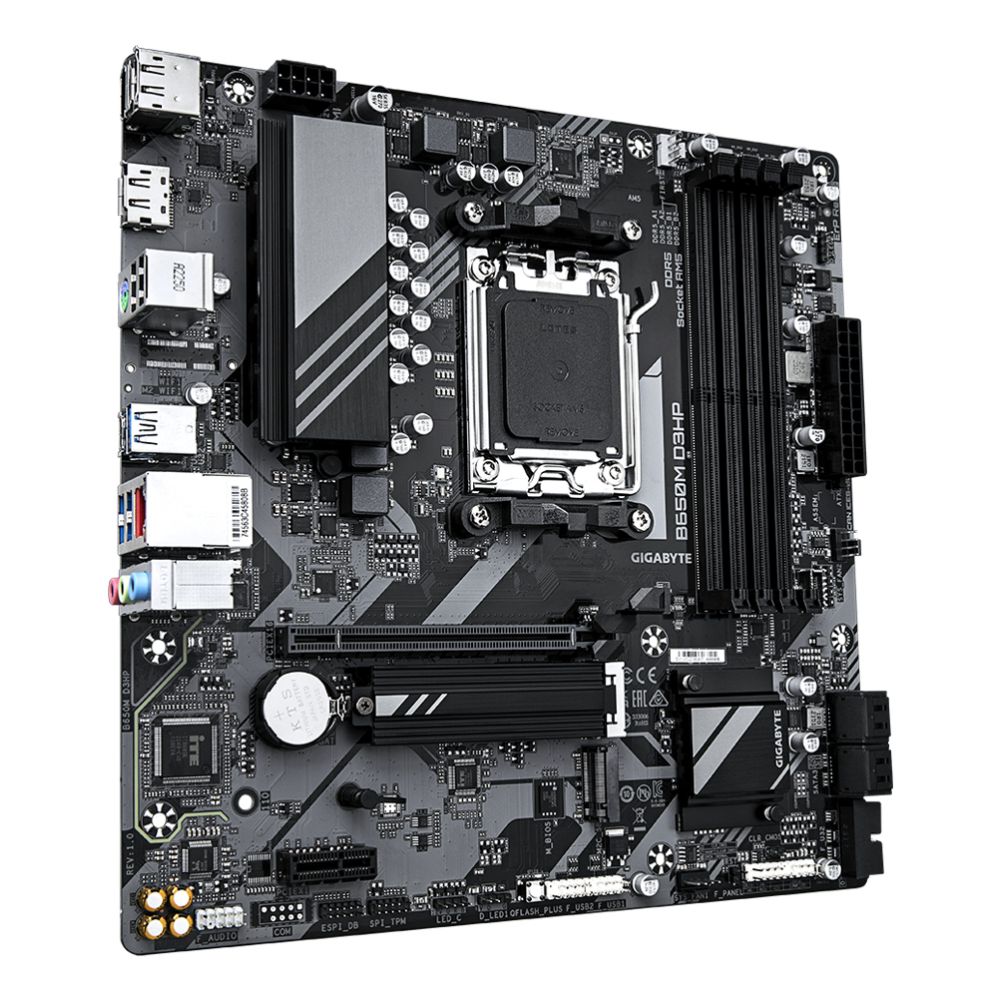

GIGABYTE B650M D3HP | Micro-ATX AMD Ryzen 9000 Motherboard

The GIGABYTE B650M D3HP is a micro-ATX motherboard built for AMD Ryzen 7000, 8000, and 9000 series CPUs, delivering robust performance in a compact form factor. With a 5+2+2 phase VRM, support for DDR5 memory up to 7600MHz (OC), and dual PCIe 4.0 M.2 slots, it’s ideal for compact gaming rigs or productivity builds seeking high-speed storage and memory.

Built for Ryzen 9000 Series Performance

Engineered specifically for AMD’s latest Ryzen 9000 CPUs, the B650M D3HP’s 5+2+2 phase VRM delivers clean, stable power delivery even under heavy workloads. The robust power design ensures sustained performance during gaming, rendering, or multitasking, making it a reliable choice for enthusiasts seeking cutting-edge Ryzen performance in a smaller chassis.

Dual PCIe 4.0 M.2 Slots for High-Speed Storage

With two PCIe 4.0 M.2 slots, this motherboard supports the fastest NVMe SSDs on the market, offering blistering read/write speeds for games, creative projects, and large file transfers. Whether you’re running a high-speed boot drive and a secondary storage drive, or configuring RAID 0 for maximum throughput, these slots provide the bandwidth needed for demanding applications.

DDR5 Memory Support up to 7600MHz (OC)

The B650M D3HP supports DDR5 memory modules up to 7600MHz when overclocked, providing exceptional bandwidth for memory-intensive tasks like 3D rendering, video editing, and high-refresh gaming. With four DIMM slots supporting up to 256GB total, you have the flexibility to scale memory capacity and speed as your needs evolve.

Comprehensive Connectivity Options

Despite its compact size, this motherboard offers a full suite of connectivity options. It includes three USB 3.2 Gen 1 Type-A ports, one USB 3.2 Gen 1 Type-C port, two USB 2.0 ports, and a 2.5GbE LAN port for fast, reliable networking. The inclusion of HDMI 2.1 and DisplayPort 1.4 outputs supports high-resolution, high-refresh displays, making it suitable for both work and play.

Enhanced Audio and Cooling Features

Equipped with a Realtek ALC897 audio codec, the B650M D3HP delivers 7.1 channel HD audio for immersive sound quality. Multiple fan headers—including CPU, chassis, and pump headers—allow for precise cooling control, ensuring your system stays cool and quiet under load. The motherboard also includes RGB LED headers for customisable lighting to match your build’s aesthetic.

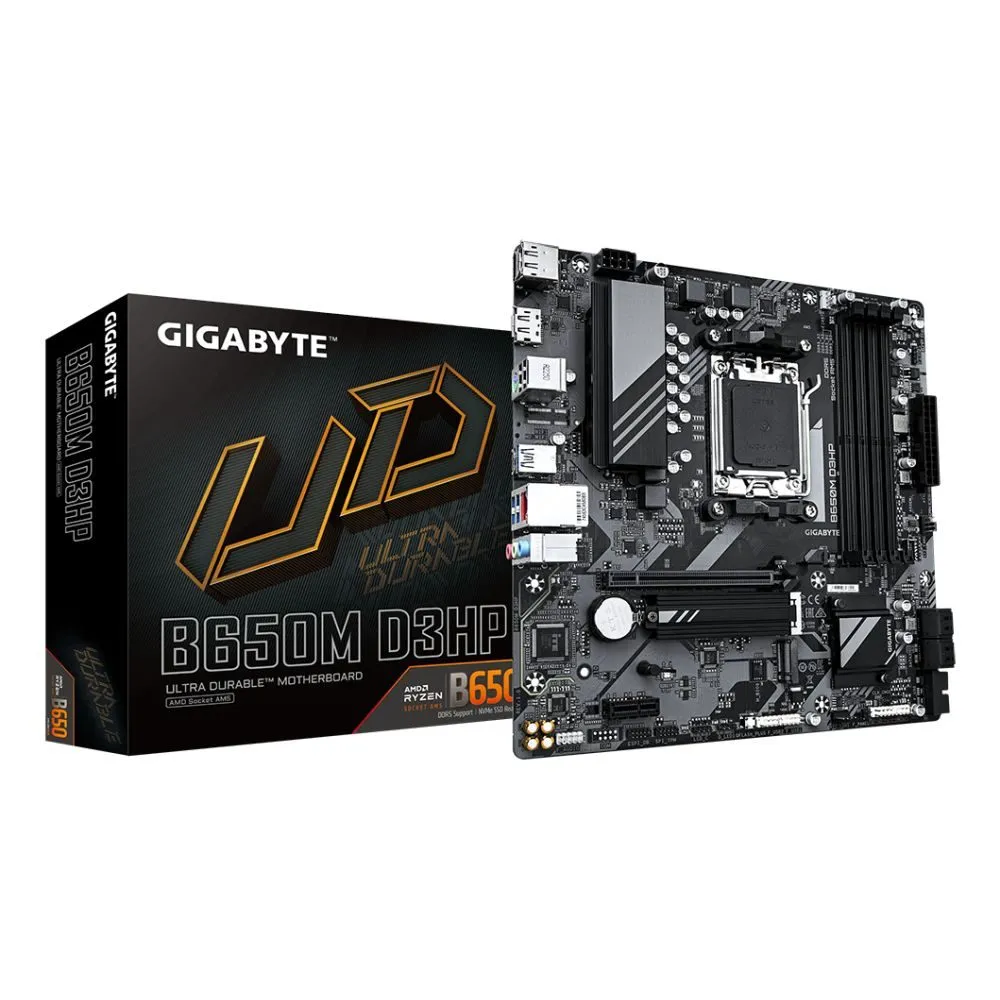

What is in the box

• GIGABYTE B650M D3HP motherboard
• I/O shield
• SATA cables
• M.2 screws
• User manual
• Warranty guide

Check before you buy

• Confirm your CPU is compatible with the AM5 socket and supports DDR5 memory.
• Verify your case supports micro-ATX motherboards (244mm x 244mm).
• Ensure your power supply has the required 24-pin ATX and 8-pin EPS connectors.
• Check if your storage drives are M.2 or SATA III compatible.

Questions and answers

Q: Does this motherboard support Wi-Fi?

A: No, the GIGABYTE B650M D3HP does not include built-in Wi-Fi. You will need a separate Wi-Fi adapter if wireless connectivity is required.

Q: What is the maximum RAM capacity?

A: The motherboard supports up to 256GB of DDR5 memory across four DIMM slots, with a maximum of 64GB per slot.

Q: Can I use this motherboard with older Ryzen CPUs?

A: No, the B650M D3HP is designed exclusively for AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket.

Q: How many PCIe slots are available?

A: The motherboard features one PCIe x16 Gen 4 slot for graphics cards and one PCIe x1 Gen 3 slot for additional expansion cards.

Q: Is the BIOS updated for Ryzen 9000 out of the box?

A: It is recommended to check the manufacturer’s website for the latest BIOS version to ensure full compatibility with Ryzen 9000 series CPUs.

The Consultant’s verdict & warranty

The GIGABYTE B650M D3HP is an excellent choice for users building a compact yet powerful system around AMD’s latest Ryzen 9000 series processors. Its robust VRM, dual PCIe 4.0 M.2 slots, and DDR5 memory support make it well-suited for gaming, content creation, and multitasking. Covered by the applicable manufacturer warranty.
