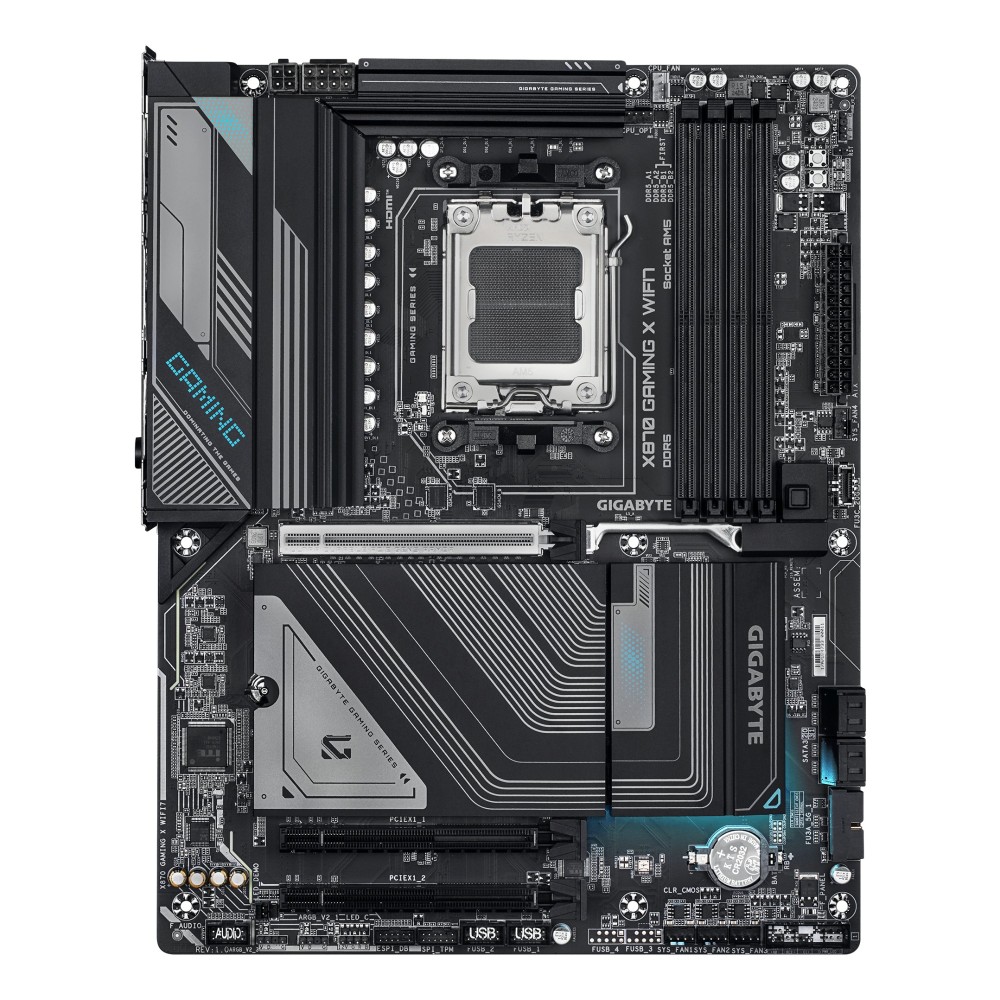

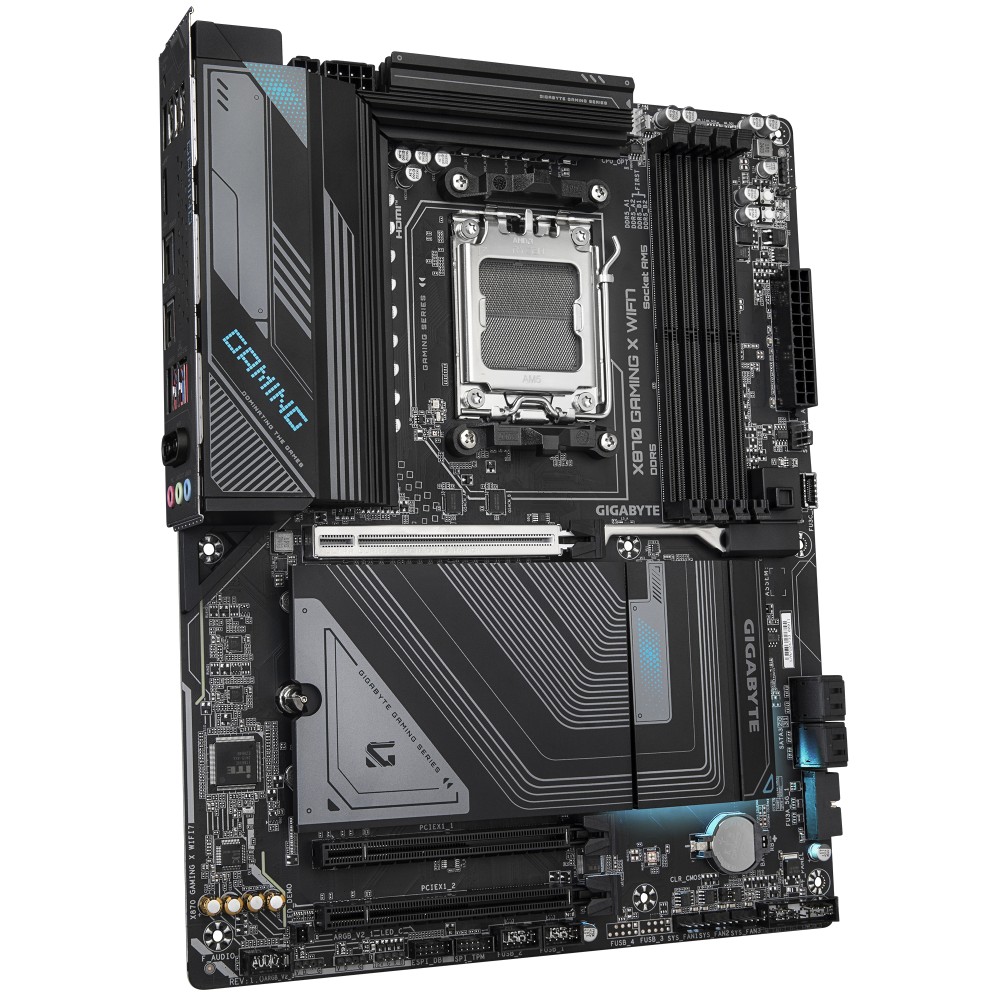

Gigabyte X870 GAMING X WIFI7 Motherboard – AM5, DDR5, Wi-Fi 7, 2.5GbE LAN
£232.68 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- AMD X870 chipset with Socket AM5 support for AMD Ryzen 7000/8000/9000 Series CPUs
- DDR5 memory support up to 8200 MHz (OC) with 4 DIMM slots for up to 256 GB
- Integrated Wi-Fi 7 (802.11be) and 2.5 Gigabit Ethernet LAN
- Multiple storage options: 3x M.2 slots (1x PCIe 5.0, 2x PCIe 4.0) and 4x SATA III connectors
- Extensive connectivity with USB4 Gen 2×2, USB 3.2 Gen 2, USB 3.2 Gen 1, and USB 2.0 ports
- ATX form factor with 7.1 channel audio and HDMI 2.1 output
- 3-year warranty and bundled Norton Internet Security software
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE X870 GAMING X WIFI7 – Next-Gen AMD Power
The GIGABYTE X870 GAMING X WIFI7 Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 is engineered for enthusiasts and gamers. This ATX motherboard provides a robust foundation for high-performance AMD Ryzen 9000 systems. We have selected it for its impressive power delivery and cutting-edge connectivity. It is ideal for building a future-proof PC.
Core Hardware Details
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | ATX |
| CPU Socket | AMD AM5 |
| Max. DDR5 Speed (OC) | 8000MHz |
| PCIe 5.0 Slots | 1x PCIe x16 |
| LAN Speed | 2.5 Gigabit |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
Unleash Your Ryzen 9000 Processor
This motherboard fully supports the latest AMD Ryzen 9000 series processors. Its 16+2+2 phase VRM design ensures stable power delivery. This is crucial for demanding tasks and overclocking. You can push your CPU to its limits with confidence.
Blazing-Fast Memory and Storage
Experience incredible speed with DDR5 memory support up to 8000MHz (OC). The four DIMM slots allow for a maximum of 256GB RAM. Storage is also exceptionally fast. We have included one PCIe 5.0 M.2 slot for the fastest SSDs. Two additional PCIe 4.0 M.2 slots offer further high-speed storage options.
Advanced Connectivity for Modern Demands
Stay connected with integrated Wi-Fi 7 (802.11be) and 2.5 Gigabit Ethernet. Wi-Fi 7 provides exceptionally low latency and high bandwidth. The 2.5GbE LAN ensures a stable and fast wired connection. We have also included two USB4 Gen 2×2 ports. This provides rapid data transfer for external devices.
Expand Your System with PCIe 5.0 Graphics
The GIGABYTE X870 GAMING X WIFI7 Motherboard – Supports AMD Ryzen 9000 CPUs, 16+2+2 phases VRM, up to 8000MHz DDR5 (OC), 1xPCIe 5.0 + 2xPCIe 4.0, Wi-Fi 7, 2.5GbE LAN, USB 4 features a PCIe 5.0 x16 slot. This is ready for the next generation of graphics cards. It offers double the bandwidth of PCIe 4.0. You can future-proof your gaming or workstation build.

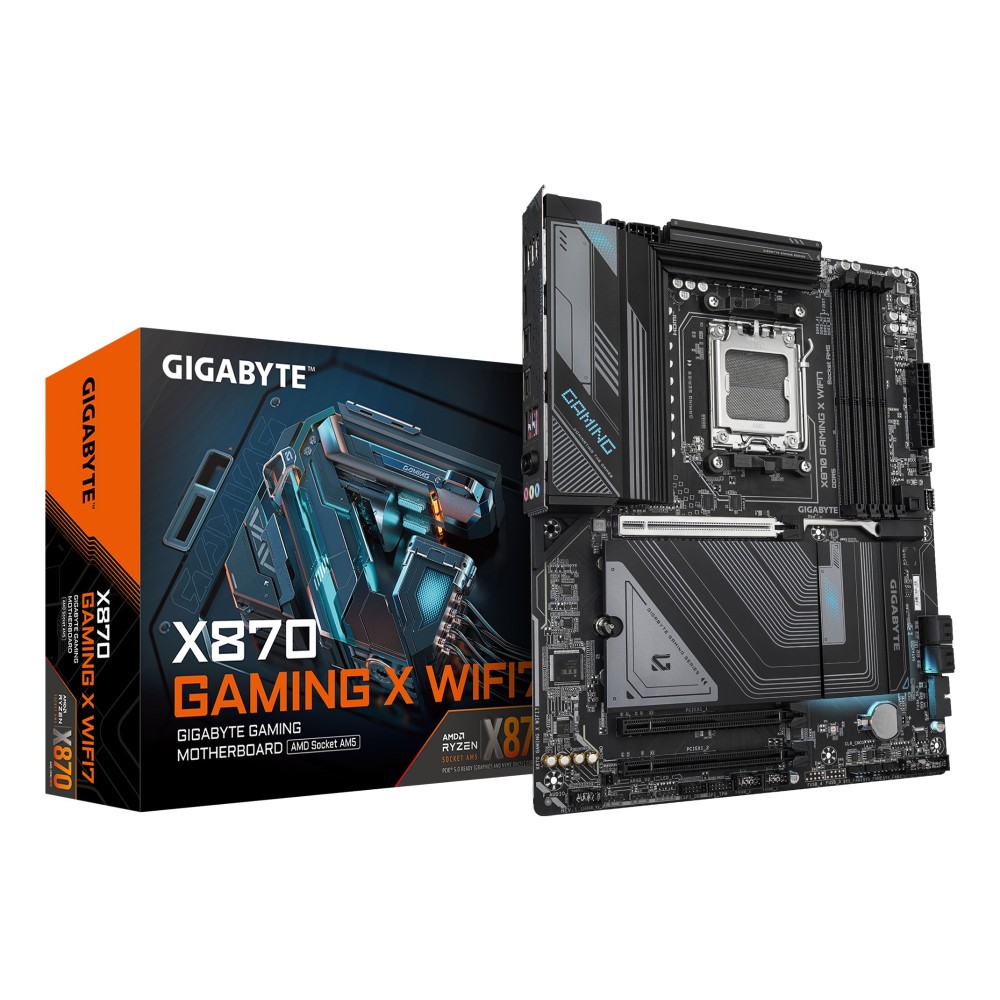

In the Box
- GIGABYTE X870 GAMING X WIFI7 Motherboard
- Antenna
- Screws
- Batteries
Before You Order
- Confirm your chosen CPU uses the AMD AM5 socket.
- Confirm your RAM sticks are DDR5 and compatible with the motherboard’s speeds.
- Confirm your PC case supports an ATX form factor motherboard.
- Confirm your power supply has the necessary 8-pin EPS connectors.
Frequently Asked Questions
Q: Which AMD processors are compatible with this motherboard?
A: This motherboard supports AMD Ryzen 7000, 8000, and 9000 series processors with an AM5 socket.
Q: Does this motherboard have integrated graphics?
A: No, this motherboard does not have an on-board graphics card. A dedicated GPU is required.
Q: What is the maximum memory capacity supported?
A: The motherboard supports a maximum of 256 GB of DDR5 RAM across four DIMM slots.
Q: Are there any M.2 slots for NVMe SSDs?
A: Yes, it features one PCIe 5.0 M.2 slot and two PCIe 4.0 M.2 slots for high-speed storage.
Q: Does this motherboard include Wi-Fi and Bluetooth?
A: Yes, it comes with Wi-Fi 7 (802.11be) and Bluetooth 5.4 built-in.
Our Recommendation
This motherboard is an excellent choice for anyone building a high-end AMD system. It offers top-tier performance, ample expansion, and cutting-edge connectivity. We recommend it for serious gamers, content creators, and PC enthusiasts. This board will form the bedrock of a powerful and responsive machine. It includes a 3-year warranty for your peace of mind.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 3 |
| Front panel connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| TPM connector | Yes |
| Peripheral (Molex) power connectors (4-pin) | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 4 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors (8-pin) | 1 |
| Number of water pump connectors | 1 |
| Number of RGB LED pin headers | 4 |
| Technical details | |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDMI version | 2.1 |
| Motherboard form factor | ATX |
| Component for | PC |
| Maximum internal memory supported by processor | 256 GB |
| Warranty period | 3 year(s) |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 7 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| RAID levels | 0, 1, 10 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Processor | |
| Processor manufacturer | AMD |
| Maximum internal memory supported by processor | 256 GB |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets | Socket AM5 |
| Processor socket | Socket AM5 |
| Memory | |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 4400,4800,5200,5600,6000,6200,6400,6600,6666,6800,7000,7200,7600,7800,8000,8200 MHz |
| Supported memory module capacities | 1GB, 2GB, 4GB, 8GB, 16GB, 24GB, 32GB, 40GB, 48GB, 64GB |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 8200 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Storage controllers | |
| Number of HDDs supported | 7 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 10 |
| Number of storage drives supported | 7 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| DirectX version | 12.0 |

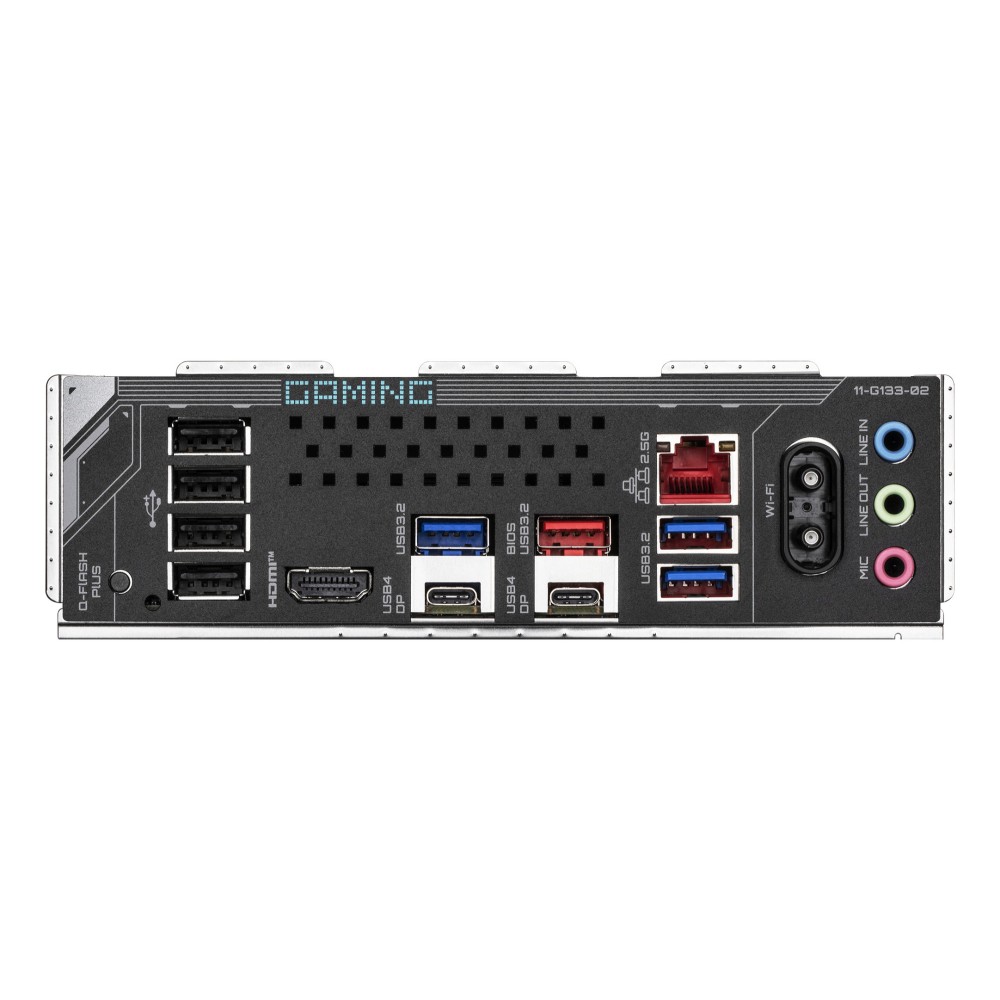

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| WiFi-AP antenna jack | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI version | 2.1 |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8125 |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7925 |
| Features | |
| Windows operating systems supported | Windows 11 x64 |
| Motherboard chipset family | AMD |
| Motherboard chipset | AMD X870 |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage |
| Audio output channels | 7.1 channels |
| Motherboard form factor | ATX |
| Component for | PC |
| Audio chip | Realtek ALC897 |
| Product colour | Black |
| Expansion slots | |
| Number of M.2 (M) slots | 3 |
| PCI Express x16 (Gen 3.x) slots | 2 |
| PCI Express x4 slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| 1st M.2 largest key size | 25110 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 25110 |
| 2nd M.2 highest PCI Express generation | 4.0 |
| 3rd M.2 largest key size | 25110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| BIOS | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS (SMBIOS) version | 2.7 |
| Desktop Management Interface (DMI) version | 2.7 |
| Video | |
| DirectX version | 12.0 |
| Packaging data | |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Software | |
| Windows operating systems supported | Windows 11 x64 |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Battery | |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Logistics data | |
| Products per shipping (inner) case | 1 pc(s) |
| Country of origin | China |
| Weight & dimensions | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Weight | 2.23 kg |
| Width | 305 mm |
| Depth | 244 mm |
| Packaging content | |
| Bundled software | Norton® Internet Security (OEM version) LAN bandwidth management software |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Other features | |
| Height | 35 mm |
| Package width | 335 mm |
| Package depth | 270 mm |
| Package height | 80 mm |
| Package weight | 2.53 kg |
| Weight | 2.23 kg |
| Identifiers | |
| Distributor SKUs | MBGIG-X870GXW7, 125903, 533638, STD10215103, 2120864 |
| Additional EANs | 0889523045497 |
