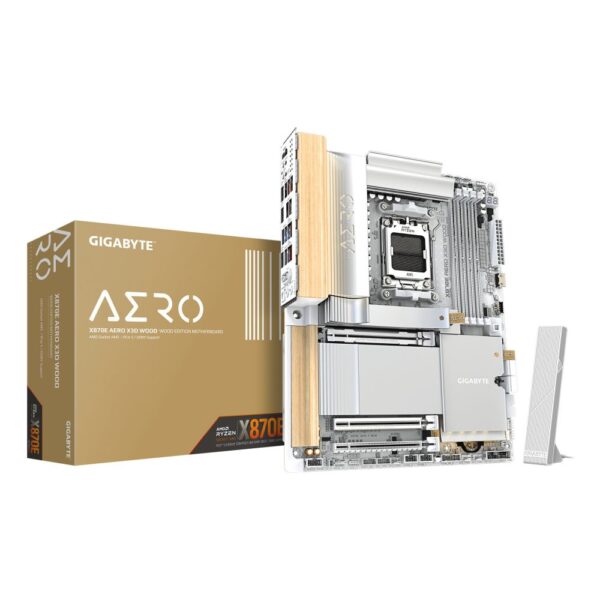

GIGABYTE X870E AERO X3D Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0
£344.80 inc VAT
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Supports AMD Ryzen 9000 Series processors on Socket AM5
- 4 M.2 slots with PCIe 5.0 and PCIe 4.0 support for high-speed storage
- 16+2+2 phases digital VRM for stable power delivery
- Wi-Fi 7 and 5GbE LAN for fast network connectivity
- Supports up to 256GB DDR5 memory at 9000MHz
Payment Methods:
You may also like
GIGABYTE B650 GAMING X AX V2 Motherboard – AMD Ryzen 9000, DDR5, PCIe 5.0 M.2
In stock
GIGABYTE A620M S2H Motherboard – AMD Ryzen 8000, DDR5, PCIe 4.0 M.2, GbE LAN
In stock
GIGABYTE X870E AERO X3D WOOD Motherboard | AMD Ryzen 9000 Ready
The GIGABYTE X870E AERO X3D WOOD Motherboard delivers exceptional performance for AMD Ryzen 9000 CPUs, featuring a 16+2+2 phases digital VRM, DDR5 memory support up to 9000MHz (OC), and comprehensive connectivity including Wi-Fi 7 and 5GbE LAN.
Key Specifications
| Metric | Spec |
|---|---|
| CPU Support | AMD Ryzen 7000/8000/9000 Series |
| Memory Support | DDR5, up to 9000MHz (OC) |
| PCIe Slots | 2x PCIe 5.0, 2x PCIe 4.0 |
| Storage | 4x M.2 (2x PCIe 5.0, 2x PCIe 4.0), 4x SATA III |
| Network | Wi-Fi 7, 5GbE LAN, Bluetooth 5.4 |
| Form Factor | ATX |
Uncompromising Power Delivery
The 16+2+2 phases digital VRM ensures stable power delivery to your AMD Ryzen 9000 processor, even under heavy loads. This robust power design maintains consistent performance during intensive tasks, making it ideal for overclocking enthusiasts and content creators who demand reliability.
Blazing-Fast Memory Performance
With support for DDR5 memory up to 9000MHz (OC), this motherboard enables lightning-fast data access and improved system responsiveness. The dual-channel architecture and four DIMM slots support up to 256GB of high-speed memory, perfect for multitasking and demanding applications.
Next-Generation Storage Solutions
Four M.2 slots provide versatile storage options, with two supporting PCIe 5.0 for the latest ultra-fast NVMe SSDs. Combined with four SATA III ports, you can configure extensive RAID arrays or create a comprehensive storage setup for both speed and capacity.
Comprehensive Connectivity Suite
Stay connected with Wi-Fi 7 for the fastest wireless speeds available, paired with 5GbE LAN for reliable wired connections. The motherboard includes multiple USB ports including USB 4, ensuring compatibility with all your peripherals and external devices.
In the Box
- GIGABYTE X870E AERO X3D WOOD Motherboard
- I/O shield
- User manual
- Driver DVD
- SATA cables
- M.2 screws
- Wi-Fi antenna
- CR2032 battery
Things to check first
- Confirm your CPU is from the AMD Ryzen 7000/8000/9000 Series and uses Socket AM5
- Verify your case supports ATX motherboard dimensions (305mm x 244mm)
- Check that your power supply has the required 24-pin ATX and 8-pin EPS connectors
- Ensure your CPU cooler is compatible with the AM5 socket
Frequently Asked Questions
Does this motherboard support DDR4 memory?
Can I use this with older AMD Ryzen processors?
How many graphics cards can I install?
Does it come with built-in Wi-Fi?
What is the maximum RAM capacity?
Final thoughts
The GIGABYTE X870E AERO X3D WOOD Motherboard is an excellent choice for users building high-performance systems with AMD Ryzen 9000 CPUs. Its robust power delivery, extensive connectivity options, and support for cutting-edge technologies make it suitable for gaming enthusiasts, content creators, and professionals who need uncompromising performance. Covered by the applicable manufacturer warranty.
| Weight | 3.4 kg |
|---|---|
| Bundled software | Norton® Internet Security (OEM version) |
| Front panel connector | Yes |
| 12V power connector | Yes |
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| TPM connector | Yes |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 6 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| USB 3.2 Gen 2x2 connectors | 1 |
| Number of CPU fan connectors | 2 |
| Number of EPS power connectors 8-pin | 2 |
| Number of water pump connectors | 2 |
| Number of temperature sensor headers | 2 |
| Number of noise detection headers | 1 |
| Number of RGB LED pin headers | 4 |
| Warranty period | 3 year(s) |
| Processor manufacturer | AMD |
| Compatible processor series | AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Processor socket | Socket AM5 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 9000,8800,8600,8400,8000,7800,7600,7200,7000,6800,6600,6400,6200,6000,5600,5200,4800,4400 MHz |
| Maximum internal memory | 256 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed max | 9000 MHz |
| ECC сompatibility | Non-ECC |
| Maximum internal memory per slot | 64 GB |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, PCI Express 5.0, SATA III |
| RAID levels | 1, 5, 10 |
| Number of storage drives supported | 8 |
| RAID support | Yes |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| HDCP version | 2.3 |

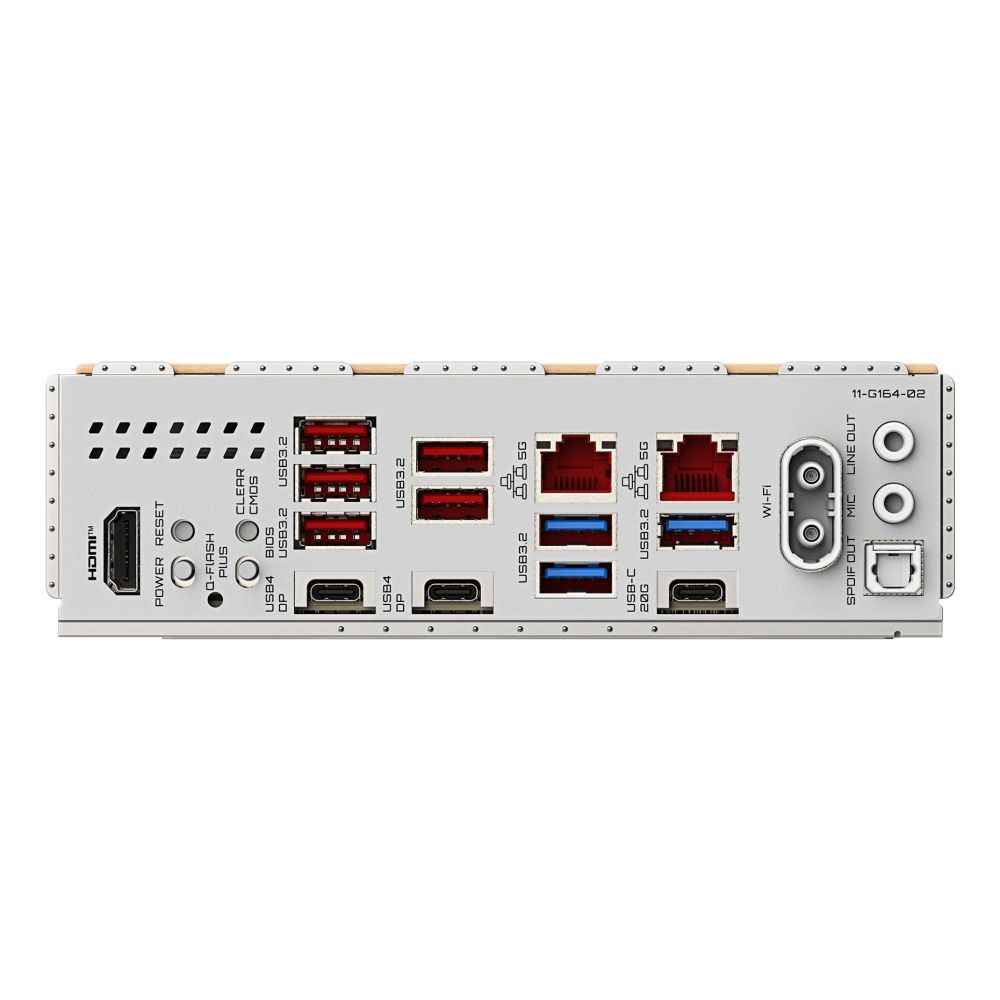

| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 3 |
| USB 3.2 Gen 2 3.1 Gen 2 Type-A ports quantity | 5 |
| DisplayPort version | 1.4 |
| WiFi-AP antenna jack | 2 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 2 |
| Digital audio optical out | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| USB4 Gen 2x2 ports quantity | 2 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| LAN controller | Realtek RTL8126 |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| WLAN controller model | MediaTek MT7927 |
| Motherboard chipset family | AMD |
| Supported processor sockets | Socket AM5 |
| PC health monitoring | Fan, Temperature, Voltage, Water cooling |
| Cooling type | Passive |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Audio chip | Realtek ALC1220-VB |
| Product colour | White |
| Number of M.2 M slots | 4 |
| PCI Express x16 Gen 4.x slots | 1 |
| PCI Express x16 Gen 5.x slots | 2 |
| 1st M.2 largest key size | 2580 |
| 1st M.2 highest PCI Express generation | 5.0 |
| 2nd M.2 largest key size | 22110 |
| 2nd M.2 highest PCI Express generation | 5.0 |
| 3rd M.2 largest key size | 22110 |
| 3rd M.2 highest PCI Express generation | 4.0 |
| 4th M.2 largest key size | 22110 |
| 4th M.2 highest PCI Express generation | 4.0 |
| BIOS type | UEFI AMI |
| Clear CMOS jumper | Yes |
| BIOS memory size | 256 Mbit |
| ACPI version | 5.0 |
| Clear CMOS button | Yes |
| System Management BIOS SMBIOS version | 2.7 |
| Desktop Management Interface DMI version | 2.7 |
| Power source type | ATX |
| Maximum resolution | 4096 x 2160 pixels |
| HDCP | Yes |
| DirectX version | 12.0 |
| Windows operating systems supported | Windows 11 x64 |
| Battery technology | Lithium-Manganese Dioxide (LiMnO2) |
| Battery capacity | 220 mAh |
| Battery weight | 3 g |
| Number of battery cells | 1 |
| Lithium weight per battery | 0.07 g |
| Battery type | CR2032 |
| Products per shipping inner case | 1 pc(s) |
| Width | 305 mm |
| Depth | 244 mm |
| Batteries included | Yes |
| Screws included | Yes |
| Antenna included | Yes |
| Height | 35 mm |
| Package width | 341 mm |
| Package depth | 306 mm |
| Package height | 89 mm |
| Package weight | 3.67 kg |
| Weight | 3.17 kg |
