ASUS PRIME B760M-A WIFI D4 mATX LGA1700 DDR4

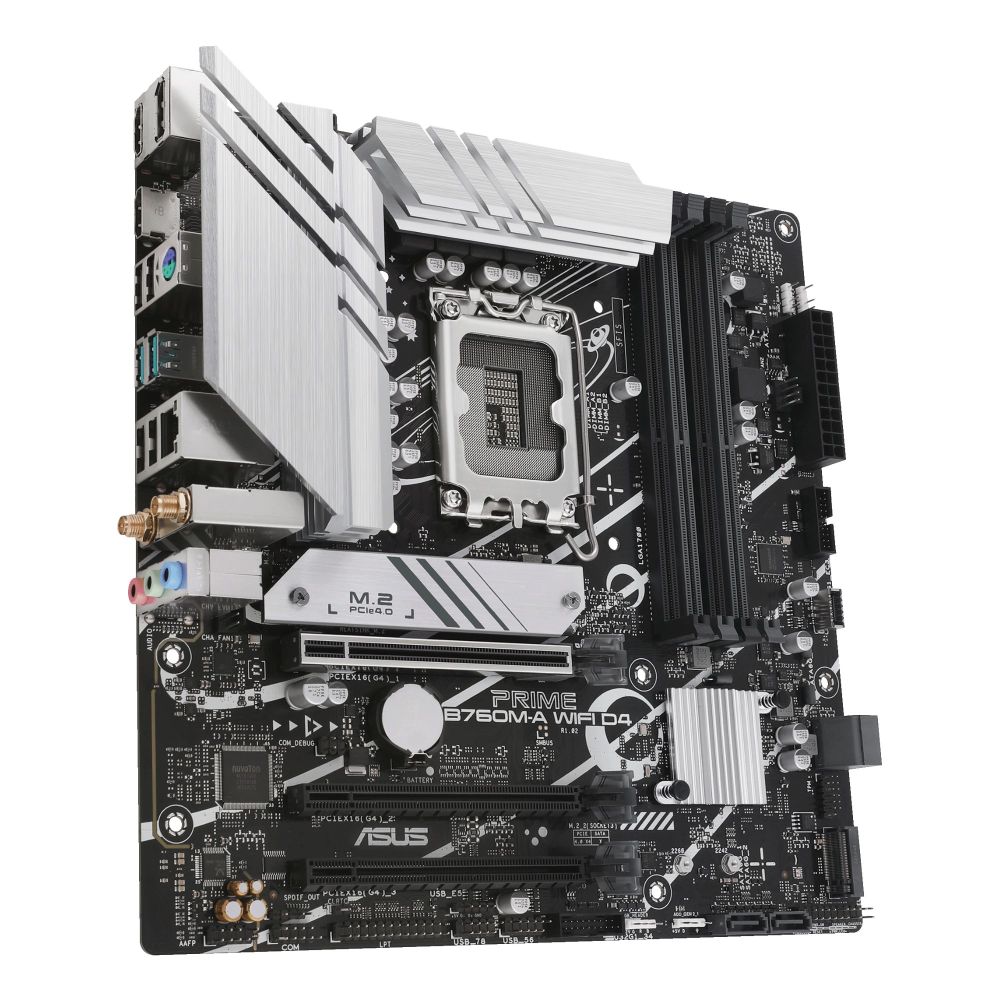

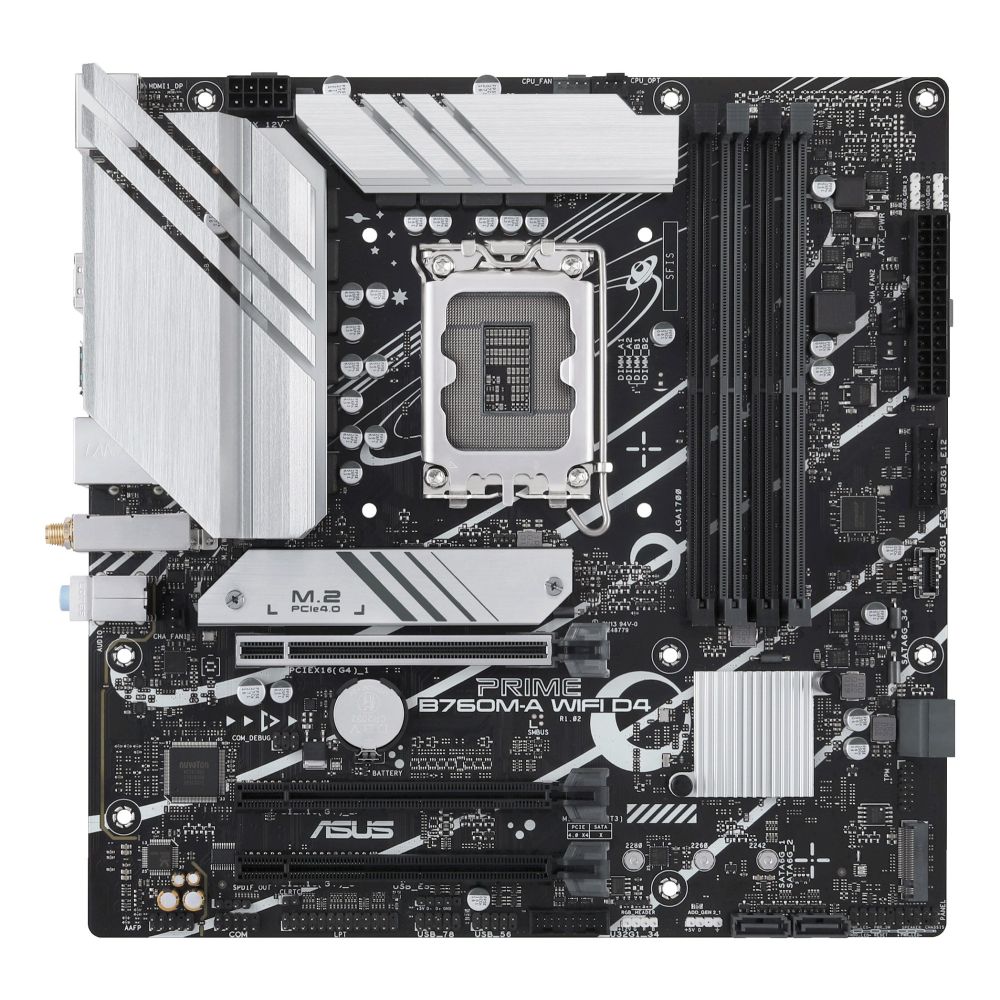

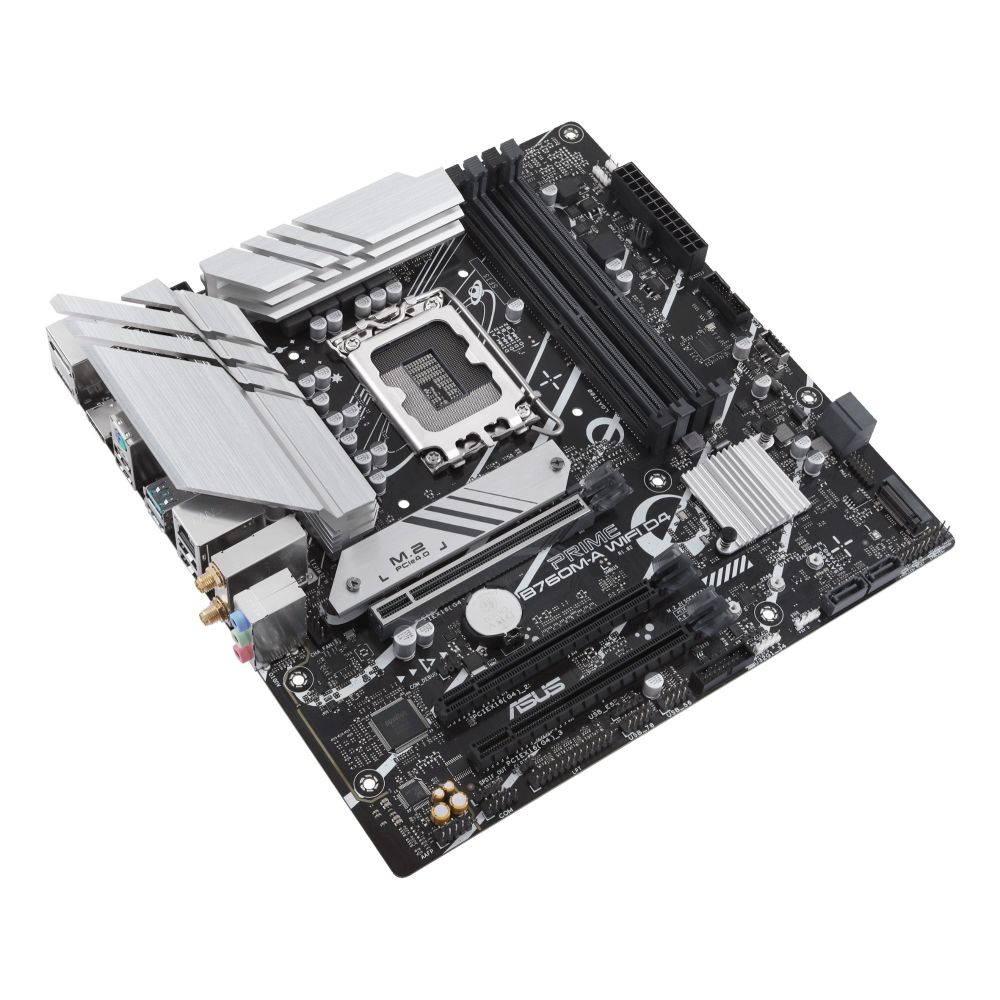

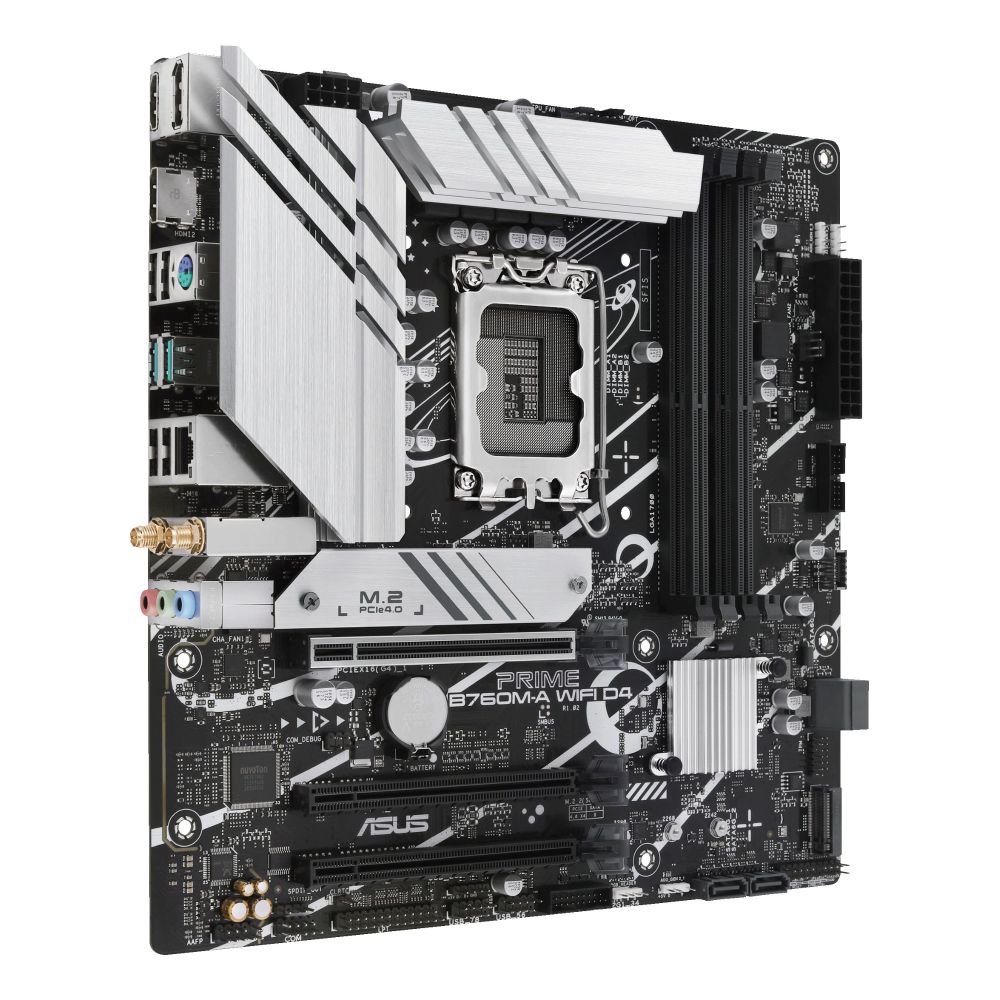

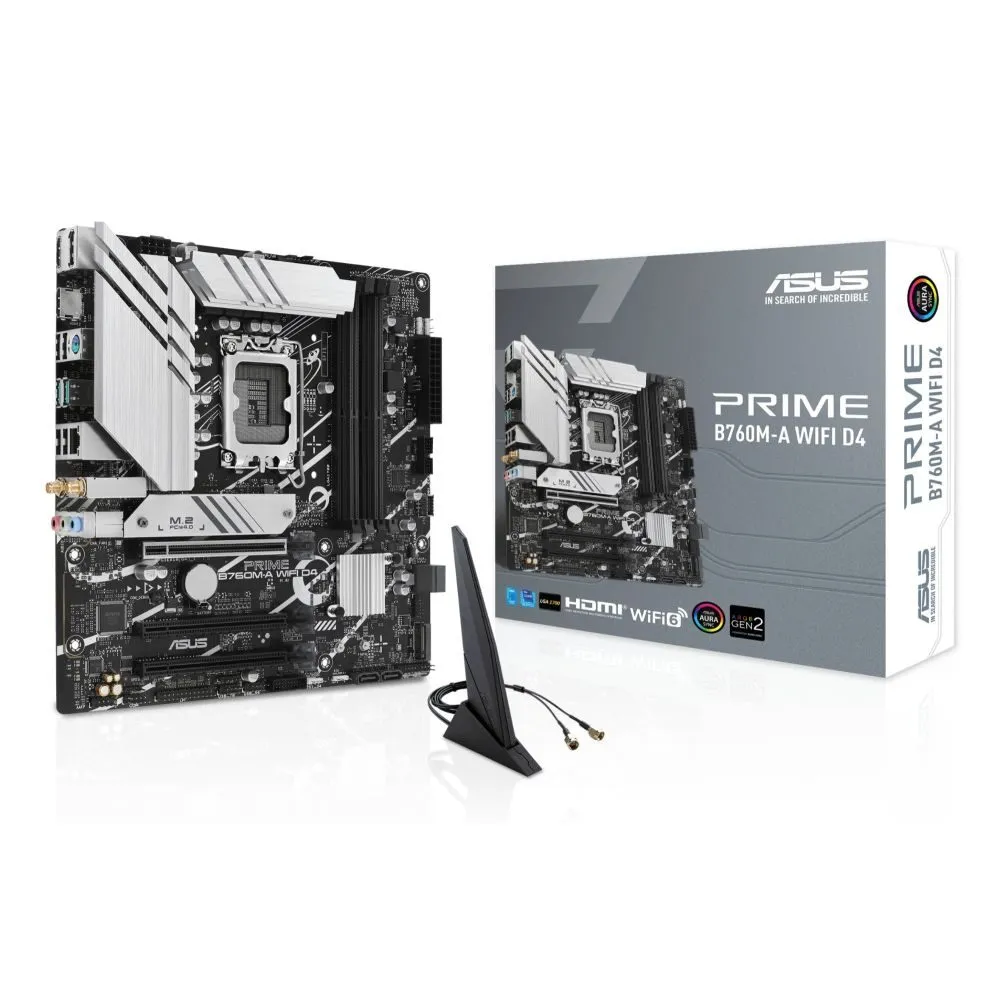

ASUS PRIME B760M-A WIFI D4 | Micro-ATX Intel B760 Platform

The ASUS PRIME B760M-A WIFI D4 Intel B760 LGA 1700 micro ATX motherboard is engineered for UK PC builders seeking a stable foundation for 13th Gen Intel® Core™ processors. It offers a balanced mix of essential features, including Wi-Fi 6 connectivity and robust power delivery, in a compact micro-ATX form factor. This board is designed for users who value reliability and intelligent tuning options for their daily productivity or gaming rigs.

Slim Specifications

Intelligent Control and Flexibility

ASUS Intelligent Control simplifies system tuning. It dynamically optimises essential aspects, offering simplified options for newcomers and comprehensive features for seasoned veterans. This allows you to match your PC’s performance to your workflow without unnecessary complexity.

The motherboard includes flexible tools for air and liquid cooling. ASUS Fan Xpert 2+ software provides comprehensive control over fans and AiO coolers. An Auto-Tuning mode configures parameters with a single click. An Extreme Quiet mode reduces chassis fan speeds for silent operation during light tasks.

Comprehensive Cooling Solutions

PRIME B760 series motherboards are engineered with multiple onboard heatsinks. These include VRM heatsinks and thermal pads to improve heat transfer from critical components. An M.2 heatsink is also included to prevent throttling during sustained storage transfers.

Hybrid fan headers allow for dynamic temperature referencing. Each header can reference three thermal sensors. This ensures your system remains stable under intense workloads, whether you are gaming or rendering.

Robust Power and Memory Performance

Stable power is essential for Intel processors. The PRIME B760M-A WIFI D4 features a robust power design with ProCool connectors. These solid-pin connectors pass 12 volts directly to the processor, handling more current than hollow-pin alternatives.

A six-layer PCB and Stack Cool 3+ design optimise heat management. This provides more headroom to push CPUs beyond stock speeds. ASUS OptiMem II technology maps memory signal pathways to reduce crosstalk, improving stability and allowing for lower latencies with DDR4 memory.

High-Speed Storage and Connectivity

This board supports two M.2 slots with data-transfer speeds up to 64 Gbps via PCIe 4.0. This enables quicker boot-up and application load times when using OS or application drives on fast SSDs.

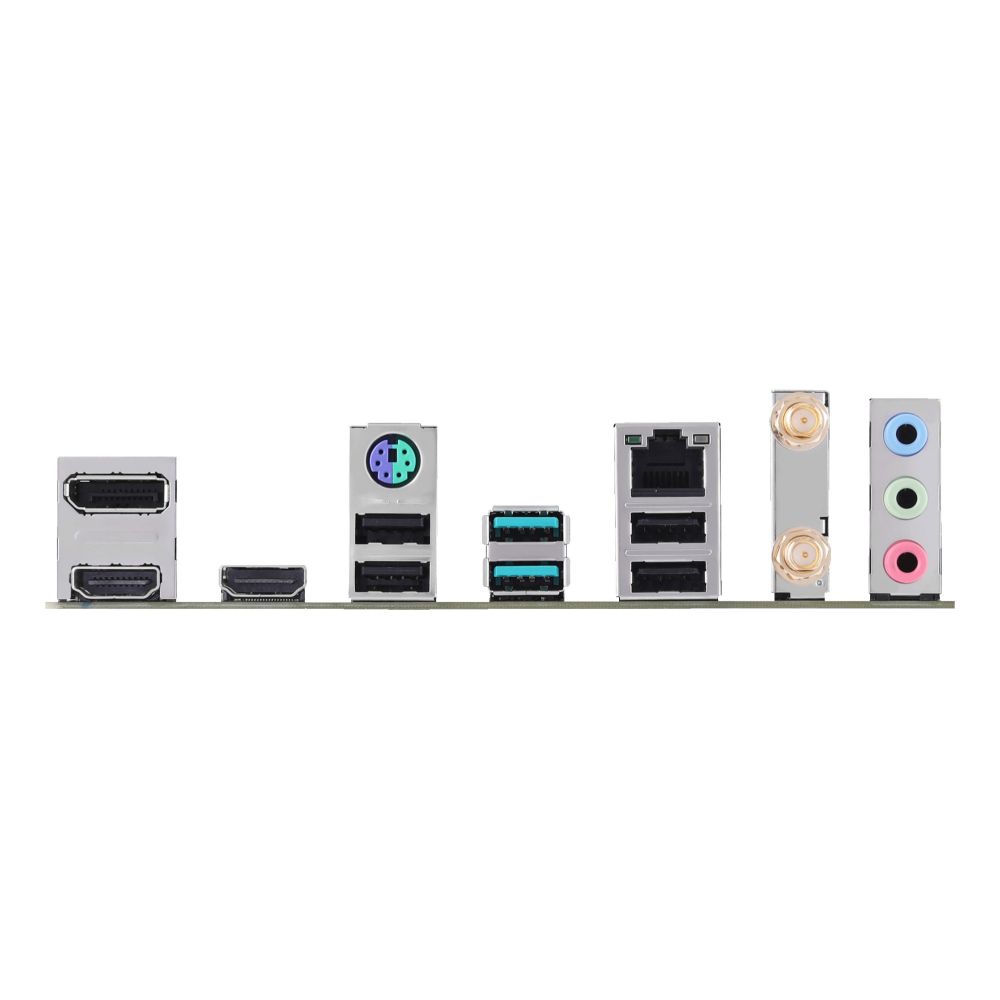

Connectivity includes a PCIe 4.0 slot for the latest GPUs. Wi-Fi 6 provides theoretical peak bandwidth up to 2.4 Gbps, optimised for crowded networks. Realtek 2.5 Gb Ethernet reduces CPU overhead for faster data transfers. ASUS LANGuard offers hardware-level network protection for a more reliable connection.

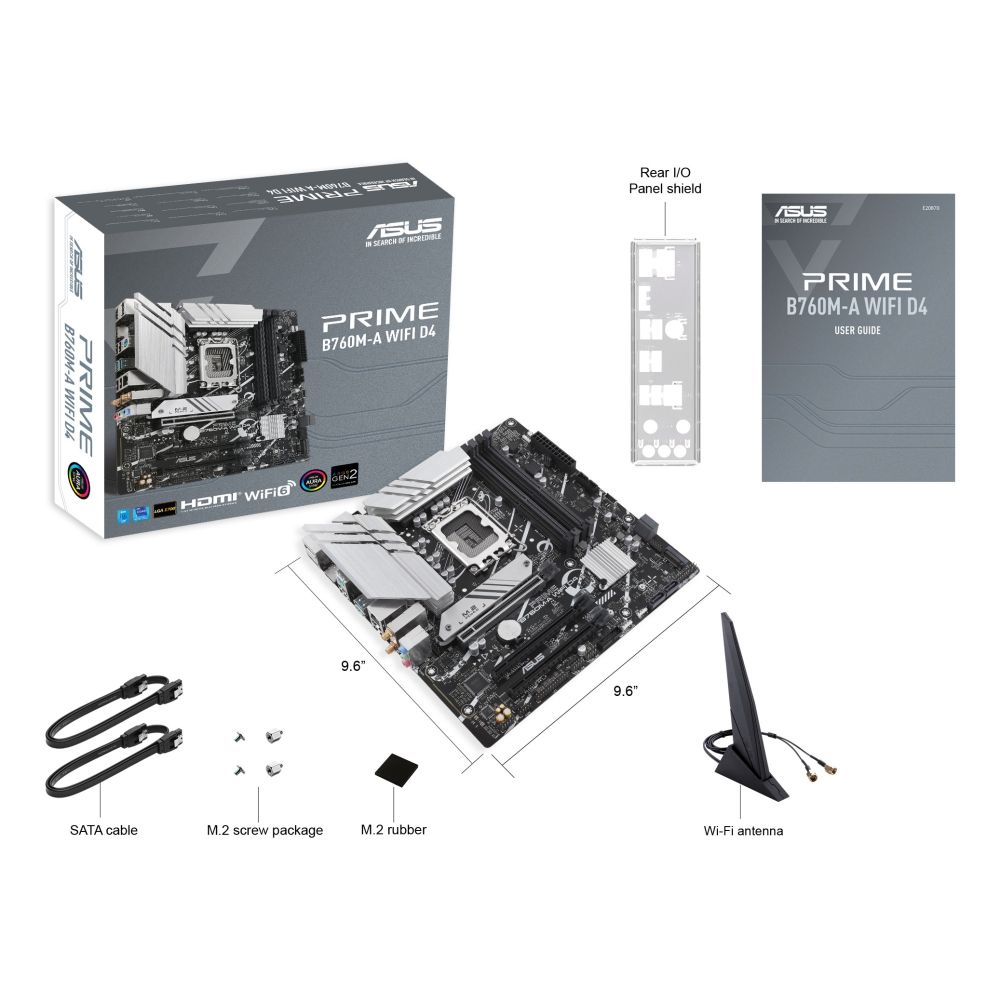

Box contents

• ASUS PRIME B760M-A WIFI D4 motherboard
• 2 x SATA 6Gb/s cables
• 1 x Wi-Fi AP antenna
• 1 x I/O shield
• 2 x M.2 SSD package screws
• 1 x Support DVD
• User guide

Check before you buy

• Confirm your CPU is an Intel LGA 1700 socket processor (13th/12th Gen).
• Verify your case supports Micro-ATX (244 x 244 mm) form factor.
• Confirm your memory is DDR4-SDRAM (non-ECC, unbuffered).
• Check your Wi-Fi router supports 802.11ax (Wi-Fi 6) for optimal performance.

Questions and answers

Our verdict

This motherboard is an excellent choice for UK builders creating a compact, Intel-based system for gaming, content creation, or productivity. It offers strong fundamentals: solid power delivery, Wi-Fi 6, and PCIe 4.0 support in a space-saving Micro-ATX size. It is covered by the applicable manufacturer warranty.
