ASUS H610M-A WIFI D4 Micro ATX Motherboard
£78.37 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel H610 chipset for 12th Gen Intel Core CPUs
- Dual M.2 slots for PCIe 3.0 storage up to 32 Gbps
- micro ATX form factor with 2 DDR4 memory slots
- Wi-Fi 5 and Gigabit Ethernet for reliable connectivity
- 7.1 channel audio with Aura Sync RGB lighting
Payment Methods:
You may also like

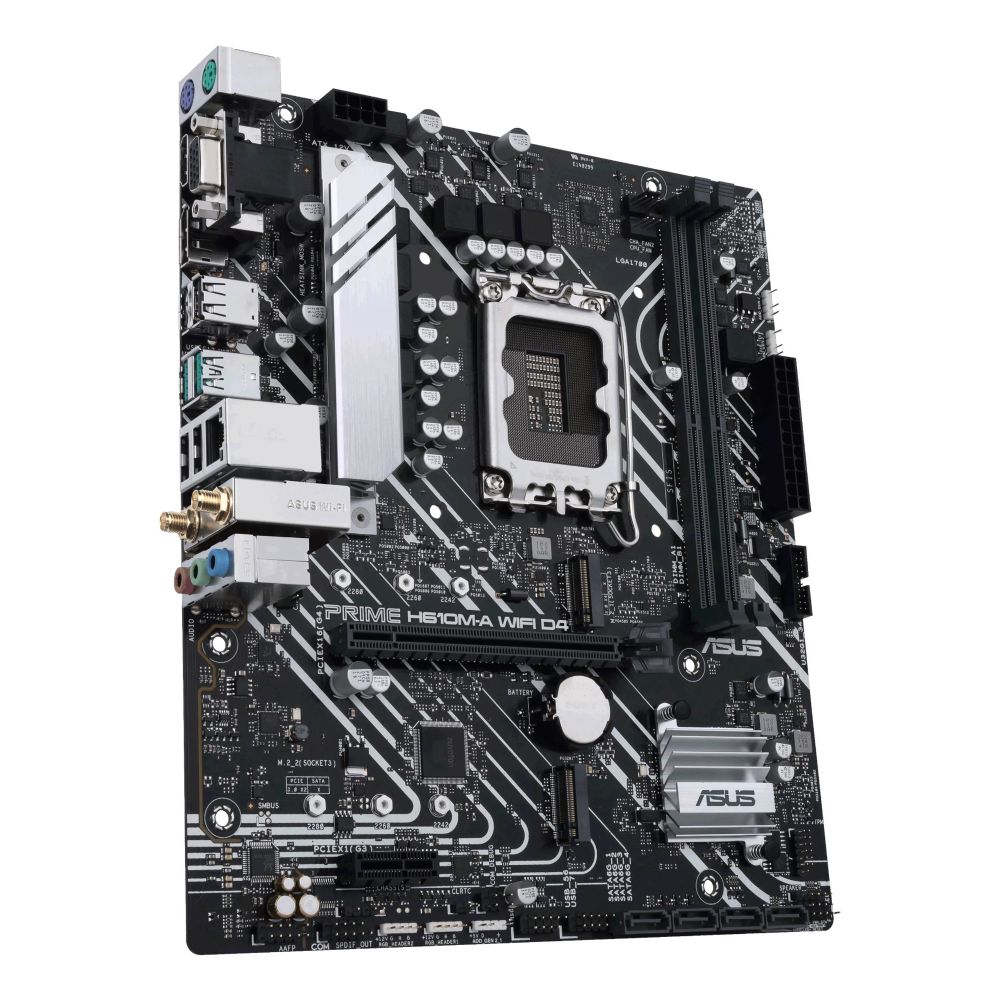

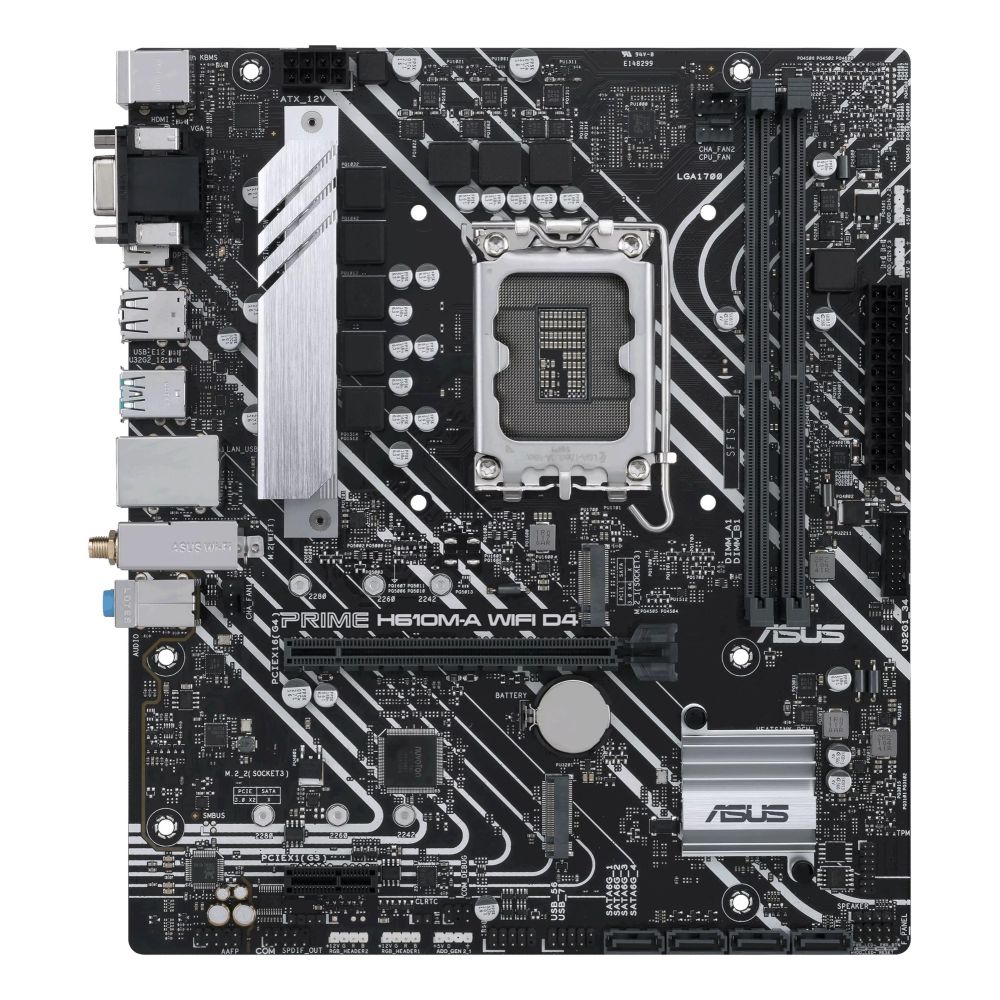

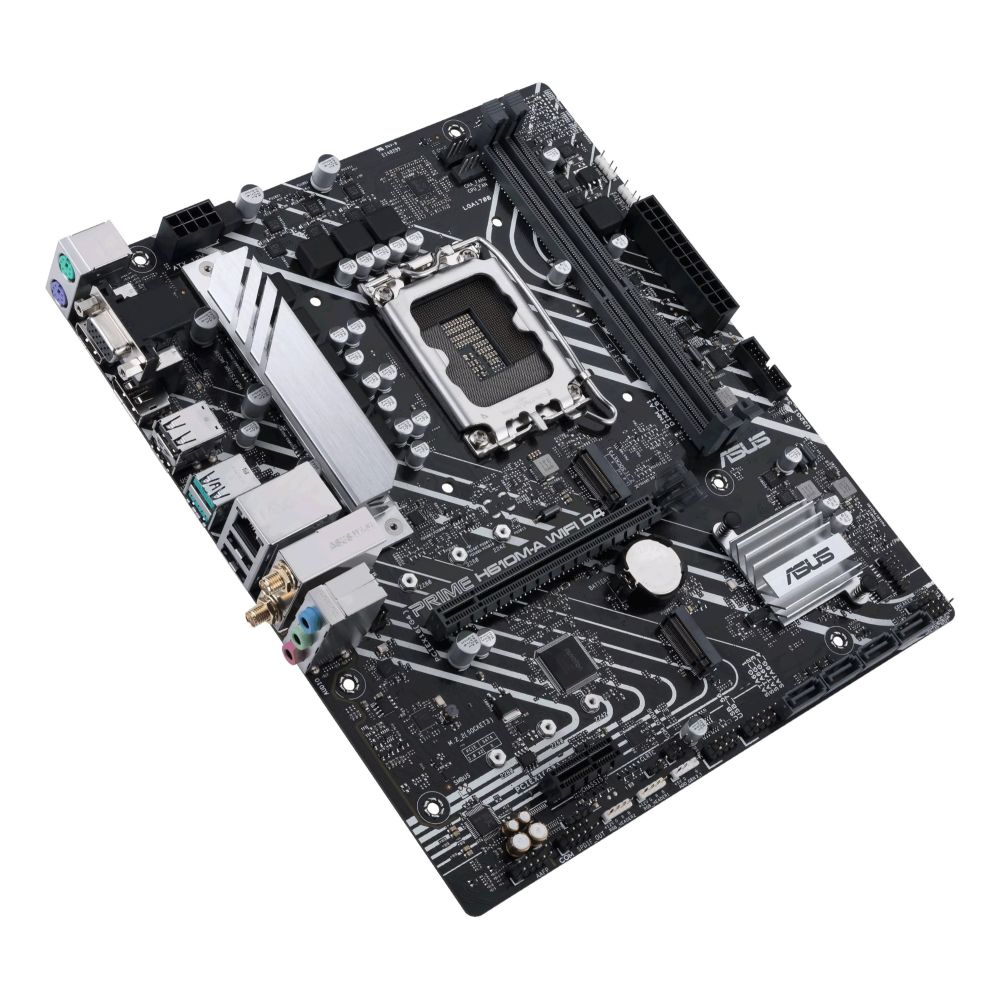

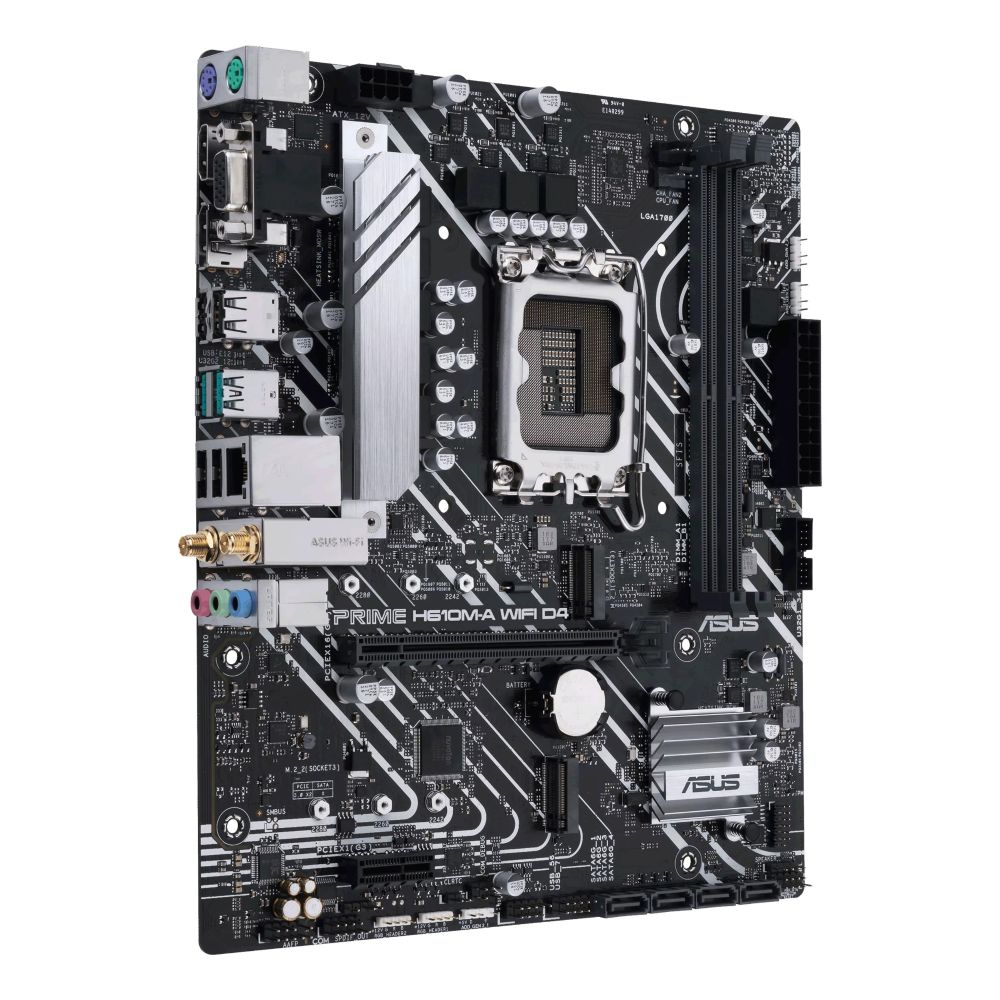

ASUS PRIME H610M-A WIFI D4 | Intel H610 LGA 1700 micro ATX Motherboard
The ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX motherboard delivers a robust foundation for 12th Gen Intel Core builds, combining reliable performance, built-in Wi-Fi, and comprehensive tuning options in a compact micro ATX form factor.
Key Specifications
| Metric | Spec |
|---|---|
| Socket | LGA 1700 |
| Memory Support | DDR4, up to 64 GB |
| M.2 Slots | 2 x PCIe 3.0 |
| Wi-Fi Standard | Wi-Fi 5 (802.11ac) |
| USB Ports | 6 x USB 3.2/2.0 |
| Display Outputs | HDMI 2.1, DisplayPort 1.4, VGA |
Flexible Performance Tuning
The ASUS PRIME H610M-A WIFI D4 offers comprehensive controls for fine-tuning your system. The Digi+ voltage-regulator module provides real-time power delivery adjustments, while Fan Xpert 2+ software enables precise cooling management. These features allow users to optimise performance for their specific workload, whether gaming, content creation, or everyday productivity.
Built-in Connectivity

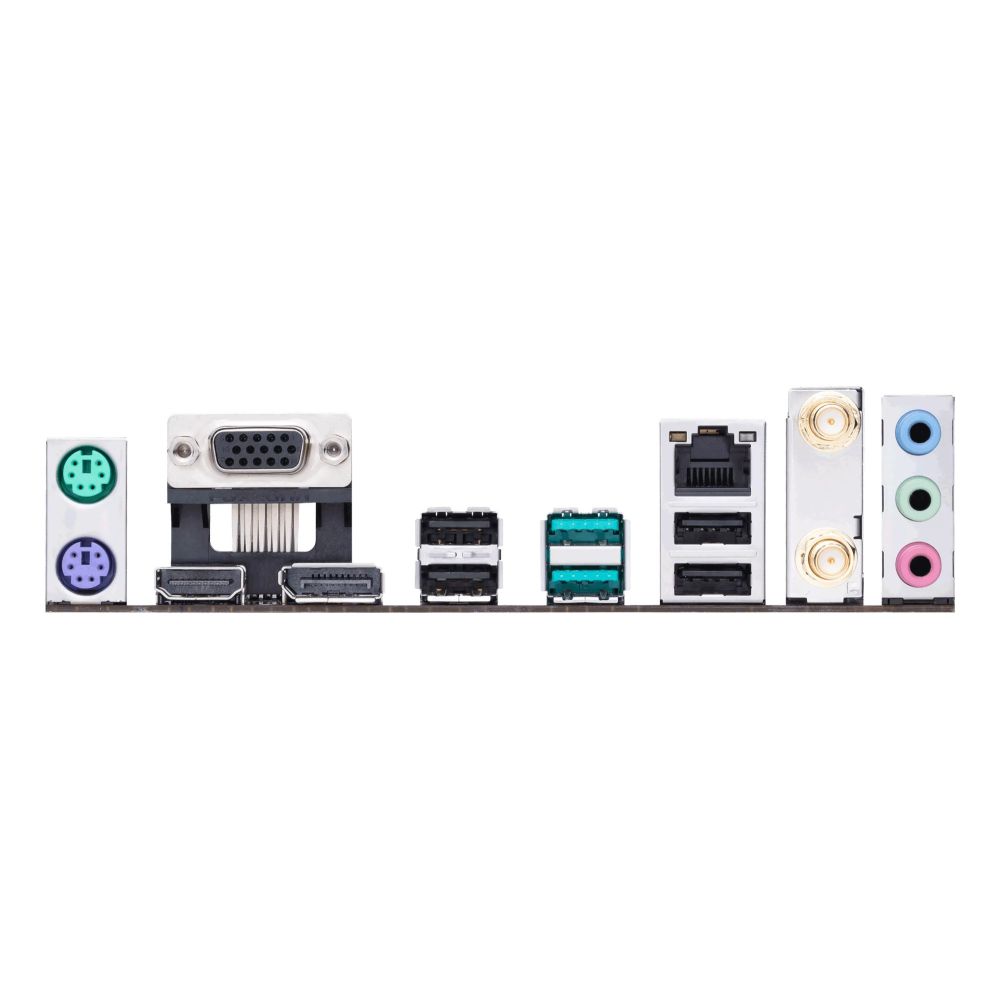

This motherboard comes equipped with Wi-Fi 5 (802.11ac) and Bluetooth 5.0, eliminating the need for separate wireless adapters. The Intel Gigabit Ethernet port ensures stable wired connections, while multiple display outputs including HDMI 2.1 and DisplayPort 1.4 support up to three simultaneous displays for enhanced multitasking.
Cooling and Durability
ASUS has engineered comprehensive cooling solutions into this micro ATX board. VRM heatsinks and thermal pads improve heat dissipation from critical components, while multiple chassis fan headers provide flexible cooling configurations. The stainless-steel back I/O panel offers three times the corrosion resistance of standard panels, ensuring long-term durability.
Storage Capabilities
With two M.2 slots supporting PCIe 3.0 speeds up to 32 Gbps, the PRIME H610M-A WIFI D4 enables rapid storage performance. The board also includes four SATA III ports for additional storage expansion, accommodating both HDD and SSD drives to meet various capacity needs.

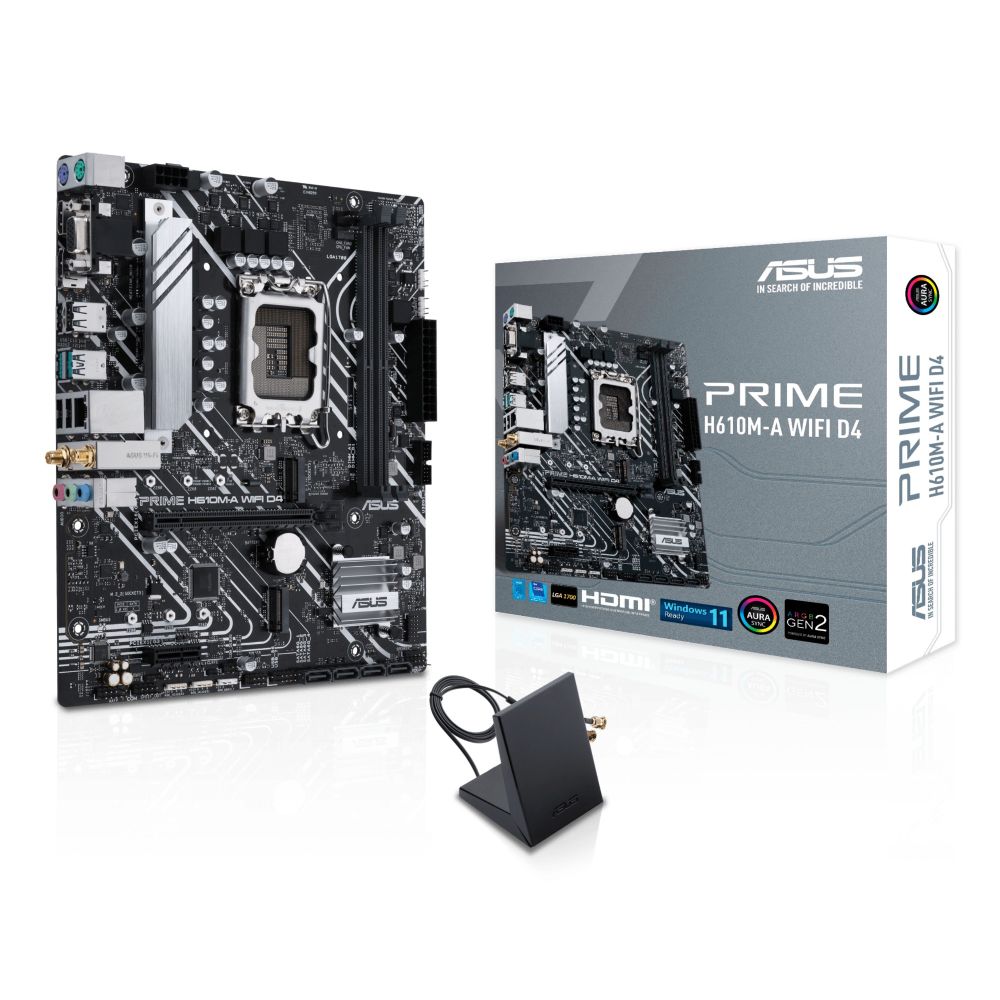

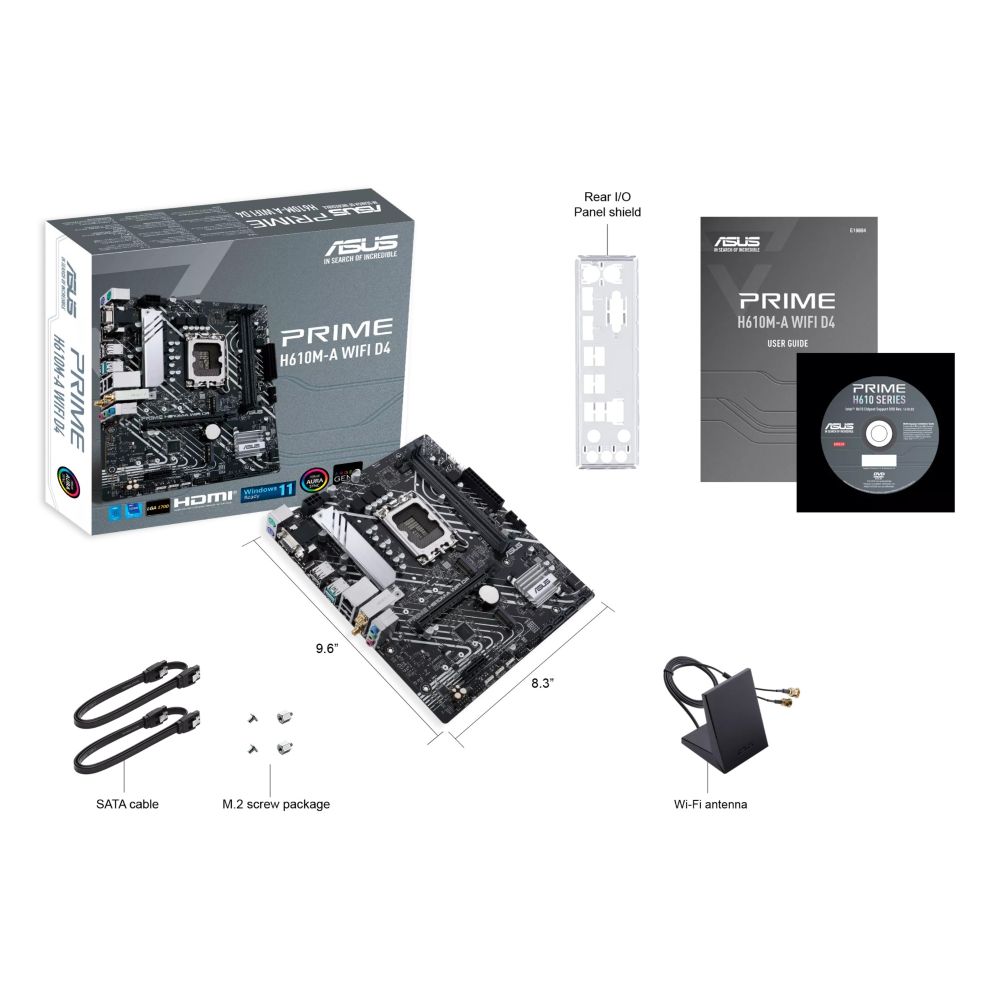

In the Box
- ASUS PRIME H610M-A WIFI D4 motherboard
- SATA cables (quantity not specified)
- User manual and warranty documentation
Things to check first
- Confirm your CPU is compatible with LGA 1700 socket
- Verify your case supports micro ATX dimensions (244 x 211 mm)
- Check if your GPU requires PCIe 4.0 (this board offers PCIe 3.0)
- Confirm your power supply has the necessary connectors (24-pin ATX, 8-pin EPS)
Frequently Asked Questions
What processors work with this motherboard?
Does this motherboard support Windows 11?
How many RAM slots does it have?
Can I add a Wi-Fi card later?
What’s the maximum supported RAM speed?
Summary & warranty
The ASUS PRIME H610M-A WIFI D4 Intel H610 LGA 1700 micro ATX motherboard offers excellent value for users building compact systems with 12th Gen Intel processors. Its combination of built-in Wi-Fi, robust power delivery, and comprehensive tuning options makes it ideal for mainstream users who want reliable performance without excessive complexity. Covered by the applicable manufacturer warranty.
| 12V power connector | Yes |
|---|---|
| USB 2.0 connectors | 2 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 1 |
| TPM connector | Yes |
| S/PDIF out connector | Yes |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 1 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| RGB LED pin header | Yes |
| Processor manufacturer | Intel |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®, Intel® Pentium® Gold |
| Maximum number of SMP processors | 1 |
| Processor socket | LGA 1700 |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 2133,2400,2666,2800,2933,3000,3200 MHz |
| Maximum internal memory | 64 GB |
| Unbuffered memory | Yes |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA |
| Number of displays supported | 3 |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| DisplayPort version | 1.4 |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 2 |
| Microphone in | Yes |
| Headphone outputs | 1 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| DisplayPorts quantity | 1 |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth version | 5.0 |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Motherboard chipset family | Intel |
| Audio output channels | 7.1 channels |
| Component for | PC |
| Number of M.2 M slots | 2 |
| PCI Express x1 Gen 3.x slots | 1 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 128 Mbit |
| Windows operating systems supported | Windows 10 x64, Windows 11 x64 |
| Harmonized System HS code | 84733020 |
| Width | 244 mm |
| Depth | 211 mm |
| Drivers included | Yes |
| Cables included | SATA |
| Height | 58 mm |
| Weight | 815 g |
| Distributor SKUs | MBD-90MB1C80-M0EAY0, 7925902, 123788, W128272243, 90MB1C80M0EAY0, 368466, STD10217344, 1823361, CL90MB1C80-M0EAY0 |
