ASUS A620M-C-CSM AMD A620 Motherboard

ASUS PRO A620M-C-CSM | Business-Grade AMD Micro ATX Motherboard

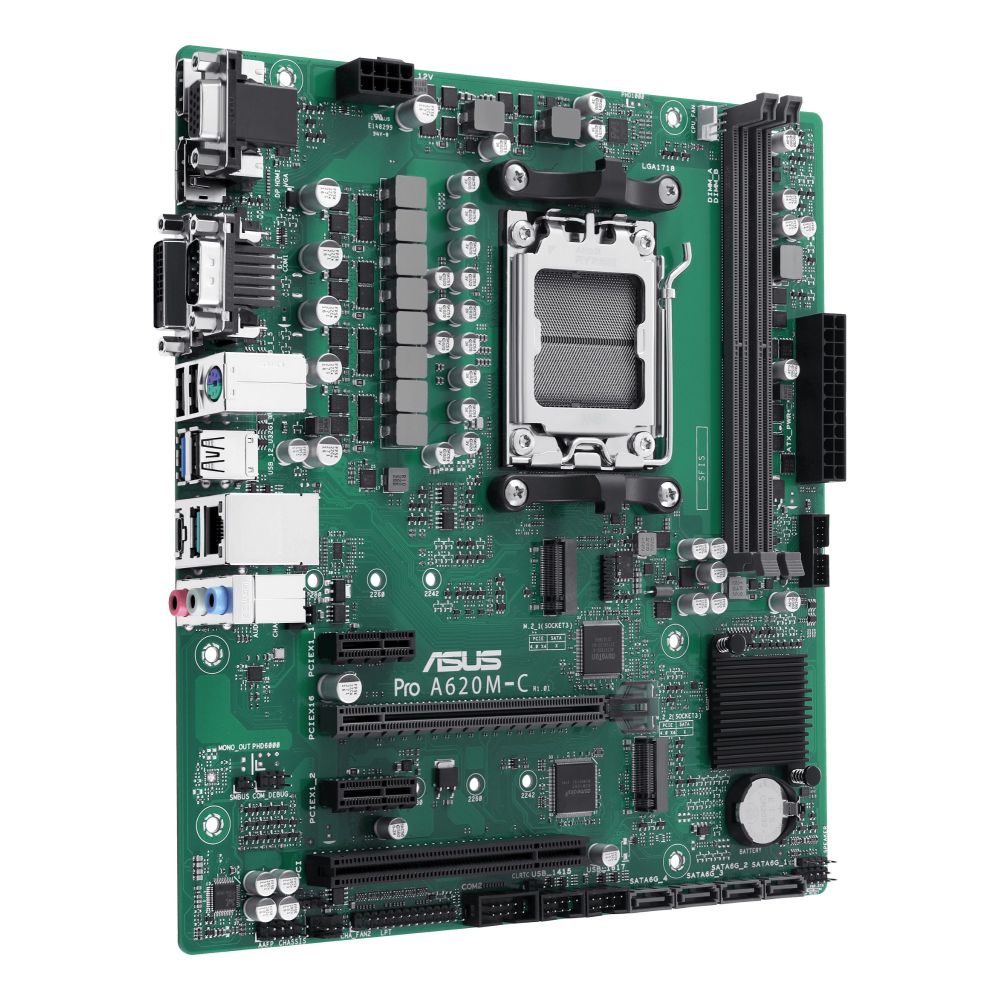

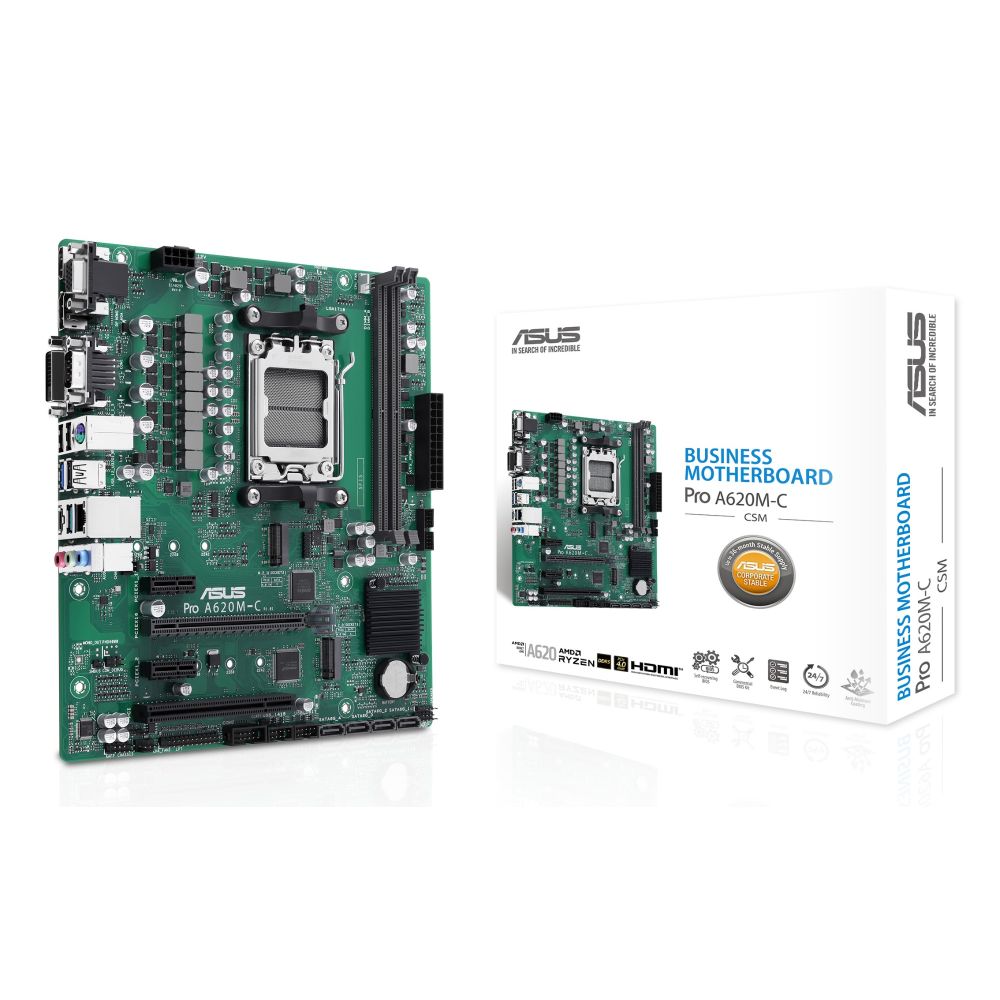

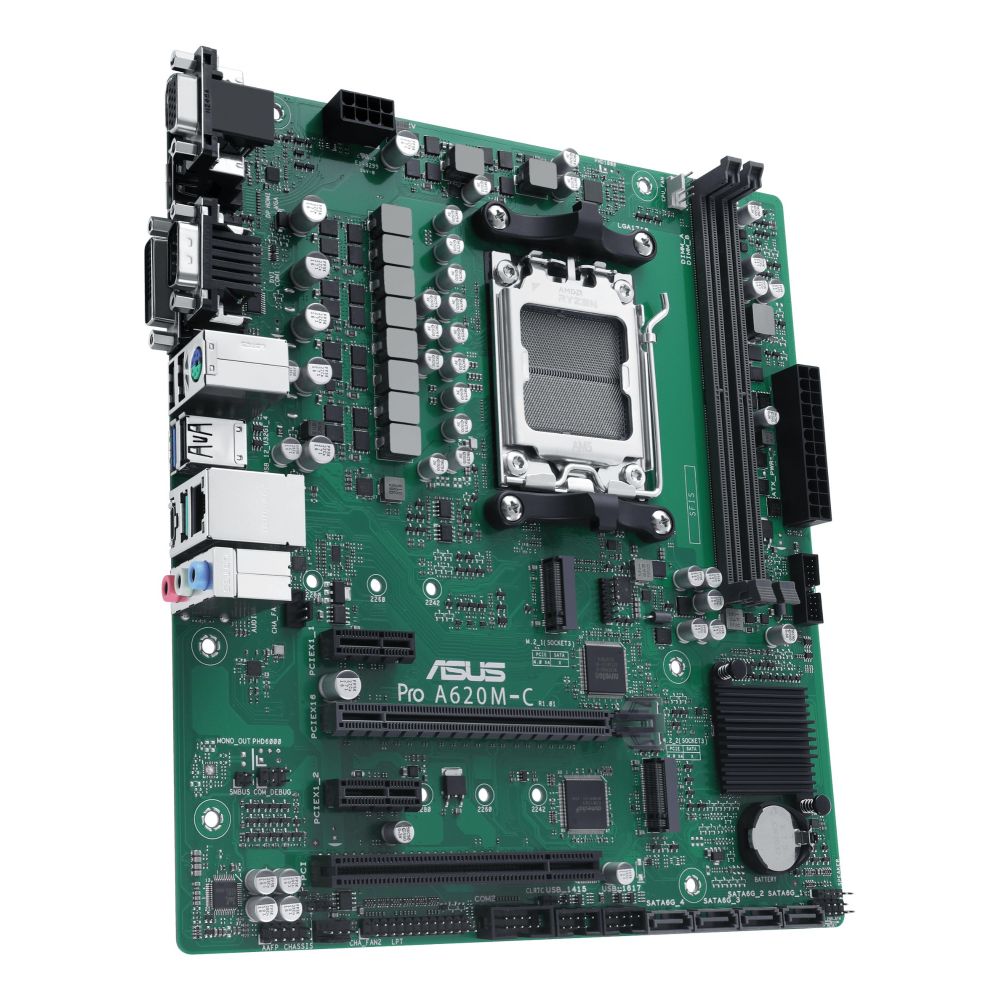

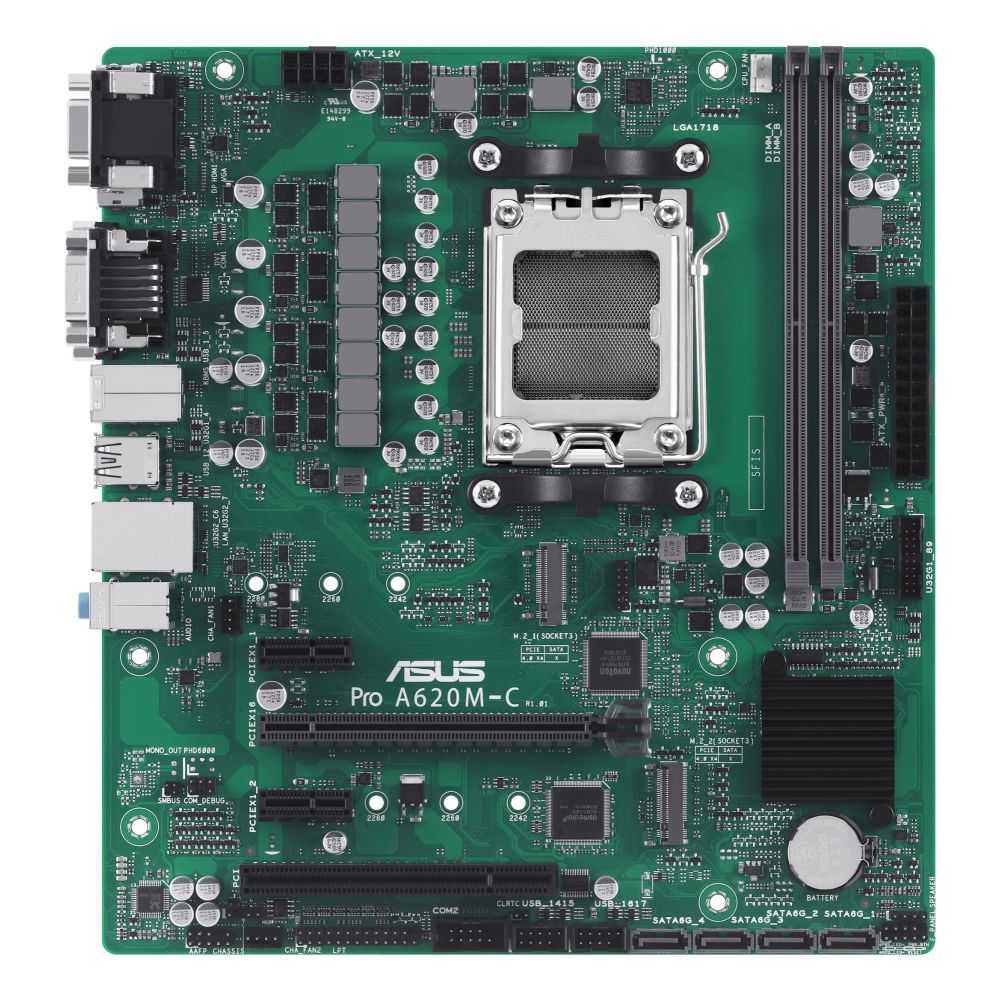

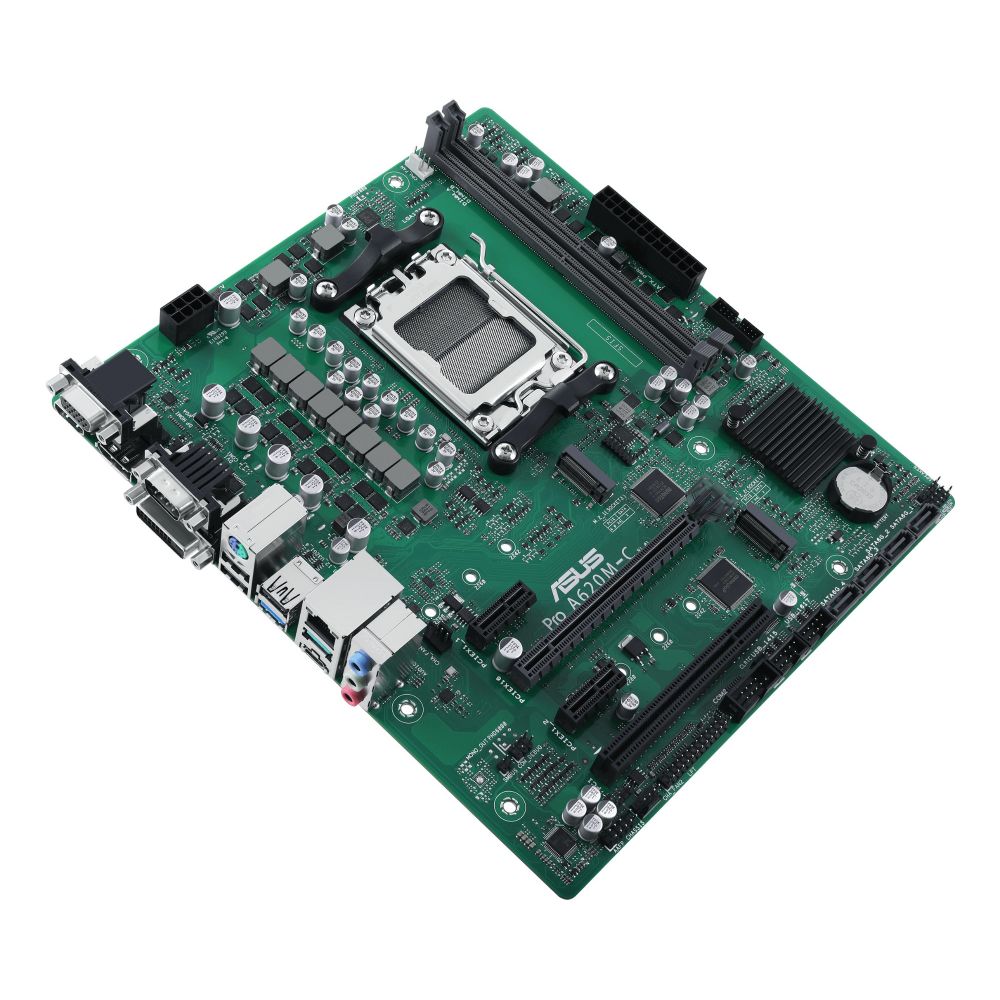

The ASUS PRO A620M-C-CSM AMD A620 Socket AM5 micro ATX motherboard delivers enterprise-level reliability and comprehensive system protection for business environments. Designed for 24/7 operation, this micro ATX board supports AMD Ryzen 7000 Series processors and offers enhanced security features including TPM and ASUS Self-recovering BIOS for worry-free deployment.

Key Specifications

Enterprise Security & Stability

ASUS SHIELD technology provides comprehensive protection from bottom to top. The Trusted Platform Module (TPM) offers hardware-based security for better data protection and network integrity, while ASUS Secure Boot verifies firmware signatures during startup. ASUS Self-recovering BIOS automatically restores the system BIOS from verified backups if updates fail, eliminating costly hardware replacements. The motherboard is certified to NIST SP 800-147 national security standards, making it suitable for government and enterprise deployments.

24/7 Reliability Engineering

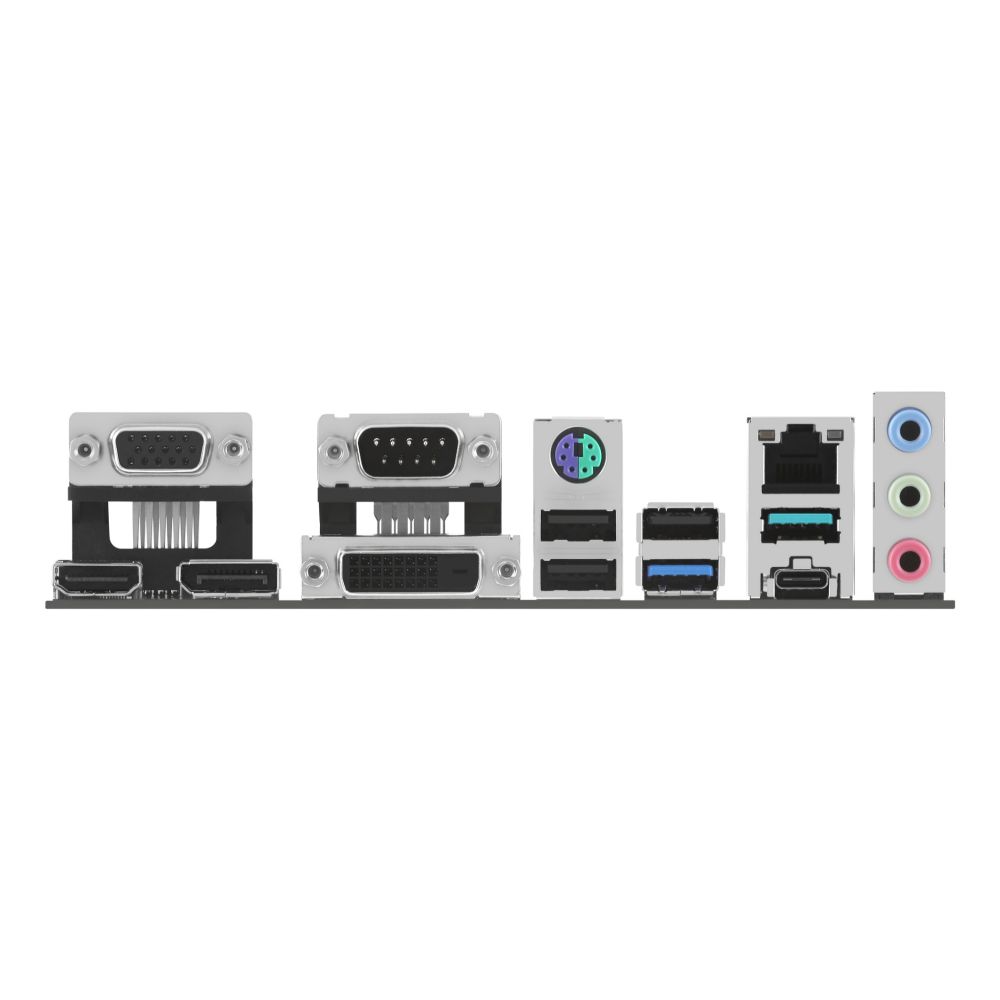

Built for continuous operation, the ASUS PRO A620M-C-CSM undergoes rigorous testing at temperatures up to 45°C and 80% relative humidity. Anti-moisture coating protects against corrosion in humid environments like factories and data centres, while anti-sulfur resistors prevent degradation in harsh conditions. Stainless-steel back I/O panels offer three times the corrosion resistance of standard panels. Overvoltage protection with built-in voltage regulators shields your chipset and components from unstable power supplies, and ESD Guards provide protection up to ±10kV for air discharge.

Enhanced IT Management

Each purchase includes ASUS Control Center Express, a US$60 server-grade IT management tool that enables real-time hardware and software monitoring across your organisation. IT staff can schedule automatic BIOS, software, and utility updates during off-peak hours, enhancing system stability and operational flexibility. The onboard SMBUS header connects to DASH LAN cards for remote IT management, allowing network-based device control. ASUS Commercial BIOS Kit provides partial BIOS update capabilities for customised deployments, while Q-LED Core displays help troubleshoot potential issues during POST.

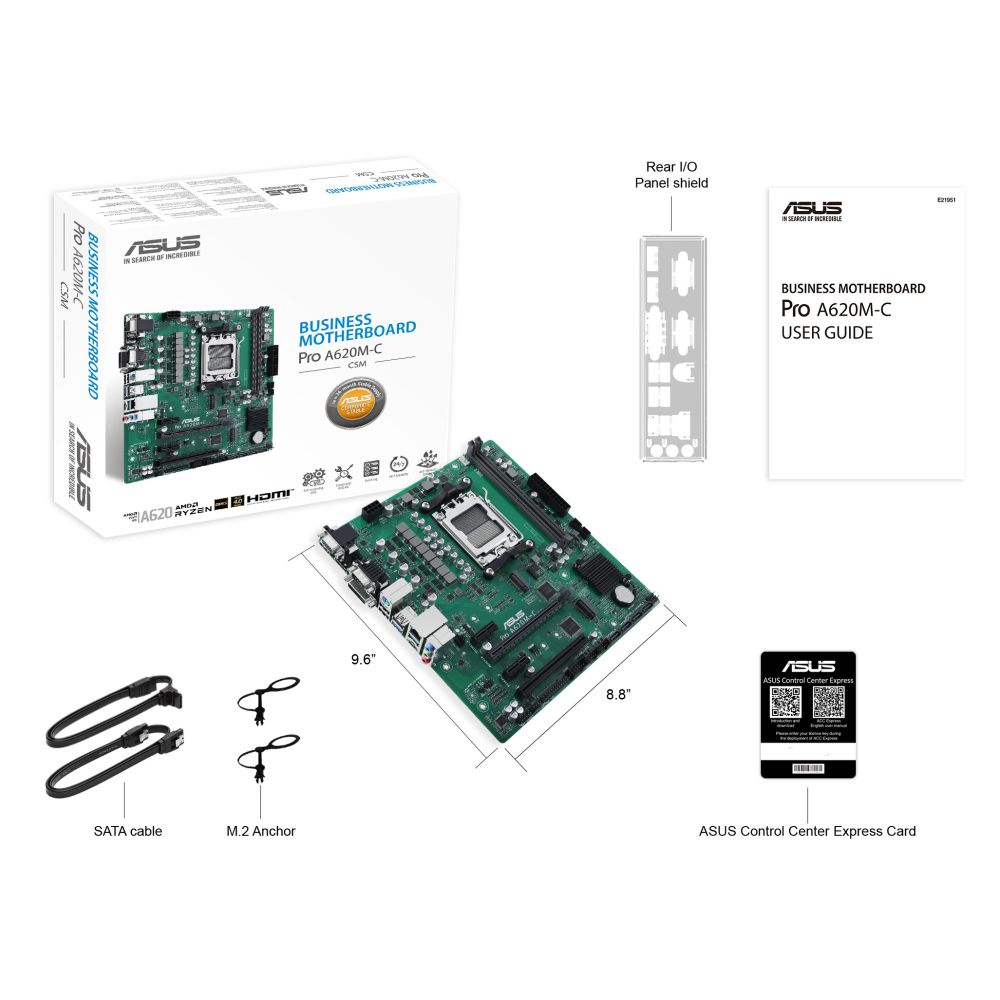

In the Box

• ASUS PRO A620M-C-CSM motherboard
• SATA cables (quantity not specified)
• User guide

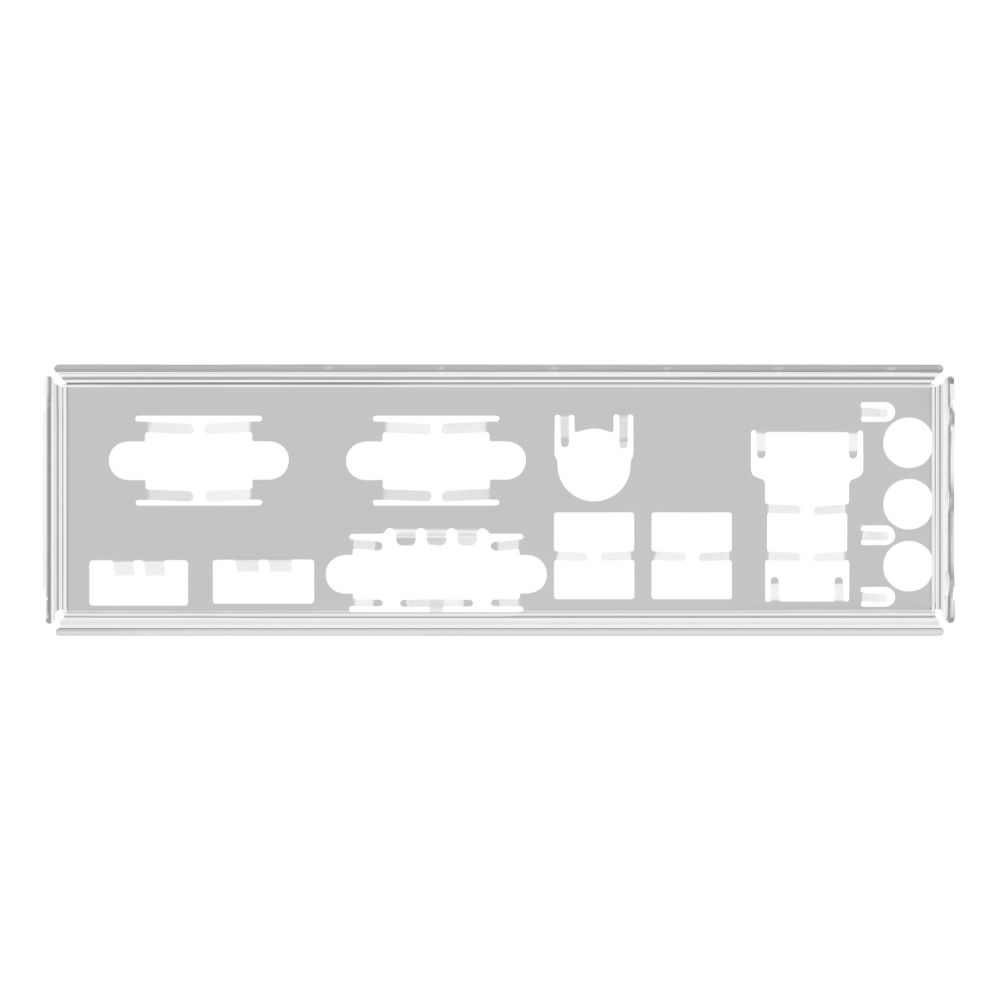

• I/O shield

Things to check first

• Confirm your AMD Ryzen 7000 Series processor is compatible with Socket AM5
• Verify your case supports micro ATX (244x224mm) form factor
• Check that your power supply has a 24-pin ATX connector and 8-pin EPS connector
• Confirm you need DDR5 memory (not DDR4) for this motherboard

Frequently Asked Questions

Summary & warranty

The ASUS PRO A620M-C-CSM AMD A620 Socket AM5 micro ATX motherboard represents an excellent choice for businesses, educational institutions, and IT professionals who need enterprise-grade reliability and comprehensive management capabilities in a compact micro ATX form factor. With 36-month product lifecycle support, TPM security, and included ASUS Control Center Express, this board delivers the stability and manageability required for mission-critical deployments. Covered by the applicable manufacturer warranty.
