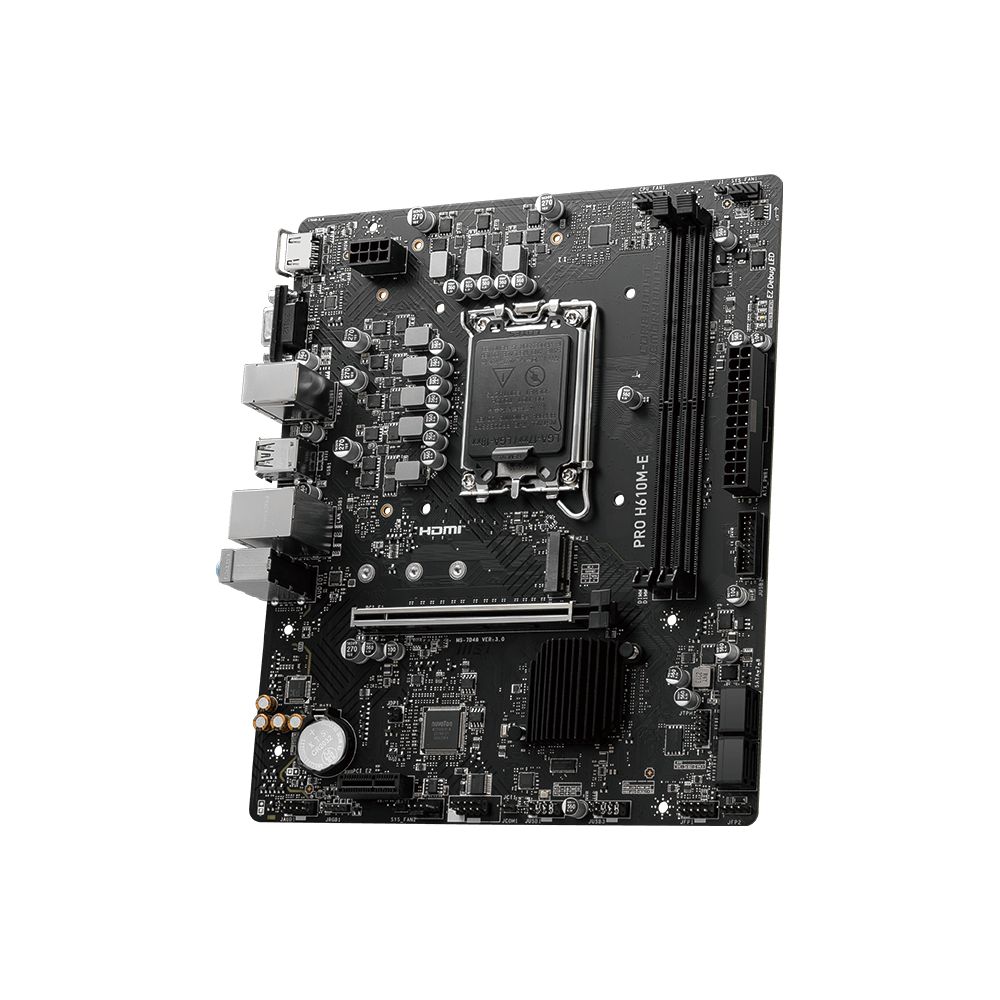

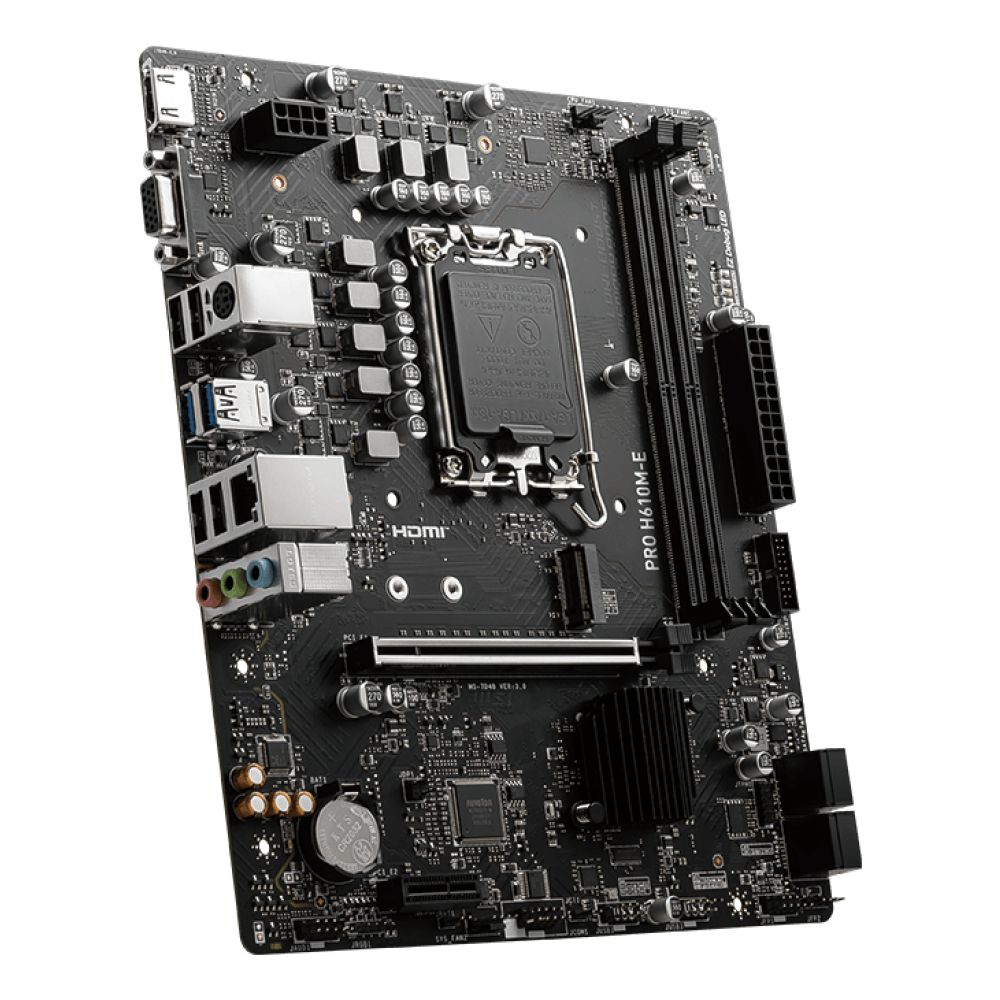

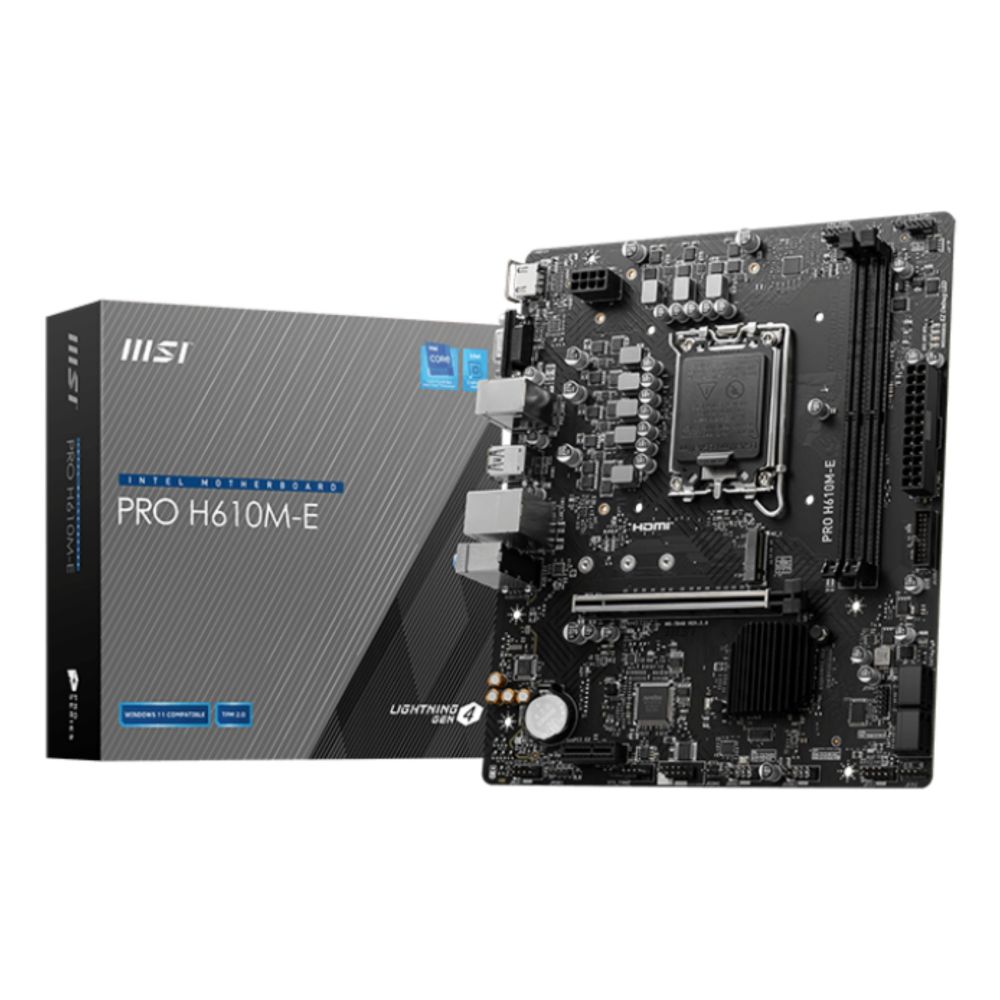

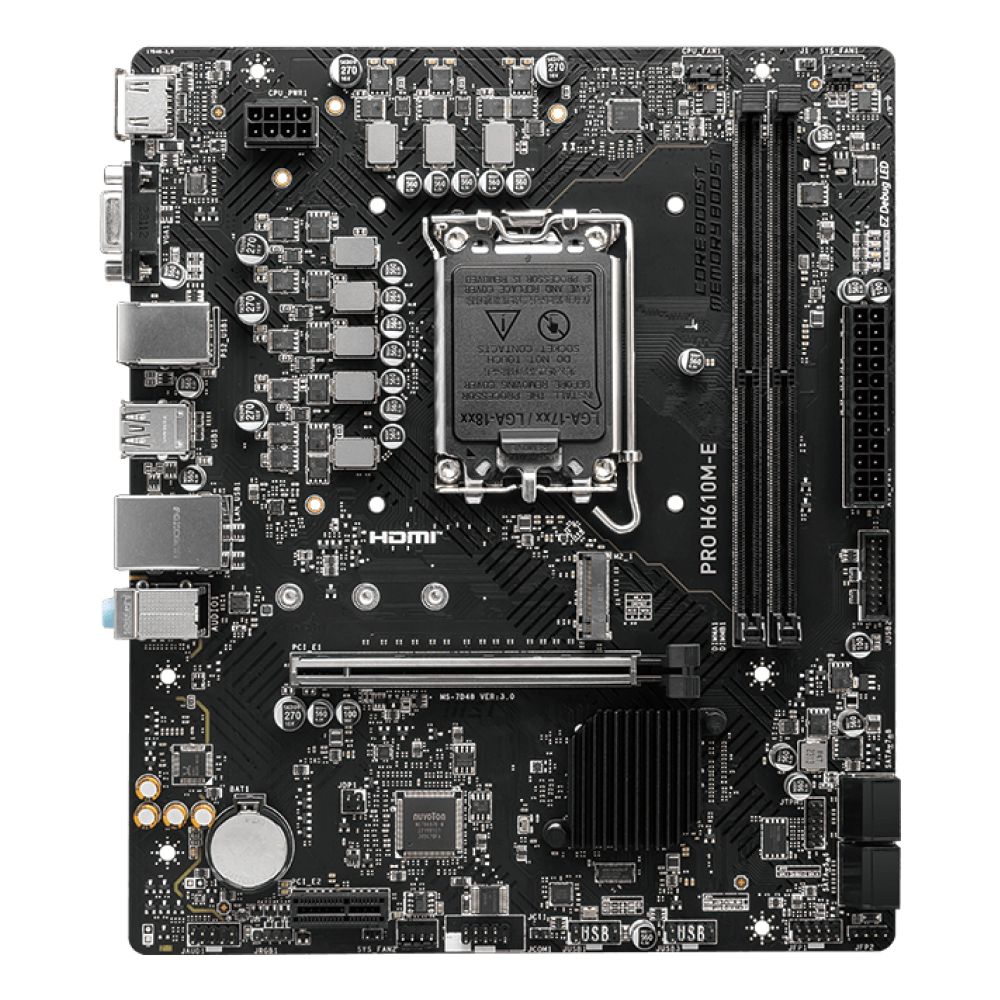

MSI PRO H610M-E micro ATX motherboard
£78.25 inc VAT
In stock
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel H610 micro ATX motherboard with LGA 1700 socket for 12th Gen Intel Core processors
- Supports DDR5 memory up to 5600 MHz with 4 DIMM slots and 96 GB max capacity
- Features 2.5 Gigabit Ethernet and Intel LAN for stable, low-latency connectivity

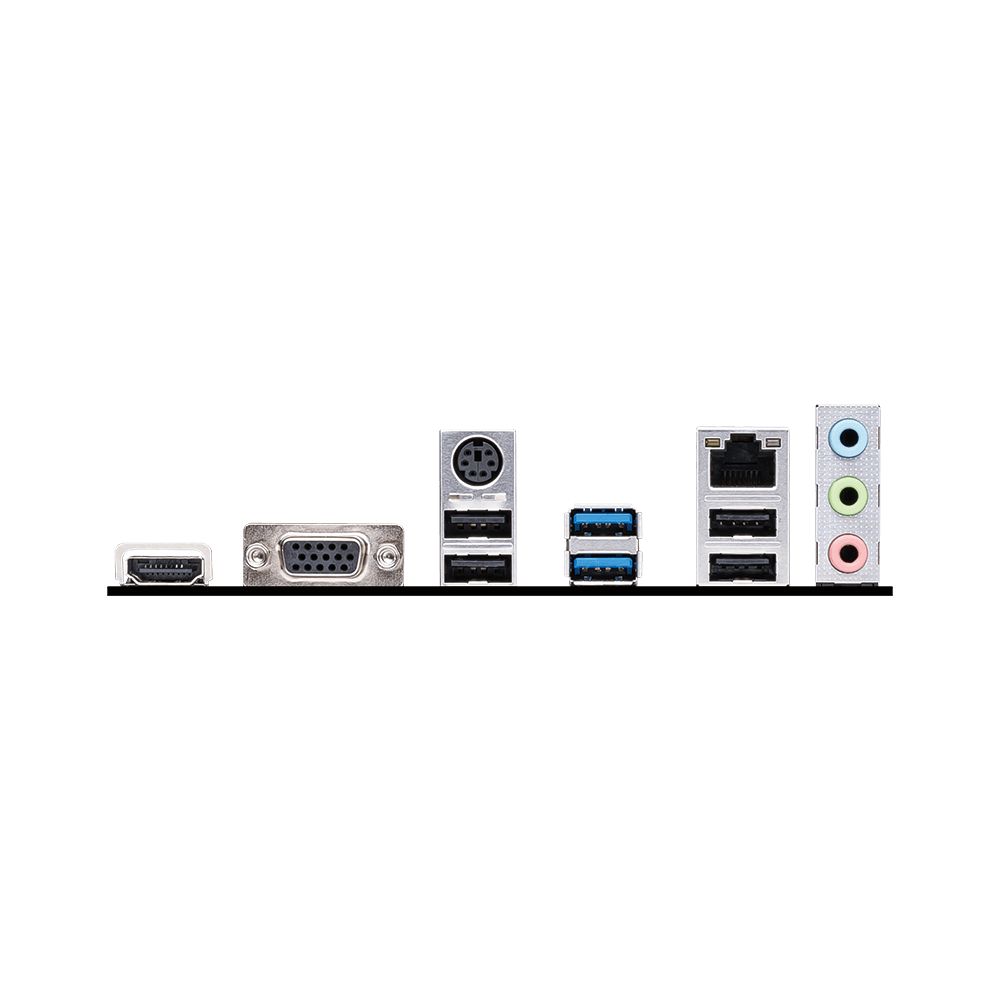

- Includes HDMI 1.4, VGA, and 2.5G LAN for versatile display and networking options
- Equipped with PCIe 4.0 x16 slot and M.2/SATA III storage interfaces for high-speed expansion
- 7.1 channel HD audio with front panel audio connector for immersive sound
Payment Methods:
You may also like
MSI PRO H610M-E | Micro ATX Motherboard for Intel H610
The MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX delivers reliable performance for professional and home builds. Designed for Intel’s 12th and 13th Gen processors, it offers stable functionality, efficient cooling, and modern connectivity in a compact micro ATX form factor.
Product Specifications
| Metric | Spec |
|---|---|
| Processor Socket | LGA 1700 |
| Memory Support | DDR5, up to 96 GB |
| PCIe Slots | 1 x PCIe 4.0 x16, 2 x PCIe 3.0 x1 |
| Storage | M.2, SATA III |
| LAN | Intel 2.5GbE |
Efficient Cooling and Fan Control
The MSI PRO H610M-E features active cooling with multiple fan headers, including CPU and chassis fan connectors. Total Fan Control in the BIOS lets you monitor system temperatures and adjust fan speeds automatically based on up to four temperature targets. This helps maintain stable performance while reducing noise during light workloads.
High-Speed Connectivity and Storage
With Lightning Gen 4 PCI-E, this motherboard supports ultra-fast data transfer up to 64 GB/s, ideal for high-end graphics cards and NVMe SSDs. Dual-channel DDR5 memory up to 5600 MHz ensures smooth multitasking. Four SATA III ports and M.2 slots provide flexible storage options, while Intel 2.5GbE LAN delivers low-latency, stable internet for gaming or remote work.
Professional Features for Everyday Builds
Built for Intel® Celeron®, Core™ i3/i5/i7/i9, and Pentium processors, the PRO H610M-E supports RAID 0, 1, 5, and 10 for data protection and performance. Seven-channel HD audio and multiple USB ports (including USB 3.2 Gen 1) cover all common peripherals. The micro ATX size fits compact cases without sacrificing expandability.
Box contents
- MSI PRO H610M-E motherboard
- SATA cable
- I/O shield
- User manual and driver disc
Key points to check
- Confirm your Intel processor uses the LGA 1700 socket.
- Verify your case supports micro ATX motherboards (236.2 x 200 mm).
- Check if your GPU fits alongside other PCIe devices.
- Ensure your power supply has a 24-pin ATX and 8-pin EPS connector.
Common questions
Does this motherboard support Windows 11?
Can I use DDR4 memory with this board?
Is Wi-Fi included on this model?
How many M.2 SSDs can I install?
What is the maximum supported RAM capacity?
Summary & warranty
The MSI PRO H610M-E motherboard Intel H610 LGA 1700 micro ATX is a solid choice for users building reliable Intel systems with DDR5 memory and modern storage. Its combination of stable cooling, fast connectivity, and professional features suits both work and entertainment setups. Covered by the applicable manufacturer warranty.
| Processor manufacturer | Intel |
|---|---|
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G |
| Processor socket | LGA 1700 |
| Number of memory slots | 4 |
| Memory slots type | DIMM |
| Memory channels | Dual-channel |
| Supported memory clock speeds | 5600 MHz |
| Supported memory module capacities | 4GB, 8GB, 16GB, 32GB |
| Maximum internal memory | 96 GB |
| ECC сompatibility | Non-ECC |
| Supported storage drive types | HDD & SSD |
| RAID levels | 1, 5, 10 |
| RAID support | Yes |
| Thunderbolt headers | 2 |
| Audio connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 4 |
| USB 3.2 Gen 1 3.1 Gen 1 connectors | 2 |
| Number of SATA III connectors | 4 |
| Number of COM connectors | 2 |
| Number of chassis fan connectors | 2 |
| Front panel audio connector | Yes |
| EPS power connector 8-pin | Yes |
| CPU fan connector | Yes |
| ATX Power connector 24-pin | Yes |
| USB 3.2 Gen 1 3.1 Gen 1 Type-A ports quantity | 2 |
| USB 2.0 ports quantity | 4 |
| VGA D-Sub ports quantity | 1 |
| PS/2 ports quantity | 1 |
| Microphone in | Yes |
| Headphone outputs | 2 |
| HDMI ports quantity | 1 |
| Ethernet LAN RJ-45 ports | 1 |
| Motherboard chipset family | Intel |
| Supported processor sockets | LGA 1700 |
| Cooling type | Active |
| Audio output channels | 7.1 channels |
| Component for | PC |
| PCI Express x1 Gen 3.x slots | 2 |
| PCI Express x16 Gen 4.x slots | 1 |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| ACPI version | 6.4 |
| Power source type | ATX |
| Windows operating systems supported | Windows 10, Windows 11 |
| Width | 200 mm |
| Depth | 236.2 mm |
| Drivers included | Yes |
| Cables included | SATA |
| Distributor SKUs | 127227, 4711377125147, 7D48-019R, 911-7D48-019, 496896, 513127 |
