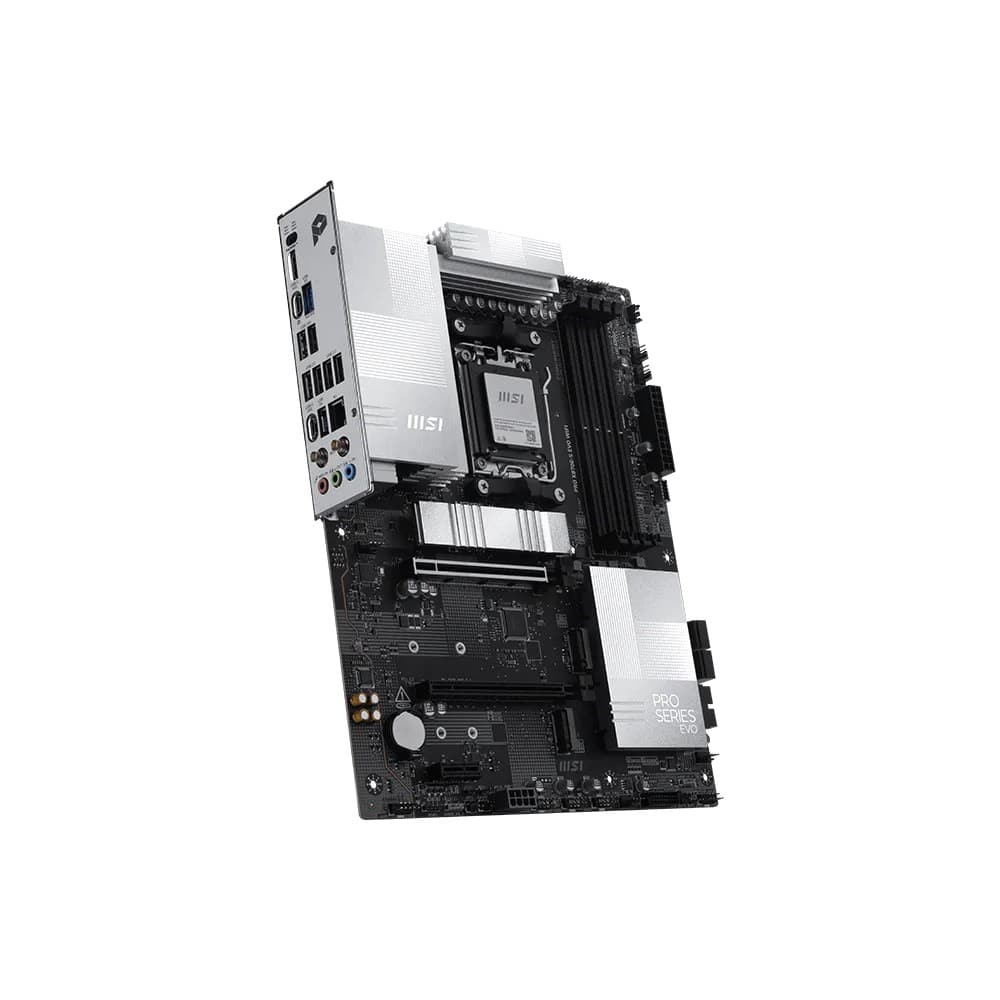

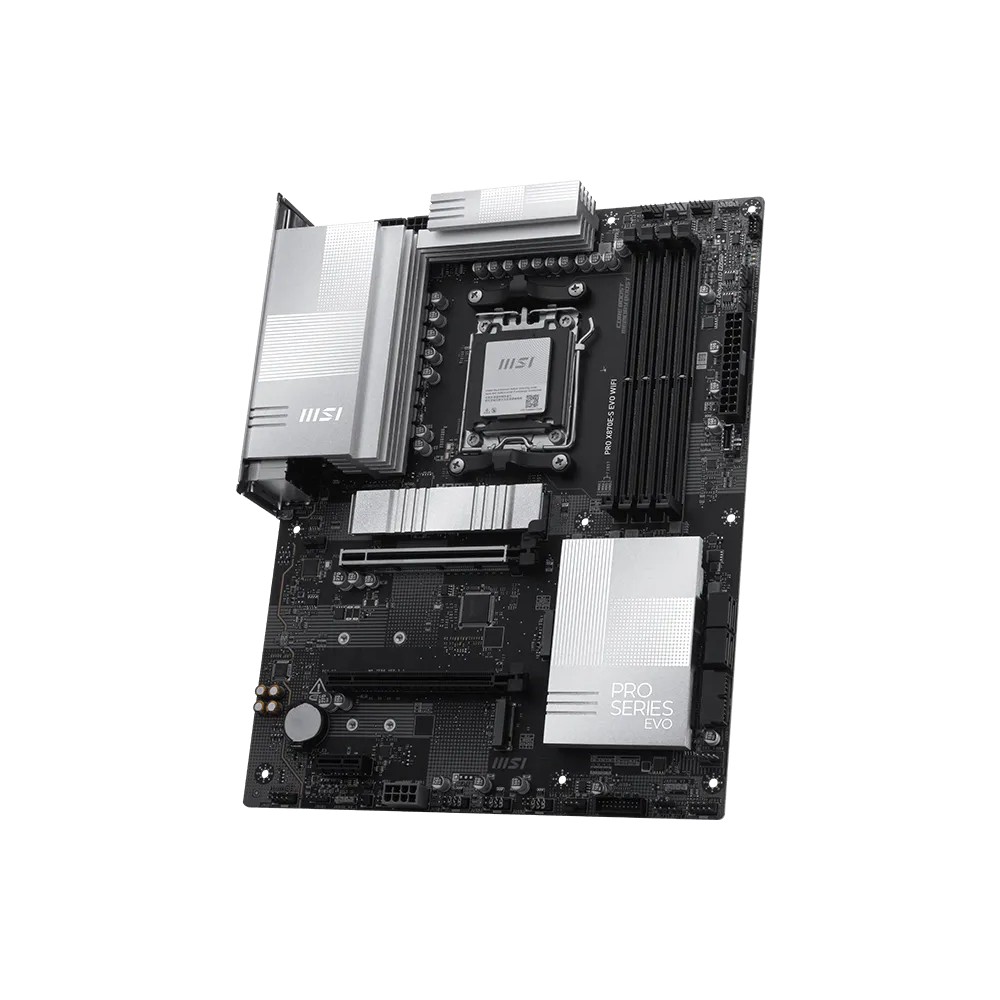

MSI PRO X870E-S EVO WIFI AMD X870E AM5 ATX Motherboard

MSI PRO X870E-S EVO WIFI | AMD X870E ATX Expert Analysis

The MSI PRO X870E-S EVO WIFI motherboard AMD X870E Socket AM5 ATX targets professionals and enthusiasts building reliable, high-performance systems. It supports AMD Ryzen 7000, 8000, and 9000 series processors. A key strength is its comprehensive connectivity, including Wi-Fi 7 and 5G LAN. This board suits users needing robust multitasking and future-ready storage options.

Core Platform and Processor Support

This motherboard uses the AMD X870E chipset. It is designed exclusively for Socket AM5 processors. Compatible CPUs include the AMD Ryzen 7000, 8000, and 9000 series. This ensures a direct path for upgrading to the latest AMD technology. The board’s foundation is built for demanding applications.

Memory and Storage Configuration

You get four DIMM slots for DDR5-SDRAM. The system supports dual-channel memory with speeds up to 8200 MHz. A maximum of 256 GB RAM is supported. For storage, there are three M.2 slots and four SATA III connectors. This provides flexible options for both SSDs and HDDs. RAID 0 and 1 are supported for data redundancy or speed.

Advanced Connectivity and Expansion

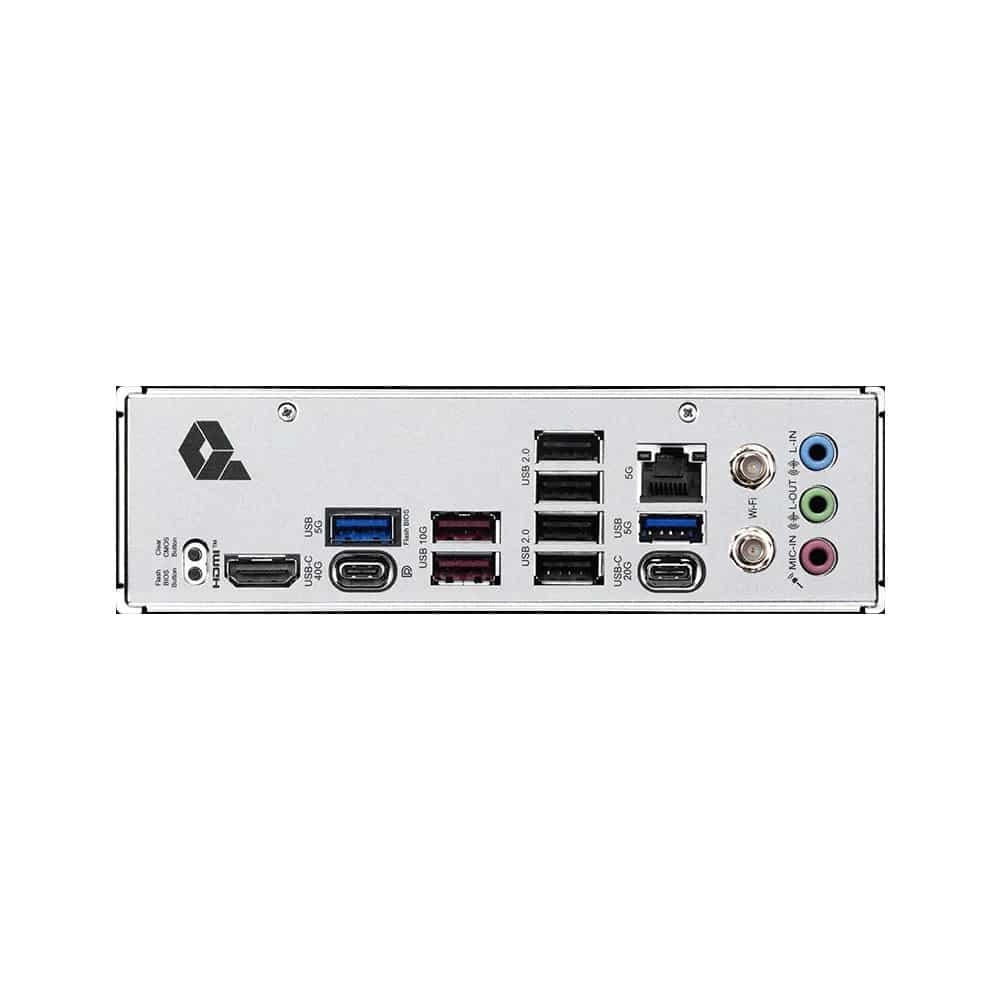

The board offers extensive peripheral connections. It features USB4 Gen 3×2 and USB4 Gen 2×2 ports. There are also multiple USB 3.2 and USB 2.0 ports. For networking, it includes a 5G LAN port and Wi-Fi 7. Bluetooth 5.4 is also integrated. Expansion slots include three PCI Express x16 slots and one x1 slot.

Power Design and System Management

A flagship VRM design with 12+2+1 digital power phases delivers stable power. This supports high-end processors under heavy load. The board includes PC health monitoring for CPU, fan, temperature, and voltage. This helps maintain system stability. A TPM connector and UEFI AMI BIOS are also present.

Box Contents

Check before you buy

• Confirm your case supports an ATX motherboard form factor.
• Verify your power supply has an 8-pin EPS and 24-pin ATX connector.
• Check your operating system is Windows 11 x64 for full support.
• Confirm your Wi-Fi router supports Wi-Fi 7 (802.11be) for top speeds.

Questions and answers

The short version

This board is ideal for professionals and gamers building a modern AMD Ryzen 9000 series system. It offers a balanced mix of performance, connectivity, and reliability. The extensive feature set supports demanding productivity and creative workloads. Covered by the applicable manufacturer warranty.
