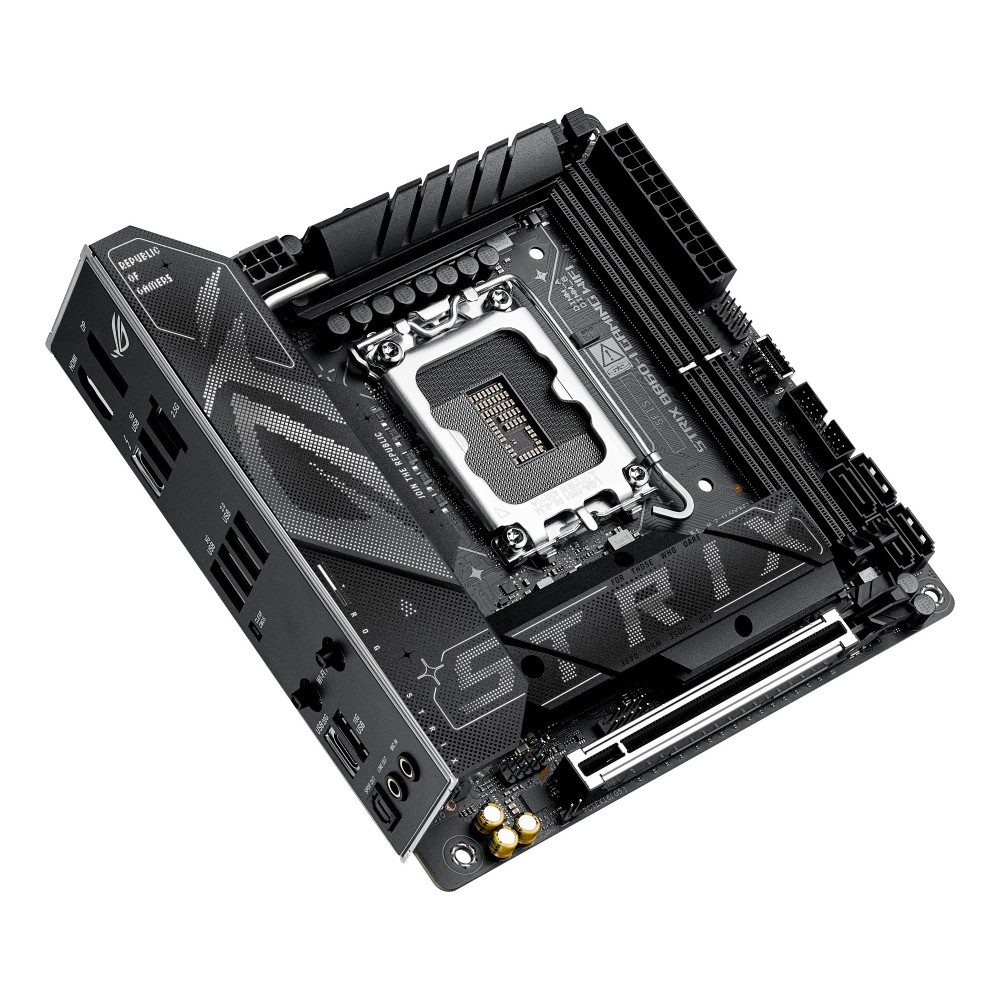

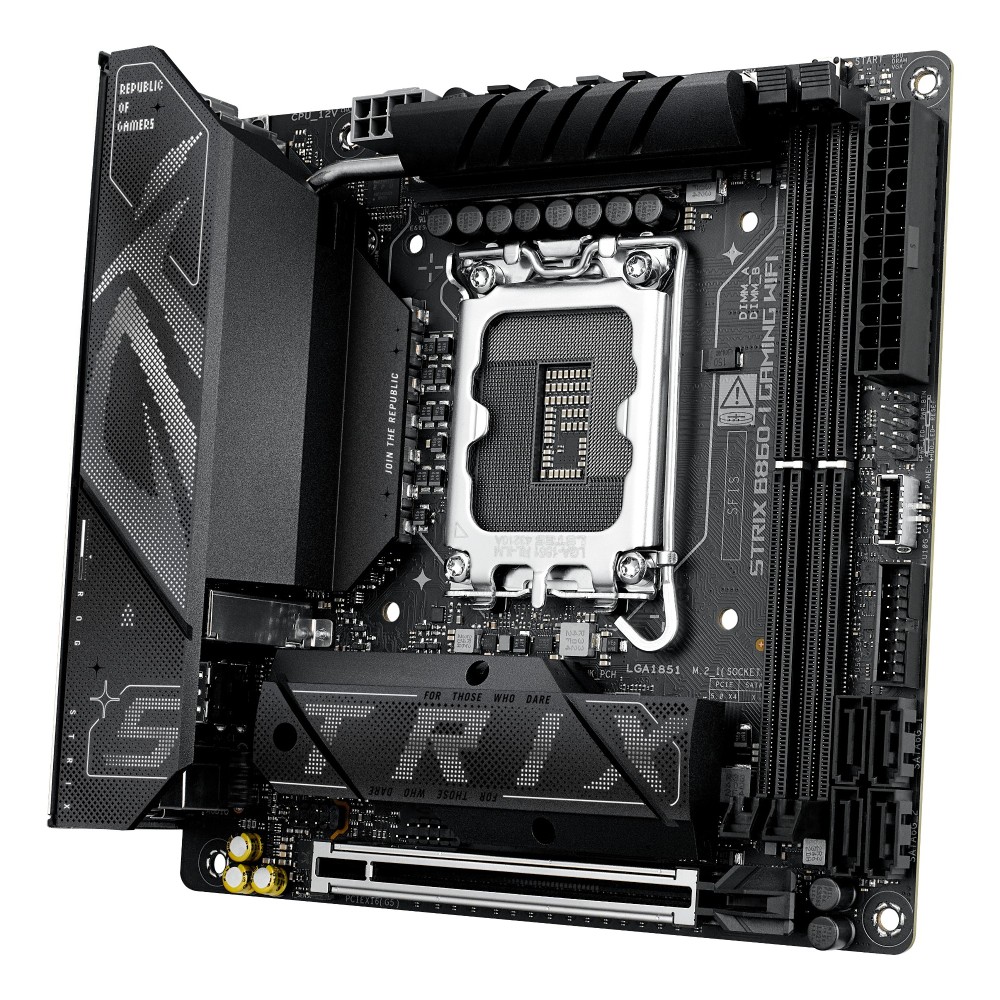

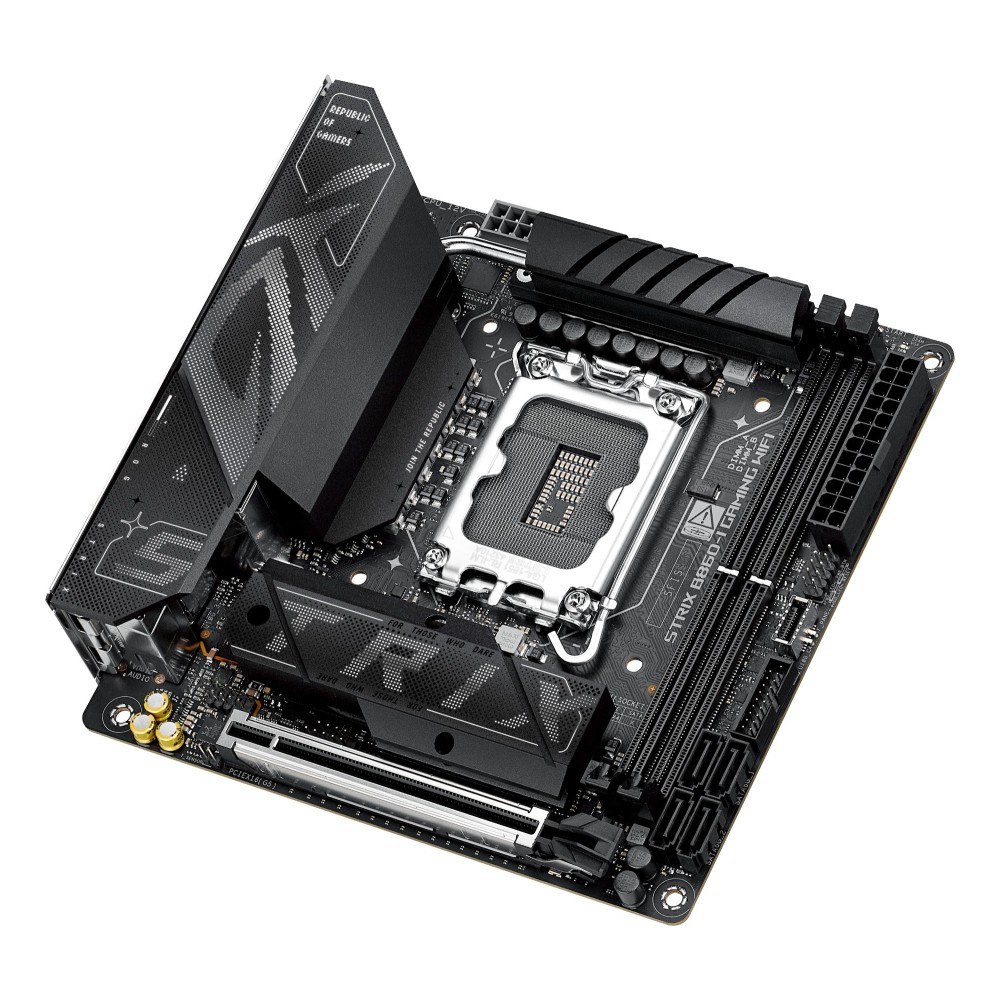

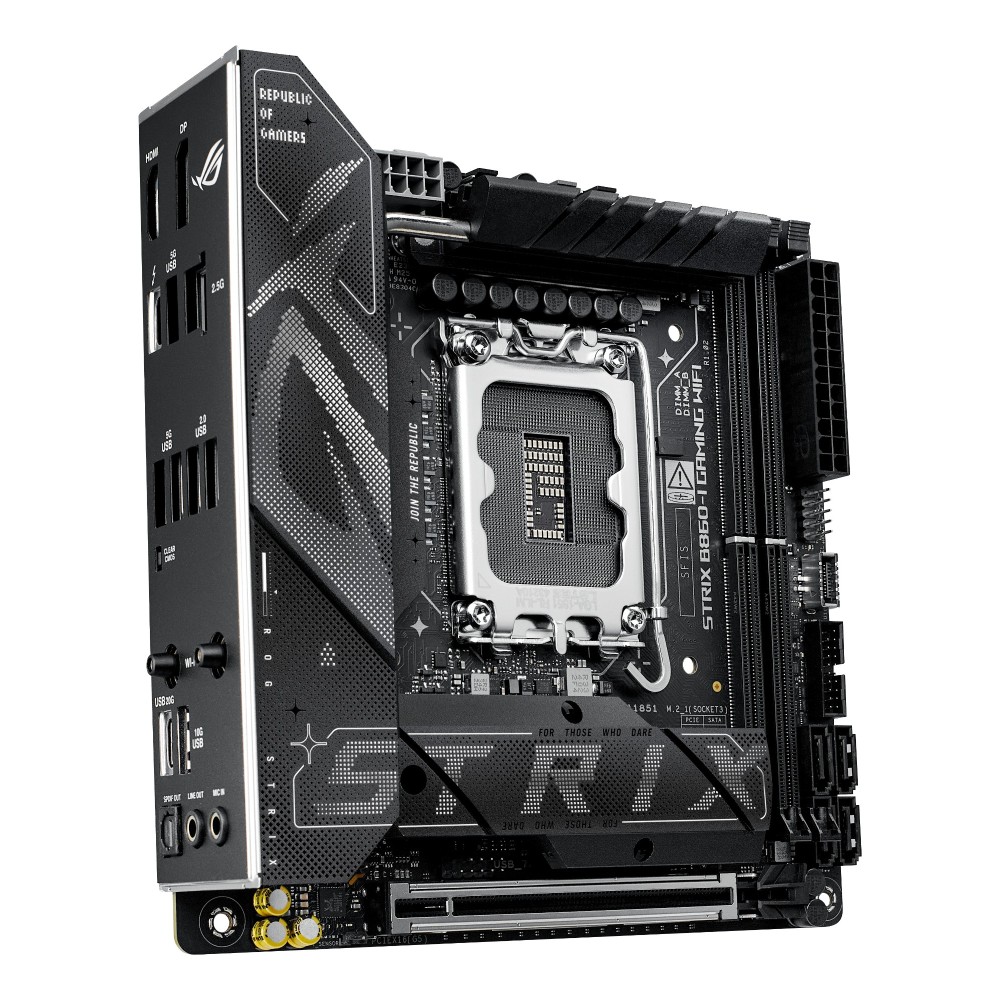

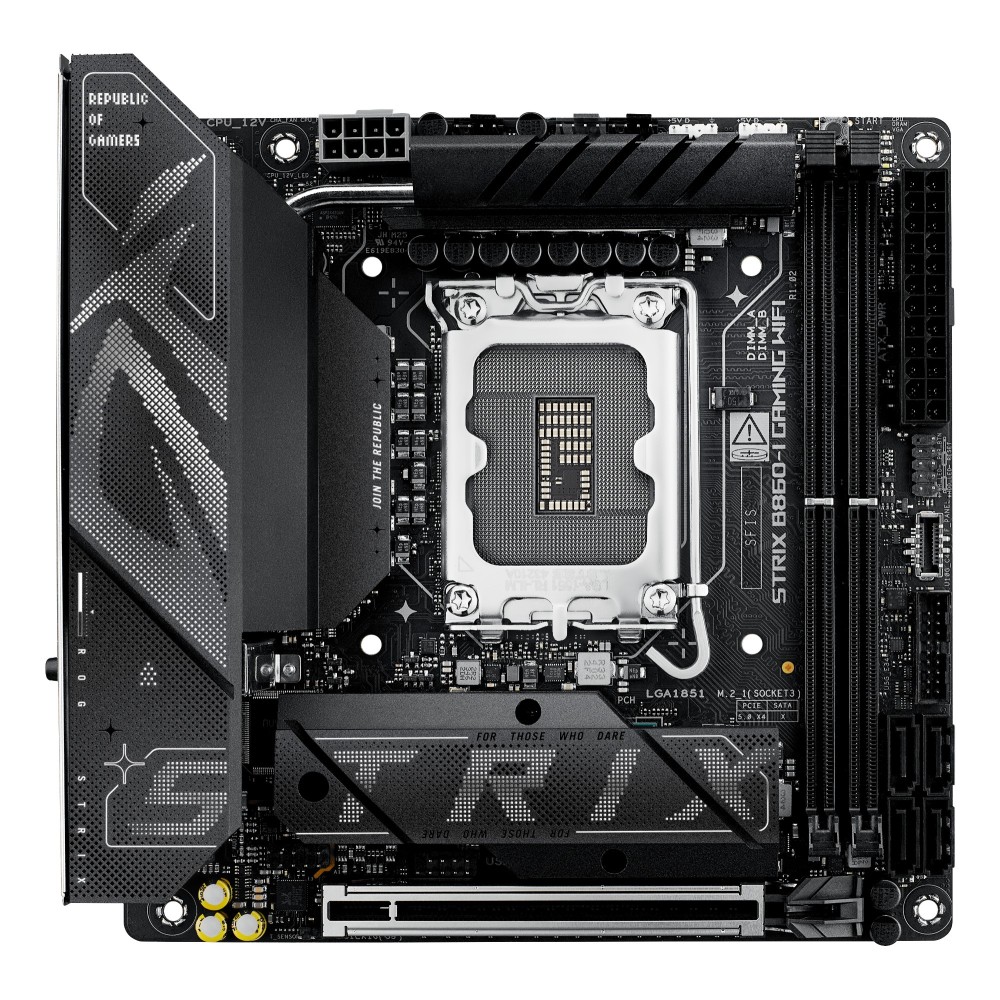

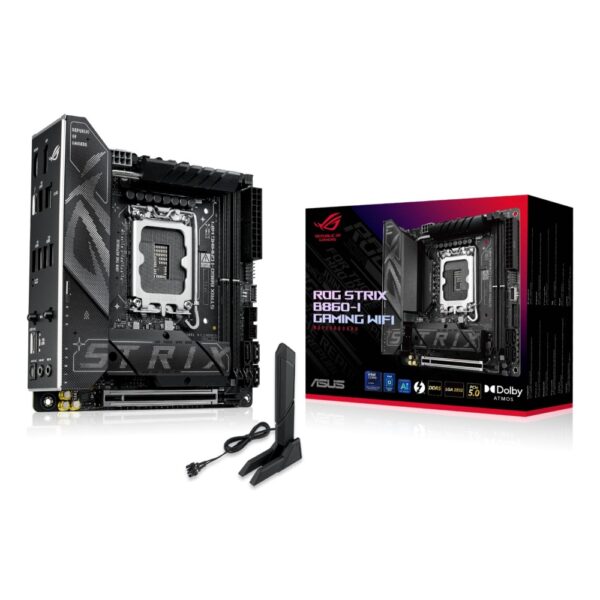

ASUS ROG STRIX B860-I WIFI Intel B860 LGA 1851 mini ITX
In stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Intel B860 chipset for LGA 1851 (Socket V1) Intel Core Ultra (Series 2) processors
- mini ITX form factor for compact PC builds
- Dual-channel DDR5-SDRAM memory support up to 128 GB at 9066 MHz
- Connectivity including Wi-Fi 7, 2.5 Gigabit Ethernet, and Thunderbolt ports
- Storage options with 2 M.2 slots, 4 SATA III connectors, supporting RAID 0, 1, 5, 10
- 7.1 channel audio with Realtek ALC1220P chip
- PCI Express x16 Gen 5.x slot for high-performance graphics
Payment Methods:
You may also like
ASUS ROG STRIX B860-I GAMING WIFI – Compact Powerhouse for Ultra Performance
The ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX motherboard is engineered for enthusiasts building small form factor PCs. We find it particularly suited for the latest Intel Core Ultra (Series 2) processors. This board delivers robust performance in a compact footprint.
Core Metrics at a Glance
| Metric | Spec. |
|---|---|
| Motherboard Form Factor | mini ITX |
| Processor Socket | LGA 1851 (Socket V1) |
| Memory Type | DDR5-SDRAM |
| Max Memory Speed | 9066 MHz |
| Top Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| PCIe Slot | PCIe x16 Gen 5.x |
Next-Generation Connectivity

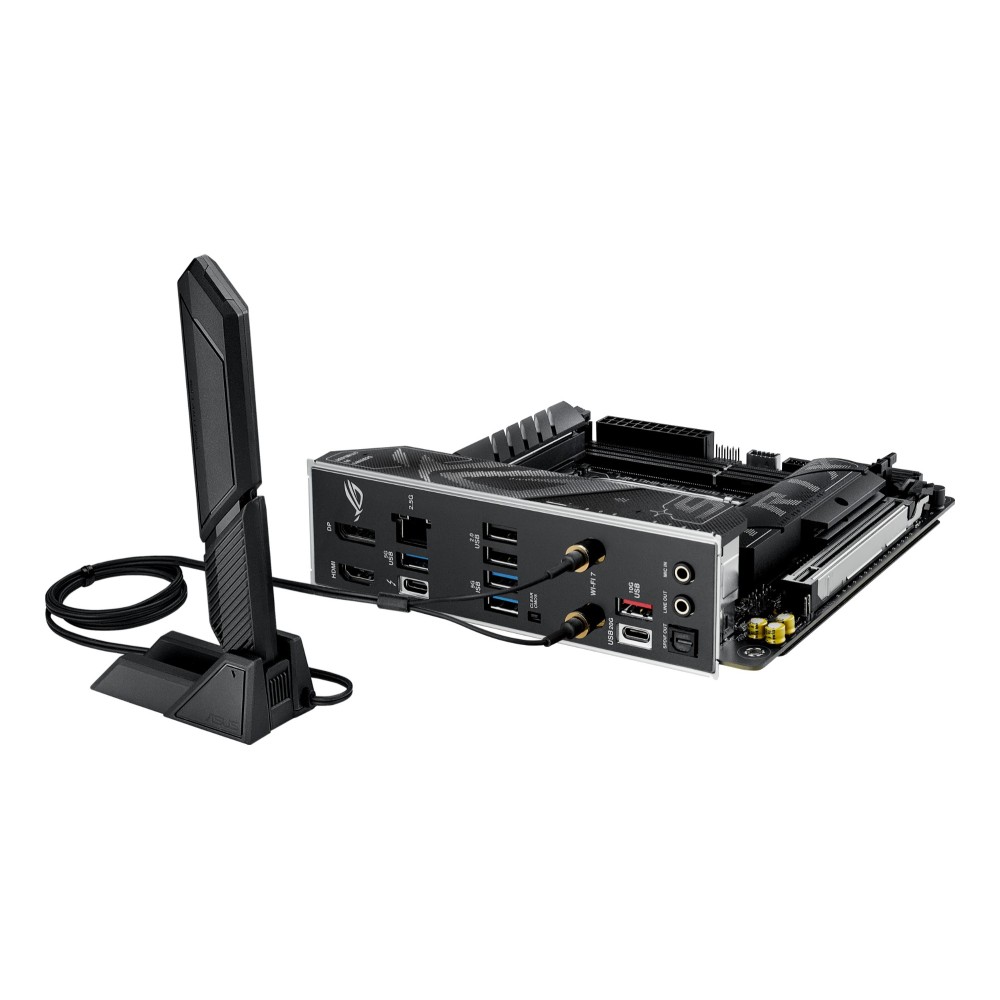

This motherboard comes equipped with Wi-Fi 7. This provides extremely fast wireless networking. You also benefit from 2.5 Gigabit Ethernet for wired connections. Thunderbolt™ 4 connectivity offers versatile, high-speed peripheral support.
Optimised for Modern Processors
We have designed this board for the latest Intel Core Ultra (Series 2) processors. It features an advanced power delivery system. This ensures stable and efficient operation under load. Expect consistent performance for demanding applications.
Rapid Storage Options
Two M.2 M slots are available for high-speed NVMe SSDs. This allows for quick system boot times and fast game loading. Additionally, four SATA III connectors support traditional HDDs and SSDs. RAID levels 0, 1, 5, and 10 are also supported.
Immersive Audio Experience
The Realtek ALC1220P audio chip delivers 7.1 channel audio output. This provides clear and immersive sound. It enhances both gaming and multimedia experiences. Expect crisp, detailed audio reproduction.
Before You Order
- Confirm your chosen processor uses the LGA 1851 (Socket V1) socket.
- Check your PC case supports the mini ITX form factor.
- Verify your RAM is DDR5-SDRAM to ensure compatibility.
- Ensure your power supply has an 8-pin EPS connector.
Frequently Asked Questions
Q: Which Intel processors are compatible with this motherboard?
A: This motherboard is compatible with Intel Core Ultra (Series 2) processors.
Q: How many M.2 drives can be installed?
A: The board features two M.2 M slots for high-speed storage.
Q: Does this motherboard support DDR5 memory?
A: Yes, it supports DDR5-SDRAM with a maximum clock speed of 9066 MHz.
Q: What is the maximum internal memory capacity?
A: The maximum internal memory supported is 128 GB across two DIMM slots.
Q: Does it have Wi-Fi 7?
A: Yes, it features Wi-Fi 7 (802.11be) for advanced wireless connectivity.
Our Verdict
The ASUS ROG STRIX B860-I GAMING WIFI Intel B860 LGA 1851 (Socket V1) mini ITX is an excellent choice for a powerful, compact system build. It offers cutting-edge connectivity and robust performance for the latest Intel processors. This makes it ideal for high-end gaming and demanding applications in a small footprint. Warranty cover varies by product, so please contact us to confirm.
| Internal I/O | |
|---|---|
| Number of M.2 (M) slots | 2 |
| USB 3.2 Gen 2 (3.1 Gen 2) connectors | 1 |
| 12V power connector | Yes |
| Supported storage drive interfaces | M.2, SATA III |
| USB 2.0 connectors | 1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors | 1 |
| Number of SATA III connectors | 4 |
| Number of chassis fan connectors | 1 |
| Front panel audio connector | Yes |
| EPS power connector (8-pin) | Yes |
| CPU fan connector | Yes |
| ATX Power connector (24-pin) | Yes |
| Number of CPU fan connectors | 1 |
| Technical details | |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio | |
| Audio output channels | 7.1 channels |
| Performance | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| RAID levels | 0, 1, 5, 10 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Processor | |
| Processor manufacturer | Intel |
| Compatible processor series | Intel Core Ultra (Series 2) |
| Processor socket | LGA 1851 (Socket V1) |
| Memory | |
| Number of memory slots | 2 |
| Memory slots type | DIMM |
| Supported memory types | DDR5-SDRAM |
| Memory channels | Dual-channel |
| Maximum internal memory | 128 GB |
| Unbuffered memory | Yes |
| Supported memory clock speed (max) | 9066 MHz |
| ECC сompatibility | Non-ECC |
| Storage controllers | |
| Number of HDDs supported | 4 |
| Supported storage drive types | HDD & SSD |
| Supported storage drive interfaces | M.2, SATA III |
| RAID levels | 0, 1, 5, 10 |
| Number of storage drives supported | 6 |
| RAID support | Yes |
| Graphics | |
| Parallel processing technology support | Not supported |
| On-board graphics card | No |

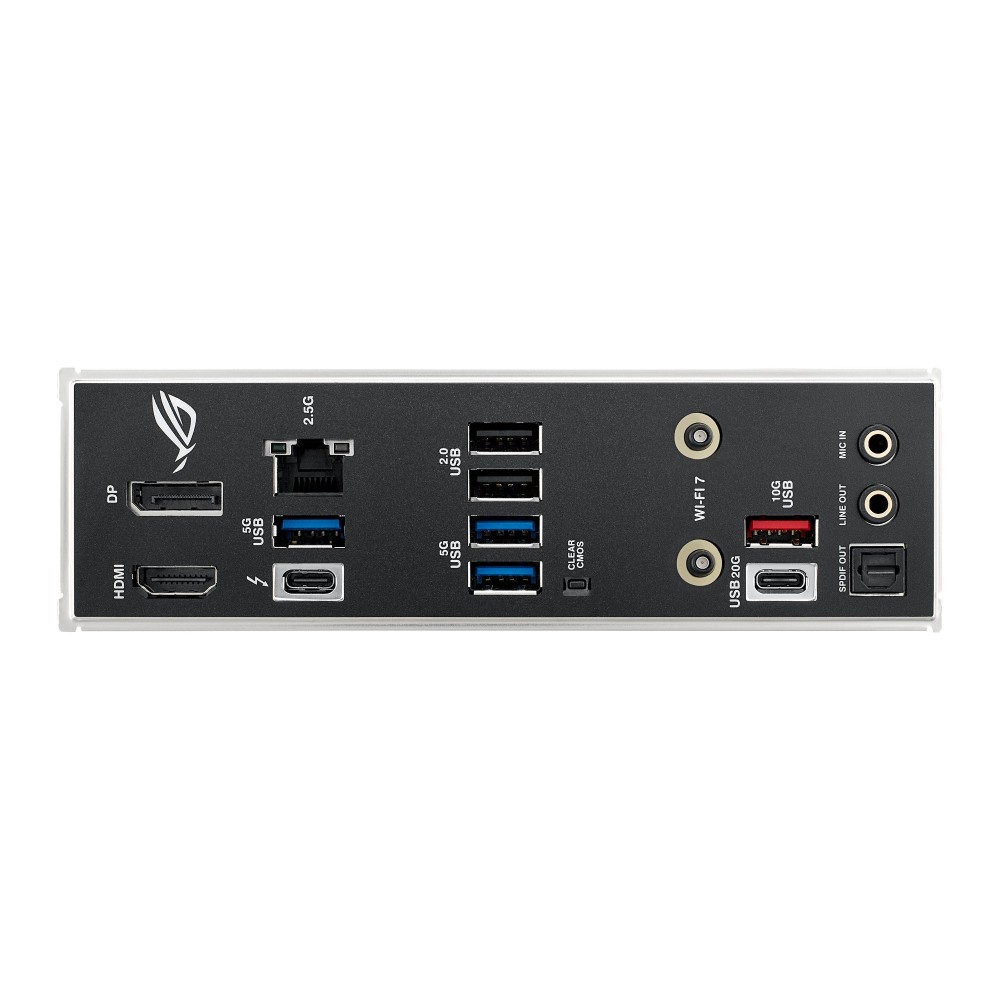

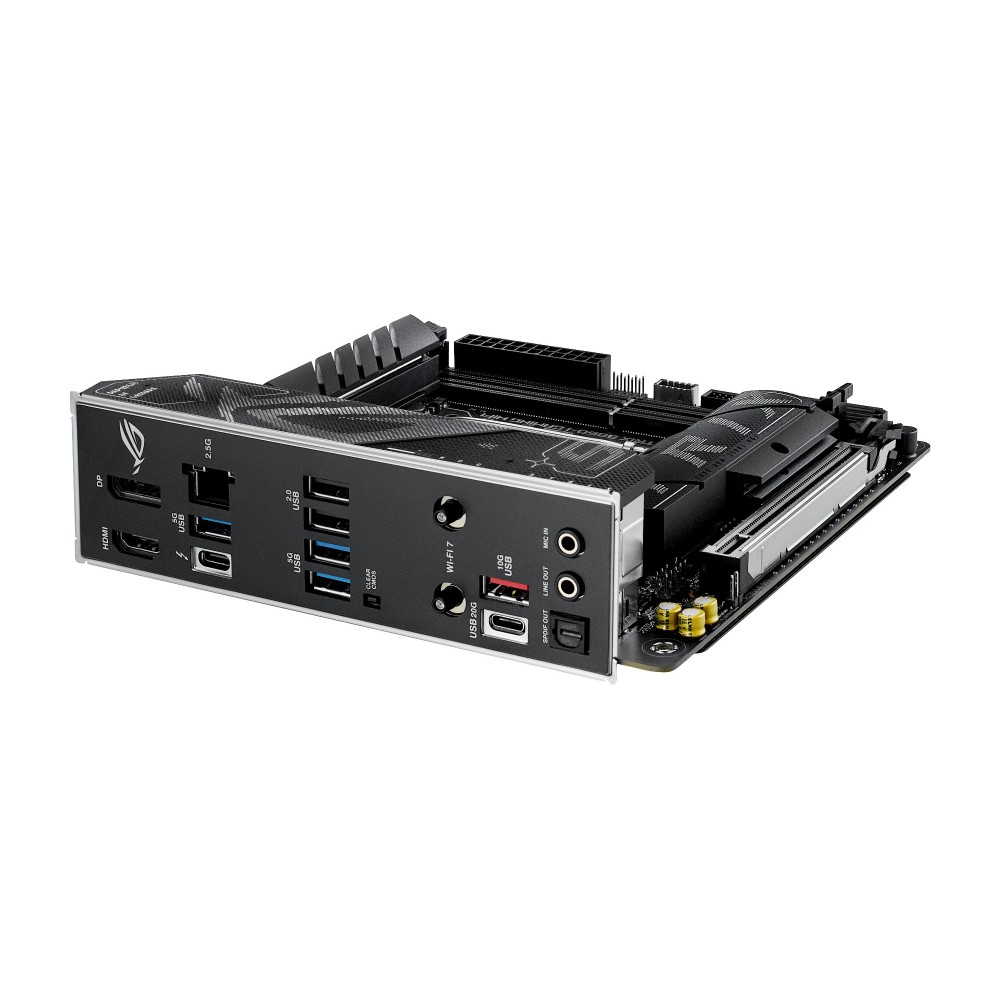

| Rear panel I/O ports | |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| USB 2.0 ports quantity | 2 |
| Thunderbolt ports quantity | 1 |
| S/PDIF out port | Yes |
| Microphone in | Yes |
| HDMI ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| DisplayPorts quantity | 1 |
| USB 3.2 Gen 2x2 Type-C ports quantity | 1 |
| Network | |
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Features | |
| Windows operating systems supported | Windows 11 |
| Motherboard chipset family | Intel |
| Motherboard chipset | Intel B860 |
| Audio output channels | 7.1 channels |
| Motherboard form factor | mini ITX |
| Component for | PC |
| Audio chip | Realtek ALC1220P |
| Product colour | Multicolour |
| Expansion slots | |
| Number of M.2 (M) slots | 2 |
| PCI Express x16 (Gen 5.x) slots | 1 |
| BIOS | |
| BIOS type | UEFI AMI |
| BIOS memory size | 256 Mbit |
| Clear CMOS button | Yes |
| Packaging data | |
| Package width | 228 mm |
| Package depth | 187 mm |
| Package height | 96 mm |
| Package weight | 1.47 kg |
| Software | |
| Windows operating systems supported | Windows 11 |
| Weight & dimensions | |
| Package width | 228 mm |
| Package depth | 187 mm |
| Package height | 96 mm |
| Package weight | 1.47 kg |
| Weight | 812.6 g |
| Width | 170 mm |
| Depth | 170 mm |
| Other features | |
| Package width | 228 mm |
| Package depth | 187 mm |
| Package height | 96 mm |
| Package weight | 1.47 kg |
| Weight | 812.6 g |
| Identifiers | |
| Distributor SKUs | MBD-90MB1JB0-M0EAY0, 11508275, ROG STRIX B860-I GAMING WIFI, 544190, 544442, STD10220302, CL90MB1JB0-M0EAY0 |
