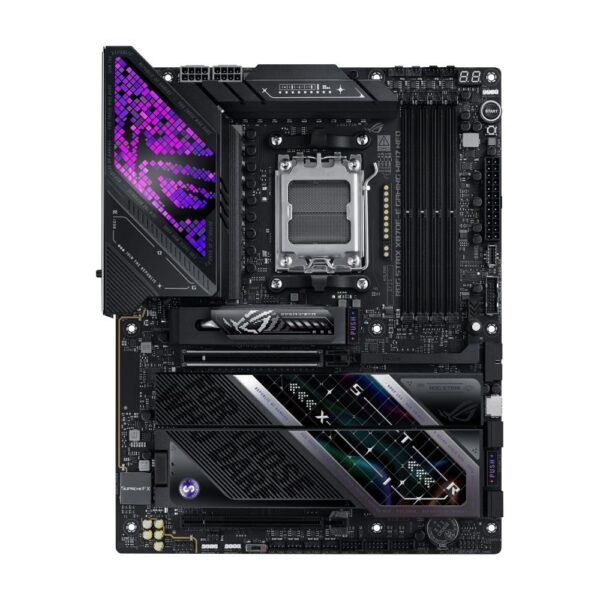

ASUS ROG STRIX X870E-E Gaming WiFi 7 AMD AM5 ATX Motherboard

ASUS ROG STRIX X870E-E GAMING WIFI7 NEO | AMD X870E ATX Platform

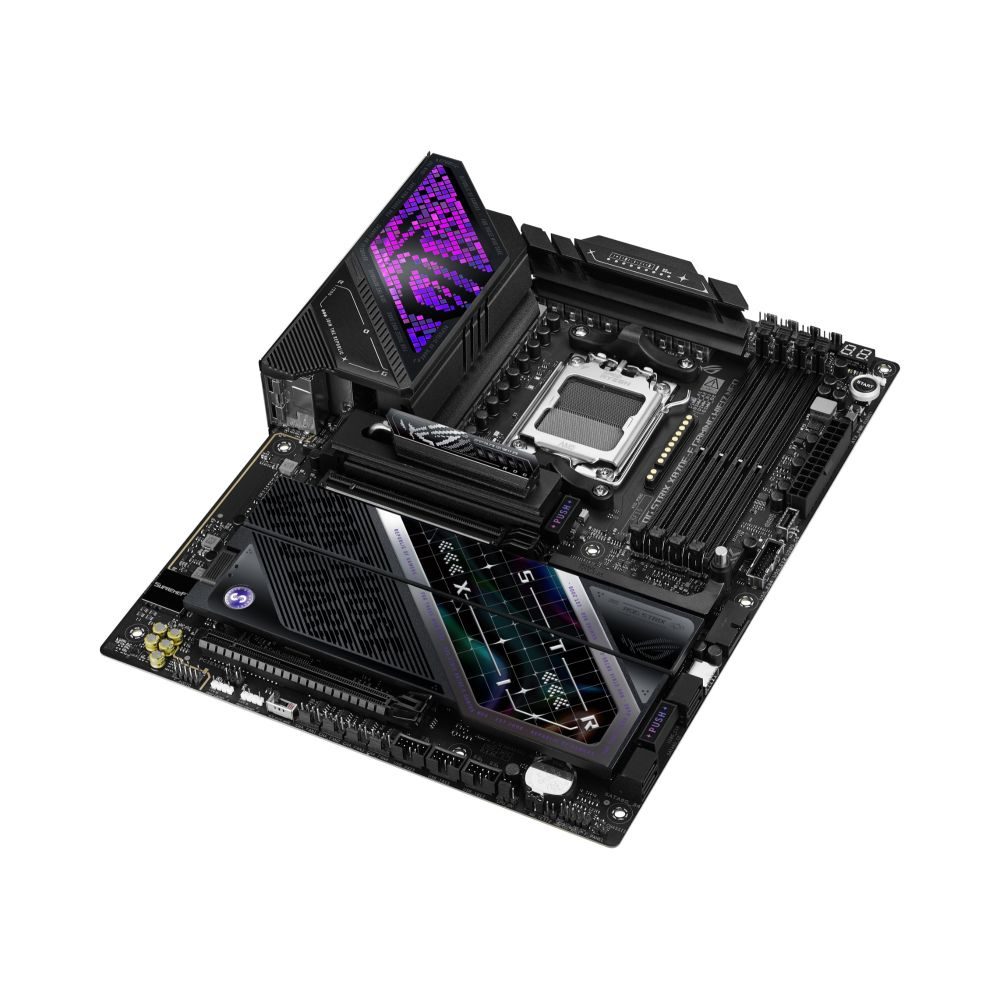

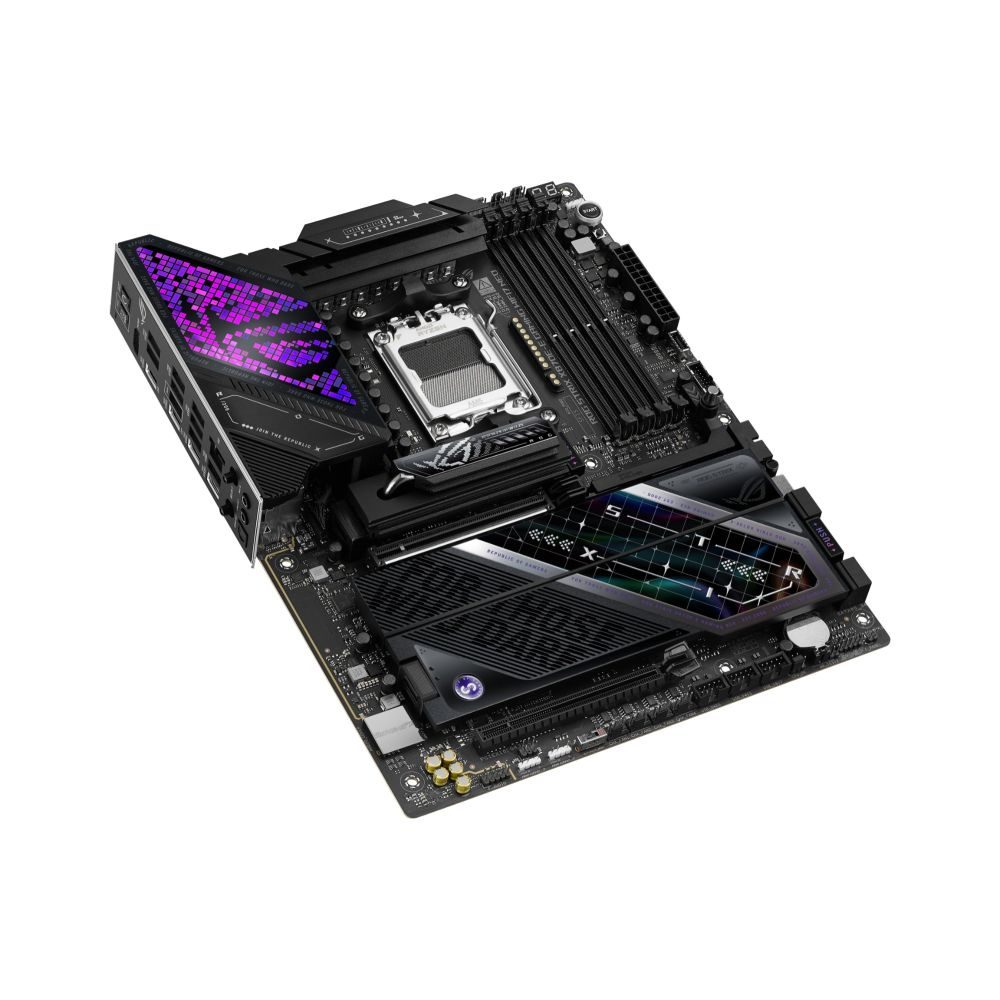

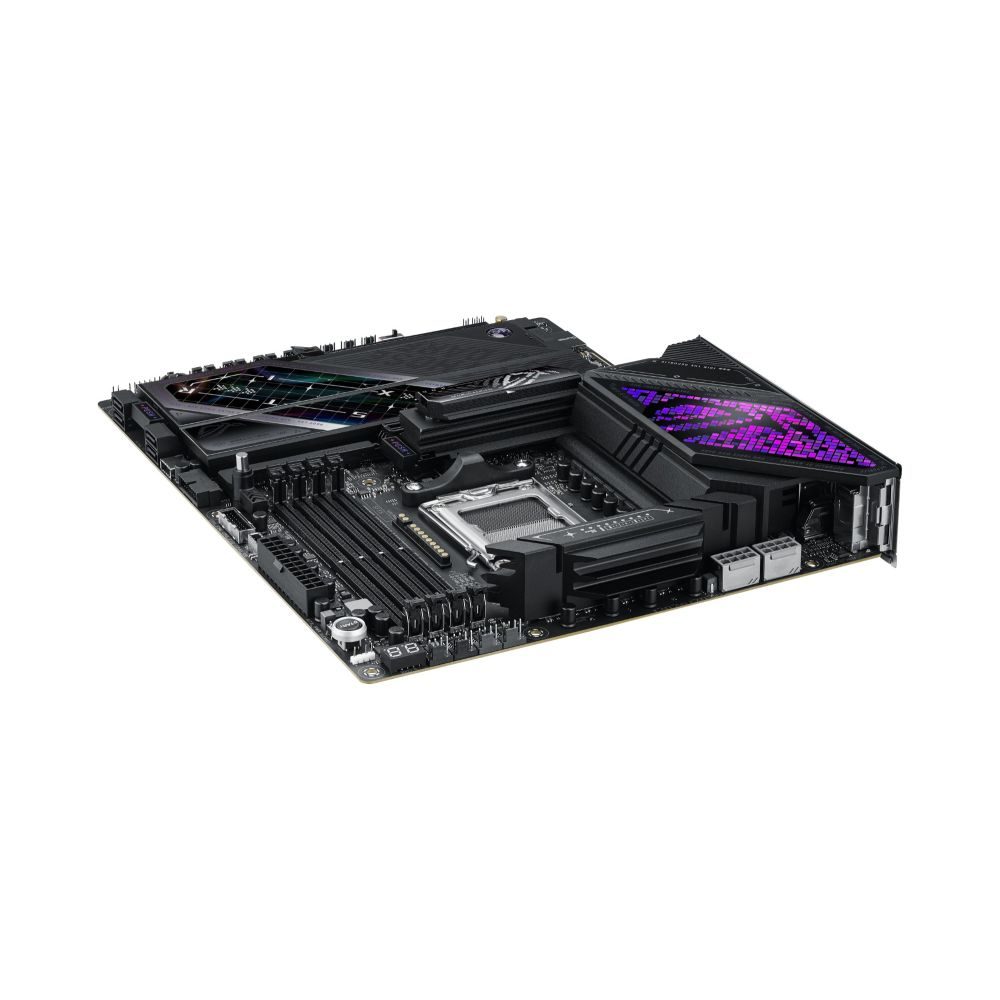

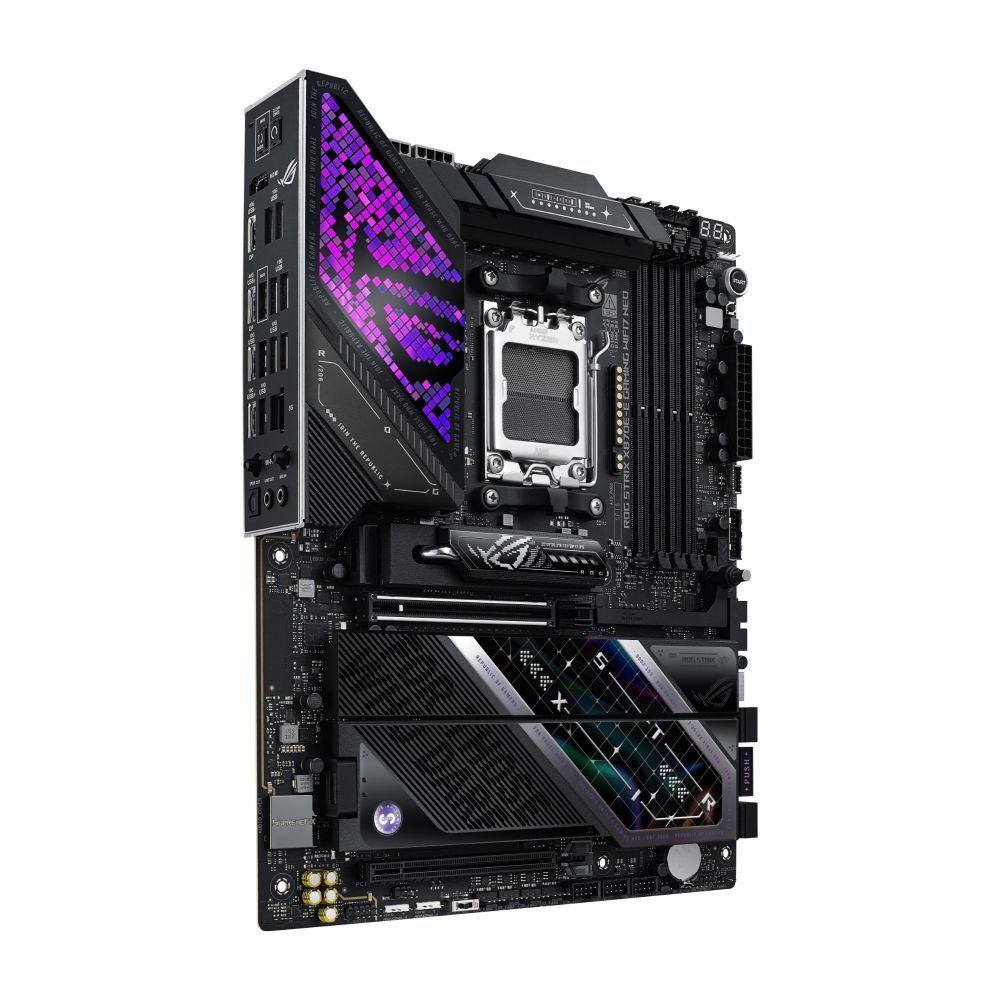

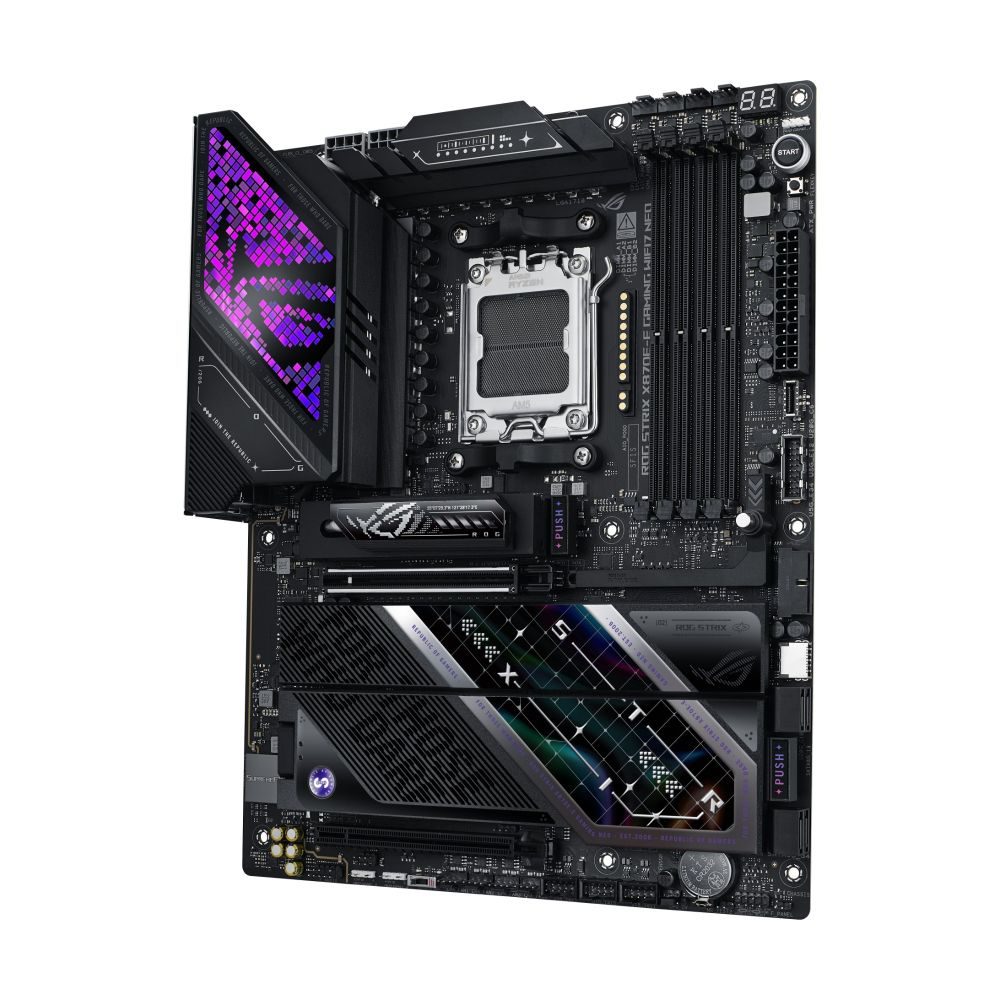

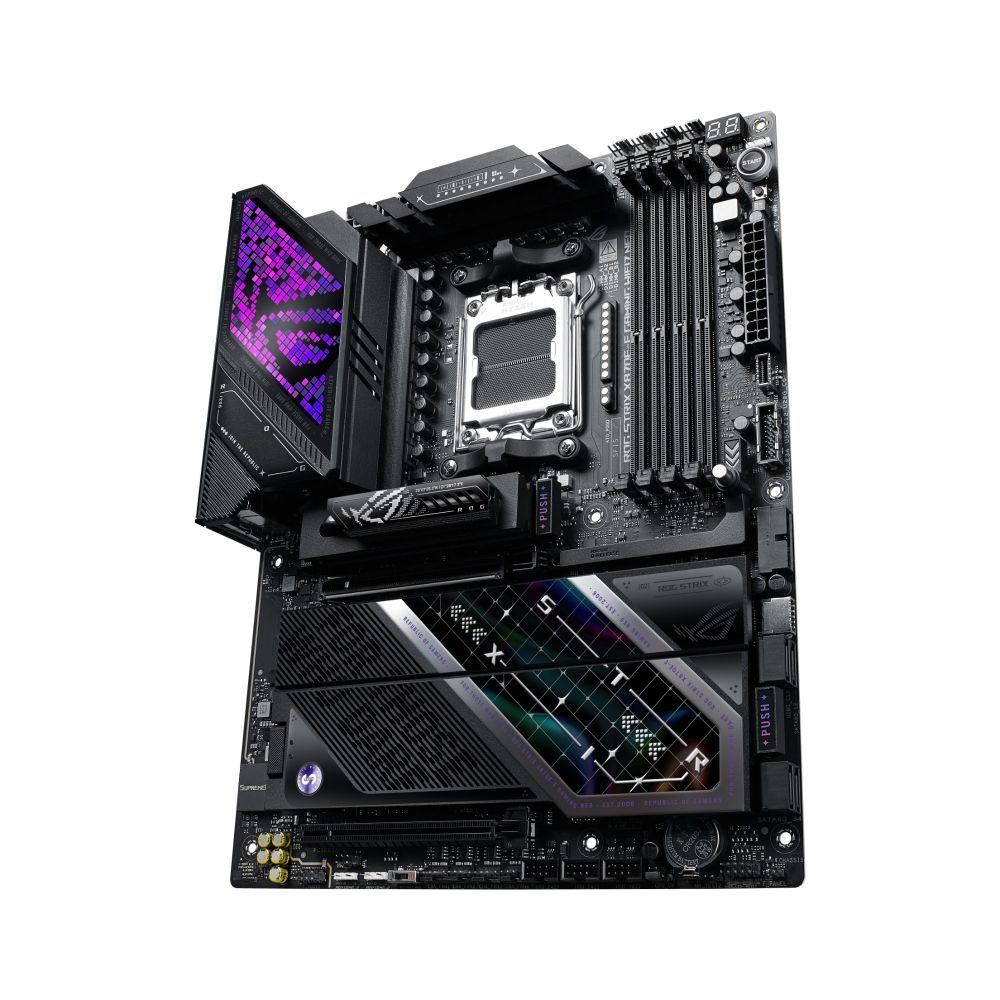

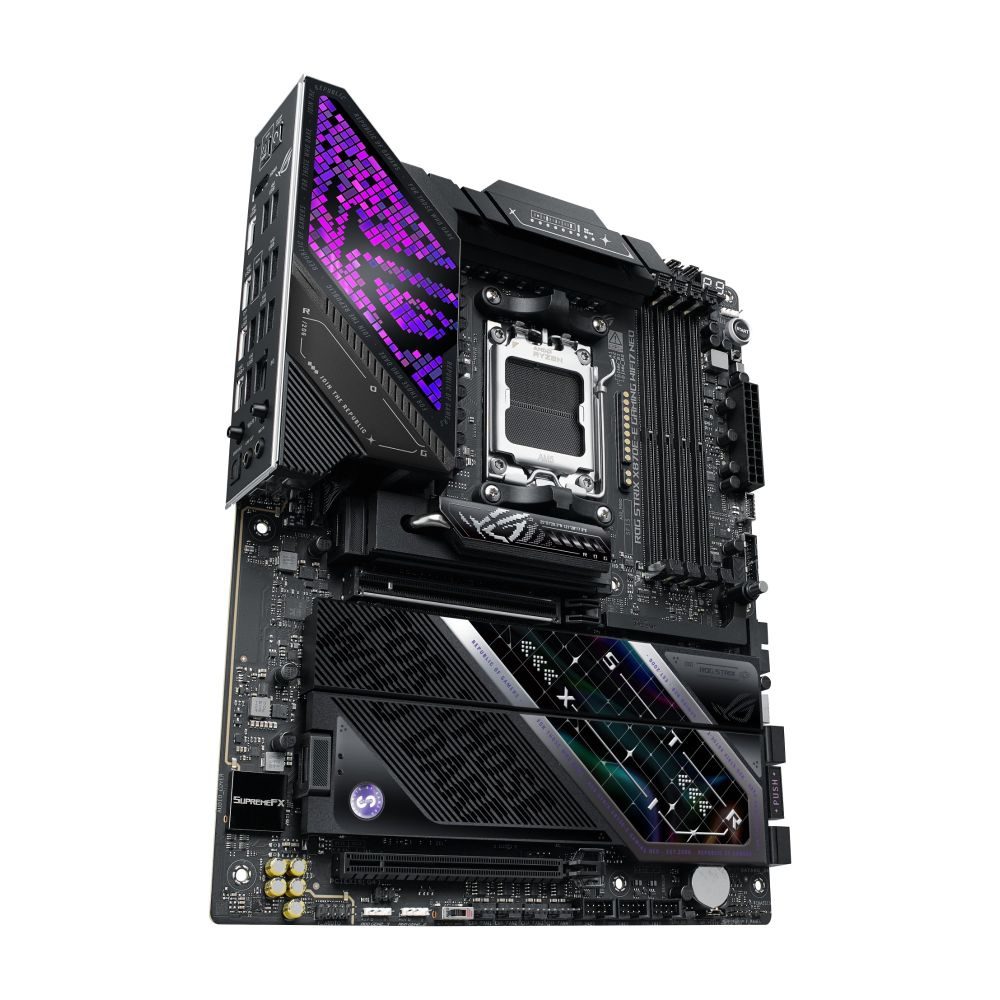

The ASUS ROG STRIX X870E-E GAMING WIFI7 NEO AMD X870E Socket AM5 ATX motherboard is engineered for high-end PC builds using AMD Ryzen 9000 Series processors. It targets enthusiasts who require extensive storage options and next-generation connectivity. This board features five M.2 slots with PCIe 5.0 support, Wi-Fi 7, and a dedicated 5 Gigabit Ethernet port for robust networking.

Slim Specifications

PCIe 5.0 and Five M.2 Slots for Maximum Storage

This board offers exceptional storage flexibility with five M.2 slots. Two slots support the latest PCIe 5.0 standard, delivering ultra-fast speeds for next-generation NVMe drives. The remaining three slots use PCIe 4.0, ideal for high-capacity game libraries or project files. All M.2 slots feature Q-Release latches, making drive installation and removal straightforward without screws. This design simplifies building and upgrading your system.

Optimised Connectivity: Wi-Fi 7 and 5GbE

The ROG Strix X870E-E includes cutting-edge networking hardware. It features Wi-Fi 7 (802.11be) via a MediaTek MT7927 controller for lower latency and higher throughput on compatible routers. Additionally, a 5 Gigabit Ethernet port provides a stable, high-speed wired connection. For users needing maximum bandwidth, this combination ensures smooth online gaming and fast file transfers. Note: Wi-Fi 7 performance depends on your router and environment.

Enhanced DDR5 Stability and Overclocking

NitroPath DRAM Technology and a server-grade low-etch PCB improve signal integrity for your memory modules. This engineering supports more stable DDR5 tuning and greater overclocking headroom. The board supports both ECC and non-ECC unbuffered memory, catering to stability-focused users and enthusiasts. With four DIMM slots and a maximum capacity of 256 GB, you have ample room for memory-intensive applications.

Streamlined BIOS and Broad AM5 Compatibility

A spacious 64 MB UEFI AMI BIOS chip provides extensive compatibility with current and future AM5 processors. The redesigned BIOS interface offers a smoother user experience, simplifying system configuration and updates. A dedicated Clear CMOS button is located on the rear I/O panel for quick recovery. The board supports Windows 11, ensuring modern software compatibility.

Comprehensive Rear I/O and Internal Headers

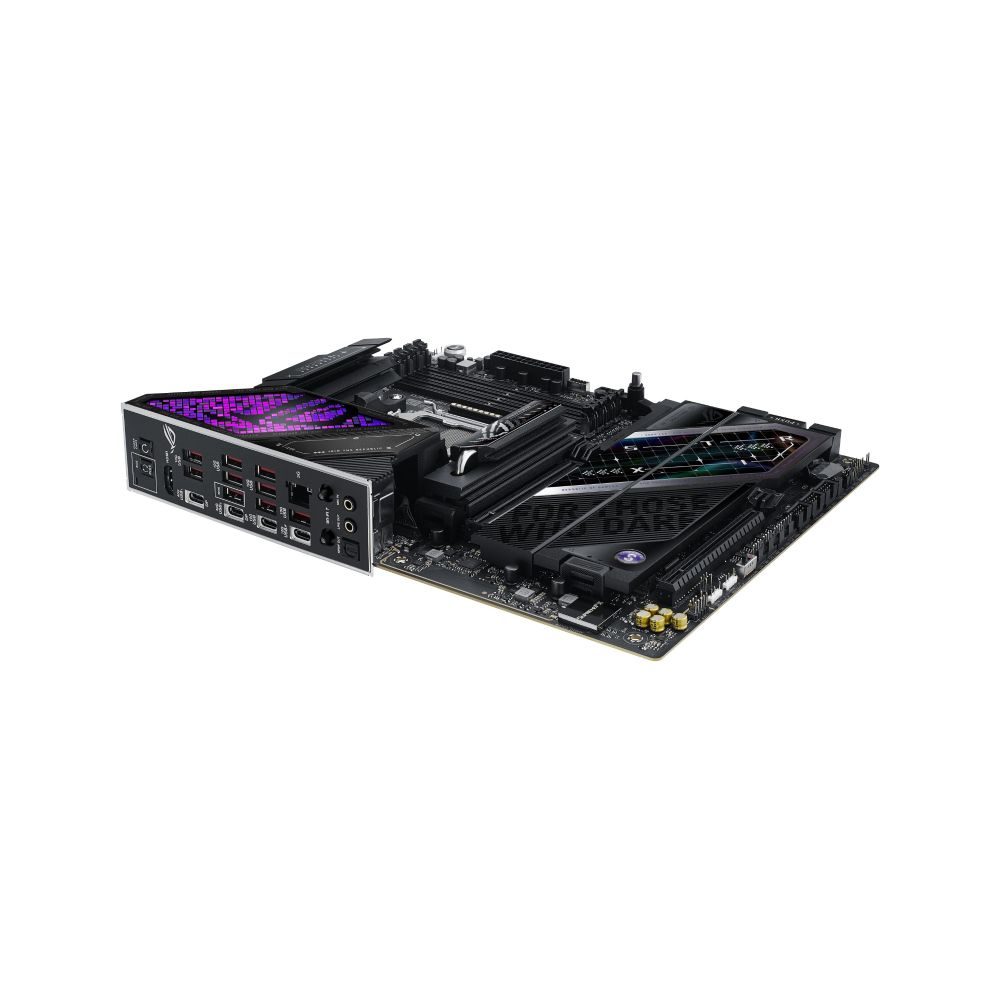

The rear panel includes nine USB 3.2 Gen 2 Type-A ports, two USB 3.2 Gen 2 Type-C ports, and two USB4 Gen 3×2 ports. Internally, you will find headers for USB 2.0, USB 3.2 Gen 1, and USB 3.2 Gen 2×2. The board also features five chassis fan connectors, a CPU fan connector, and RGB LED headers for custom lighting. Audio is delivered via 7.1-channel output.

Box contents

• ASUS ROG STRIX X870E-E GAMING WIFI7 NEO motherboard
• 2 x SATA 6Gb/s cables

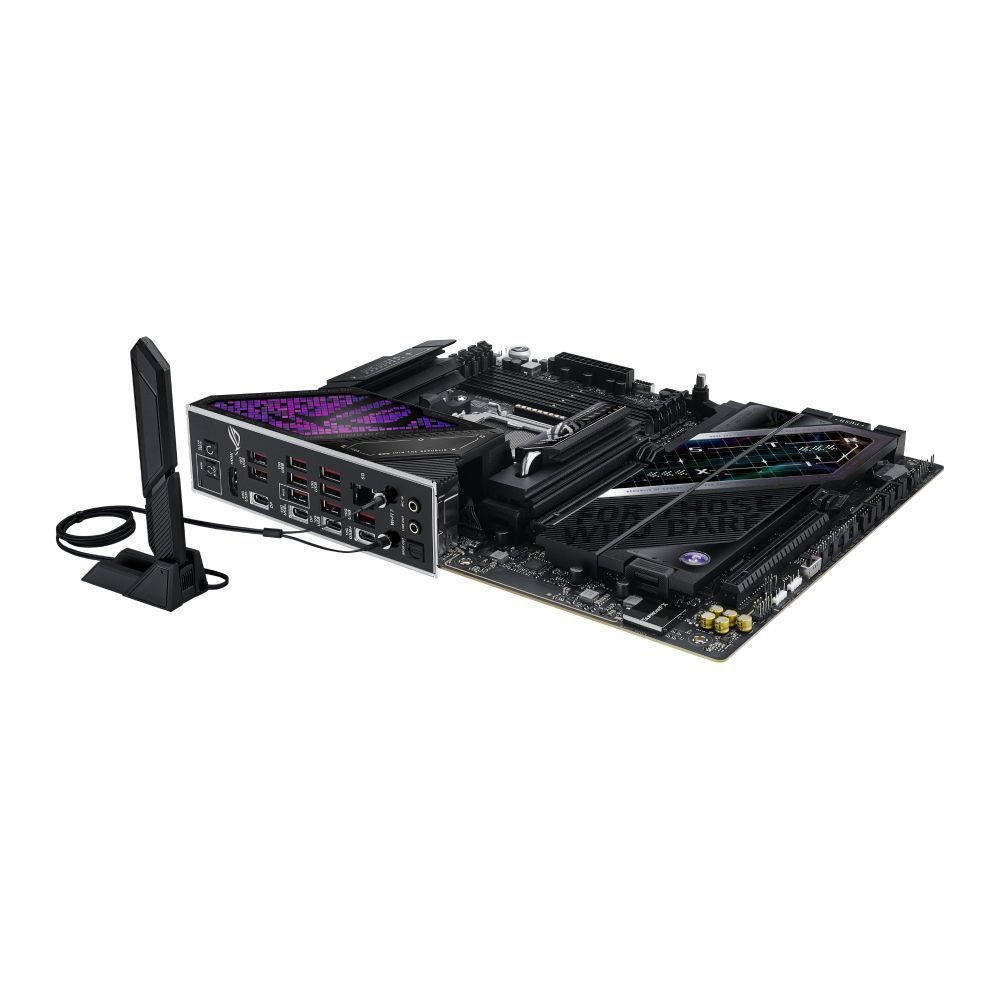

• 1 x ASUS WiFi Q-Antenna
• 1 x Cable pack package
• 1 x ROG Strix stickers
• 1 x Quick start guide

Check before you buy

• Confirm your PC case supports ATX (305 x 244 mm) motherboard dimensions.
• Verify your power supply has a 24-pin ATX and an 8-pin EPS connector.
• Ensure your CPU cooler is compatible with the Socket AM5 mounting mechanism.
• Check that your chassis has sufficient clearance for the installed M.2 heatsinks.

Buyer FAQs

Buying advice

This motherboard is ideal for UK builders assembling a high-performance AMD Ryzen 9000 Series system with extensive storage and cutting-edge connectivity. It suits gamers, content creators, and power users who prioritise PCIe 5.0 support, Wi-Fi 7, and robust overclocking features. Covered by the applicable manufacturer warranty.
