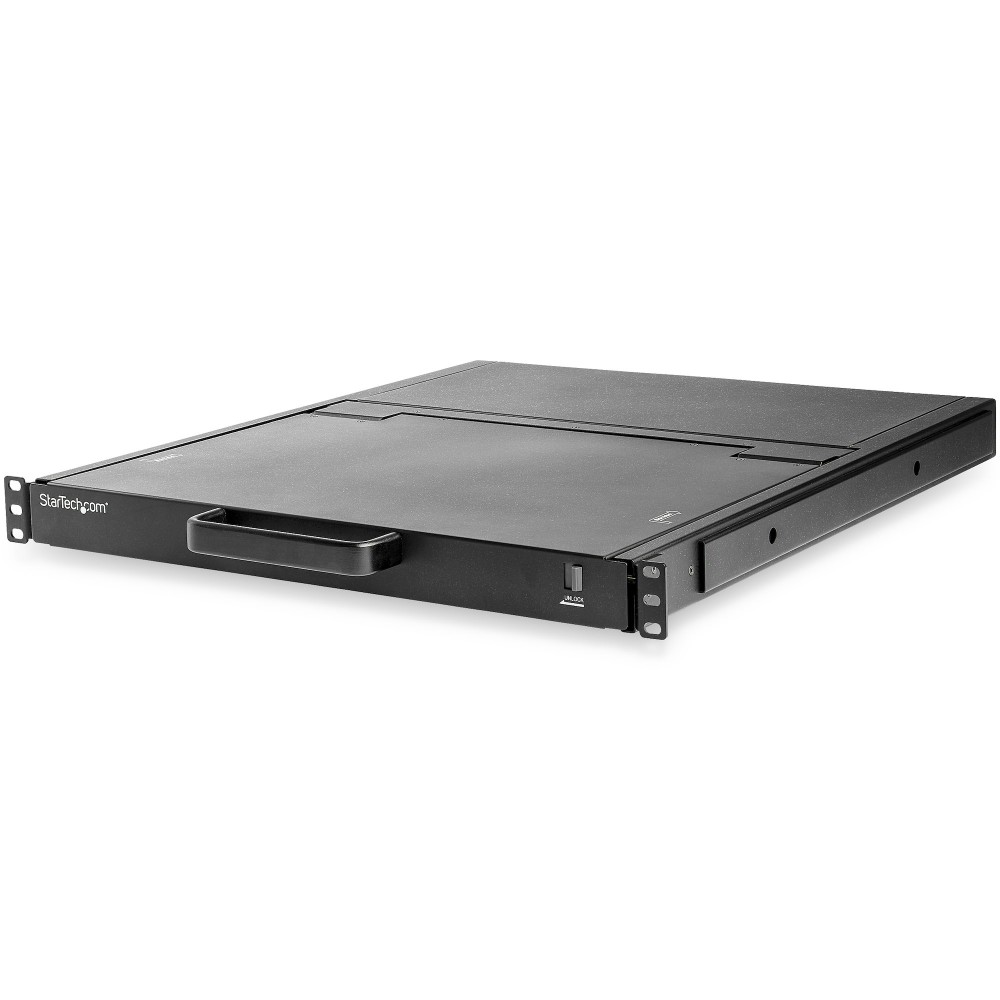

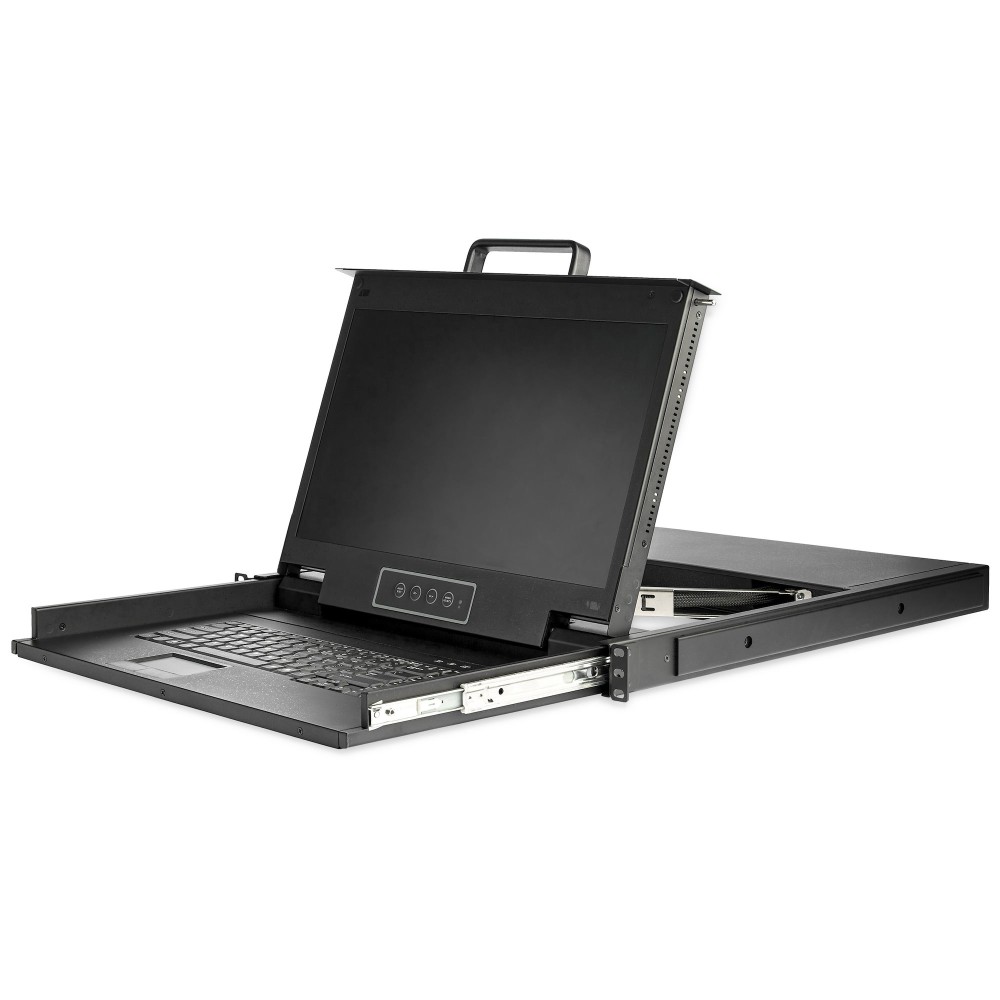

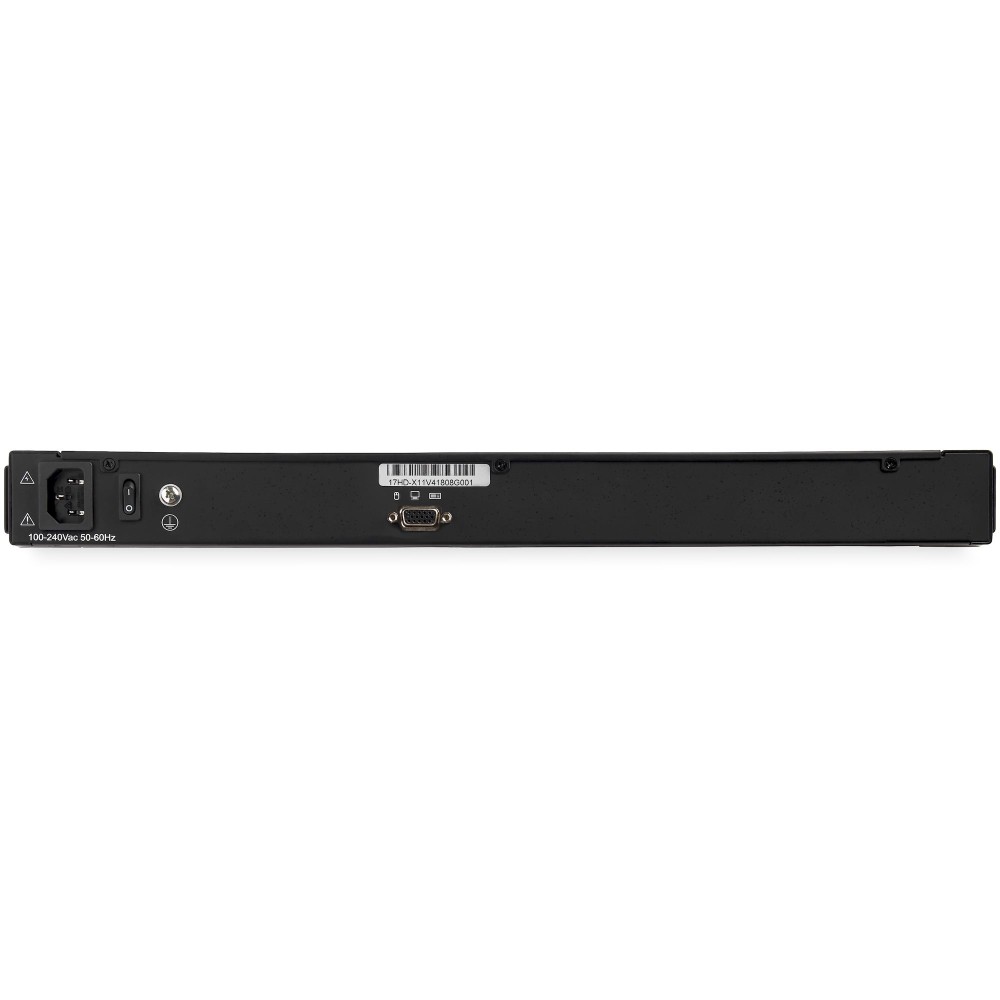

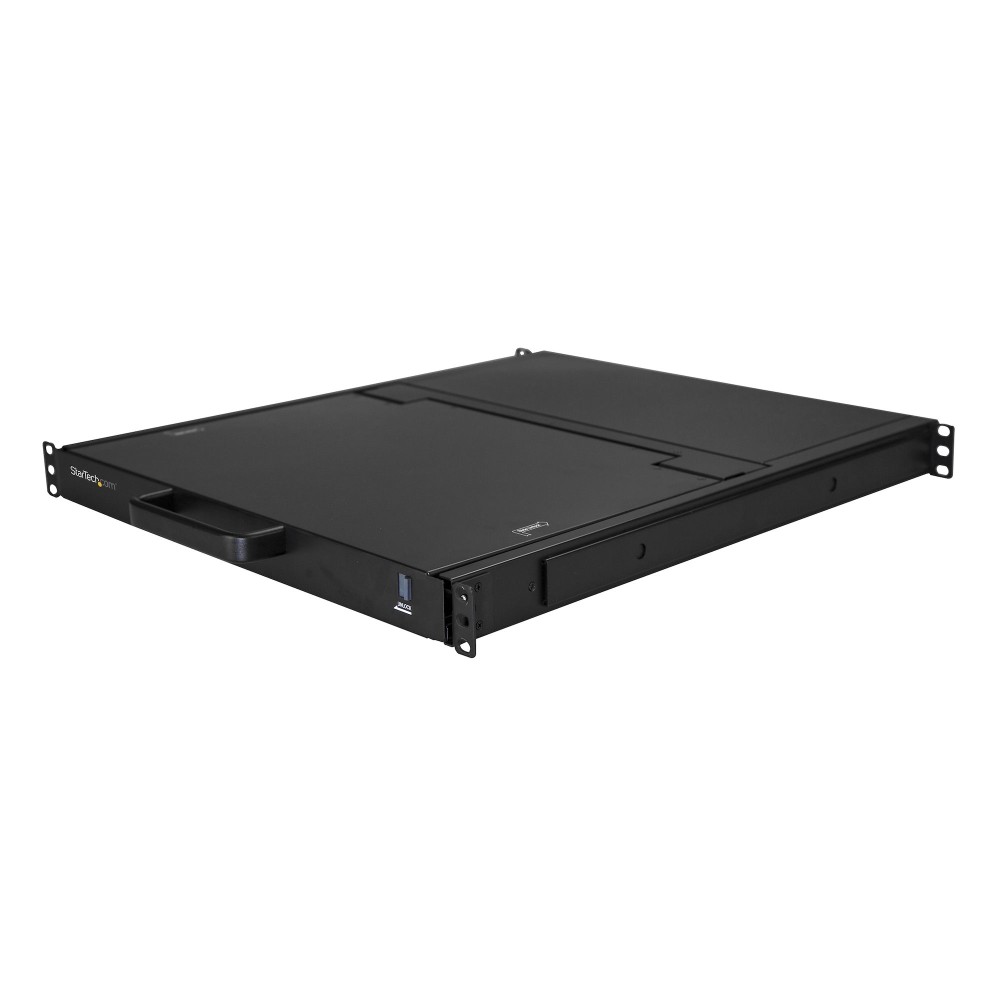

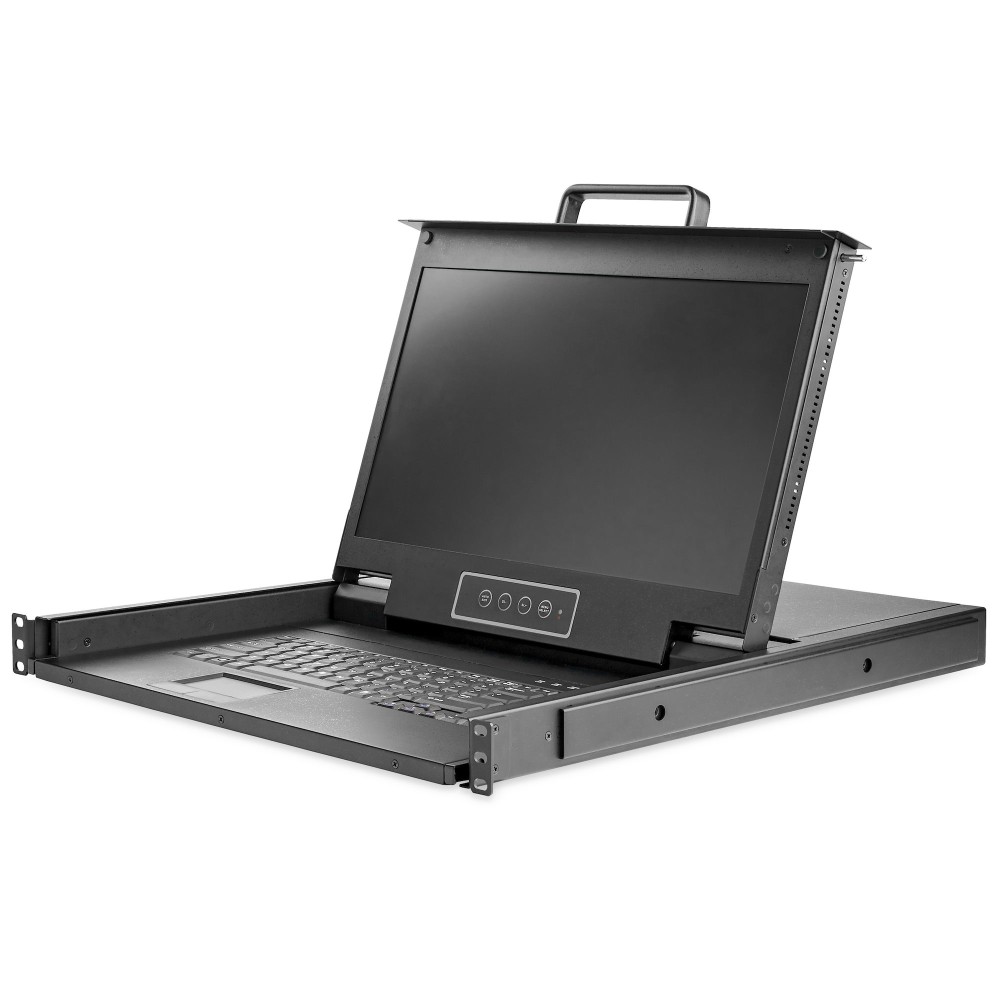

StarTech.com 1U Rackmount KVM Console with 17.3″ 1080p LCD Monitor & VGA KVM Cable (1.8m) – Black
£1,053.79 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 17.3″ 1080p LCD monitor with 1920 x 1080 resolution
- Rackmount (1U) design for organised, clutter-free monitoring
- Integrated QWERTY keyboard and touchpad
- Robust steel construction in black finish
- Includes KVM cables (1.8m), mounting hardware, and multiple power plug types
- Supports VGA video port type
Payment Methods:
You may also like
Acer Vero B278UG 27″ QHD 120Hz IPS Monitor with 5MP Webcam & KVM Switch, Black
In stock
StarTech.com 4 Port USB DisplayPort KVM Switch with Audio, 3840×2400, Black
In stock
StarTech.com 1U 16-Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor & KVM Cables
In stock
StarTech.com RKCONS1908K 8 Port Rackmount KVM Console with 19″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com Rackmount KVM Console – Centralised 1080p Control
We offer the StarTech.com 1U Rackmount KVM Console with 17.3″ 1080p LCD Monitor & VGA KVM Cable (1.8m) – Black for efficient server management. This console is ideal for IT professionals needing centralised control within a server rack. It delivers a high-definition visual interface directly where you need it most.
Core Console Metrics
| Metric | Spec. |
|---|---|
| Display Resolution | 1920 x 1080 pixels |
| Display Diagonal | 17.3″ (43.9 cm) |
| Rack Capacity | 1U |
| Contrast Ratio | 800:1 |
| Weight | 11.2 kg |
| Product Colour | Black |
Streamlined Server Access
This console provides full control over your servers from a single point. It slides neatly into 1U of rack space. This design helps you maintain an organised and clutter-free server environment.
Crisp Full HD Visuals
The 17.3-inch LCD monitor offers a 1920 x 1080 resolution. This Full HD display provides sharp, clear images. It is excellent for monitoring multiple applications simultaneously.
Integrated Control for Efficiency
A built-in keyboard and touchpad offer intuitive system interaction. This setup eliminates the need for separate peripherals. It simplifies your workspace and improves your operational flow.
Ready for Deployment
We include all necessary components for a quick installation. The package contains a KVM cable and mounting hardware. This ensures a straightforward setup process.

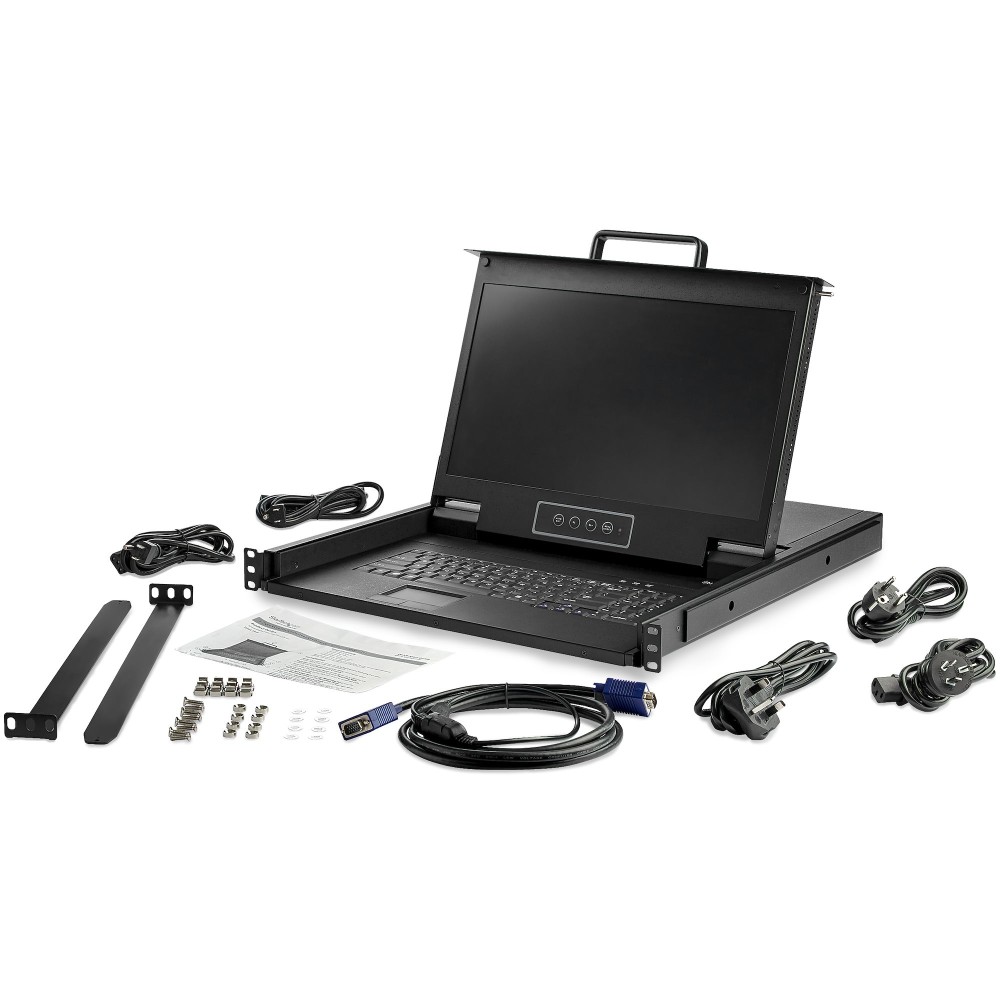

Included in Your Package
- 1 x KVM Cable (1.8m)
- Mounting brackets
- M5 Cage Nuts and Screws (8 each)
- Power plugs for multiple regions (UK, EU, JP, NA, ANZ)
- Quick installation guide
Before You Order
- Confirm your rack has 1U of available space.
- Confirm your server uses a VGA video output.
- Confirm your rack’s mounting depth is between 51 cm and 85 cm.
Frequently Asked Questions
Q: What is the display resolution of this KVM console?
A: The display resolution is 1920 x 1080 pixels, delivering full HD visuals.
Q: Is audio supported by this console?
A: No, this KVM console does not have audio support.
Q: What is the maximum mounting depth required?
A: The maximum mounting depth for installation is 85 cm.
Q: Does this console support daisy chaining?
A: No, this model does not support daisy chaining.
Q: What type of video port does it use?
A: It uses a VGA video port for connectivity.
Our Verdict
This StarTech.com 1U Rackmount KVM Console with 17.3″ 1080p LCD Monitor & VGA KVM Cable (1.8m) – Black is an excellent choice for IT managers. It provides a compact, high-definition solution for server control. We back this product with a 2-year warranty for your peace of mind.
| Display | |
|---|---|
| Display number of colours | 262144 colours |
| Display type | LCD |
| Display | TFT LCD |
| Display diagonal | 43.9 cm (17.3") |
| Viewing angle, vertical | 170° |
| Viewing angle, horizontal | 170° |
| Pixel pitch | 0.1989 x 0.1989 mm |
| Display resolution | 1920 x 1080 pixels |
| Display brightness | 300 cd/m² |
| Contrast ratio (typical) | 800:1 |
| Aspect ratio | 16:9 |
| Colour depth | 6 bit |
| Technical details | |
| Daisy chain | No |
| LED indicators | Power, Status |
| Rack mounting | Yes |
| Rack capacity | 1U |
| Operating relative humidity (H-H) | 10 - 80% |
| Mean time between failures (MTBF) | 50000 h |
| Material | Steel |
| Product colour | Black |
| Cables included | KVM |
| IP control | No |
| Audio support | No |
| Cable length | 1.8 m |
| Compliance certificates | RoHS |
| Ports & interfaces | |
| Video port type | VGA |
| Keyboard | |
| Built-in touchpad | Yes |
| Power | |
| AC adapter input voltage | 100 - 240 V |
| Input current | 1.5 A |
| Power consumption (typical) | 13 W |
| Operational conditions | |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating temperature (T-T) | 0 - 40 °C |
| Certificates | |
| Certification | CE, FCC, PSE, UL, REACH |
| Weight & dimensions | |
| Mounting depth (min) | 51 cm |
| Mounting depth (max) | 85 cm |
| Weight | 11.2 kg |
| Width | 483 mm |
| Height | 565 mm |
| Depth | 43 mm |
| Packaging data | |
| Package width | 780 mm |
| Package depth | 616 mm |
| Package height | 191 mm |
| Package weight | 16 kg |
| Packaging content | |
| Screws included | Yes |
| Quick installation guide | Yes |
| Cables included | KVM |
| Number of screws | 8 |
| Number of cage nuts | 8 |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Cage nuts included | Yes |
| Logistics data | |
| Master (outer) case width | 780 mm |
| Master (outer) case length | 616 mm |
| Master (outer) case height | 191 mm |
| Products per master (outer) case | 1 pc(s) |
| Identifiers | |
| Distributor SKUs | V239995, V934484, 5074054, 10270134, CLRKCONS17HD |
