StarTech.com 2-Port Hybrid USB-C DisplayPort KVM Switch, 4K 60Hz, 5120×1440, 1.8m Cables, Black
£57.74 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 2-port hybrid KVM switch
- Maximum resolution of 5120 x 1440 pixels at 60Hz
- Integrated 1.8m DisplayPort and USB-A cables, plus 1.2m USB-C host cable
- Compatible with Windows, macOS, and ChromeOS
- Bus-powered operation
- Switching via remote push button or hotkeys
- Features StarTech.com Connectivity Tools software suite
Payment Methods:
You may also like
Belkin F1DN204KVM-UN-4 Secure KVM Switch, 4-Port, 4K Ultra HD 60Hz, HDMI/DisplayPort, Rack Mount, Black
In stock
Belkin F1DN104KVM-UN-4 KVM Switch 4-Port, 4K Ultra HD, HDMI/DisplayPort, Black
In stock
StarTech.com 8 Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com RKCONS1908K 8 Port Rackmount KVM Console with 19″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com Hybrid KVM – Seamless Workplace Switching

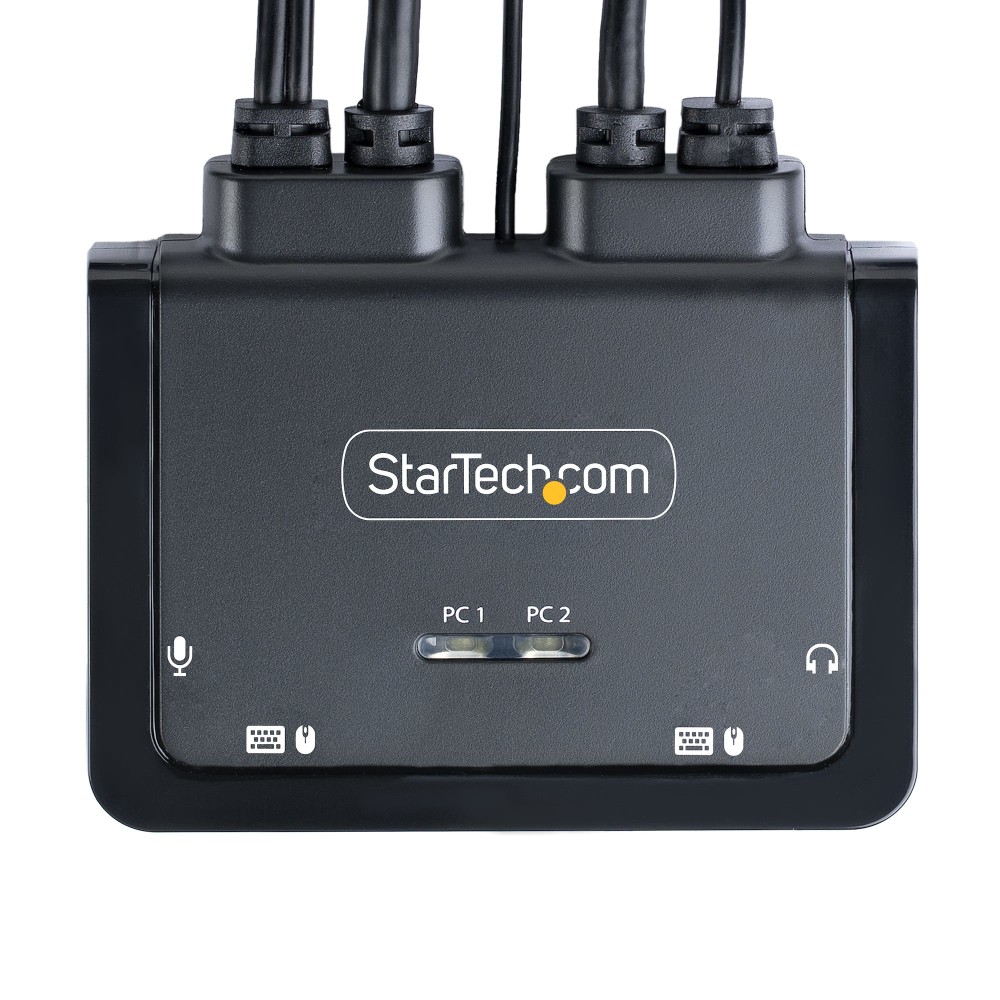

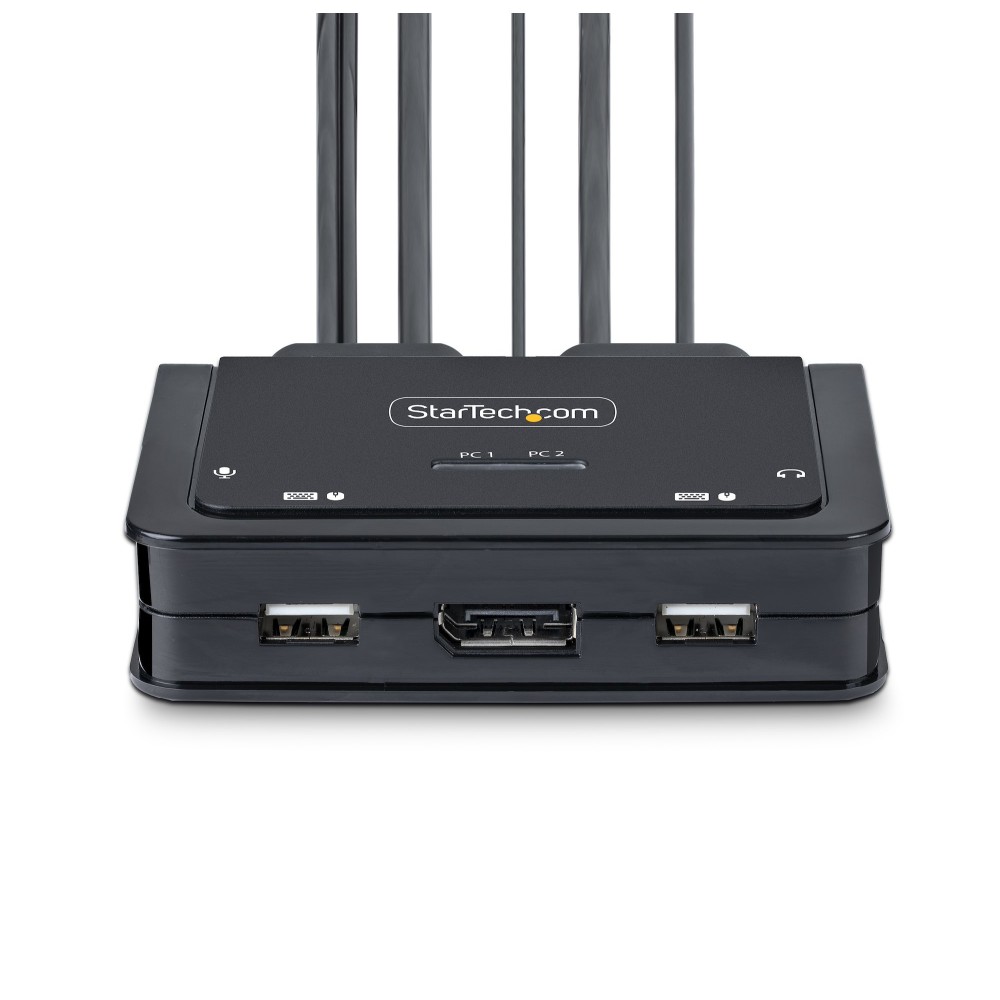

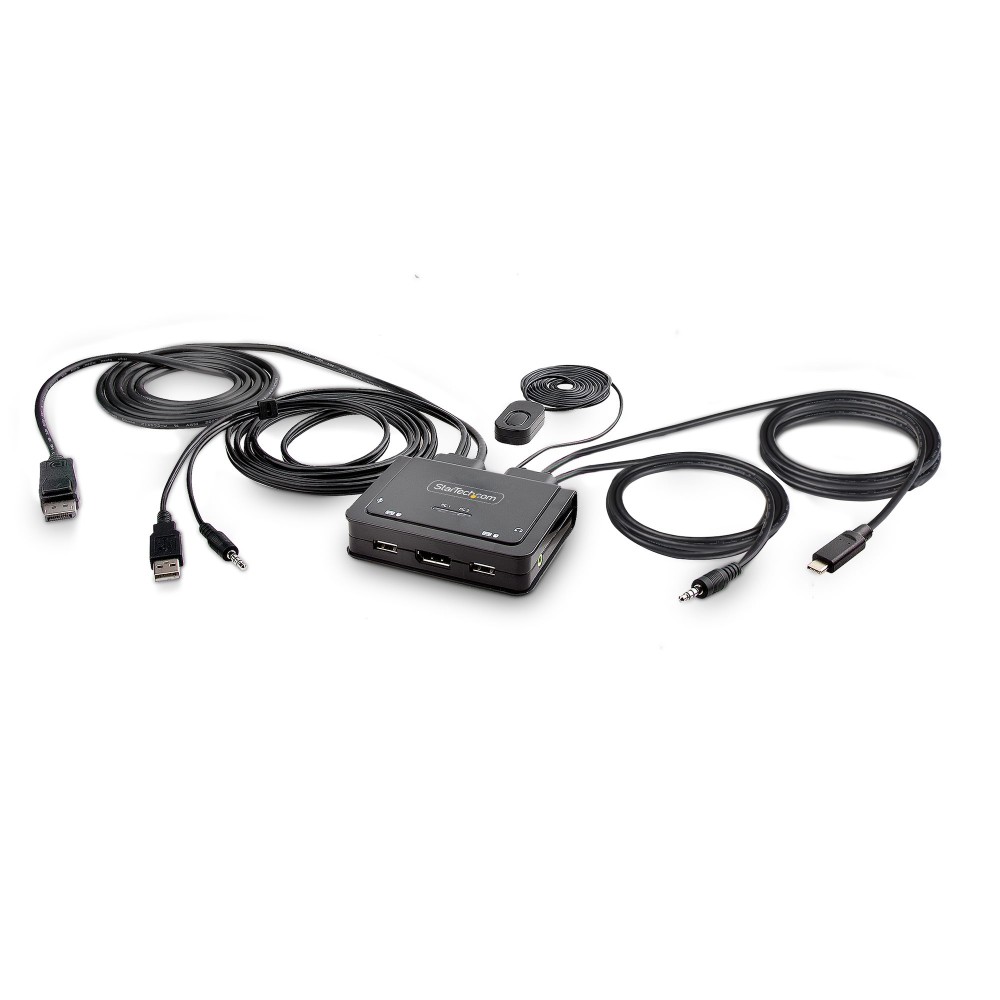

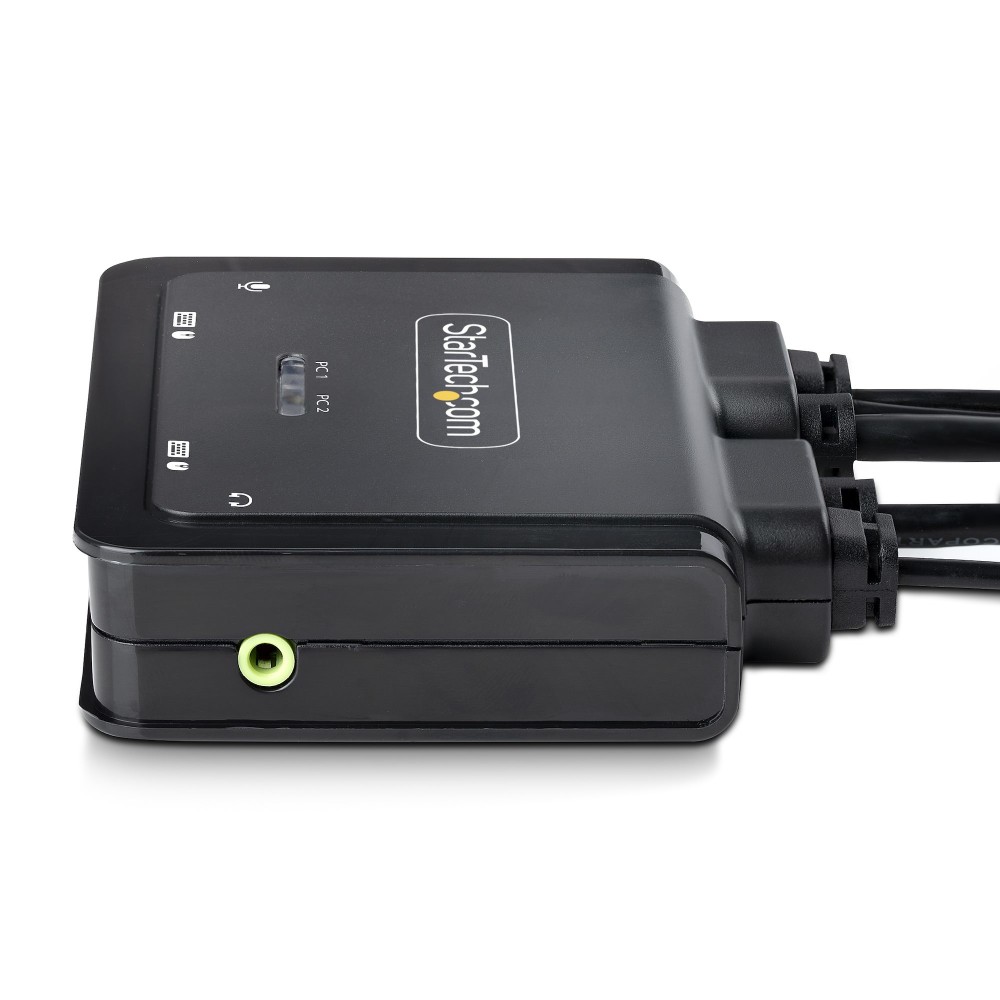

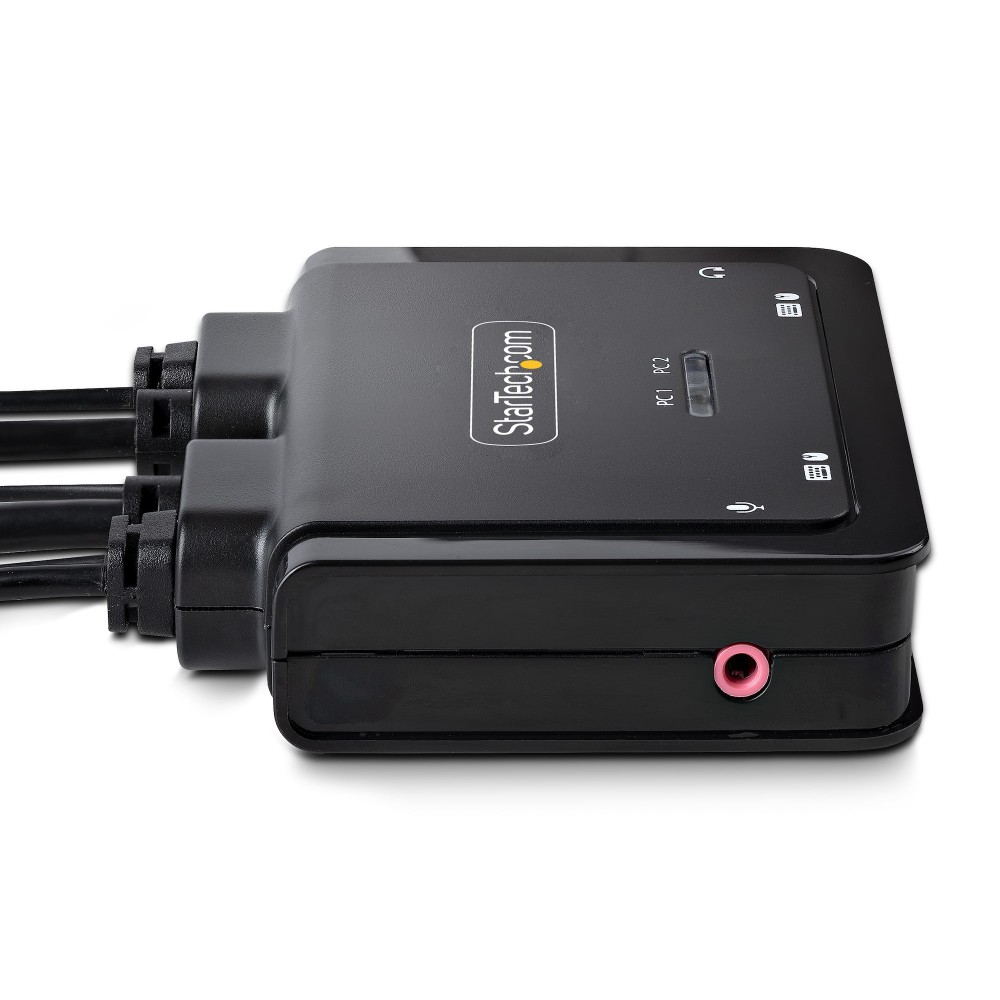

We are pleased to present the StarTech.com 2-Port Hybrid USB-C DisplayPort KVM Switch, 4K 60Hz, 5120×1440, 1.8m Cables, Black. This compact KVM switch is ideal for professionals needing to control two different computers with a single set of peripherals. It allows for effortless switching between a traditional desktop and a modern USB-C laptop.
Core specifications
| Metric | Spec. |
|---|---|
| Max. Resolution | 5120 x 1440 |
| Cable Length | 1.8 m |
| Data Transfer Rate | 0.48 Gbit/s |
| MTBF | 261,196 hours |
| Colour | Black |

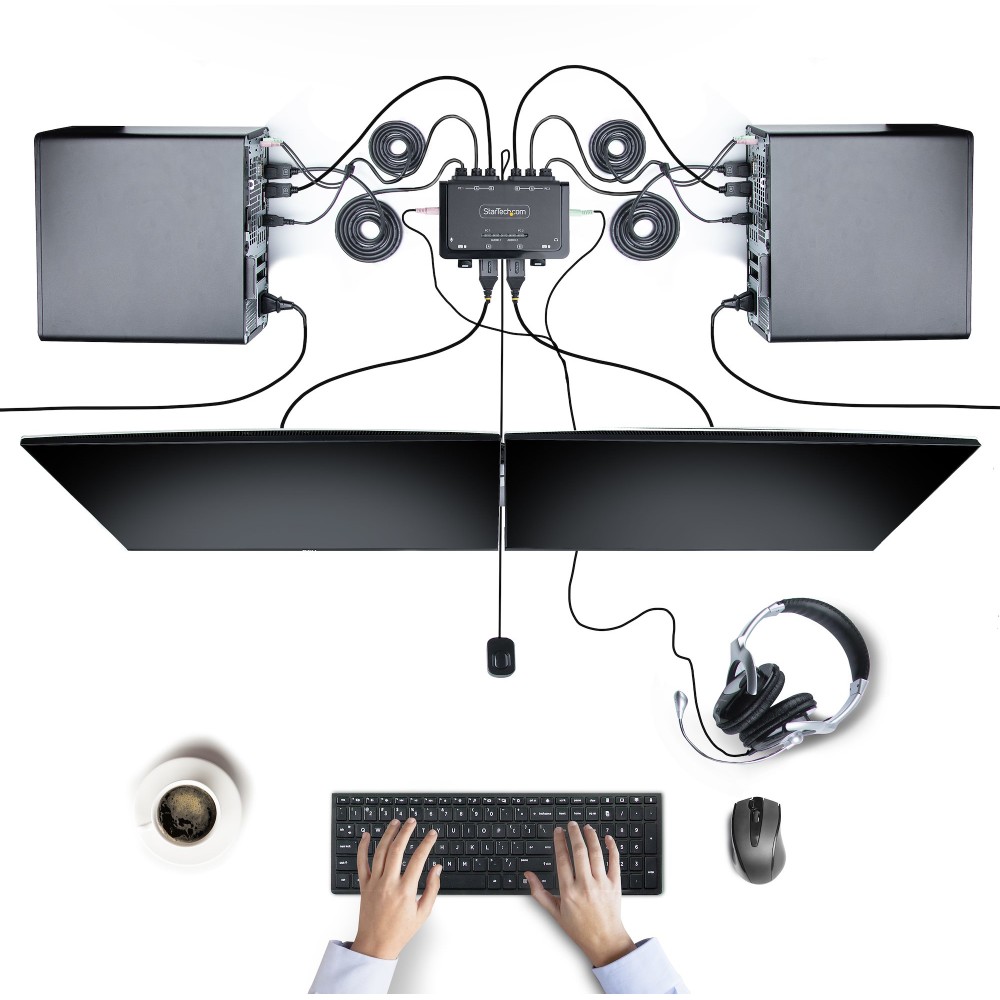

Connect Two Systems with Ease
This KVM switch bridges the gap between different computer types. You can connect a USB-A and DisplayPort-enabled desktop alongside a USB-C (DP Alt-Mode) laptop. This setup shares your keyboard, mouse, audio devices, and a single high-resolution DisplayPort monitor. It simplifies your workspace and reduces cable clutter.

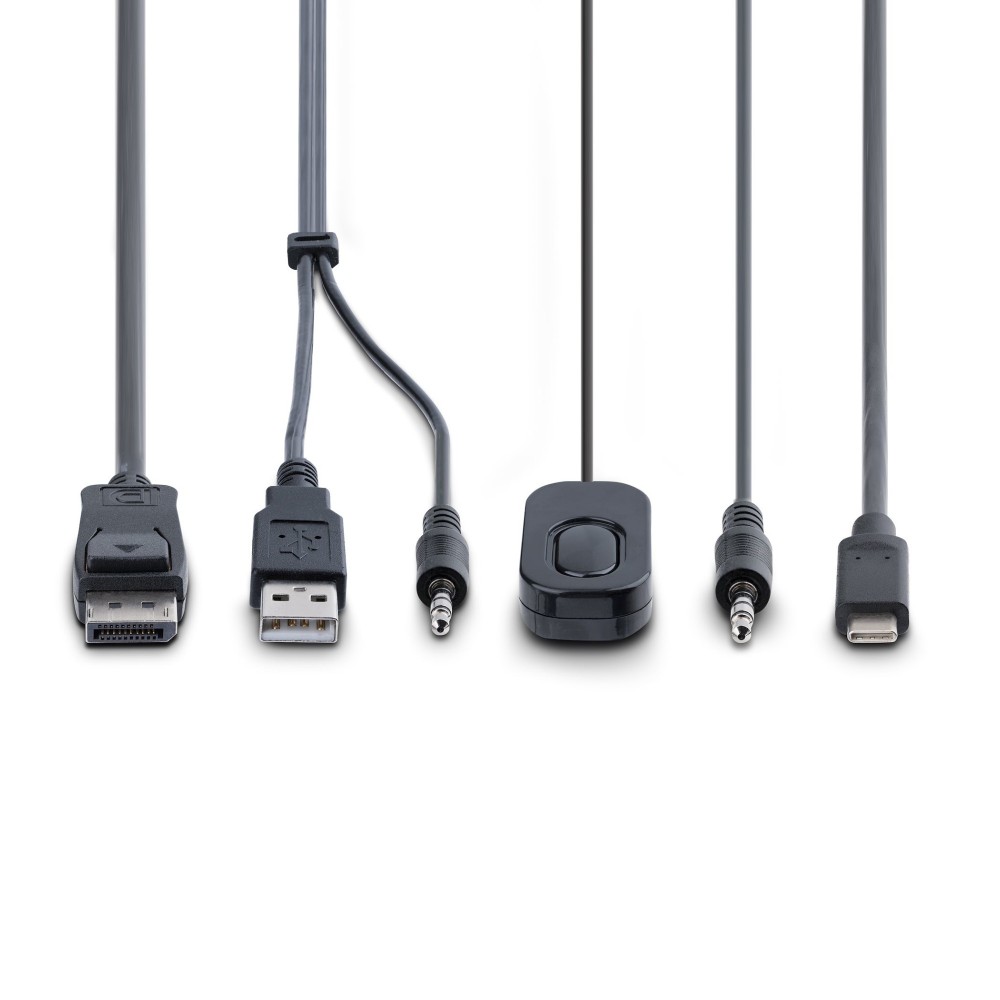

Integrated Cables for Quick Setup
The KVM switch includes integrated DisplayPort, USB-A, USB-C, and 3.5mm audio input/output cables. These built-in cables ensure a plug-and-play experience. You will not need to source additional connectors. This design provides immediate compatibility and reliable performance.
Flexible Control Options
Switching between your connected computers is straightforward. You have the choice of using a remote push button or hotkey commands. The remote push button comes with a 1.5m cable for convenient placement. This flexibility allows for an optimised workflow.
Broad Operating System Support
We find this KVM switch offers extensive compatibility across various operating systems. It supports Windows, macOS, ChromeOS, and Linux. It also works with diverse hardware platforms, including Intel, AMD, and Apple M1/M2. This broad support ensures seamless integration into almost any existing setup.
Before you order
- Confirm your DisplayPort monitor supports 5120 x 1440 resolution at 60Hz.
- Confirm your USB-C laptop supports DisplayPort Alt-Mode.
- Confirm your desktop has available USB-A and DisplayPort outputs.
Frequently Asked Questions
Q: Can I use this KVM with a Thunderbolt 4 laptop?
A: Yes, the USB-C host port is compatible with Thunderbolt 4 laptops.
Q: Does this KVM switch require an external power adapter?
A: No, the KVM switch is conveniently bus powered via USB.
Q: How do I switch audio independently?
A: Independent audio switching is possible through the downloadable software using hotkeys.
Q: Is there an On-Screen Display (OSD) for control?
A: No, this model does not feature an On-Screen Display.
Our assessment
This KVM switch is an excellent choice for users managing both a traditional desktop and a modern USB-C laptop. Its hybrid connectivity and integrated cables offer a streamlined solution for sharing peripherals. It is particularly suited for professional environments where space and efficiency are key. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 2 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| USB connector type | USB Type-A, USB Type-C |
| Number of microphone inputs | 1 |
| DisplayPort version | 1.2 |
| Number of computers controlled | 2 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Headphone outputs | 1 |
| Console DisplayPorts ports quantity | 1 |
| Cable length | 1.8 m |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Daisy chain | No |
| Chipset | SN8P2202SG |
| Data transfer rate (max) | 0.48 Gbit/s |
| Maximum resolution | 5120 x 1440 pixels |
| Scan interval | 10,20,30,40,50,60 s |
| Audio channels | 2.0 |
| Number of displays supported | 1 |
| Technical details | |
| Product colour | Black |
| Rack mounting | No |
| Scan interval | 10,20,30,40,50,60 s |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 261196 h |
| Product colour | Black |
| Cable length | 1.8 m |
| Rack mounting | No |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Housing material | Acrylonitrile butadiene styrene (ABS) |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Power source | USB |
| Input voltage | 5 V |
| System requirements | |
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 11, Windows 11 Enterprise, Windows 11 Enterprise x64, Windows 11 Home, Windows 11 Pro, Windows 11 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 7 x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64 |
| Mac operating systems supported | Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| Other operating systems supported | ChromeOS |
| Video | |
| Maximum resolution | 5120 x 1440 pixels |
| Sustainability | |
| Sustainability compliance | Yes |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
| Width | 80 mm |
| Depth | 95 mm |
| Height | 24 mm |
| Weight | 380 g |
| Package width | 163 mm |
| Package depth | 252 mm |
| Package height | 60 mm |
| Package weight | 500 g |
| Packaging data | |
| Package width | 163 mm |
| Package depth | 252 mm |
| Package height | 60 mm |
| Package weight | 500 g |
| Packaging content | |
| Quick installation guide | Yes |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 352 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 350 mm |
| Products per master (outer) case | 20 pc(s) |
| Identifiers | |
| Distributor SKUs | V311757, CI01146, 94302, 8543426, C2D46UACCBLKVM, 488042, CLC2D46UACCBLKVM, NS94302 |
