StarTech.com 4 Port DisplayPort KVM Switch 4K 60Hz USB 2.0 Hub Rack Mount Black
£422.94
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- 4-port KVM switch for controlling up to four computers
- Supports 4K Ultra HD resolution at 60Hz
- Integrated USB 2.0 hub for peripheral sharing
- DisplayPort video and 7.1 HD digital audio support
- Rack-mountable 1U steel housing in black
- PC and Mac compatible, with hotkey and OSD control
- TAA compliant with CE, FCC, REACH certifications
You may also like
StarTech.com SV211DPUA4K 2 Port DisplayPort KVM Switch, 4K 60Hz, USB, Audio, Black
In stock
StarTech.com 2 Port HDMI KVM Switch 4K 60Hz with Audio and Integrated 4ft Cables Black
In stock
Belkin F1DN008KBDUK KVM Remote Control with Integrated Keyboard, Wired USB, English, Numeric Keypad, Black
In stock
StarTech.com 2-Port USB HDMI Cable KVM Switch with Audio and Remote Switch 1920×1200 USB Powered Black
In stock
StarTech.com KVM Switch – Centralised Control for Multiple Systems

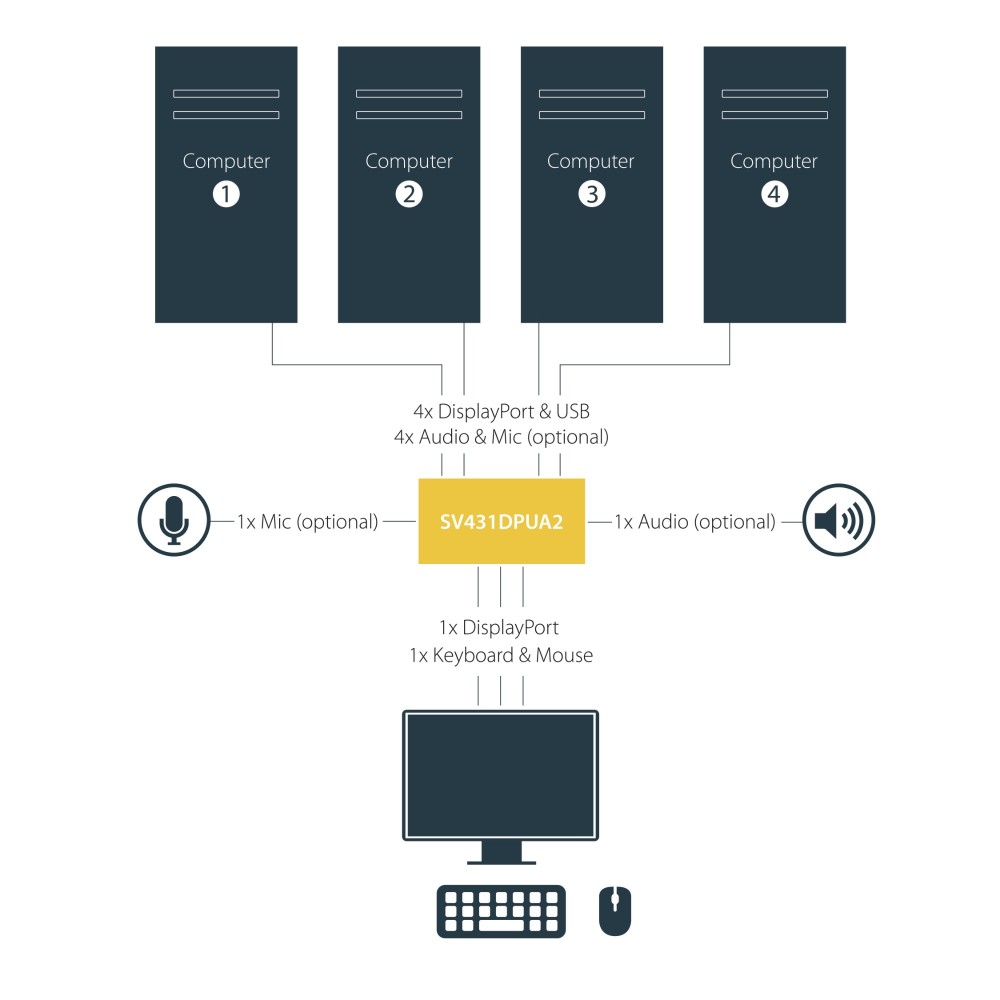

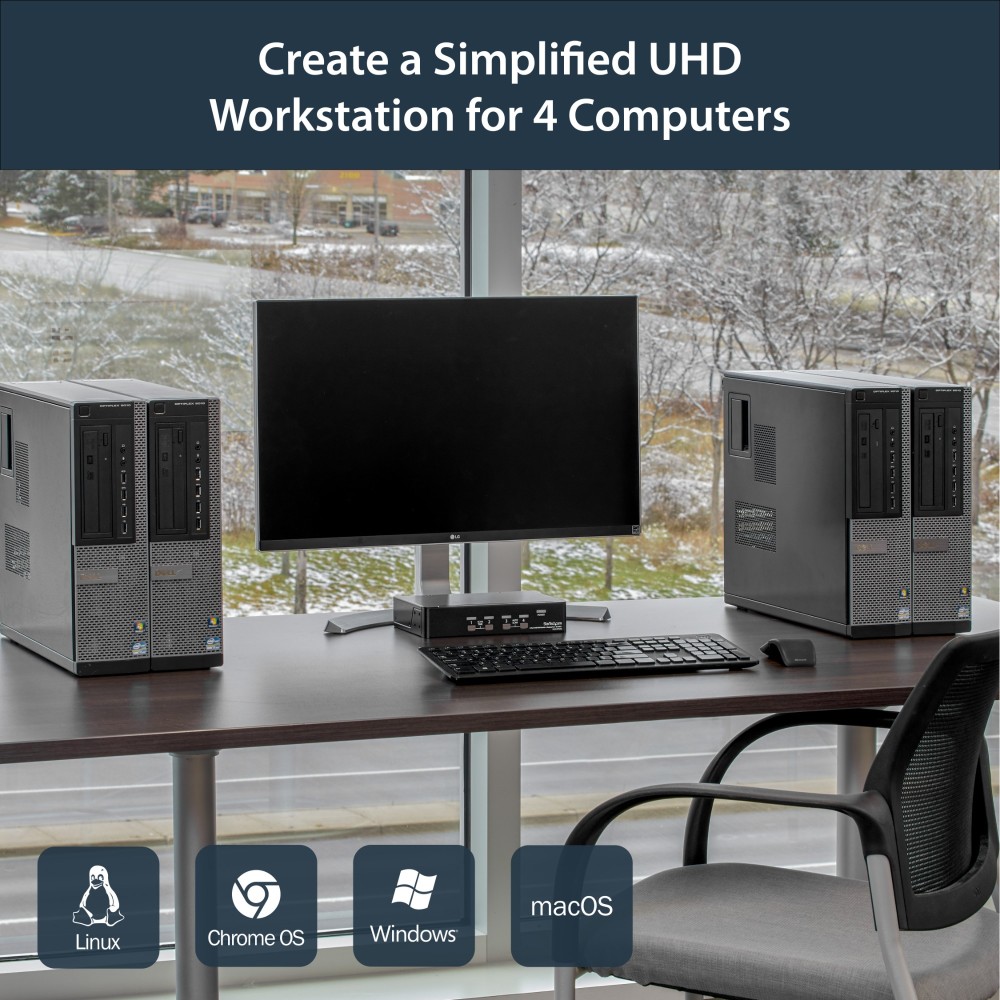

For professionals managing multiple computer systems, the StarTech.com 4 Port DisplayPort KVM Switch 4K 60Hz USB 2.0 Hub Rack Mount Black offers a streamlined solution. This device allows you to control up to four computers from a single workstation, enhancing productivity and reducing clutter. It is ideal for IT administrators, developers, and creative professionals who need efficient access to various systems.
Essential KVM Specifications
| Metric | Spec. |
|---|---|
| Max Resolution | 3840 x 2160 |
| DisplayPorts | 5 |
| USB 2.0 Type-B | 4 |
| Rack Capacity | 1U |
| Housing Material | Steel |
| Power Consumption | 18 W |
Crystal-Clear 4K Display
Experience stunning visual clarity with support for 4K resolution at 60Hz. This KVM switch ensures your DisplayPort monitors deliver sharp images and smooth video. We understand the importance of visual fidelity for demanding tasks.
Streamlined Peripheral Sharing
The integrated USB 2.0 hub allows you to share peripherals like printers and scanners across all connected computers. This eliminates the need for duplicate devices, saving space and cost. Connect your keyboard and mouse, and then two additional USB devices.
Enhanced Audio Immersion
Enjoy comprehensive audio support with this KVM switch. It includes 7.1 HD digital audio capabilities, alongside separate 3.5 mm stereo audio connections. This ensures a rich sound experience from all your connected systems.
Flexible System Management

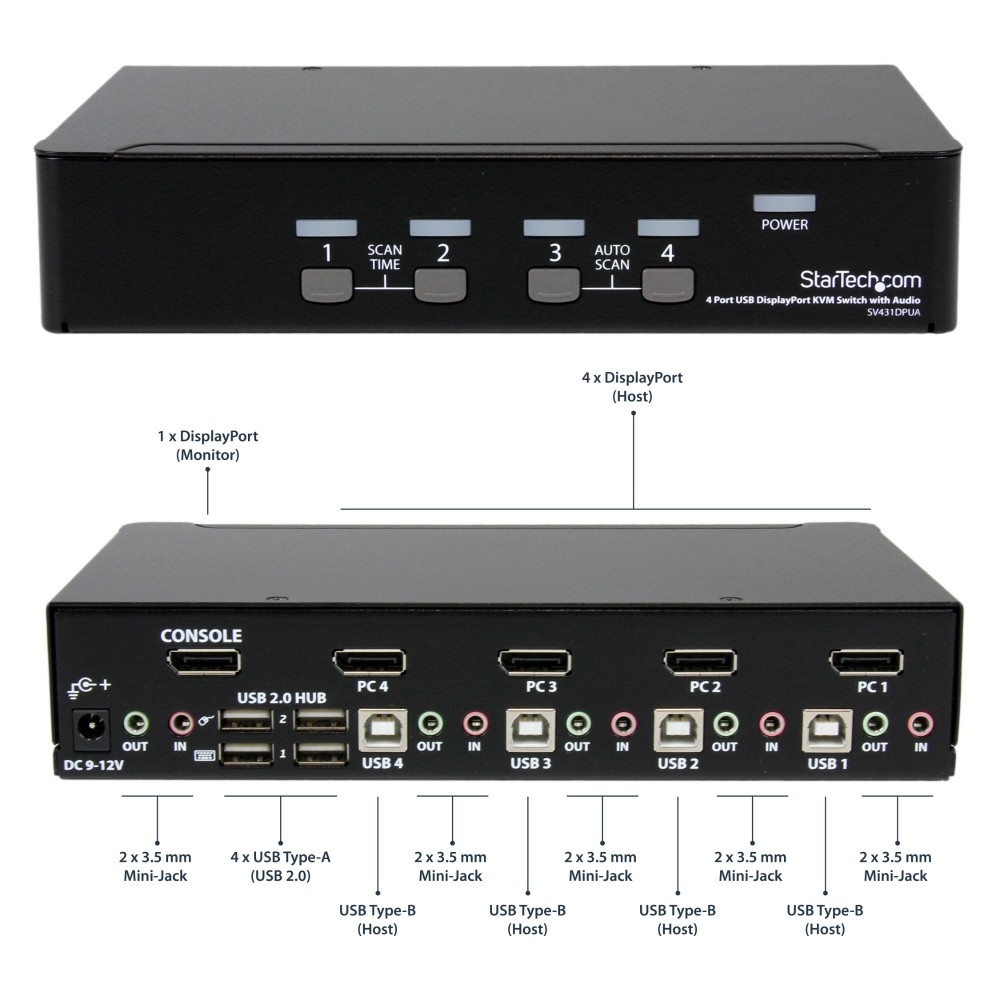

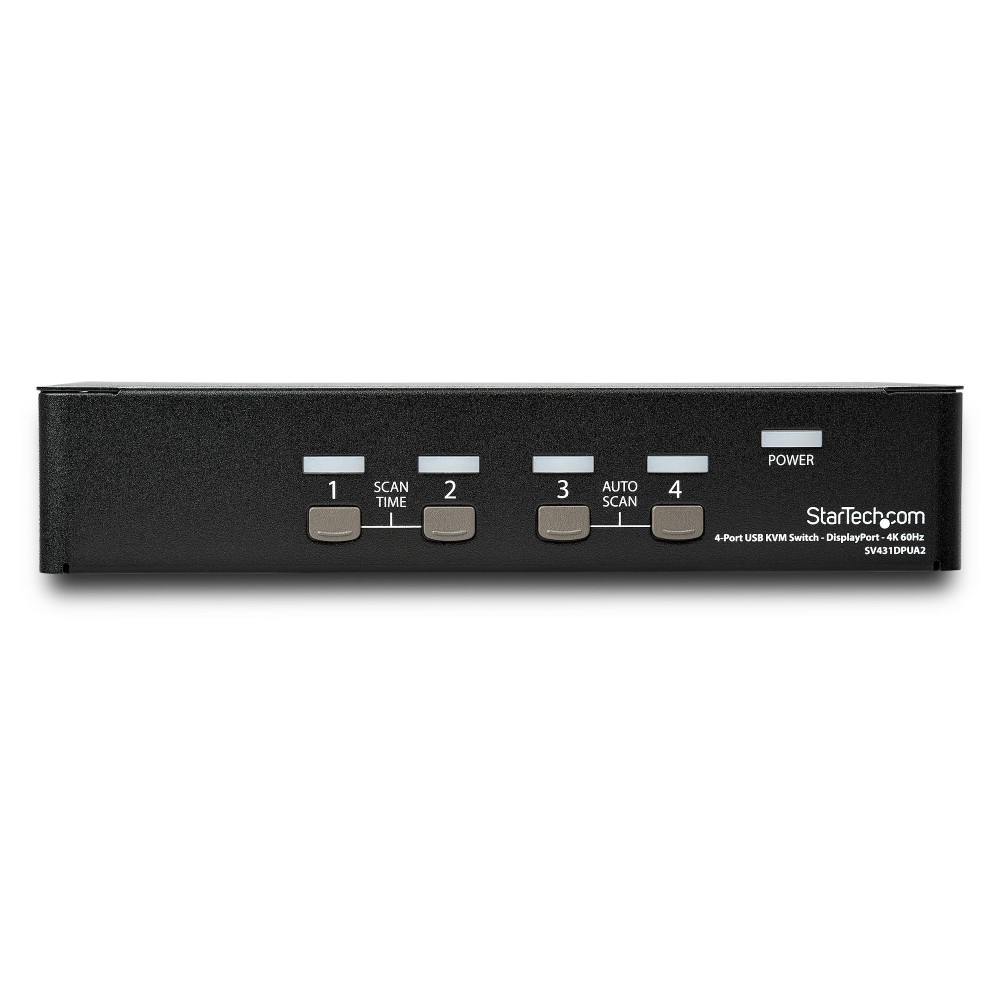

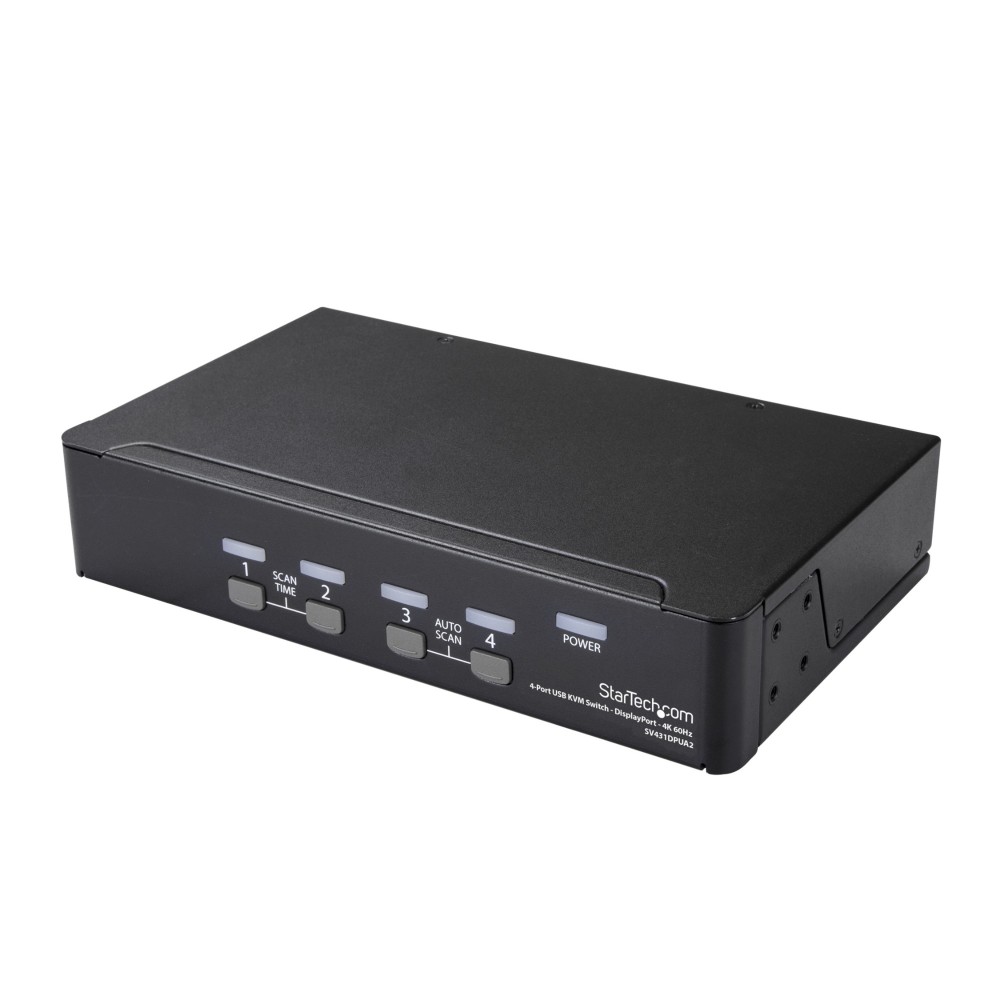

Switching between systems is straightforward and efficient. Use the front-panel pushbuttons for quick changes, or utilise hotkey functionality for rapid access. An audible buzzer confirms each successful switch.
Robust Rack-Mount Design
Designed for professional environments, this KVM switch features a durable steel housing and rack-mounting capabilities. It fits into a 1U rack space, ensuring a neat and organised setup within your server room or workspace. This robust construction provides lasting reliability.
Before You Order
- Confirm your systems use DisplayPort video outputs.
- Confirm your monitors support 4K resolution at 60Hz for optimal performance.
- Confirm you have available 1U rack space for mounting, if desired.
- Confirm your operating systems are compatible with USB KVM switches.
Frequently Asked Questions
Q: Can I connect Mac computers to this KVM switch?
A: Yes, it is compatible with Mac computers using a Mini DisplayPort adapter.
Q: Does this KVM switch support audio from all connected computers?
A: Yes, it offers 7.1 HD digital audio and separate 3.5 mm stereo audio support.
Q: How do I switch between the connected computers?
A: You can switch using front-panel pushbuttons or hotkey commands.
Q: Is an AC adapter included with the KVM switch?
A: Yes, an AC adapter is included in the package.
Q: Can I use this KVM switch without rack mounting it?
A: Yes, it can be used on a desktop with its rubber feet.
Our Verdict
The StarTech.com 4 Port DisplayPort KVM Switch 4K 60Hz USB 2.0 Hub Rack Mount Black is an excellent choice for users needing efficient control over multiple 4K DisplayPort systems. Its robust build and comprehensive features make it a reliable solution for demanding professional environments.

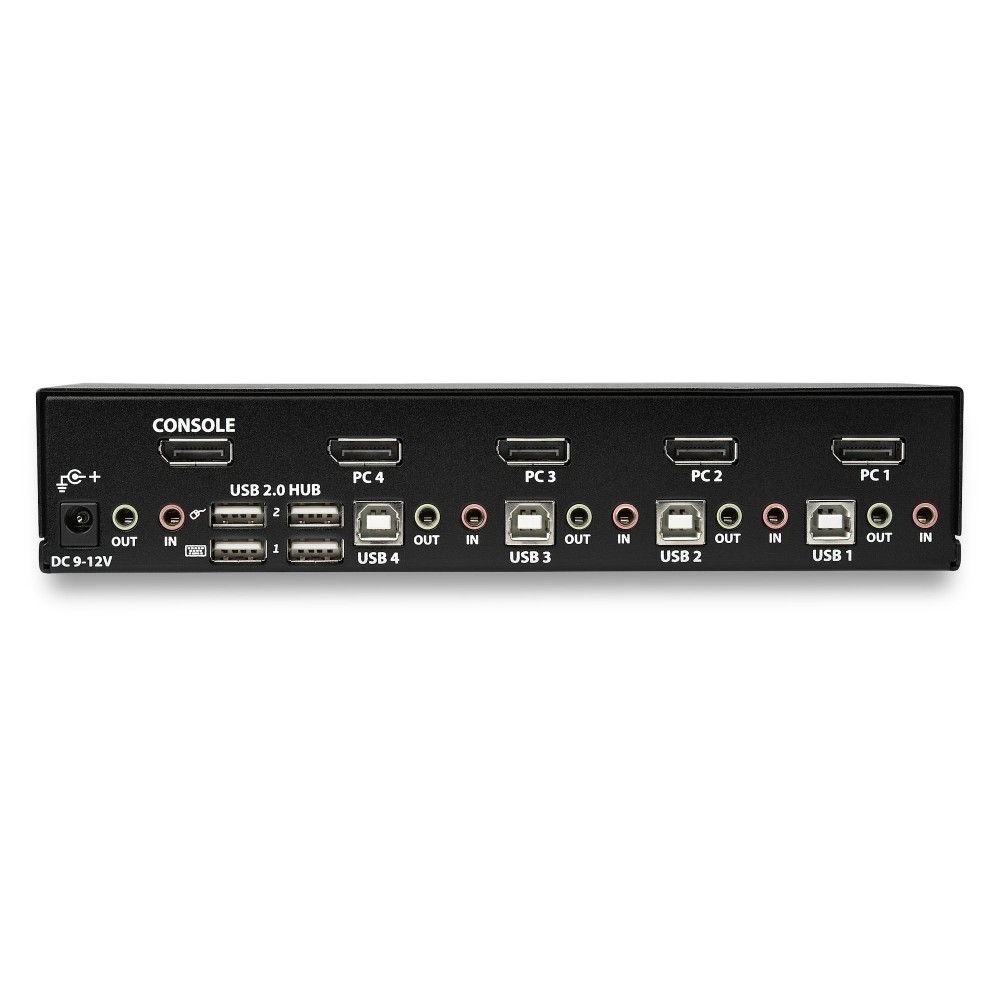

| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, DisplayPort, USB A |
| Number of microphone inputs | 5 |
| DisplayPorts quantity | 5 |
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Audio connections | Yes |
| Headphone outputs | 5 |
| DC-in jack | Yes |
| USB 2.0 Type-B ports quantity | 4 |
| Network | |
| Ethernet LAN | No |
| Performance | |
| Daisy chain | No |
| Data transfer rate (max) | 0.48 Gbit/s |
| HD type | 4K Ultra HD |
| Plug and Play | Yes |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Number of users | 1 user(s) |
| Technical details | |
| Product colour | Black |
| Rack mounting | Yes |
| Plug and Play | Yes |
| Scan interval | 3,8,15,30 s |
| On Screen Display (OSD) | Yes |
| Number of users | 1 user(s) |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| Audio support | Yes |
| Compliance certificates | RoHS |
| Design | |
| Mean time between failures (MTBF) | 138327 h |
| Product colour | Black |
| Rack mounting | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, TAA, REACH |
| Rack capacity | 1U |
| Housing material | Steel |
| Display | |
| On Screen Display (OSD) | Yes |
| Power | |
| Input current | 0.6 A |
| Output current | 1.5 A |
| Power plug type | Type M |
| Compatible power plug types | AU, EU, JP, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Sustainability | |
| Compliance certificates | RoHS |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 40% |
| Weight & dimensions | |

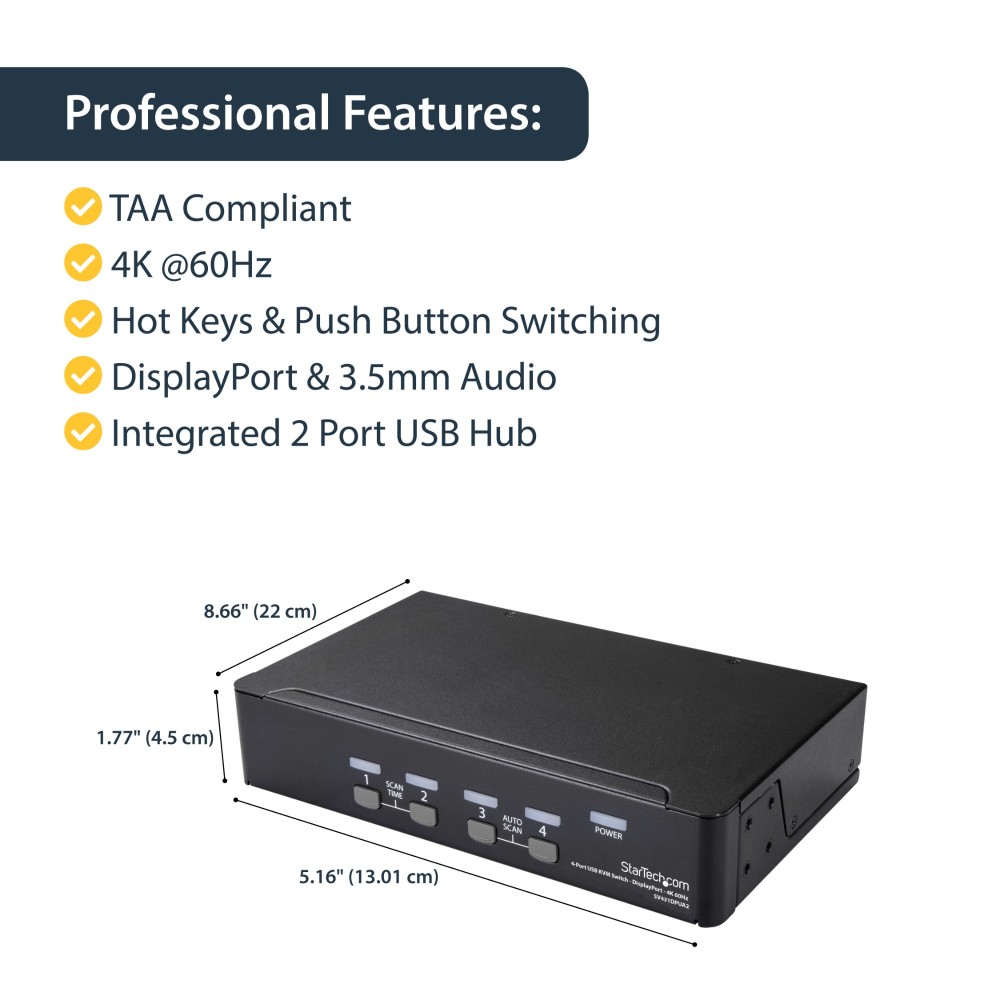

| Width | 131 mm |
| Depth | 220 mm |
| Height | 45 mm |
| Weight | 1 kg |
| Package width | 412 mm |
| Package depth | 216 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |
| Packaging data | |
| Package width | 412 mm |
| Package depth | 216 mm |
| Package height | 89 mm |
| Package weight | 1.6 kg |

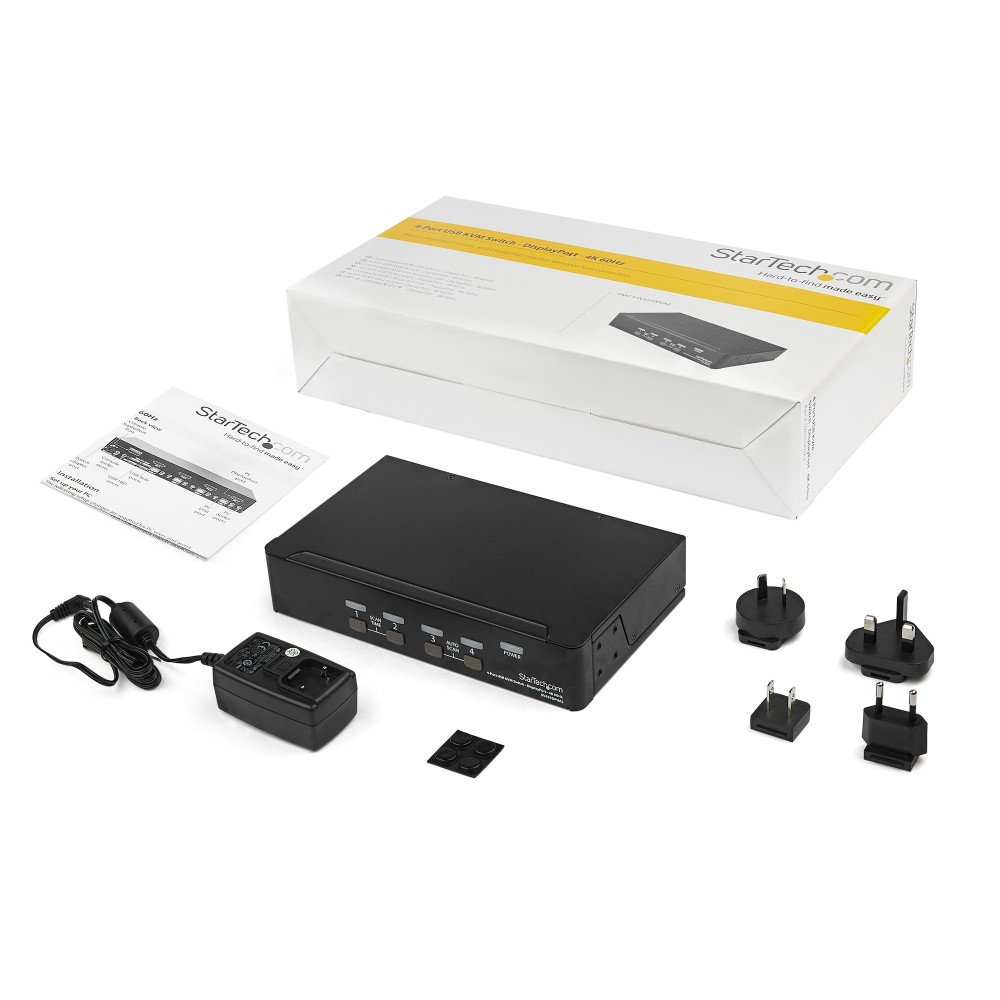

| Packaging content | |
| Rubber feet | Yes |
| Quick installation guide | Yes |
| AC adapter included | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Other features | |
| IP control | No |
| Audio support | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 551 mm |
| Master (outer) case length | 436 mm |
| Master (outer) case height | 257 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Identifiers | |
| Additional EANs | 0650308263722 |
