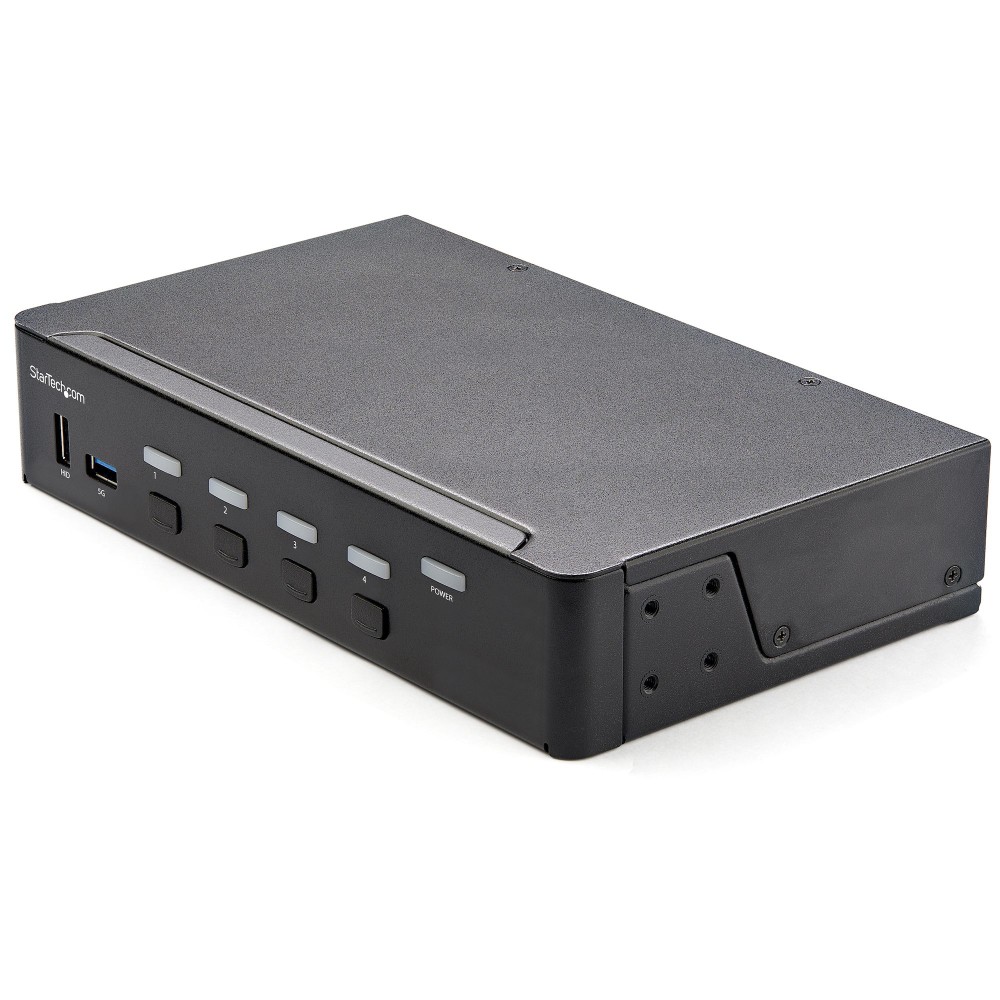

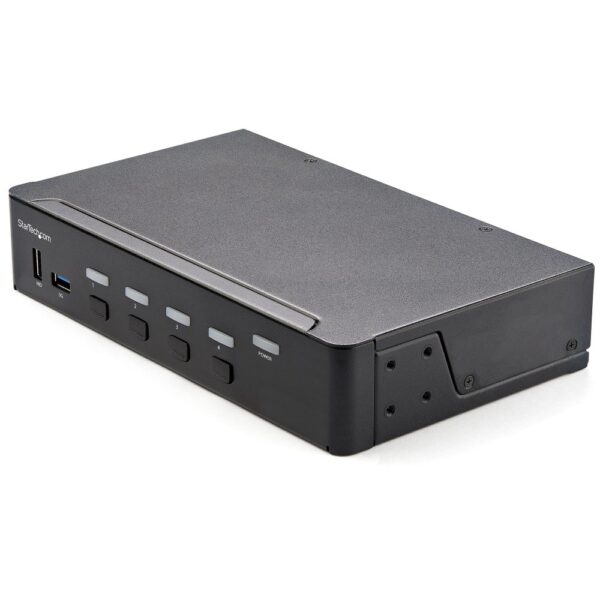

StarTech.com 4 Port HDMI KVM Switch – 4K 60Hz, USB 3.0 Hub, 7.1 Audio, Black
£424.50 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- 4-port HDMI KVM switch
- 4K 60Hz resolution support with HDMI 2.0
- Integrated 2-port USB 3.0 hub for peripheral sharing
- 7.1 audio channels with digital and analogue audio support
- Cross-platform compatibility for Windows, Mac, and Linux
- Easy operation via front-panel pushbuttons and hotkeys
- Durable steel housing
Payment Methods:
You may also like
StarTech.com 8 Port Rackmount KVM Console with 17″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com SV211DPUA4K 2 Port DisplayPort KVM Switch, 4K 60Hz, USB, Audio, Black
In stock
Belkin F1DN204KVM-UN-4 Secure KVM Switch, 4-Port, 4K Ultra HD 60Hz, HDMI/DisplayPort, Rack Mount, Black
In stock
StarTech.com RKCONS1908K 8 Port Rackmount KVM Console with 19″ 1280×1024 LCD Monitor – Black
In stock
StarTech.com KVM Switch – Seamless 4K Control
We present the StarTech.com 4 Port HDMI KVM Switch – 4K 60Hz, USB 3.0 Hub, 7.1 Audio, Black, an essential tool for professionals managing multiple computers. This KVM switch is perfect for those needing to control four systems from a single workstation. It offers crisp 4K 60Hz video and comprehensive audio integration. This setup significantly streamlines your workspace.
Key Technical Details
| Metric | Spec. |
|---|---|
| Max Resolution | 3840 x 2160 |
| USB Hub | Yes |
| HDMI Version | 2.0 |
| Audio Channels | 7.1 |
| Data Transfer Rate | 5 Gbit/s |
Crystal-Clear 4K Visuals
Experience stunning clarity with 4K resolution at 60Hz. This KVM switch supports Ultra HD HDR, ensuring vibrant and detailed images. It maintains monitor synchronisation with EDID and HDCP emulation. Your desktop settings remain consistent, preventing workflow interruptions.
Integrated USB 3.0 Connectivity
The built-in USB 3.0 hub expands your peripheral sharing capabilities. It allows two additional devices, beyond your keyboard and mouse, to be shared. This eliminates the need for duplicate printers or scanners. It connects all your essential tools to every system.
Comprehensive Audio Support
Enjoy full audio compatibility with this KVM switch. It supports digital audio through compatible displays and sources. Additionally, it includes separate 3.5 mm stereo audio connections. This provides a complete audio experience across all your controlled computers.
Effortless System Switching

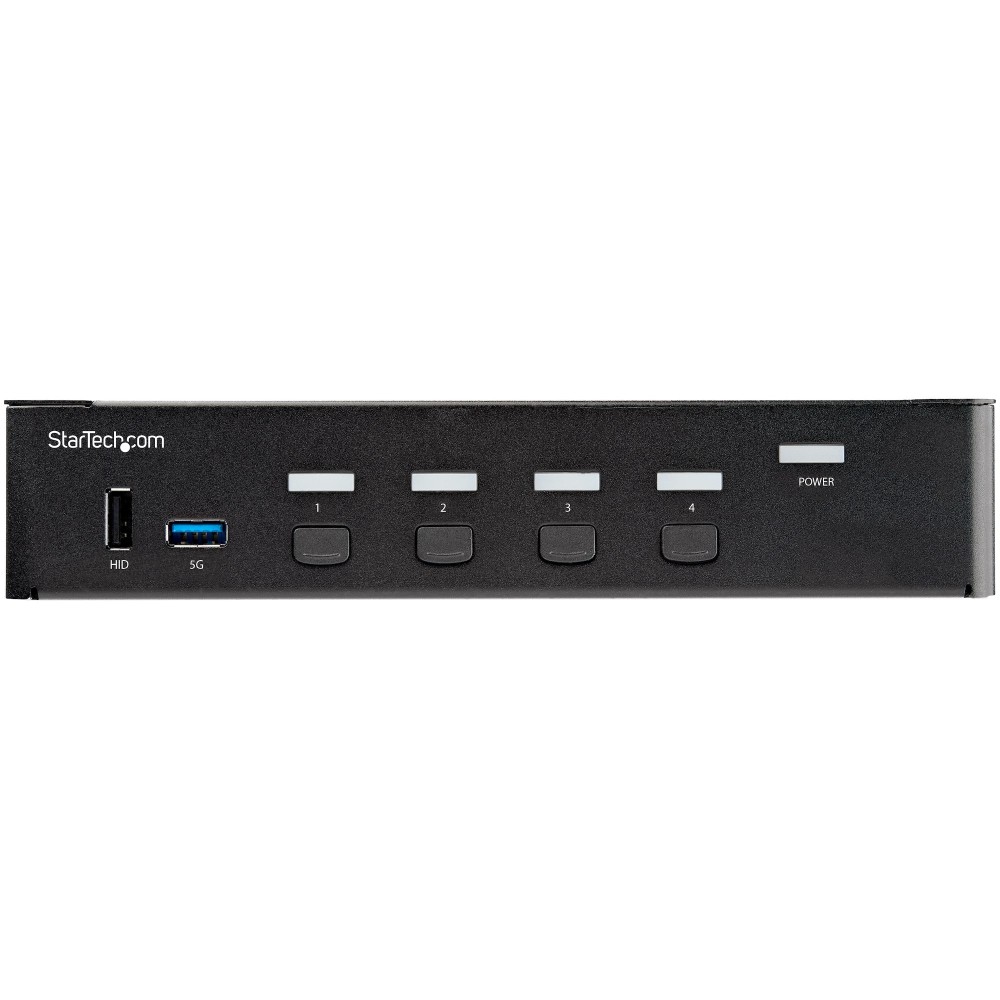

Switching between your four connected systems is fluid and straightforward. Use the front-panel pushbuttons for quick transitions. Hotkey functionality also provides rapid access to each system. A useful buzzer sound confirms every successful switch.
Before You Order
- Confirm your systems use HDMI 2.0 for optimal 4K 60Hz performance.
- Confirm your peripherals are compatible with USB 3.0 and USB 2.0.
- Confirm your audio setup benefits from 7.1 channel support.
Frequently Asked Questions
Q: Can I connect both Windows and Mac computers to this KVM switch?
A: Yes, this KVM switch is compatible with Windows, Mac, and Linux operating systems.
Q: Does this KVM switch support hotkey switching?
A: Yes, it includes hotkey functionality for quick access to your systems.
Q: What is the maximum resolution supported by this device?
A: This KVM switch supports a maximum resolution of 3840 x 2160 pixels (4K Ultra HD) at 60Hz.
Q: Are there LED indicators on the KVM switch?
A: Yes, the unit features LED indicators for operational status.
Our Expert Opinion
This StarTech.com 4 Port HDMI KVM Switch – 4K 60Hz, USB 3.0 Hub, 7.1 Audio, Black is ideal for users needing to manage multiple high-resolution systems efficiently. Its 4K 60Hz support, integrated USB 3.0 hub, and comprehensive audio make it a powerful solution. Warranty cover varies by product, so please contact us to confirm.
| Ports & interfaces | |
|---|---|
| Console USB ports quantity | 4 |
| Console ports | 3.5mm headphone, 3.5mm mic, HDMI, USB A |
| Number of microphone inputs | 5 |
| HDMI version | 2.0 |
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | HDMI |
| Audio connections | Yes |
| Headphone outputs | 5 |
| HDMI ports quantity | 5 |
| DC-in jack | Yes |
| USB hub | Yes |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-B ports quantity | 4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A hub ports quantity | 2 |
| Performance | |
| Daisy chain | No |
| Chipset | Genesys Logic - GL3523 |
| Data transfer rate (max) | 5 Gbit/s |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Scan interval | 3,8,15,30 s |
| Audio channels | 7.1 |
| Technical details | |
| Product colour | Black |
| Scan interval | 3,8,15,30 s |
| Push button | Yes |
| On Screen Display (OSD) | No |
| LED indicators | Yes |
| Hot keys | Yes |
| IP control | No |
| USB hub | Yes |
| Design | |
| Mean time between failures (MTBF) | 143000 h |
| Product colour | Black |
| Push button | Yes |
| LED indicators | Yes |
| Hot keys | Yes |
| Certification | CE, FCC, RoHS |
| Housing material | Steel |
| Display | |
| Built-in display | No |
| On Screen Display (OSD) | No |
| Power | |
| Input current | 1 A |
| Output current | 3 A |
| Power plug type | Type M |
| Compatible power plug types | EU, UK, US |
| Output voltage | 12 V |
| Power consumption (typical) | 36 W |
| Input voltage | 100 - 240 V |
| Video | |
| HD type | 4K Ultra HD |
| Maximum resolution | 3840 x 2160 pixels |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
| Width | 130 mm |
| Depth | 220 mm |
| Height | 44 mm |
| Weight | 1.1 kg |
| Package width | 215 mm |
| Package depth | 411 mm |
| Package height | 89 mm |
| Package weight | 1.8 kg |
| Packaging data | |
| Package width | 215 mm |
| Package depth | 411 mm |
| Package height | 89 mm |
| Package weight | 1.8 kg |
| Packaging content | |
| Rubber feet | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, RoHS |
| Other features | |
| IP control | No |
| Push button | Yes |
| Hot keys | Yes |
| Logistics data | |
| Master (outer) case width | 553 mm |
| Master (outer) case length | 438 mm |
| Master (outer) case height | 255 mm |
| Products per master (outer) case | 6 pc(s) |
| Harmonized System (HS) code | 85176200 |
| Identifiers | |
| Distributor SKUs | V274275, CC61188, 94252, 6989300, 10349699, 375417, CLSV431HU34K6 |
| Additional EANs | 0650308820192 |
