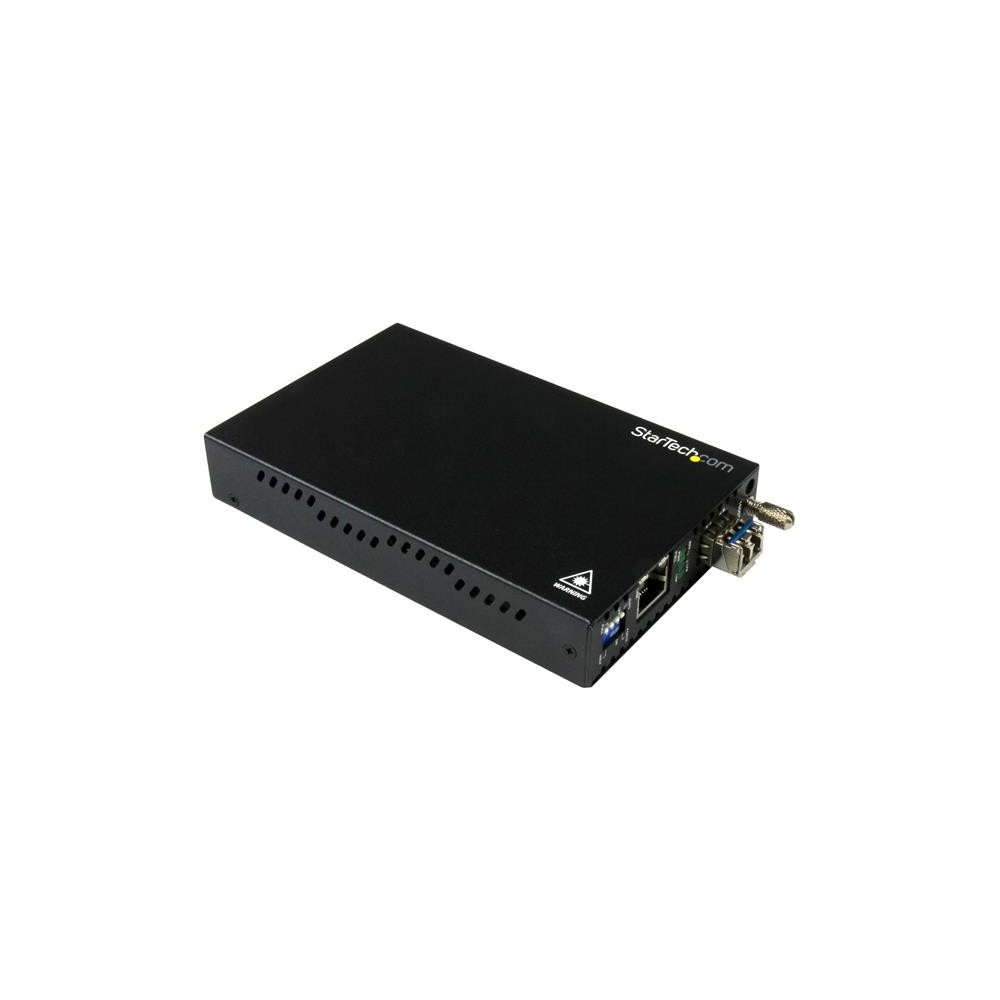

StarTech.com ET91000SM10 Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 10km
£231.82 inc VAT
Out of stock
Out of stock
More Ways to Pay
-
Buy now, pay later with Klarna at checkout
-
Pay in 3 interest-free payments with PayPal at checkout
About This Item
- Gigabit Ethernet copper-to-fiber media converter
- Single-mode LC fibre optic connector
- Maximum transfer distance of 10 km at 1310 nm wavelength
- Supports Jumbo frames up to 9600 bytes and Auto MDI/MDI-X
- Durable plastic and steel housing for reliability
- Includes AC adapter and manual
- Certifications: CE, FCC, TAA, REACH
Payment Methods:
You may also like
StarTech.com ET91000SM10 – Seamless Network Expansion
We offer the StarTech.com ET91000SM10 Gigabit Ethernet Copper-to-Fiber Media Converter, SM LC, 10km for IT professionals seeking reliable network extension. This converter efficiently bridges copper and fibre networks. It ensures greater distance and enhanced security for your critical data.
Key Technical Specifications
| Metric | Spec. |
|---|---|
| Max Transfer Distance | 10 km |
| Fibre Optic Connector | LC |
| Ethernet LAN Data Rates | 1 Gbps |
| Housing Material | Steel |
| MTBF | 65,000h |
Extend Your Network Reach
This media converter allows you to extend your network connection significantly. You can achieve distances of up to 10 km. This is ideal for connecting remote buildings or network segments. It provides a robust solution for campus environments or industrial sites.
Enhanced Data Security
Fibre optic connections offer superior security compared to traditional copper. They are less susceptible to electromagnetic interference. This makes the ET91000SM10 perfect for sensitive government, business, or educational applications. Your data transmission remains secure and clear.
Flexible Deployment Options

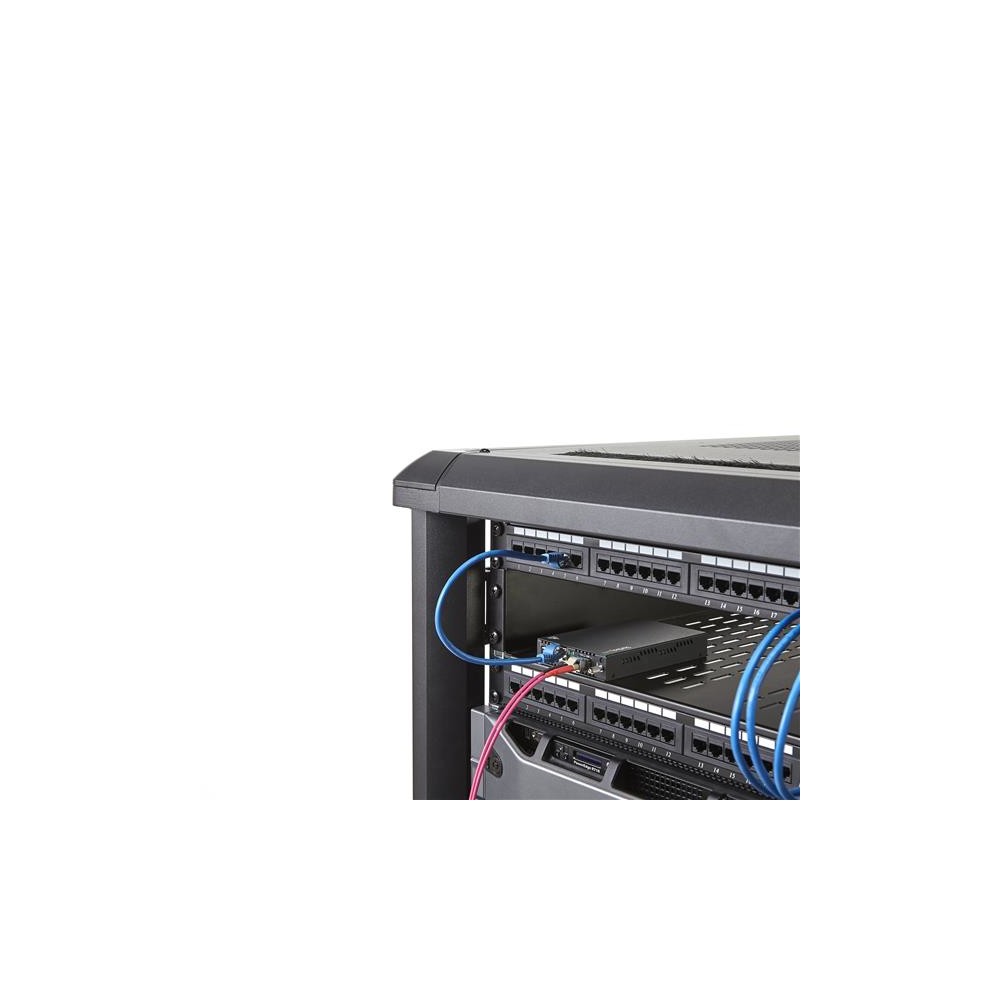

The ET91000SM10 can operate as a standalone unit. Alternatively, it integrates seamlessly into a StarTech.com Rackmount Chassis (ETCHS2U). This flexibility ensures it fits into diverse network infrastructures. You can adapt it to your specific deployment needs.
Robust and Reliable Design
Constructed with a durable steel housing, this converter withstands demanding environments. It is suitable for factories or warehouses. This robust build ensures long-term reliability. It also helps protect your existing copper-based network equipment.
Streamlined Diagnostics
The converter supports various diagnostic protocols. These include Link Fault Passthrough and Auto MDIX. This allows for straightforward network setup and troubleshooting. You can quickly identify and resolve any connection issues.

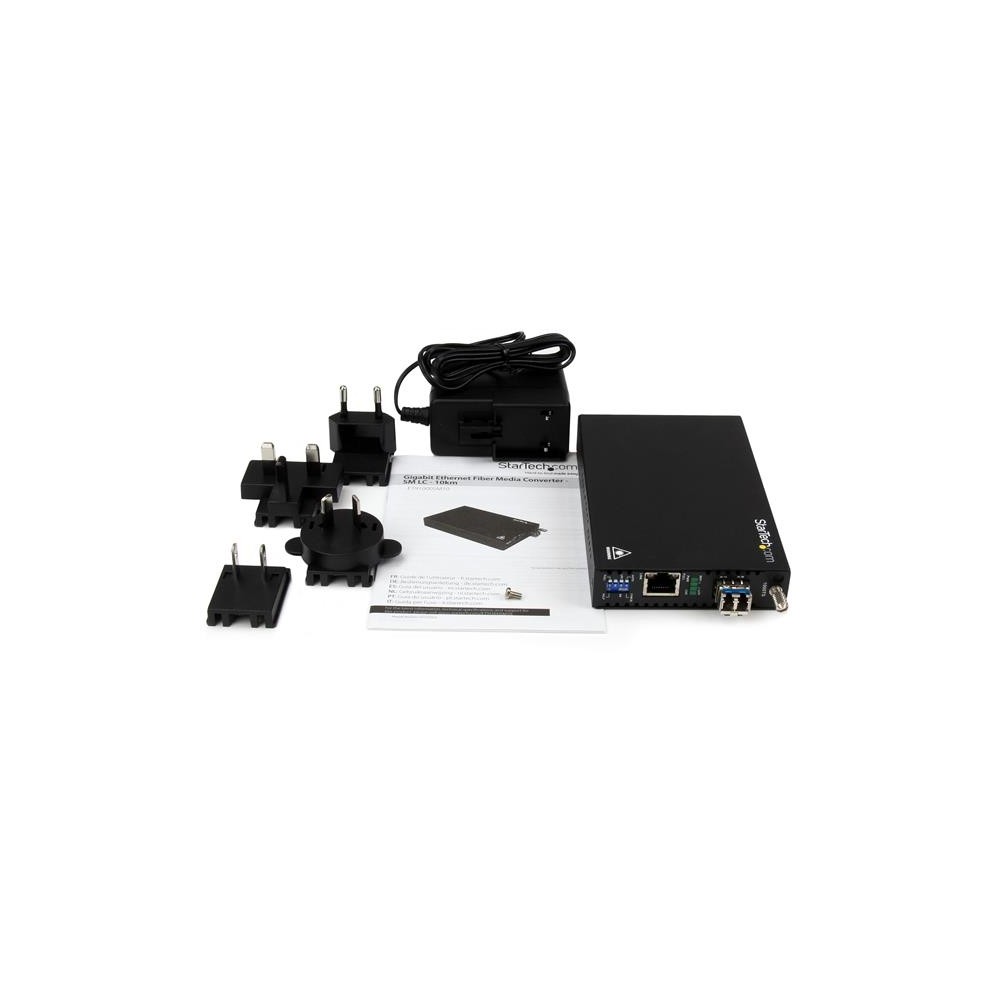

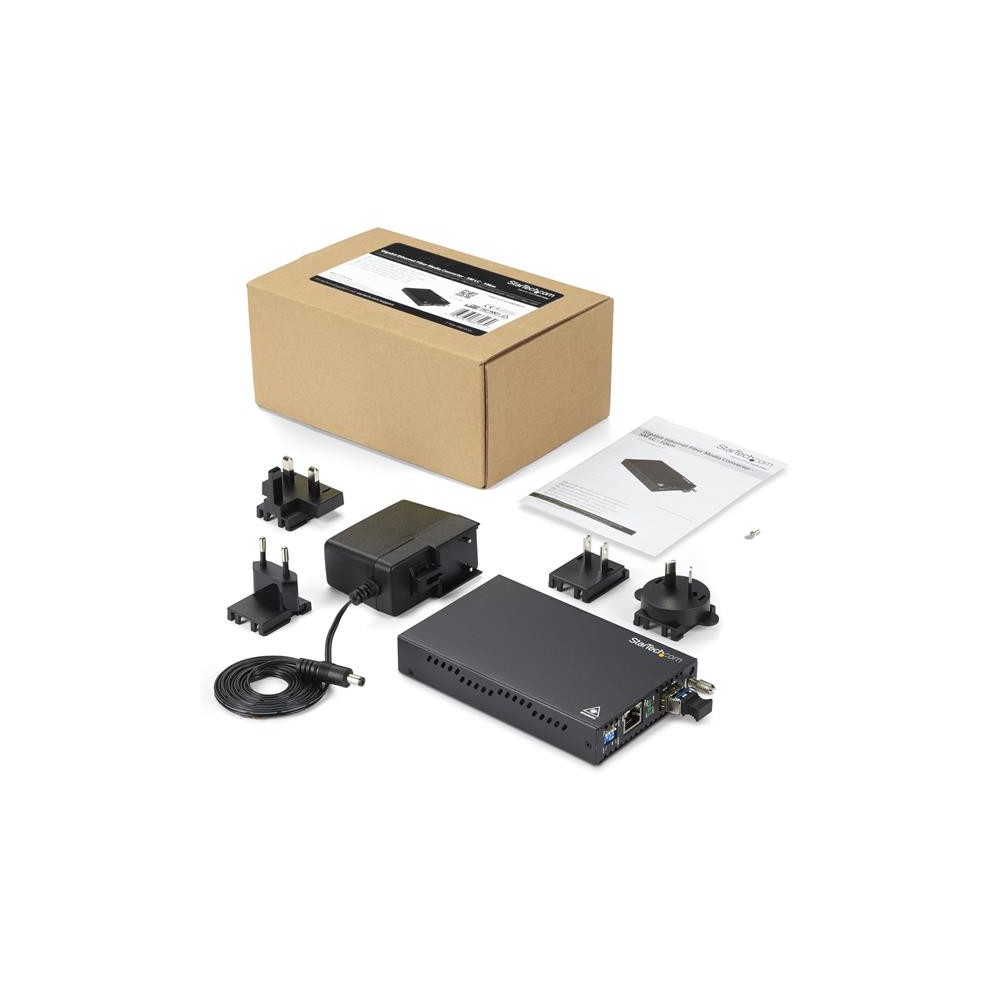

In the Box
- Gigabit Ethernet Copper-to-Fiber Media Converter
- AC adapter
- Instruction manual
Before You Order
- Confirm your existing network infrastructure supports Gigabit Ethernet.
- Confirm your fibre optic cabling uses LC connectors.
- Confirm your power outlet is Type M compatible.
Frequently Asked Questions
Q: What is the maximum distance this converter supports?
A: It supports a maximum transfer distance of 10 kilometres.
Q: What type of fibre optic connector does it use?
A: It uses an LC fibre optic connector.
Q: Can this converter be rack-mounted?
A: Yes, it can be installed into a StarTech.com Rackmount Chassis.
Q: Does it support jumbo frames?
A: Yes, it supports jumbo frames up to 9600 bytes.
Q: What is the housing material?
A: The housing is made of plastic and steel for durability.
Our Recommendation
The StarTech.com ET91000SM10 is an excellent choice for extending Gigabit Ethernet networks over fibre. Its robust design and flexible integration options make it suitable for many professional environments. This converter offers a reliable and secure solution for long-distance connectivity. Warranty cover varies by product, so please contact us to confirm.
| Network | |
|---|---|
| Fiber optic connector | LC |
| Jumbo frames support | Yes |
| Flow control support | No |
| Jumbo frames | 9600 |
| Converter input interface | 1000Base-T |
| Networking standards | IEEE 802.3ab, IEEE 802.3z |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Ethernet interface type | Gigabit Ethernet |
| Duplex system | Full, Half |
| Converter output interface | 1000Base-LX |
| Auto MDI/MDI-X | Yes |
| Maximum data transfer rate | 2000 Mbit/s |
| Technical details | |
| Housing material | Plastic, Steel |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Performance | |
| Jumbo frames support | Yes |
| Flow control support | No |
| Wavelength-division multiplexing (WDM) | No |
| Wavelength | 1310 nm |
| Maximum transfer distance | 10000 m |
| Fiber mode structure | Single-mode |
| Mean time between failures (MTBF) | 65000 h |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Fiber optic connector | LC |
| Indication | |
| LED indicators | Link, Power |
| Design | |
| Housing material | Plastic, Steel |
| LED indicators | Link, Power |
| Product colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 65000 h |
| Power | |
| Power plug type | Type M |
| Power consumption (max) | 19.2 W |
| Power over Ethernet (PoE) | No |
| Input voltage | 100 - 240 V |
| Input current | 0.48 A |
| Output voltage | 12 V |
| Output current | 1.6 A |
| Colour | |
| Product colour | Black |
| Weight & dimensions | |
| Width | 88 mm |
| Depth | 163 mm |
| Weight | 411 g |
| Height | 23 mm |
| Package depth | 136 mm |
| Package width | 206 mm |
| Package height | 90 mm |
| Package weight | 774 g |
| Operational conditions | |
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Packaging data | |
| Package depth | 136 mm |
| Package width | 206 mm |
| Package height | 90 mm |
| Package weight | 774 g |
| Packaging content | |
| AC adapter included | Yes |
| Manual | Yes |
| Certificates | |
| Certification | CE, FCC, TAA, REACH |
| Logistics data | |
| Harmonized System (HS) code | 85176990 |
| Identifiers | |
| Distributor SKUs | V209739, V933699, 4462060, 280902, CLET91000SM10 |
| Additional EANs | 5057103082988 |
