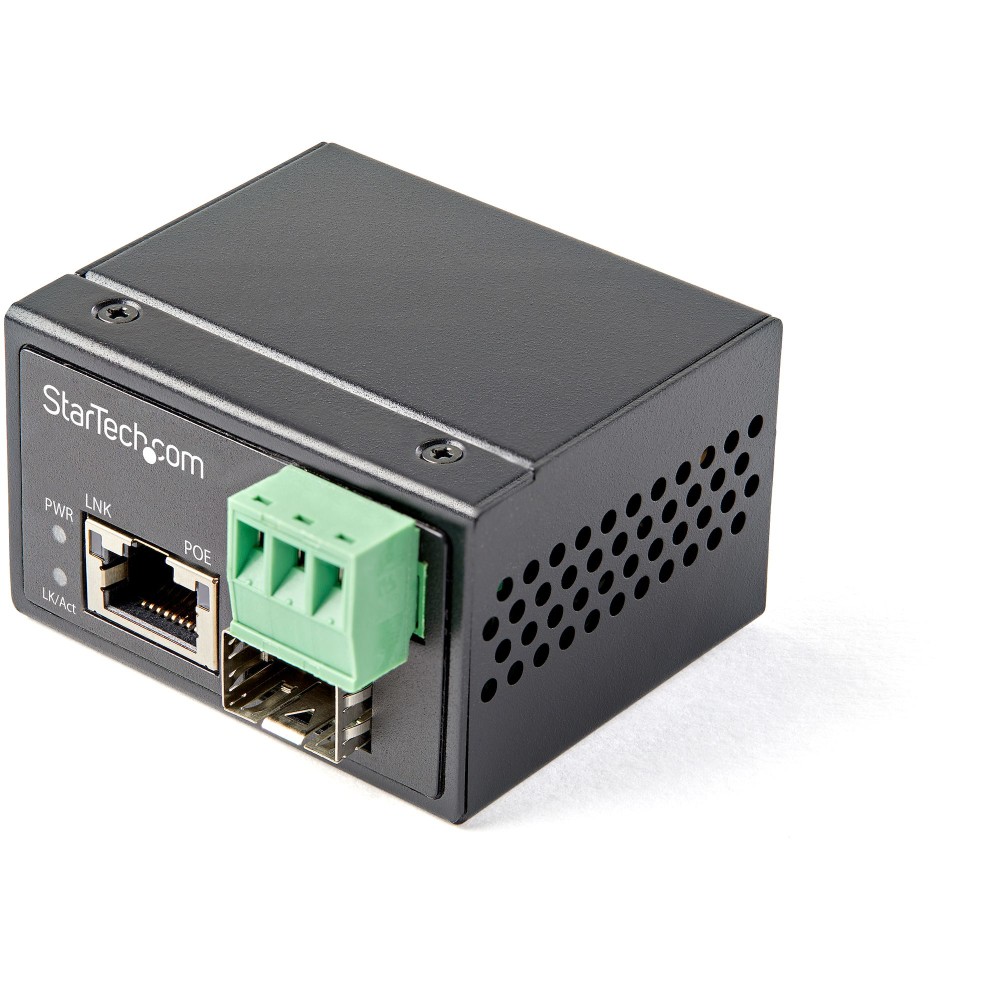

StarTech.com IMC1GSFP30W Industrial PoE+ Fibre to Ethernet Media Converter 30W Black
£221.81
Out of stock
Out of stock
-
DPD tracked delivery
-
Buy now, pay later with Klarna
-
Pay in 3 instalments with PayPal
About This Item
- Gigabit Ethernet (1000 Mbit/s) with PoE+ (30W total budget)
- Supports multi-mode and single-mode fibre with SFP connector
- Robust aluminium housing with IP30 rating for industrial environments (-40 to 75 °C operating temperature)
- Compact size (36mm W x 59mm D x 49mm H) with DIN rail mounting option
- Jumbo frames support up to 16000 bytes and flow control
- 500,000 hours Mean Time Between Failures (MTBF)
Available alternatives
StarTech.com HPE J9150D Compatible SFP+ Module 10GbE Multi-Mode LC Transceiver 300m 850nm Silver
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
You may also like
StarTech.com Multi-Mode LC Fibre Media Converter 10/100/1000 Networks 550m Black
In stock
StarTech.com Gigabit Ethernet to Fibre Media Converter MM/SM Open SFP Slot TAA Black
In stock
TP-Link Omada 10G SFP Media Converter
In stock
StarTech.com HPE J9151E Compatible SFP+ Transceiver Module 10GbE 10km LC 1310nm DDM Silver
In stock
StarTech.com Gigabit Ethernet to SC Fibre Media Converter, Single-Mode, 1310nm, 10km
In stock
StarTech.com IMC1GSFP30W – Robust Connectivity for Demanding Environments
We present the StarTech.com IMC1GSFP30W Industrial PoE+ Fibre to Ethernet Media Converter 30W Black, an essential component for extending your network’s reach. This unit is ideal for industrial applications requiring reliable data and power transmission over long distances. It seamlessly converts fibre optic links to PoE-enabled copper Ethernet connections.
Core Performance Metrics
| Metric | Spec. |
|---|---|
| Max Data Transfer Rate | 1000 Mbit/s |
| Total PoE Budget | 30 W |
| Operating Temperature Range | -40 to 75 °C |
| IP Rating | IP30 |
| MTBF | 500000 h |
Power Your Devices Remotely
This media converter delivers up to 30 watts of power. This is sufficient for a wide array of PoE devices. You can power surveillance cameras, wireless access points, or even lighting. This simplifies deployments in remote or hard-to-reach locations.
Built for Harsh Conditions
The robust aluminium housing and IP30 rating ensure durability. It operates reliably in extreme temperatures, from -40°C to 75°C. This makes it perfect for factories, warehouses, and outdoor installations. The compact size allows for versatile placement.
Flexible Fibre Integration
The open SFP slot provides significant flexibility. You can choose any MSA-compliant Gigabit SFP module. This allows customisation for single-mode or multi-mode fibre connections. It integrates smoothly with your existing fibre infrastructure.
Seamless Network Extension
It supports 10/100/1000Base-T Ethernet networks with auto-negotiation. This bridges different speed networks effectively. You can extend your network over fibre without performance compromise. Jumbo frame support up to 16000 bytes is also included.
Before You Order
- Confirm your SFP module is MSA compliant for optimal performance.
- Check the power requirements of your PoE devices do not exceed 30W.
- Ensure the operating environment falls within the -40 to 75°C range.
- Verify space is available for the compact 36 x 59 x 49 mm unit.
Frequently Asked Questions
Q: Can this converter be installed on a DIN rail?

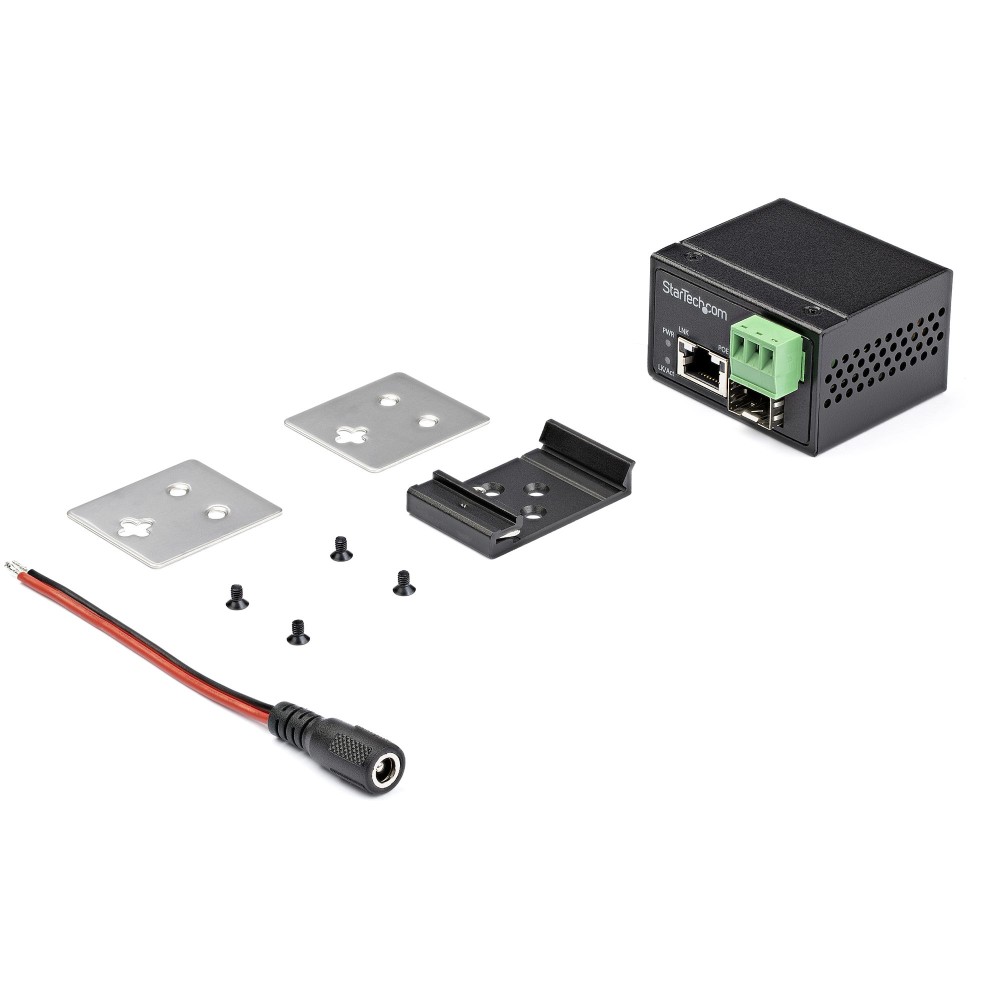

A: Yes, it includes DIN mounting rails for easy installation.
Q: What types of fibre does it support?
A: It supports both single-mode and multi-mode fibre, depending on your SFP.
Q: What is the maximum power output for connected devices?
A: The total Power over Ethernet budget is 30 watts.
Q: What is the operating temperature range?
A: It operates reliably from -40°C to 75°C.
Q: Does it support jumbo frames?
A: Yes, it supports jumbo frames up to 16000 bytes.
Our Verdict
The StarTech.com IMC1GSFP30W Industrial PoE+ Fibre to Ethernet Media Converter 30W Black is an excellent choice for expanding networks in challenging industrial settings. Its rugged design and flexible SFP slot offer robust, adaptable solutions. It is backed by a 2-year warranty from StarTech.com.
| Network | |
|---|---|
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Jumbo frames | 16000 |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3z |
| Duplex system | Full |
| Maximum data transfer rate | 1000 Mbit/s |
| Fibre optic connector | SFP |
| Performance | |
| Maximum transfer distance | 100 m |
| Fibre mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Mean time between failures (MTBF) | 500000 h |
| Jumbo frames support | Yes |
| Flow control support | Yes |
| Features | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Internal | No |
| Ports & interfaces | |
| Connectivity technology | Wired |
| Ethernet LAN (RJ-45) ports | 1 |
| Fibre ports quantity | 1 |
| Fibre optic connector | SFP |
| Power | |
| Power plug type | Type N |
| Power over Ethernet (PoE) | Yes |
| Total Power over Ethernet (PoE) budget | 30 W |
| Input voltage | 48 - 56 V |
| Weight & dimensions | |
| Width | 36 mm |
| Depth | 59 mm |
| Weight | 80 g |
| Height | 49 mm |
| Package depth | 108 mm |
| Package width | 161 mm |
| Package height | 66 mm |
| Package weight | 204.9 g |
| Operational conditions | |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Packaging content | |
| Quick installation guide | Yes |
| Packaging data | |
| Package depth | 108 mm |
| Package width | 161 mm |
| Package height | 66 mm |
| Package weight | 204.9 g |
| Technical details | |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Maximum transfer distance | 100 m |
| Fibre mode structure | Multi-mode, Single-mode |
| Buffer size | 512 KB |
| Internal | No |
| Harmonized System (HS) code | 85176990 |
| Compliance certificates | RoHS |
| Design | |
| DIN rail mounting | Yes |
| International Protection (IP) code | IP30 |
| Housing material | Aluminium |
| Product colour | Black |
| Certification | CE, FCC |
| Internal | No |
| Endurance | |
| Mean time between failures (MTBF) | 500000 h |
| Colour | |
| Product colour | Black |
| Certificates | |
| Certification | CE, FCC |
| Compliance certificates | RoHS |
| Logistics data | |
| Master (outer) case width | 364 mm |
| Master (outer) case length | 372 mm |
| Master (outer) case height | 250 mm |
| Products per master (outer) case | 20 pc(s) |
| Harmonized System (HS) code | 85176990 |
